Analysis Plus Black Mesh Oval 9 Speaker Cable - 6 Foot - Spade to Banana - Pair

Analysis Plus Black Mesh Oval 9 Speaker Cable - 6 Foot - Spade to Banana - Pair

What It Does in Your System

Built by the People Other Cable Companies Hired

Analysis Plus started out in Flushing, Michigan doing testing work for cable brands you'd know by name. After studying the field from the inside, they decided they could build something better. The hollow oval conductor is what came out of that work.

Oval 9 has been their best seller for years. Black Mesh is the current version, with better connectors and a new dielectric — the insulation around the wire — that responds faster to the signal.

An Oval Shape That Spreads the Current Evenly

Analysis Plus ran extensive computer models before settling on a hollow oval shape. In a round wire, current crowds toward the outside as the pitch gets higher. That uneven flow is one reason some cables sound tonally lopsided.

The oval shape spreads current much more evenly across the whole conductor. You hear that as consistency. Bass keeps pace with treble, and the tonal balance holds steady even when the music gets busy.

Nine-Gauge Copper, Woven and Finished by Hand

Oval 9 is a thick 9-gauge cable made from oxygen-free copper. There's plenty of metal here to carry deep bass at high volume without strain.

Instead of one solid wire, which can kink and deform over time, Analysis Plus weaves many strands into a braid. The pattern puts every strand about the same distance from the return current. That braid can't be machine-terminated, so each cable gets more than an hour of handwork before it ships.

Is This Right for You?

A few things to check before you order:

• Mixed ends solve a specific problem. Pick this version when one component takes a spade easily and the other works better with a banana. That's common when speaker terminals sit tight against the cabinet, or an amp has recessed posts. If both ends of your system take the same connector, one of our matched versions will suit you better.
• This is a complete pair. You get two 6-foot cables, one for each speaker. There's no need to order two.
• Nine gauge is a thick cable. It's heavier and stiffer than lamp cord. Give it a gentle curve behind your speakers instead of a sharp corner.

Setup & Installation

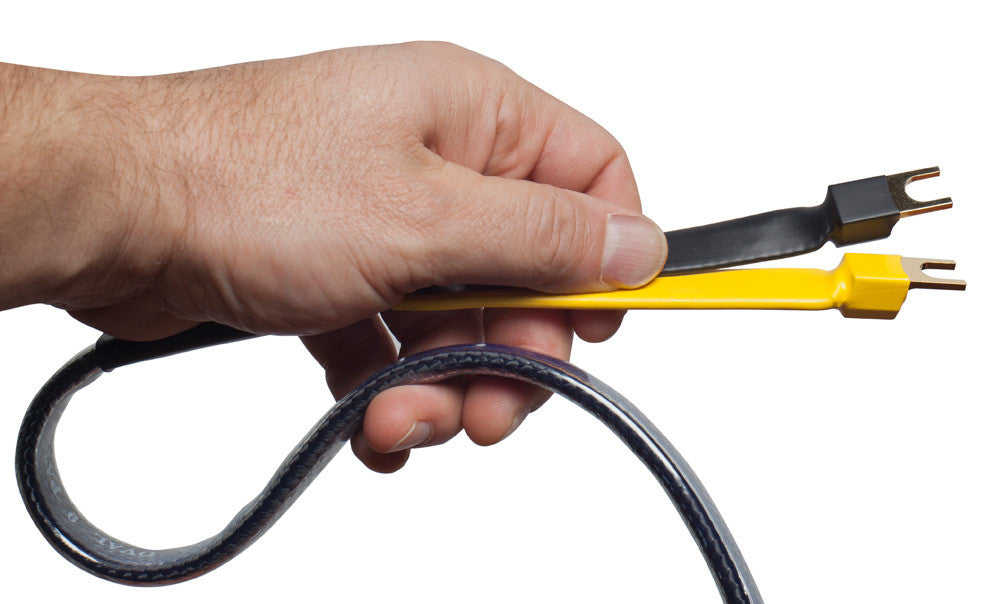

Put each end where it fits. The spade slides under a binding post nut, and you tighten it by hand until it sits flat. The banana pushes into the binding post socket until it seats. Watch your polarity: red to positive, black to negative, the same way on both channels.

Six feet suits speakers set a normal distance from your rack. Measure the real path the cable will travel, not the straight line, and leave a little slack so its weight doesn't pull on the connectors.

Features & Specifications

Patented Hollow Oval Geometry
The oval shape keeps resistance steady across the whole audio range, so current spreads evenly and tone stays balanced.

Woven Braided Conductor
Every strand sits about the same distance from the return current, and the braid resists the kinks that ruin solid wire.

9-Gauge Oxygen-Free Copper
A thick conductor delivers deep bass at high volume without squeezing the sound.

Upgraded Dielectric and Connectors
Black Mesh adds faster insulation and better connectors than the original Oval 9, with over an hour of handwork per cable.

Specifications

• Length: 6 feet
• Termination: Spade to banana
• Quantity: Matched pair (two cables)
• Gauge: 9 AWG
• Conductor: Oxygen-free copper
• Geometry: Patented hollow oval, oval-coaxial configuration
• Conductor Construction: Woven braid
• Jacket: Black mesh
• Termination Method: Handcrafted
• Made in: Flushing, Michigan, USA

Frequently Asked Questions

Is this one cable or two?
Two. You get a matched pair, one cable per speaker. A single order connects your amplifier to both speakers.

Which end goes to the amplifier?
Either one — it makes no electrical difference. Let your hardware decide. Whichever component has the more awkward terminals gets the connector that fits them best.

How is Black Mesh different from the original Oval 9?
It keeps what made Oval 9 a best seller — the hollow oval shape and the braided copper. It adds better connectors, faster insulation, and further tuning of the oval shape for more even current flow.
