Analysis Plus Black Mesh Oval 9 Speaker Cable - 8 Foot - Banana to Spade - Pair

Analysis Plus Black Mesh Oval 9 Speaker Cable — 8 Foot — Banana to Spade — Pair

What It Does in Your System

The Cable That Made Analysis Plus Famous

Oval 9 has been the best-selling Analysis Plus speaker cable for years, and Black Mesh is its current version. It keeps everything that made the original work while adding better connectors, an improved dielectric, and the black woven jacket the name refers to.

This is a heavy 9 AWG copper cable built to move real power. It handles deep bass at high volume without strain, and it stays fast and detailed without the edge some listeners associate with silver.

The Patented Hollow Oval Conductor

Analysis Plus engineers Mark Markel and Qinwei Sun studied why conventional cable falls short. Round conductors let current bunch up unevenly. Rectangular ones concentrate the electric field at their sharp corners, which can cut into the insulation every time the cable flexes.

Computer simulation pointed them to a hollow oval instead. Analysis Plus reports that this shape shows the smallest change in resistance as frequency rises — the property that matters most for keeping treble intact.

Braided Copper, Terminated by Hand

The conductor is oxygen-free copper, braided rather than solid. A solid conductor can kink or deform permanently when you route it around furniture. A braid flexes and recovers.

That braid makes the cable harder to terminate. Analysis Plus says each Oval 9 cable takes over an hour of handwork to finish, because the hollow oval cross-section will not accept a machine-crimped connector.

Is This Right for You?

Check these before ordering:

• Confirm the connector orientation. This pair has banana plugs on one end and spade lugs on the other. Make sure the banana end suits your amplifier and the spade end suits your speakers — or call us and we will confirm it before the order ships.
• You have a real amplifier behind it. A 9 AWG cable exists to carry current. It makes the most sense with a speaker that draws serious power and an amp that can deliver it.
• This is a full-range cable, not a bi-wire set. One connector per polarity at each end. If your speakers have four posts and you want to bi-wire, order the bi-wire version instead.

Setup & Installation

Bananas push straight into the binding post — no tools needed, just a firm press so the plug seats fully. Spades need the collar loosened first, then slipped around the post and tightened by hand until snug. Do not over-tighten, since that can crack a plastic collar.

Match red to red and black to black on both ends. At 9 AWG this cable has real weight, so leave a gentle curve at each connection rather than a sharp bend, and make sure the cable is not hanging off its own connectors.

Features & Specifications

Patented Hollow Oval Geometry
An oval cross-section that Analysis Plus found holds resistance steadiest as frequency rises.

9 AWG Oxygen-Free Copper
A large conductor with the current capacity to handle deep bass at high volume.

Braided Conductor Construction
Flexible braid instead of solid wire, so routing the cable will not leave a permanent kink.

Hand-Terminated Connectors
Over an hour of handwork per cable, since the hollow oval shape rules out machine termination.

Specifications

• Conductor gauge: 9 AWG
• Conductor material: Oxygen-free copper
• Conductor construction: Braided
• Geometry: Patented hollow oval, oval-coaxial configuration
• Jacket: Black woven mesh
• Length: 8 feet
• Quantity: Pair (two cables)

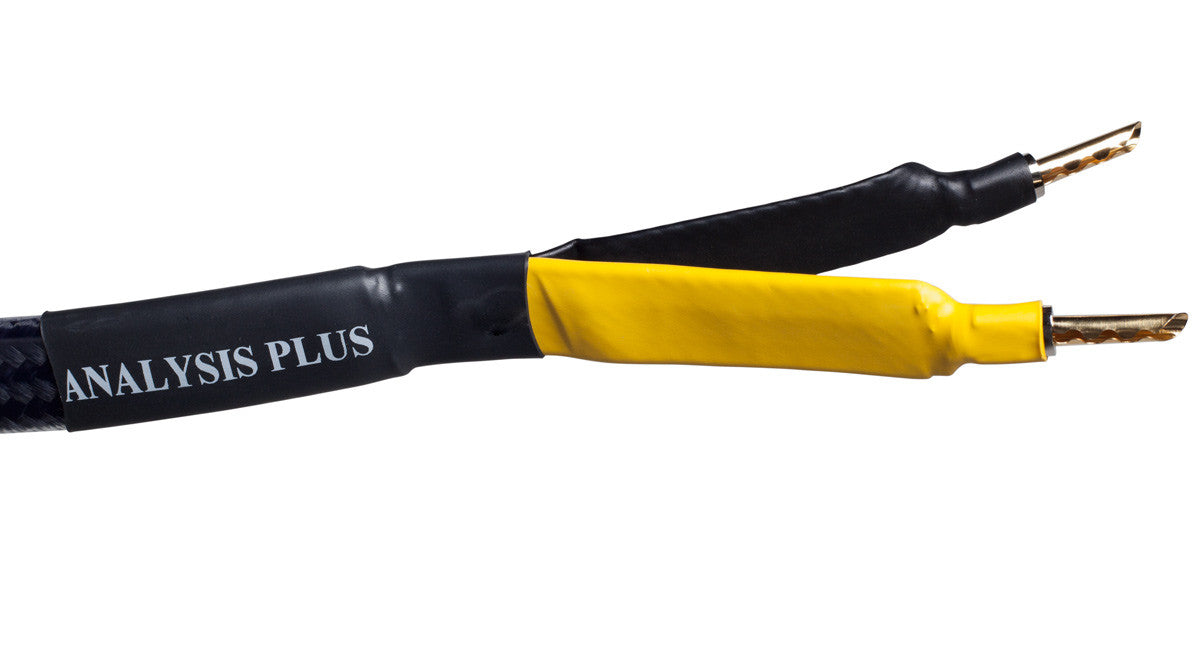

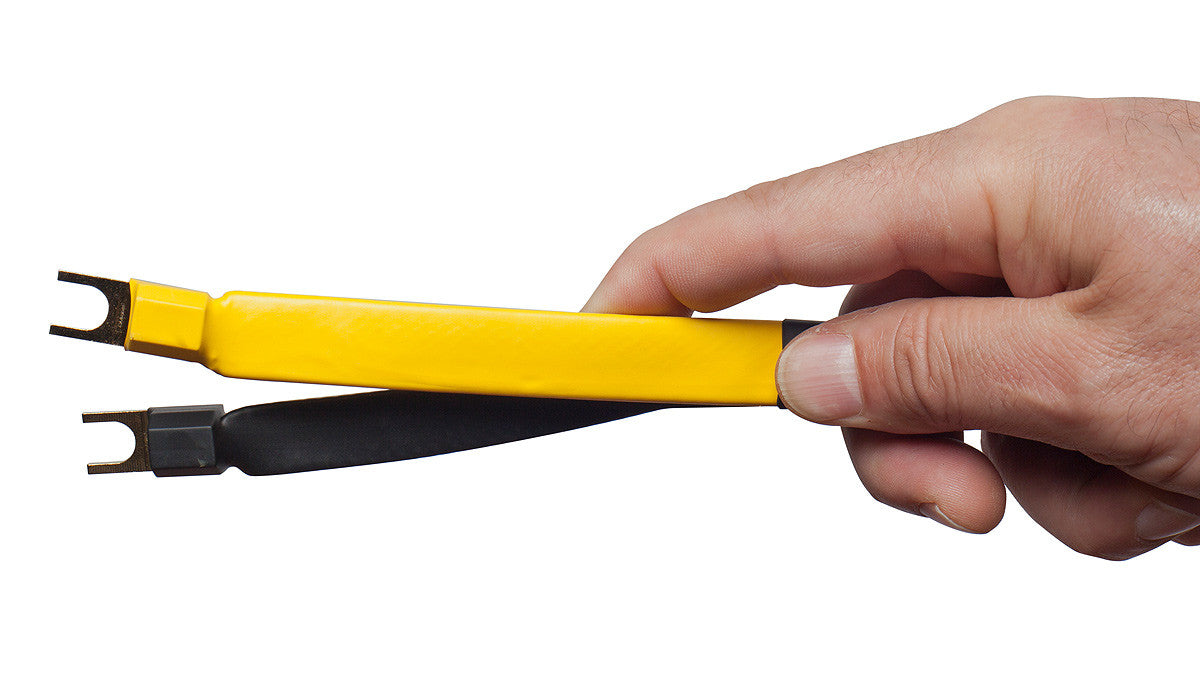

• Termination: Banana plugs one end, spade lugs the other
• Made in: Flushing, Michigan, USA

Frequently Asked Questions

How is Black Mesh different from the original Oval 9?
Same core design. Black Mesh adds better connectors, a dielectric with a faster rise time, and a refined oval geometry for more even current distribution — plus the black woven jacket. Everything that made the original a long-running favorite carries over.

Which end goes to the amplifier?
That depends on which connector your equipment takes. Bananas suit recessed or EU-style binding posts that will not accept a spade. Spades make broader clamped contact and support a heavy cable well. If you are unsure which end belongs where, call us at (800) 942-0220.

Do I need 9 gauge?
Heavier wire lowers resistance, which matters most on long runs and with speakers that dip to low impedance. At 8 feet the electrical case is modest. What you are really buying here is the conductor geometry and the build quality.
