iFi LAN iSilencer

Reduce Electrical Noise on a Wired Network Connection

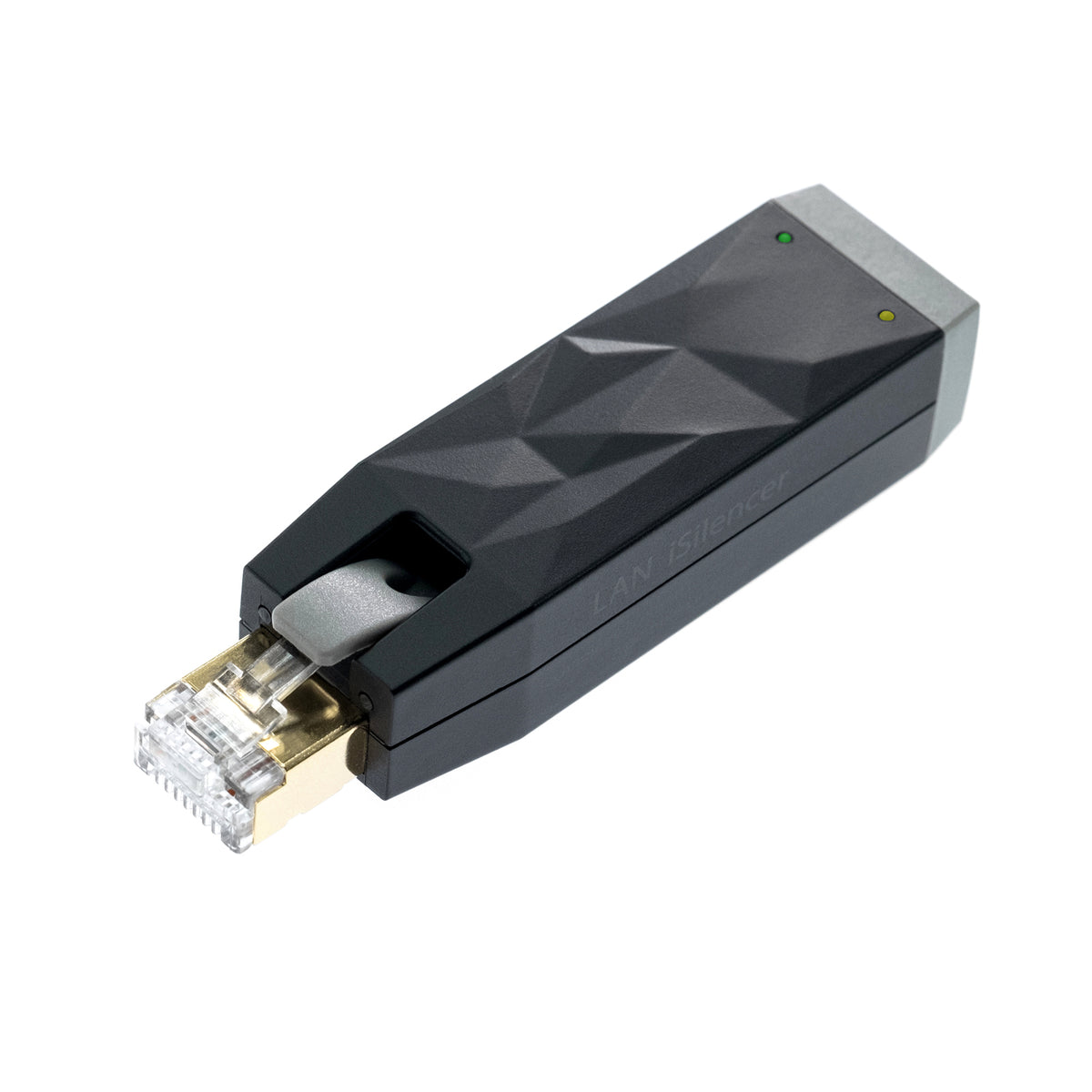

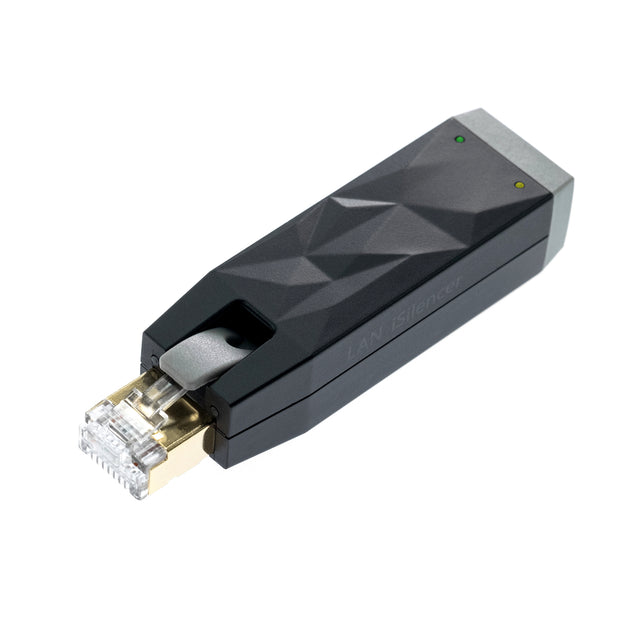

The iFi LAN iSilencer is a passive inline Ethernet filter for network streamers, music servers, computers, smart televisions, and other RJ45-equipped components. It is designed to reduce electrical noise and ground-related interference traveling through a copper network connection before that noise reaches sensitive audio circuitry. The compact device combines galvanic isolation, radio-frequency filtering, a shielded enclosure, and transient-voltage suppression without requiring software or a separate power supply.

Ethernet data is digital, but the cable and attached hardware remain electrical connections. Routers, switches, computer power supplies, and long cable runs can introduce radio-frequency energy or differences in ground potential. The LAN iSilencer separates the input and output grounds and filters unwanted high-frequency energy while preserving the network connection. It supports 10BASE-T, 100BASE-T, and 1000BASE-T Gigabit Ethernet.

Who Is This In-Line Filter Best For?

• Network-streaming systems connected by copper Ethernet.
• Listeners whose router or network switch shares space with audio equipment.
• Systems with long Ethernet runs or several powered network devices.
• Music servers, streamers, smart TVs, and computers with an available RJ45 port.
• Installers seeking a passive, plug-and-play network-noise treatment.

The LAN iSilencer is not a network extender, Wi-Fi booster, switch, surge protector for the entire system, or substitute for repairing a faulty cable. It will not increase internet speed or solve buffering caused by inadequate bandwidth. Its role is reducing electrical interference on an otherwise functioning wired network link.

How (and Where) Does It Connect to Your System?

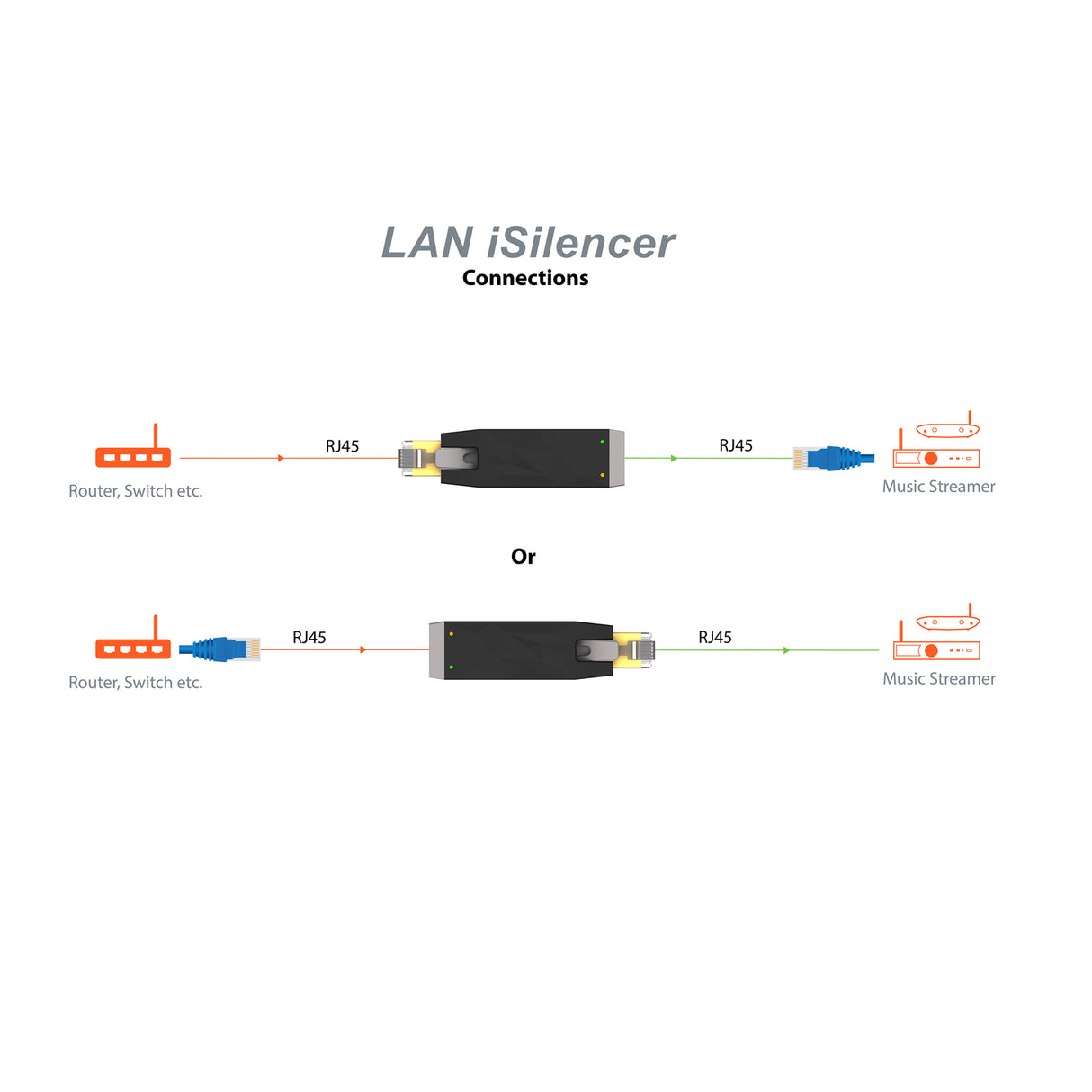

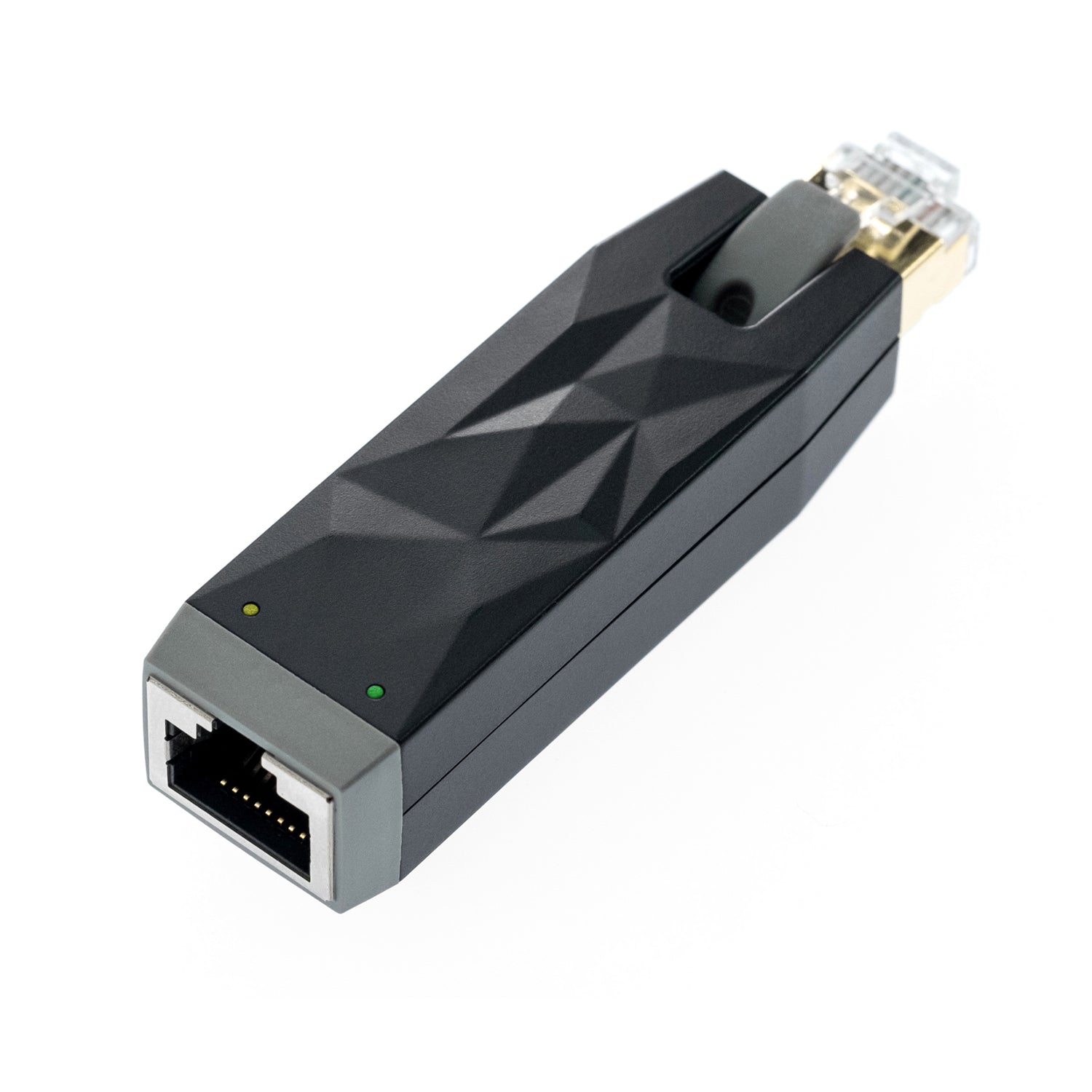

The male RJ45 plug inserts directly into a network device. A standard Ethernet cable then plugs into the female RJ45 socket on the other end. The filter may be installed at several useful locations:

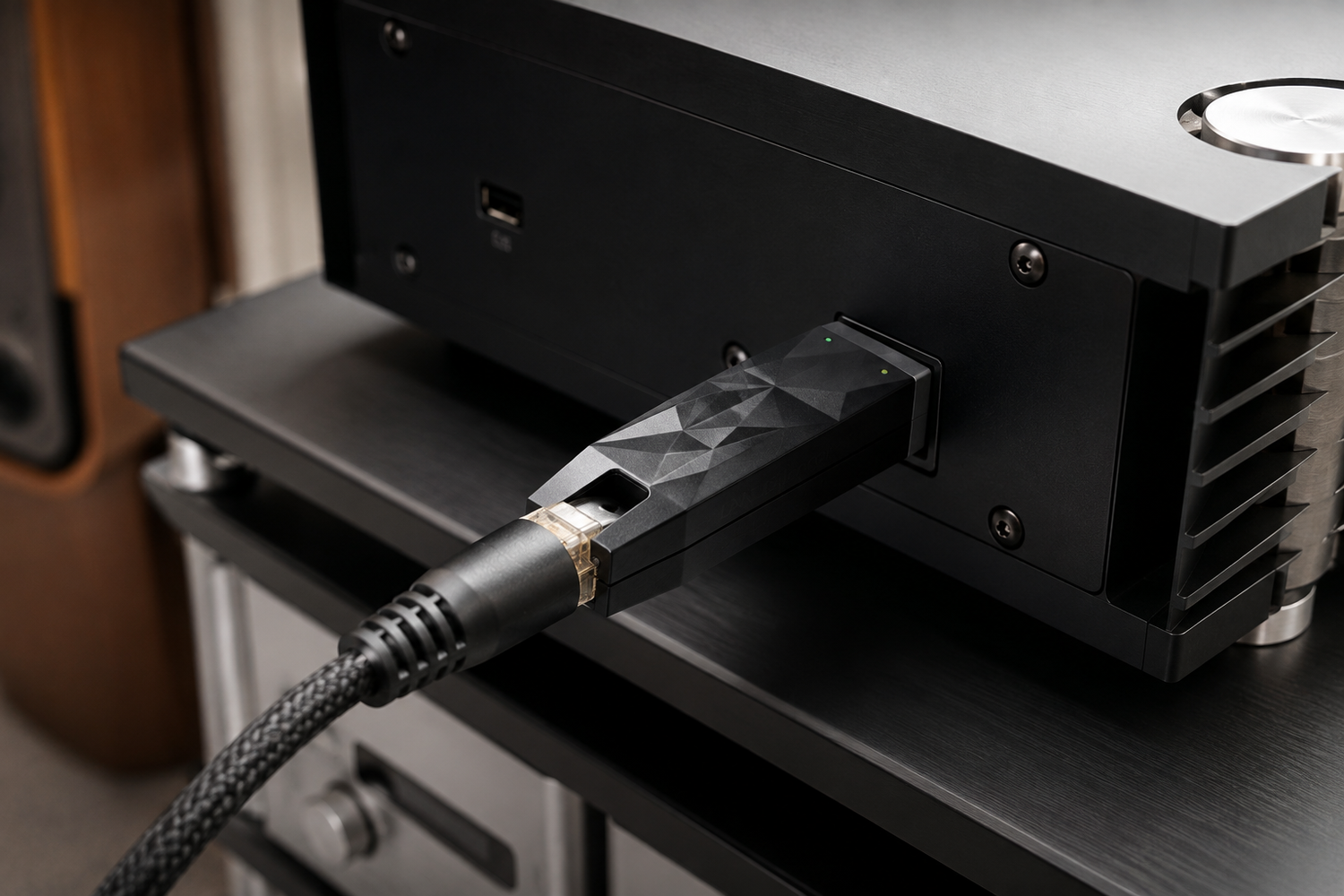

• Directly at the Ethernet input of a network streamer or music server.

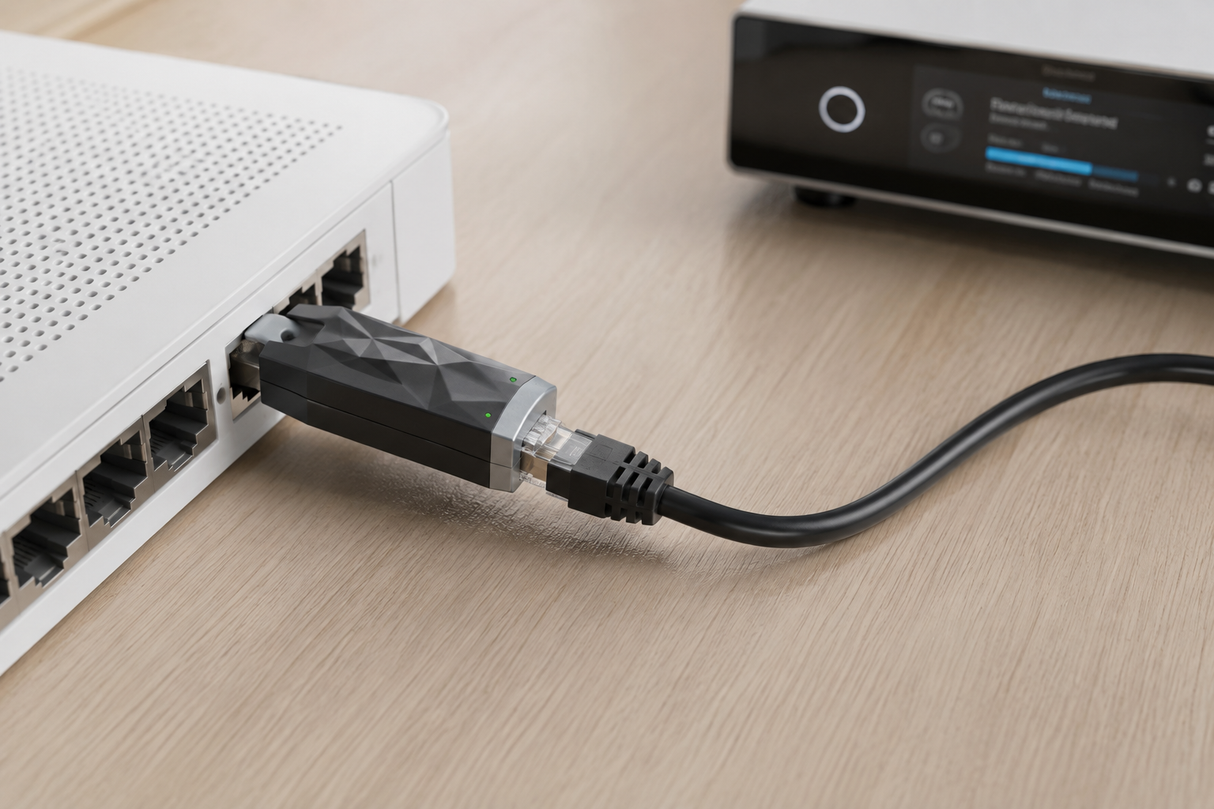

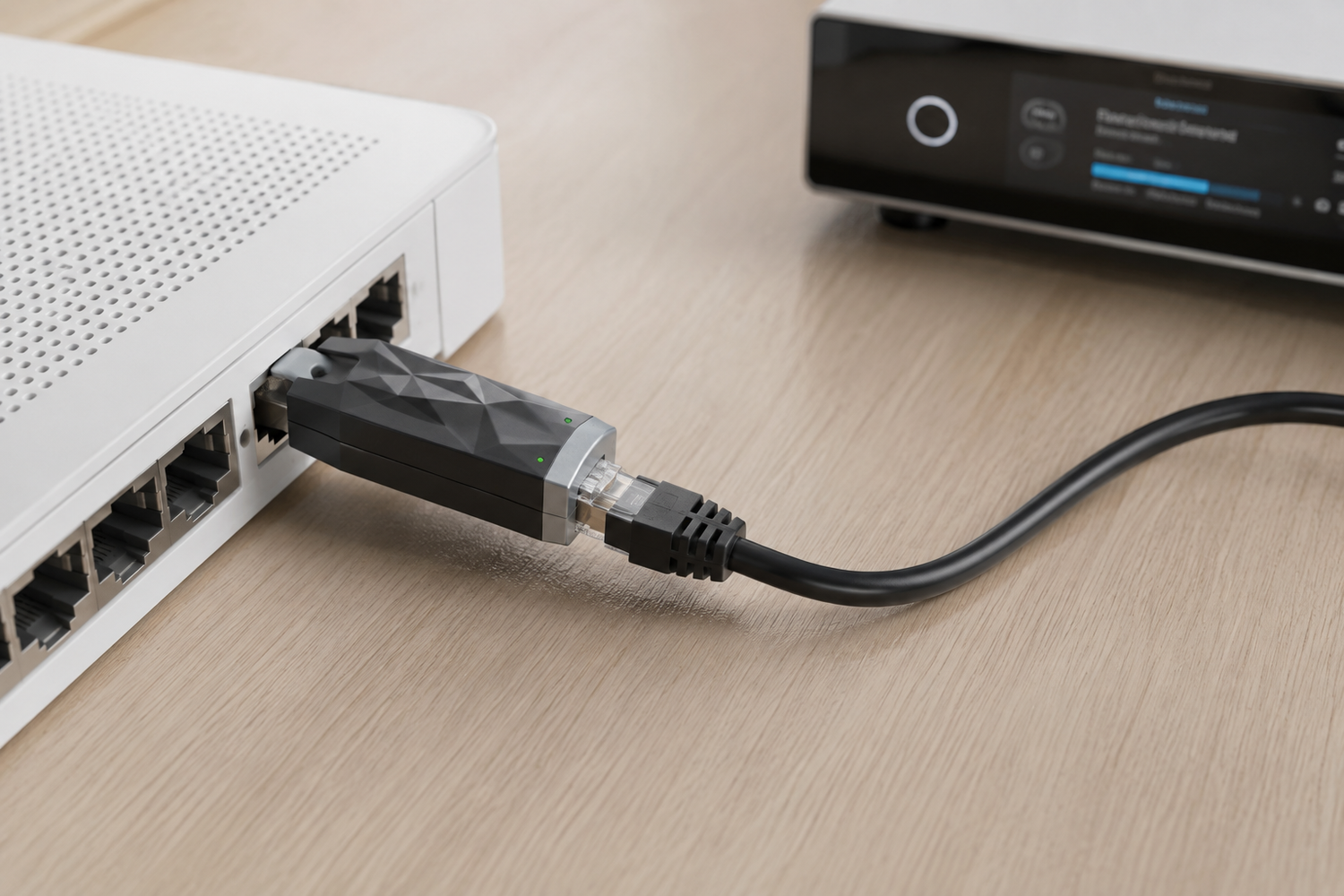

• At an available LAN port on a router.

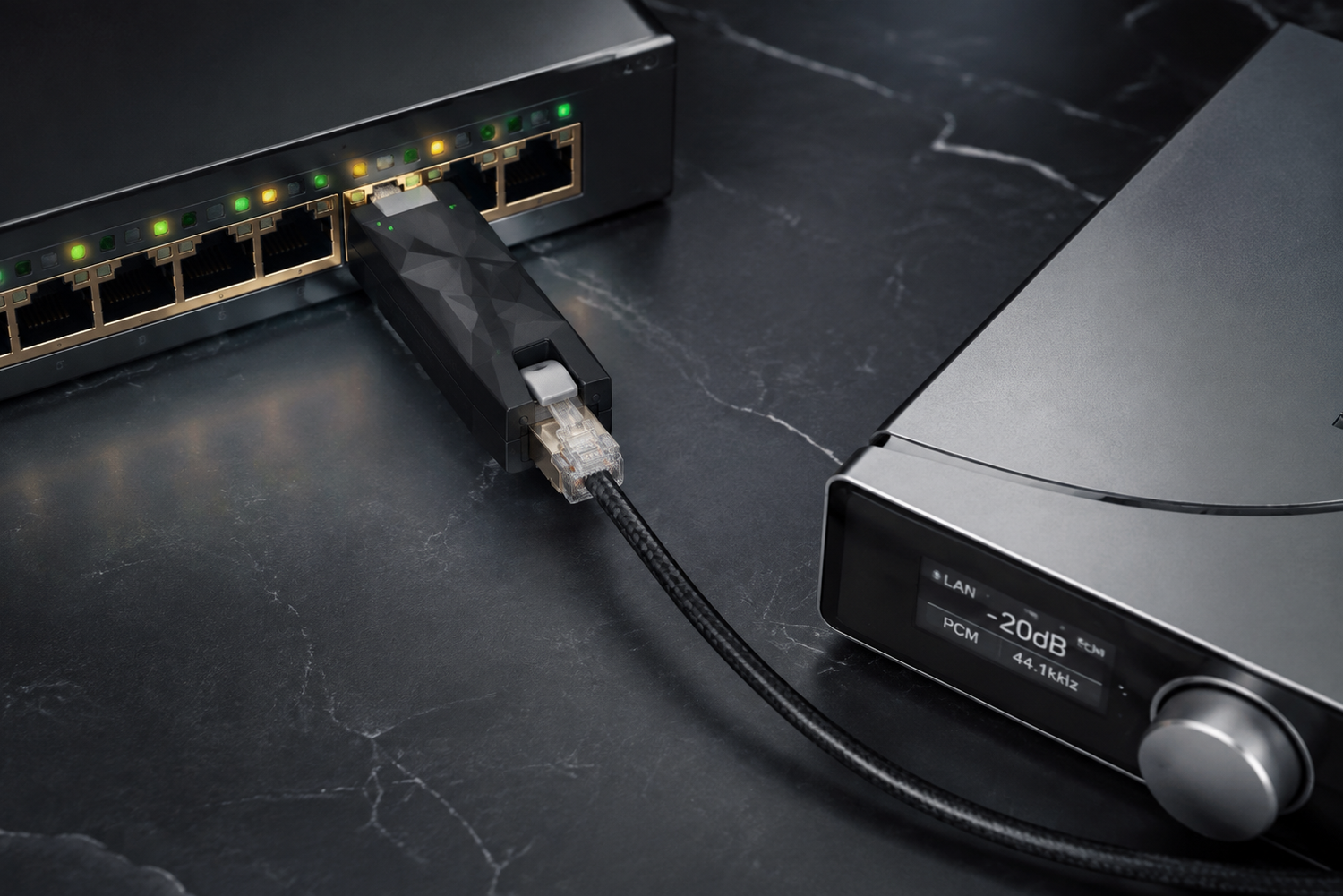

• At the output of a network switch.
• At an RJ45 wall socket before the final cable run.
• At the wired Ethernet connection of a smart television or computer.

For audio use, placing it close to the streamer is often the most direct choice because it filters the connection immediately before it enters the component. If clearance behind the equipment is limited, install it at the switch, router, or wall socket instead. No settings, drivers, firmware, or power connection are required.

Frequently Asked Questions

Will it slow down my network?

It is specified for Gigabit Ethernet as well as 100 and 10 Mbps connections, so it should not intentionally restrict a compatible link. Actual network speed still depends on every cable and device in the chain.

Which direction should it face?

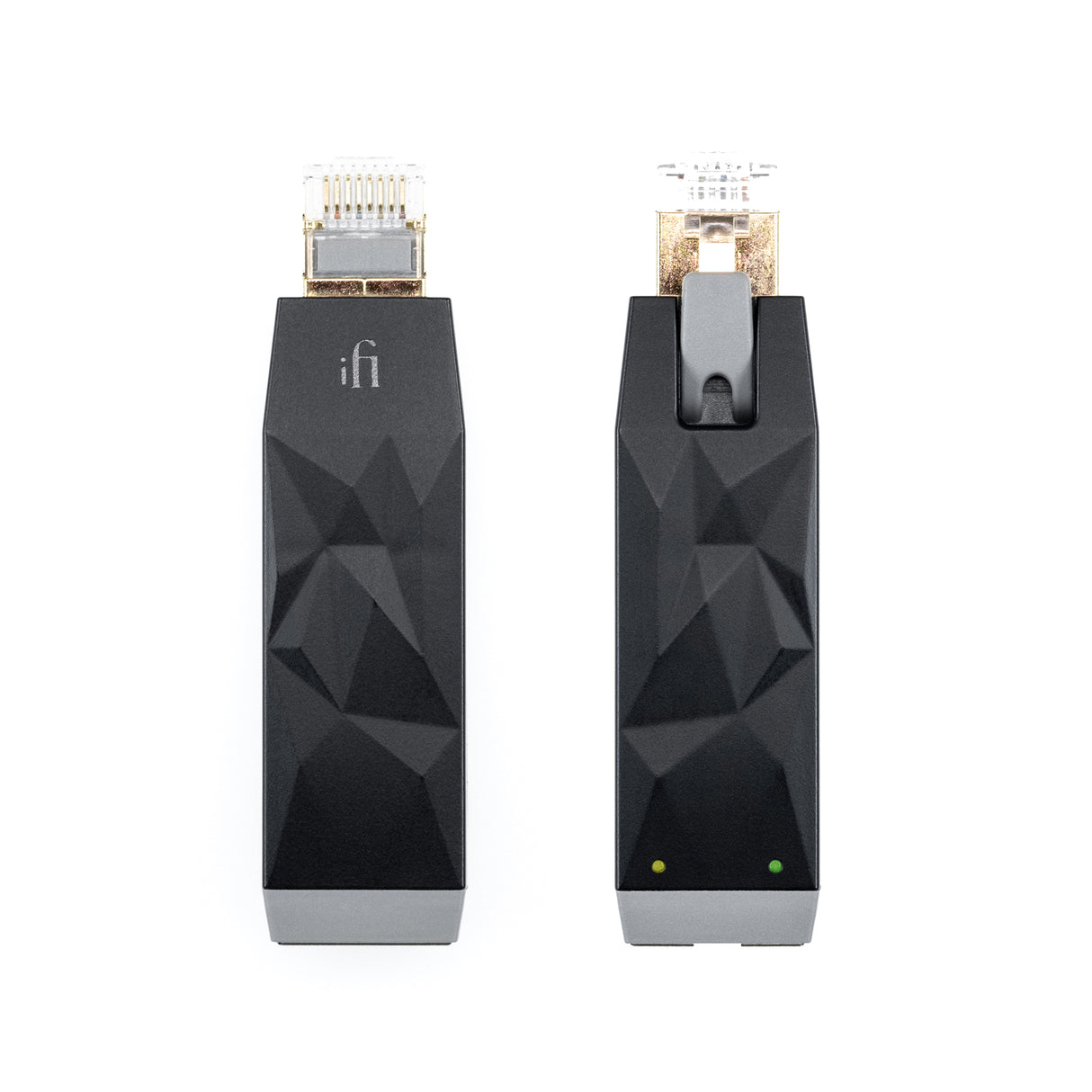

Insert the built-in male RJ45 plug into the selected device or wall jack, then connect the Ethernet cable to the female socket. It can be used at either end of the cable run.

Does it need power?

No. The LAN iSilencer is entirely passive.

Can I use it with Power over Ethernet?

Do not assume PoE compatibility for a powered camera, access point, or other PoE device unless the complete application has been confirmed by the manufacturer. This product is intended primarily for network audio and standard Ethernet equipment.

Will it fix Wi-Fi interference or buffering?

No. It works only in a wired copper Ethernet path and does not change wireless coverage, service-provider speed, or network configuration.

Can I use more than one?

Multiple units can be placed at different network endpoints, but begin with the connection closest to the sensitive audio component and evaluate the result before adding more.
