MartinLogan Motion XT F200 Floorstanding Speaker - Gloss Black - Each

MartinLogan Motion XT F200 Floorstanding Speaker – Each

What You Need to Know

The Flagship of the Motion Series

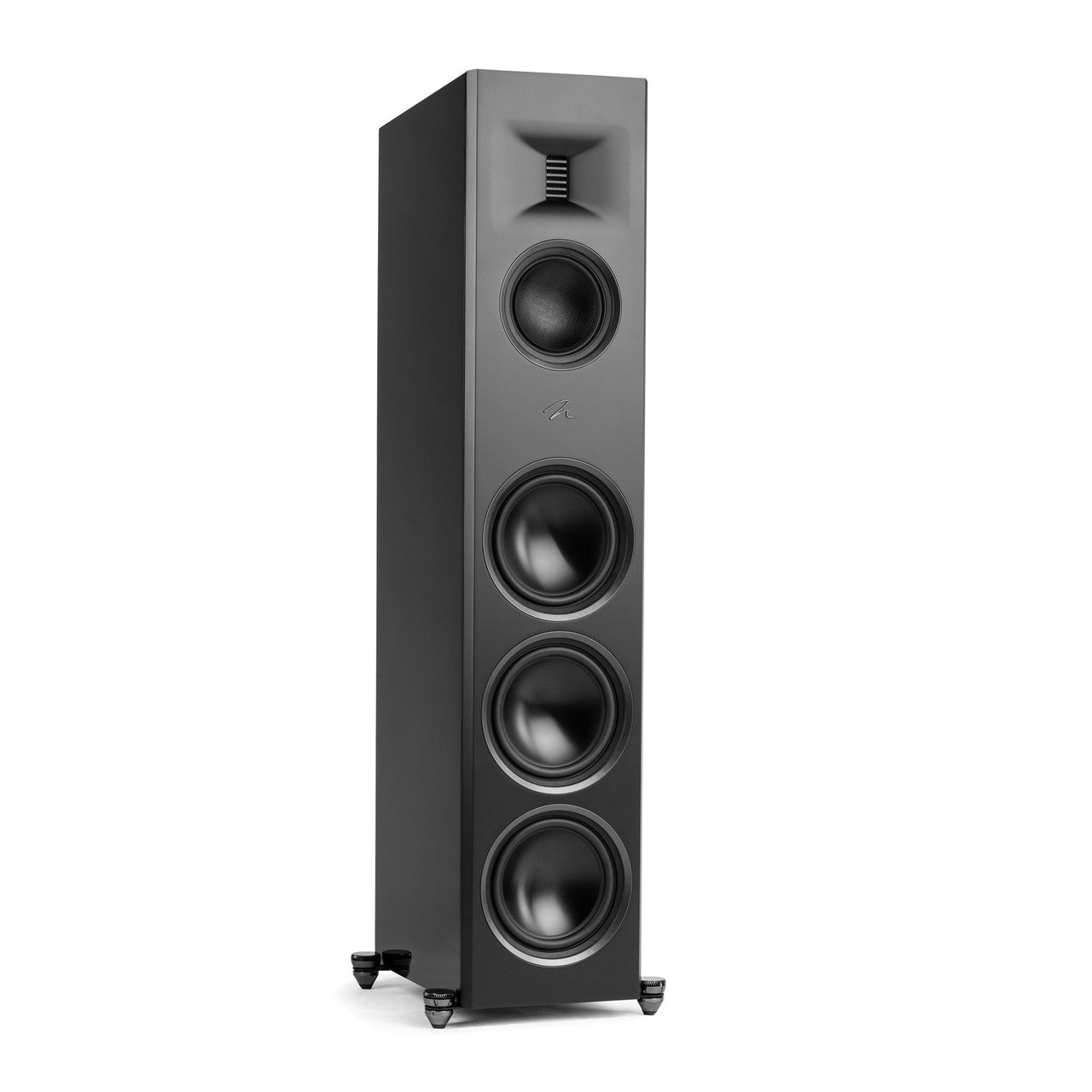

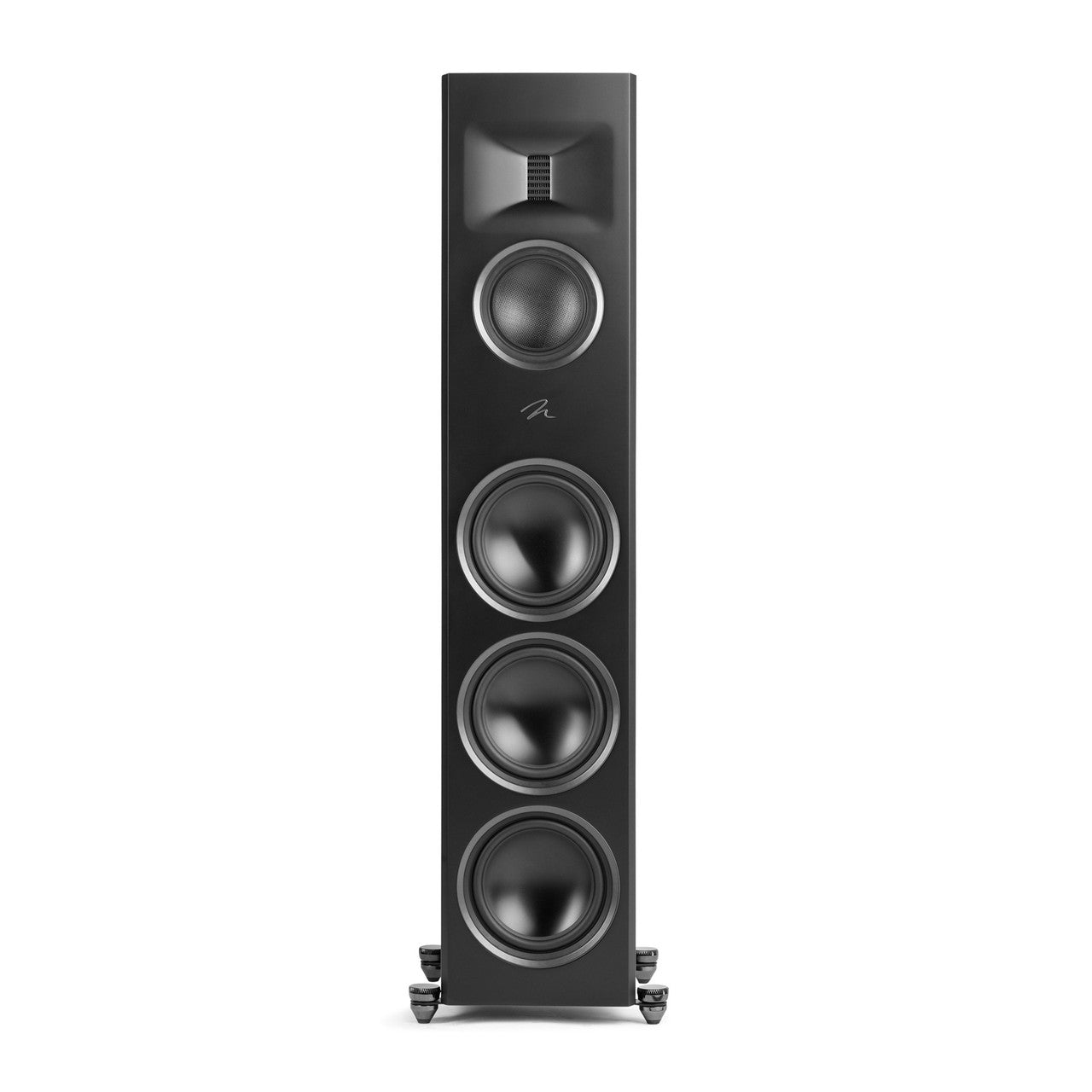

The MartinLogan Motion XT F200 is the most ambitious speaker MartinLogan builds outside its legendary electrostatics—a five-driver, three-way tower with three 8-inch aluminum woofers, a Kevlar midrange in its own sealed chamber, and the finest Folded Motion tweeter the company has ever produced. It reaches down to 27Hz and earned Hi-Fi News’ “Outstanding Product” badge along with Secrets of Home Theater and High Fidelity’s Best Home Theater Speaker System of 2025.

Available in Walnut, Gloss Black, or Satin White, and sold individually.

The Gen2 Obsidian Folded Motion XT Tweeter

MartinLogan’s Folded Motion tweeter pleats its diaphragm like an accordion, squeezing air rather than pushing it—and the XT version adds a larger motor and 40% more surface area than the standard Folded Motion driver, for higher output with lower distortion. A dedicated waveguide, chosen after nearly 50 design iterations, controls dispersion to 90° horizontal by 45° vertical.

MartinLogan calls it their cleanest, most detailed high-frequency presentation outside the electrostatic line—and reviewers hear it. Secrets described “a sense of lightness and transparency in the upper frequencies.”

A Purpose-Built Midrange, Sealed and Isolated

Voices and instruments come from a 6.5-inch Nomex-reinforced Kevlar cone in a cast aluminum basket, sealed in its own non-resonant chamber so woofer pressure never colors the midrange. Unibody cone construction keeps it rigid and light, for the clarity a great three-way delivers and a two-way cannot.

Three 8-Inch Woofers and Twin Cannon Ports

Three aluminum-cone 8-inch woofers with oversized motors and cast aluminum baskets fire into a non-resonant asymmetrical chamber, vented by bottom-firing Twin Cannon bass ports. Because the ports exhaust downward through the base rather than out the back, the F200 delivers deeper, cleaner bass with far more placement freedom than a rear-ported tower.

Floor Bounce Compensation completes the picture: woofer positions and crossover points are tuned to work with the floor reflection instead of fighting it.

The McCracken-Vojtko Crossover

Named for MartinLogan’s acoustic engineers, the custom 300Hz and 2,600Hz crossover was developed with proprietary simulation software and refined through double-blind listening tests. Combined with enhanced cabinet bracing, it welds five drivers into one coherent voice.

Built for Real Rooms

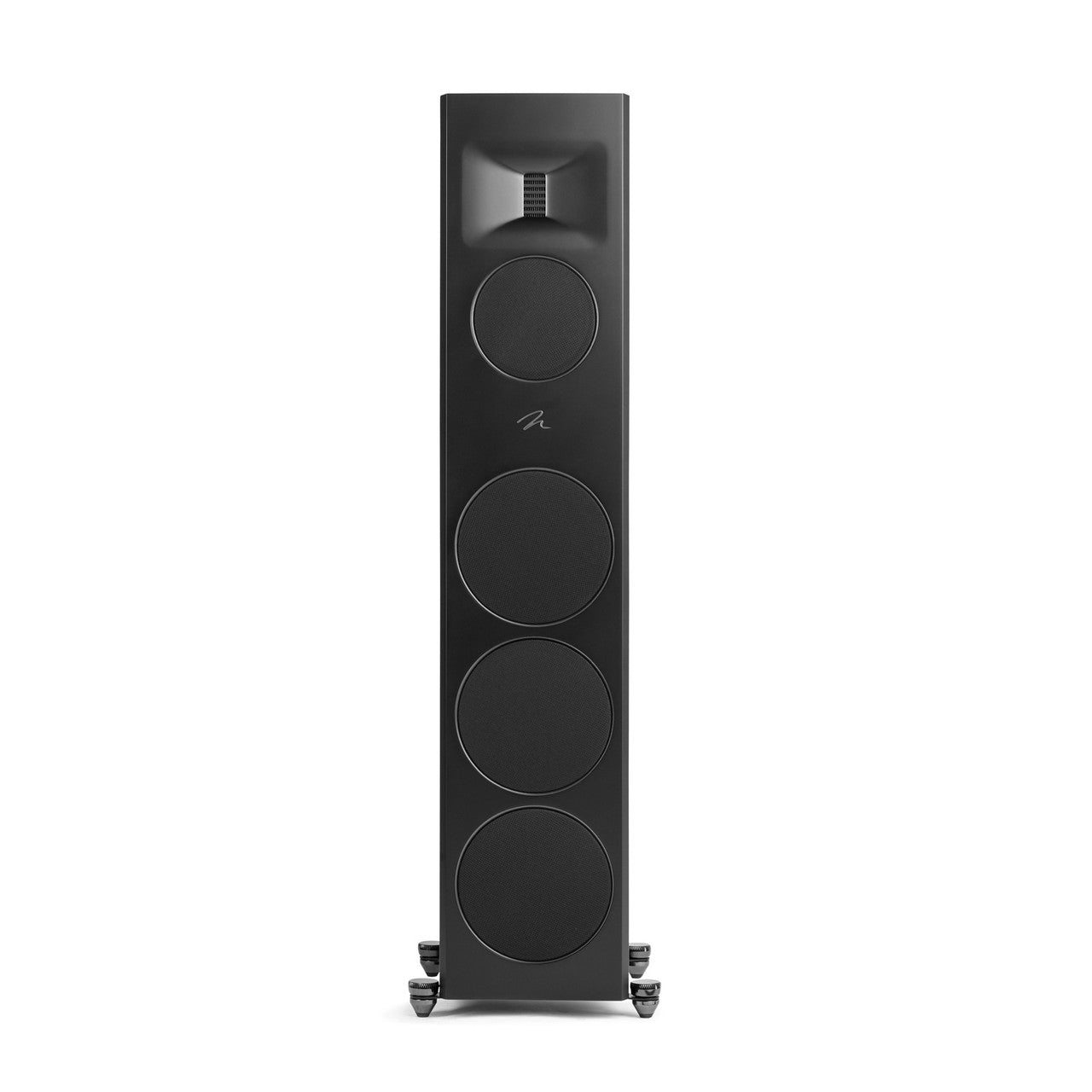

F.A.S.T. outrigger feet adjust and level without tools, with both steel spikes and rubber tips included for carpet or hard floors. Secure-Lock grille disks mount over each driver individually and rotate so the fabric grain lines up exactly as you like—or come off entirely.

Building Your System

At 92dB sensitivity and 4 ohms nominal, the F200 works with anything from 20 to 600 watts, though it rewards a robust amplifier with real current. Custom 5-way binding posts support single-wire, bi-wire, or passive bi-amp connection.

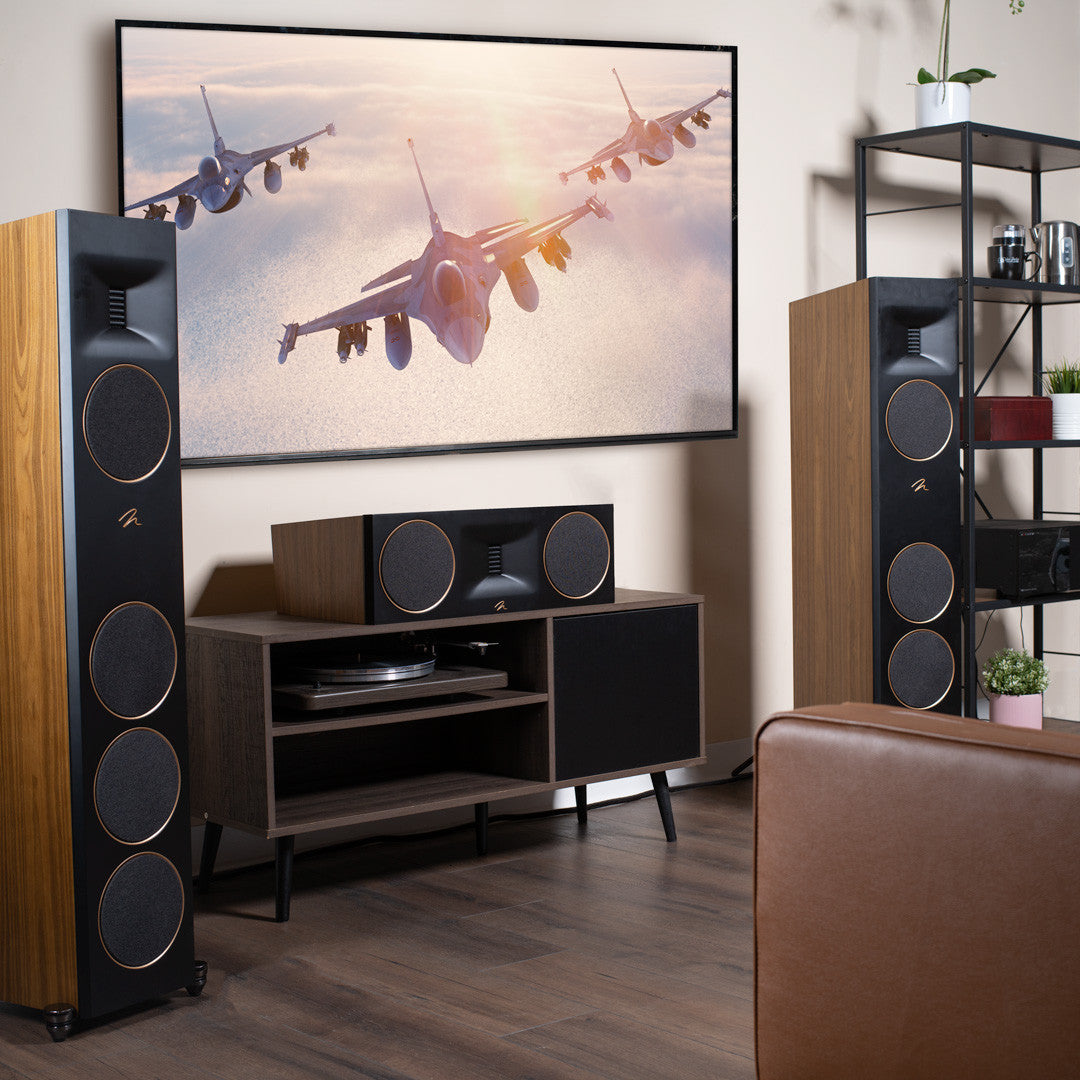

For home theater, match it with the Motion XT C100 center and B100 bookshelf speakers, and add a MartinLogan Dynamo subwoofer for the lowest LFE effects. Backed by a 5-year parts and labor warranty.

Features & Specifications

Gen2 Obsidian Folded Motion XT Tweeter
40% more surface area than the signature Folded Motion driver.

Sealed-Chamber Kevlar Midrange
6.5" Nomex-reinforced cone isolated from woofer pressure.

Three 8-Inch Aluminum Woofers
Cast aluminum baskets and oversized motors for 27Hz bass.

Twin Cannon Bottom-Firing Ports
Deeper, cleaner bass with far greater placement freedom.

McCracken-Vojtko Crossover
Simulation-designed and refined by double-blind listening.

Tool-Free F.A.S.T. Outrigger Feet
Spikes and rubber tips included; adjust and level by hand.

Specifications

•          Type: 3-Way Floorstanding Loudspeaker, Bass Reflex (bottom-firing twin ports)

•          Tweeter: 1.25" x 2.4" Gen2 Obsidian Folded Motion XT, 12.4 in² Diaphragm

•          Midrange: 6.5" Nomex-Reinforced Kevlar, Cast Aluminum Basket, Sealed Chamber

•          Woofers: 3 x 8" Aluminum Cone, Cast Aluminum Baskets

•          Frequency Response: 27Hz–25kHz (±3dB)

•          Sensitivity: 92dB (2.83V/m)

•          Impedance: 4 Ohms (compatible with 4, 6, or 8-ohm rated amplifiers)

•          Recommended Amplifier Power: 20–600 Watts

•          Crossover: 300Hz and 2,600Hz

•          Dispersion: 90° Horizontal x 45° Vertical

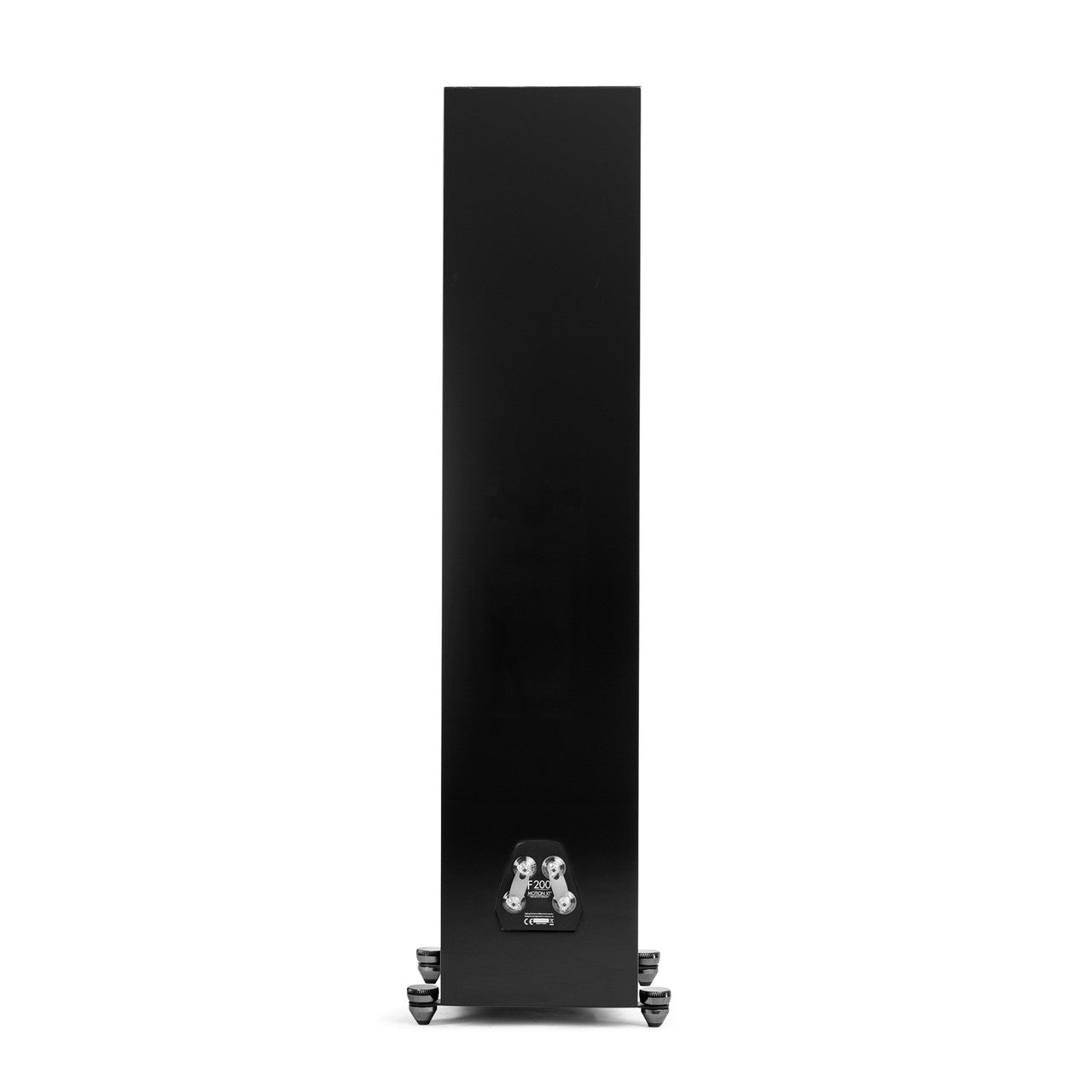

•          Connections: Bi-Wire/Bi-Amp Capable 5-Way Binding Posts

•          Feet: F.A.S.T. Adjustable Outriggers with Spikes and Rubber Tips

•          Grilles: Secure-Lock Rotatable Driver Grilles

•          Dimensions: 50.75“H x 13.75”W x 16.5"D (including feet, grilles, and terminals)

•          Cabinet Only: 49“H x 10.25”W x 15"D

•          Weight: 86 lbs

•          Finishes: Walnut, Gloss Black, or Satin White

•          Sold: Individually (Each)

•          Warranty: 5 Years Parts & Labor

Frequently Asked Questions

Are these sold in pairs?
Each F200 is priced and sold individually, so order two for stereo—or three across the front if you’re building a home theater around matching towers.

How does it compare to the Motion XT F100?
The F100 shares the same tweeter and midrange but uses three 6.5-inch woofers in a smaller cabinet. The F200’s three 8-inch woofers extend bass from 31Hz to 27Hz, handle more power, and move more air—the choice for larger rooms.

Do I still need a subwoofer?
For two-channel music, rarely—27Hz covers nearly everything on a record. For home theater’s lowest effects, a MartinLogan Dynamo subwoofer adds the final octave.

Is it fussy about placement?
Less than most towers its size. The bottom-firing Twin Cannon ports don’t need wall clearance the way rear ports do, which is exactly why MartinLogan chose them.
