Music Hall Mini Plus MM Phono Preamplifier
Small Box, Serious Cartridge Control
The Music Hall Mini Plus is an affordable, low-noise phono preamplifier with considerably more adjustment than its compact dimensions suggest. Designed for moving-magnet and high-output moving-coil cartridges, it supplies accurate RIAA equalization and the gain needed to connect a turntable to a standard line-level input.
Three selectable capacitance settings—120pF, 220pF, and 330pF—let you more closely match the preamp to your cartridge manufacturer’s recommended load. This can help optimize tonal balance and high-frequency performance, particularly with moving-magnet cartridges that respond audibly to changes in capacitance.
An adjustable trim-gain control provides output from 31.64 dB to 45.66 dB. Use it to add gain for a lower-output cartridge or quiet recording, or reduce gain when a high-output cartridge produces excessive level. A switchable 20Hz rumble filter helps prevent record warps, turntable vibration, and other subsonic information from wasting amplifier power or causing unnecessary woofer movement.
The Mini Plus also includes a built-in headphone amplifier with a convenient 1/8-inch output, allowing private vinyl listening without a separate headphone amp. Gold-plated RCA connections, a rigid chassis, vibration-damping feet, and an external power supply complete a versatile phono stage that is easy to integrate into systems ranging from powered speakers to traditional stereo components.
- Low-noise phono preamplifier for moving-magnet cartridges
- Also compatible with high-output moving-coil cartridges
- Accurate RIAA equalization for proper vinyl playback
- Adjustable trim-gain control for matching cartridge and recording levels

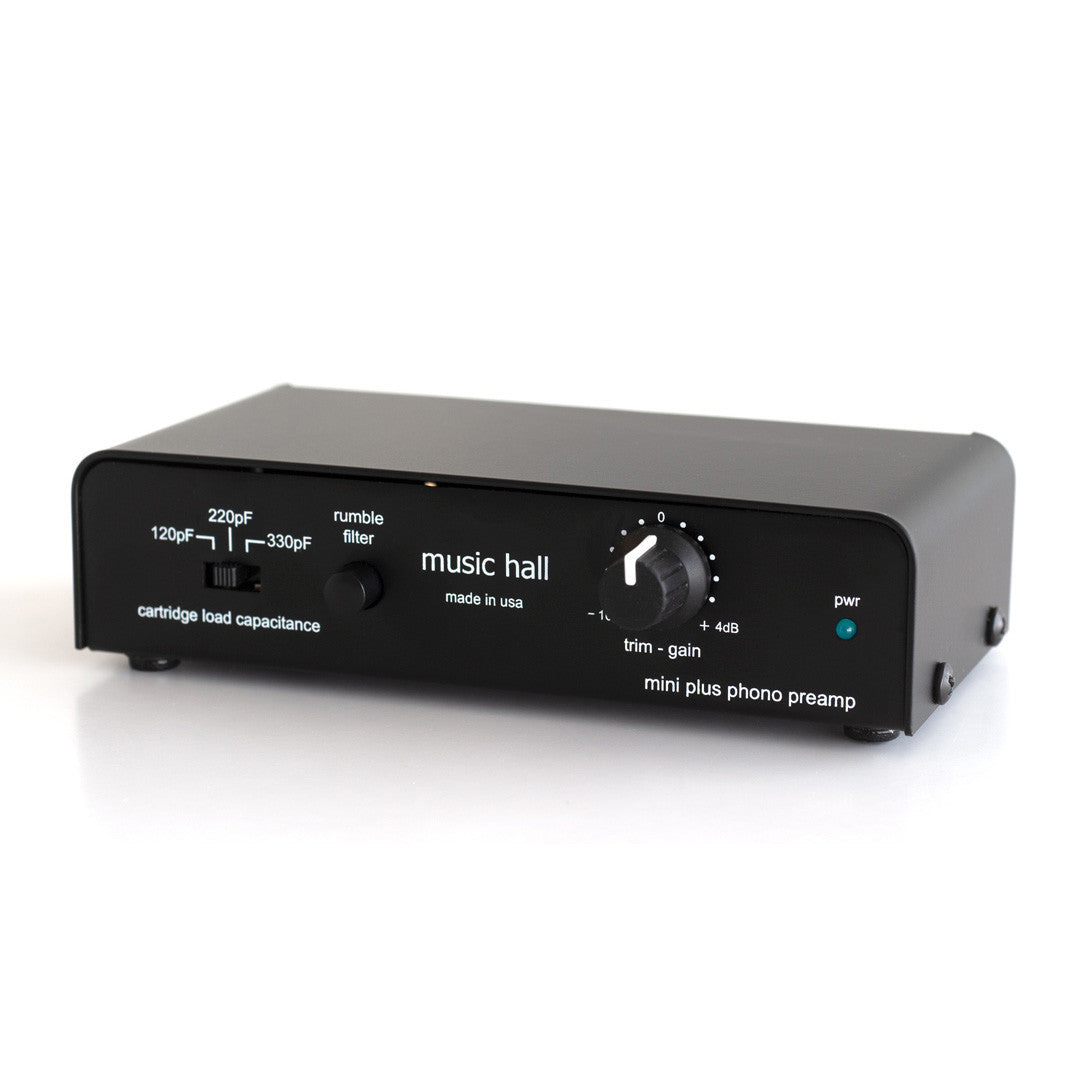

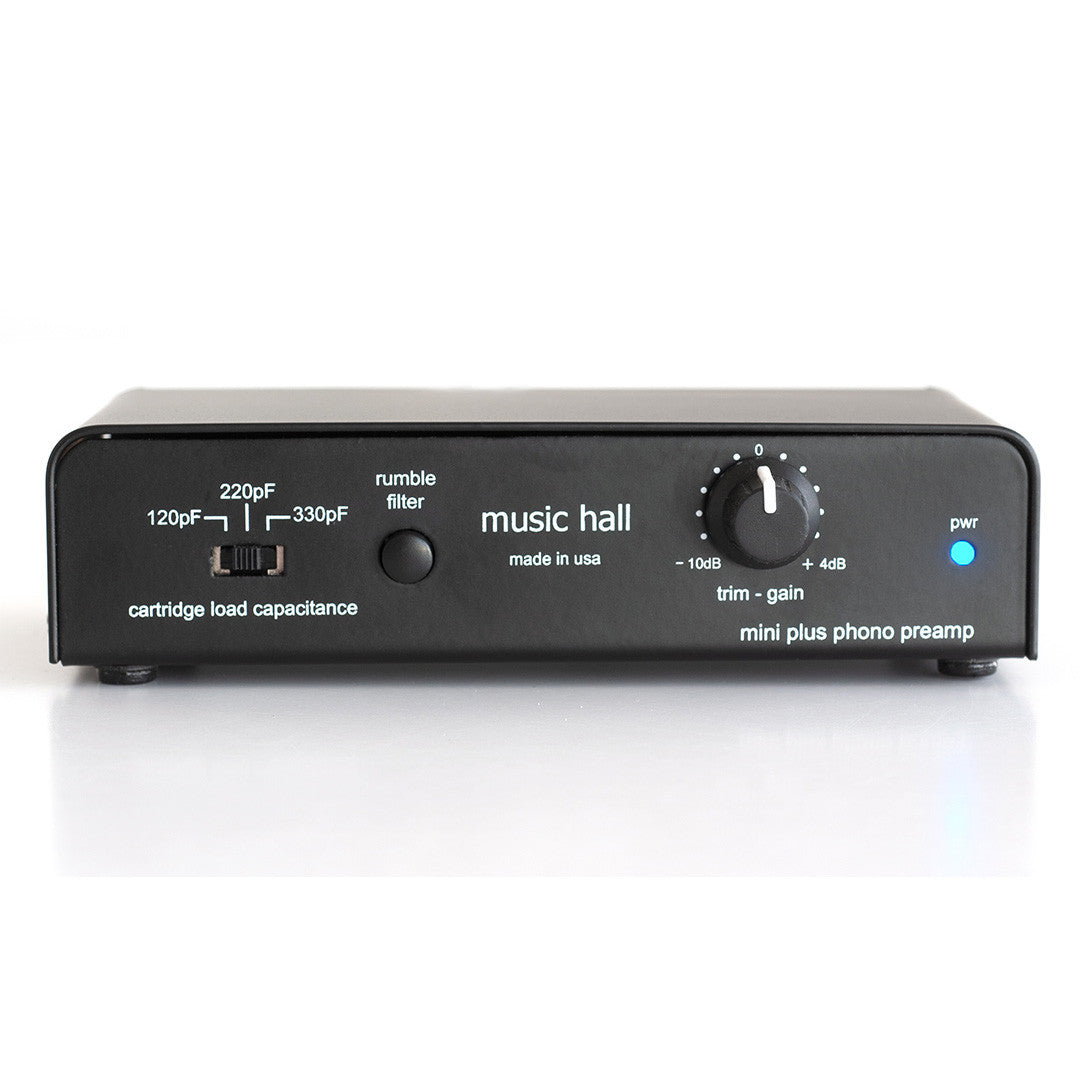

- Three selectable cartridge-load capacitance settings: 120pF, 220pF, and 330pF
- Switchable 20Hz rumble filter reduces unwanted subsonic information
- Built-in high-quality headphone amplifier
- 1/8-inch stereo headphone/line output

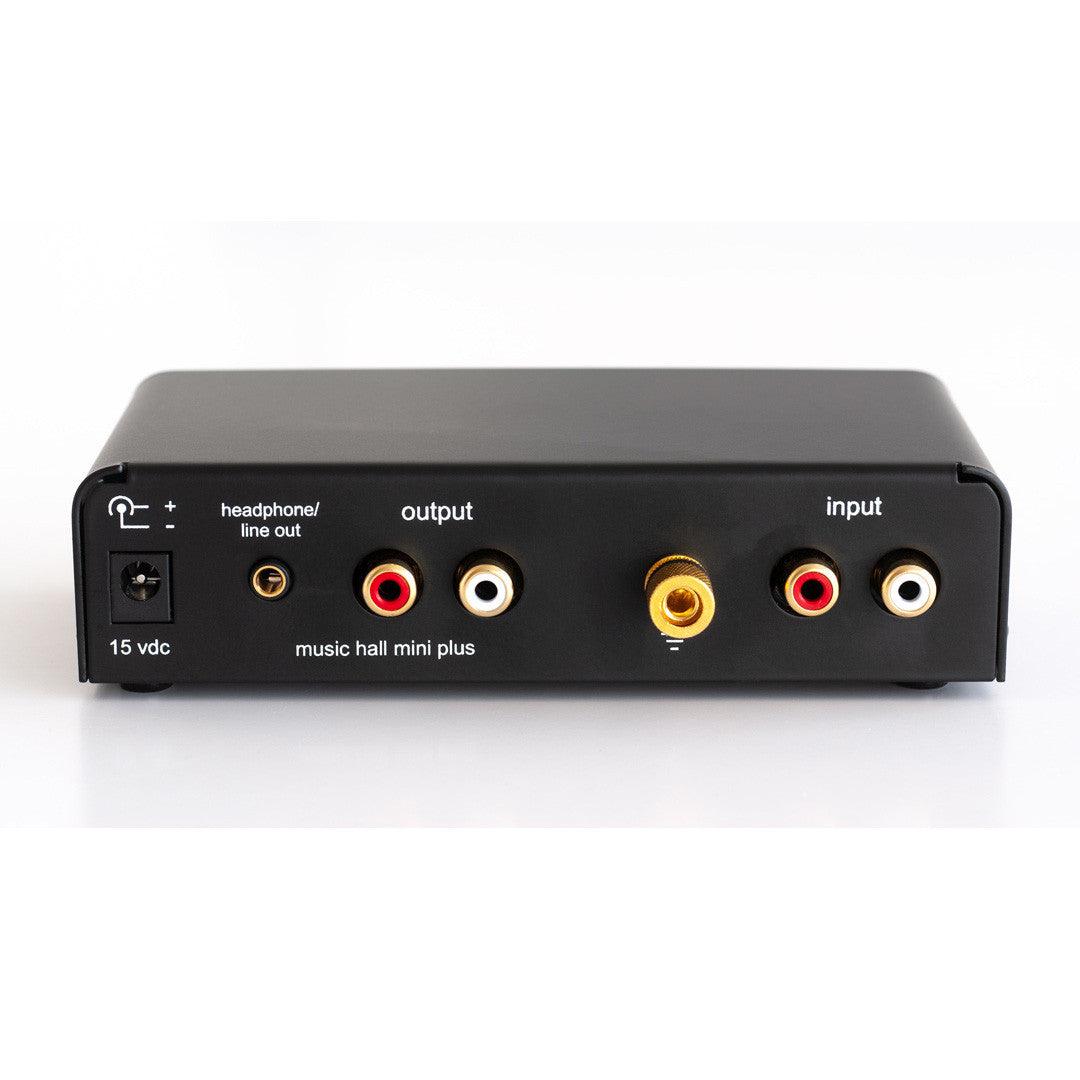

- Gold-plated stereo RCA input and output connections
- Dedicated turntable grounding terminal
- Rigid chassis helps protect sensitive circuitry from interference
- Vibration-damping feet provide additional mechanical isolation
- Energy-efficient external power supply with worldwide compatibility
- Compact design fits easily into smaller audio systems
- Product Type: MM/high-output MC phono preamplifier
- Cartridge Compatibility: Moving magnet and high-output moving coil
- Input Connectors: Stereo RCA
- Output Connectors: Stereo RCA and 1/8-inch TRS stereo
- Gain at 1kHz: 41.51 dB at the 0 setting
- Minimum Gain: 31.64 dB at the -10 setting
- Maximum Gain: 45.66 dB at the +4 setting
- Input Impedance: 47k ohms
- Cartridge-Load Capacitance: 120pF, 220pF, or 330pF
- RCA Output Impedance: 470 ohms
- Headphone Output Impedance: 32 ohms
- Frequency Response: 3Hz–36kHz
- RIAA Equalization Accuracy: ±1 dB, 14Hz–23kHz
- Signal-to-Noise Ratio: Greater than 94 dB, unweighted
- Total Harmonic Distortion: 0.005% at 1kHz
- Rumble Filter: 20Hz
- Power Supply: 15V DC external power supply
- Dimensions: 5.5" W x 3.5" D x 1.25" H
- Unit Weight: 0.8 lb.
- Packaged Weight: Approximately 2 lbs.
