What You Need to Know
What Is a Power Conditioner — and Why Does the PQ-909 Stand Out?
Every piece of audio or home theater gear in your system runs on AC power from your wall. The problem? That power is rarely clean. Your home's electrical grid carries noise — interference from appliances, HVAC systems, dimmer switches, and even your neighbors' wiring. That noise gets into your audio components and, if you're paying close attention, you can hear it: a slightly hazy midrange, a less defined bass, a soundstage that doesn't quite snap into focus the way it should.
A power conditioner sits between the wall and your equipment. Its job is to filter out that noise, deliver clean power, and protect your gear from damage. The AudioQuest PowerQuest 909 is the flagship of AudioQuest's PowerQuest series, and it's designed for people who have built — or are building — a serious system. It handles the power side of the equation so your components can perform the way they were designed to.
What sets the PQ-909 apart from most surge strips or entry-level power conditioners is its combination of ultra-linear filtering, a 20-amp continuous current capacity, and non-sacrificial surge protection — protection that never wears out, no matter how many surges it absorbs.
How It Improves Your Listening — and Protects Your Investment
The PQ-909 addresses power quality in two important ways: it filters noise, and it ensures your amplifier always gets the current it needs.
Ultra-Linear Filtering. The 909 uses both differential-mode and common-mode filtering across a wide bandwidth — from 8 kHz all the way to 1 GHz. In practical terms, this means noise is removed consistently across a very broad range of frequencies. The result, according to AudioQuest, is a lower noise floor and what they describe as "deep, black backgrounds" — the quiet space between musical notes that helps detail and dynamics emerge more clearly.
Transient Power Correction (TPC). This is one of the PQ-909's most important features for amplifier users. When a large musical transient hits — a kick drum, an orchestral forte, a film explosion — your amplifier demands a sudden surge of current from the wall. Many power conditioners actually restrict that current, which can compress the dynamics and flatten the impact of your music. The PQ-909 does the opposite. Its low-impedance circuit stores a reservoir of up to 45 amps peak (available for up to 25 milliseconds), so your amp can draw what it needs, when it needs it. The result, per AudioQuest, is uncompressed dynamic contrasts, stronger bass impact, and tighter control over your speakers.
Non-Sacrificial Surge Protection. Most surge protectors use components called MOVs (metal oxide varistors) that degrade every time they absorb a surge. Eventually, they stop working — and most devices give you no warning when that happens. The PQ-909 uses a different approach: non-sacrificial protection that can withstand repeated surges of up to 6,000V / 3,000A (the maximum that can pass through a home electrical panel) without wearing out. AudioQuest states the protection is unlimited in joule rating — set it once and you never need to replace it.
Extreme Voltage Shutdown. As a final safety layer, if the incoming voltage rises above 140VAC, the PQ-909 automatically disconnects your equipment in under 0.25 seconds. Once line voltage stabilizes, it resets on its own.
Twelve Outlets, Optimized for What's Plugged In
Not all components draw power the same way. Source components — streamers, DACs, CD players, and TVs — need ultra-low noise and consistent current. Amplifiers need unrestricted, high-current delivery. The PQ-909 addresses both with its 12 hospital-grade outlets divided into two groups:
- 8 Linear-Filtered / Constant-Current outlets — for source components and displays. These provide the widest bandwidth filtering in the PowerQuest family, removing noise that can blur detail and muddy imaging.
- 4 High/Variable-Current outlets — for power amplifiers and receivers. These outlets deliver uncompressed current on demand, backed by the Transient Power Correction reservoir, so your amps never feel starved.
All 12 outlets are hospital-grade — a standard that means tighter tolerances and a more secure, reliable connection than consumer-grade outlets.
Who Is the PQ-909 Ideal For?
You've built a serious two-channel or home theater system and want to make sure clean power isn't the weak link holding it back.
You own a power amplifier (especially a high-current model) and don't want a conditioner that restricts its dynamics.
You live in an area with variable power quality, frequent storms, or older wiring, and you want real, long-lasting protection for expensive components.
You're planning a custom or rack-mounted installation and need a conditioner that integrates cleanly into a 2U AV rack.
You want a set-it-and-forget-it solution — no replacement parts, no monitoring required, no degrading protection over time.
How It Connects to Your System
The PQ-909 connects to a dedicated 20-amp AC wall circuit using the included PQ-920 power cable (a 20A C19 connector). From there, all of your components plug directly into the 909's 12 rear-panel outlets. No special configuration is needed — plug in, power on, and you're done.
The unit ships with a 2-RU rack-mounting kit if you'd like to integrate it into an equipment rack. Its 17" width is standard rack width, and the 3.4" height fits neatly in 2U of space.
Keep in mind: the PQ-909 requires a 20-amp wall outlet and the included 20A cable. If your current wall outlet is 15-amp, you may need an electrician to upgrade the circuit. Give us a call at 800-942-0220 if you have questions about installation.
What's in the Box
- AudioQuest PowerQuest 909 Power Conditioner
- AudioQuest PQ-920 2m AC power cable (20A C19, with PSC+, ZERO-Tech, and RF/ND-Tech)
- 2-RU rack-mounting kit
- Documentation / user guide
Note: Verify exact accessory list with AudioQuest prior to publishing.
Professional Reviews
The AudioQuest PowerQuest 909 is newly released as of early 2025 and dedicated professional reviews from major audio publications were not yet available at the time of writing. We will update this section as reviews are published.
AudioQuest's sibling PowerQuest 505 — a comparable model in the same family — received the Recommended Award from Germany's Lite Magazin, where reviewer Volker Frech noted that power conditioners in this series improve playback clarity, transparency, and resolution while delivering a stronger sense of presence, dynamics, and spatial imaging. The PQ-909 shares the same core filtering and protection architecture, scaled up to 20-amp capacity with more outlets and expanded TPC performance.
Lite Magazin (Germany) — PowerQuest 505 (sibling model), Volker Frech
Frech described the 505 as an easy recommendation, writing that it improves performance across the board — cleaner playback, finer resolution, greater dynamic presence, and a more impressive spatial image. The editors awarded it their Recommended designation. The PQ-909 builds on this same engineering foundation at higher capacity.
Pairs Well With
- Power Amplifiers — The PQ-909's Transient Power Correction makes it an ideal match for high-current amplifiers. Browse power amplifiers at Audio Advisor.
- Integrated Amplifiers & Receivers — Plug your integrated amp into a high-current outlet and your sources into the filtered outlets for a complete solution. Shop integrated amplifiers.
- Source Components — Streamers, DACs, CD players, and turntable phono stages all benefit from the ultra-linear filtering outlets. Browse digital sources.
- AudioQuest Power Cables — Pair with AudioQuest NRG or Tornado series power cables for individual components to extend the benefit of AudioQuest's power engineering throughout your system. Shop AudioQuest power cables.

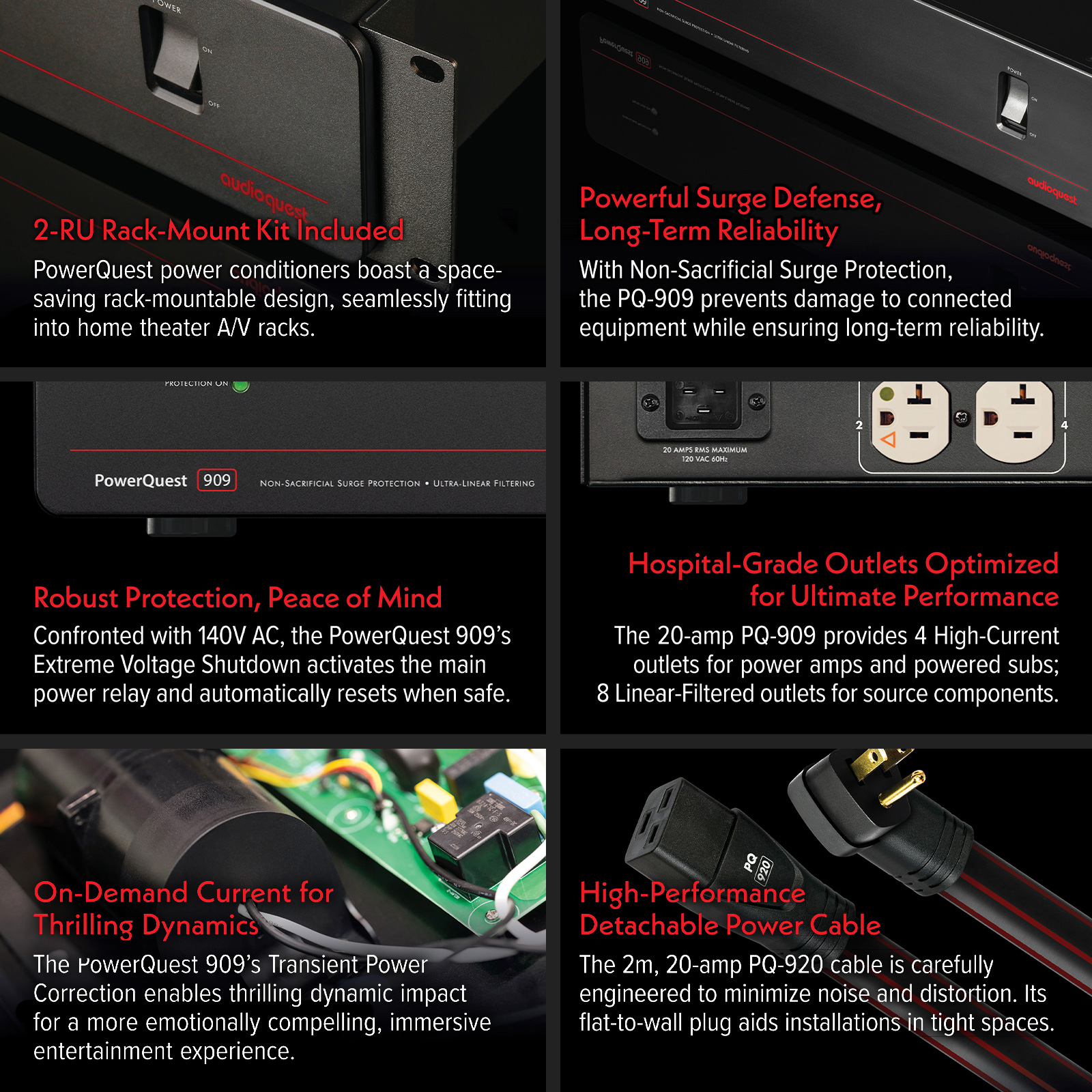

Features & Specifications
Uncompressed Current Delivery — 20-Amp Capacity
With a 20-amp (RMS) continuous current rating and 45-amp peak Transient Power Correction, the PQ-909 ensures your amplifiers always have the power they need — even during the most demanding musical passages. Most power conditioners throttle current; this one doesn't.
Ultra-Linear Differential and Common-Mode Filtering
Two types of noise can contaminate your AC line: differential-mode noise (between the hot and neutral conductors) and common-mode noise (between the conductors and ground). The PQ-909 addresses both simultaneously, across a bandwidth of 8 kHz to 1 GHz — the widest coverage in the PowerQuest family. The practical benefit is a lower noise floor: quieter backgrounds, more air around instruments, and better low-level detail retrieval from your components.
Non-Sacrificial Surge Protection — Unlimited Joule Rating
Conventional surge protectors use MOV components that wear out after absorbing surges. The PQ-909's non-sacrificial design can withstand repeated 6,000V / 3,000A surges without degrading. AudioQuest rates it with an unlimited joule rating — meaning there's no rated-joule threshold after which protection stops. Protect a $10,000 system with confidence.
Extreme Voltage Shutdown
If incoming voltage exceeds 140VAC — from a utility fault, a nearby lightning strike, or any other event — the PQ-909 opens its main power relay in under 0.25 seconds, disconnecting all connected components. When voltage normalizes, the unit resets automatically. No manual intervention required.
12 Hospital-Grade, Component-Optimized Outlets
Four high/variable-current outlets are optimized for amplifiers and receivers. Eight linear-filtered/constant-current outlets serve source components and displays. All 12 use hospital-grade connectors — built to tighter tolerances for a more secure, reliable connection than standard consumer outlets.
Included PQ-920 Power Cable
Most power conditioners ship with a basic cable. The PQ-909 includes a premium 2-meter AudioQuest PQ-920 — a Monsoon-level cable with Perfect-Surface Copper+ (PSC+) conductors, ZERO-Tech for uncompressed current transients, RF/ND-Tech for ground noise dissipation, and a flat-to-wall 45°/90° plug for tight installation spaces. This is a cable that's often purchased separately for several hundred dollars; it's included here.
Rack-Mountable Design
The PQ-909 measures 17" W × 3.4" H × 14.9" D — standard 2U rack dimensions. The included rack-mount kit lets it integrate cleanly into any standard AV or audio rack. For custom-install professionals, this is a set-it-and-forget-it power solution that disappears into a rack and never needs maintenance.
Quick-Reference Specifications
| Power & Current | |
| Maximum Continuous Current | 20A RMS |
| Transient Power Correction (Peak) | 45A peak (up to 25ms) |
| AC Connector (Inlet) | 20A C19 (North America) |
| Filtering | |
| Differential-Mode Noise Dissipation | 8 kHz – 1 GHz; >−23 dB |
| Common-Mode Noise Dissipation | 30 kHz – 100 MHz; >−23 dB |
| Surge Protection | |
| Max Surge Withstand | 6,000V / 3,000A (repeated) |
| Joule Rating | Unlimited (non-sacrificial) |
| Extreme Voltage Shutdown Threshold | 140VAC; relay opens <0.25s |
| Outlets | |
| Total Outlets | 12 hospital-grade |
| High/Variable-Current (Amplifiers) | 4 |
| Linear-Filtered / Constant-Current (Sources) | 8 |
| Dimensions & Weight | |
| Width × Height × Depth | 17" W × 3.4" H × 14.9" D |
| Weight | Approx. 16.9 lbs |
| Rack Compatibility | 2U (rack-mount kit included) |
| Finish | Black |
| Included Cable | 2m AudioQuest PQ-920 (20A C19, PSC+, ZERO-Tech, RF/ND-Tech) |
Frequently Asked Questions
What's the difference between a power conditioner and a surge protector?
A basic surge protector shields your equipment from voltage spikes, but it doesn't clean your power. A power conditioner like the PQ-909 does both: it filters noise from your AC line and protects against surges. The filtering is what matters most for audio and video quality — it removes the interference that can make your system sound slightly hazy or congested.
Will the PQ-909 restrict my amplifier's dynamics?
No — and this is one of the most important things to understand about it. Many power conditioners use high-impedance designs that actually limit the current your amplifier can draw, which can compress dynamics and reduce bass impact. The PQ-909 uses a low-impedance circuit with Transient Power Correction, storing a 45-amp peak reservoir so your amp always gets what it needs. AudioQuest specifically designed this for amplifier use.
Do I need a 20-amp wall outlet to use the PQ-909?
Yes. The PQ-909 uses a 20A C19 power inlet and ships with a 20A cable. If your current wall outlet is a standard 15-amp outlet, you'll need a 20-amp circuit installed by an electrician. This is a common upgrade for dedicated listening rooms and home theaters. Give us a call at 800-942-0220 if you'd like guidance before purchasing.
How does "non-sacrificial" surge protection work?
Most surge protectors use components called MOVs (metal oxide varistors) that absorb surges by sacrificing themselves — they degrade with every hit and eventually stop protecting you. The PQ-909 uses a different technology that dissipates surges without wearing out. AudioQuest rates it with an unlimited joule rating, meaning it doesn't have a protection threshold you'll eventually exhaust. You set it once and it protects indefinitely.
What's Extreme Voltage Shutdown, and do I need it?
Extreme Voltage Shutdown is a safety feature that disconnects your equipment if the incoming AC voltage rises above 140VAC — which can happen during certain utility faults or extreme electrical events. The relay opens in under 0.25 seconds and resets automatically when voltage returns to normal. It's a last-resort protection layer, and yes — for expensive components, it's absolutely worth having.
How does the PQ-909 compare to the rest of the PowerQuest family?
The PQ-909 is the flagship of the PowerQuest line and the only model rated at 20 amps continuous with 45-amp peak TPC. It also offers the widest bandwidth filtering and the most outlets (12) of any PowerQuest model. Lower models in the family use the same non-sacrificial surge protection and Extreme Voltage Shutdown, but at lower current ratings and with fewer outlets. If you're running a full two-channel system or home theater with a high-power amplifier, the 909 is the right choice.
Can I use the PQ-909 in a rack?
Yes. The PQ-909 is designed for rack installation. It's standard 17" width and 3.4" height (2U), and the included rack-mount kit makes installation straightforward. The included PQ-920 power cable features a flat-to-wall 45°/90° plug to make tight installations easier. This makes it a great fit for custom-install and home theater rack builds.
Does the PQ-909 need any maintenance?
No. The non-sacrificial surge protection doesn't degrade, and there are no user-serviceable parts. Plug it in and forget about it. Unlike conventional surge protectors, you don't need to track when protection might have been compromised or schedule replacements.
What else do I need to use the PQ-909?
The PQ-909 ships with everything you need: the unit itself, a premium PQ-920 power cable, and a rack-mount kit. You'll need a 20-amp wall circuit (C20 outlet), and your components plug directly into the 12 outlets on the rear panel. If you want to upgrade the power cables going from the 909 to individual components, AudioQuest offers a full line of power cables — give us a call and we'll help you figure out where the investment makes the most sense for your setup.
See It in Action
No official product video for the PowerQuest 909 was available at the time of writing. Check AudioQuest's YouTube channel for the latest content as it is published.
