What You Need to Know
What Is an AV Receiver—and What Does the AVR-X3900H Do?
An AV receiver is the brain of your home theater. It takes audio and video from all your sources—your TV, game console, Blu-ray player, and streaming apps—and sends the sound to your speakers and the picture to your screen. A good receiver makes everything sound better, look better, and work together.
The Denon AVR-X3900H is a 9.4-channel receiver, which means it can power up to nine speakers and four subwoofers at the same time. It delivers 105 watts per channel—plenty of power for a room-filling home theater. It also handles 11.4 channels of processing, so if you add an external amplifier, you can expand to even larger speaker layouts like 7.1.4 Dolby Atmos.
Designed and tuned at Denon’s Shirakawa Audio Works in Japan under the guidance of Denon’s Sound Master, the AVR-X3900H replaces the popular AVR-X3800H with upgraded internal components, including a new single-die 32-bit multichannel DAC architecture for improved clarity and imaging.
Why Does It Matter for Your Listening Experience?
The AVR-X3900H supports all the major immersive audio formats: Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced, and Sony 360 Reality Audio. These formats let sound move all around you—above, below, and behind—so movies, music, and games feel more lifelike.
For room correction, the receiver comes with Audyssey MultEQ XT32, which is Denon’s most advanced built-in calibration system. It measures your room from up to eight positions and uses over 10,000 filter control points to fine-tune every speaker so the sound is balanced and clear, no matter where you sit. Sub EQ HT calibrates each of your subwoofers independently, and Low Frequency Containment (LFC) helps reduce bass bleed through walls—a nice touch if your theater shares a wall with a bedroom.
If you want to go even further, the AVR-X3900H supports optional upgrades to Dirac Live Room Correction, Dirac Bass Control, and Dirac Active Room Treatment (ART)—professional-grade tools that give you serious control over your room acoustics.
On the video side, six HDMI 2.1 inputs support 8K/60Hz and 4K/120Hz pass-through, plus Dolby Vision, HDR10+, and gaming features like VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and AMD FreeSync. Three HDMI outputs—including a dedicated Zone 2 HDMI output—let you connect multiple displays or send content to a second room.
What Are Reviewers Saying?
The AVR-X3900H was just released in May 2026, so full in-depth reviews are still in progress. However, several respected audio publications attended Denon’s press event in Kawasaki, Japan, and shared their hands-on impressions.
Audioholics — Gene DellaSala, May 2026
Audioholics founder Gene DellaSala attended Denon’s headquarters in Japan and was impressed seeing the AVR-X3900H power Bowers & Wilkins 801 D4 speakers at near-cinematic reference levels with no audible strain. He gave the receiver a “Gotta Have It” first impression rating.
eCoustics — Tony Ware, May 2026
eCoustics noted that the AVR-X3900H filled a large listening room with immersive Dolby Atmos sound while driving a 7.2.2-channel Bowers & Wilkins 800-series speaker system. They called it a successor to the AVR-X3800H, which was an eCoustics Editors’ Choice Award winner.
Audio Advice — May 2026
Audio Advice highlighted the AVR-X3900H’s ground-up reconstruction of the audio motherboard, featuring a new single-die 32-bit 8-channel DAC system that replaces the stacked 2-channel converters used in the prior generation, delivering improved imaging and detail.
Who Is This Best For?
You want a serious Dolby Atmos home theater with support for layouts up to 7.1.4 using an external amplifier.
You’re a gamer who needs 4K/120Hz, VRR, and ALLM for the latest consoles.
You run multiple subwoofers and want four independent subwoofer outputs with dedicated calibration for each.
You want the flexibility to upgrade to Dirac Live room correction for professional-grade acoustic tuning.
You stream music throughout your home and want HEOS multi-room, AirPlay 2, and Bluetooth all built in.
How Does It Connect to Your System?

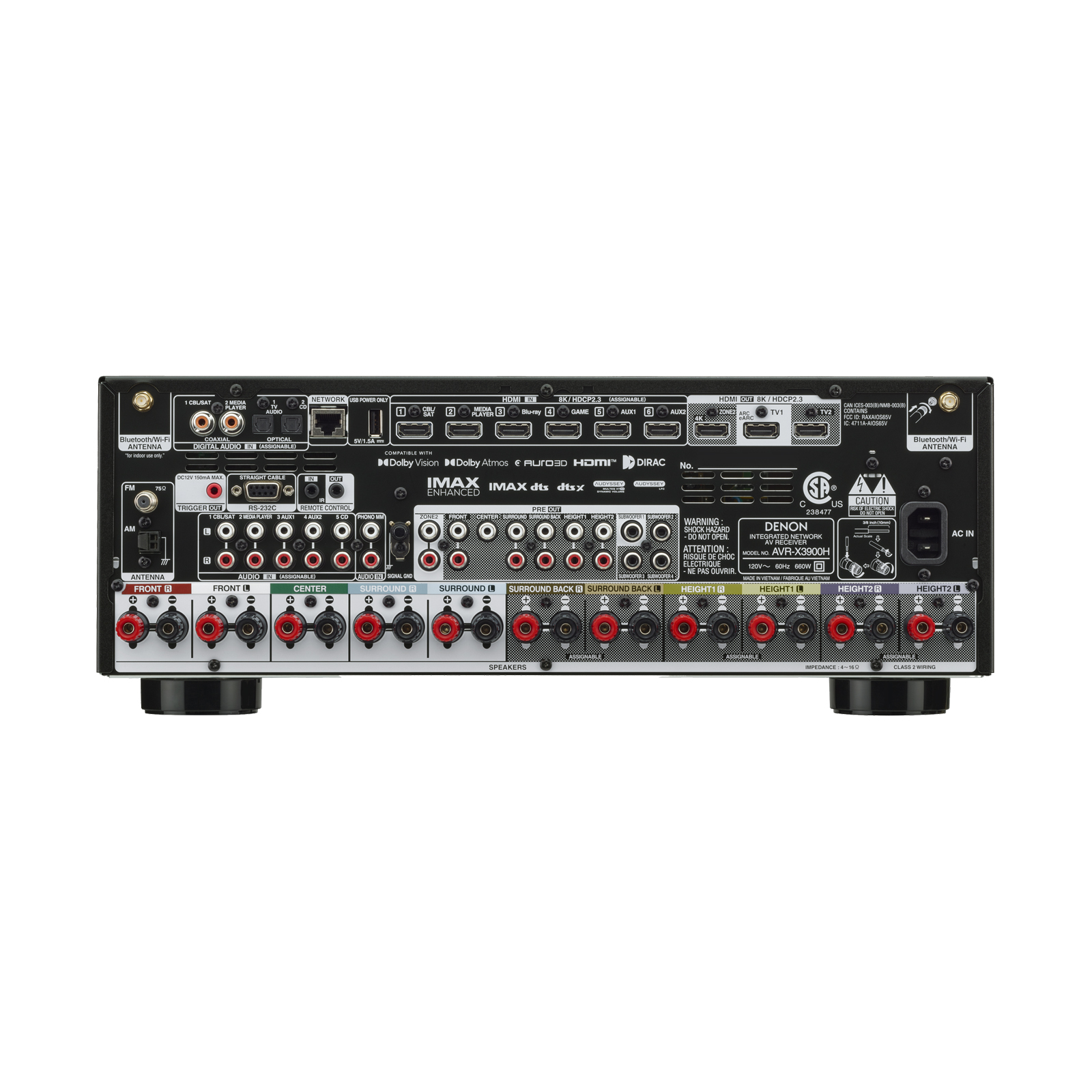

The AVR-X3900H has six HDMI 2.1 inputs and three HDMI outputs (including one dedicated to Zone 2 with full video). It supports ARC and eARC for simple one-cable TV audio connections. There are also two optical digital inputs, two coaxial digital inputs, five analog audio inputs, and a phono input with a built-in moving magnet preamp for your turntable.
On the output side, you get eleven pairs of speaker terminals (nine channels active at a time), four independent subwoofer outputs, and full 11.4-channel pre-outs if you want to add external amplification. Zone 2 has dedicated pre-outs for audio, plus its own HDMI output for video.
For wireless streaming, the receiver includes Wi-Fi (dual-band), Bluetooth, Apple AirPlay 2, and HEOS Built-in for multi-room audio. It also supports Spotify Connect, Qobuz, TuneIn, and other streaming services. A new web-based user interface lets you configure and control the receiver from any browser on your network—no TV required.
Keep in mind: the AVR-X3900H powers 9 channels on its own. If you want to run a full 7.1.4 Atmos layout (11 channels), you’ll need to add a 2-channel external amplifier for the extra two channels. The full 11.4-channel pre-outs make this easy. If you need help planning your setup, give us a call.
What’s in the Box
- Denon AVR-X3900H AV Receiver
- Backlit remote control (RC-1262)
- Audyssey microphone
- FM antenna
- Power cord
- Quick start guide
Pairs Well With
Building your home theater? Here are some great companions for the AVR-X3900H:
- Speakers — The AVR-X3900H can power up to nine speakers. Browse our Speakers to find the right set for your room.
- Subwoofers — With four independent subwoofer outputs, this receiver is built for serious bass. Browse our Subwoofers.
- Power Amplifiers — Want to expand to 11 channels? Add a 2-channel amp for your height speakers. Browse our Amplifiers.
- HDMI Cables — For 8K and 4K/120Hz, you’ll want certified Ultra High Speed HDMI cables. Browse our Cables.
Features & Specifications—Benefit-Driven
Audio Performance
105 Watts × 9 Channels — Each of the nine built-in amplifiers delivers 105 watts at 8 ohms (20 Hz–20 kHz, 0.08% THD, 2 channels driven). This gives you plenty of clean, controlled power for room-filling movie soundtracks and music. Denon’s 70% Power Guarantee means the receiver maintains over 70% of rated power across up to five channels driven simultaneously.
11.4-Channel Processing — The receiver processes up to 11.4 channels of audio, so you can add a 2-channel external amplifier to build out larger Dolby Atmos layouts like 7.1.4.
Immersive Audio Formats — Supports Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced, and Sony 360 Reality Audio. Sound moves in three dimensions around and above you for a truly cinematic experience.
New 32-Bit DAC Architecture — A Texas Instruments PCM5102A 32-bit multichannel DAC system replaces the previous generation’s stacked 2-channel converters. This design reduces jitter and shortens signal paths for cleaner, more precise audio.
Room Correction
Audyssey MultEQ XT32 — Denon’s most advanced built-in room correction uses over 10,000 filter points across up to eight measurement positions to tune every speaker and subwoofer for your room. Sub EQ HT calibrates each subwoofer independently. Dynamic EQ and Dynamic Volume keep the sound balanced at any volume. LFC reduces bass bleed through walls.
Dirac Live Ready (Optional Upgrade) — For even more precise tuning, you can upgrade to Dirac Live Room Correction, Dirac Bass Control, and Dirac Active Room Treatment. These are professional-grade tools for serious home theater enthusiasts.
Video & Gaming
8K/60Hz and 4K/120Hz HDMI 2.1 — Six HDMI 2.1 inputs and three outputs (including Zone 2 HDMI) support the latest video standards. Pass-through Dolby Vision, HDR10+, HLG, and upscale HD content for modern displays.
Gaming Features — VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), and AMD FreeSync keep gameplay smooth and responsive.
Streaming & Connectivity
HEOS Built-In — Stream music to the receiver and to other HEOS-enabled speakers throughout your home. Supports Spotify Connect, Qobuz, TuneIn, and more.
AirPlay 2 & Bluetooth — Stream wirelessly from your iPhone, iPad, Mac, or any Bluetooth device. Bluetooth also supports headphone output for private listening.
Phono Input — A built-in moving magnet phono preamp lets you connect a turntable directly—no extra equipment needed.
Web-Based Control — A new browser-based interface lets you set up and control the receiver from any computer or phone on your network, without turning on the TV.
Multi-Zone
2-Zone Playback — Send different audio and video to a second room. Zone 2 has its own dedicated HDMI output and audio pre-outs.
Wireless Surround (Coming Soon) — A future firmware update will allow Denon Home 200, 400, and 600 speakers to function as wireless rear surround channels.
Quick-Reference Specifications
| Amplification | |
| Channels | 9.4 (11.4 with processing) |
| Power Output (8Ω) | 105 W per channel (20 Hz–20 kHz, 0.08% THD, 2ch driven) |
| Power Output (6Ω) | 135 W per channel (1 kHz, 0.7% THD, 2ch driven) |
| Number of Power Amps | 9 |
| Audio Formats | |
| Surround Formats | Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced, 360 Reality Audio |
| DAC | Texas Instruments PCM5102A 32-bit / 384 kHz × 2 |
| Room Correction | Audyssey MultEQ XT32 (incl. Sub EQ HT, Dynamic EQ, Dynamic Volume, LFC); Dirac Live ready (optional upgrade) |
| HDMI & Video | |
| HDMI Inputs | 6 × HDMI 2.1 (8K/60Hz, 4K/120Hz) |
| HDMI Outputs | 3 (incl. 1 × Zone 2, 1 × eARC) |
| HDR Support | Dolby Vision, HDR10+, HLG, HDR10 |
| Gaming Features | VRR, ALLM, QFT, QMS, AMD FreeSync |
| Audio Inputs & Outputs | |
| Analog Audio Inputs | 5 (including 1 × Phono MM) |
| Digital Audio Inputs | 2 × Optical + 2 × Coaxial |
| Subwoofer Outputs | 4 (independent) |
| Pre-Outs | 11.4 channel |
| Speaker Terminals | 11 pairs (9 active) |
| Streaming & Wireless | |
| Multi-Room | HEOS Built-In |
| Wireless | Wi-Fi (dual-band), Bluetooth, Apple AirPlay 2 |
| Streaming Services | Spotify Connect, Qobuz, TuneIn, and more via HEOS |
| Roon Ready | Yes |
| Design & Build | |
| Dimensions (H × W × D) | 6.6″ × 17.1″ × 14.9″ / 167 × 434 × 379 mm (without antenna) |
| Weight | Approx. 26.5 lbs / 12 kg (verify with manufacturer) |
| Power Consumption | 660W (max); 0.1W standby |
| Zones | 2 (Zone 2 with HDMI output + audio pre-outs) |
| Finish | Black |
Frequently Asked Questions
What speaker layouts can the AVR-X3900H handle?
On its own, the AVR-X3900H can power up to 9 speakers plus 4 subwoofers. Common layouts include 5.1.4 or 7.1.2 Dolby Atmos. If you add a 2-channel external amplifier using the pre-outs, you can expand to an 11-channel layout like 7.1.4 for the full overhead Atmos experience.
What’s the difference between the AVR-X3900H and the AVR-X3800H it replaces?
The AVR-X3900H features a redesigned audio motherboard with a new single-die 32-bit multichannel DAC that replaces the older stacked 2-channel DAC design. It also adds a third HDMI output, a web-based setup interface, on-screen channel level monitoring, and upcoming support for wireless rear surround speakers using Denon Home 200/400/600 speakers.
Does it support Dirac Live?
Yes. The AVR-X3900H comes with Audyssey MultEQ XT32 built in and supports optional paid upgrades to Dirac Live Room Correction, Dirac Bass Control, and Dirac Active Room Treatment (ART). These licenses are purchased separately.
Can I connect a turntable?
Yes. The AVR-X3900H has a built-in moving magnet (MM) phono preamp, so you can connect a turntable directly without needing a separate phono stage.
Is it good for gaming?
Yes. All six HDMI inputs support 4K/120Hz, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and AMD FreeSync. These features keep gameplay smooth and responsive on the PS5, Xbox Series X, and gaming PCs.
Can I use it with a second room?
Yes. The AVR-X3900H supports 2-zone playback. Zone 2 has its own dedicated HDMI output for video and audio pre-outs, so you can send different content to a second TV or a pair of speakers in another room.
What streaming services does it support?
Through the HEOS platform, the AVR-X3900H supports Spotify Connect, Qobuz, TuneIn, and more. It also supports Apple AirPlay 2 and Bluetooth streaming. It is Roon Ready as well.
What else do I need to get started?
At minimum, you’ll need speakers, speaker wire, and HDMI cables to connect your sources. For an Atmos setup, you’ll want at least a 5.1 speaker system plus two or four height speakers (or Atmos-enabled upfiring modules). If you’re not sure where to start, give us a call at 800-942-0220 and we’ll help you plan your system.
How does the AVR-X3900H compare to the AVR-X2900H?
The AVR-X3900H steps up from the X2900H with 9 amplified channels (vs. 7), 105 watts per channel (vs. 95), Audyssey MultEQ XT32 (vs. XT), four independent subwoofer outputs (vs. two), support for IMAX Enhanced, Auro-3D, and 360 Reality Audio, full 11.4 pre-outs, a dedicated Zone 2 HDMI output, and access to the complete Dirac Live upgrade suite including Bass Control and Active Room Treatment.
Does it work with voice assistants or smart home systems?
Yes. The AVR-X3900H supports third-party control systems for custom integration. Check with Denon for the latest details on specific voice assistant compatibility and smart home integration options.
See It in Action
Audioholics’ first look at the AVR-X3900H from Denon’s headquarters in Japan:
