Precise Clarity and Incredible Realism

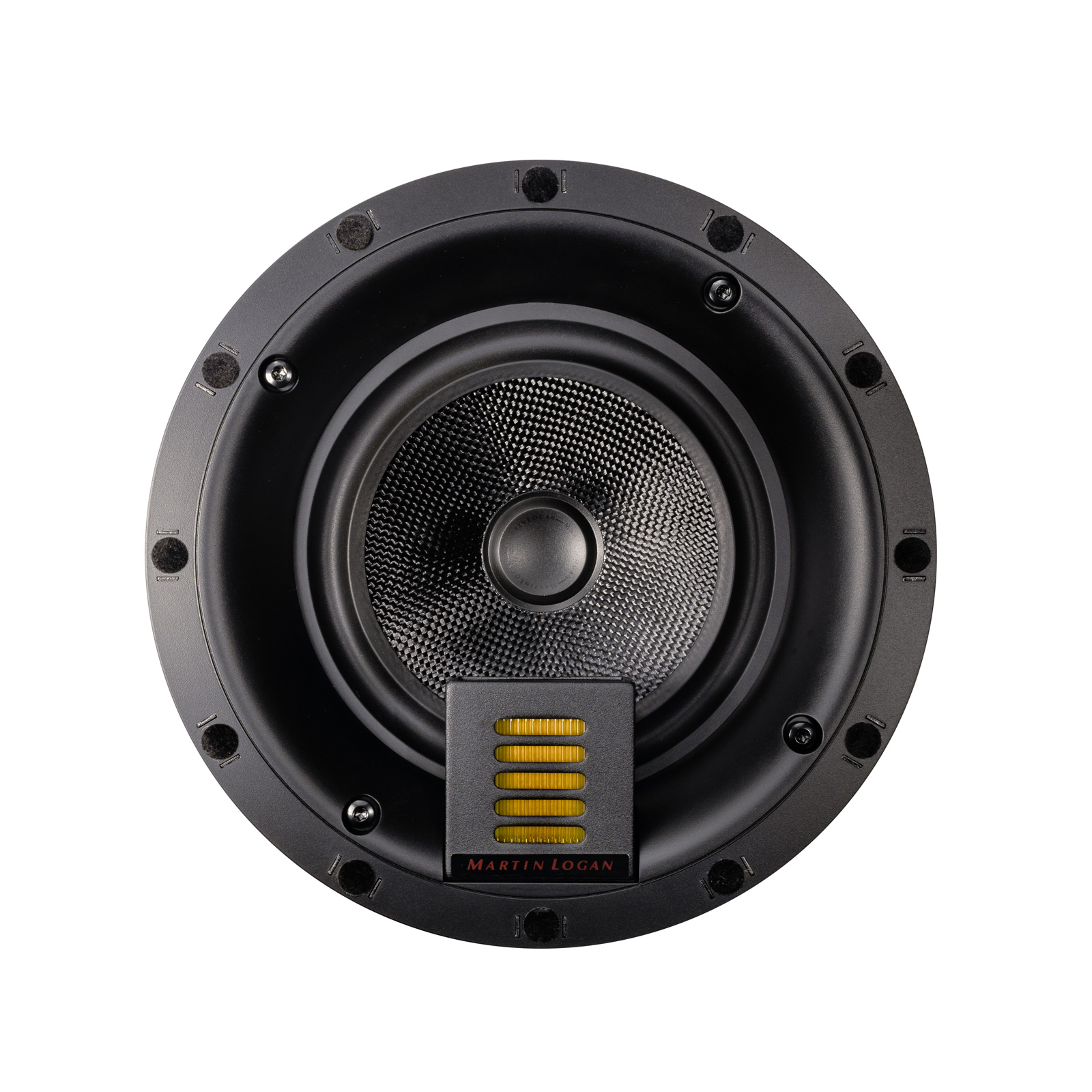

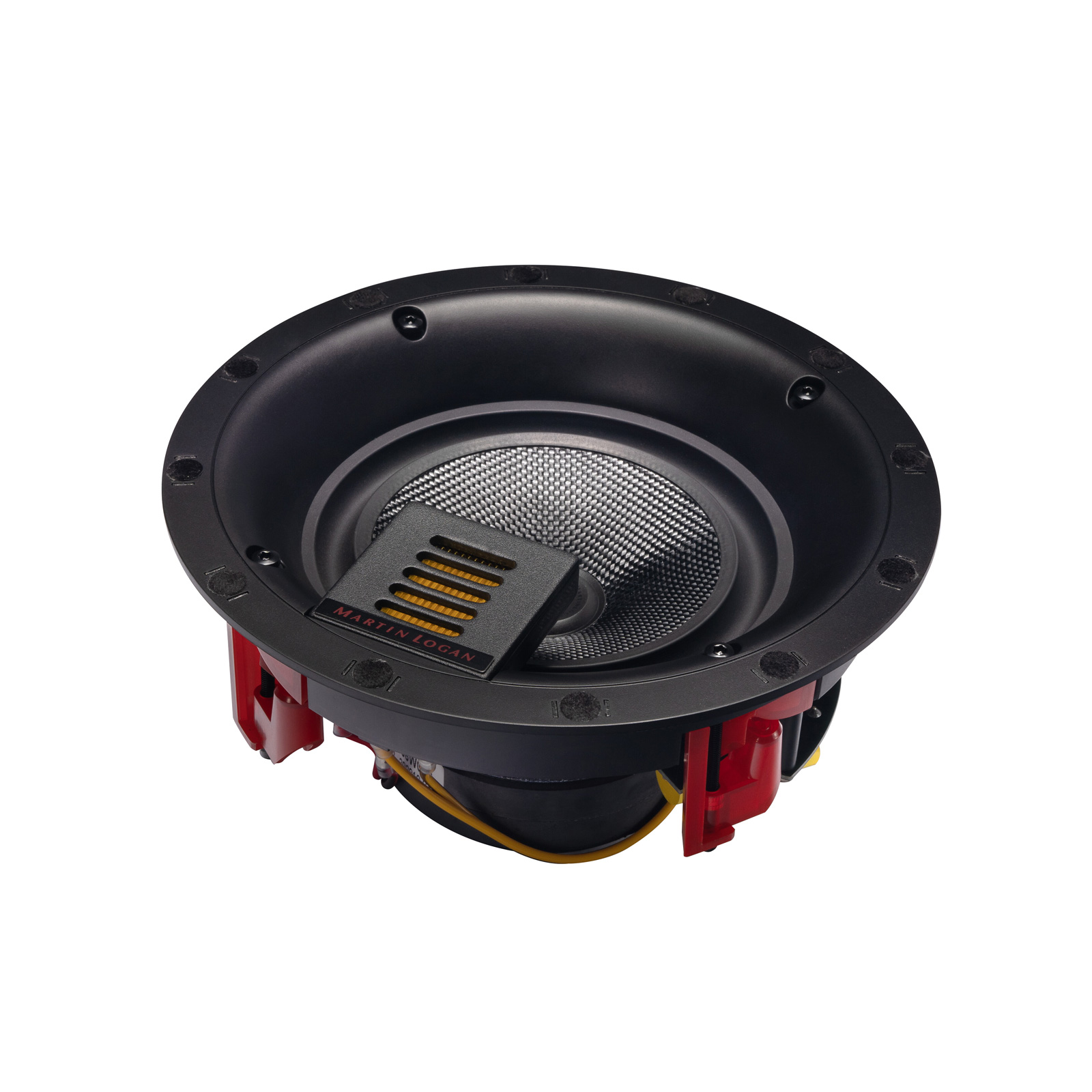

By far the most popular size for in-ceiling speakers, MartinLogan's Motion MC6 features a 6.5” woofer with higher power handling, greater output capability, and improved bass response over the company's smaller MC4. This model works without a built-in enclosure to allow the speaker to use more airspace for higher performance.
For applications where sound control is desired, an optional retrofittable back enclosure is available separately. As with all Motion series CI speakers, the MC6 uses MartinLogan’s signature Folded Motion Tweeter for precise clarity and incredible realism to meet all your entertainment needs.
The Sound of Invisibility: Folded Motion Tweeters
MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1" dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1" dome tweeter), controlled dispersion characteristics, and vanishingly low distortion.
This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability – all with a faster, more efficient transient response, and virtually zero distortion.
Woven Fiberglass Cones
All Motion CI speakers feature lightweight woven fiberglass cones specifically engineered for their application to blend seamlessly with the lightning speed of our signature Folded Motion Tweeter. No matter which Motion CI speaker you choose for your room, rest assured they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.
Spring-Loaded Binding Posts
With easy pre-installation access, MartinLogan's spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

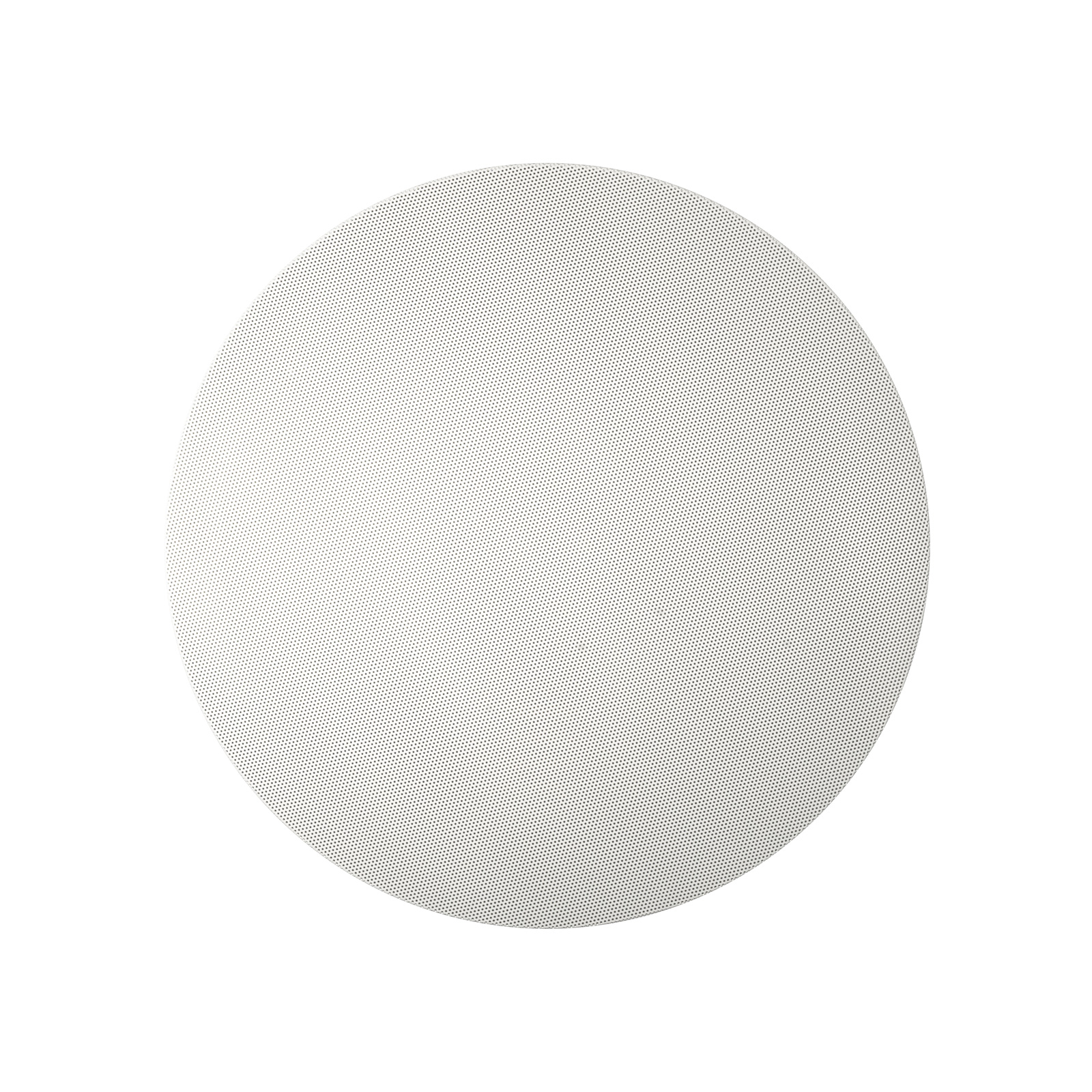

Micro-Perforated Grilles
The MC6 features an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. Optional square grilles are available for the MC6.
Hand-Crafted Proprietary Vojtko™ Crossover Networks
In designing each crossover topology, MartinLogan takes the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.
Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are the company's innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements – it's a philosophy. Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.

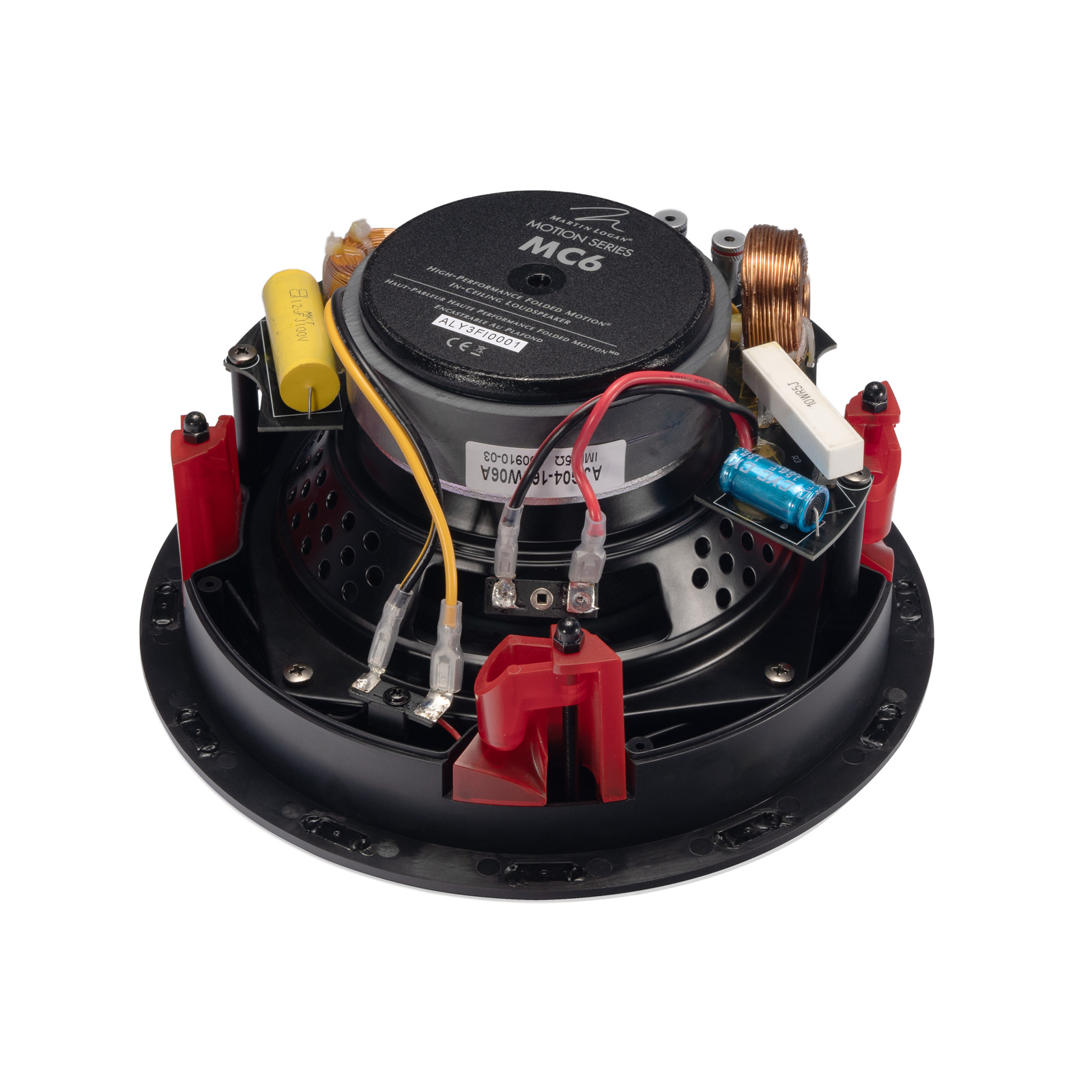

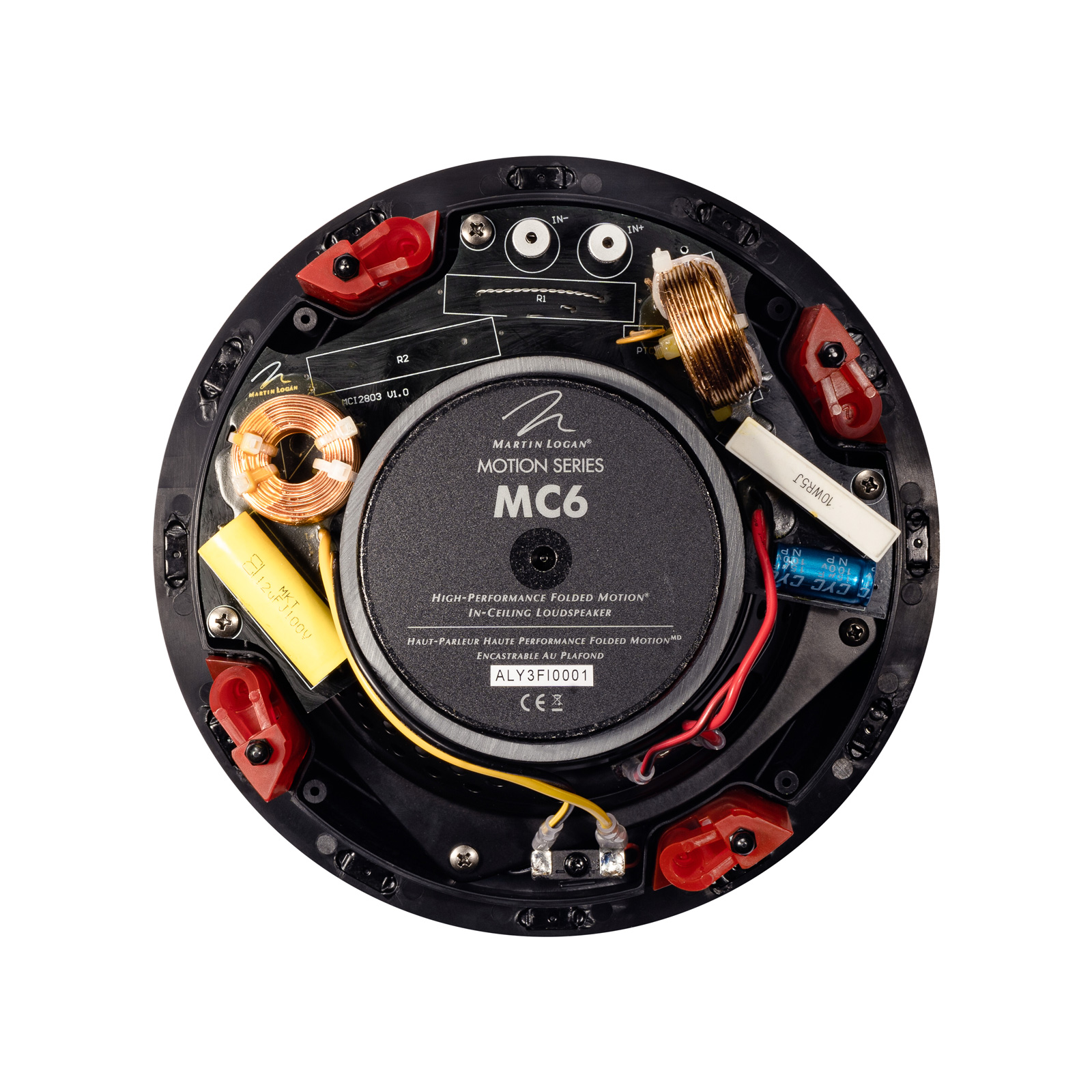

Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.
The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.
