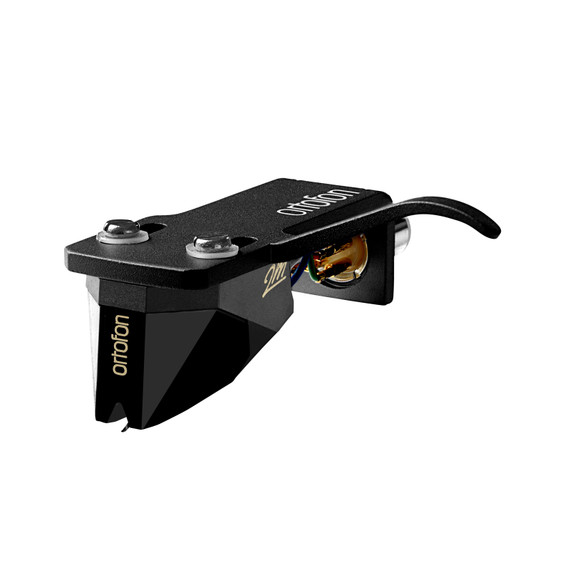

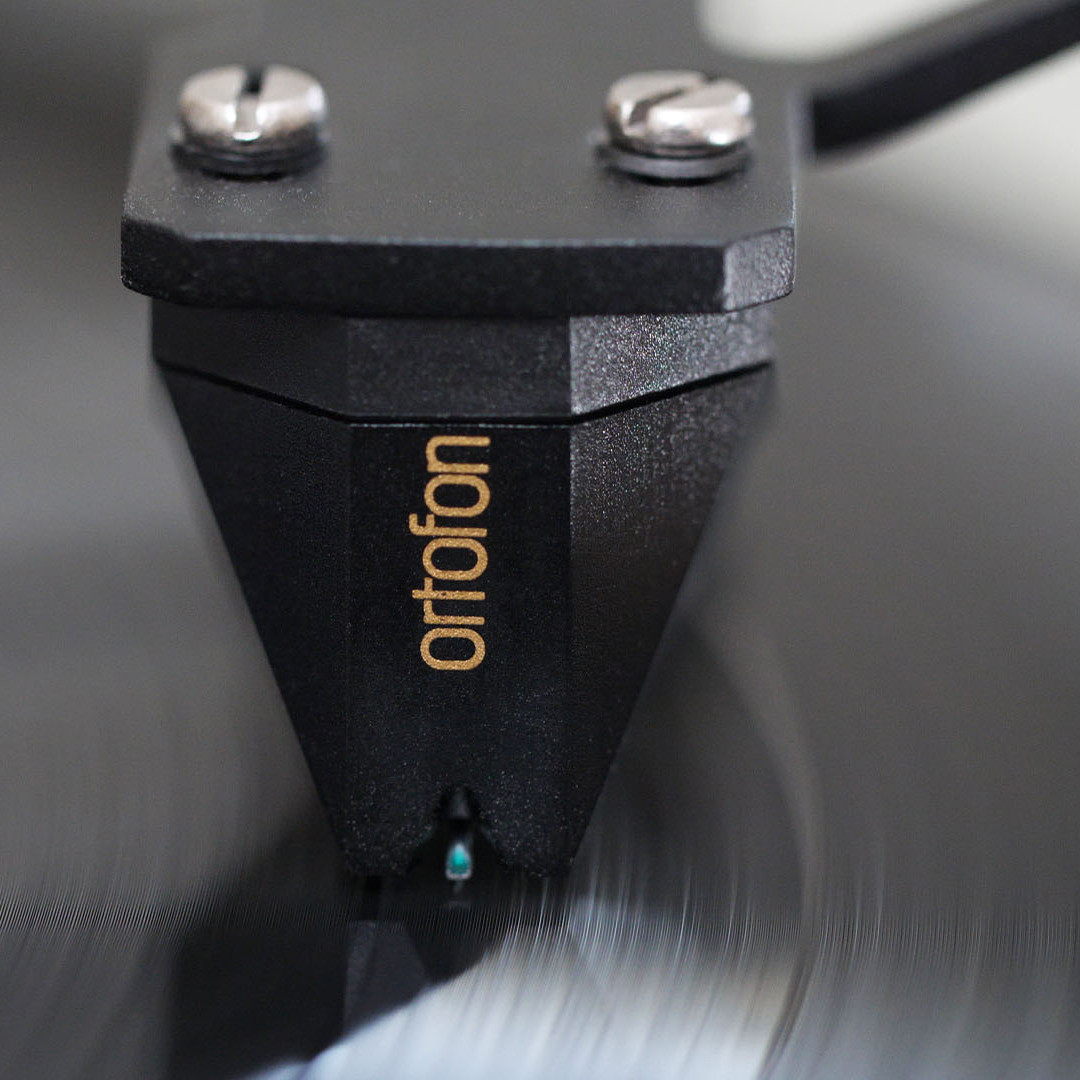

Ortofon 2M Black Phono Cartridge Mounted on SH-4 Black Headshell

This version of the 2M Black comes pre-mounted on Ortofon's popular SH-4 black headshell – a practical and elegant solution if you're looking for direct and easy mounting and replacement on your S-shaped tonearm.

    $799.99
    $799.99
    In Stock
    Share
    SKU: OR2MBKSHB
    WARNING: for more information go to http://www.P65Warnings.ca.gov
    Expert Audio Advisor profile picture
    Have a Question? Ask Our Experts!
    High-Quality Products icon

    High Quality Products Curated Offerings from top brands

    Green Practices icon

    Green Practices Commitment to environmental Sustainability

    60 Days Return Satisfaction Guarantee icon

    60 Days Return Satisfaction Guarantee

    Product Features

    • Moving magnet phono cartridge
    • Comes mounted on Ortofon's popular black SH-4 headshell
    • Sturdy and rigid, with a slim and delicate form factor
    • Ergonomic design has a long finger lift that is easy to pick up
    • Easy and direct mount on S-shaped tonearms with universal mount
    • Correct Baerwald alignment with tonearms with universal mount
    • New, improved engine provides an increased output of 5 mV
    • Shibata diamond stylus
    • Lexan DMX Piano Black cartridge body
    • Split pole pins with a copper wire
    • Easy mounting
    • Compatible with most tonearms

    Product Specs

    • Output voltage at 1000 Hz, 5cm/sec.: 5 mV
    • Channel balance at 1 kHz: 1 dB
    • Channel separation at 1 kHz: 26 dB
    • Channel separation at 15 kHz: 15 dB
    • Frequency range at - 3dB: 20-31.000 Hz
    • Frequency response: 20-20.000 + 2 / - 0 dB
    • Tracking ability at 315Hz at recommended tracking force: 80 µm
    • Compliance, dynamic, lateral: 22 µm/mN
    • Stylus type: Nude Shibata
    • Stylus tip radius: r/R 6/50 µm
    • Tracking force range: 1.4-1.7g (14-17 mN)
    • Tracking force, recommended: 1.5 g (15 mN)
    • Tracking angle: 20°
    • Internal impedance, DC resistance: 1,2 kOhm
    • Internal inductance: 630 mH
    • Recommended load resistance: 47 kOhm
    • Recommended load capacitance: 150-300 pF
    • Cartridge color, body/stylus: Black/Black
    • Cartridge weight: 7.2 g
    • Replacement stylus unit: 2M Black (interchangeable with 2M Bronze)

    Product Warranty

    1 Year Parts & Labor Ortofon Warranty Information

    Editors' Choice Award 2024 – The Absolute Sound Magazine

    "The swansong design of Ortofon’s former chief engineer Per Windfeld, the entry-level 2M Red uses an elliptical, the 2M Black a Shibata stylus. The Black’s greatest attribute is the way it parses the complexities of orchestral depth and dimension. In comparison, the 2M Red clocks in with a little drier sound, as if it’s making more of an effort in the upper treble. Still, this is one sophisticated and musical cartridge."

    - The Absolute Sound magazine, December 24


    Recommended Component 2024 – Stereophile

    "The 'ridiculously good' Ortofon 2M Black produced a bright, open sound with 'surprising heft and slam.' Because its Shibata stylus is sensitive to rake angle, the 2M Black should be used only with tonearms that permit adjustment of VTA and SRA, Mikey advised. HR used the Black on the Music Hall Stealth turntable, writing that compared with the Ortofon 2M Blue, "'tone quality, and the illusion of force and forward momentum, were enhanced to a degree that made me think I could live happily forever with this setup.'"

    - Stereophile, March 15, 2024


    "It’s hard to beat what Ortofon offers with its cartridges. The 2M Black, featuring its Shibata diamond stylus, give such a transparent and detailed sound, you would think you were in the recording studio of what was being played. Ortofon has also made it extremely easy to upgrade and interchange stylus with its lower-tier, 2M bronze. All you need to do is swap out the stylus, meaning no realigning or remounting a new cartridge."

    "While it may look slightly intimidating, the Ortofon 2M Black’s sound is extremely welcoming and accurate."

    - David Murray, The Vinyl Factory, October 14, 2021


    "The 2M Black sounds excellent across a wide range of programme material, with a distinctively ‘clean’ Ortofon sound that has tremendous detail resolving capability."

    "...It goes to work on the recorded acoustic, setting it up tidily with lots of atmosphere stretching right back to the edges of the concert hall."

    "It is very good at expressing the emotion in the lead vocal and capturing the dynamic nuances in the track overall."

    - Hi-Fi Choice, September 2020


    2019 Editors' Choice Award – The Absolute Sound

    "The Black’s greatest attribute is the way it parses the complexities of orchestral depth and dimension."

    - The Absolute Sound, March 2019


    "The 2M Black is 'open, fast, detailed, vivid, full of vitality and sonically spectacular.' It is a true high-resolution transducer that consequently puts great demands on the downstream electronics and speakers."

    - Marc Mickelson, The Audio Beat, August 2016


    "...the Ortofon's strengths in detail, imaging, tracking and neutrality make for a compelling case. If you're looking for a cartridge in this price range, be it MM or MC, it should definitely be on your shortlist."

    - Graeme Budd, TNT Audio, April 2016


    "When set-up, the Ortofon 2M Black was immediately engaging, sounding powerful and vivid..."

    "It was natural recordings of full orchestra that confirmed that the 2M Black is a stellar moving-magnet cartridge..."

    "The 2M Black delivers a holographic imagery worthy of the most sophisticated vinyl replay systems."

    - Hi-fi News Yearbook, 2011
