My speakers don't image as well as I think they should
I'm Wayne, and I've heard this complaint for decades. The good news: it's usually not the speakers. Five checks find the real culprit in most cases.
THE FIVE CHECKS
1. Are both speakers the same model?
It sounds obvious, but check it first. For precise stereo imaging, the left and right speakers must be identical models.
Two different speakers can't reproduce sound the same way. That makes a focused center image nearly impossible. Even two models from the same manufacturer can sound noticeably different.
2. Is every driver actually working?
A failed driver is one of the most common causes of poor imaging. And a speaker can keep making sound while one driver sits silent.
Drivers fail for ordinary reasons. A crossover connection shakes loose in shipping. Someone cranks the volume too far. A tweeter simply ages out — sometimes years before anyone notices.
Test the woofers. With music playing, rest your fingertips lightly on each cone. You should clearly feel it move. If one woofer vibrates and its twin doesn't, you've found a problem.
Test the tweeters. Tweeters barely move, so use your ears instead. At low volume, put your ear close to each one. You should hear clean high-frequency output. Silence, distortion, or crackling means the tweeter may need replacement.

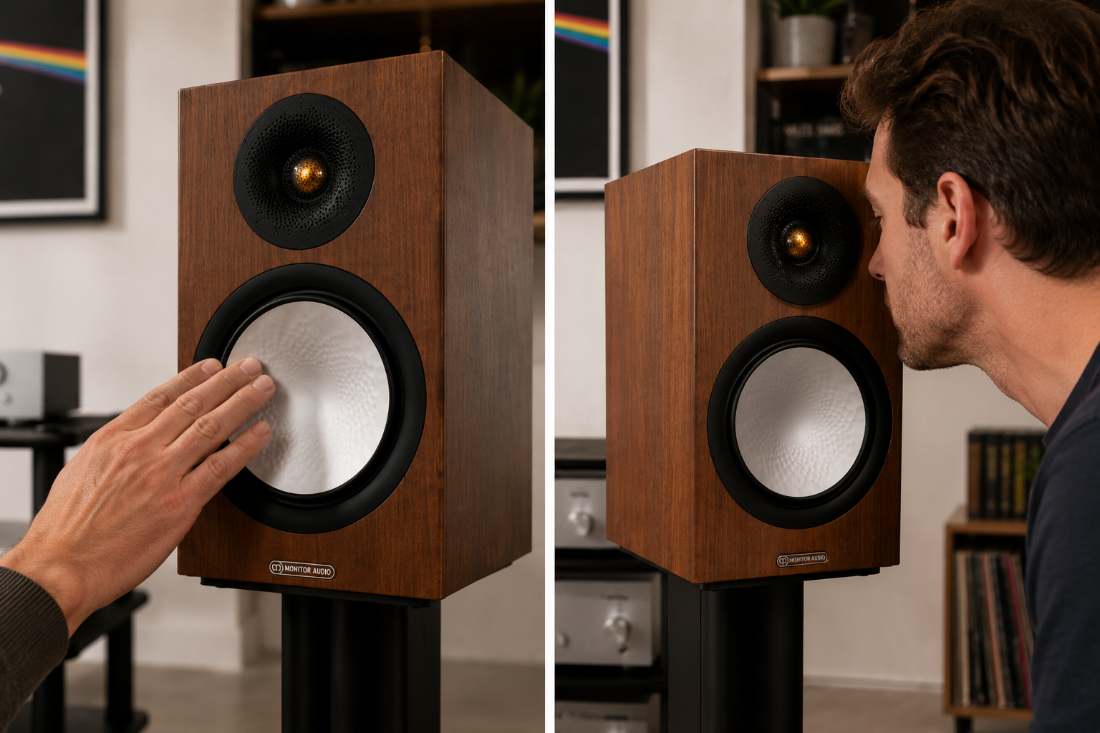

Check every driver, one at a time. Feel each woofer for movement; listen close to each tweeter. Sound from the cabinet doesn't mean every driver works.

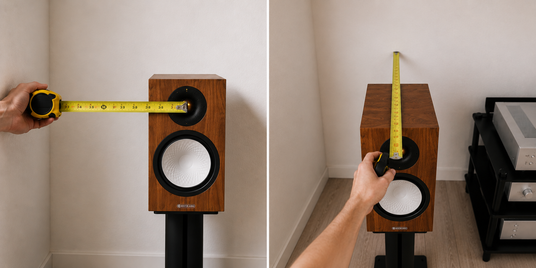

Don't trust your eyes for any of this. Use a tape measure for heights and distances, and a cheap bubble level from any hardware store. Measurement catches what estimation misses.
3. Do height, level, and toe-in match?
Positioning is absolutely critical for imaging. Three things have to agree between the two speakers.
Height. Both speakers should sit at exactly the same height. Even a small mismatch can noticeably affect imaging. On stands, measure each speaker and adjust until they're identical.
Level. Each speaker should be perfectly level — side to side and front to back. Even small tilts will knock the drivers out of alignment with each other.
Toe-in. Angle both speakers slightly inward, toward your listening seat. That inward angle tightens the center image and adds soundstage depth. Always check your speaker's owner's manual for the manufacturer's recommendation on toe-in.
Same height, dead level, angled at your seat.Measure the height of each speaker, level both planes, and toe each one in toward where you sit.
4. Is each speaker the same distance from the walls?
You never hear only the direct sound from your speakers. You also hear reflections — from the floor, the ceiling, both side walls, and the walls behind the speakers and behind you.
That's why placement has to be symmetrical. Measure from each speaker to its nearest side wall — the two distances should be identical. Then measure from each speaker to the wall behind it. Identical again.
A difference of an inch or two changes one speaker's reflection pattern relative to the other. When the two patterns differ, the stereo image suffers.

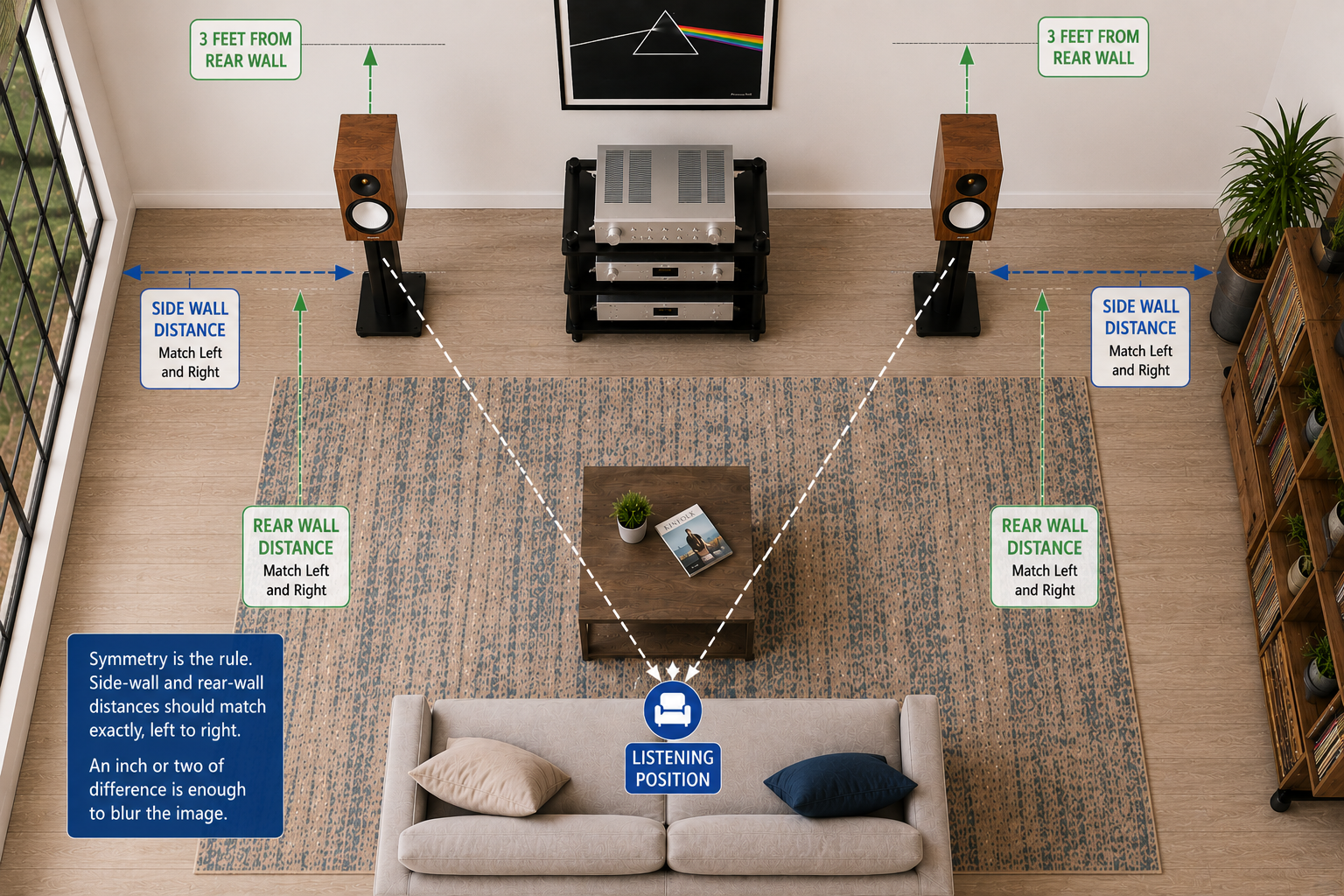

Symmetry is the rule. Side-wall and rear-wall distances should match exactly, left to right. An inch or two of difference is enough to blur the image.
While you have the tape measure out: if your speakers sit jammed against the wall, pull them 12 to 24 inches into the room. It's the single best free upgrade in audio.
5. Do both sides of the room reflect sound the same way?
This one is subtler, but it can make or break imaging. Even perfectly placed speakers can face an unequal room.
Picture curtains on one side wall and bare drywall on the other. Or bookshelves on the left and open space on the right. Each speaker now interacts with the room differently, and the image loses focus and stability.
If your room is lopsided like this, experiment. Move the pair to another spot, or another wall. Look for a position where the surfaces around each speaker are more similar than different. The more symmetrical the surroundings, the more stable and three-dimensional the image.

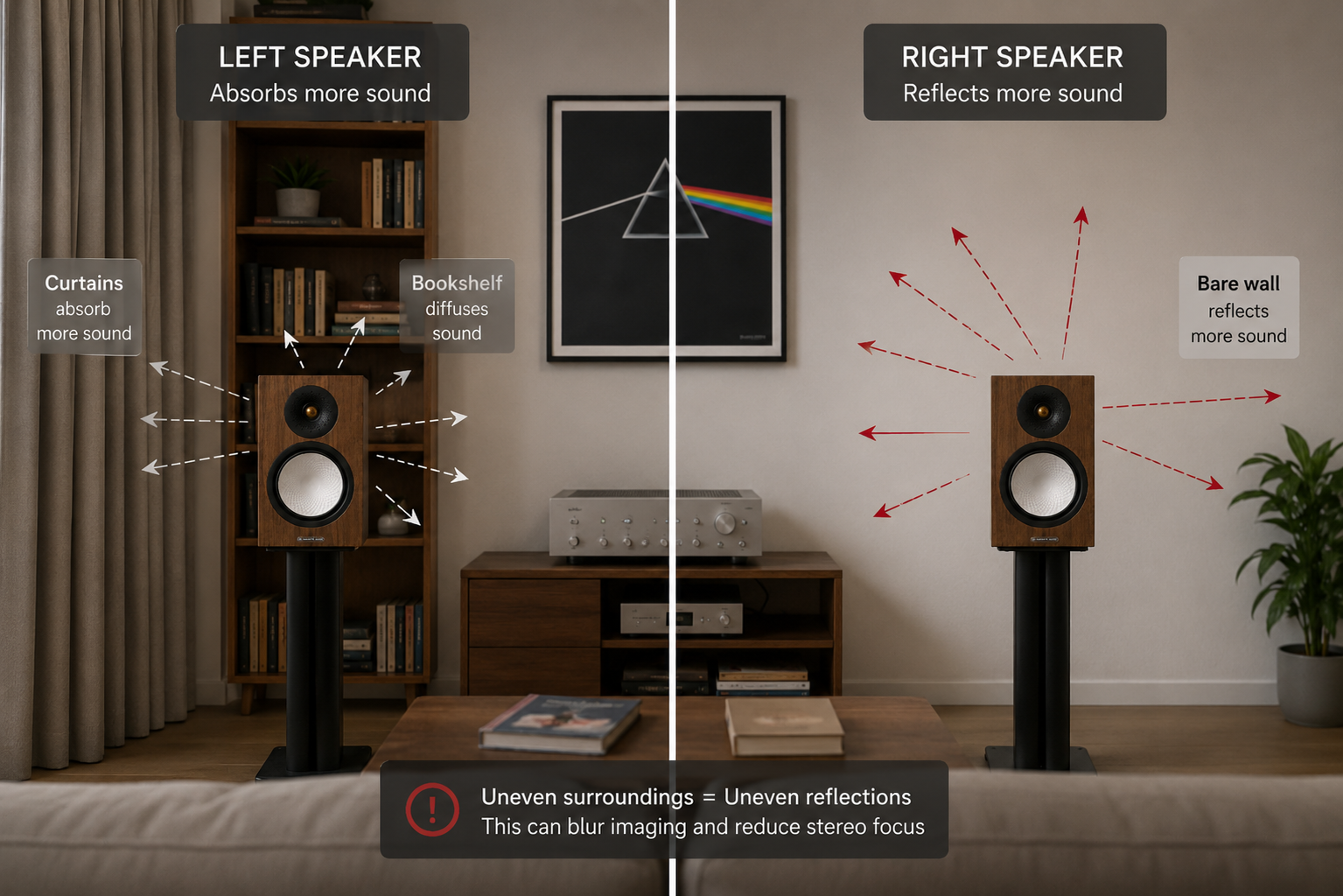

The room is half the sound. Curtains, shelves, and bare walls reflect differently. Aim for left and right surroundings that roughly match.
LET'S CLEAR A FEW THINGS UP
What people get wrong about imaging
These beliefs send people shopping when they should be measuring. I'd rather save you the money.
Poor imaging means I need better speakers.
It's usually setup, the room, or a failed driver. Fix those first — most imaging problems never required new speakers.
If both speakers make sound, the drivers are fine.
A speaker plays on with a dead tweeter or woofer. Test every driver individually — one silent driver wrecks the image.
An inch here or there can't possibly matter.
It does. An inch or two changes one speaker's reflection pattern against the other's, and the image blurs. Measure everything.
Two similar speakers from the same brand pair fine.
Different models reproduce sound differently, even from one maker. A precise center image needs an identical pair.
Feel each woofer and listen close to each tweeter, one at a time. If a driver has failed, call us before you buy — sometimes a repair makes sense, sometimes a matched pair does.
A tape measure and a hardware-store bubble level solve more imaging problems than any component. Equalize wall distances, level both speakers, and toe in.
Rigid, adjustable stands get both speakers to exactly the same height — and hold them level. The right stands are an imaging upgrade, not furniture.
