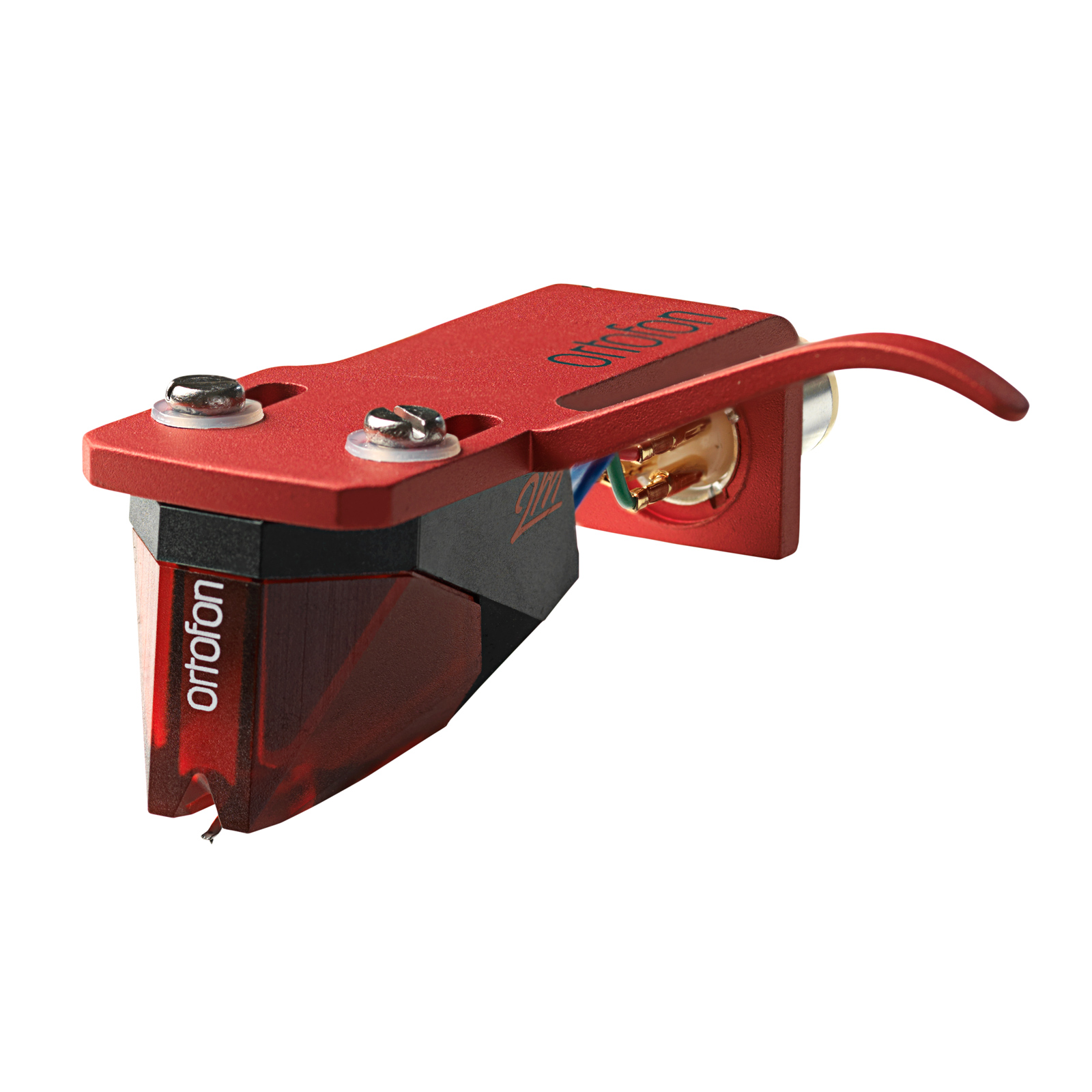

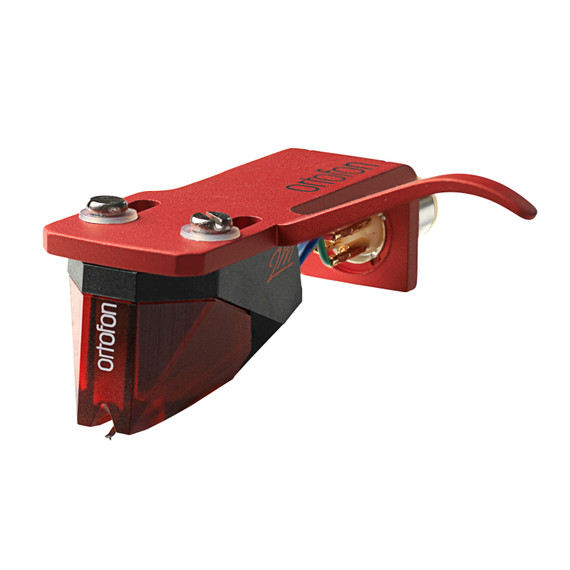

Ortofon 2M Red Phono Cartridge Mounted on SH-4 Red Headshell

This version of the 2M Red cartridge is pre-mounted on an Ortofon SH-4 headshell.

    $159.00 - $159.95
    $99.37 - $159.00
    $159.95
    Starting At $99.37

    You Save $60.58 (37%)
    Share
    SKU: PRNT-OR2MREDSH
    WARNING: for more information go to http://www.P65Warnings.ca.gov
    Expert Audio Advisor profile picture
    Have a Question? Ask Our Experts!
    High-Quality Products icon

    High Quality Products Curated Offerings from top brands

    Green Practices icon

    Green Practices Commitment to environmental Sustainability

    60 Days Return Satisfaction Guarantee icon

    60 Days Return Satisfaction Guarantee

    Product Features

    Ortofon 2M Red Phono Cartridge
    • Moving magnet phono cartridge
    • Pre-mounted on an Ortofon SH-4 headshell
    • New, improved engine provides an increased output of 5.5mV
    • A tipped Elliptical diamond and split pole pins with a copper wire
    • Easy mounting
    • Compatible with most tonearms
    Ortofon SH-4 Headshell
    • High-quality, solid aluminum construction
    • Ergonomic design with a long finger
    • Big finger grip
    • Universal mount fits a wide range of S-shaped tonearms
    • Attractive red finish matches the color of the 2M Red cartridge

    Product Specs

    Ortofon 2M Red Phono Cartridge
    • Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV
    • Channel balance at 1 kHz: 1.5 dB
    • Channel separation at 1 kHz: 22 dB
    • Channel separation at 15 kHz - 15 dB
    • Frequency range at - 3dB: 20-25,000 Hz
    • Frequency response: 20-20,000 Hz + 3 / - 1 dB
    • Tracking ability at 315Hz at recommended tracking force: 70 µm
    • Compliance, dynamic, lateral: 20 µm/mN
    • Stylus type: Elliptical
    • Stylus tip radius: r/R 8/18 µm
    • Tracking force range: 1.6-2.0g (16-20 mN)
    • Tracking force, recommended: 1.8 g (18 mN)
    • Tracking angle: 20°
    • Internal impedance, DC resistance: 1.3 kOhm
    • Internal inductance: 700 mH
    • Recommended load resistance - 47 kOhm
    • Recommended load capacitance: 150-300 pF
    • Cartridge color, body/stylus: Black/Red
    • Cartridge weight: 722 g (not including SH-4 headshell)
    • Replacement stylus unit: 2M Red (interchangeable with 2M Blue and 2M Silver)
    Ortofon SH-4 Headshell
    • Shell length: 51.5 mm
    • Finger Length: 27 mm
    • Weight (including screws, not including 2M Red phono cartridge): 9.4 g

    Product Warranty

    1 Year Parts & Labor Ortofon Warranty Information
