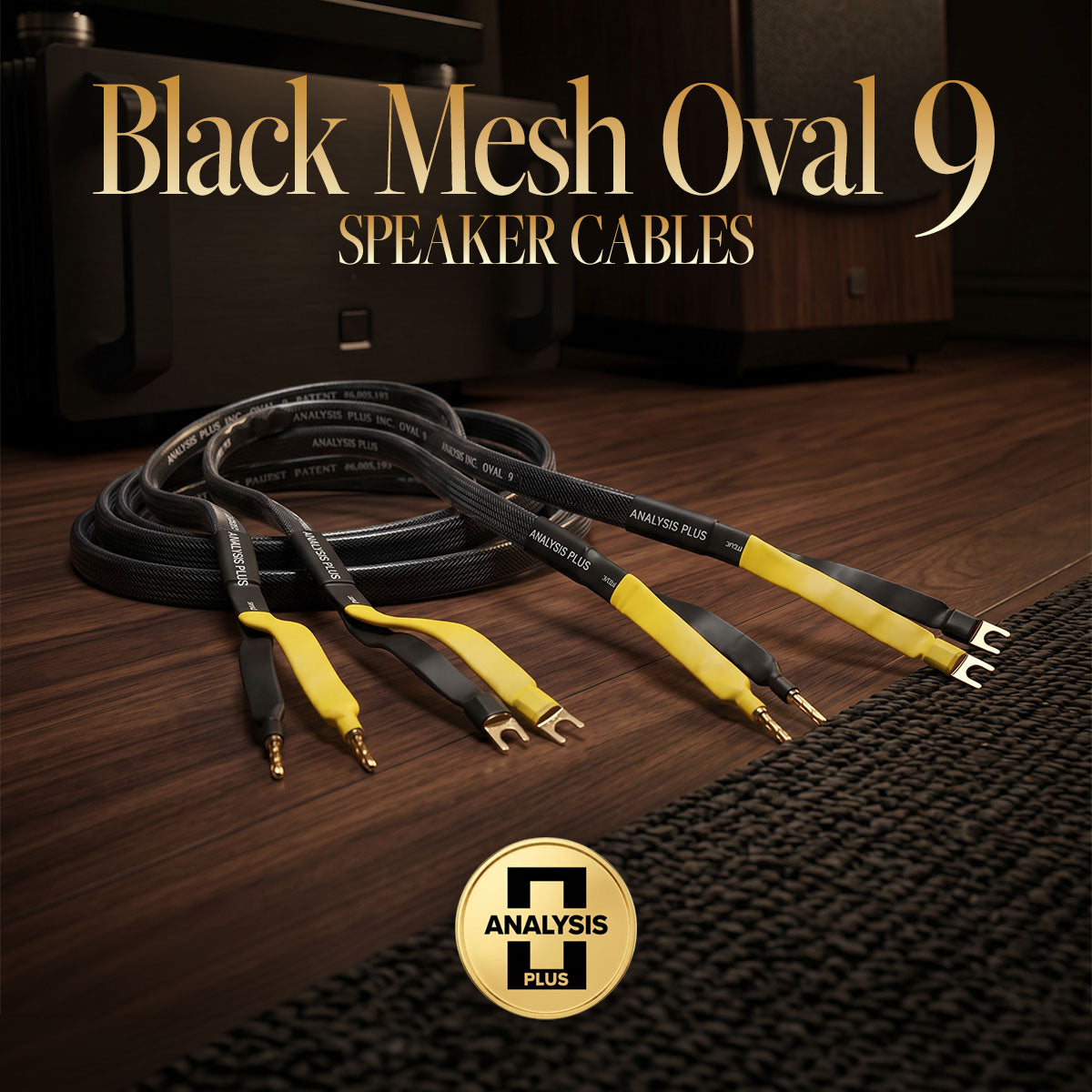

Analysis Plus Black Mesh Oval 9 Speaker Cable - 3 Foot - Banana to Banana - Pair

Analysis Plus Black Mesh Oval 9 Speaker Cable - 3 Foot - Banana to Banana - Pair

What It Does in Your System

The Cable That Built This Company's Reputation, at Monoblock Length

Oval 9 is the design that made Analysis Plus a name in audio — well enough regarded that reviewers kept remarking on how little it costs relative to what it does. Black Mesh Oval Nine is the current version, with improved connectors, a dielectric with faster rise time, and geometry re-optimized for more uniform current distribution.

This is a matched 3-foot pair with bananas at both ends — the shortest practical speaker cable length. It's built for monoblocks sitting directly beside each speaker, a compact desktop system, or an amplifier tucked between closely spaced speakers.

Hollow Oval Geometry That Keeps Resistance Flat Across the Band

Analysis Plus is an engineering firm first — the Michigan company earned its name modeling and testing cables for other manufacturers before deciding it could do better itself. Their simulations showed that round conductors suffer badly from current bunching and skin effect, so they developed a patented hollow oval cross-section instead.

A woven pattern places every wire statistically as close to the return current as every other wire. Current density stays even and resistance barely changes with frequency — the benefit that applies at any length, because it's about how the conductor behaves rather than how far the signal travels.

Nine Gauge of Copper, With Nothing Left to Lose

This is a substantial cable — 9 AWG of high-purity oxygen-free copper. Over three feet, series resistance is essentially a non-issue from the outset, which means every bit of that conductor mass is headroom rather than compensation for distance. If you've gone to the trouble of putting amplifiers at your speakers, this is the cable that doesn't undo the advantage.

Analysis Plus uses a flexible braid rather than solid conductors, which kink and deform in ways that degrade the signal. That construction can't be machine-terminated — each cable takes over an hour of handwork to complete.

Is This Right for You?

A few things to confirm before ordering:

• Three feet is very short — measure before committing. It's right for monoblocks at the speakers or a genuinely compact layout, but it leaves almost no slack. Measure the actual path with the connectors seated, including any drop behind the amplifier, and remember this cable doesn't take tight bends.
• Your binding posts accept bananas. Bananas are the most universal connection and work with standard five-way posts and shrouded EU-style terminals alike. If you'd prefer spades, Analysis Plus offers this cable with their T1 spade instead.
• This is the full-range configuration. Two conductors per end, one cable per speaker. If your speakers have separate bass and treble binding posts and you want to bi-wire, Analysis Plus builds the Bi-Oval 9 for that.

Setup & Installation

Insert the banana plugs into the binding posts on your amplifier and speakers, observing polarity — positive to positive, negative to negative, at both ends. Bananas seat with a firm push and hold by spring tension, so no tools are needed. Wire both channels identically before playing music.

The cable measures roughly 20mm by 8mm in cross-section — a wide flat oval rather than a round bundle. At three feet there's essentially no routing to do, but that's exactly when people force a bend to take up slack. Nine-gauge conductors don't tolerate tight turns, so let the cable curve naturally between components rather than pressing it flat against a wall or chassis.

Features & Specifications

Patented Hollow Oval Geometry
Minimizes current bunching and skin effect so resistance stays nearly constant across the audio band.

Woven Braided Conductor
Every wire sits statistically as close to the return current as every other, distributing current density evenly for better signal transfer than solid-conductor designs.

9-Gauge Oxygen-Free Copper
A massive conductor built to convey deep bass at high volume, especially with lower-sensitivity speakers.

Handcrafted Termination
The oval cross-section and braided construction require hand assembly — over an hour of work per cable.

Specifications

• Type: Full-range speaker cable, matched pair
• Length: 3 feet

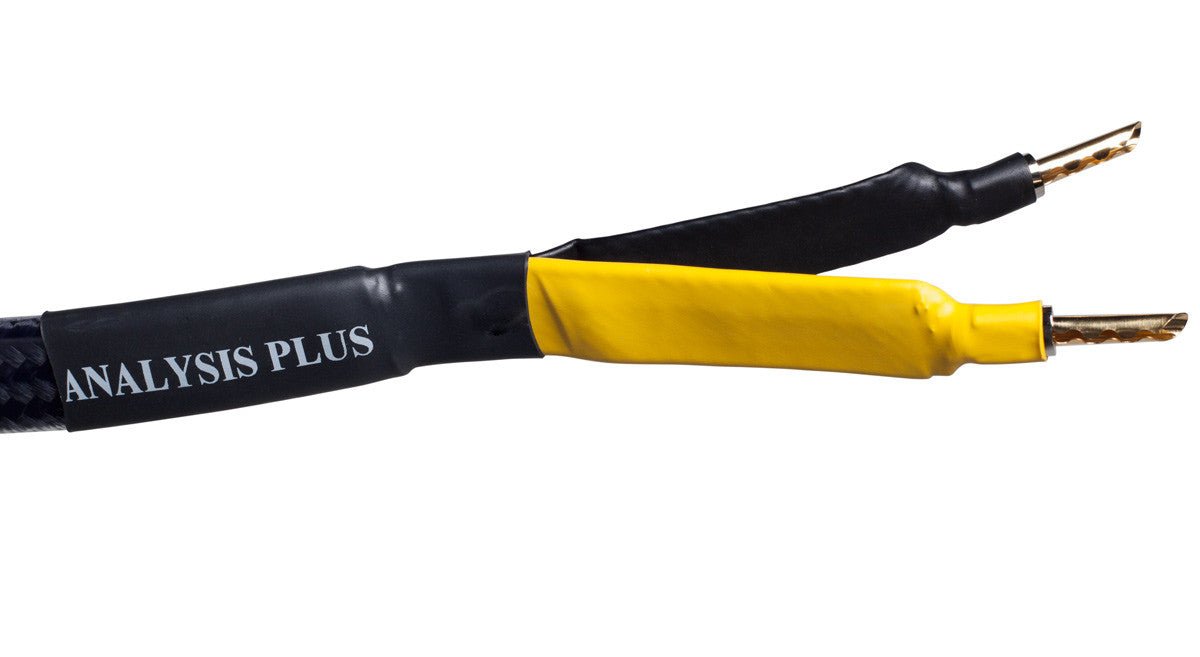

• Terminations: Banana connectors, both ends
• Conductor gauge: 9 AWG
• Conductor material: High-purity oxygen-free copper
• Geometry: Patented hollow oval, oval-coaxial configuration
• Outer dimensions: 20mm x 8mm
• Jacket: Black mesh
• Included: One matched pair of terminated speaker cables

Frequently Asked Questions

Is this a pair or a single cable?
This is a matched pair — two 3-foot cables, one per speaker. Everything you need to wire a stereo system is included.

Is nine gauge overkill for a three-foot run?
Resistance over three feet is negligible with almost any decent cable, so the gauge isn't doing heavy lifting here. What you're getting is the hollow oval geometry and the conductor quality, which affect how the cable behaves regardless of length. If you want the Oval 9's character in a short run, this is how you get it.

What's the difference between this and the Bi-Oval 9?
Same conductor, same geometry, same gauge. The Bi-Oval 9 uses four conductors so your speaker's bass and treble binding posts each get their own pair. This standard version is what you want if your speakers have a single set of posts.
