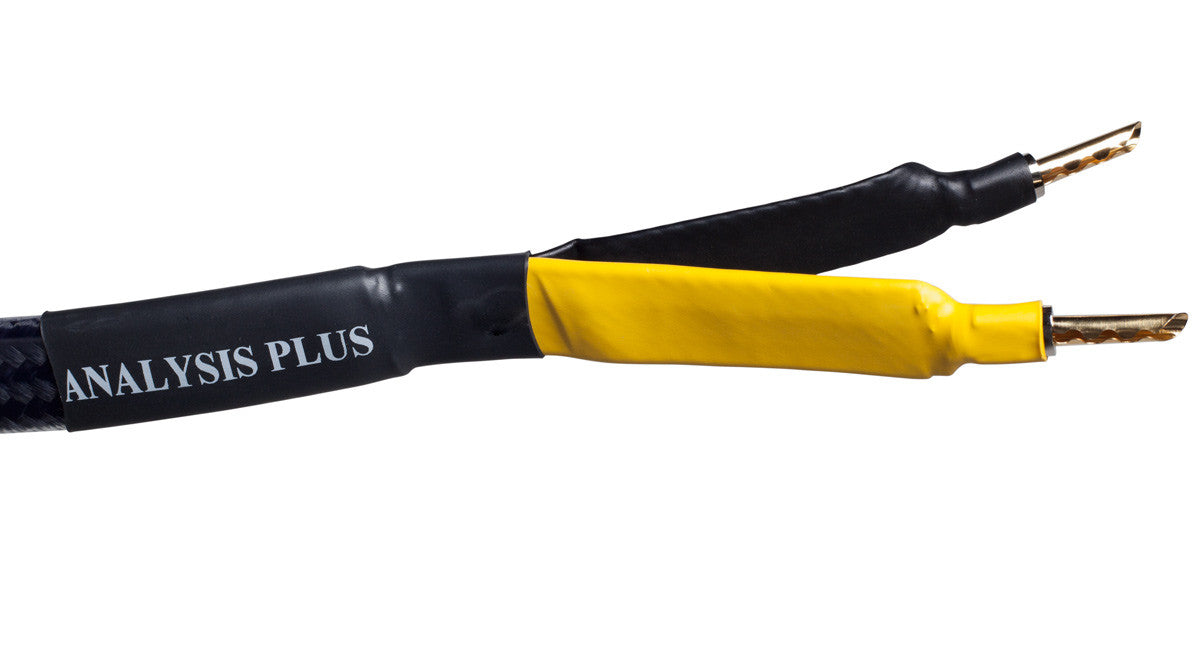

Analysis Plus Black Mesh Oval 9 Speaker Cable - 5 Foot - Banana to Banana - Single

Analysis Plus Black Mesh Oval 9 Speaker Cable - 5 Foot - Banana to Banana - Single

What It Does in Your System

The Cable That Built This Company's Reputation, in a Short Single Run

Oval 9 is the design that made Analysis Plus a name in audio — well enough regarded that reviewers kept remarking on how little it costs relative to what it does. Black Mesh Oval Nine is the current version, with improved connectors, a dielectric with faster rise time, and geometry re-optimized for more uniform current distribution.

This listing is a single 5-foot run with bananas at both ends. Five feet suits monoblocks sitting beside the speakers, a compact system, or an amplifier positioned between speakers that aren't far apart — and a single is the right call when your two speakers sit at different distances from the amp.

Hollow Oval Geometry That Keeps Resistance Flat Across the Band

Analysis Plus is an engineering firm first — the Michigan company earned its name modeling and testing cables for other manufacturers before deciding it could do better itself. Their simulations showed that round conductors suffer badly from current bunching and skin effect, so they developed a patented hollow oval cross-section instead.

A woven pattern places every wire statistically as close to the return current as every other wire. Current density stays even, resistance barely changes with frequency, and you hear a cable that stays consistent from the bottom of the bass to the top of the treble.

Nine Gauge of Copper in a Length That Doesn't Strictly Need It

This is a substantial cable — 9 AWG of high-purity oxygen-free copper, built to hold onto deep bass notes played at high volume. Over a 5-foot run, resistance was never going to be the limiting factor, which means the conductor mass here is pure headroom rather than compensation for distance.

Analysis Plus uses a flexible braid rather than solid conductors, which kink and deform in ways that degrade the signal. That construction can't be machine-terminated either — each cable takes over an hour of handwork to complete.

Is This Right for You?

A few things to confirm before ordering:

• This is a single run, not a pair. One 5-foot cable connects one speaker. Order two if you're wiring both channels, or one if you're filling a gap or pairing it with a different length on the other side.
• Five feet is short — measure carefully. Right for monoblocks at the speakers or a compact layout, but it leaves little slack. Measure the actual routing path with the connectors seated, including any drop behind the amplifier.
• This is the full-range configuration. Two conductors per end. If your speakers have separate bass and treble binding posts and you want to bi-wire, Analysis Plus builds the Bi-Oval 9 for that.

Setup & Installation

Insert the banana plugs into the binding posts on your amplifier and speaker, observing polarity — positive to positive, negative to negative. Bananas seat with a firm push and hold by spring tension, so no tools are needed. If you're running a second cable for the other channel, wire both identically before playing music.

The cable measures roughly 20mm by 8mm in cross-section — a wide flat oval rather than a round bundle. Over 5 feet there's little routing to do, but 9-gauge conductors don't like tight turns, so give the cable a generous radius where it leaves each component rather than forcing a sharp bend to take up slack.

Features & Specifications

Patented Hollow Oval Geometry
Minimizes current bunching and skin effect so resistance stays nearly constant across the audio band.

Woven Braided Conductor
Every wire sits statistically as close to the return current as every other, distributing current density evenly for better signal transfer than solid-conductor designs.

9-Gauge Oxygen-Free Copper
A massive conductor built to convey deep bass at high volume, especially with lower-sensitivity speakers.

Handcrafted Termination
The oval cross-section and braided construction require hand assembly — over an hour of work per cable.

Specifications

• Type: Full-range speaker cable, single run
• Length: 5 feet
• Terminations: Banana connectors, both ends
• Conductor gauge: 9 AWG
• Conductor material: High-purity oxygen-free copper
• Geometry: Patented hollow oval, oval-coaxial configuration
• Outer dimensions: 20mm x 8mm
• Jacket: Black mesh
• Included: One single-run terminated speaker cable

Frequently Asked Questions

Does this include both speaker cables?
No — this is one single 5-foot run, which connects one speaker. Add two to your cart to wire a stereo pair.

Can I pair this with a different length on the other channel?
Yes. Unequal cable lengths between channels are electrically inconsequential at speaker level, and it's a common solution when one speaker sits farther from the amplifier. Matching lengths is tidier, but it isn't a performance requirement.

What's the difference between this and the Bi-Oval 9?
Same conductor, same geometry, same gauge. The Bi-Oval 9 uses four conductors so your speaker's bass and treble binding posts each get their own pair. This standard version is what you want if your speakers have a single set of posts.
