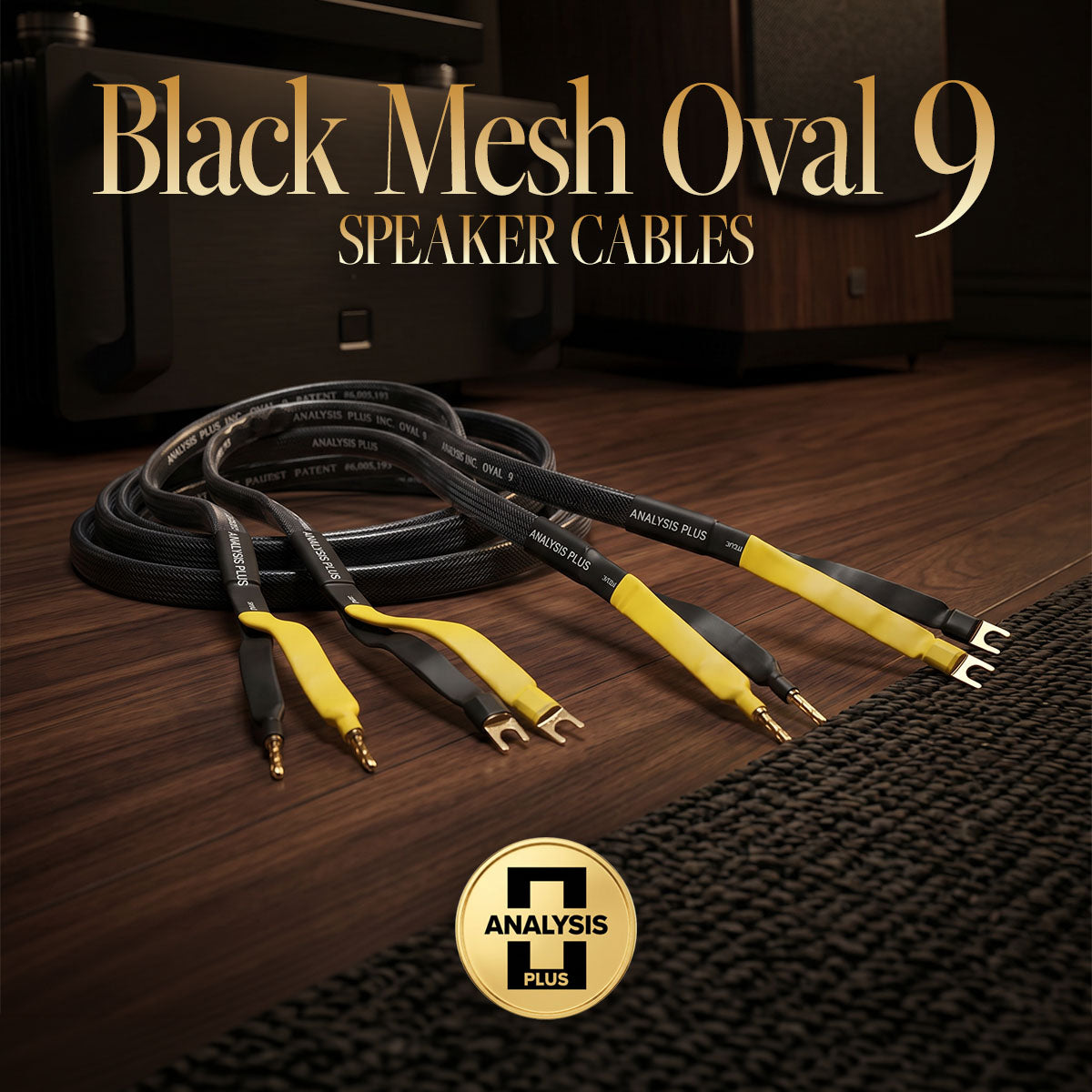

Analysis Plus Black Mesh Oval 9 Speaker Cable - 5 Foot - Spade to Spade - Pair

Analysis Plus Black Mesh Oval 9 Speaker Cable - 5 Foot - Spade to Spade - Pair

What It Does in Your System

Built by the People Other Cable Companies Hired

Analysis Plus started out in Flushing, Michigan doing testing work for cable brands you'd know by name. After studying the field from the inside, they decided they could build something better. The hollow oval conductor is what came out of that work.

Oval 9 has been their best seller for years. Black Mesh is the current version, with better connectors and a new dielectric — the insulation around the wire — that responds faster to the signal.

An Oval Shape That Spreads the Current Evenly

Analysis Plus ran extensive computer models before settling on a hollow oval shape. In a round wire, current crowds toward the outside as the pitch gets higher. That uneven flow is one reason some cables sound tonally lopsided.

The oval shape spreads current much more evenly across the whole conductor. You hear that as consistency. Bass keeps pace with treble, and the tonal balance holds steady even when the music gets busy.

Nine-Gauge Copper, Woven and Finished by Hand

Oval 9 is a thick 9-gauge cable made from oxygen-free copper. There's plenty of metal here to carry deep bass at high volume without strain.

Instead of one solid wire, which can kink and deform over time, Analysis Plus weaves many strands into a braid. The pattern puts every strand about the same distance from the return current. That braid can't be machine-terminated, so each cable gets more than an hour of handwork before it ships.

Is This Right for You?

A few things to check before you order:

• Five feet is short, so measure carefully. This length works when your amp sits close to the speakers — on a low shelf beneath them, or monoblocks right beside each cabinet. Measure post to post, not the gap between the boxes.
• This is a complete pair. You get two 5-foot cables, one for each speaker. There's no need to order two.

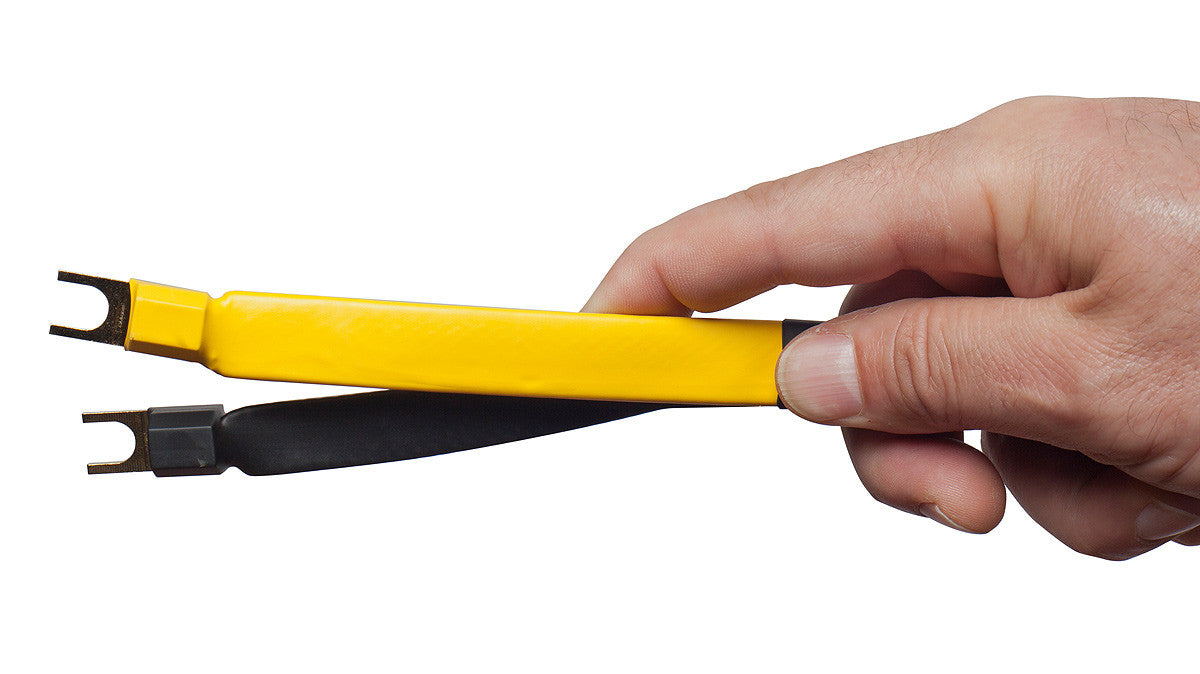

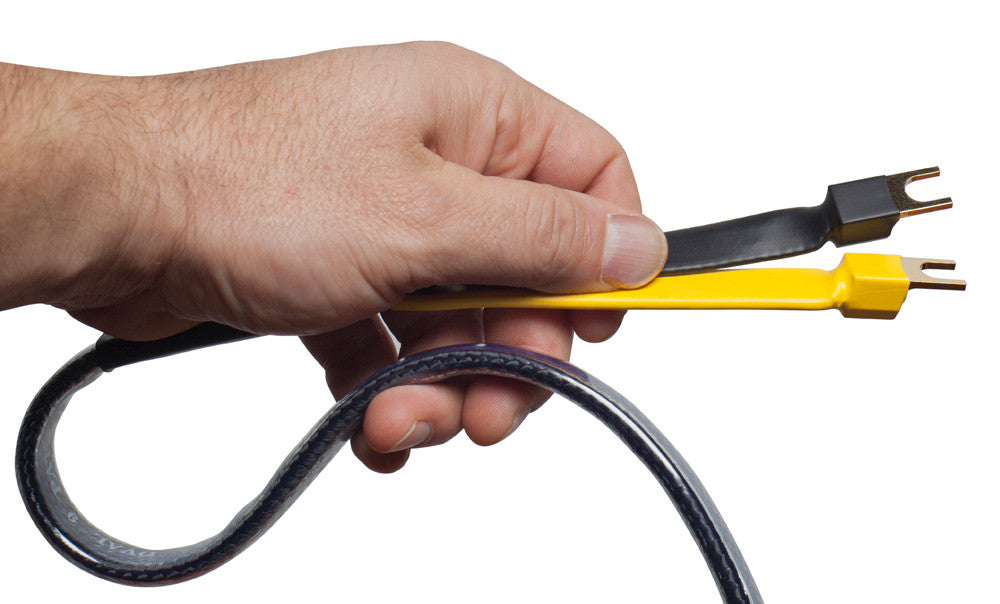

• Check your binding posts before you pick spades. Spades give a wide, solid contact and suit normal five-way posts well. If your posts are recessed or shrouded and hard to tighten a spade onto, bananas are the safer choice. Give us a call and we'll help you sort it out.

Setup & Installation

Slide each spade under a binding post nut and tighten it by hand until the spade sits flat against the post. Watch your polarity: red to positive, black to negative, the same way on both channels. Both ends are identical, so it doesn't matter which one goes to the amp.

At this length there isn't much slack to spare. Set your amplifier in place first and check that the run works without pulling the cable tight. Nine-gauge cable is stiff, and a sharp bend right at a spade puts real stress on the connector. Leave it room to curve.

Features & Specifications

Patented Hollow Oval Geometry
The oval shape keeps resistance steady across the whole audio range, so current spreads evenly and tone stays balanced.

Woven Braided Conductor
Every strand sits about the same distance from the return current, and the braid resists the kinks that ruin solid wire.

9-Gauge Oxygen-Free Copper
A thick conductor delivers deep bass at high volume without squeezing the sound.

Upgraded Dielectric and Connectors
Black Mesh adds faster insulation and better connectors than the original Oval 9, with over an hour of handwork per cable.

Specifications

• Length: 5 feet
• Termination: Spade to spade
• Quantity: Matched pair (two cables)
• Gauge: 9 AWG
• Conductor: Oxygen-free copper
• Geometry: Patented hollow oval, oval-coaxial configuration
• Conductor Construction: Woven braid
• Jacket: Black mesh
• Termination Method: Handcrafted
• Made in: Flushing, Michigan, USA

Frequently Asked Questions

Is this one cable or two?
Two. You get a matched pair, one cable per speaker. A single order connects your amplifier to both speakers.

Is five feet enough for my system?
Only if your amp sits close to the speakers. Think monoblocks beside each cabinet, or an amp on a low shelf right below them. For anything farther, step up to a longer pair. A cable stretched tight against its connectors is worse than one that's a little long.

How is Black Mesh different from the original Oval 9?
It keeps what made Oval 9 a best seller — the hollow oval shape and the braided copper. It adds better connectors, faster insulation, and further tuning of the oval shape for more even current flow.
