Bowers & Wilkins CWM663 In-Wall Speaker - Each
What You Need to Know

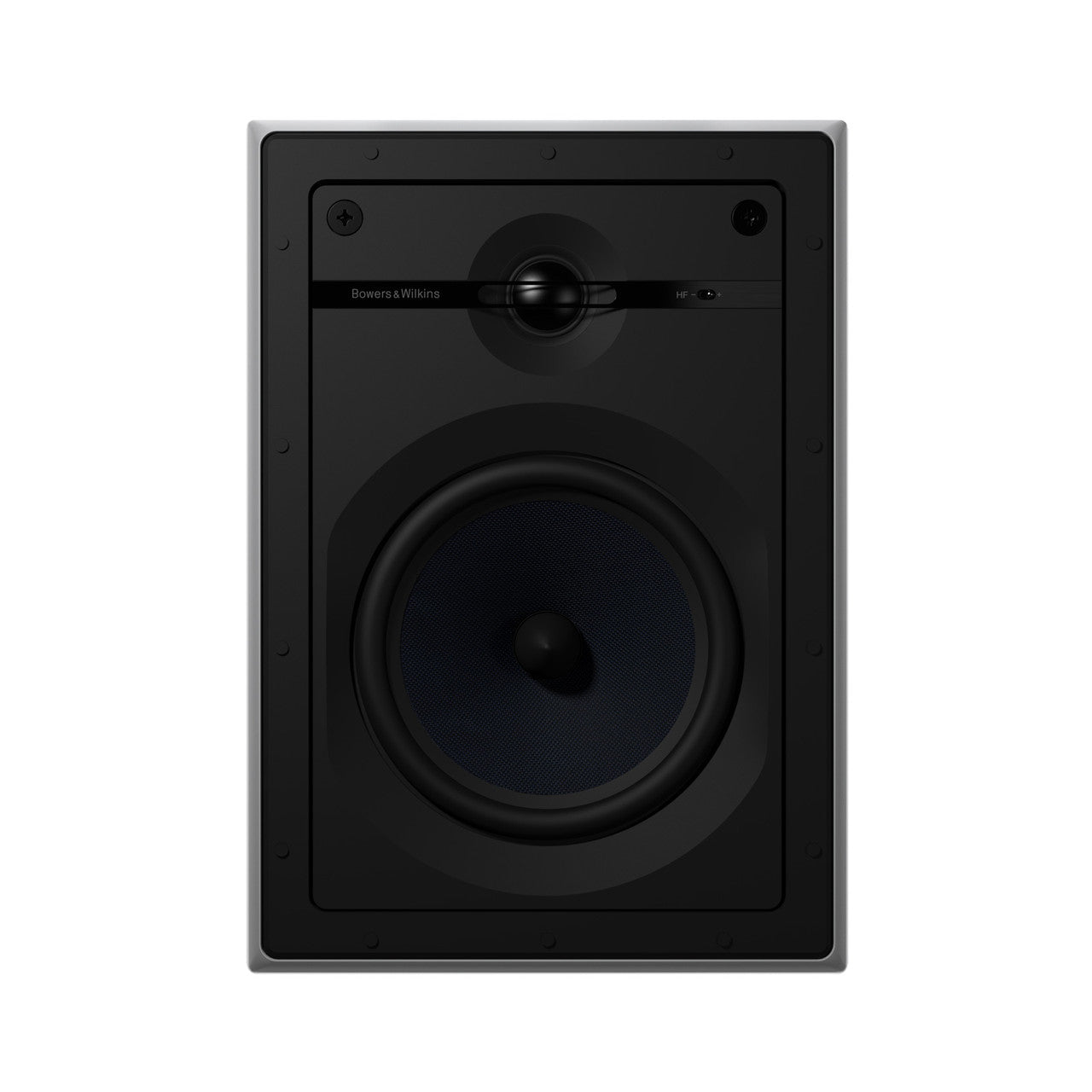

The Bowers & Wilkins CWM663 is the serious in-wall of the Performance Series—built with B&W's flagship-derived hardware. Its 6-inch blue Aramid fiber cone bass/midrange sits in a rigid die-cast chassis for cleaner, faster bass down to 45Hz, while the 1-inch aluminum dome tweeter incorporates a genuine Nautilus tube that absorbs unwanted energy behind the diaphragm, extending detailed, low-distortion treble all the way to 50kHz.
A three-position high-frequency switch tunes the treble to lively, neutral, or damped rooms, and installation is B&W-simple: QuickDogs plug-and-play mounting, a shallow 3.7-inch depth that fits standard stud walls, and a paintable grille protruding just 0.2 inches. With 88dB sensitivity and up to 150 watts of power handling, it anchors everything from stereo pairs to full in-wall theaters. Optional pre-mount kit and back box available for new construction.
Features & Specifications
Blue Aramid Fiber Driver — B&W's signature 6" cone in a resonance-killing die-cast chassis.
Nautilus Tube-Loaded Tweeter — 1" aluminum dome with flagship-derived distortion control, out to 50kHz.
3-Position HF Switch — Tune the treble to match your room's acoustics.
QuickDogs Mounting — Fast, secure, plug-and-play installation.
150W Power Handling — Shallow 3.7" depth fits standard stud walls.
Specifications
- Type: 2-Way In-Wall Speaker (Performance Series)
- Drivers: 1" (25mm) Nautilus Tube-Loaded Aluminum Dome Tweeter; 6" (150mm) Blue Aramid Fiber Cone Bass/Midrange
- Frequency Range: 45Hz - 50kHz (-6dB)
- Sensitivity: 88dB (2.83V, 1m)
- Nominal Impedance: 8 Ohms (4.5 Ohms minimum)
- Amplifier Power: 25 - 150W
- High-Frequency Adjustment: 3-Position Switch
- Frame Dimensions: 12.4"H x 8.7"W
- Cut-Out Dimensions: 11"H x 7.2"W
- Depth Behind Surface: 3.7"; Protrusion: 0.2"

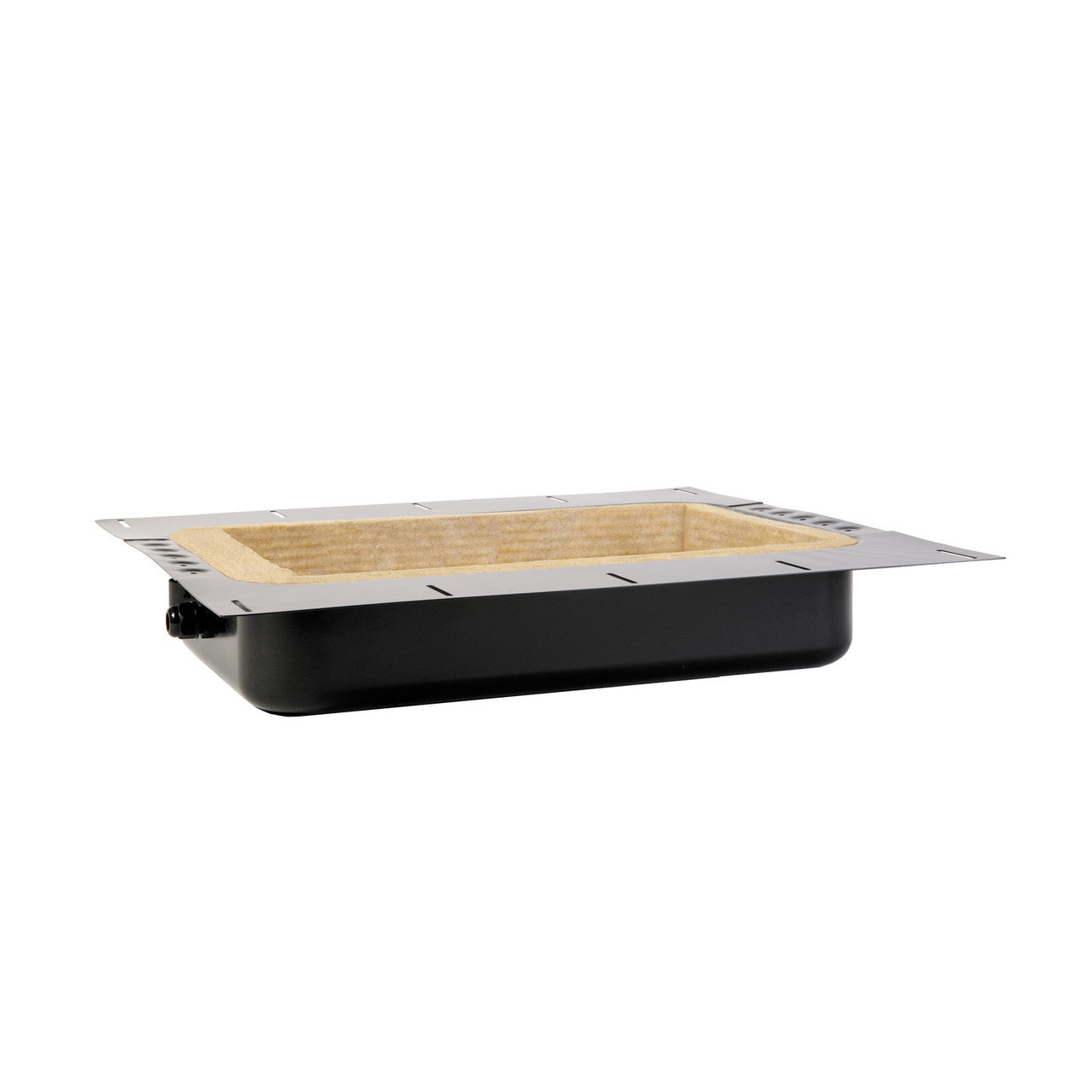

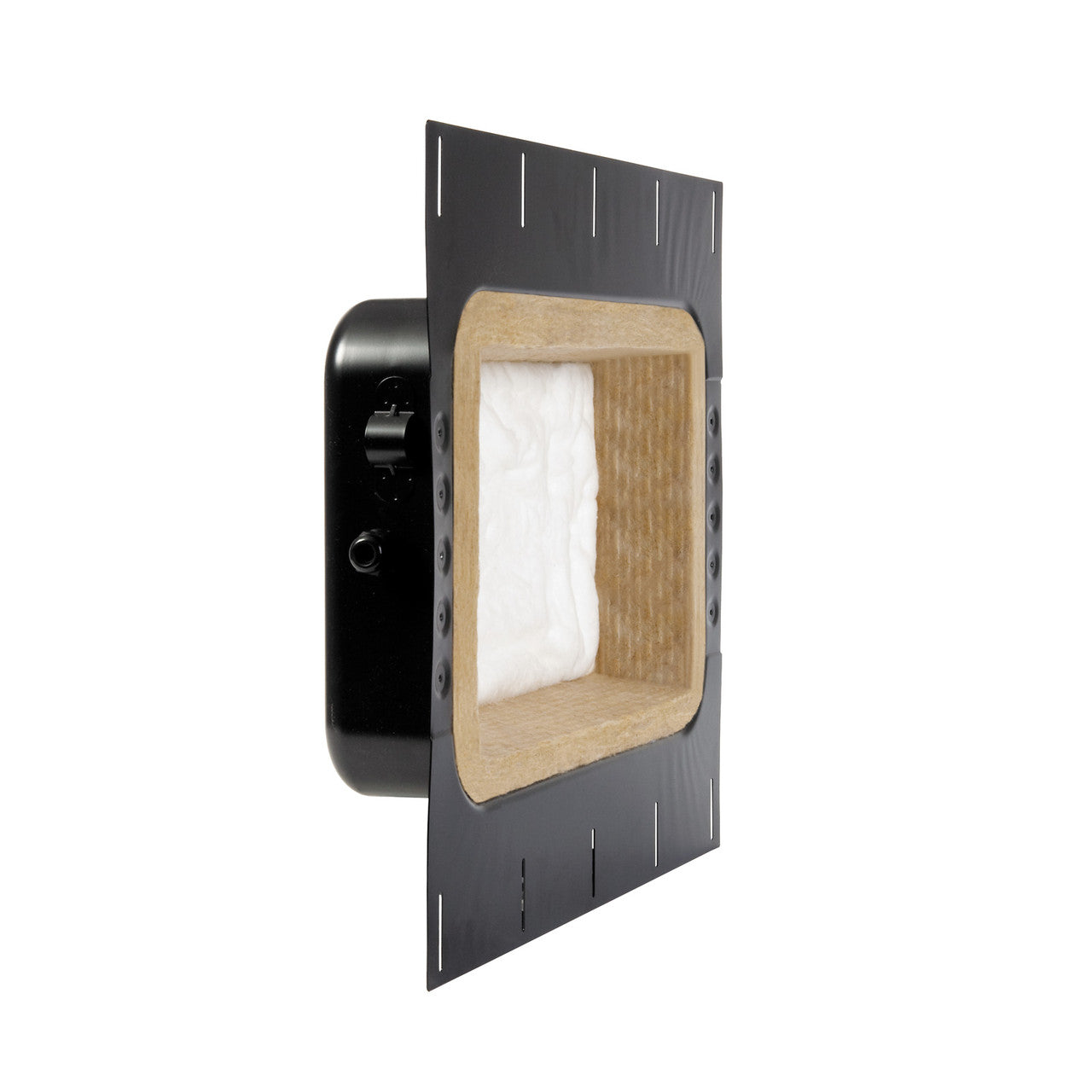

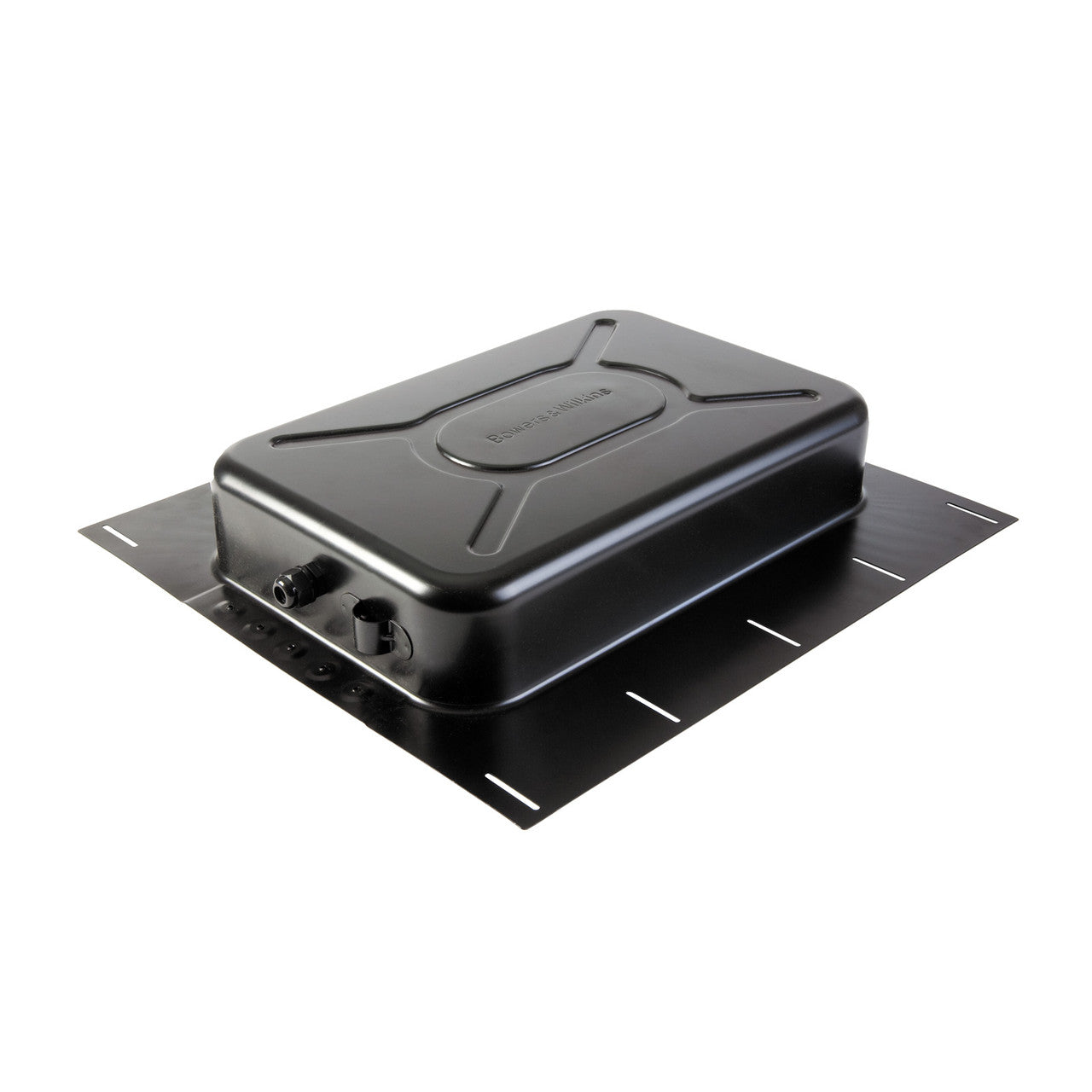

- Accessories (sold separately): PMK W6 Pre-Mount Kit, BB 6W Back Box

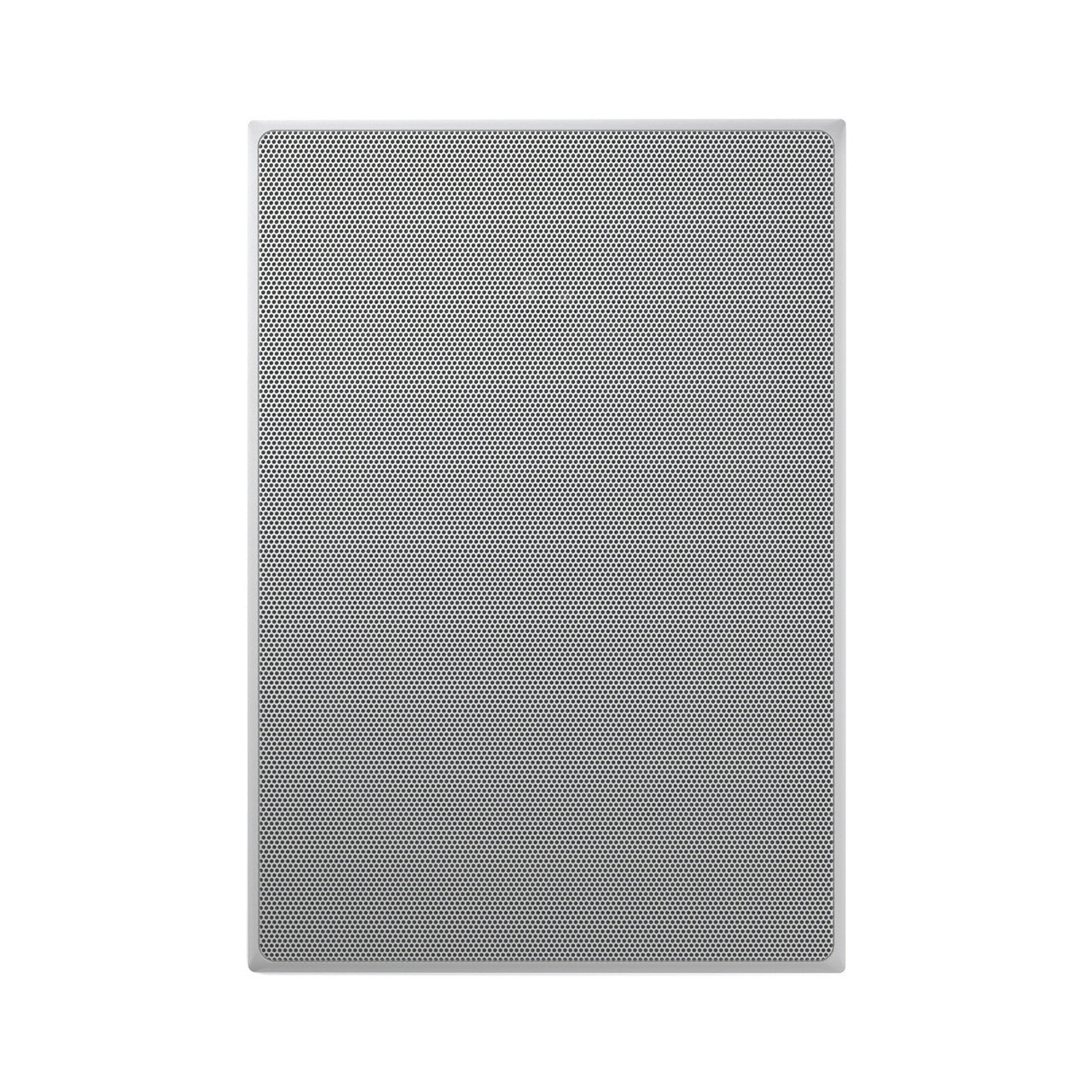

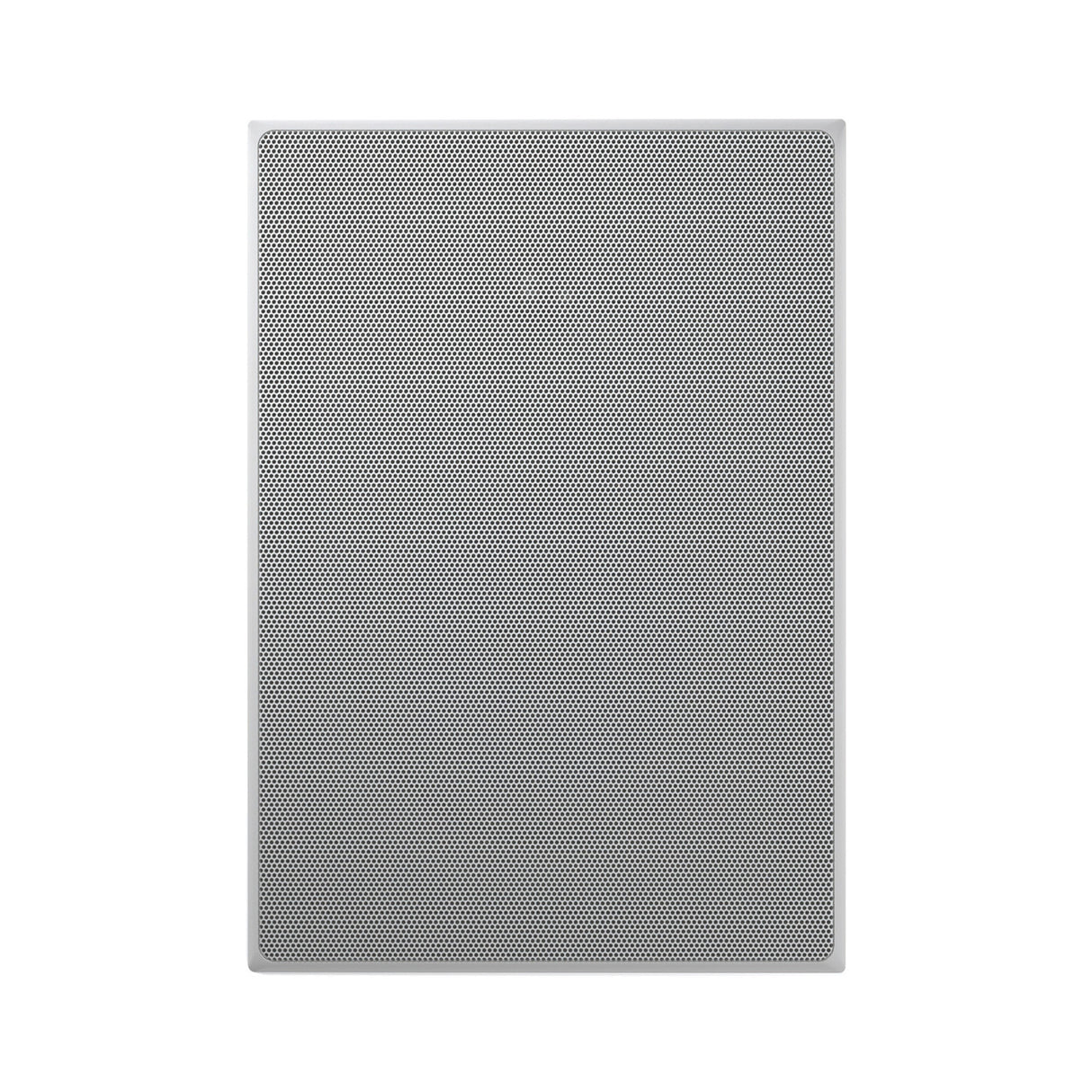

- Grille: Paintable
- Finish: White / Paintable
- Sold By: Each
Why Audio Advisor?
- 40+ Years of Expertise – Helping music lovers build better systems since 1981.
- 60-Day Money-Back Guarantee – Hear it in your own system with confidence.
- Real Product Experts – Friendly advice before and after your purchase.
- Free Shipping – On qualifying orders over $49.
- Flexible Financing – Convenient payment options available.
- 2-way in-wall speaker system
- 1 x 1" Nautilus™ swirl loaded aluminum dome tweeter
- 1 x 6" blue Aramid Fiber cone bass/midrange
- Three-position EQ switch
- QuickDogs™ spring clamp mounting
- Plug-and-play functionality
- Frequency Range (-6dB): 45Hz – 50kHz
- Recommended Amp Power: 25 – 150w
- Sensitivity SPL (2.83V, 1m): 88dB
- Impedance Nominal (min): 8Ω (4.5Ω)
- Frame height: 12.4"
- Frame width: 8.7"
- Cut-out height: 11"
- Cut-out width: 7.2"
- Depth behind surface: 3.7"
- Protrusion: 0.2"
- Pre-mount Kit: PMK W6
- Back Box: BB 6W
