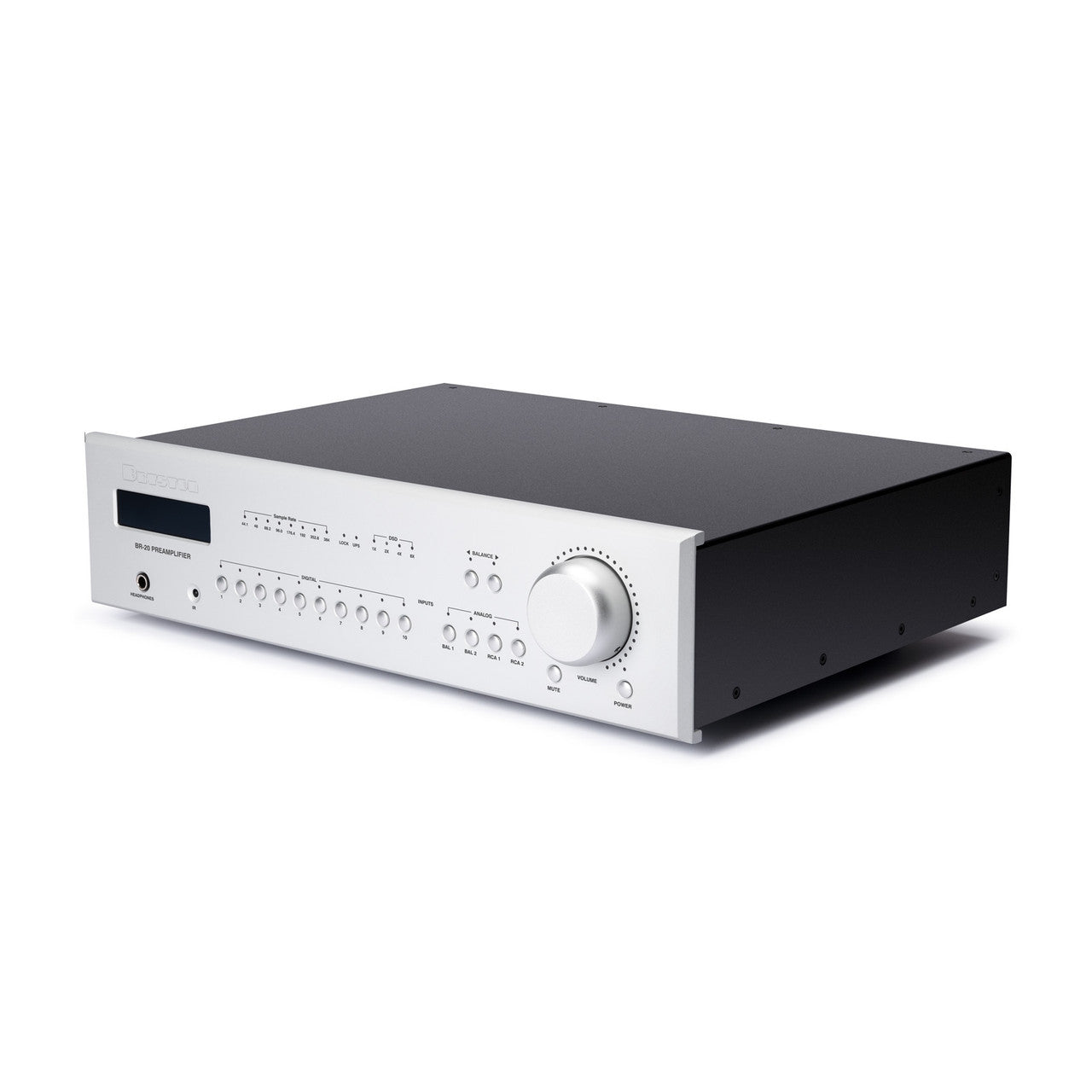

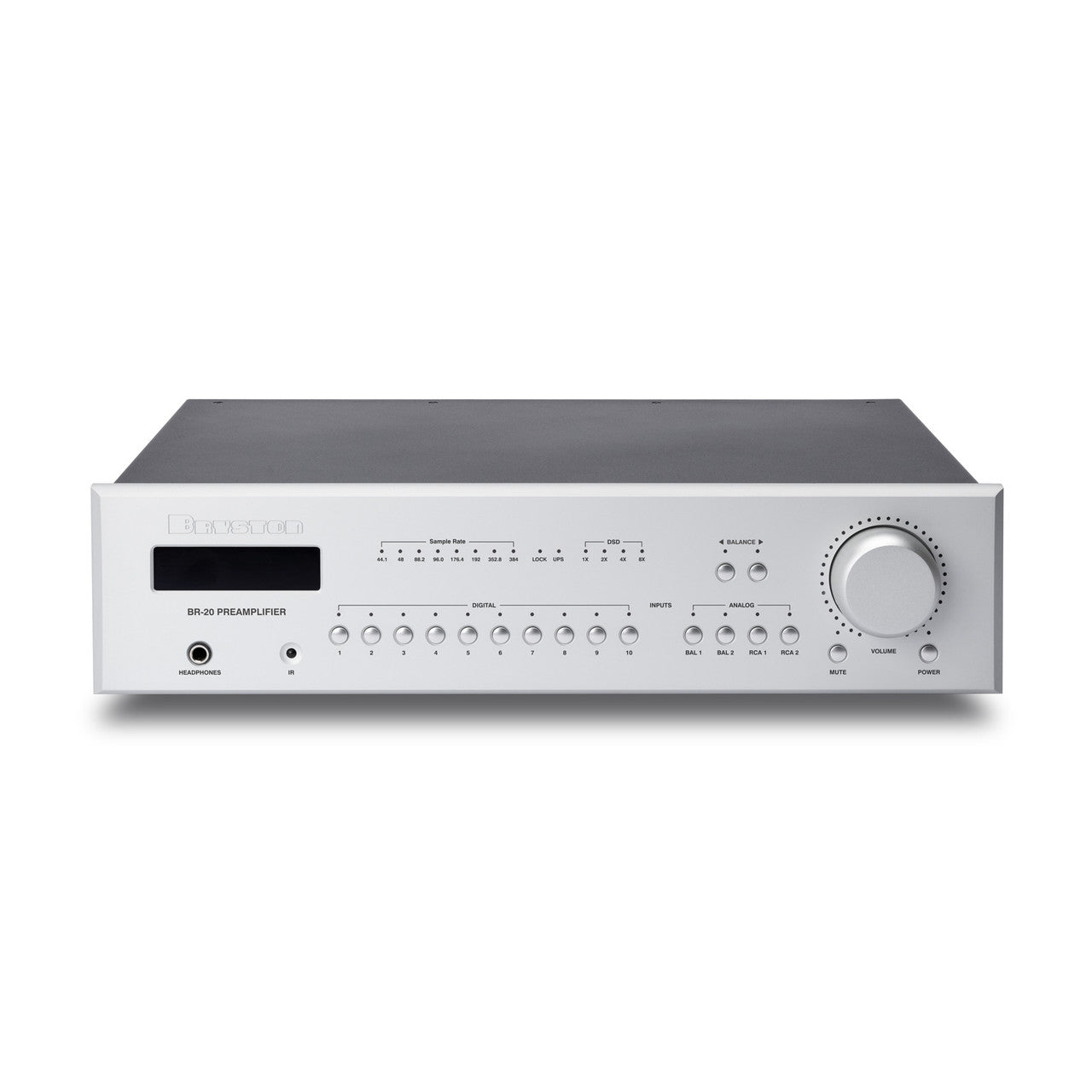

Bryston BR-20 Stereo Preamplifier, DAC, Streamer, MM Phono
✔ 60-Day Money-Back Guarantee — Try it risk-free for 60 days
✔ Free Shipping on orders over $49
✔ Financing Available — Pay over time | Learn more
✔ Price Guarantee — We match authorized dealer pricing | Details
✔ Expert Help — Call us at 800-942-0220 weekdays 9am–6pm EST
- The Absolute Sound — Preamplifier of the Year 2021
- The Absolute Sound — Editors’ Choice Award 2022
- SoundStage! — Reviewers’ Choice 2021
- SoundStage! — Recommended Reference Component 2023
Delivery and Shipping
Delivery and Shipping
- Audio Advisor will ship products anywhere in the United States, including Alaska, Hawaii, and U.S. Territories.
- For more information, visit our Delivery & Shipping Policies.
One Box Named for the Man Who Ran Bryston
BR-20 stands for Brian Russell, Bryston’s longtime president, who died in September 2020 with the preamplifier nearly finished. His team completed it. One box replaces a preamplifier, a DAC and a network streamer. This version adds a moving-magnet phono stage.

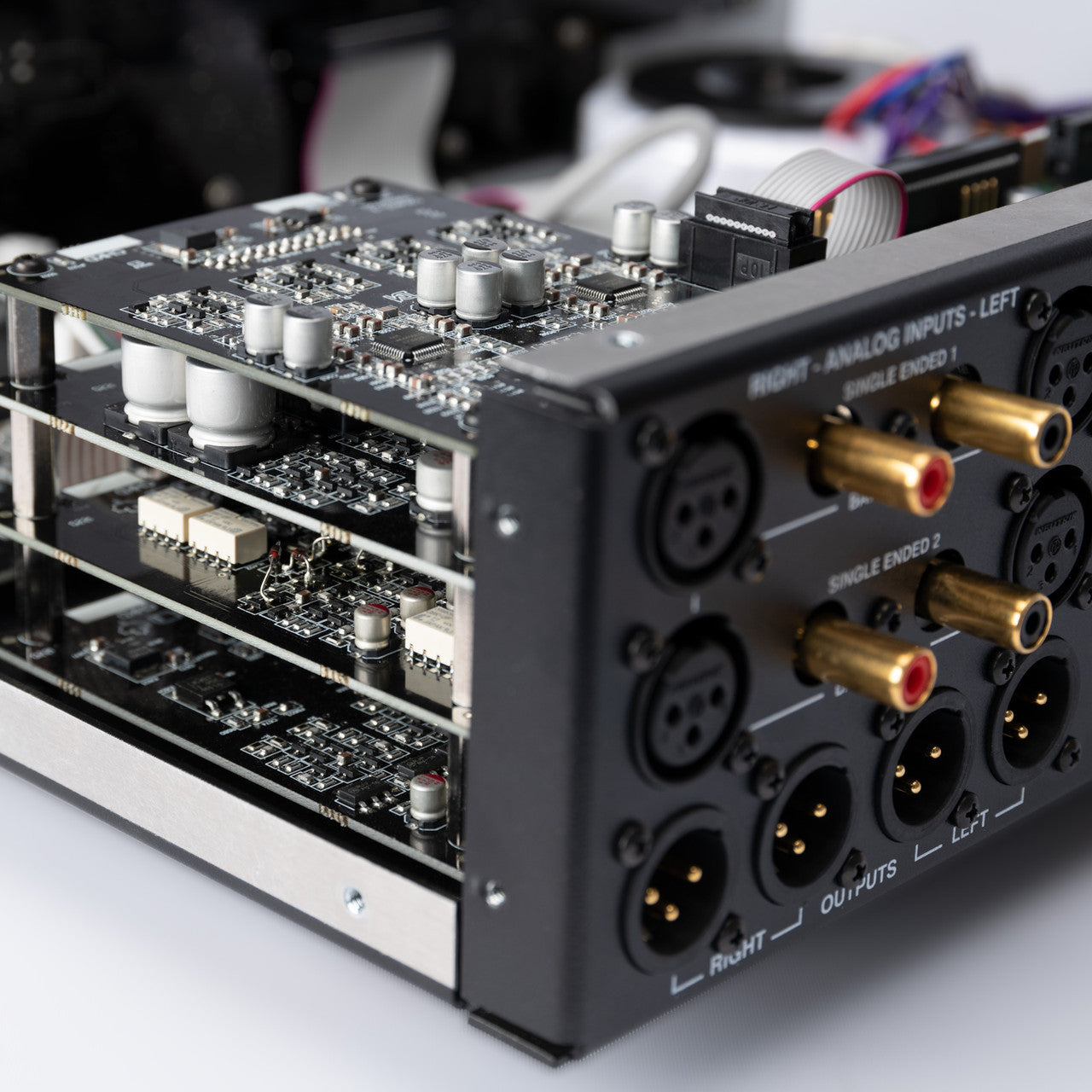

The analog section is a clean-sheet, fully balanced design built on Bryston’s own discrete amplifier stages. Analog inputs are two balanced XLR pairs and one RCA pair, with the phono stage taking the other RCA input. Outputs are two balanced XLR pairs, plus a front-panel headphone jack.
A DAC Derived From the BDA-3
The converter uses the circuit design Bryston built for its standalone BDA-3, in a balanced AKM implementation. Digital inputs are two AES/EBU, two coaxial S/PDIF, two optical TosLink and one USB-B. The ceiling depends on the socket. TosLink takes 24-bit/96kHz. Coaxial and AES/EBU take 24/192. USB and the internal streamer reach 32-bit/384kHz. DSD runs to DSD256 over USB.
The Streamer Wants an Ethernet Cable
The streamer handles Tidal, Qobuz, internet radio, Radio Paradise and Roon, and it emulates AirPlay. Four USB ports take drives full of local files, and it reads NAS libraries too. Control runs from a browser-based interface, so no app is needed.
Ethernet is the connection Bryston builds in, on its own dedicated port. Wi-Fi needs an optional Bryston USB adapter. Plan a cable run to the rack before it arrives, and the streamer is ready the day you unbox it.
Half-Decibel Volume, and a Headphone Amp Built In
Volume is analog and balanced, in half-decibel steps. Distortion measures below 0.0006 percent, and noise is 110dB down. Bryston’s Low Z headphone amplifier is built in, and plugging in mutes the main outputs.
What Reviewers Are Saying
Evan McCosham reviewed the BR-20 for SoundStage! Hi-Fi on May 1, 2023, gave it a Reviewers’ Choice award, and then bought the unit: "I enjoyed the BR-20 so much that I bought the review sample".
Gordon Brockhouse reviewed it for SoundStage! Simplifi on June 15, 2021, also a Reviewers’ Choice, and concluded: "Sonically, I have nothing but positives to say about the BR-20."
Who Is This Preamplifier Best For?
- You are replacing three boxes with one — preamplifier, DAC and streamer share a chassis, so two interconnect pairs and two power cords leave the system
- You keep a large local library — four USB ports take drives full of files, so browsing your own music is as easy as browsing a streaming service
- You use Roon — the BR-20 shows up as an endpoint, so your existing zones and playlists work from the first day
- You listen on demanding headphones — the Low Z amplifier is built in, so hard-to-drive models get real current with no extra box
- You play a moving-coil cartridge — the fitted board is moving magnet only. Add one of our phono preamplifiers with moving-coil gain on a line input, and the BR-20 still handles switching, conversion, streaming and volume

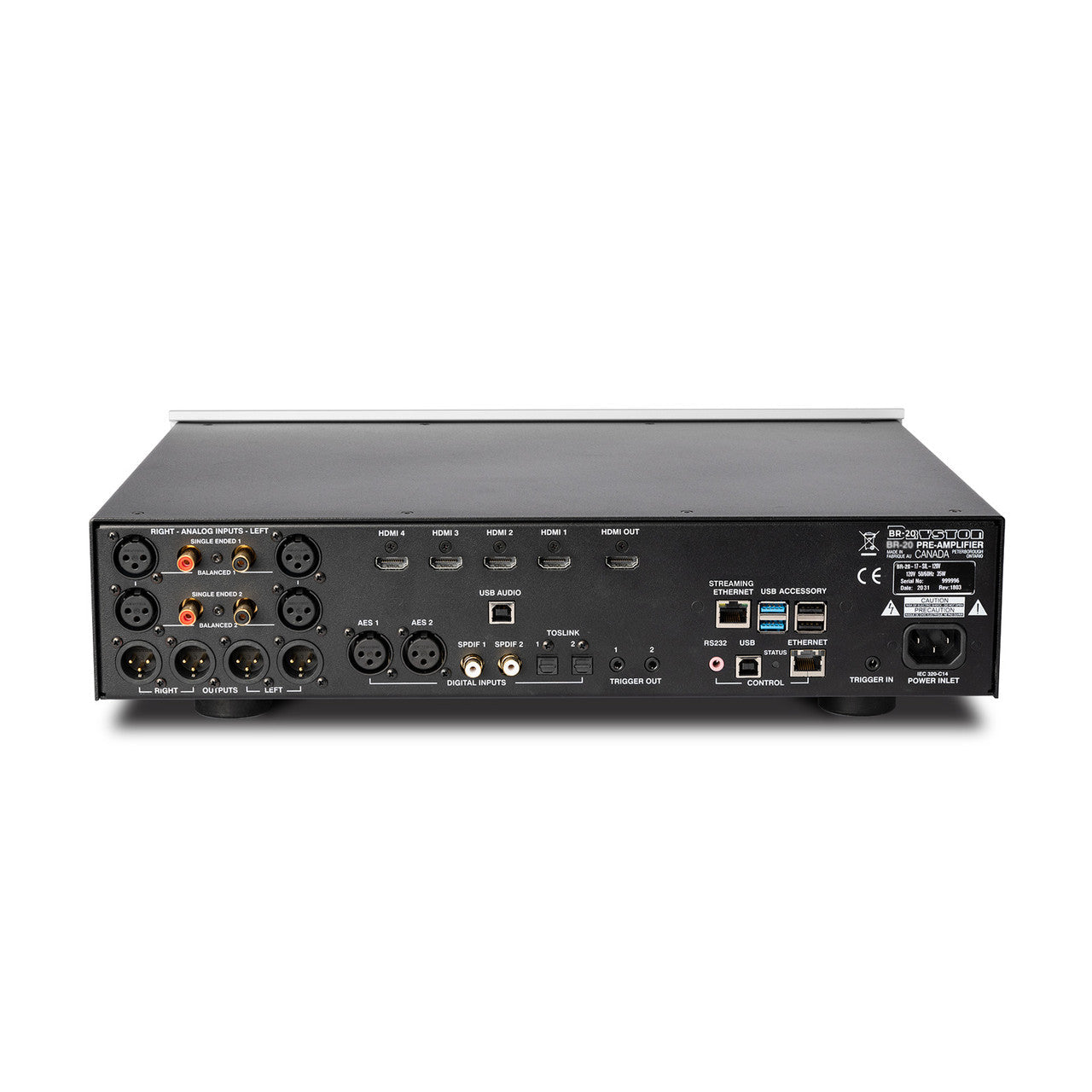

How Does It Connect to Your System?
Line sources take the RCA and XLR inputs, and a turntable goes to the phono input. Digital sources fill AES/EBU, coaxial, optical and USB-B. Run Ethernet to the rack for the streamer.
Balanced outputs feed your power amplifier. Two trigger outputs bring the rest of the rack up with the preamplifier, and RS-232 hands the system to an installer.
One box, one remote.
Pairs Well With
Building a system around the BR-20? Start here:
- Power amplifiers: The BR-20 needs one — see our Stereo Amplifiers
- Interconnects: Balanced XLR runs feed your amp — see our Interconnect Cables
- Turntables: The moving-magnet stage is already fitted — see our Turntables
- Speakers: The end of the chain, downstream of your amp — see our Speakers
Frequently Asked Questions
Does it connect over Wi-Fi?
Yes, with an accessory. The built-in connection is Ethernet, and Bryston sells an optional USB adapter for Wi-Fi.
What sample rates does each input take?
TosLink takes 24-bit/96kHz. Coaxial S/PDIF and AES/EBU take 24/192. USB and the internal streamer reach 32-bit/384kHz.
Which streaming services work with it?
Tidal, Qobuz, internet radio and Roon, plus AirPlay emulation. Four USB ports also take drives loaded with your own files.
Can it drive difficult headphones?
Yes. Bryston’s Low Z headphone amplifier is a dedicated circuit built for hard-to-drive models.
Which cartridges does the phono stage accept?
Moving magnet. The board takes the place of one RCA input, and a moving-coil cartridge needs an outboard stage.
What warranty does it carry?
Ten years, parts and labor, for the first owner who buys from an authorized Bryston dealer.
See It in Action
AV Atmos introduces the BR-20 and walks through its inputs and streaming platform:
Why Audio Advisor?
- 40+ Years of Expertise — Since 1981, we’ve helped over a million music lovers find the right gear.
- 60-Day Money-Back Guarantee — Take your time. Listen, enjoy, and make sure it’s right for you.
- Real Experts, Real Help — Our team is here to answer your questions at 800-942-0220, weekdays 9am–6pm EST.
- Free Shipping — On orders over $49, delivered to your door.
- Flexible Payment Options — Financing available so you can start listening now.
Learn More
Want to learn more about streaming preamplifiers, digital input sample rates, or building a system from separates? Visit our Learning Center for guides, tips, and expert advice.
- Reference-quality stereo preamplifier, high-resolution DAC, music streamer, and headphone amplifier in one component
- Fully balanced analog design from input to output for extremely low noise and excellent signal integrity
- New fully discrete Class A analog circuitry developed specifically for the BR-20

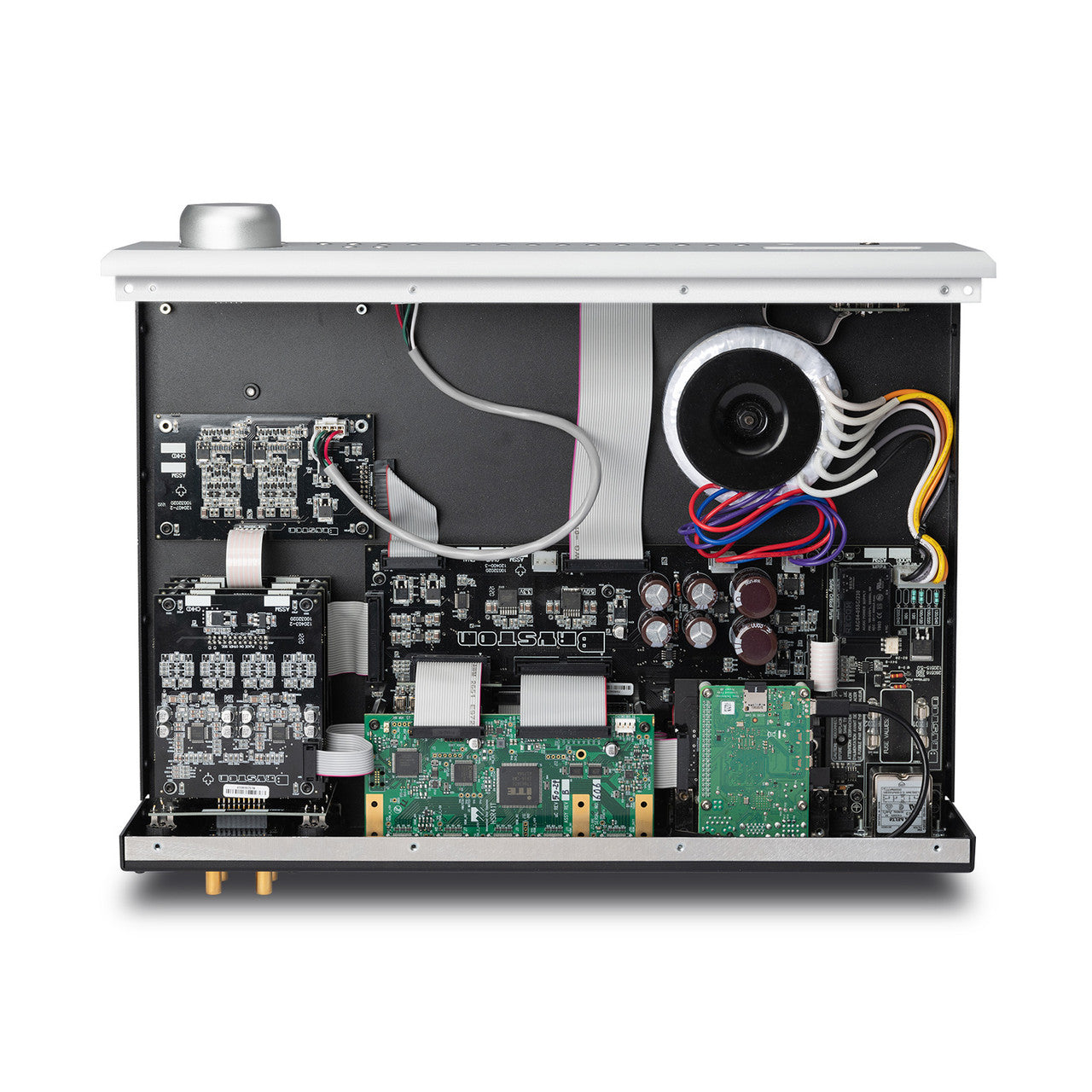

- Separate power supplies for analog and digital circuits help keep noise and interference extremely low
- High-resolution DAC supports PCM audio up to 32-bit/384kHz
- Supports DSD256 digital audio
- Built-in high-resolution network music streamer
- Web-based interface allows control from a smartphone, tablet, or computer
- Two balanced XLR stereo analog inputs
- Two unbalanced RCA stereo analog inputs
- Two balanced XLR stereo outputs
- AES/EBU, coaxial, optical, and USB digital inputs
- Relay switching on all inputs
- Precision electronically controlled balanced volume control
- Dedicated low-impedance, high-output headphone amplifier can drive demanding headphones
- Optional 4-input HDMI card supports 4K HDR video and DSD over HDMI
- Factory-installed moving-magnet phono stage for vinyl playback
- RS232 and network connectivity provide extensive system-control options

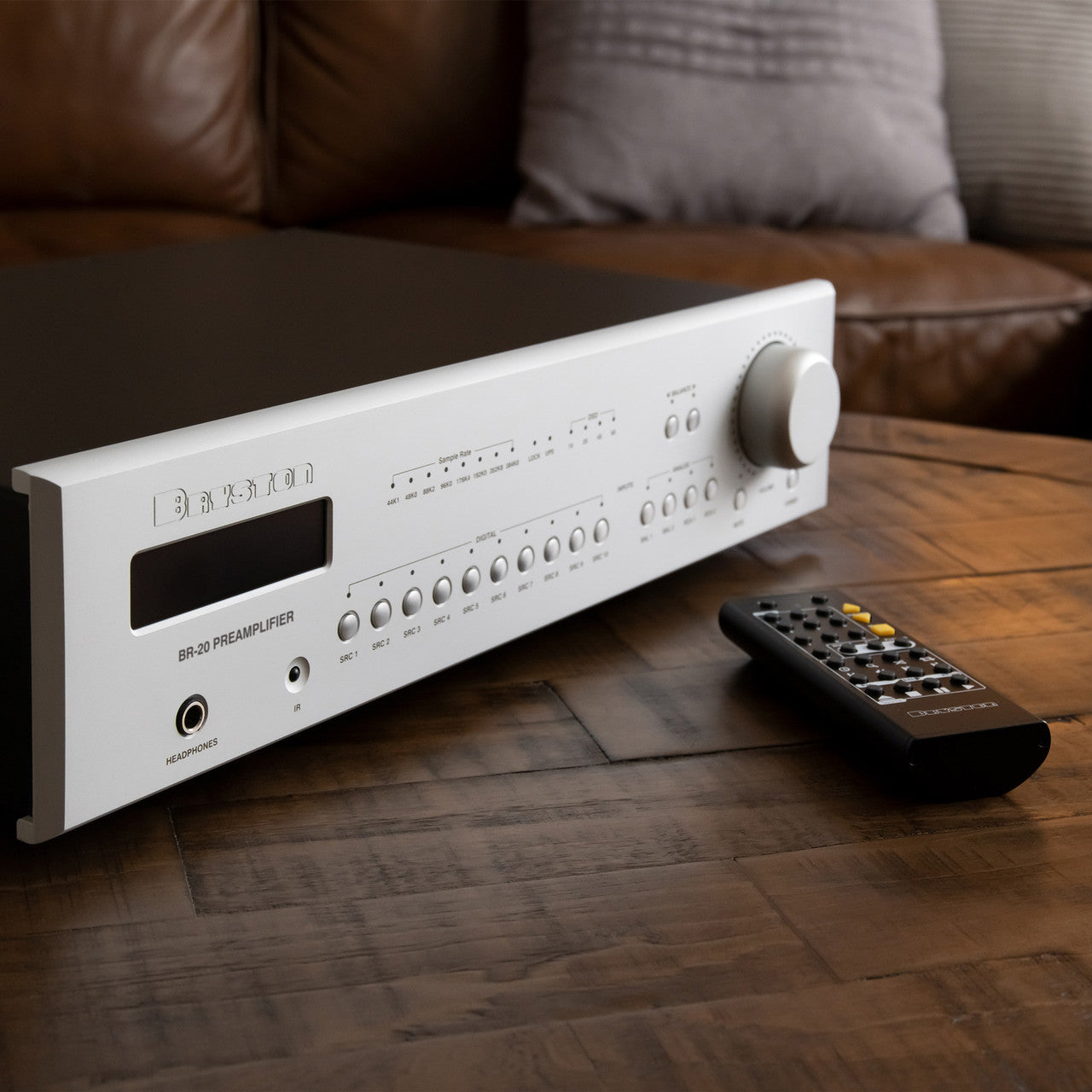

- Includes Bryston BR-4 remote control
- Available with black or silver faceplate
- Available with 17-inch or 19-inch faceplate
- Product Type: Fully Balanced Stereo Preamplifier / DAC / Network Music Streamer
- Analog Circuitry: Fully Discrete Class A
- Analog Signal Path: Fully Balanced
- Analog Inputs: 2 Pairs Balanced XLR
- Analog Inputs: 2 Pairs Single-Ended RCA
- Analog Outputs: 2 Pairs Balanced XLR
- Digital Inputs: 2 AES/EBU
- Digital Inputs: 2 TOSLINK Optical
- Digital Inputs: 2 S/PDIF Coaxial RCA
- USB Digital Input: 1
- Maximum PCM Resolution: 32-bit/384kHz
- DSD Support: Up to DSD256
- Network Music Streaming: Built In
- Headphone Amplifier: Dedicated Low-Impedance, High-Output Design
- Volume Control: Software-Controlled Balanced-Action Volume Control
- Input Switching: Relay Switching
- Control: Front Panel, BR-4 Remote, Web Interface, RS232, and Network
- Optional HDMI Module: 4 Inputs / 1 Output
- Optional HDMI Video Support: 4K HDR
- Optional HDMI Audio: Supports DSD over HDMI
- Installed Phono Stage: Moving Magnet
- Faceplate Width: 17" or 19"
- Faceplate Finish: Black or Silver
