Bryston BR-20 Stereo Preamplifier - DAC - Streamer - MM Phono - Bla...
What You Need to Know
What Is This Product and What Does It Do?
A stereo preamplifier is the control center of a two-channel audio system. It picks your source — a turntable, a streamer, a CD player — adjusts the volume, and sends the signal on to your power amplifier.
The BR-20 does all of that, and much more. It is Bryston’s answer to the modern audiophile’s full front end. One box replaces four separate components: a preamplifier, a DAC (digital-to-analog converter), a network streamer, and a phono stage for vinyl.
The name means something. BR-20 stands for Brian Russell — the longtime Bryston president who passed away in September 2020 at age 68. The preamp was nearly finished when he died. Bryston’s team completed it as a tribute. On their website, Bryston calls it their “most exquisite representation of musicality ever.”
The Analog Preamp Section
The preamp circuit inside the BR-20 is a clean-sheet design. Bryston built it from scratch using all-new, fully discrete amplifier circuits — meaning no off-the-shelf chips in the signal path.
According to Bryston, the BR-20 produces the lowest noise and distortion they have ever measured in their 40-plus year history. The signal path is fully balanced from input to output. Balanced means the circuit carries two versions of the signal — one normal, one inverted — which cancels out interference picked up along the way.
The volume control is fully analog and balanced. It uses tightly matched resistors and moves in precise 0.5dB steps. A ring of small LEDs around the volume knob shows the output level from across the room. All input switching uses physical relays — no electronic switches in the signal path.
The DAC
The BR-20’s DAC (digital-to-analog converter) uses the same circuit design as Bryston’s standalone BDA-3 — a unit that sold for nearly $3,800 on its own. It handles PCM audio up to 32-bit/384kHz and DSD up to DSD256 via USB.
A re-clocking circuit inside the DAC removes jitter. Jitter is a timing error in digital audio — it causes small inconsistencies in playback that can blur the sound. The re-clocking circuit corrects those errors in real time. Independent measurements by HomeTheaterHifi.com confirmed it works as Bryston claims.
Digital inputs include AES/EBU (XLR), coaxial S/PDIF, optical TosLink, and USB-B. Maximum resolution depends on the input used — see the spec table below.
The Streamer
The BR-20 has a built-in music streamer. It is based on a Raspberry Pi 4 — a fast, modern platform that loads large music libraries quickly. The BR-20 is certified Roon Ready and also supports Tidal, Qobuz, and AirPlay.
Four USB-A ports on the rear accept drives loaded with local music files. The BR-20 does not include Wi-Fi. Bryston recommends a wired Ethernet connection and advises against Wi-Fi dongles, which they say introduce noise into the preamp’s circuitry.
The MM Phono Stage
This version includes Bryston’s moving-magnet (MM) phono stage, installed at the factory. A phono stage amplifies the very small signal from a turntable cartridge up to line level. Bryston says this internal stage matches their standalone BP2-MM phono preamplifier.
When the phono stage is installed, it uses one of the RCA inputs. You still have two balanced XLR inputs and one RCA input available for other sources.
The Headphone Amplifier
The front-panel headphone output uses a dedicated low-impedance circuit — updated from previous Bryston preamps with more power and lower output impedance. Lower output impedance means better control over a wider range of headphones. The output uses a standard 6.35mm (¼-inch) jack.
Warranty and Build
Every BR-20 is built by hand in Ontario, Canada. The analog circuitry carries Bryston’s 20-year parts-and-labor warranty. The digital components — DAC and streamer — carry a 5-year warranty.
What Are Reviewers Saying?
Gordon Brockhouse reviewed the BR-20 for SoundStage! Simplifi, awarding it a Reviewers’ Choice. He praised the volume control’s silky feel, the crisp relay-click of the source buttons, and the BR-20’s measured performance — which he said confirmed Bryston’s low-noise claims.
Evan McCosham reviewed the BR-20 for SoundStage! Hi-Fi, earned a second Reviewers’ Choice, and then bought the review unit for his own reference system. That purchase, on top of both Reviewers’ Choice awards, prompted SoundStage!’s Recommended Reference Component designation.
Hi-Fi News called the BR-20 “an astonishing performer” that digs deep into the detail and nuance of tracks across all genres and sampling rates. The reviewer noted it delivers excellent value for what it includes, though careful partnering equipment choices are worthwhile at this price.
John E. Johnson Jr. tested the BR-20 and confirmed through his own lab measurements that the re-clocking circuit is effective — adding large amounts of jitter to the input signal produced no jitter peaks in his results. He described distortion and noise as “remarkably low.”
Earned Recognition
The BR-20 has received recognition from some of the audio press’s most respected names — including SoundStage!’s highest honor for reference-worthy components.
Category: Preamplifiers / Streaming DACs
SoundStage!’s Recommended Reference Component is the publication’s highest honor — reserved for components that reviewers consider worthy of use as personal reference equipment and as a benchmark for their category.
SoundStage!’s Reviewers’ Choice recognizes components a reviewer considers among the best available at their price — products they would recommend without reservation. McCosham subsequently purchased the review unit for his own reference system.
The BR-20 earned an independent Reviewers’ Choice on its initial review at SoundStage! Simplifi — the SoundStage! Network’s publication focused on high-performance, feature-rich audio components. The two Reviewers’ Choice awards together led to the Recommended Reference Component designation.
Who Is This Best For?
Audiophiles simplifying a complex system — If you currently run a separate DAC, streamer, phono stage, and preamp, the BR-20 does all four jobs in one box at a level that competes with standalone components costing significantly more.
Vinyl listeners who also stream — The built-in MM phono stage and full-featured streamer mean your turntable and your Tidal or Qobuz account both get first-class treatment.
Roon users — The BR-20 is fully Roon Ready certified, making it a natural endpoint for anyone already on the Roon platform.
High-resolution digital enthusiasts — Support for 32-bit/384kHz PCM and DSD256 via USB means the BR-20 can handle any file format you’re likely to encounter, now or in the future.
Long-term thinkers — A 20-year warranty on the analog section is a commitment very few audio brands will match. If you want to buy once and keep it for decades, the BR-20 is built and warrantied for that.
Headphone listeners — The dedicated low-impedance headphone amplifier on the front panel is built to drive demanding loads, not a token output added as an afterthought.

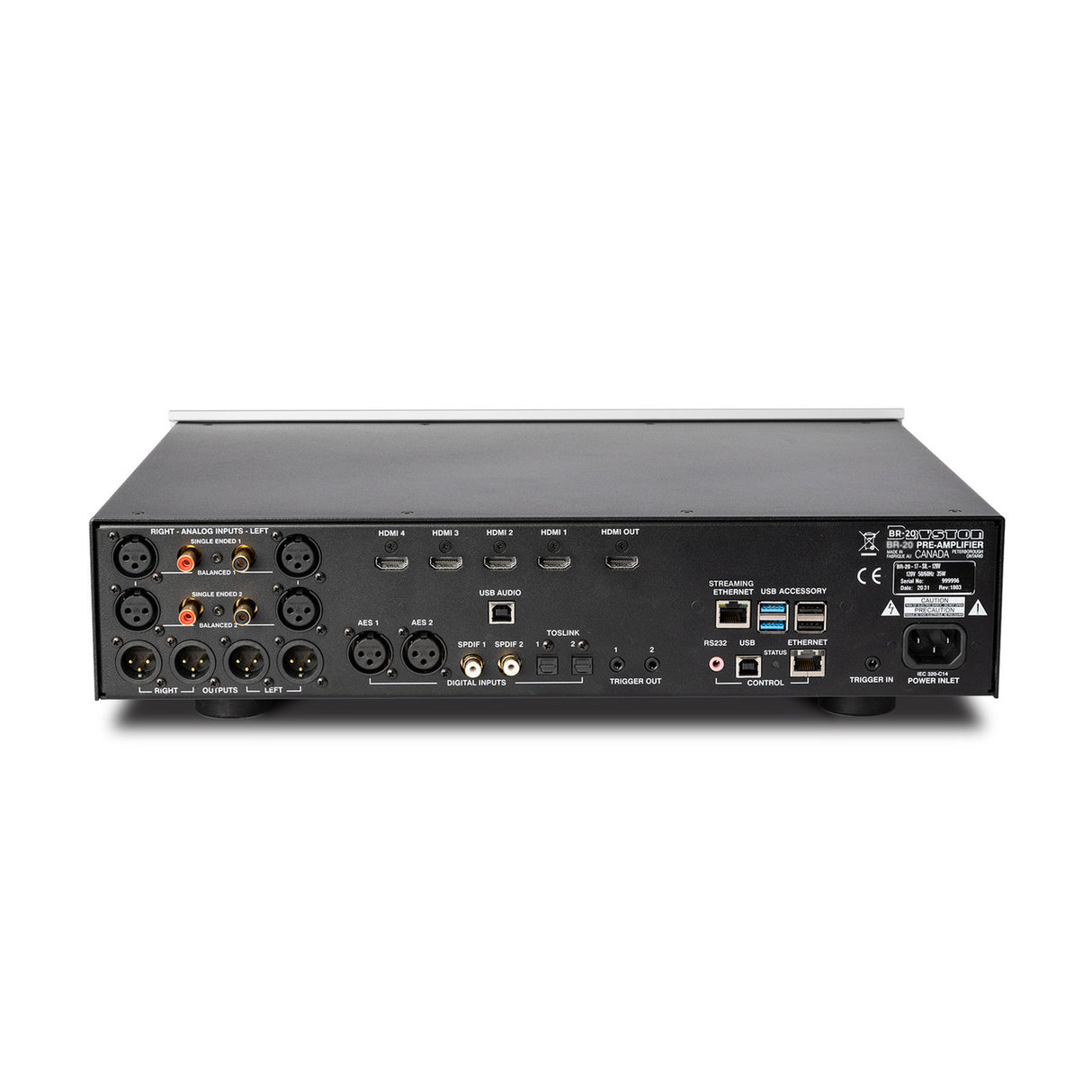

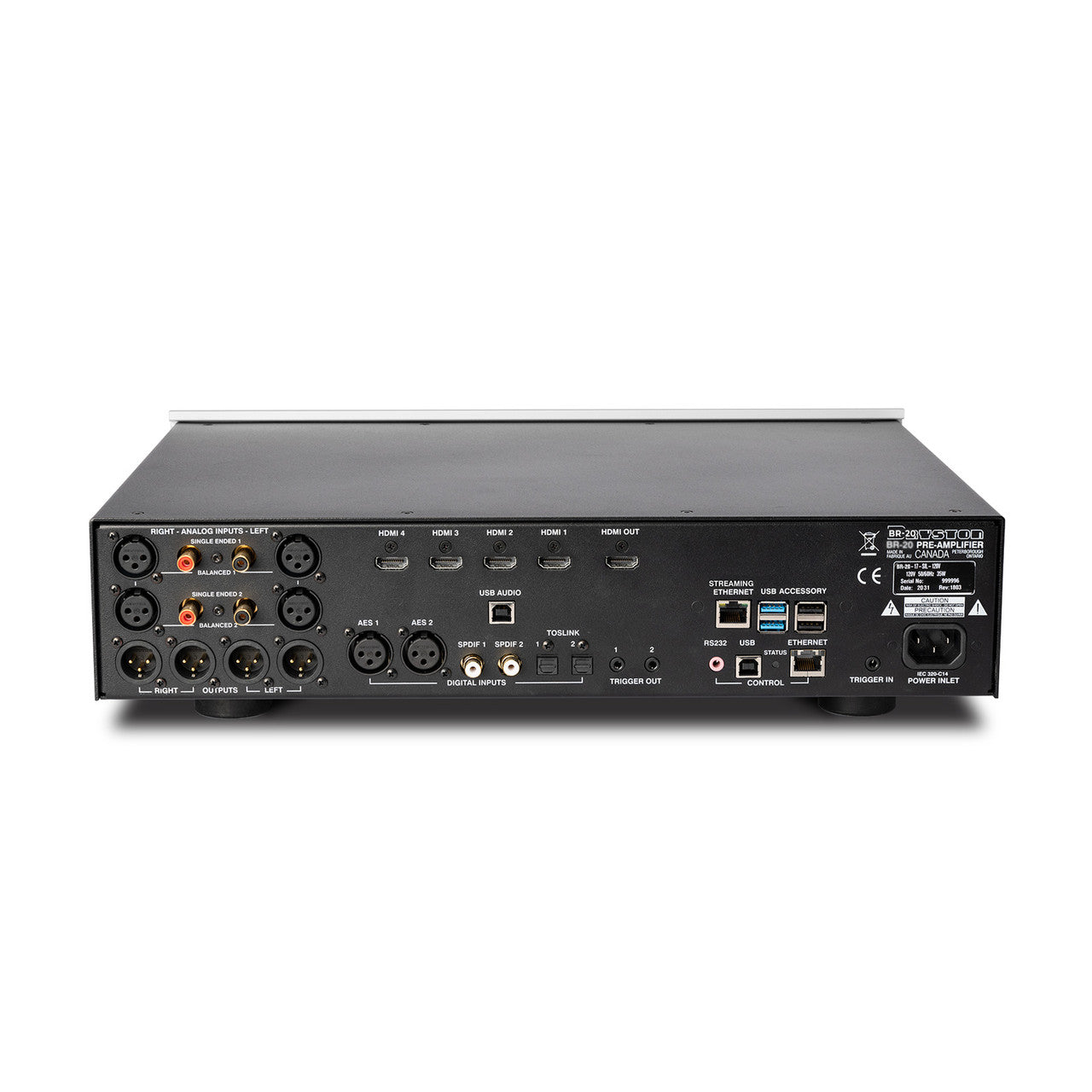

How Does It Connect to Your System?
The BR-20 supports up to 15 sources. Analog inputs include two balanced XLR pairs and one unbalanced RCA (the second RCA is used by the MM phono stage on this model). Digital inputs include two AES/EBU (XLR), two coaxial S/PDIF, two optical TosLink, and one USB-B audio.
Outputs include two sets of balanced XLR — one variable, one configurable as fixed — plus the front-panel headphone jack. An optional HDMI card (four inputs, one output) is available separately and supports 4K HDR passthrough. Control options include a 12V trigger, RS-232, Ethernet, and the included BR-4 remote.
Not sure what to pair with the BR-20? Call us at 800-942-0220 — we’re glad to help you build a system around it.
Watch It in Action
Bryston BR-20 Preamplifier — Full Review & Features Walk-Through
Moon Audio’s Drew Baird goes deep on the BR-20 — covering inputs, outputs, streaming setup, DAC performance, and real-world use. A thorough look from a respected dealer and reviewer channel.
Pairs Well With
The BR-20 is a preamplifier — it controls your sources and sets the volume, but it needs a separate power amplifier to drive your speakers. Bryston’s own amplifiers are a natural match.
- Bryston 4B³ Stereo Power Amplifier — 300 watts per channel into 8 ohms. The flagship Bryston stereo amp pairs directly with the BR-20’s balanced XLR outputs and is built to the same standard. Together they form one of the most capable two-channel systems available at any price.
- Bryston 3B³ Stereo Power Amplifier — 200 watts per channel into 8 ohms. A slightly more compact option, still delivering full Bryston Cubed-series performance. A strong match for the BR-20 in mid-to-large listening rooms.
- Power Conditioners — A high-performance preamp like the BR-20 benefits from clean, stable power. A good conditioner reduces noise on your AC line and protects your investment.
- Balanced XLR Interconnects — The BR-20’s outputs are balanced XLR. Quality balanced cables preserve the noise-rejection benefits of the fully balanced design all the way to your power amplifier.
Features & Specifications
Analog Preamp — New Design, Record-Low Measurements
The BR-20’s preamp section is a clean-sheet design built around custom, fully discrete amplifier circuits made for this product alone. Bryston says the BR-20 achieves the lowest noise and distortion in the company’s 40-plus year history.
The fully balanced circuit — from input to output — rejects common-mode noise. Common-mode noise is interference that gets picked up equally on both conductors of a balanced cable. The balanced circuit cancels it out before it reaches your amplifier.
THD+N (total harmonic distortion plus noise) is specified at or below 0.0006%. That is an extremely low figure — many excellent preamps measure ten to fifty times higher. Signal-to-noise ratio is 110dB, meaning a very quiet background even at loud listening levels.
Volume Control — Fully Analog, Precision Matched
The BR-20’s volume control is fully analog and balanced. It uses tightly matched resistors — chosen to stay accurate across the whole range of the control. Volume moves in precise 0.5dB steps. A ring of LEDs around the knob shows output level from across the room.
All source switching uses relays — physical switches that connect your source directly. There are no electronic chips in the switching path. Relay switching is quieter and more reliable over the long term.
DAC — BDA-3 Performance, Built In
The BR-20’s DAC uses the same circuit design as Bryston’s acclaimed standalone BDA-3 converter. That product retailed for roughly $3,800 on its own. Getting that DAC as part of the BR-20’s package is a real value. Supported formats:
- PCM up to 32-bit/384kHz — via USB and the built-in streamer
- PCM up to 24-bit/192kHz — via coaxial S/PDIF, AES/EBU, and HDMI (optional card)
- PCM up to 24-bit/96kHz — via optical TosLink
- DSD256 — via USB
- DSD128 — via built-in streamer
- DSD64 — via optional HDMI card
- DSD native and DoP (DSD over PCM) formats supported
A re-clocking circuit inside the DAC removes jitter — timing errors that can blur digital audio. Independent lab tests by HomeTheaterHifi.com confirmed the re-clocking circuit performs as Bryston claims.
Streamer — Roon Ready, High-Resolution, Wired
The built-in streamer uses a Raspberry Pi 4 — faster than the Pi 3 boards in earlier Bryston streamers, which means large libraries load more quickly. It is certified Roon Ready and also supports Tidal, Qobuz, and AirPlay. Four USB-A ports accept drives loaded with local files.
The BR-20 does not include Wi-Fi. Bryston recommends a wired Ethernet connection. They warn that Wi-Fi dongles introduce RF noise into the preamp’s circuitry, which would undermine the BR-20’s very low noise floor. Plan for a network cable to your listening room.
MM Phono Stage — Included on This Model
This version includes Bryston’s optional moving-magnet (MM) phono stage, installed at the factory. Bryston says it matches their standalone BP2-MM phono preamplifier. When installed, it uses the first RCA analog input. You still have two balanced XLR inputs and one additional RCA input for other sources. Moving-coil (MC) cartridges require an external step-up transformer.
Headphone Amplifier — Low Impedance, High Power
The front-panel headphone output is a dedicated circuit — updated in the BR-20 with more power and lower output impedance than previous Bryston preamps. Lower output impedance means better control over a wide range of headphones, including demanding planar magnetic designs. Output uses a standard 6.35mm (¼-inch) jack.
Connectivity
The BR-20 supports up to 15 sources. Analog inputs include two balanced XLR pairs and one unbalanced RCA (the second RCA is used by the MM phono stage on this model). Digital inputs include two AES/EBU (XLR), two coaxial S/PDIF, two optical TosLink, and one USB-B audio.
Outputs include two sets of balanced XLR — one variable, one configurable as fixed — plus the front-panel headphone jack. An optional HDMI card (four inputs, one output) is available separately and supports 4K HDR passthrough. Control options include a 12V trigger, RS-232, Ethernet, and the included BR-4 remote.
Build & Finish
The BR-20 is built in Dwight, Ontario, Canada. The chassis is aluminum with a thick, anodized silver front panel and a lightly textured finish. This SKU is the 19” faceplate version, sized to fit standard equipment racks. Source buttons have a crisp, click-relay feel. Weight is 12 pounds — lighter than reviewers expected for a Bryston product, and easy to place in a rack or furniture.
Quick-Reference Specifications
| Product Type | Stereo Preamplifier with DAC, Streamer, MM Phono Stage, and Headphone Amplifier |
| Analog Circuit Topology | Fully balanced, fully discrete Class A analog circuitry |
| THD+N | ≤0.0006% |
| Signal-to-Noise Ratio | 110dB |
| Volume Control | Fully analog, balanced, relay-switched, 0.5dB steps |
| Analog Inputs | 2 × Balanced XLR; 1 × Unbalanced RCA (1 RCA used by MM phono on this model) |
| Analog Outputs | 2 × Balanced XLR pairs (variable and fixed/configurable); 6.35mm headphone jack (front) |
| Digital Inputs | 2 × AES/EBU (XLR), 2 × Coaxial S/PDIF (RCA), 2 × Optical TosLink, 1 × USB-B audio |
| DAC Max Resolution — USB / Streamer | 32-bit/384kHz PCM; DSD256 |
| DAC Max Resolution — Coaxial / AES | 24-bit/192kHz PCM |
| DAC Max Resolution — TosLink | 24-bit/96kHz PCM |
| DSD Support | DSD64, DSD128, DSD256; native and DoP formats |
| Streamer Platform | Raspberry Pi 4; Roon Ready; Tidal; Qobuz; AirPlay (Shairport Sync) |
| Network Connectivity | Wired Ethernet only (Wi-Fi not supported) |
| USB Storage Ports | 4 × USB-A (rear panel, for local drives) |
| Phono Stage | Moving-Magnet (MM); included on this model |
| System Control | 12V trigger in/out; RS-232; Ethernet; USB; BR-4 remote included; Manic Moose web UI |
| Total Sources Supported | Up to 15 |
| Faceplate Width | 19 inches |
| Dimensions (H × W × D) | 4.6” × 19” × 13” (verify exact 19” dimensions with Bryston) |
| Weight | 12 lbs (5.4kg) |
| Finish / Color | Silver anodized aluminum faceplate, 19” wide |
| Country of Manufacture | Canada |
| Warranty — Analog | 20 years, parts and labor (transferable with original receipt from authorized dealer) |
| Warranty — Digital (DAC/Streamer) | 5 years |
Frequently Asked Questions
What else do I need to use the BR-20?
The BR-20 is a preamplifier — it controls your sources and sets the volume, but it does not drive speakers on its own. You’ll need a separate power amplifier (such as a Bryston 3B³ or 4B³) and a pair of speakers. For streaming, you’ll also need a wired Ethernet connection — the BR-20 doesn’t support Wi-Fi. For vinyl, this version already includes the MM phono stage, so you can plug in a moving-magnet turntable directly.
Is the BR-20 compatible with my turntable?
This version includes a moving-magnet (MM) phono stage, so it works with any turntable that uses an MM cartridge — the most common type. Moving-coil (MC) cartridges need a step-up transformer or separate MC phono stage before connecting to the BR-20. Not sure what cartridge type you have? Call us at 800-942-0220 and we’ll help you sort it out.
Does the BR-20 support Wi-Fi?
No. The BR-20 requires a wired Ethernet connection for streaming. Bryston strongly advises against using a Wi-Fi dongle — they found it introduces RF noise into the preamp’s circuitry, which works against the BR-20’s very low noise floor. If running a cable to your listening room isn’t easy, a Powerline Ethernet adapter is a common workaround.
Is the BR-20 Roon Ready?
Yes. The BR-20 is fully Roon Ready certified. It integrates directly with the Roon platform without extra setup. Many BR-20 owners use Roon as their primary playback interface rather than the built-in Manic Moose web UI.
What streaming services does the BR-20 support?
The BR-20 supports Tidal and Qobuz natively through its built-in streamer. It also supports AirPlay via Shairport Sync, which lets you stream from Apple devices. Roon users can also stream from any service Roon supports. Spotify can be streamed via AirPlay as a workaround.
What is the difference between the 17-inch and 19-inch versions?
Just the width of the faceplate. The 17-inch fits standard home audio furniture and rack shelves. The 19-inch (this one) fits professional equipment racks. The electronics, features, and specs are identical. Pick the 19” if your gear lives in an equipment rack or if you prefer the wider look.
Does this version include the MM phono stage?
Yes. The MM phono stage is included and factory-installed on this model. It uses the first RCA analog input — that input is not available for line-level sources. You still have two balanced XLR inputs and one RCA input free for other components.
What warranty does the BR-20 carry?
The analog section is covered by Bryston’s 20-year parts-and-labor warranty — one of the longest in consumer electronics. The digital components (DAC and streamer) carry a 5-year warranty. The warranty is transferable to a second owner with the original bill of sale from an authorized dealer.
Can I add the HDMI board later?
Yes — but it must be installed by a qualified technician, not by the user. The optional HDMI card adds four inputs and one output, supports 4K HDR passthrough, and allows DSD audio over HDMI from SACD players. Contact us or Bryston directly for installation details and current pricing.
Does the BR-20 support MQA?
What’s in the Box
- Bryston BR-20 Stereo Preamplifier — Silver, 19” Faceplate, with MM Phono Stage
- BR-4 remote control
- IEC AC power cable
- Owner’s manual
- Warranty and registration documentation
Why Audio Advisor?
40+ Years of Expertise — Since 1981, we’ve helped over a million music lovers find the right gear.
60-Day Money-Back Guarantee — Take your time. Listen, enjoy, and make sure it’s right for you.
Real Experts, Real Help — Our team is here to answer your questions at 800-942-0220, weekdays 9am–6pm EST.
Free Shipping — On orders over $49, delivered to your door.
Flexible Payment Options — Financing available so you can start listening now.
Want to learn more about preamplifiers, DACs, and how to build a great two-channel system? Visit our Audio Advisor Learning Center for guides, tips, and expert advice.
Overview
- High performance stereo preamp with analog and digital inputs, balanced and unbalance analog outputs
- All new fully discrete Class A analog circuitry
- Independent power supply for analog and digital circuits
- Software control and balanced action volume control
- Built-in high-res DAC up to PCM 384 kHz / 32 bit and DSD x 4
- Built-in high resolution streamer plays back virtually any file format at native resolution
- Control entire system using intuitive webUI on a smartphone, tablet, or computer
- Low Z Headphone amplifier is a dedicated headphone circuit capable of powering even very difficult to drive headphones
- Optional MM phono stage and HDMI card (see below)
- Includes BR-4 remote
Connections
- 2 ea. balanced and single ended inputs
- 2 ea. balanced outputs
- Relay switching on all inputs
- Programmable theater bypass feature
- XLR pair configurable as variable or fixed output
- Digital Inputs include 2 ea. AES/EBU, TOSLINK, S/PDIF (RCA) and 1 ea. USB
- Headphone output
Options
- Silver or black faceplate
- 17” or 19” faceplate (non-rack mountable)
- Internal 4 input, 1 output HDMI card is 4K HDR compatible. Can also receive DSD over HDMI
- Internal MM Phono Stage (replaces 1 RCA analog input)
- Dimensions: Coming soon
- Weight: Coming soon
