EverSolo DAC-Z10 High Resolution DAC & Headphone Amplifier

Two Converters Per Channel, Nothing Shared

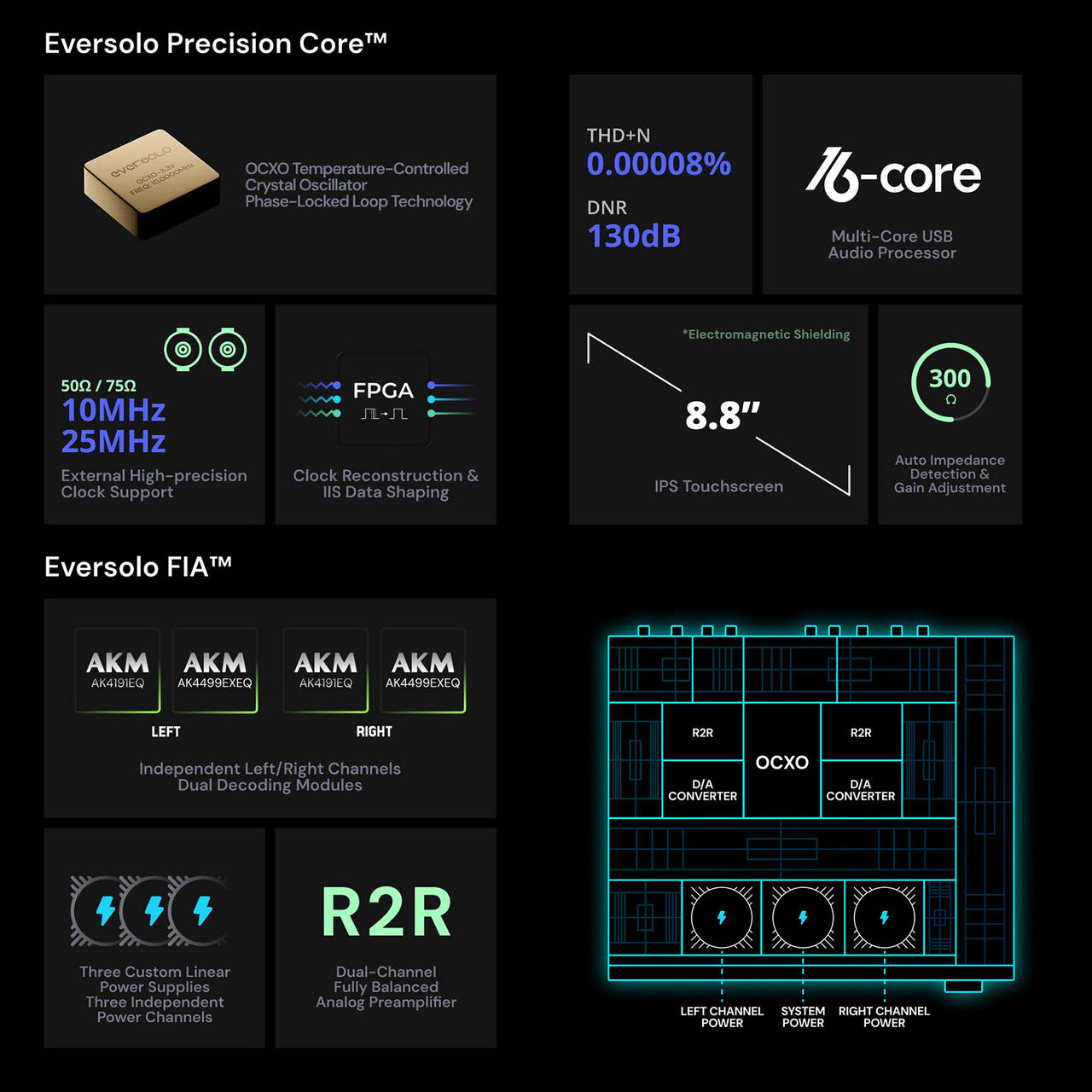

Most converters give each channel a share of one chip. The DAC-Z10 does not. EverSolo pairs an AKM AK4191 with an AK4499 for the left channel, then does it again for the right, on discrete isolated boards. Left and right never meet until your speakers.

The input list is unusually long. USB-B and HDMI I2S both reach DSD512 and PCM 768kHz/32-bit. AES/EBU, two coaxial and two optical inputs each take 192kHz/24-bit and DSD64 over DoP, and HDMI ARC brings your television in.

A fully balanced preamplifier sits after the conversion, with XLR and RCA analog inputs of its own and up to 10dB of gain. So a turntable stage or a tuner can join the digital sources and use the same volume control.

What the Dual-Mono Layout Buys You

The balanced outputs measure 0.00008% THD+N at 1kHz with a 130dB signal-to-noise ratio, 130dB of dynamic range and 130dB of crosstalk separation. Single-ended RCA follows at 0.000097% and 128dB. Output is 5Vrms balanced and 2.5Vrms unbalanced.

The 6.35mm headphone output runs three gain modes rather than one compromise. High gain delivers 1 watt into both 16 and 32 ohms at 7Vrms, measuring 0.00013% THD+N. Impedance is detected automatically, so gain follows whatever you plug in.

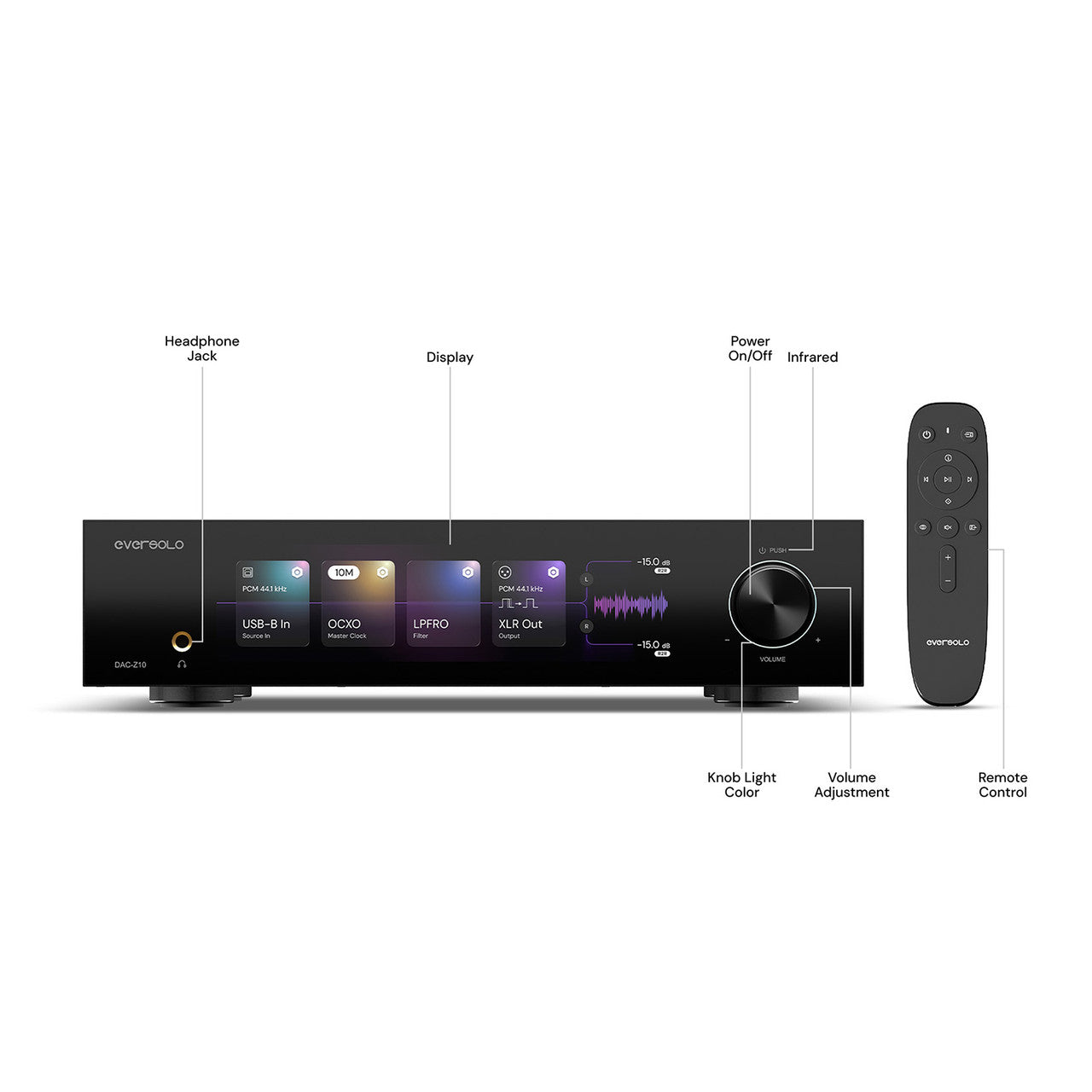

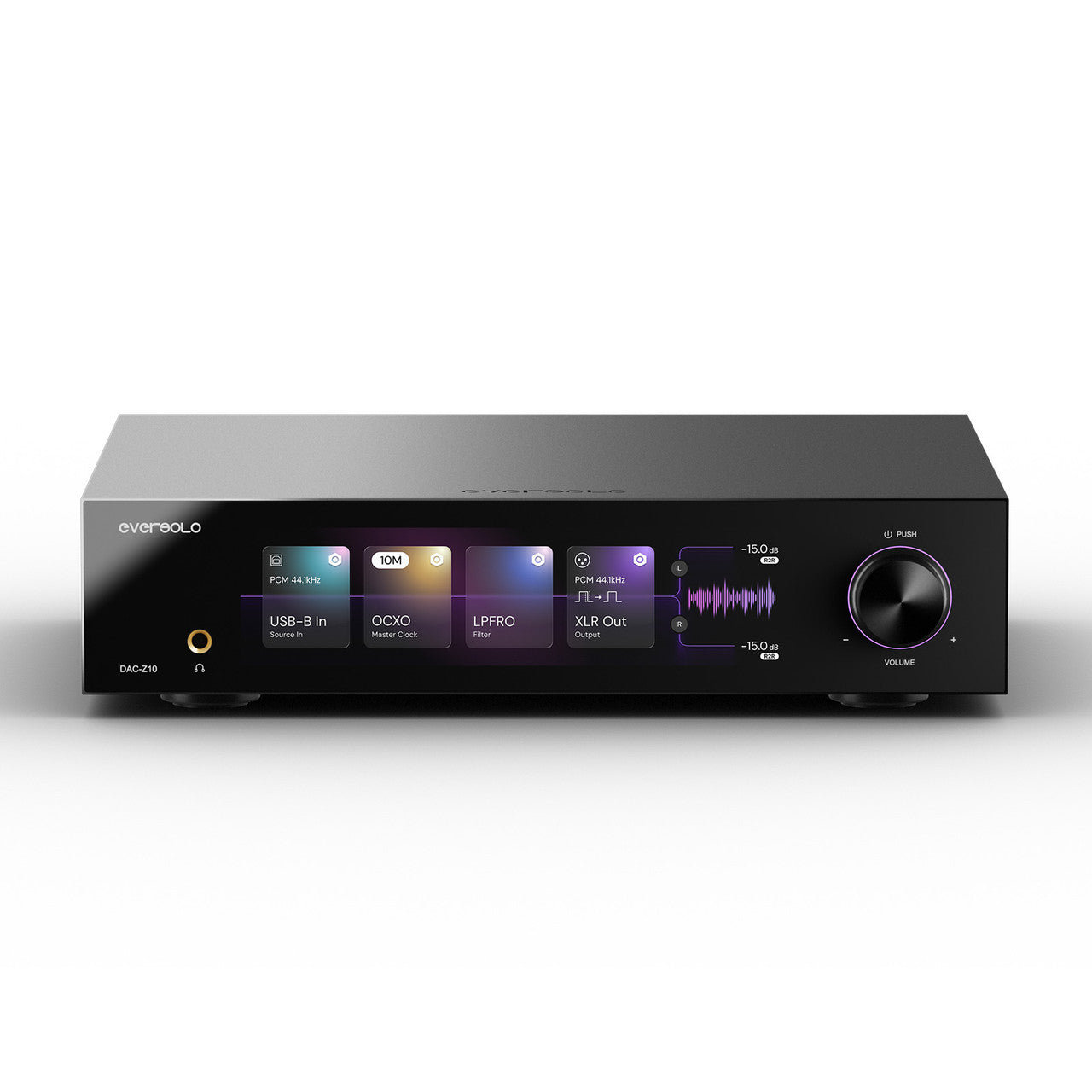

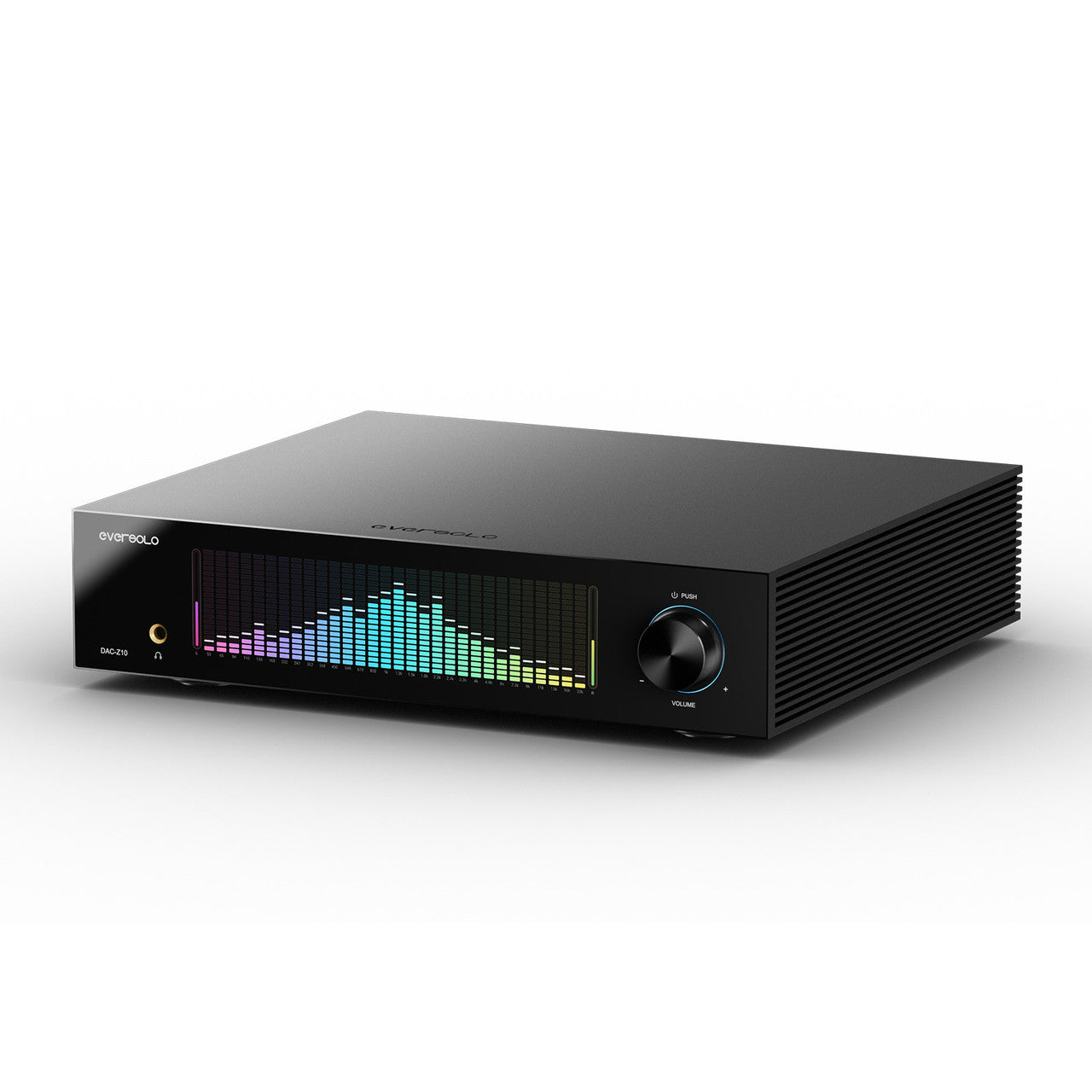

An 8.8-inch IPS touchscreen fills the front, with electromagnetic shielding behind it and a choice of VU meters, spectrum analyzer or track information. The aluminum chassis measures 265 by 310 by 78mm and draws 32 watts.

What Reviewers Are Saying

Hifi Pig found the "aluminium casing feels premium and is well put together, the large front panel houses a responsive and crisp touchscreen".

On connections the same review notes "you have a plethora of inputs/outputs, more on those later, all of which use high-quality sockets", and that the "internal headphone amp can output 1W at 16 Ohms and 32Ohms".

Who Is This DAC Best For?

• You want the DAC to be the whole front end — a balanced preamplifier with analog XLR and RCA inputs is built in, so the converter, the source switching and the volume all live in one box and a preamplifier becomes optional.
• Your sources are varied and stay connected — USB, HDMI I2S, AES/EBU, two coaxial, two optical, HDMI ARC and Bluetooth mean a computer, a streamer, a disc player and the television all keep a socket rather than taking turns.
• You listen on headphones as much as speakers — three gain modes and 1 watt into 16 or 32 ohms with automatic impedance detection mean efficient in-ears and demanding full-size cans both get the right drive without a separate amplifier.
• You care what the measurements say — 130dB of dynamic range and 0.00008% distortion from the balanced outputs come from giving each channel its own AK4191 and AK4499 rather than splitting one converter two ways.
• You want conversion and preamp in one, streaming in another — feed it from our music streamers over USB or I2S

How Does It Connect to Your System?

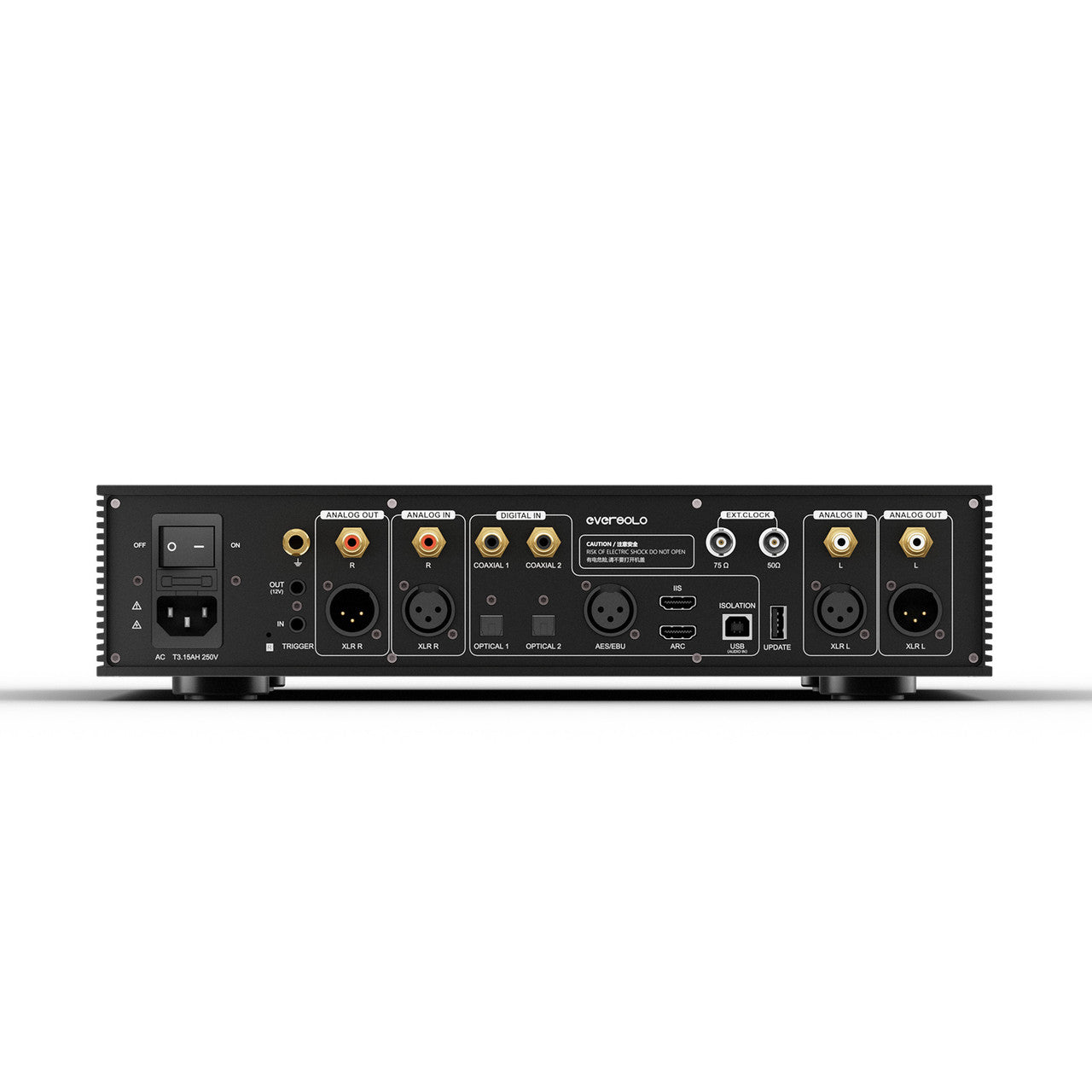

Run the balanced XLR outputs to a power amplifier or active speakers, or the RCA pair if your amplifier is single-ended. Because the preamplifier and volume control are on board, you can go straight in and leave a preamplifier out.

A computer or streamer connects over USB-B or HDMI I2S for the highest rates. A disc player takes coaxial, optical or AES/EBU, a television uses HDMI ARC, and a phone pairs over Bluetooth. Headphones go in the 6.35mm socket on the front.

Pairs Well With

Building around the DAC-Z10? Here are some great companions:

• Music Streamer: The interface this one leaves out — see our Music Streamers.
• Headphones: A watt of drive is waiting — see our Headphones.
• Power Amplifier: The volume control means you can go direct — see our Amplifiers.
• Interconnects: Balanced XLR keeps the path balanced — see our Interconnect Cables.

Frequently Asked Questions

Can it drive a power amplifier directly?

Yes. A fully balanced preamplifier with volume control is built in, so the DAC-Z10 can feed a power amplifier or active speakers without a preamplifier in between.

Which converters does it use?

An AKM AK4191 and AK4499 pair for each channel, on separate isolated boards, in a fully balanced dual-mono arrangement.

What are the maximum sample rates?

DSD512 and PCM 768kHz/32-bit over USB-B and HDMI I2S. AES/EBU, coaxial and optical reach 192kHz/24-bit with DSD64 over DoP.

How much power does the headphone output make?

Up to 1 watt into 16 and 32 ohms in high gain, at 7Vrms. Three gain modes are provided and headphone impedance is detected automatically.

Can I connect analog sources?

Yes. Balanced XLR and single-ended RCA analog inputs feed the preamplifier section, with up to 10dB of gain available.

How big is it, and what is the warranty?

265 by 310 by 78mm, in an aluminum chassis drawing 32 watts. Call us at 800-942-0220 and we will confirm the current warranty terms before you order.
