What You Need to Know
Experience More of Your Music

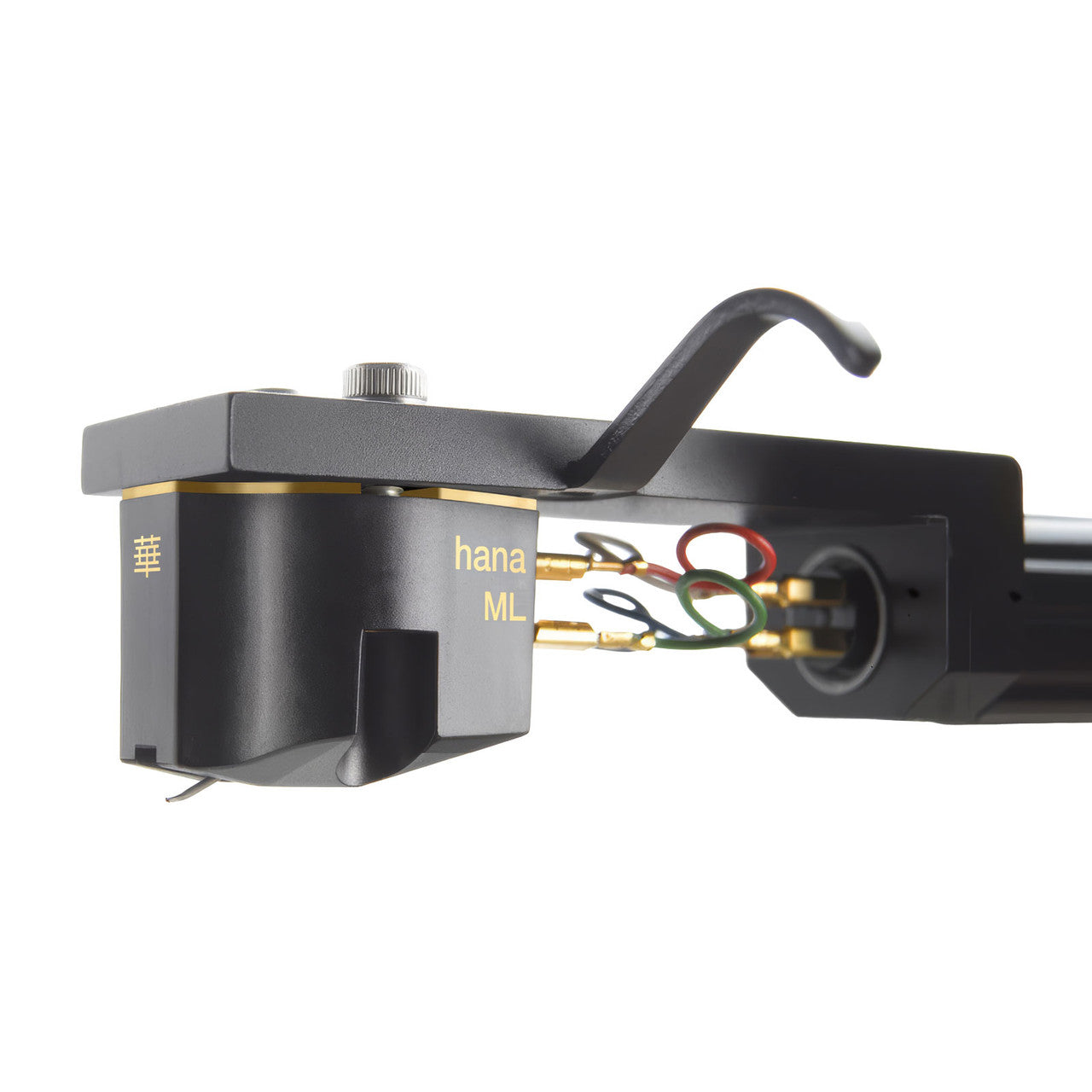

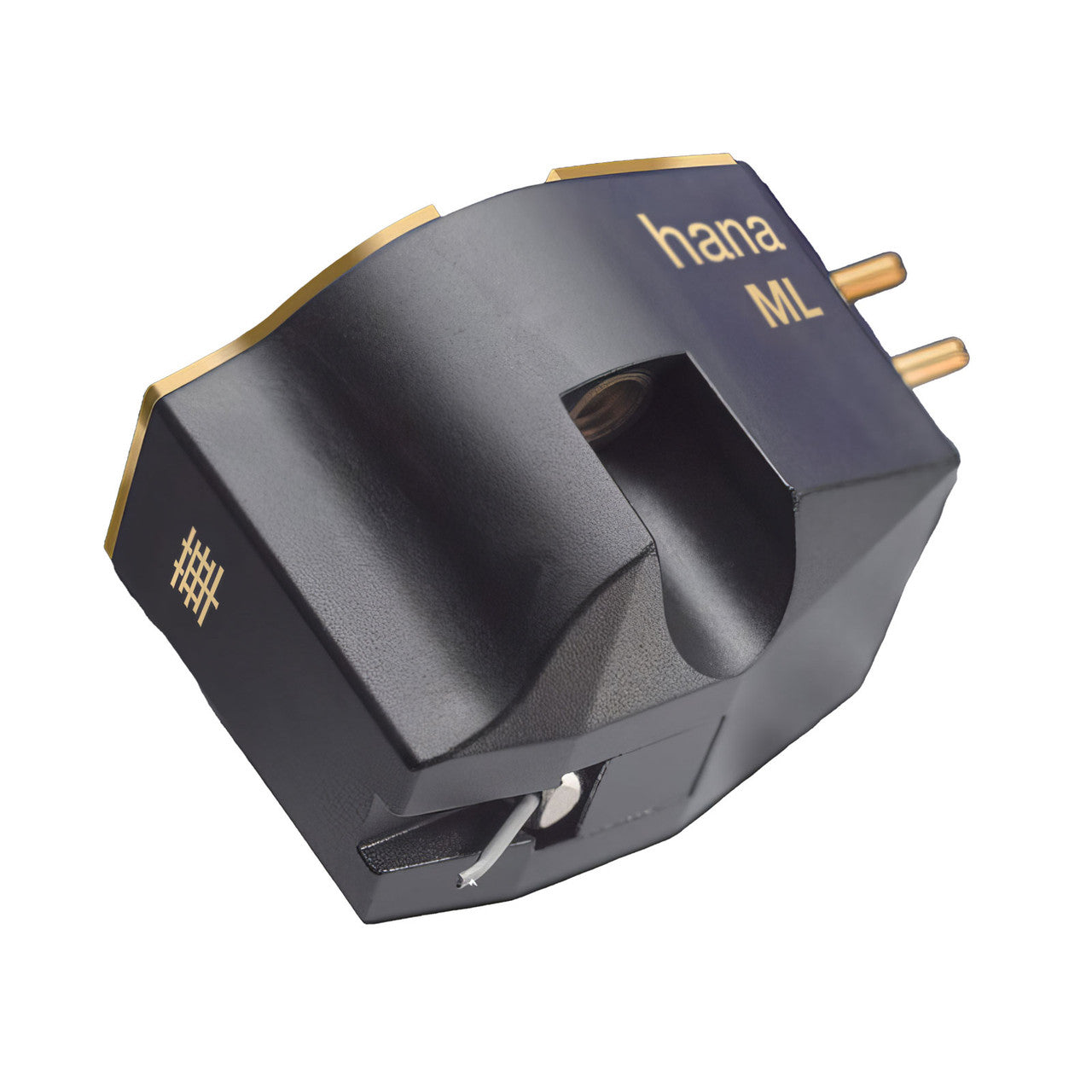

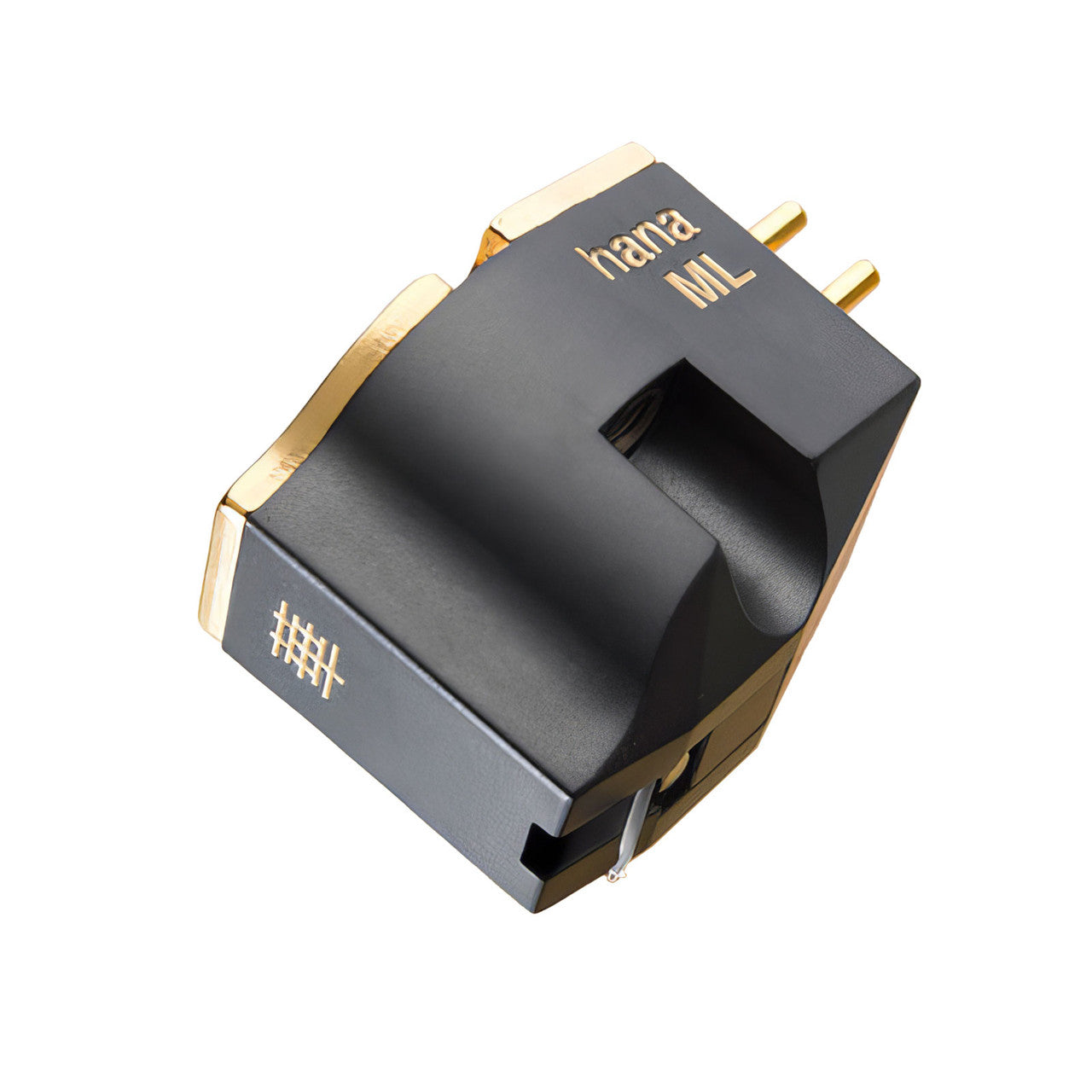

The Hana ML Low Output Moving Coil Phono Cartridge delivers a level of detail and realism that can transform your vinyl listening experience. Handmade in Japan by skilled craftsmen, the ML combines advanced moving coil technology with carefully selected materials to produce a sound that is both highly detailed and wonderfully musical.
Whether you’re rediscovering favorite albums or exploring new recordings, the Hana ML helps you hear more of what the artists intended.
MicroLine Stylus Unlocks Hidden Detail
One of the ML’s biggest advantages is its MicroLine diamond stylus. Its shape closely matches the cutting stylus used to make the original master record, allowing it to trace the grooves with exceptional precision.
This means cleaner vocals, sharper imaging, smoother high frequencies, and lower distortion—especially on the inner tracks where many cartridges struggle.
Boron Cantilever Improves Accuracy
The stylus is mounted to a solid boron cantilever, a material that’s both extremely light and very rigid. Because it has less moving mass, it responds more quickly to the tiny changes in the record groove.
The result is faster transients, improved dynamics, and greater low-level detail throughout the frequency range.
Low-Output Moving Coil Performance
The ML uses a low-output moving coil generator with carefully matched internal components to reproduce music with outstanding speed, transparency, and natural tonal balance.
Compared with many moving magnet cartridges, you’ll hear a more spacious soundstage, greater instrument separation, and a stronger sense of realism.
Handmade in Japan
Every Hana ML is individually assembled, aligned, and tested by experienced technicians in Japan. This careful craftsmanship helps ensure the consistent performance and reliability that Hana cartridges are known for.
Building Your System
The Hana ML performs best with a high-quality turntable, a rigid tonearm, and a dedicated moving coil phono preamp.
Its low-output design requires an MC phono input or a compatible step-up transformer. When properly matched, the ML rewards listeners with exceptional detail, smooth tonal balance, and a remarkably natural presentation.
Features & Specifications
MicroLine Diamond Stylus
Retrieves more musical information while reducing distortion and record wear.
Solid Boron Cantilever
Provides outstanding rigidity and fast response for precise groove tracking.
Low-Output Moving Coil Generator
Produces exceptional detail, dynamics, and stereo imaging.
Cross-Shaped Armature
Improves channel separation and accurately reproduces complex musical passages.
Precision Japanese Craftsmanship
Every cartridge is hand-built and individually inspected for consistent performance.
Specifications
- Type: Low Output Moving Coil (MC)
- Stylus: MicroLine Diamond
- Cantilever: Solid Boron
- Output: 0.4mV
- Mounting: Standard ½-inch
- Tracking Force: 2.0 grams (recommended)
- Weight: 9.5 grams
Frequently Asked Questions
What makes the MicroLine stylus different?
Its profile closely matches the shape of the cutting stylus used to make the original record master. This allows it to retrieve more detail while lowering distortion and reducing record wear.
Do I need a moving coil phono preamp?
Yes. The Hana ML is a low-output moving coil cartridge and should be used with an MC phono stage or a compatible step-up transformer.
Is the ML a good upgrade from a moving magnet cartridge?
Absolutely. Many listeners notice a wider soundstage, greater detail, and improved instrument separation when upgrading to the Hana ML.
Who is the Hana ML designed for?
It’s an excellent choice for serious vinyl enthusiasts who want reference-level moving coil performance without stepping into ultra-high-end pricing.
Why Audio Advisor?
- 40+ Years of Expertise – Helping music lovers build better systems since 1981.
- 60-Day Money-Back Guarantee – Hear it in your own system with confidence.
- Real Product Experts – Friendly advice before and after your purchase.
- Free Shipping – On qualifying orders over $49.
- Flexible Financing – Convenient payment options available.
- High performance moving coil phono cartridge
- Choose high output or low output model
- M Series Nude Microline stylus
- High Purity copper wire
- Delrin© cartridge body
- Cryogenic processing
- Threaded fittings and brass cap
- Cantilever: Aluminum
- Magnet: Alnico Body color: Black
- Output level: High output version, 2mv/1KHz; Low output version, 0.4mv/1KHz
- Output balance: <1dB/1KHz
- Vertical tracking force: 2gr
- Trackability: 70μ/2gr
- Compliance: 10 x 10-6 cm/dyne
- Channel separation: 30dB/1KHz
- Frequency response: 12-45,000Hz
- Impedance: High output version, 130Ω/1KHz; Low output version, 8Ω/1KHz
- Suggested Iord Impedance: High output version, 47KΩ; Low output version, > 100Ω
- Cartridge Weight: 9.5gr
