iFi iPower Elite Power Supply

iFi iPower Elite Power Supply

What You Need to Know

The Wall-Wart Is the Weak Link in Your System

Streamers, DACs, phono stages, and headphone amps almost always ship with a generic switch-mode wall-wart — the cheapest component in the box, powering the most sensitive circuits you own. Those supplies are electrically noisy by design, and that noise doesn't stay in the power supply. It rides into the component's ground plane and analog stages, where it shows up as a slightly grayer background, less air around instruments, and imaging that doesn't quite lock.

Swapping in a genuinely quiet supply is one of the few upgrades in this hobby that costs nothing in setup time and works on gear you already own.

Active Noise Cancellation II — Noise Killed at the Source

Rather than filtering noise after the fact, the iPower Elite generates a signal identical to the incoming interference but opposite in phase, cancelling it out — the same principle behind noise-cancelling headphones. Passive filtering handles the higher-frequency hash on top of that.

The result is a noise floor of roughly 1 microvolt, which is quieter than most linear power supplies costing considerably more. Supporting that circuit: a 60W adaptive multi-mode controller, a 400% increase in capacitance over the standard iPower, an oversized power MOSFET, a low-leakage transformer, and frequency-shuffling EMI suppression on an RF-aware PCB. The whole thing lives in a unibody aluminum chassis with the heatsink built in.

Four Voltages — Choose the One Your Component Requires

The iPower Elite is a fixed-voltage supply available in four versions:

• 5V — up to 5.0A. Streamers, USB DACs, and small digital components.
• 12V — up to 4.0A. Network players, DACs, and many phono stages.
• 15V — up to 3.5A. Desktop DACs, headphone amps, and mid-current components.
• 24V — up to 2.5A. Higher-draw amplifiers and larger components.

There is no switch or adjustment — each version outputs one voltage only. Check the label on your component or its original wall-wart, confirm the voltage and that its current draw falls within the rating above, and order the matching version.

Before You Order

Voltage must match exactly. Connecting a 24V supply to a 12V component will damage it immediately. If your component needs a voltage other than 5V, 12V, 15V, or 24V, this is not the right product.

Check the plug and polarity. The iPower Elite uses a 5.5 × 2.1mm center-positive DC barrel plug, the most common type in audio — but not universal. Verify voltage, current, connector size, and polarity before connecting.

Specifications

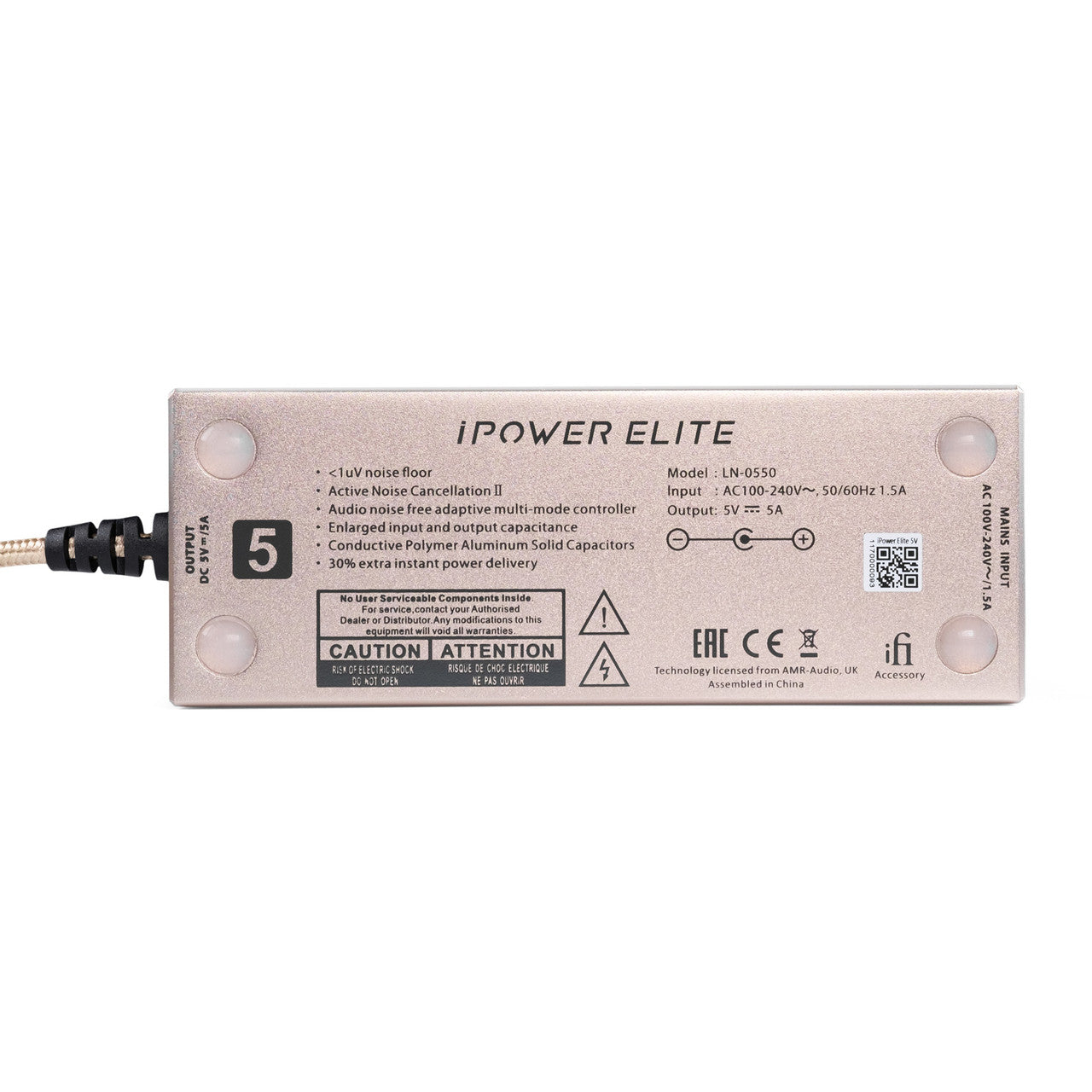

• Output: 5V/5.0A, 12V/4.0A, 15V/3.5A, or 24V/2.5A (fixed — specify at order)

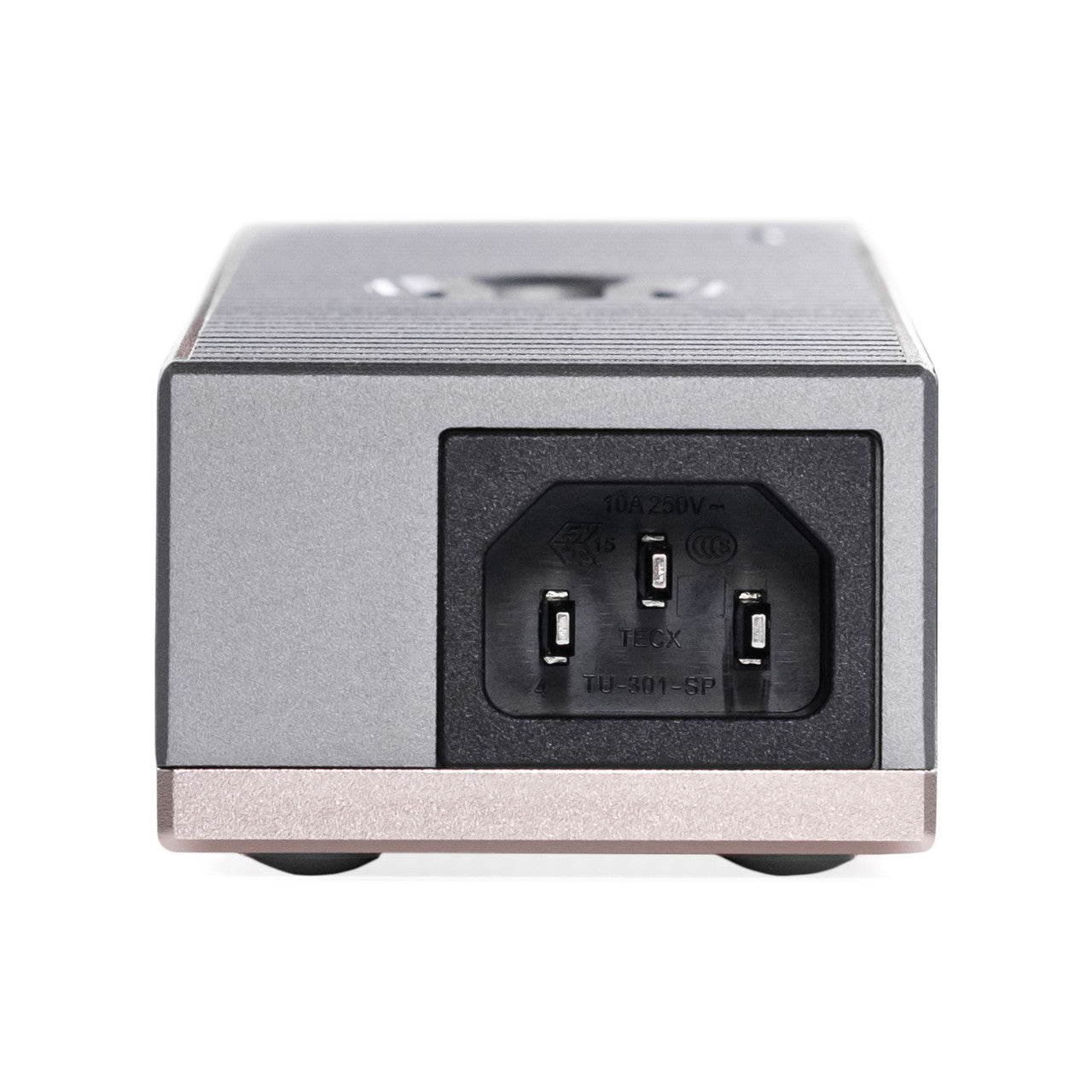

• Input: 100–240V AC, 50–60Hz, 1.5A (universal)
• Audio-band noise floor: less than 1 microvolt

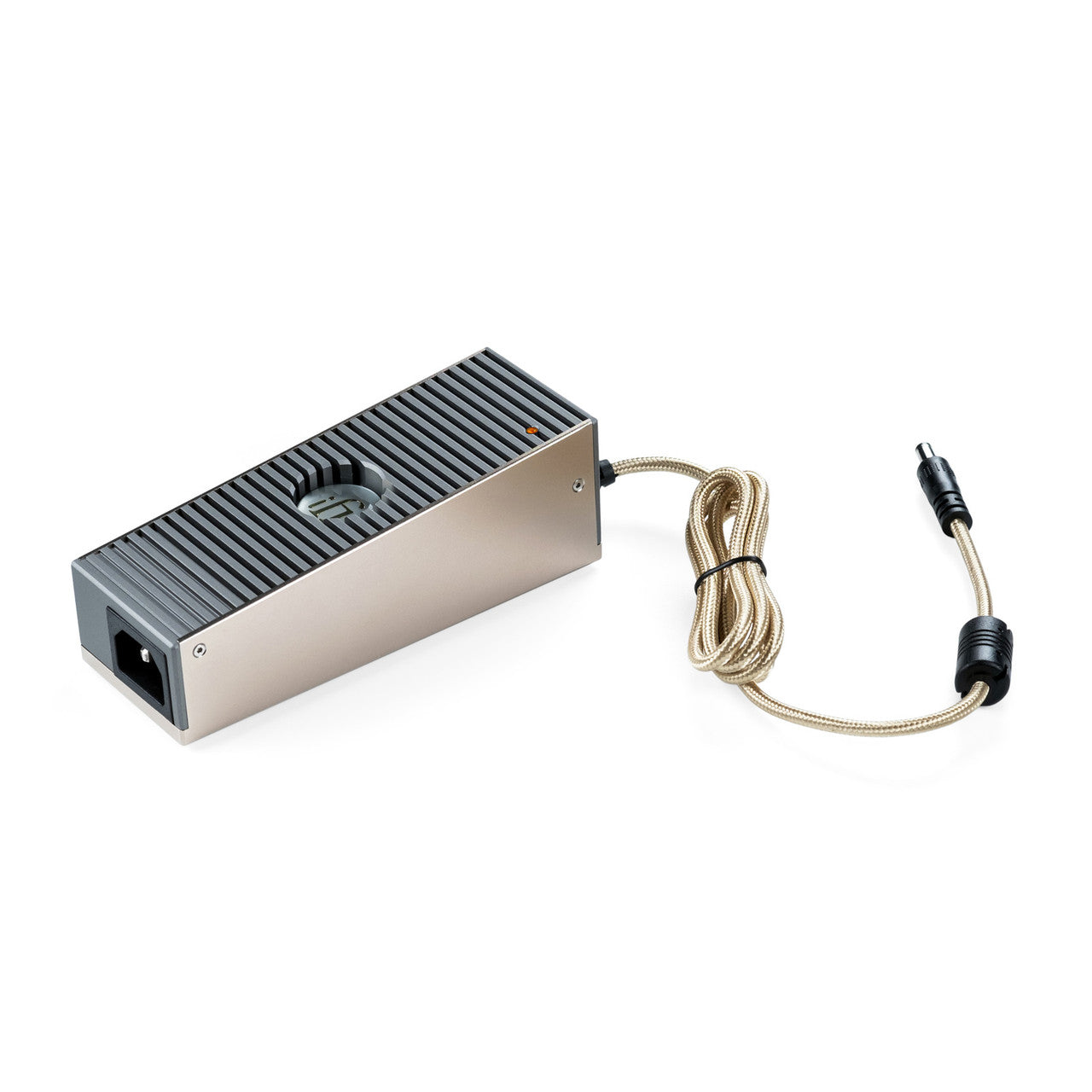

• Output plug: 5.5 × 2.1mm DC barrel, center positive
• Noise reduction: Active Noise Cancellation II, frequency-shuffling EMI suppression, low-leakage transformer, RF-aware PCB
• Controller: 60W adaptive multi-mode

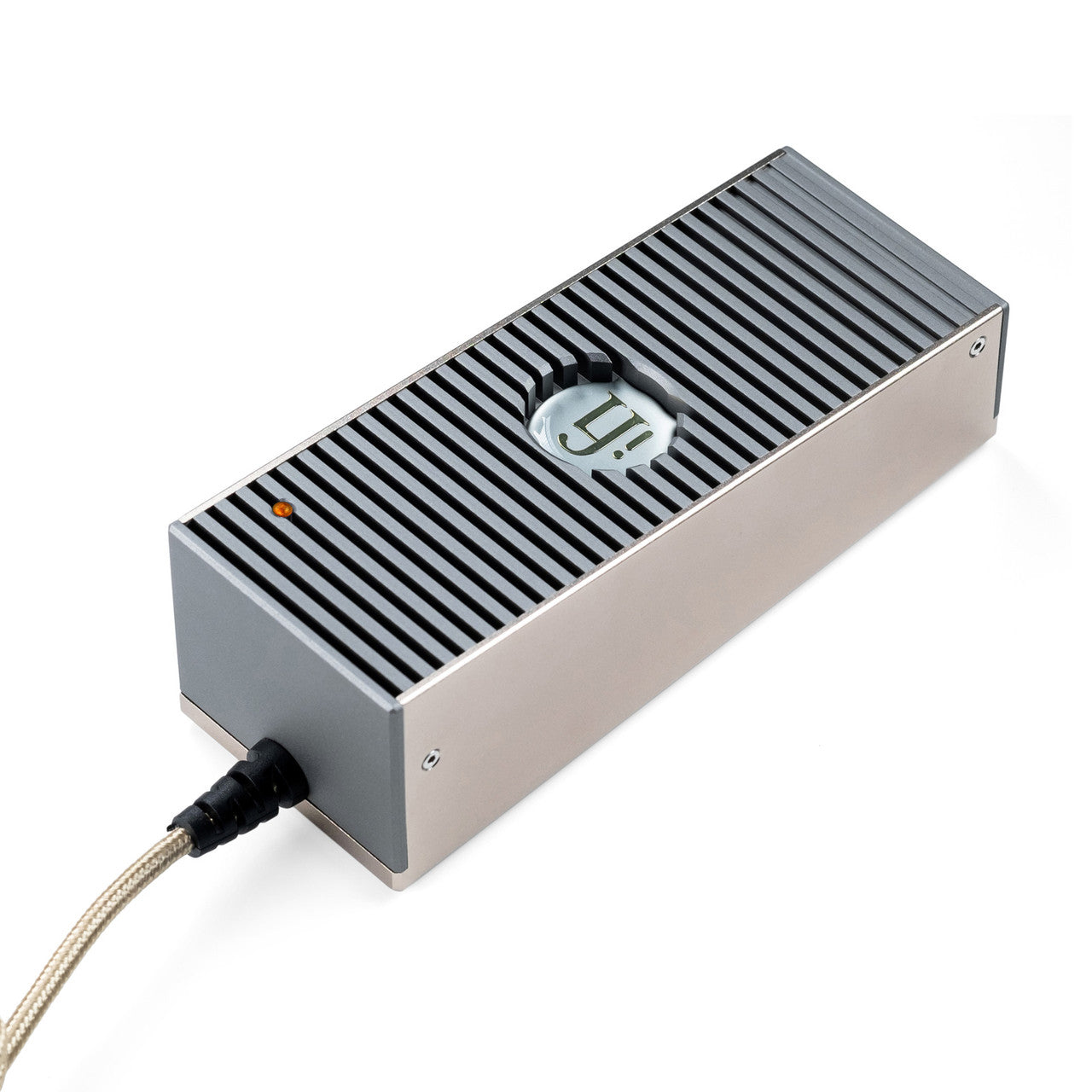

• Chassis: Aircraft-grade aluminum unibody with integrated heatsink
• Dimensions (W × H × D): 5.8" × 2.2" × 1.3" (148 × 55 × 50 mm)
• Weight: 1.2 lbs (550 g)
• Warranty: 12 months

Frequently Asked Questions

Which version do I need?
Look at the label on your component's DC input or on the original power supply. It will list a voltage and a current rating. Match the voltage exactly, and make sure the component's current draw is at or below the iPower Elite's rating for that voltage. If you're unsure, call us — we'll check it with you before you order.

Will I actually hear a difference?
It depends on how noisy your existing supply is and how revealing your system is. On sensitive digital components fed by a cheap generic wall-wart, the improvement is usually clear: a quieter background, better separation, more solidity to the bass. On gear that already includes a well-designed internal supply, expect something subtler.

Is this better than a linear power supply?
Different approach, and often better in practice. Linear supplies avoid switching noise but still leave significant noise at the rectification frequencies and their harmonics. The iPower Elite attacks noise actively rather than just filtering it, and lands at a roughly 1 microvolt noise floor — competitive with linear designs at several times the price, in a fraction of the size.
