Marantz Amp 30 Reference 6-Channel 200-Watt Amplifier

Six Channels of 200 Watts in a Chassis 4.4 Inches Tall

Class D is what makes this possible. The AMP 30 delivers 200 watts to a channel into 8 ohms, across six channels, from a case 4.4 inches tall that weighs 22 pounds. A linear amplifier of that output would need far more metal.

Marantz measures the 200 watt figure at 1 kHz into 8 ohms at 0.05 percent distortion. Into 4 ohms the same channel makes 400 watts, measured at 0.7 percent. With five channels working it holds 200 watts each.

Three Channels of 400 Watts Instead, If You Prefer

A switch puts each pair of channels into Bridge-Tied Load mode. Do that across the amplifier and six channels of 200 watts become three of 400 watts. It is a sensible way to give the front three speakers everything the box has.

Marantz Put Its Own Circuit in Front of the Class D Stage

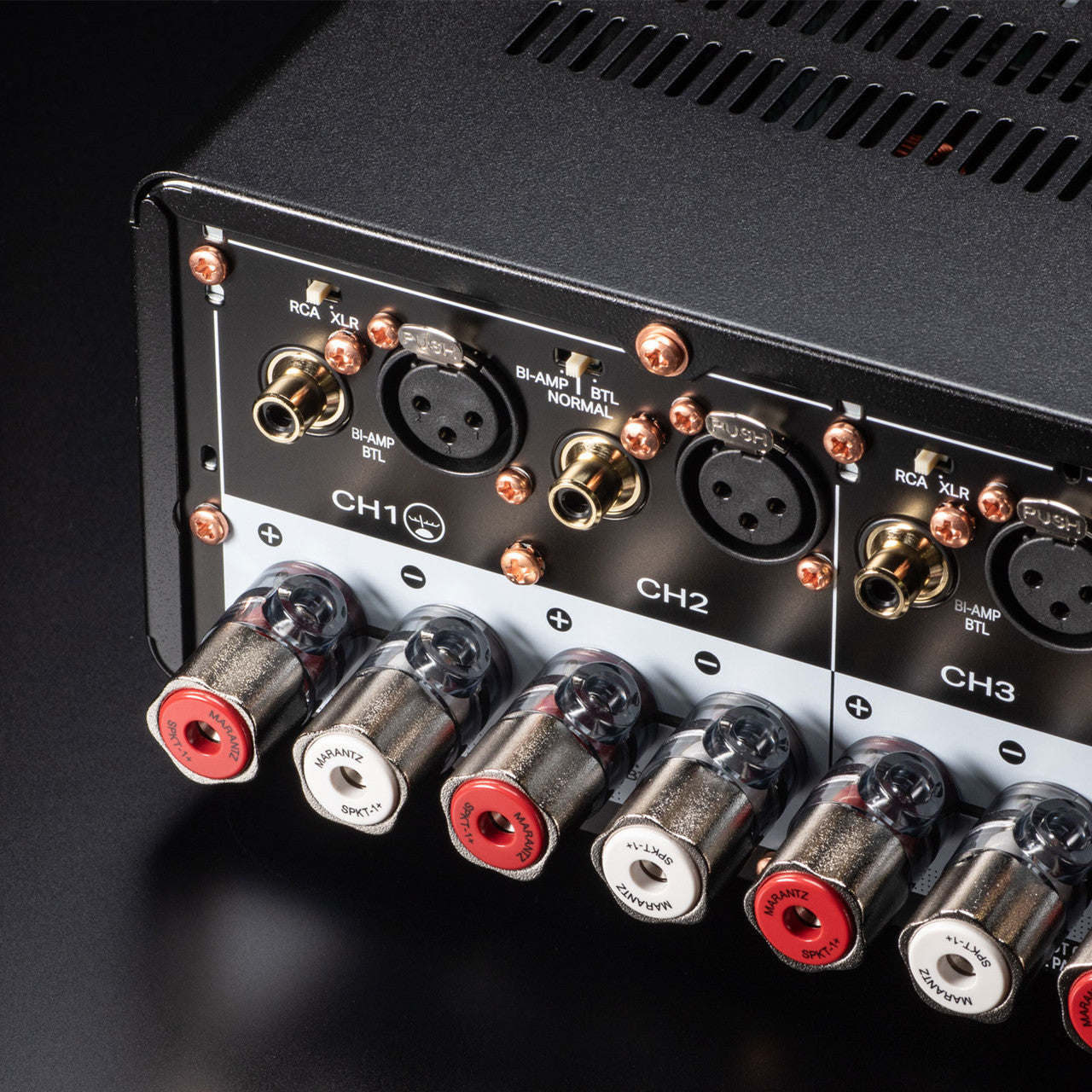

The amplifier module is Marantz’s own design. It is fed by the company’s HDAM circuitry and a shielded transformer. Each of the six channels takes a balanced XLR or an unbalanced RCA input, picked on a selector switch.

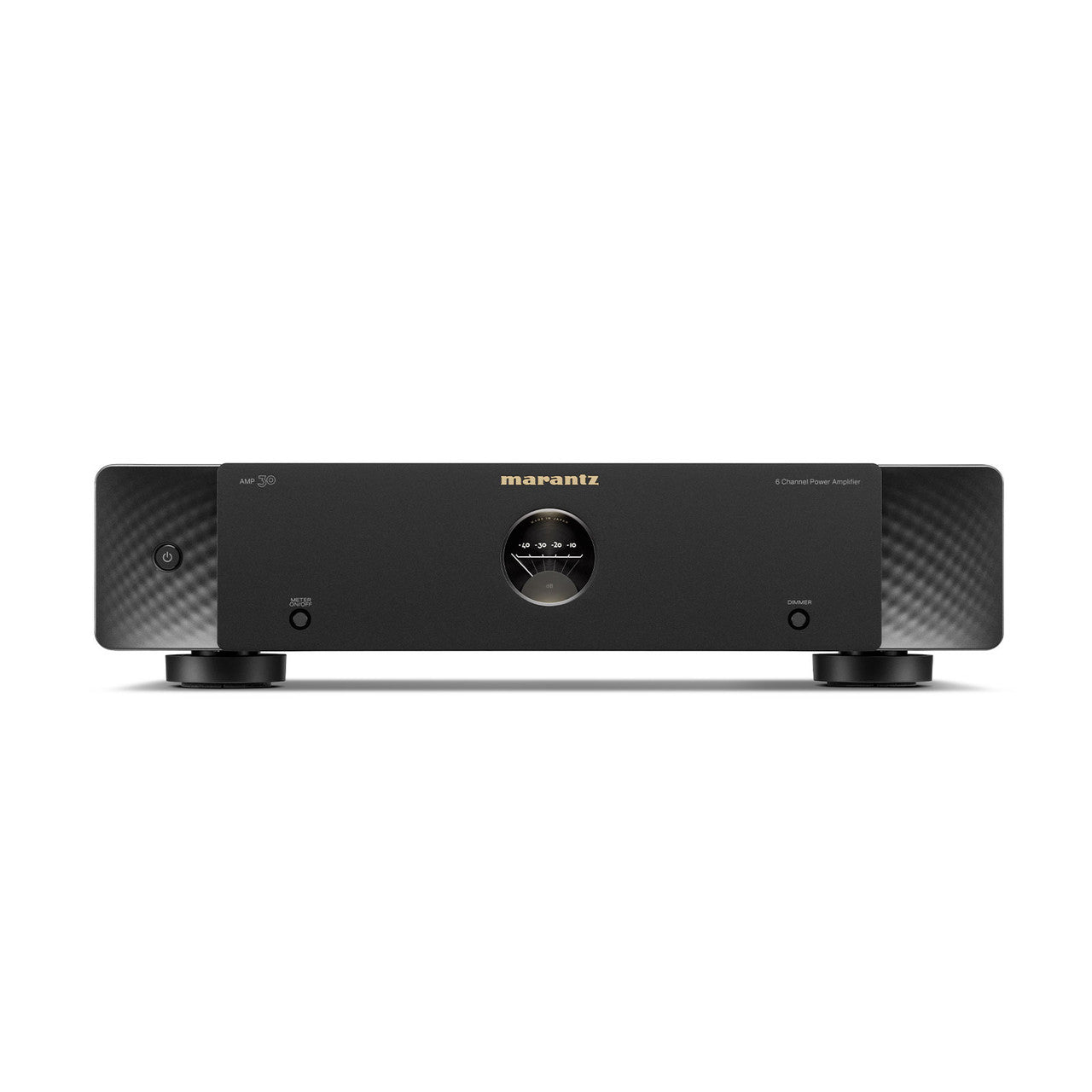

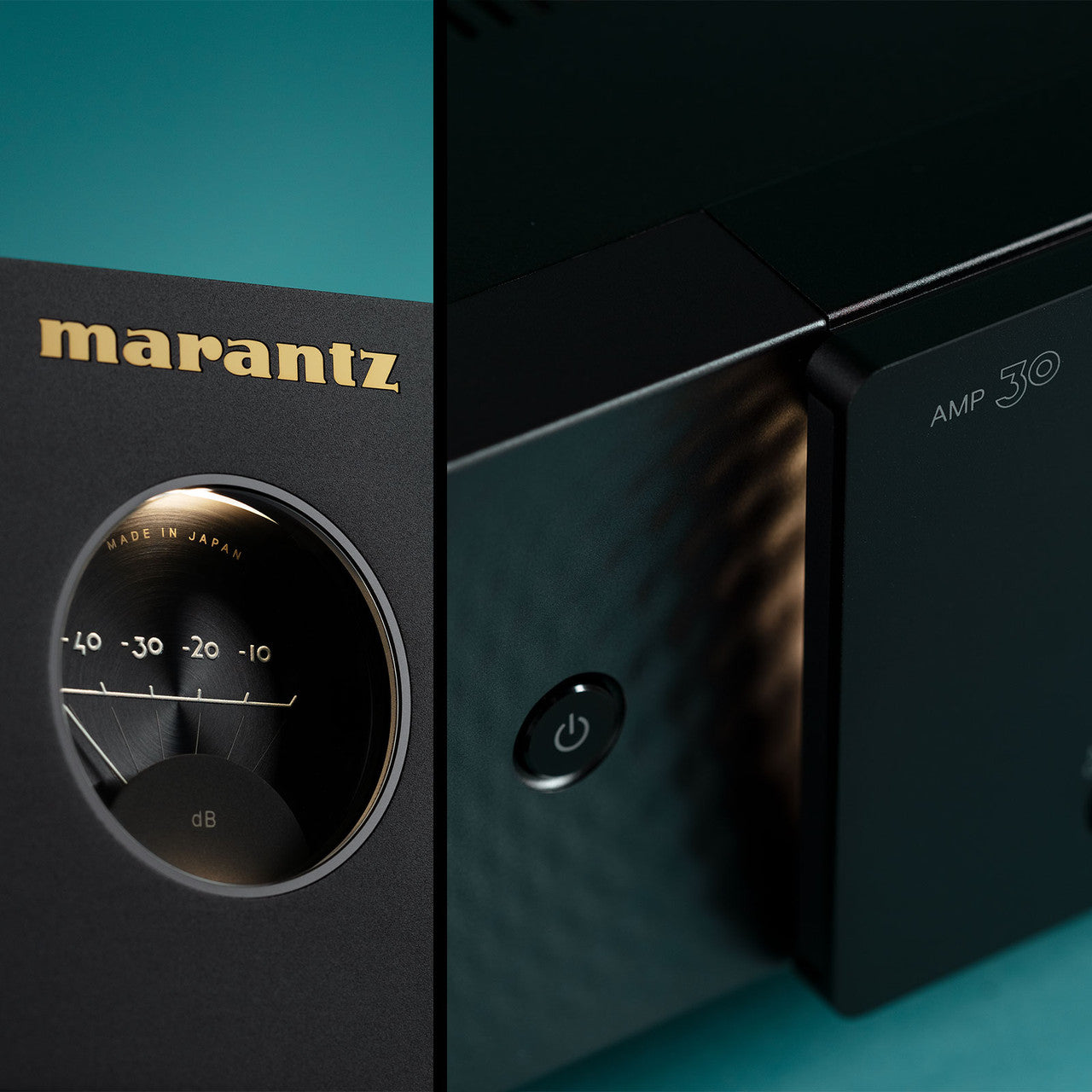

Bi-amp mode drives the high and low sections of a speaker separately. That suits speakers with two sets of terminals. On the front, a softly lit level meter sits in the porthole, and sidelights wash the panel.

Built to Be Controlled, Not Just Switched On

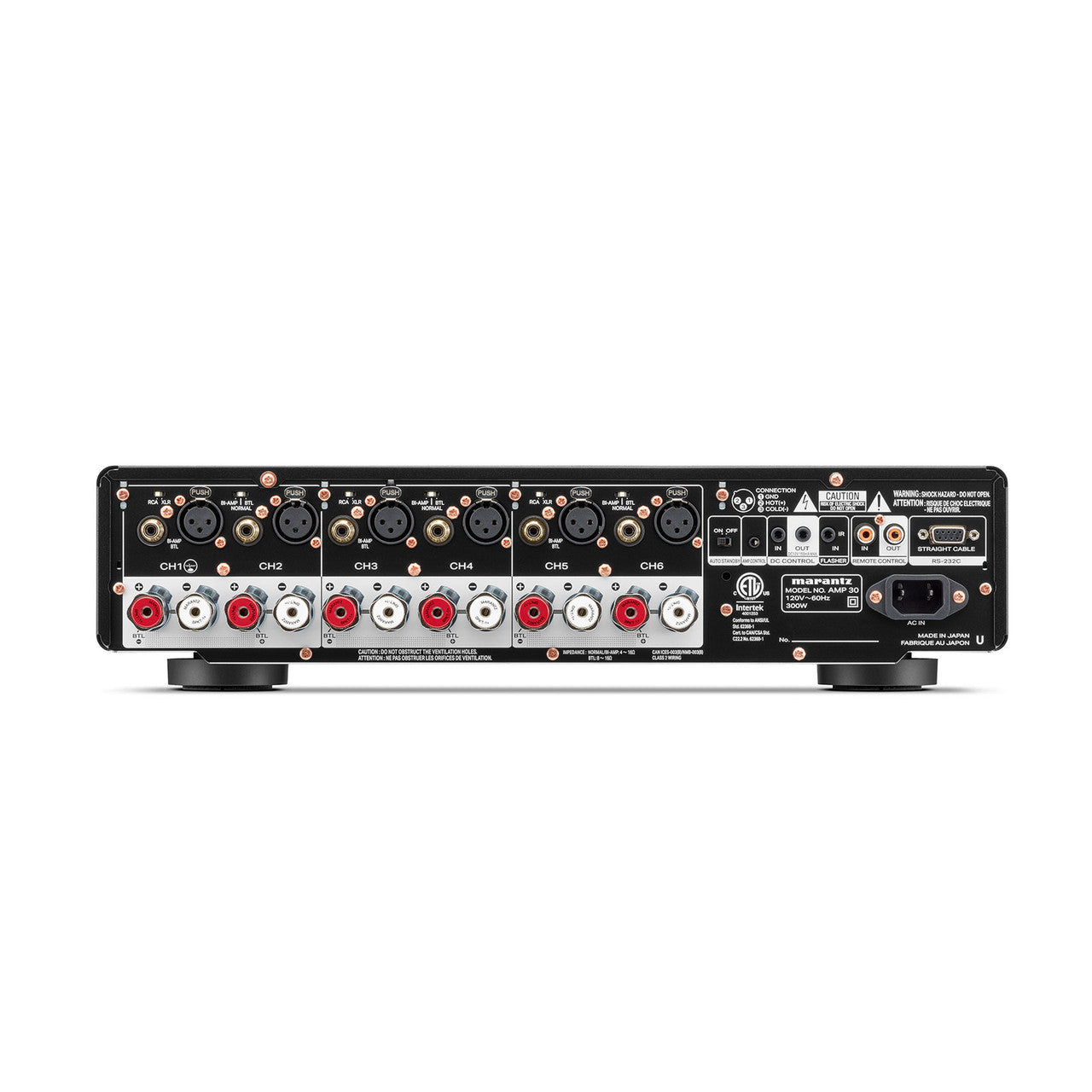

Around the back sit RS232, an IR flasher input, the Marantz Remote Bus and a DC trigger in and out. Draw is 300 watts in use. Standby is 0.2 watts. The chassis measures 17.4 inches square.

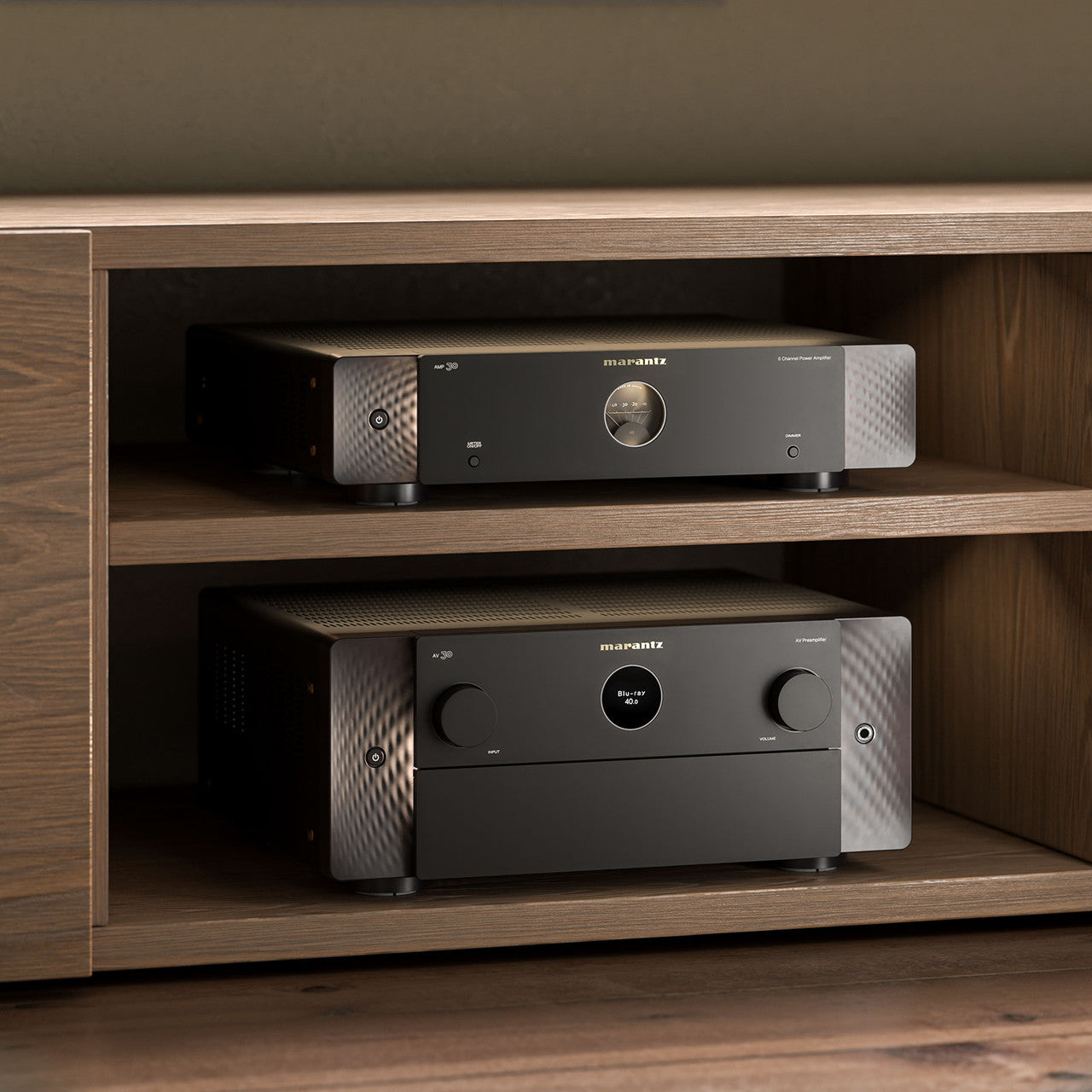

Pair it with a Marantz AV separate using the supplied amp control cable. The preamplifier then runs the show. Power and lighting settings follow the processor, so you do not walk to the rack to set them.

What Reviewers Are Saying

Tucker Bowe in Gear Patrol, January 13, 2026: "It’s a 6-channel power amplifier that’s capable of driving 200 watts per channel, which is sufficient enough to drive multiple different speaker configurations and speaker layouts."

Who Is This Six-Channel Amplifier Best For?

• Your rack has no room left — 4.4 inches of height and 22 pounds for six channels of 200 watts means this slides in where a conventional amplifier of the same output simply would not fit
• Your front three speakers deserve more — Bridge-Tied Load mode turns pairs of channels into 400 watt channels, so left, center and right can each have double the power when a soundtrack demands it
• You run a Marantz processor — the supplied amp control cable ties the two together, so power and panel lighting follow the preamplifier instead of being set separately
• Your speakers take two sets of cables — bi-amp mode drives their high and low sections independently, which is the reason those extra terminals are there
• You are amplifying more than six channels — this covers six, so a 7.1.4 room needs more amplification than one AMP 30 provides; Marantz built it to be combined, so add a second unit or another of our multi-channel amplifiers for the remaining channels

How Does It Connect to Your System?

Run six preamp outputs from your processor into the amplifier and set each channel’s selector to XLR or RCA. Decide on normal or Bridge-Tied Load mode before you wire the speakers, because BTL changes which terminals carry which channel.

Then link the amp control cable to a Marantz AV separate, or use the DC trigger with any processor. RS232 and the flasher input are there for a control system. A quick start guide and AC cord are in the carton.

Pairs Well With

A power amplifier needs a few things around it. These are the categories most AMP 30 owners shop next.

• Home theater receivers and processors — the preamp outputs that feed all six channels
• Interconnect cables — six balanced XLR or unbalanced RCA runs from the processor
• Speaker cables — a second run per speaker if you plan to bi-amp
• Power conditioners — a clean feed for an amplifier that draws 300 watts

Frequently Asked Questions

Do I need a receiver or processor with this amplifier?

Yes. The AMP 30 supplies power and nothing else. Feed it from the preamp outputs of an AV processor or receiver.

How much power does it make?

200 watts per channel into 8 ohms at 0.05 percent distortion, and 400 watts into 4 ohms at 0.7 percent. Marantz takes both at 1 kHz.

What does Bridge-Tied Load mode do?

It combines a pair of channels into one, doubling output to 400 watts into 8 ohms. Use it across the amplifier and you have three 400 watt channels rather than six of 200.

Can I combine it with another amplifier?

Marantz designed it that way. Adding a second unit extends the same power and control scheme to more channels for a larger immersive layout.

What comes in the box?

The amplifier, a quick start guide, an AC cord, an amp control cable and a remote control cable.

How much space does it need?

The chassis is 17.4 inches wide, 17.4 deep and 4.4 tall, and it weighs 22 pounds. Leave air above it as you would with any amplifier.

See It in Action

Sound United Training, Marantz’s own training channel, introduces the AMP 30:

Audio Advice spends twelve minutes on the AMP 30 and its matching processor:
