Marantz AV 30 8k Reference Grade 11.4 Channel Home Theater Preampli...
Exceptional Performance for Large Media Rooms and Home Theaters

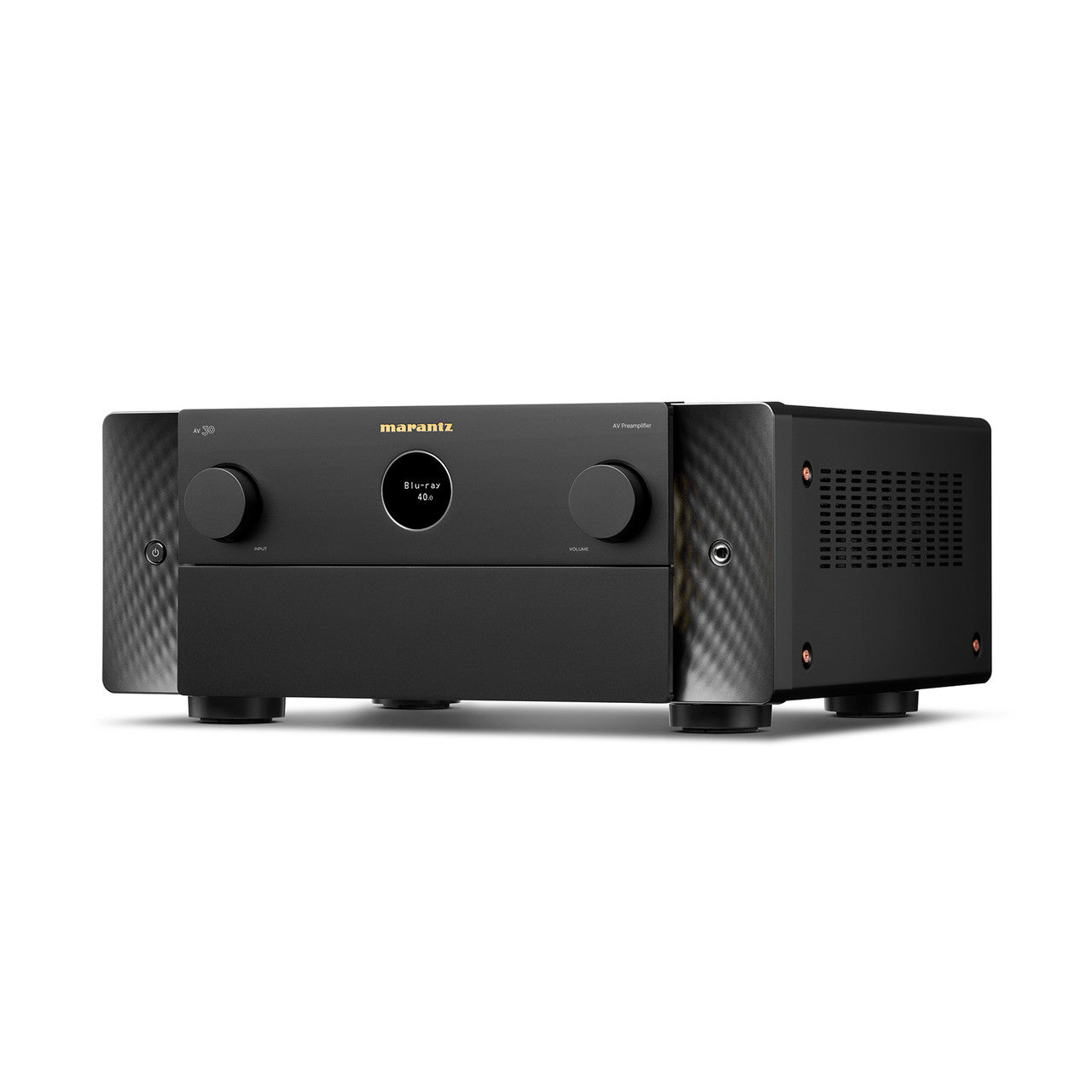

The Marantz AV 30 is an 8k Reference Grade 11.4 channel home theater preamplifier / processor. It delivers exceptional performance and capability for large media rooms and dedicated home theater systems.
Advanced Marantz technology and expert craftsmanship ensure your entertainment is always delivered with powerful precision—from an elegant, timeless design.
This 11.4-channel balanced AV preamplifier features Marantz HDAM discrete circuitry and boasts seven HDMI inputs, each of which is 8K Ultra HD compatible. Powered by HEOS™ for high-resolution music streaming, AV 30 includes room correction with Audyssey MultEQ XT32 and optional Dirac Live. It delivers Dolby Atmos, DTS:X Pro, AURO-3D, and features multiple inputs and balanced pre-amp outputs for all channels, including four independent subwoofers.
Immersive Realism and Lifelike Detail
Enjoy every movie moment with immersive realism and lifelike detail. The AV 30 delivers an outstanding theater experience in your home. The 11.4-channel onboard processing supports a wide range of speaker configurations. It's perfect for all forms of immersive audio suitable for even large home theater systems.
The AV 30 comes packed with support for the latest high-resolution movie formats, plus 8K video compatibility, room optimization, and Powered by HEOS™ technology to simplify and elevate your listening.
Ready for all your AV sources, the AV 30 is so complete, it even includes a built-in MM Moving Magnet phono stage, allowing you to plug your turntable in directly without the need for an external device. It also includes an AM/FM tuner, allowing you to get the best possible sound over terrestrial radio channels.
Stream Your Favorite Music and Audio Entertainment
Wirelessly stream your favorite music and audio entertainment to every room with HEOS. Control it all with the HEOS app. Get up and running in minutes and start streaming effortlessly. The HEOS app makes setup quick and seamless – no wires, no hassles, just pure sonic bliss.
The HEOS app puts the audio entertainment you love right at your fingertips, from top streaming services to your personal collections. Queue up your favorite playlists, podcasts, internet radio, and more. Pick the perfect song for any moment. From personal playlists to favorite stations, HEOS puts a world of audio entertainment at your fingertips.
Bring your home to life with sound. Whether it's enjoying a new album in the kitchen or an old favorite in the living room, HEOS gives every room its own soundtrack—or syncs them all in perfect harmony.
Advanced Network Playback
In addition to its HEOS Multi-Room and Streaming capabilities, the AV 30 also includes Wi-Fi, Bluetooth, and Ethernet connectivity. This even includes Bluetooth Retransmit for Bluetooth Headphones and Apple HomePod.
Lossless music formats include FLAC, FLAC HD 192/24; ALAC, ALAC 192/24; WAV, WAV 192/24, along with DSD Audio Streaming up to DSD5.6. Gapless Playback is provided with FLAC, ALAC, WAV, and DSD media.
Also onboard is TuneIn for internet radio, AirPlay 2, and Spotify. And the AV 30 is Roon-Ready. Other Streaming Services (subscription may be required) are Amazon Music, TIDAL, Deezer, Napster, and SoundCloud.
Timeless Design Principles

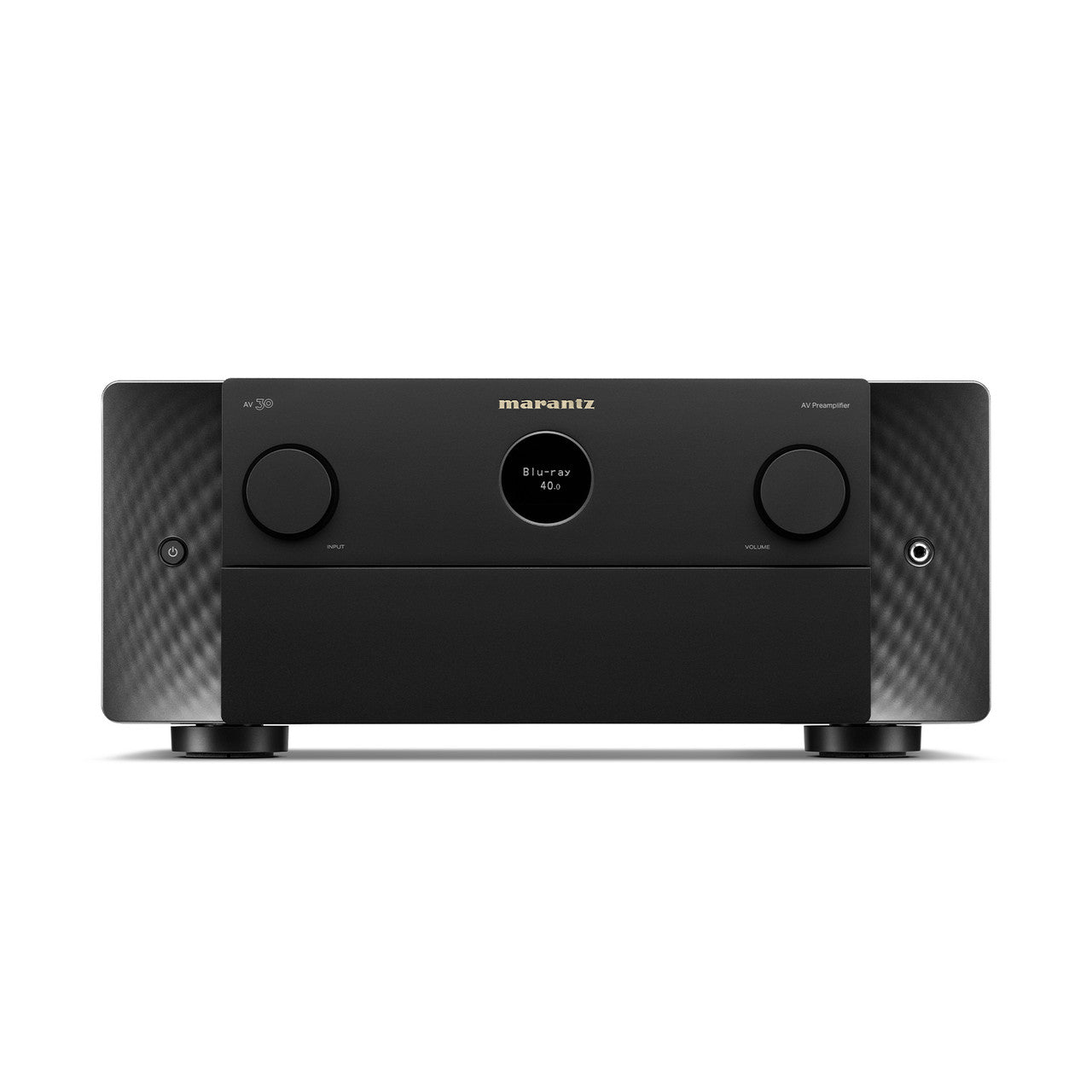

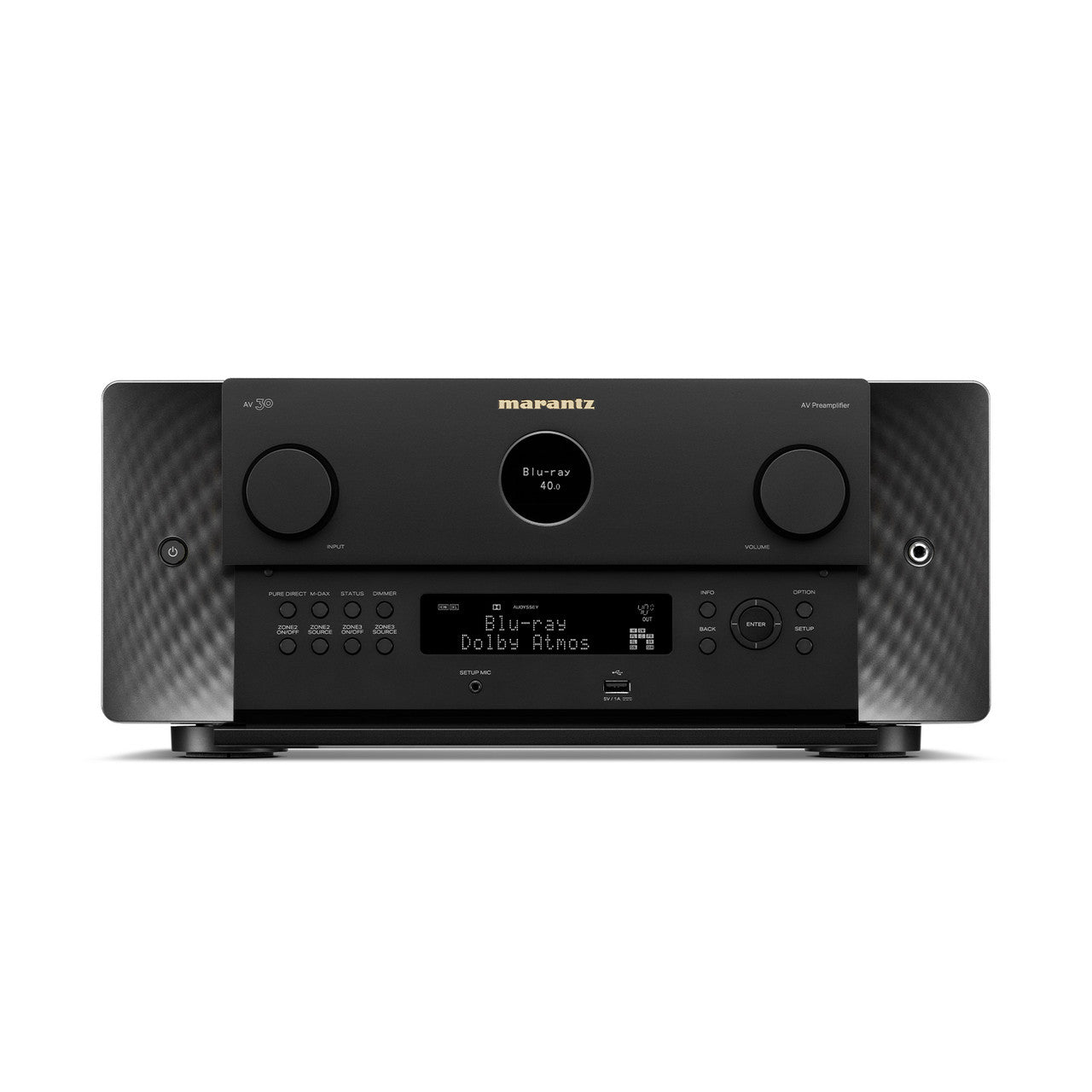

A modern expression of timeless design principles, the AV 30 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Overview
- Crafted in Shirakawa, Japan
- Detailed and immersive sound transforms your home theater
- 11.4-channel output allows a variety of speaker layouts up to 7.4.4
- Decodes Dolby Atmos, DTS:X, IMAX Enhanced audio, and AURO-3D
- Acoustic room tuning with Audyssey MultEQ XT32 and optional Dirac Live, including Bass Control and Active Room Treatment
- Seven HDMI inputs (all 8K) and three outputs for the highest resolution video
- Sound Master tuned for warm, rich and detailed Marantz sound
- High-quality HD on-screen interface makes setup intuitive
- Balanced and RCA outputs for external power amplifiers
- Elegant design matches beautiful sound
- Optimized HDAM-SA2 for fast response and low distortion
- 8K and Dolby Atmos
- 3D Audio
- Powered by HEOS™
- Built-in MM Phono Preamp
- AM/FM Tuner
- Setup Assistant / Smart Select

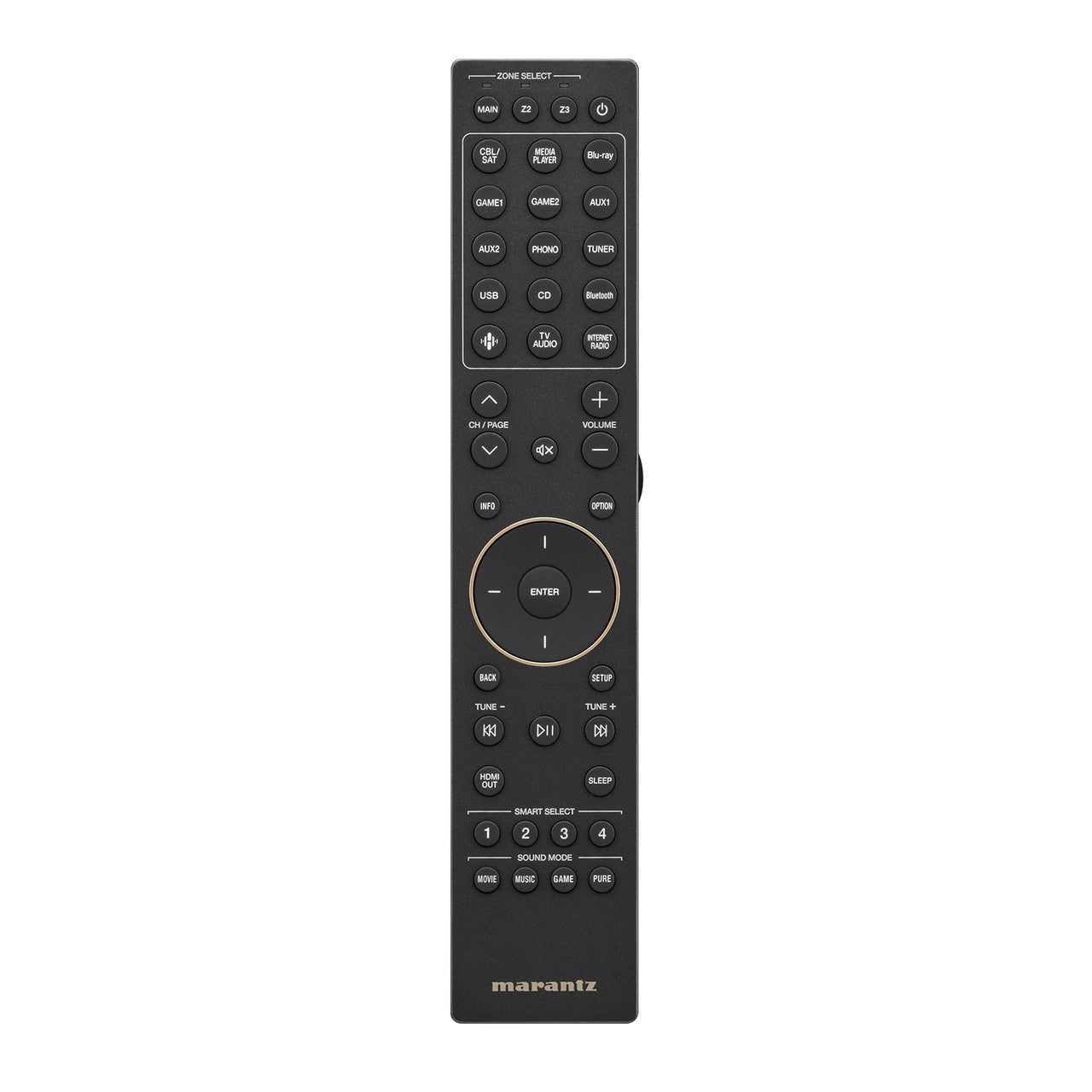

- Wireless remote with batteries
- Manufacturer's Limited Warranty (United States and Canada): 5-year
Multichannel Surround
- DTS: DTS-HD Master Audio, DTS:X, DTS Virtual:X, DTS Neural:X
- Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround
- IMAX: IMAX Enhanced
- Auro 3D / 360 Reality Audio / MPEG H
- Multichannel Stereo
- Max Number of Processing (Pre-amp) Channels: 11.4
Sound Enhancements

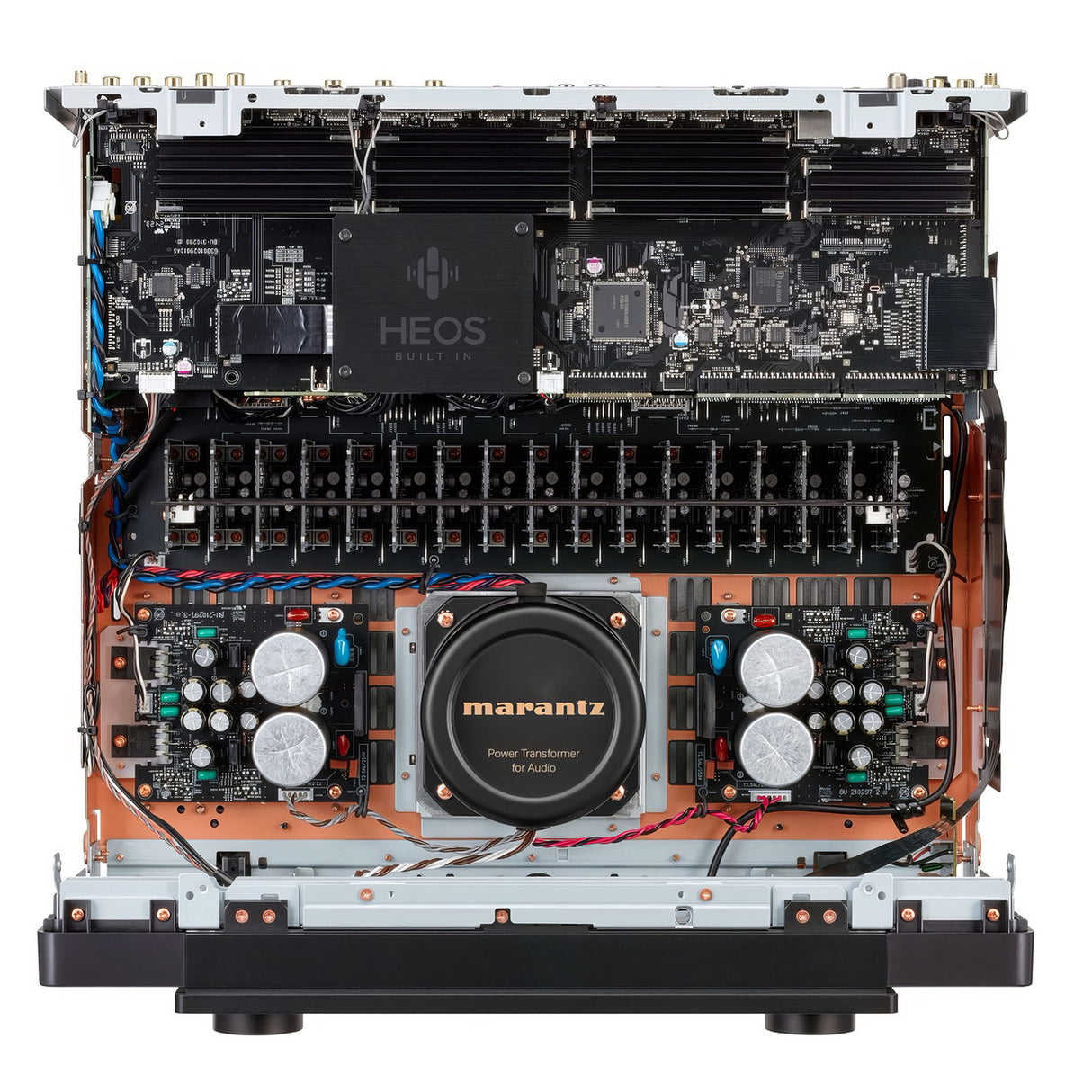

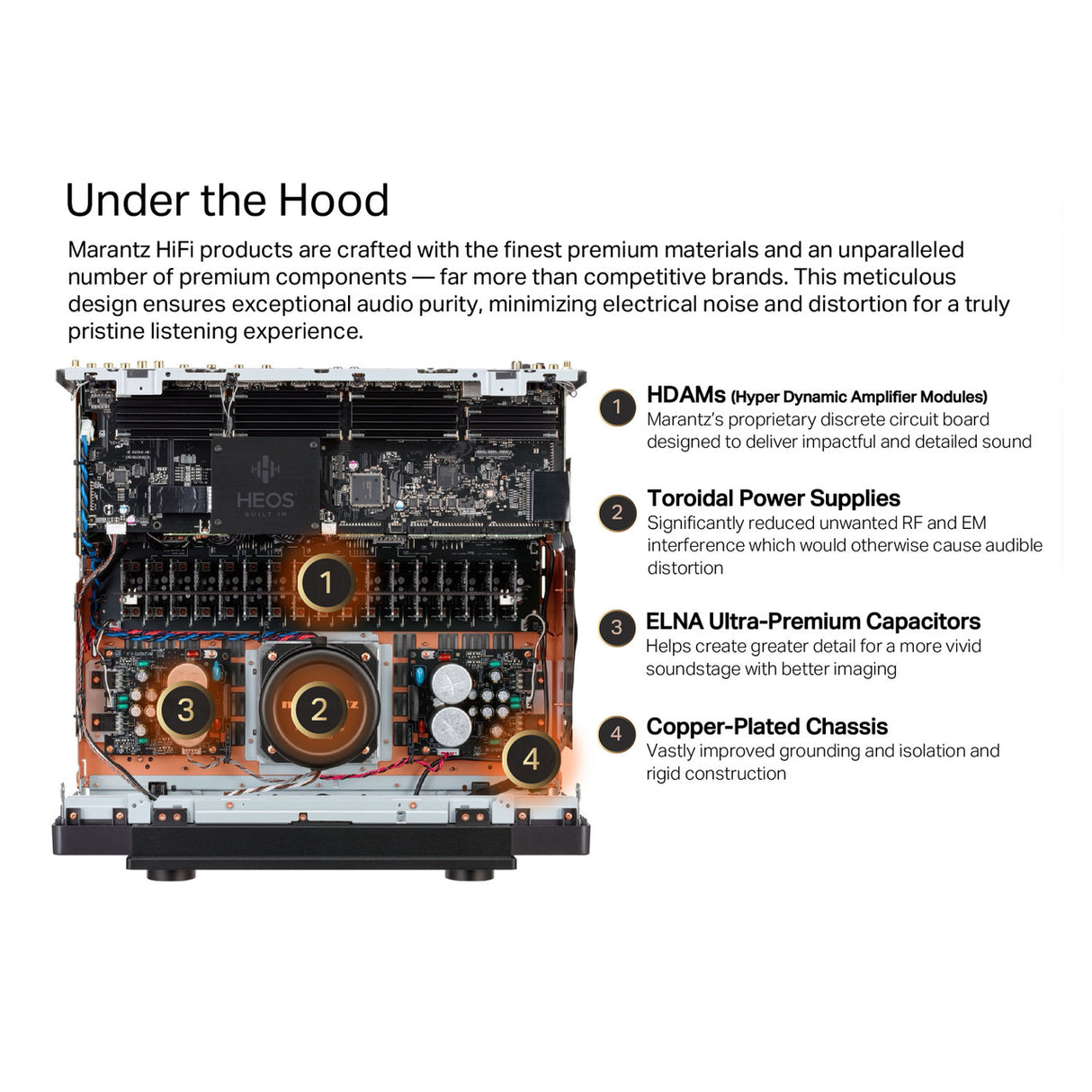

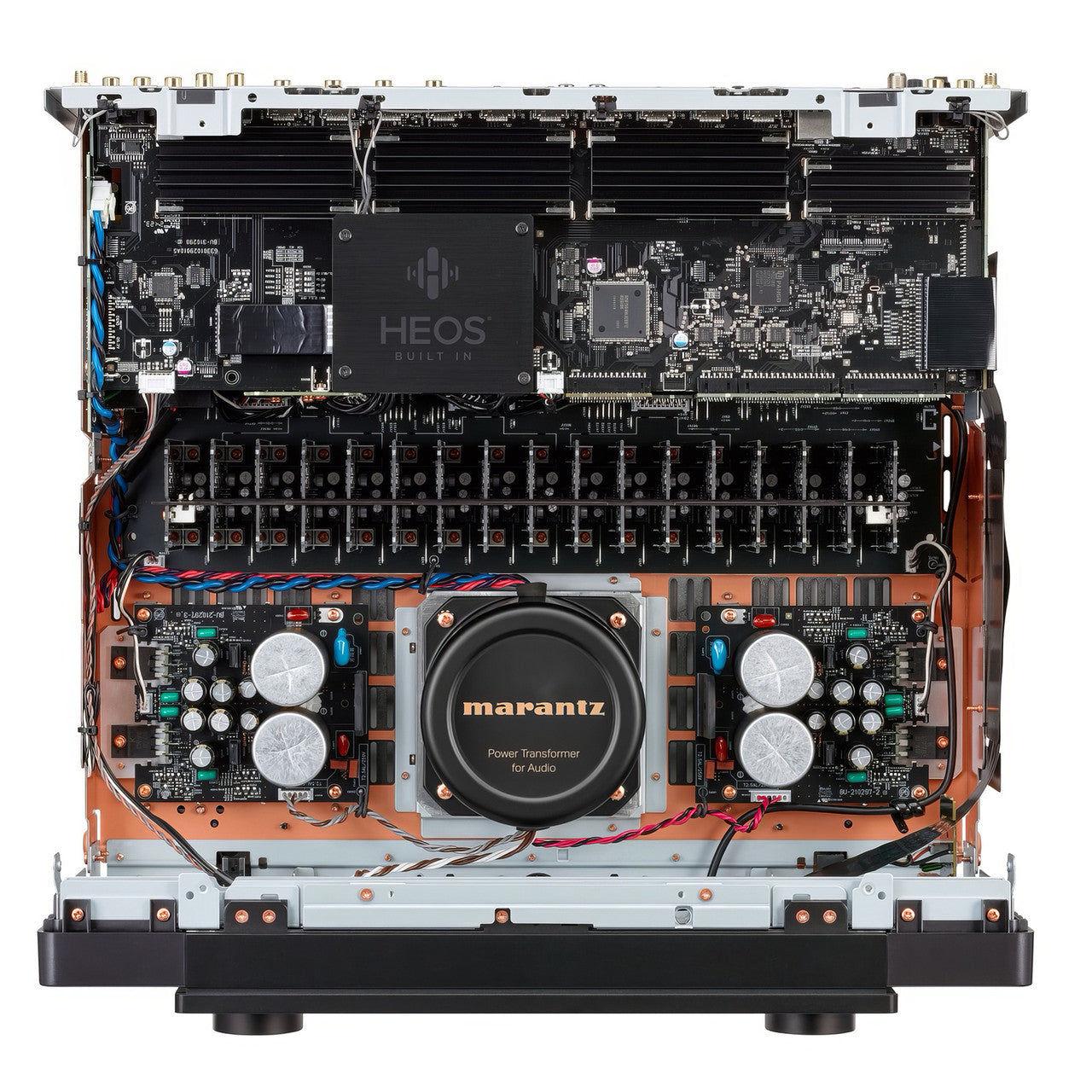

- Copper-Plated Chassis / Toroidal Power Transformer
- Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM-SA2)
- Pure Direct / Gold-Plated RCA Terminals
- Clock Jitter Reducer
- Dirac Live upgradability
- Compressed Audio Enhancer: MDAX2
- Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC
- Audyssey MultEQ XT32
Network
- Wi-Fi / Bluetooth / Ethernet
- HEOS Multi-Room and Streaming
- Bluetooth Retransmit for Bluetooth Headphones
- Apple HomePod
- Lossy formats: MP3, WMA, AAC
- Lossless formats: FLAC, FLAC HD 192/24; ALAC, ALAC 192/24; WAV, WAV 192/24
- DSD Audio Streaming up to DSD5.6
- Gapless Playback: FLAC, ALAC, WAV, DSD
- TuneIn / AirPlay 2 / Spotify
- Roon-Ready
- Other Streaming Services (subscription may be required): Amazon Music, TIDAL, Deezer, Napster, SoundCloud
- Compatible with Remote App for Smartphones: Marantz AVR Remote
- Compatible with Remote App for Tablets: Android / iOS / Amazon Kindle
HDMI
- Total HDMI Inputs: 7
- HDCP 2.3 Support
- HDMI Outputs: Main 2 / Zone 1
- HDMI Scaling: 1080P/4K to 8K
- GUI Overlay on HDMI
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
- 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40 Gbps)
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- Enhanced ARC
- ALLM (Auto Low Latency Mode) Pass-Through for Gaming
- Variable Refresh Rate / Quick Frame Transport
- HDMI Pass-Though in Standby Mode
- DSD Audio Capability
- Auto LipSync

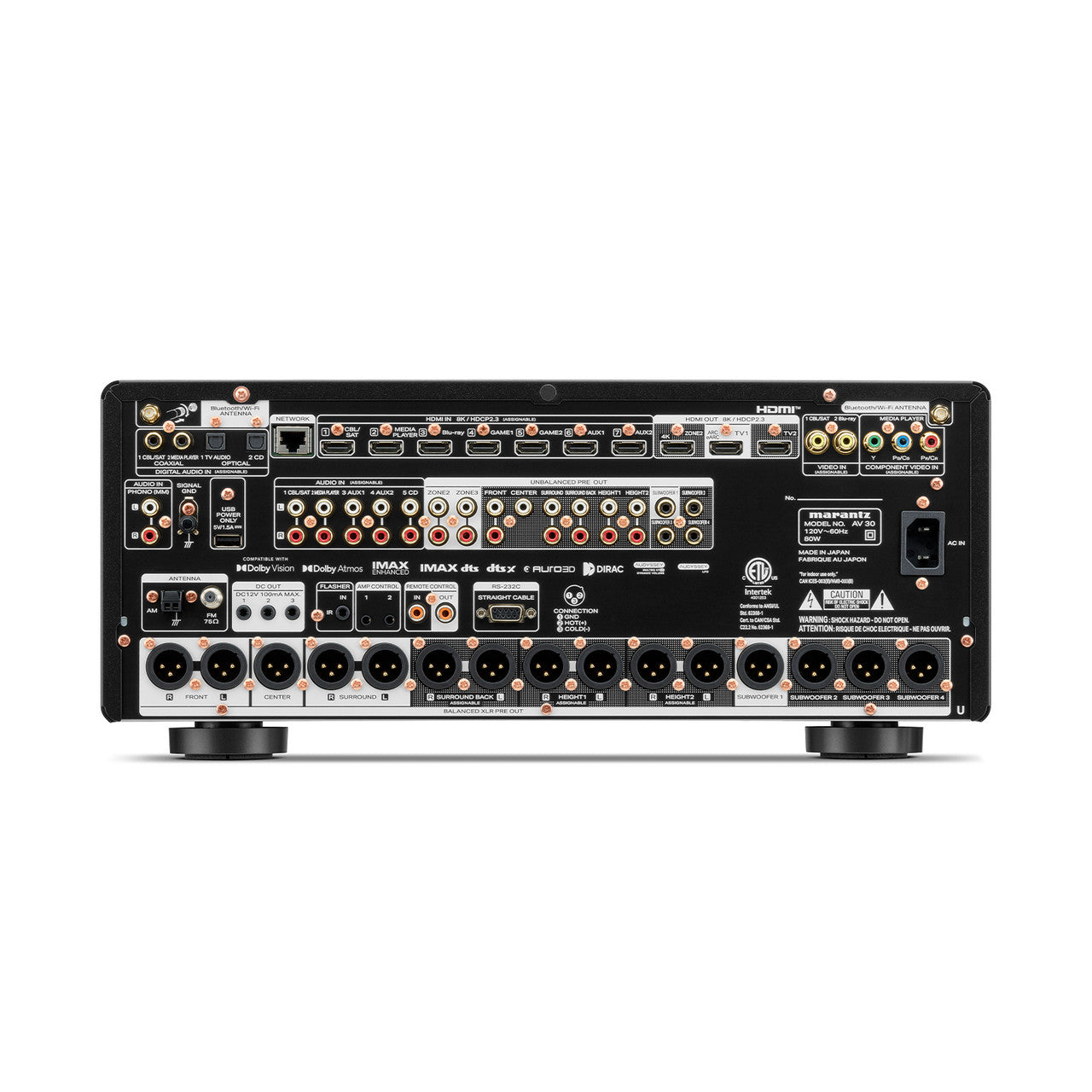

Inputs Outputs
- Composite Video: In 2
- Component Video: In 1
- HDMI: In 7 / Out 3
- Multi-Room Video Out: HDMI
- Analog In: 6 (1x XLR)
- Phono In: MM
- Digital In: Optical 2 / Coaxial 2
- Multi-Room Out: Analog 2
- Multichannel Pre-Amp Out: 11.4 RCA, 11.4 XLR
- Subwoofer Out: 4 (independent)
- Speaker A / B: Assignable Pre-Out
- Bi-Amp Drive: Assignable Pre-Out
- Front USB Input / USB Audio
- USB Power Supply: Rear
- AM/FM Tuner
Multi-Room CI
- HEOS Multi-Room Integrated
- HEOS Link Compatibility: IR/ IP
- Multi-Room Zones: 3
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
- Zone Audio Output: Pre-Out
- Zone HDMI Output from HDMI Source
- IP Control / RS232 Control / Web Control / App Control
- IR Flasher In / Marantz Remote Bus
- DC Trigger Output
- HDMI Diagnostics
What's in the Box
- Main unit
- Remote control (with batteries)
- AM/FM antennas
- Wire labels
- Quick start guide,
- Audyssey microphone
- Cardboard microphone stand
- 2 External Detachable Antenna
- AC power cord
- Power Consumption: 80 W
- Standby Consumption: 0.2 W
- CEC Standby Consumption in W: 0.5 W
- Network Standby Consumption: 2.0 W
- Maximum Dimensions, Antenna Horizontal (W x D x H): 17.4 × 16.3 × 7.5 in.
- Maximum Dimensions, Antenna Vertical (W x D x H): 17.4 × 16.3 × 10.0 in.
- Maximum Dimensions, Without Antenna (W x D x H): 17.4 × 15.6 × 7.5 in.
- Weight: 24.5 lb.
