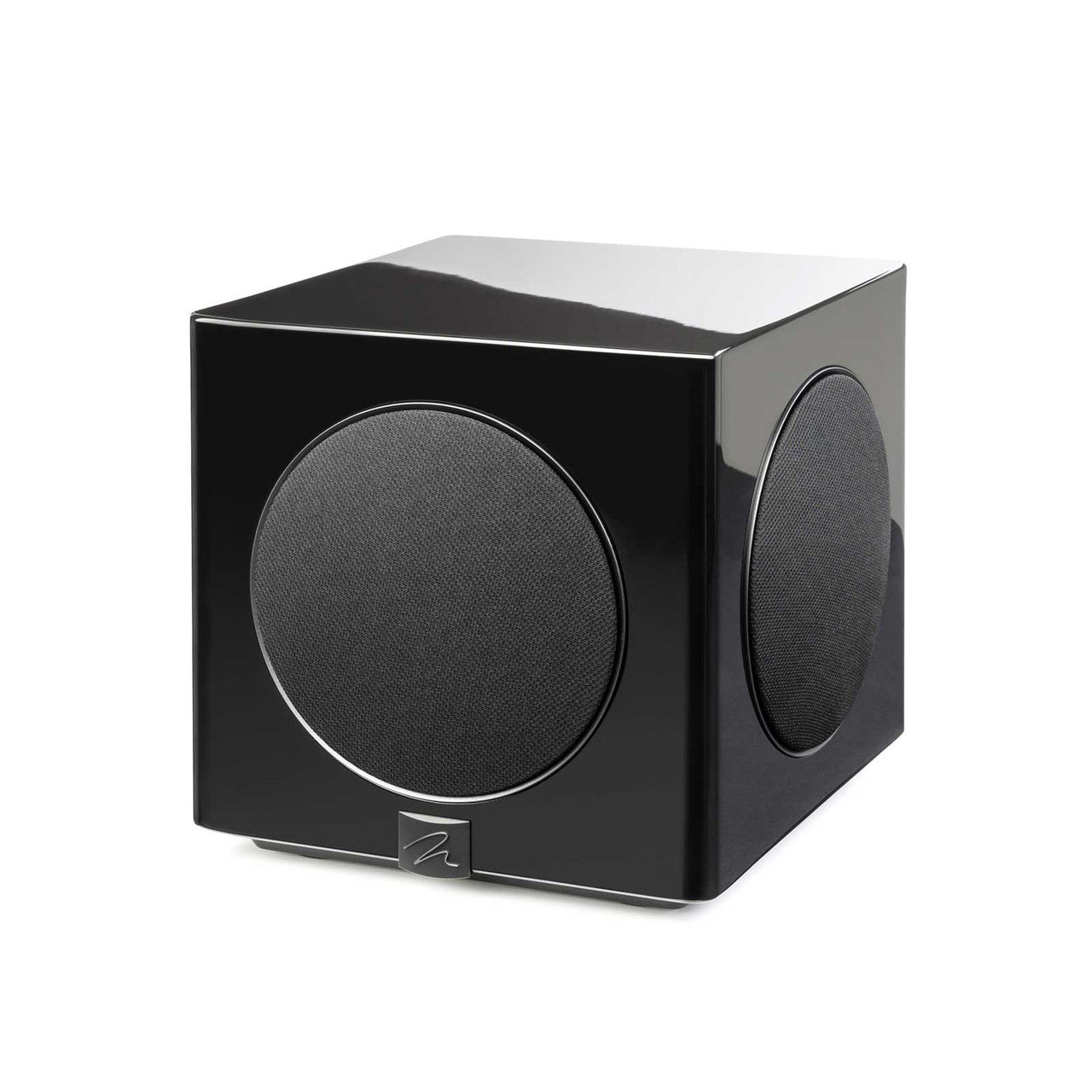

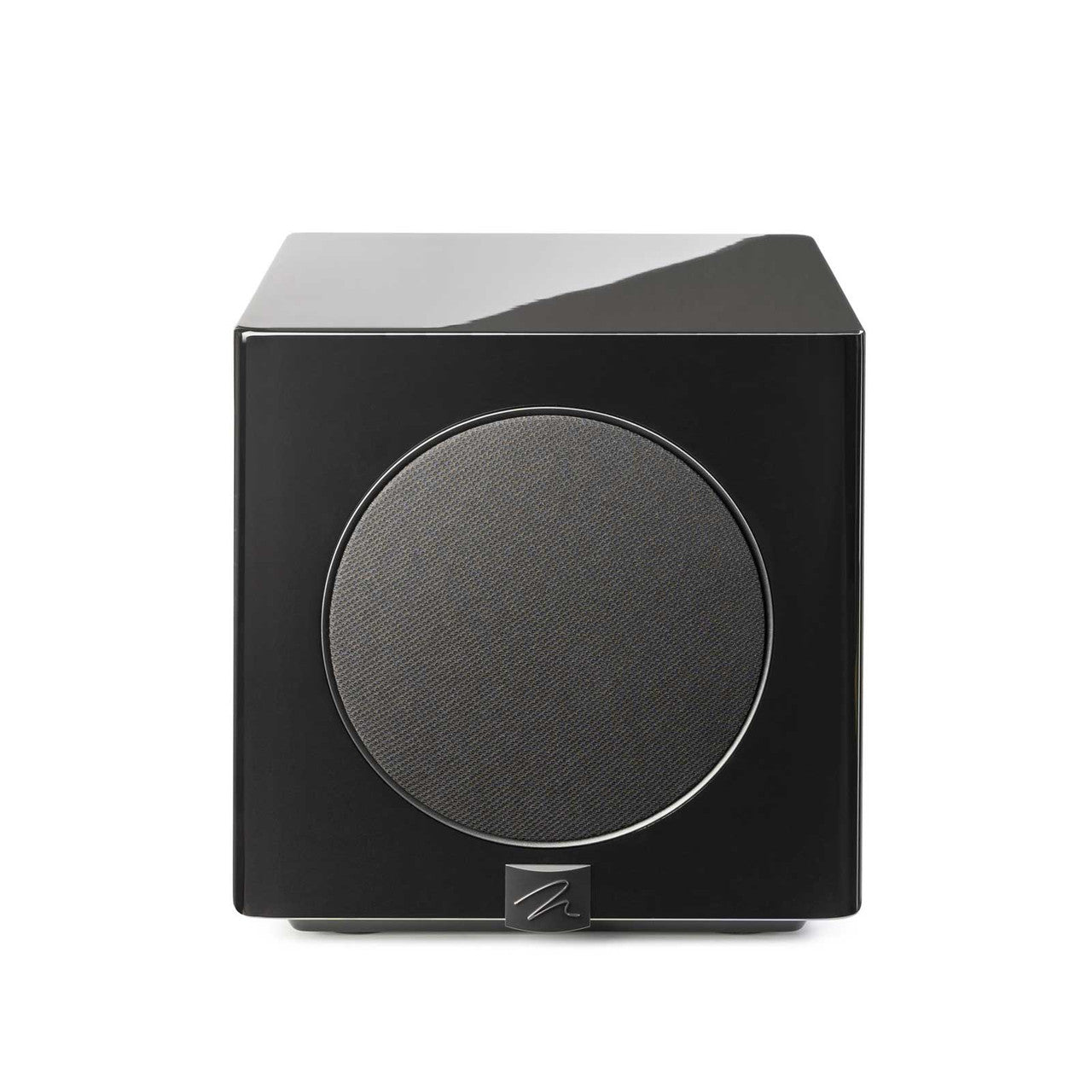

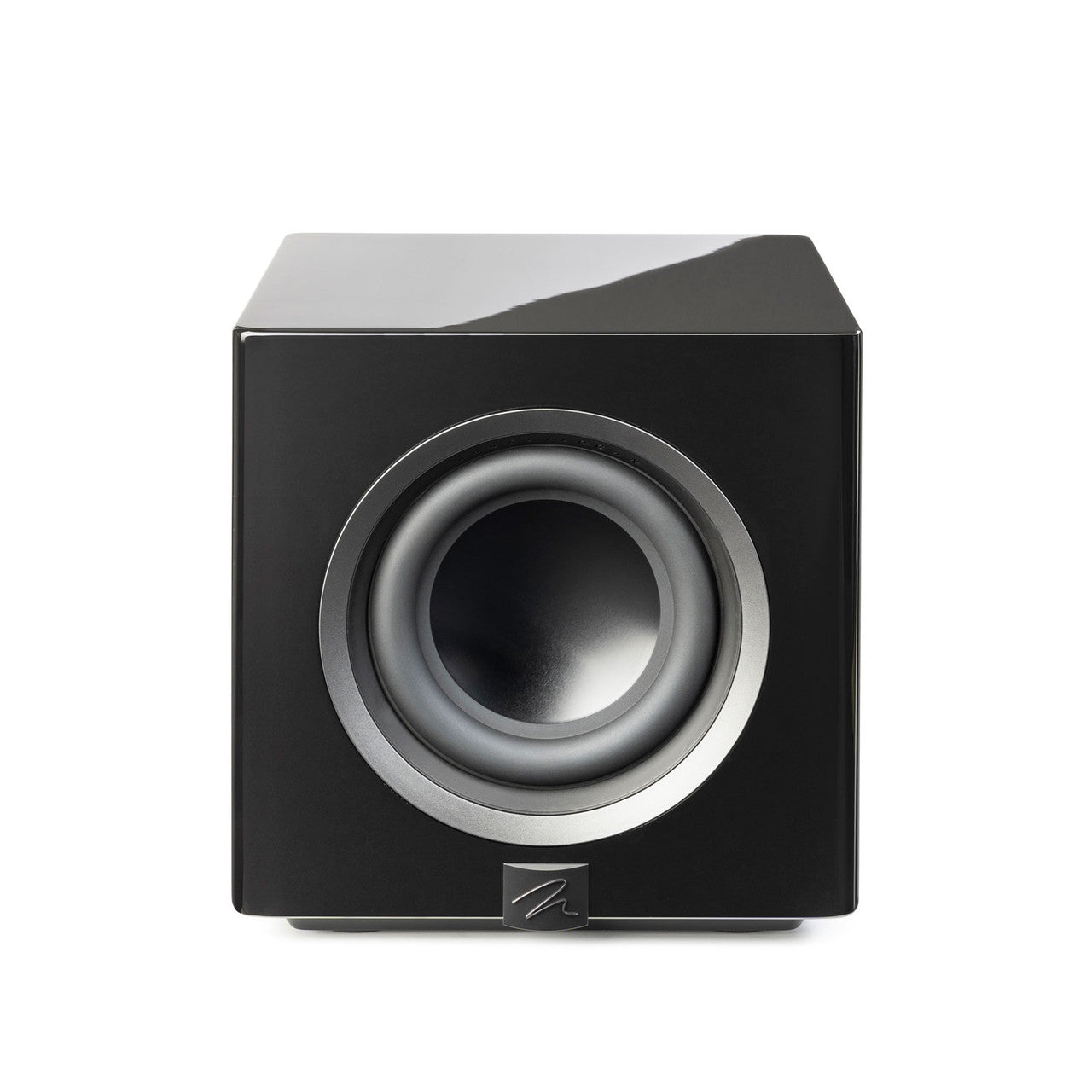

MartinLogan Abyss 8 Powered Subwoofer - Black

Overview

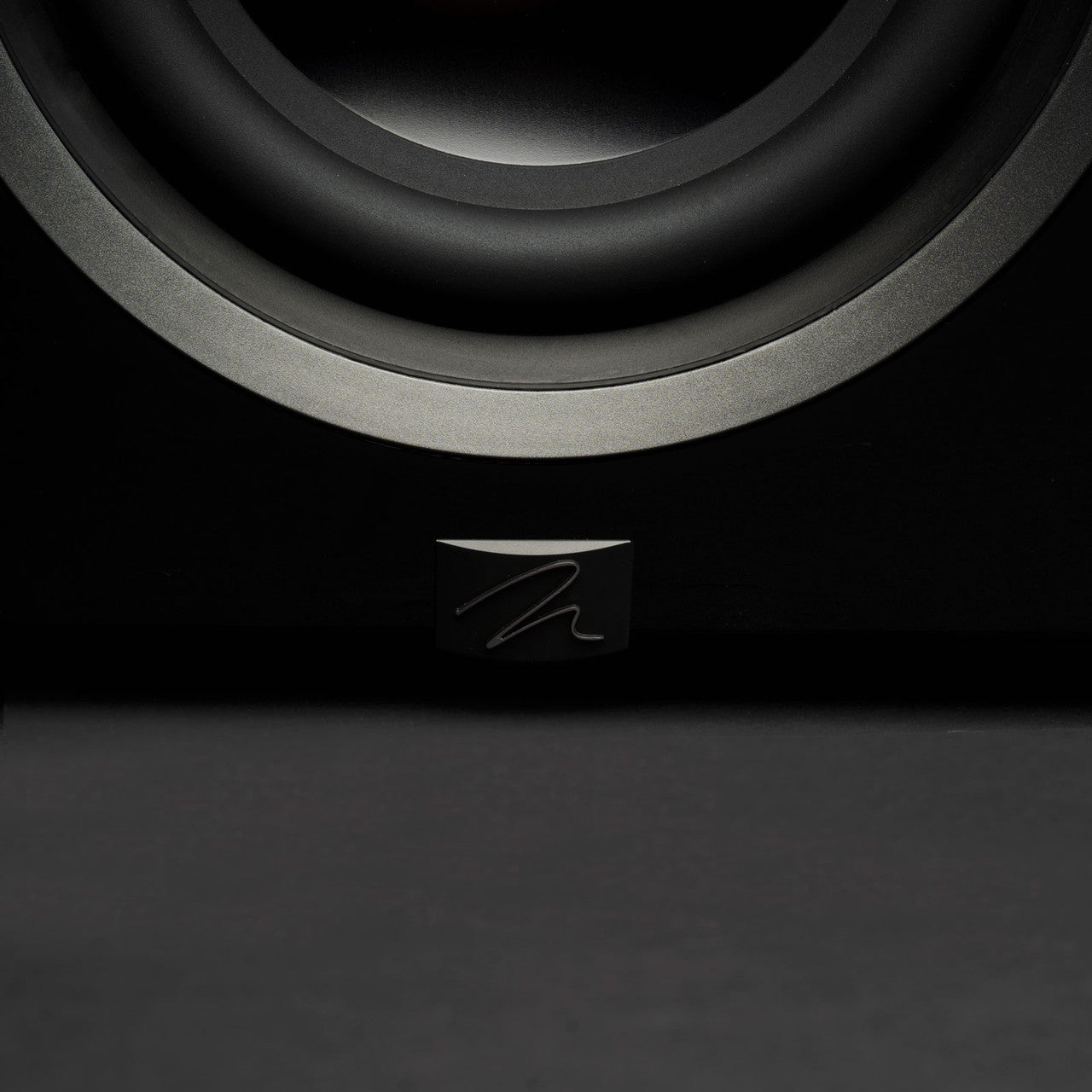

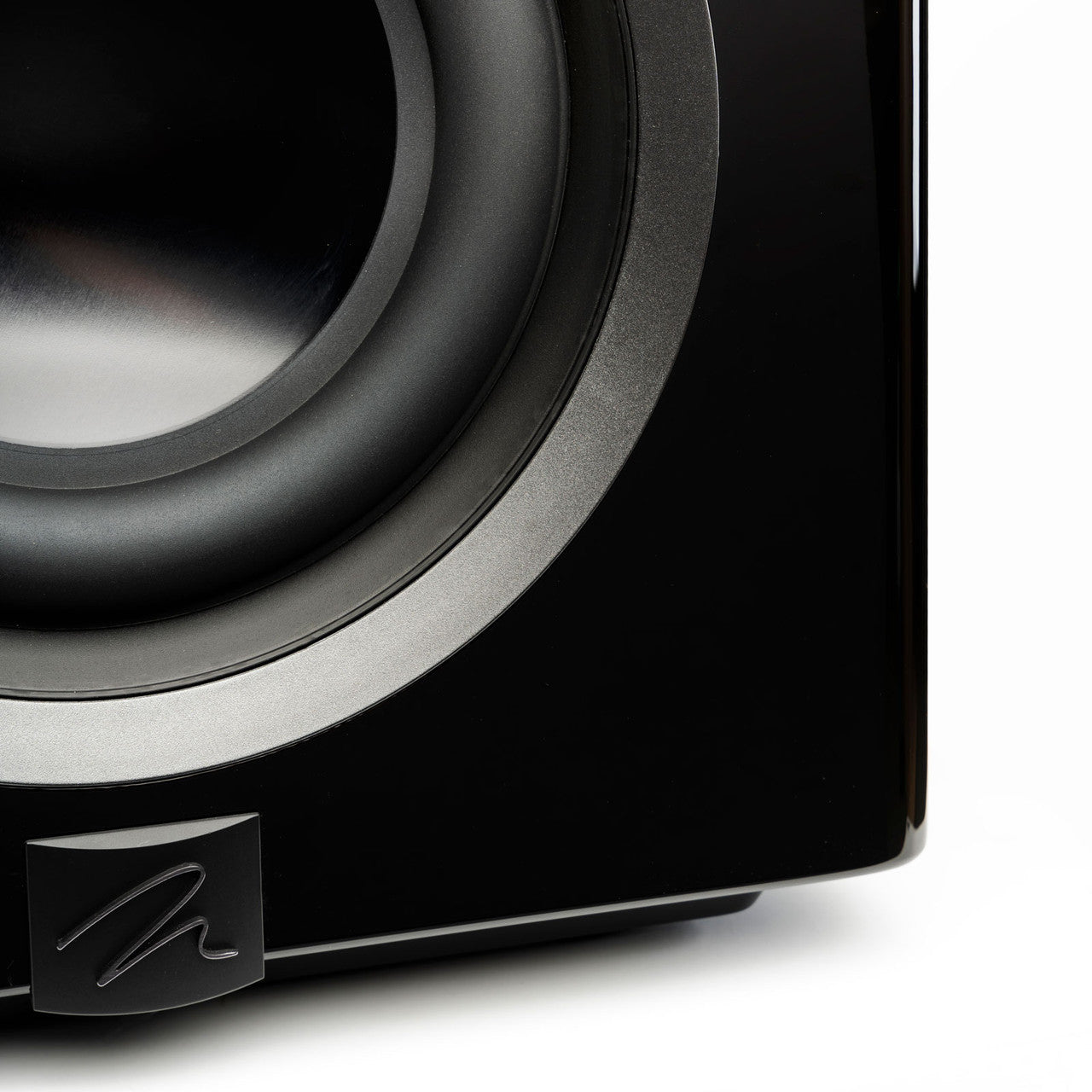

• Low Frequency Transducer: Triple 8” (20.3cm) Hybrid Woofer System consisting of a single high-excursion, anodized-aluminum cone in a stamped steel basket with dual anodized-aluminum cone passive radiators
• Amplifier: MartinLogan Magnitude MT-1kW Amplifier: 1,000W peak (500W continuous)
• DSP: Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
• Cabinet: Sealed 1” thick MDF cabinet with reinforced MDF woofer baffle

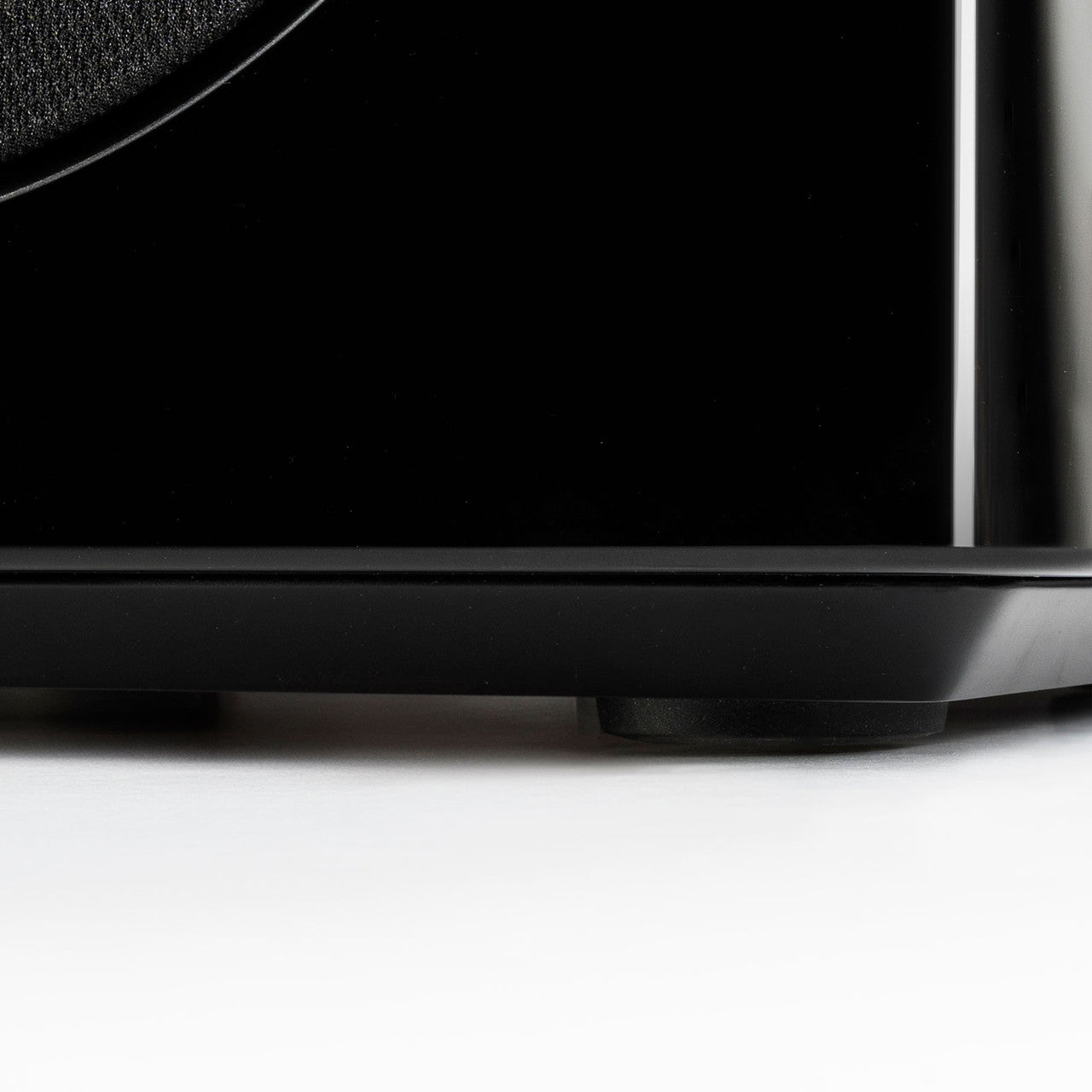

• Feet: Integrated Anti-Vibration Feet (carpet spikes included)
• Finish: Gloss Black or Satin White

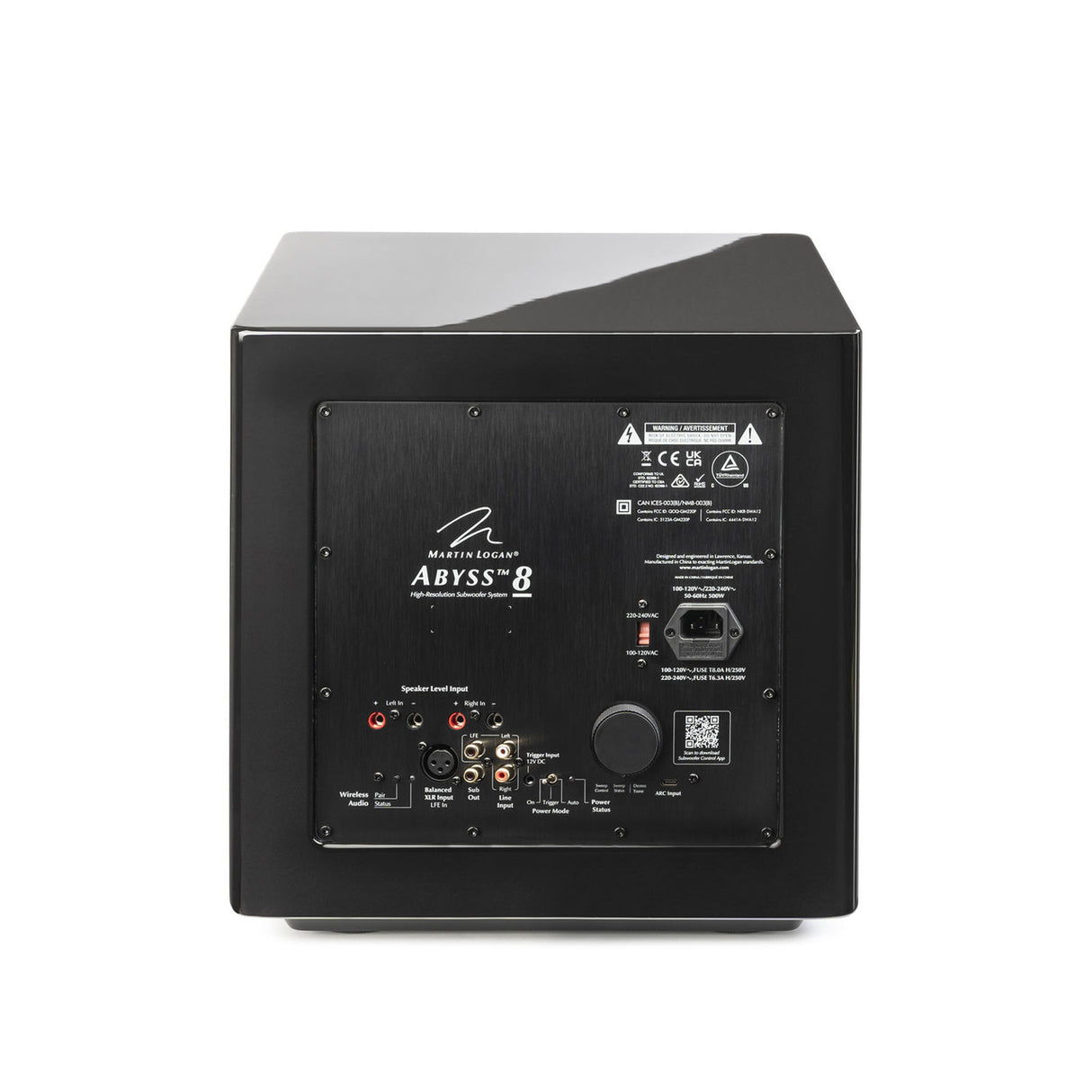

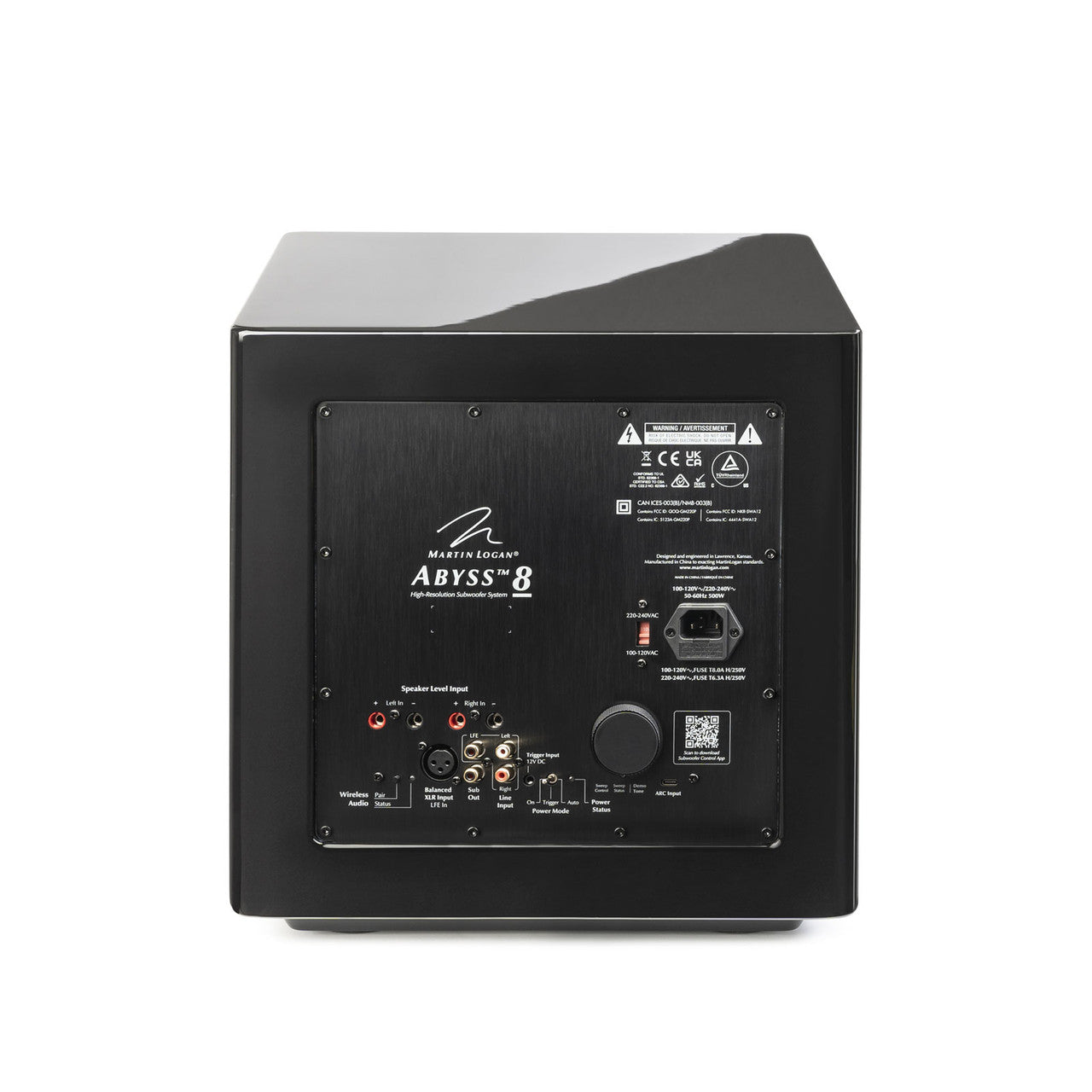

Rear Panel Controls

• Level: Interactive LED Backlit Knob, Min–Max
• Tone Sweep: Sweep Start and Pause (with status light)
• Power Mode: On, 12v Trigger, Auto
• Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)

Controls (via Bluetooth using MartinLogan control app)

• Level: -40 to 12dB (Min-Max)
• Low-Pass Filter (Frequency): 35–120Hz (1° Increments)
• Low-Pass Filter (Order): Bypass, Third, Fourth
• Phase: 0–180° (1° Increments)
• Phase (Polarity): Normal, Inverted Preset Listening Modes: Movie, Music, Night
• 20–30Hz Level: ±10dB
• Anthem Room Correction (ARC Genesis): On, Off
• Tone Sweep (120-20Hz): On, Off, Pause (Frequency)

Inputs

• Line Level: Left, Right, and LFE
• XLR: LFE
• Speaker Level: Left and Right (requires banana plugs)

Wireless Input

• Integrated Wireless Receiver
• Wireless Transmitter Included

Outputs

• RCA Sub Out (combines and repeats all incoming signals to an additional subwoofer)

• Frequency Response: 23–200 Hz ±3 dB (Anechoic via LFE input)
• Power Draw: Max: 500W
• Power Draw: Standby (Wireless Enabled): < 2W (Transmitter and Subwoofer combined)
• Power Draw: Standby (Wireless Disabled): 0.5W
• Dimensions: (H x W x D): 13.5"" x 13.2"" x 13.2""
• Weight: 46.7 lb.
