MartinLogan Discrete Cinema LCR7 - 7 Driver Low Profile LCR Speaker

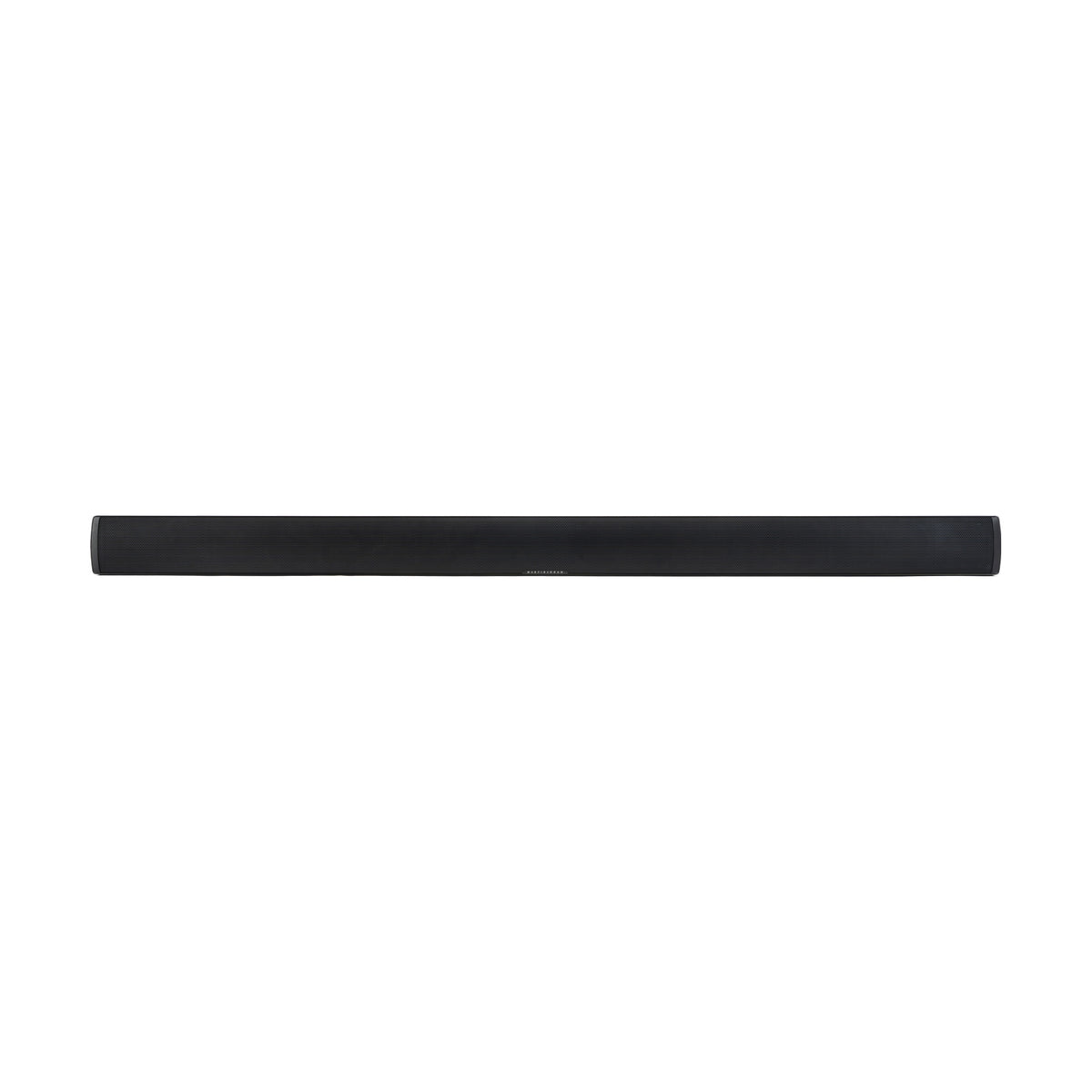

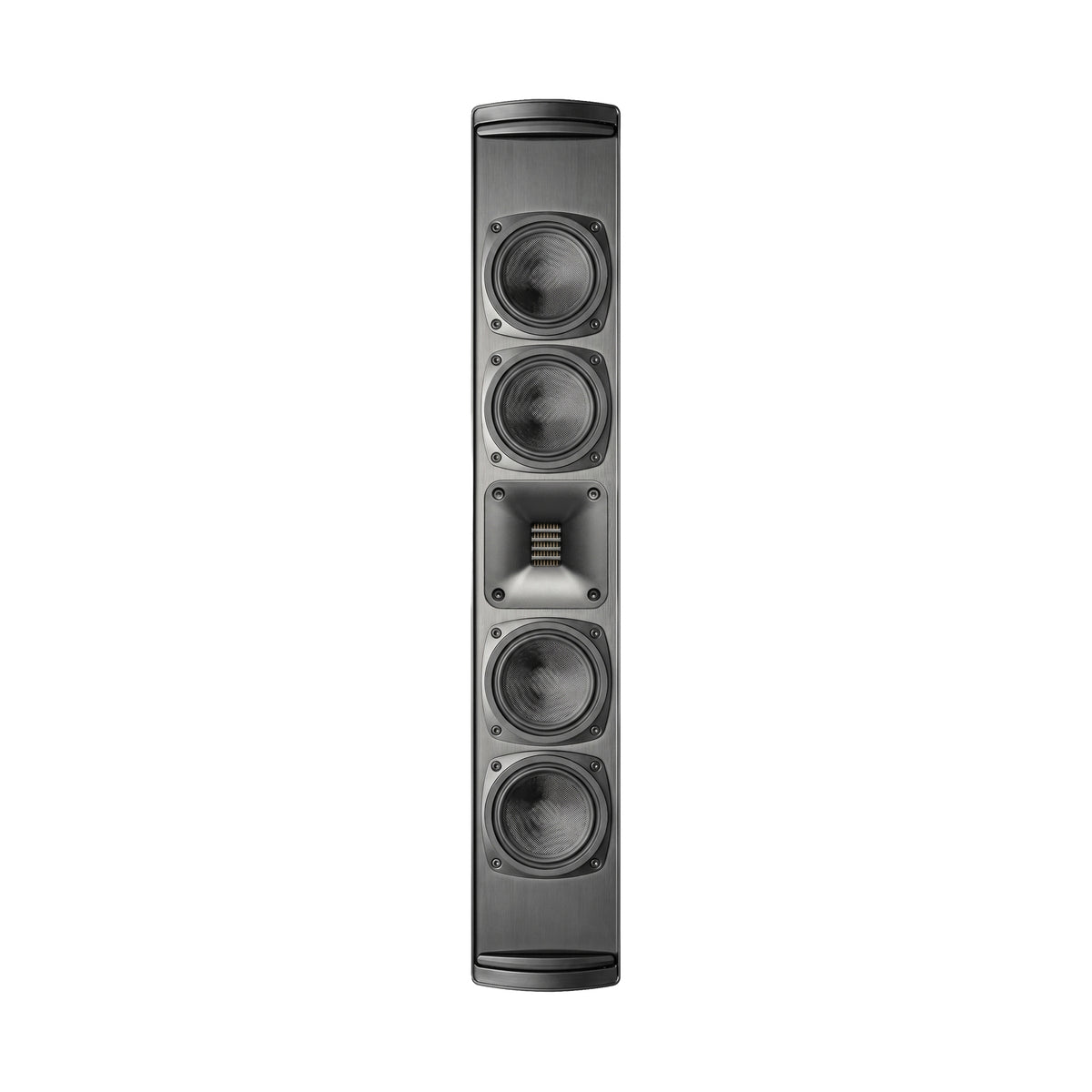

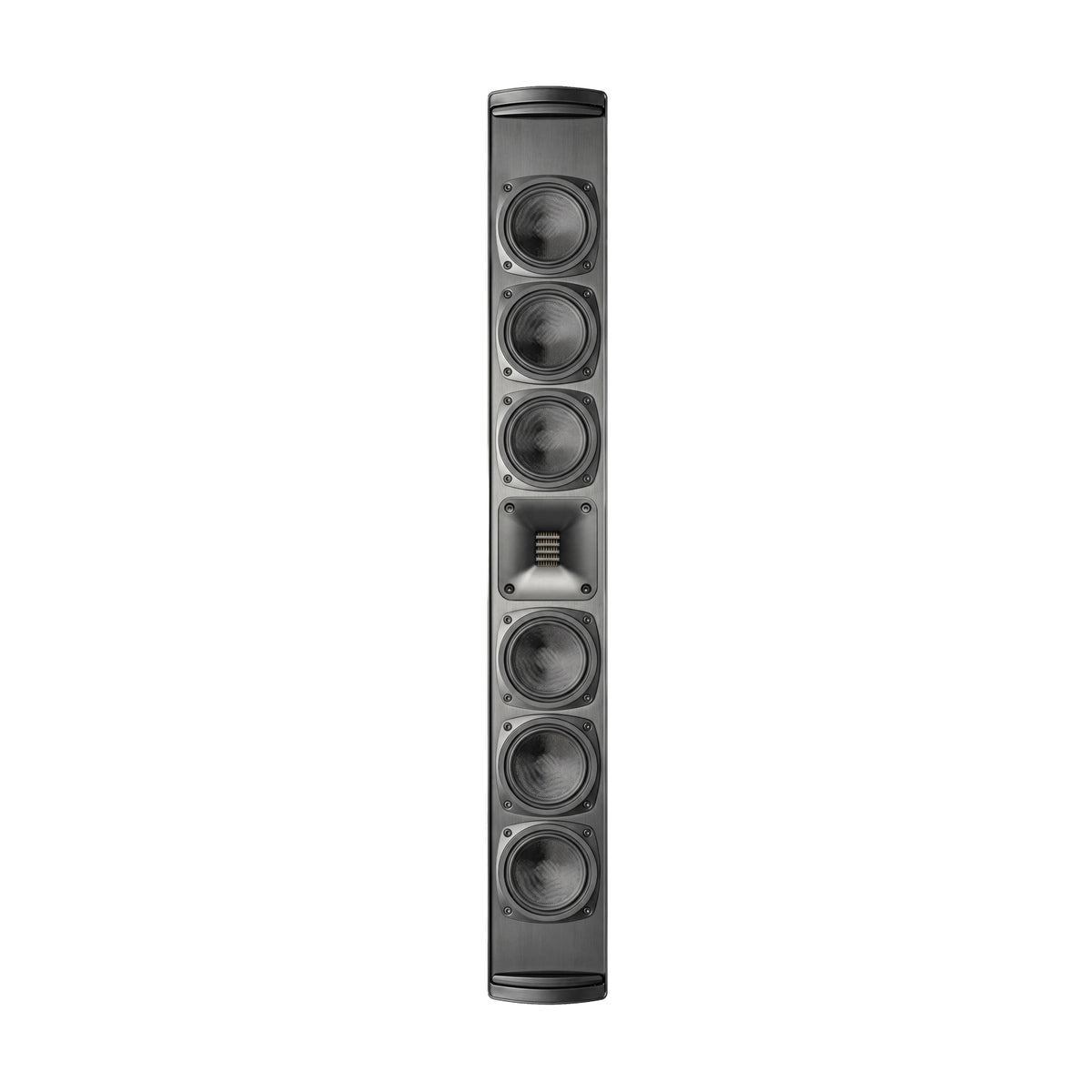

The MartinLogan Discrete Cinema LCR7 is a low-profile, high-performance on-wall speaker designed to deliver a full-scale home theater soundstage without the visual bulk of a traditional cabinet speaker. Proportioned to complement 75-inch class displays, the LCR7 combines a Gen2 Folded Motion Tweeter with three active 4-inch woven fiberglass drivers and three matching passive radiators in a rigid sealed aluminum enclosure. Mount it vertically for left or right channel use, horizontally as a center channel, or use it as a discreet surround speaker.

✔ 60-Day Money-Back Guarantee — Try it risk-free for 60 days
✔ Free Shipping on orders over $49
✔ Financing Available — Pay over time | Learn more
✔ Price Guarantee — We match authorized dealer pricing | Details
✔ Expert Help — Call us at 800-942-0220 weekdays 9am–6pm EST

$1,499.99

Condition

New

Finish

Black

Pair or single

Each

On Backorder. Available in 21 days or less

Delivery and Shipping

Audio Advisor will ship products anywhere in the United States, including Alaska, Hawaii, and U.S. Territories.
For more information, visit our Delivery & Shipping Policies.

Features

7-driver low-profile LCR speaker for premium home theater systems
Designed to visually complement 75-inch class flat-panel displays
Can be used as a left, center, right, or surround channel
Mounts horizontally or vertically for flexible system layouts
1-inch x 1.4-inch Gen2 Folded Motion Tweeter
Folded Motion Waveguide provides controlled 90° x 90° dispersion
Three active 4-inch woven fiberglass Unibody cone drivers
Three passive 4-inch woven fiberglass radiators extend bass performance from the shallow enclosure
1.5-inch high-temperature voice coils on the active midrange/bass drivers
2.5-way crossover design
Rigid extruded aluminum cabinet minimizes enclosure flex
Sealed cabinet design supports close-to-wall placement
Low-profile depth of only 2.37 inches
Included low-profile wall bracket provides a clean, flush-mounted appearance
Mounting system allows fine positioning adjustments for precise alignment
Removable tool-free speaker connector simplifies wiring before the speaker is mounted
Compatible with 4-, 6-, and 8-ohm-rated amplifiers
Designed to integrate with MartinLogan subwoofers for full-range home theater playback

Specifications

Product Type: Low-Profile LCR / Surround Loudspeaker
Design: 7-driver sealed aluminum cabinet
Crossover: 2.5-way
High-Frequency Driver: 1 x 1 in. x 1.4 in. Gen2 Folded Motion Tweeter
Tweeter Diaphragm: 5.25 in. x 1.75 in.
Waveguide: Folded Motion Waveguide
Tweeter Dispersion: 90° x 90° horizontal x vertical
Active Midrange/Bass Drivers: 3 x 4 in. Woven Fiberglass Unibody cones
Passive Radiators: 3 x 4 in. Woven Fiberglass Unibody cones
Voice Coils: 1.5 in. high-temperature
Frequency Response: 70Hz–25kHz, ±3dB
Sensitivity: 93dB / 2.83V / meter
Nominal Impedance: 4 ohms
Amplifier Compatibility: Compatible with amplifiers rated for 4, 6, or 8 ohms
Recommended Amplifier Power: 20–210 watts
Application: Single-channel left, center, right, or surround speaker
Vertical Dimensions: 36.96 in. H x 4.76 in. W x 2.37 in. D
Horizontal Dimensions: 4.76 in. H x 36.96 in. W x 2.37 in. D
Metric Dimensions: 93.9 x 12.1 x 6 cm
Weight: 8 lbs. / 3.6 kg
Cabinet: Sealed extruded aluminum
Wall Mount: Low-profile mounting bracket included
