MartinLogan Motion Foundation F1 Floorstanding Speaker

What You Need to Know

Floorstanding Performance, Compact Footprint

The Foundation F1 delivers the scale and authority of a true tower in a slim cabinet just over 8 inches wide—ideal for modestly sized rooms where the larger Foundation F2 won't fit. Four custom 5.5-inch aluminum drivers handle the low end: three dedicated bass drivers plus a midrange in its own sealed chamber, arranged with Floor Bounce Compensation for natural, full-bodied sound down to 41Hz.

MartinLogan's Signature Thin-Film Sound

The star of the show is the Gen2 Obsidian Folded Motion Tweeter S, trickle-down technology from MartinLogan's famous electrostatic designs. Its pleated thin-film diaphragm packs 3.5 square inches of surface area into a tiny space—fast, light, and low-excursion for stunning detail with virtually zero distortion. The Folded Motion Waveguide controls dispersion in a 90° x 90° pattern, minimizing room reflections while keeping the sound consistent in every seat. A hand-tuned McCracken-Vojtko crossover ties the 3-way design together.

A Finish for Every Room, Sold by Each

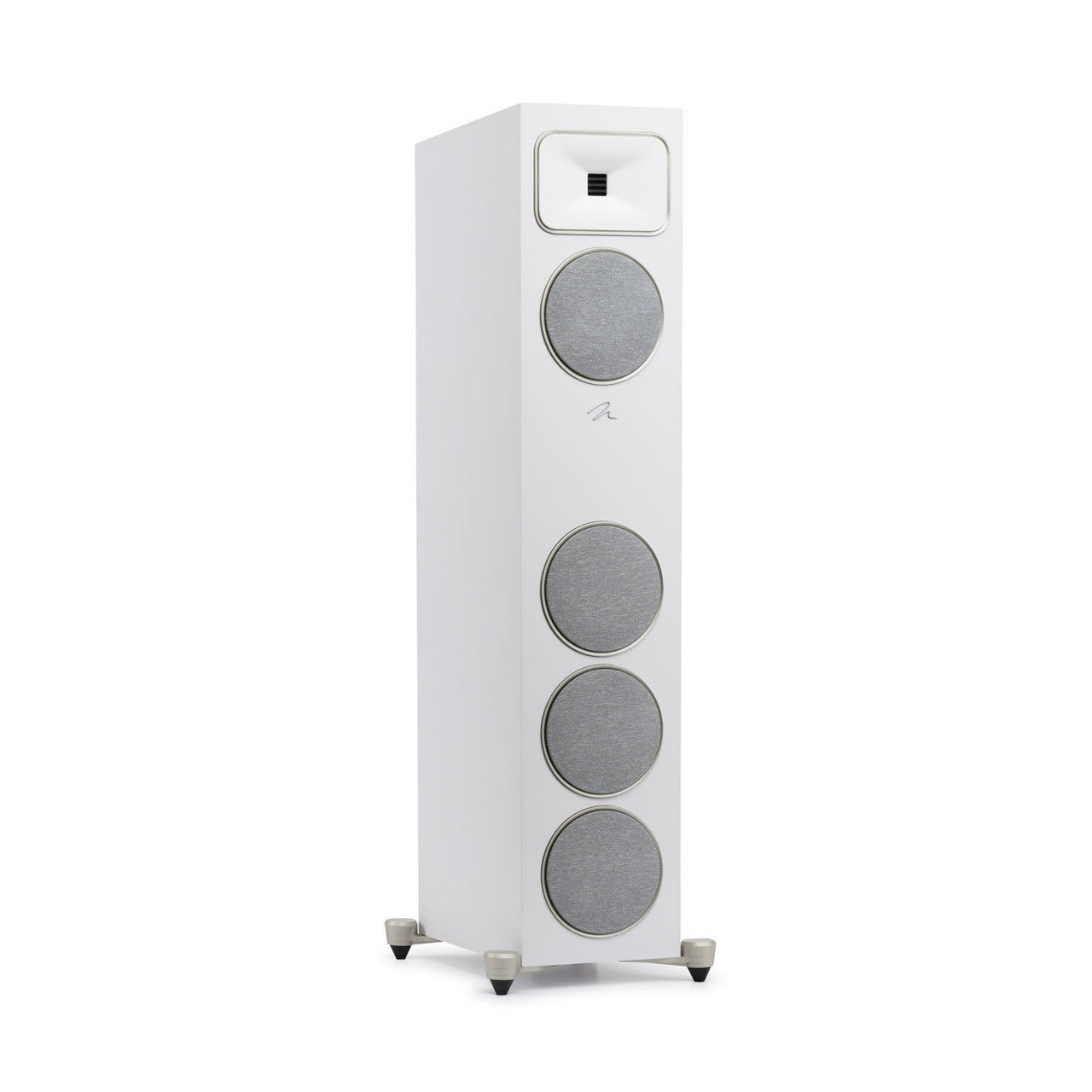

Choose Walnut with bronze trim, Gloss Black with gunmetal trim, or Satin White with silver trim—all with Secure-Lock grilles you can leave on, off, or rotate. The F1 is sold individually: buy two for stereo, or build a full Motion Foundation surround system one channel at a time.

Features & Specifications

Gen2 Obsidian Folded Motion Tweeter S

Thin-film speed and detail derived from MartinLogan electrostatic technology.

Folded Motion Waveguide

Controlled 90° x 90° dispersion for precise imaging across a wide seating area.

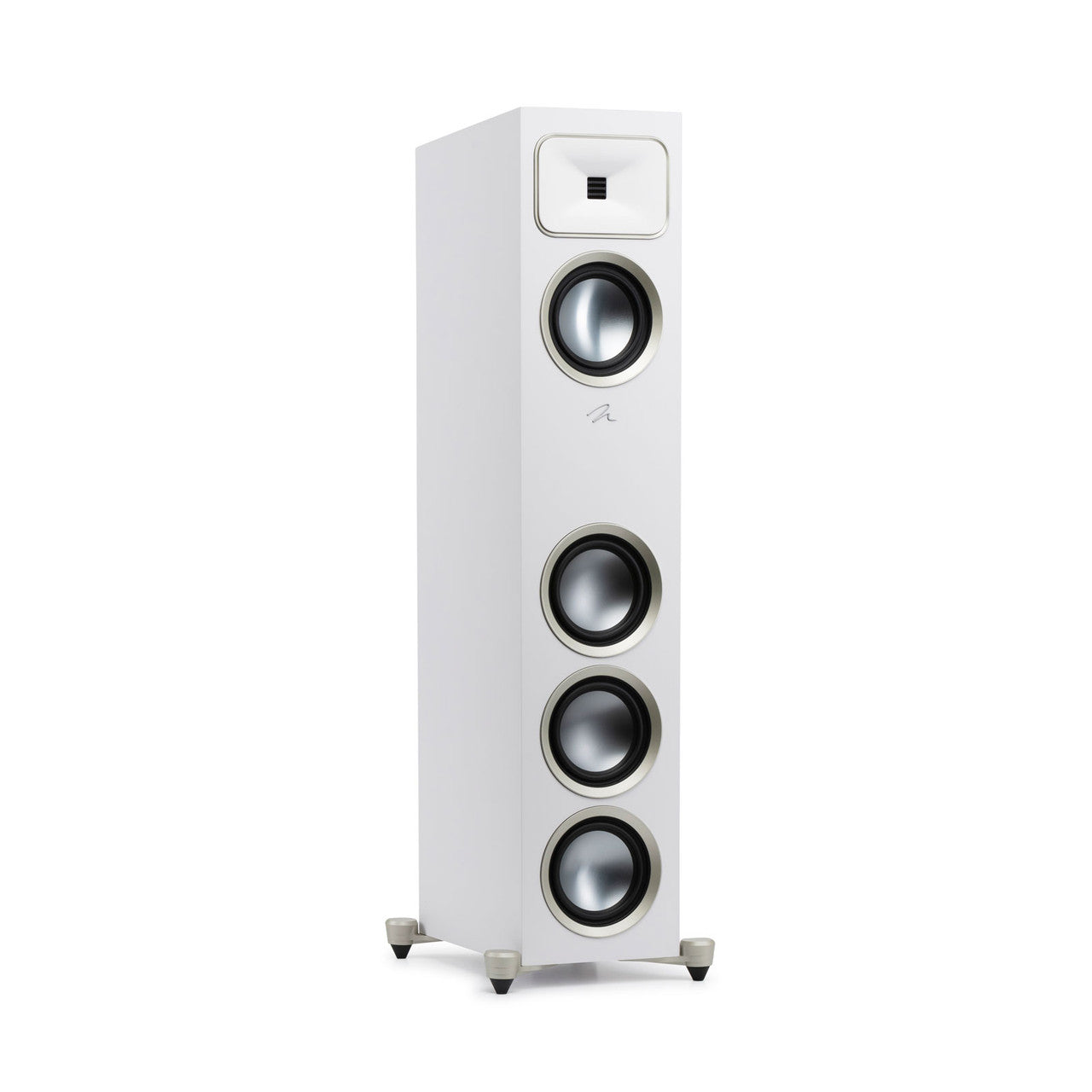

Quad 5.5" Aluminum Drivers

Three bass drivers plus a sealed-chamber midrange; bass to 41Hz.

McCracken-Vojtko Crossover

3-way, low-distortion design fine-tuned with MartinLogan's blind listening tests.

Easy to Drive

92dB sensitivity—sings with amplifiers from 15 to 200 watts.

Specifications

•       Type: 3-Way Rear-Ported Floorstanding Speaker

•       Frequency Response: 41Hz - 23kHz ± 3dB

•       Sensitivity: 92dB

•       Impedance: 4 Ohms (compatible with 4, 6, or 8 Ohm rated amplifiers)

•       Recommended Amplifier Power: 15 - 200 Watts

•       Crossover Frequencies: 240Hz, 2,700Hz

•       Tweeter: 0.94" x 1" Gen2 Folded Motion Tweeter S (3.5 sq. in. diaphragm)

•       Midrange Driver: 5.5" Aluminum Cone, Sealed Chamber

•       Bass Drivers: 3 x 5.5" Aluminum Cones

•       Tweeter Dispersion: 90° x 90°

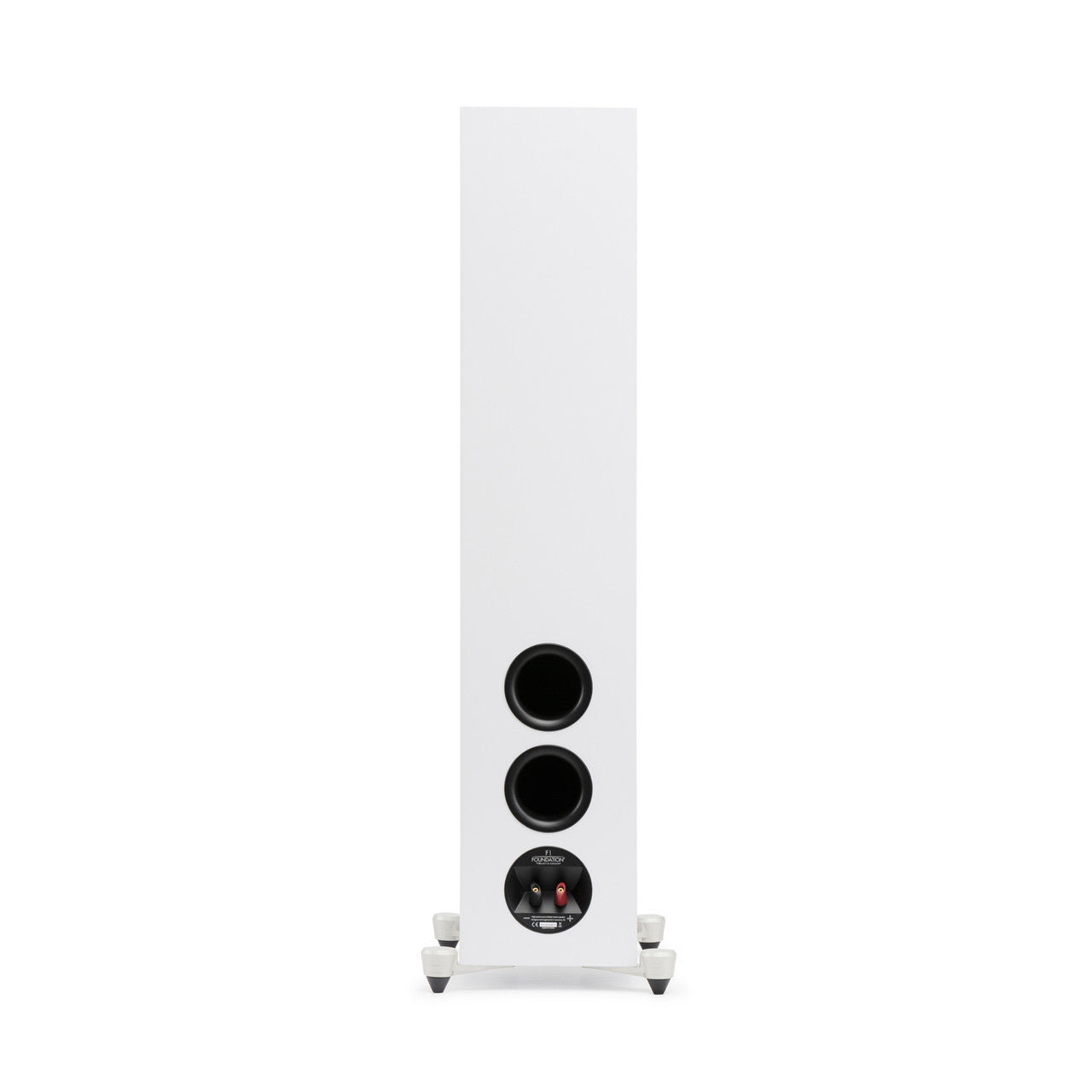

•       Inputs: 5-Way Binding Posts (Non Bi-Wire)

•       Dimensions (with feet): 41-7/16"H x 8-3/8"W x 14-7/16"D

•       Weight: 46.5 lbs

•       Finish: Walnut, Gloss Black, or Satin White

•       Sold By: Each

Frequently Asked Questions

Is this the price for one speaker or a pair?

The Foundation F1 is sold by each. Order two for a stereo pair, or combine with Motion Foundation bookshelf and center channel models for a matched home theater system.

What amplifier do I need?

With 92dB sensitivity and a recommended range of 15 to 200 watts, the F1 is remarkably easy to drive—most receivers and integrated amps will do nicely. Its 4-ohm impedance is compatible with 4, 6, or 8-ohm rated amplifiers. Ask us if you're unsure about your electronics.

What makes the Folded Motion tweeter different?

Instead of pushing air with a dome, it squeezes air between the folds of a pleated thin-film diaphragm—like an accordion. The result is far more surface area, faster response, and the airy, detailed high end MartinLogan is famous for, at a fraction of electrostatic prices.
