MartinLogan Motion MP10 Multi-Purpose Speaker - Walnut - Each

The Motion Speaker Built for Walls and Shallow Shelves

The Motion MP10 is the multi-purpose model in MartinLogan's Motion range. It uses the same Gen2 Obsidian Folded Motion tweeter and 5.5-inch woven fiberglass woofer as the Motion B10, in a cabinet only 5 inches deep. It is sold by the each.

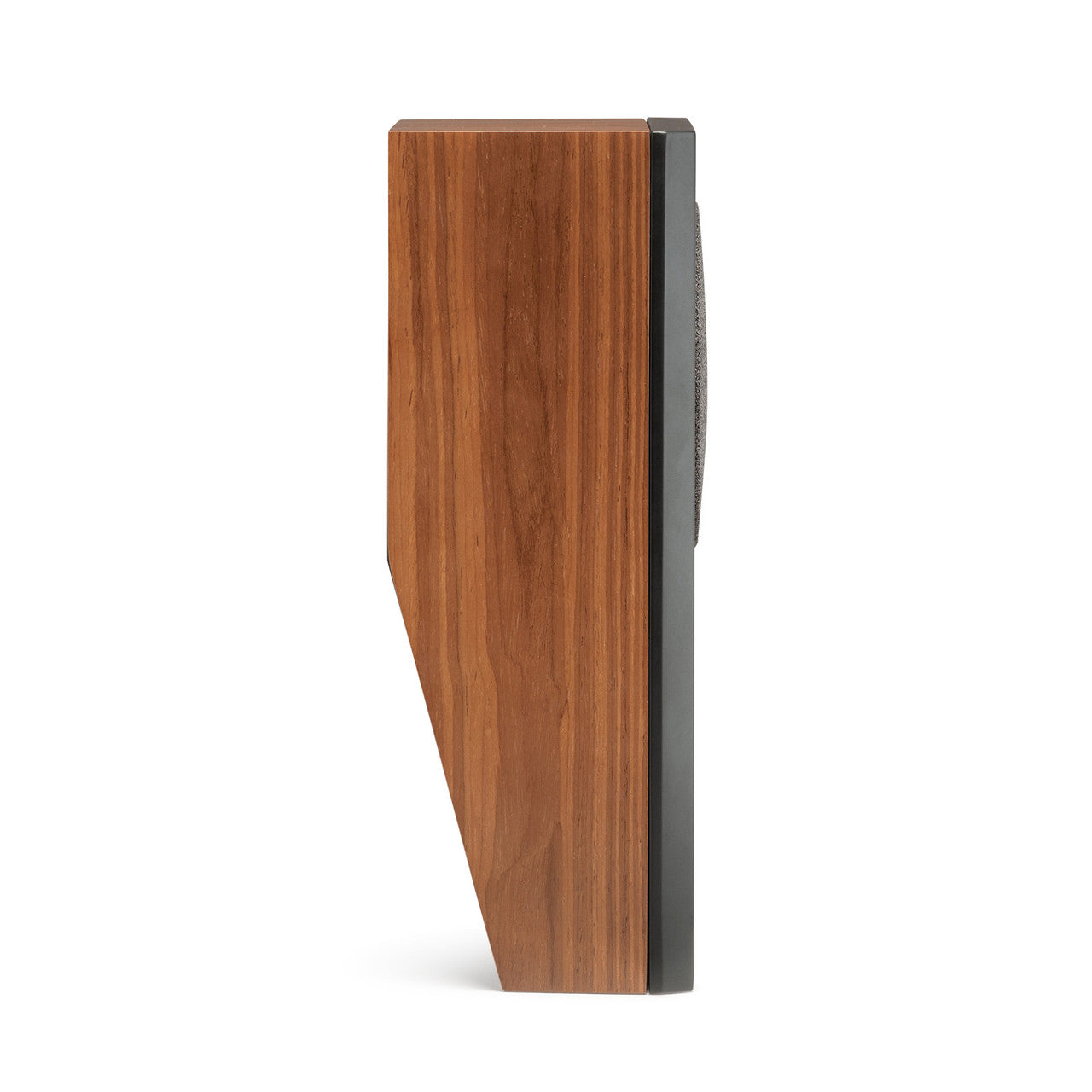

The shallow cabinet is the point. A Stealth Bass Port lets the MP10 reach bass output close to a normal bookshelf speaker at half the depth. A wall bracket is included, and the cabinet's angled shape lets it mount flat to the wall or flipped upside down.

Why the Folded Motion Tweeter Matters Here

A pleated film diaphragm squeezes air between its folds, so it barely has to move. It keeps treble clean and fast. Because the MP10 shares its tweeter with the B10, XT B100 and Motion towers, it blends with them as a surround, height or rear channel.

The Numbers, and What They Ask of You

MartinLogan quotes 81 Hz to 25 kHz within 3 dB and 92 dB sensitivity. Impedance is 5 ohms. Recommended power is 20 to 200 watts, and dispersion is 90 degrees both ways. The crossover sits at 2,100 Hz. The 81 Hz limit tells you this is a speaker for surround duty or a subwoofer partnership.

How Much Room It Takes

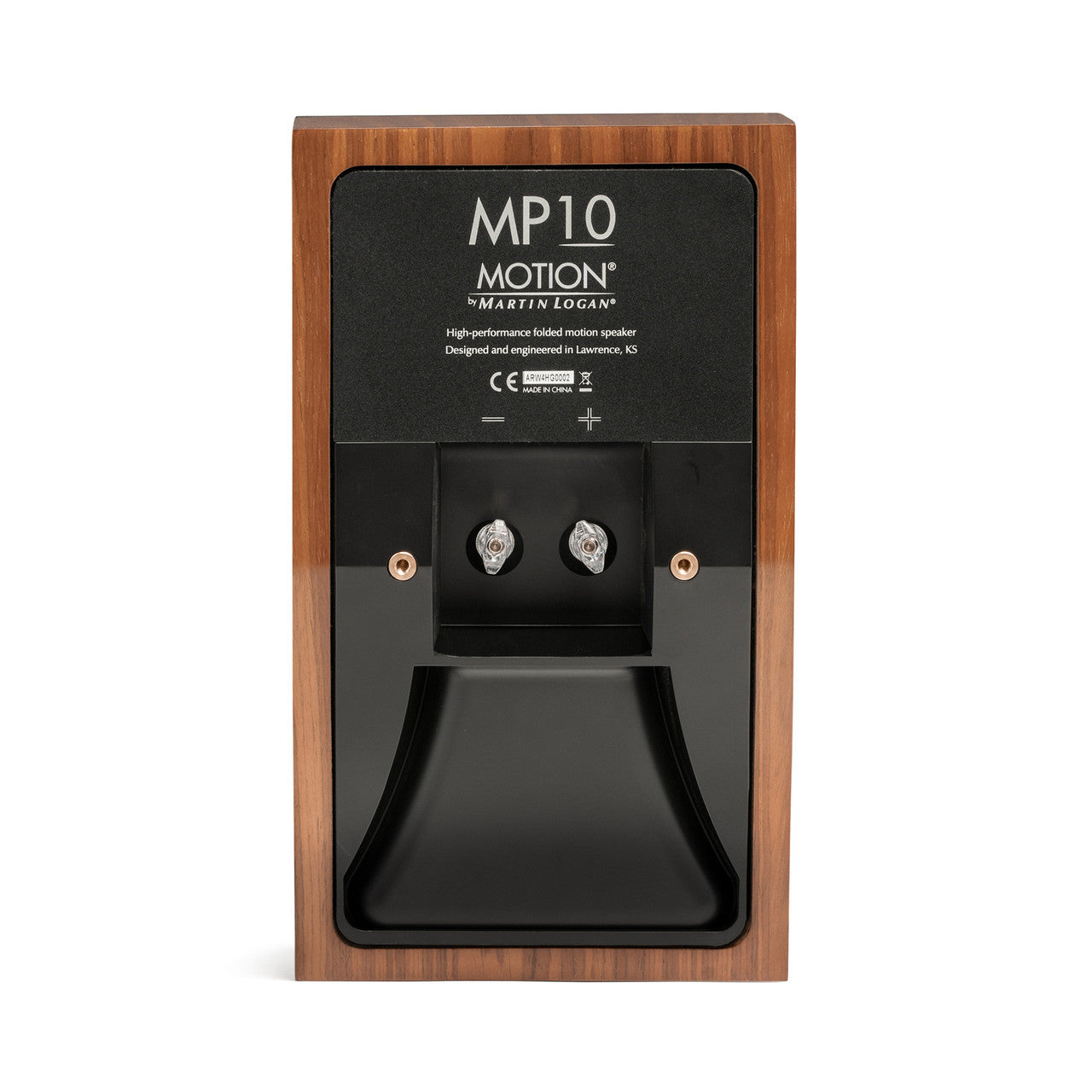

Each cabinet is 8 inches wide, 14 tall and 5 deep with feet, and weighs 9.7 pounds. Finishes are gloss black, walnut and satin white. A single pair of 5-way binding posts sits on the back. The mounting bracket is in the box.

What Reviewers Are Saying

We have not found a published written review of the MP10 on its own. Reviewers who use it treat it as the surround and height speaker of the Motion system. Shane Lee's video review below shows it in that role.

Who Is This Speaker Best For?

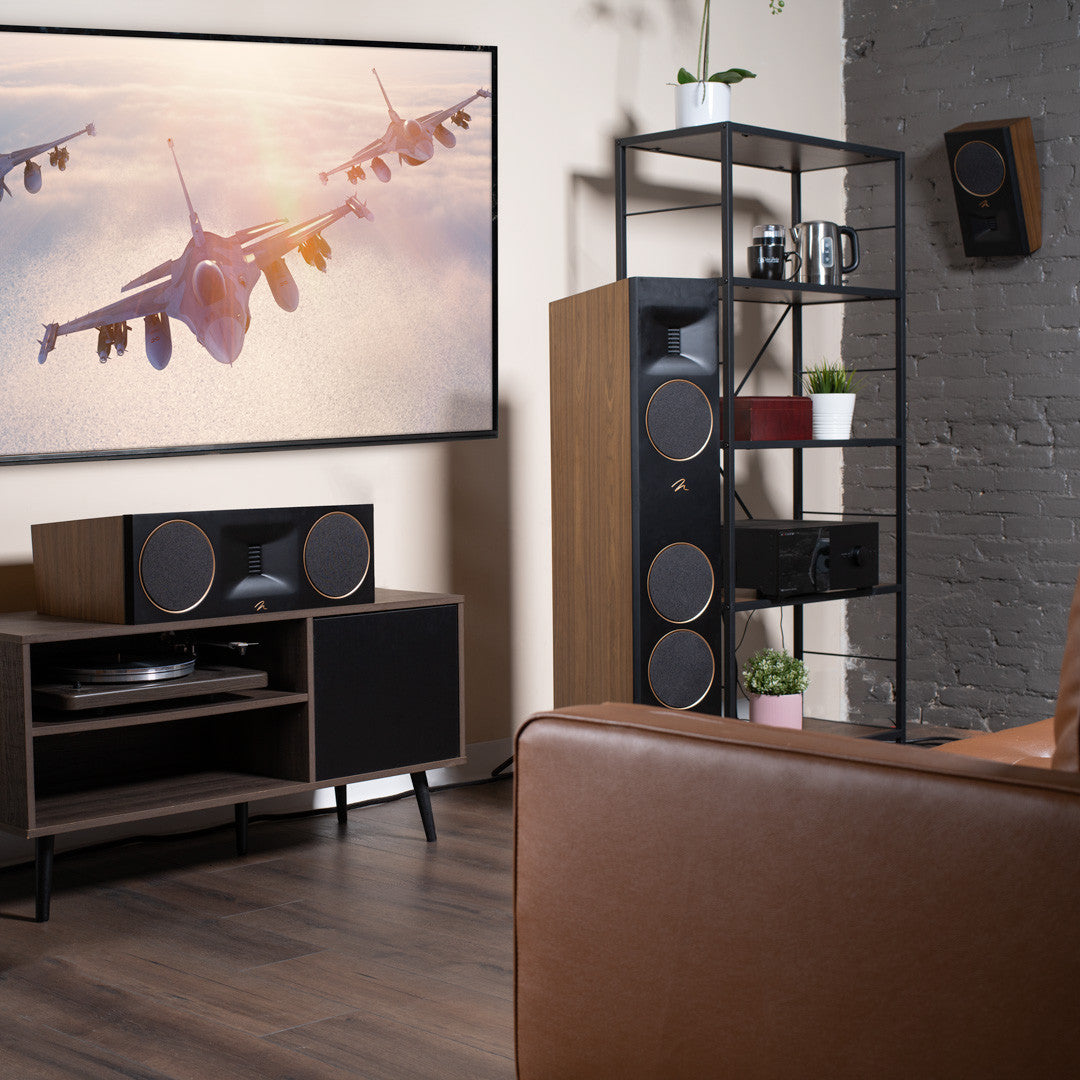

• You are building a Motion home theater — the MP10 is the surround and height speaker made for the Motion XT B100, Motion B10 and Motion towers, with the same tweeter
• You need speakers on the wall — 5 inches deep with a bracket in the box, mountable flat or flipped for high placement
• You have a shallow shelf — the Stealth port keeps bass output up where a normal rear port would need room behind
• You run a receiver — 92 dB sensitivity and a 5 ohm load suit any AV receiver channel
• You want it as your main stereo pair — it can do that in a small room, but the 81 Hz limit means you will want a subwoofer; for main duty without one, choose the Motion B10

How Do They Connect to Your System?

Speaker cable runs from your amplifier or receiver to the binding posts, red to red and black to black. These are passive speakers, so there is nothing else to power. For surround use, set your receiver's crossover for these channels at 80 Hz or higher.

On a wall, use the included bracket and choose the angle that points the tweeter toward the seats. Flipped mounting suits high side walls. On a shelf, the shallow cabinet needs only a little clearance.

Pairs Well With

What finishes the setup. These are the categories most MP10 owners shop next.

• Motion XT C100 center channel — the matching center for a Motion XT front stage
• MartinLogan Dynamo 10 subwoofer — essential if the MP10 is a main channel, and welcome in any surround system
• AV receivers — a receiver with room correction sets the crossover and levels for you
• Speaker cables — in-wall rated cable for surround runs

Frequently Asked Questions

Is the price for one speaker or a pair?

One speaker. Order two for a stereo or surround pair, or four for surrounds and heights.

Is the wall bracket included?

Yes. The bracket is in the box and allows flat or flipped mounting.

Can I use the MP10 as a main speaker?

In a small room with a subwoofer, yes. Its 81 Hz low limit is higher than a normal bookshelf speaker, so plan on a subwoofer crossed over at 80 to 100 Hz.

How much amplifier does it need?

MartinLogan recommends 20 to 200 watts. At 92 dB sensitivity and 5 ohms, any receiver channel will do.

Does it match the Motion B10 and XT B100?

Yes. It shares the Gen2 Obsidian Folded Motion tweeter and the woven fiberglass woofer with the B10, so timbre matches across the system.

See It in Action

Shane Lee reviews a Motion system with the MP10 as surrounds:

HiFi Home Theater's performance review of the MP10:
