MartinLogan XTC8 In-Wall/In-Ceiling Speaker - White - Each

What You Need to Know

The MartinLogan Motion XTC8 puts the brand's signature thin-film sound in your ceiling. Its Folded Motion XT tweeter—a larger version of the famous FMT, with a 4.5" x 2.75" pleated diaphragm—delivers the clarity, output, and controlled 30° x 80° dispersion that separate MartinLogan from ordinary dome-tweeter in-ceilings. Below it, an 8-inch woven Kevlar woofer with a resonance-killing Nomex backing layer and cast-aluminum basket digs to 51Hz with genuine authority.

The crossover is no afterthought either: custom air-core inductors and polypropylene film capacitors, with thermal protection for the tweeter. A substantial chassis stiffens the whole assembly—the in-ceiling equivalent of a better cabinet—and the ultra-low-profile, paintable micro-perf grille has no visible bezel, projecting just a third of an inch. At 91dB sensitivity it plays effortlessly with amplifiers from 50 to 300 watts.

Features & Specifications

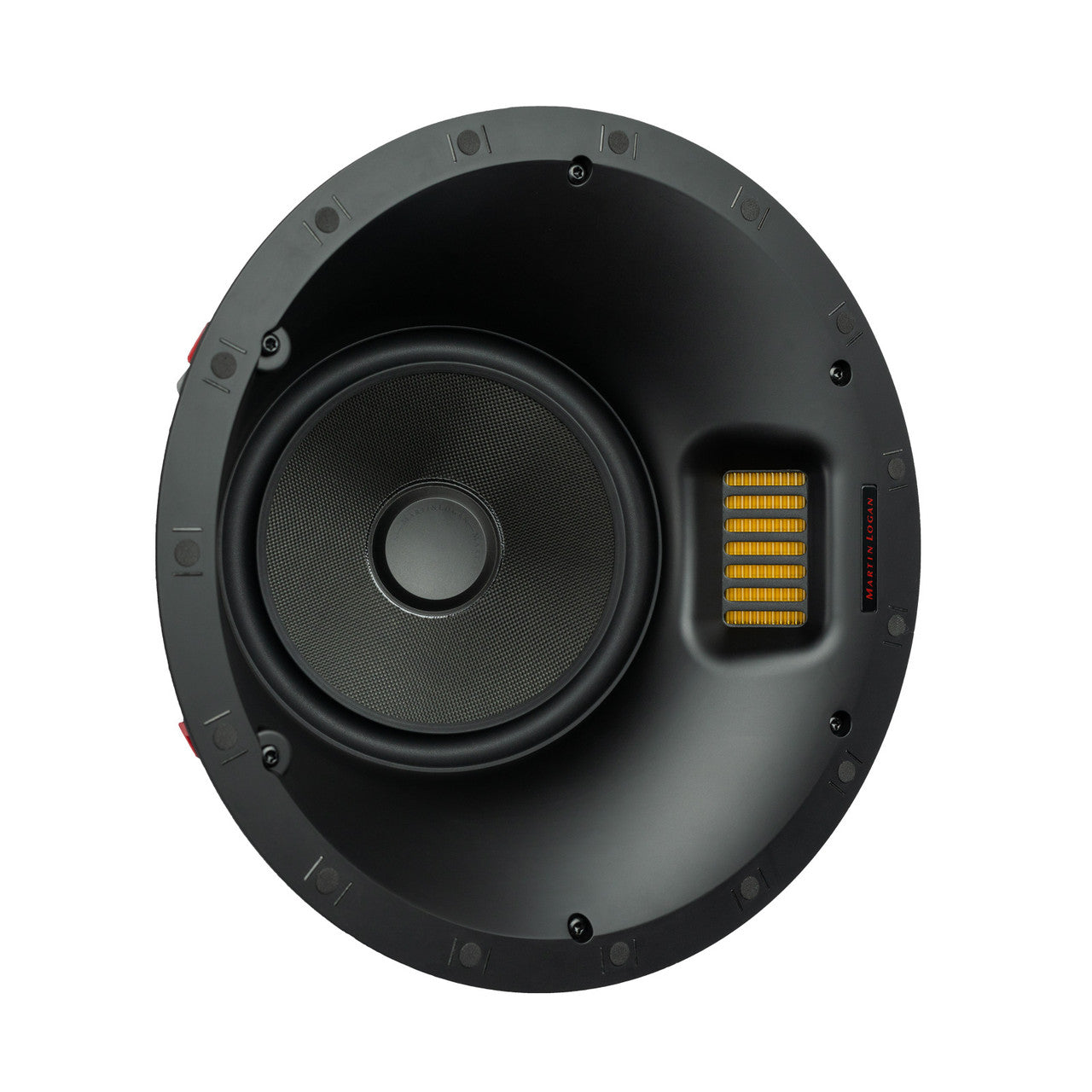

Folded Motion XT Tweeter — Oversized thin-film diaphragm with controlled 30° x 80° dispersion.

8" Kevlar/Nomex Woofer — Light, rigid cone with resonance-damping backer in a cast-aluminum basket.

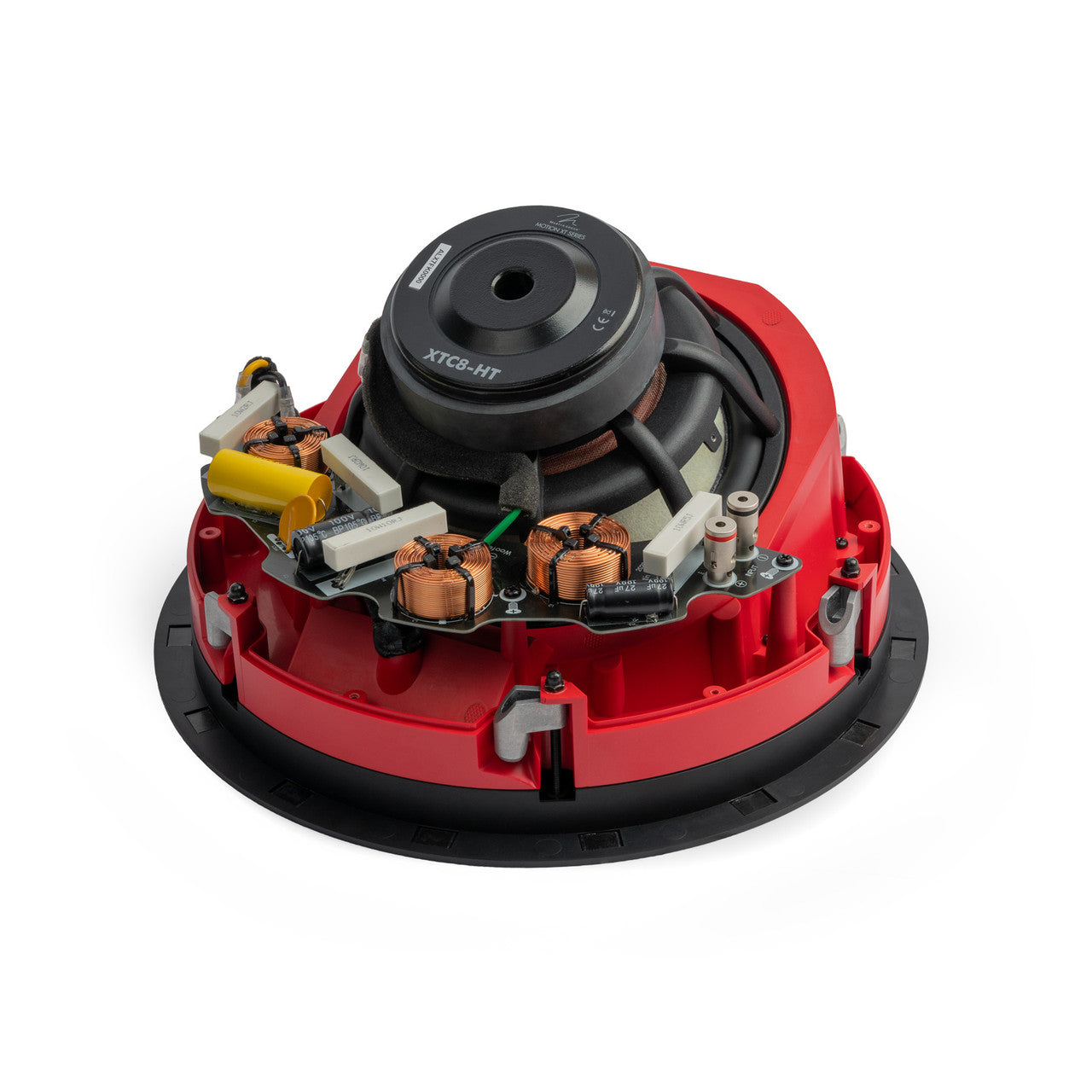

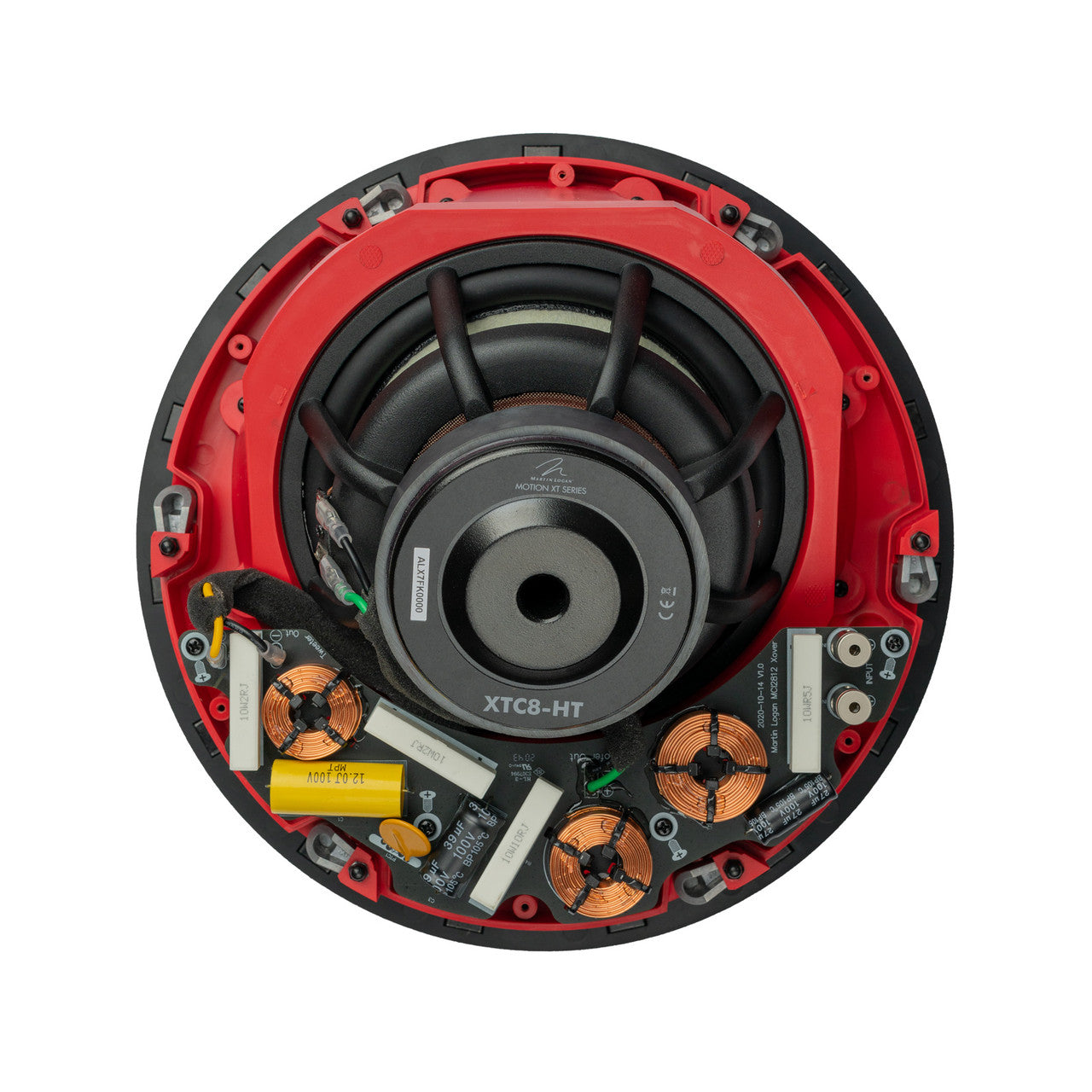

Audiophile Crossover — Air-core inductors and polypropylene film capacitors with tweeter protection.

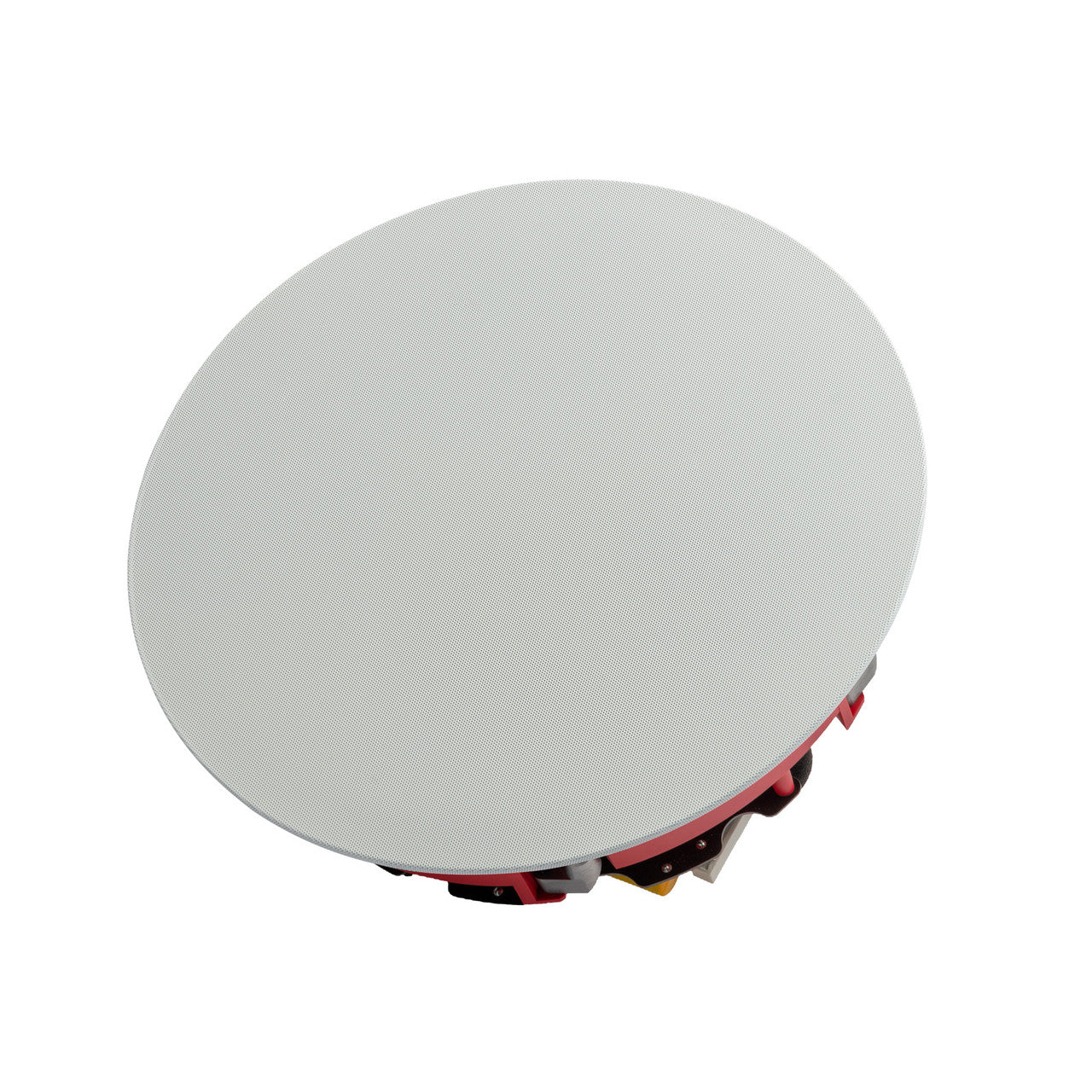

Bezel-Free Paintable Grille — Micro-perforated, just 0.33" projection for near-invisible installation.

High Output — 91dB sensitivity with 150W power handling; suggested amps 50-300W.

Specifications

• Type: 2-Way In-Ceiling Speaker (Motion XT CI Series)
• Tweeter: Folded Motion XT (1.27" x 2.4" transducer; 4.5" x 2.75" diaphragm)
• Woofer: 8" Black Kevlar Cone with Nomex Backer, Cast Aluminum Basket
• Frequency Response: 51Hz - 25kHz ± 3dB
• Tweeter Dispersion: 30° x 80° (Controlled)
• Sensitivity: 91dB @ 2.83V / 1m (anechoic)
• Impedance: 4 Ohms (compatible with 8-Ohm rated amplifiers)
• Crossover: 2,270Hz; Air-Core Inductors, Polypropylene Film Capacitors
• Suggested Amplifier Power: 50 - 300W; Maximum Handling: 150W
• Overall Size: 10.35" Diameter x 5.30" Depth
• Required Opening: 9.25" Diameter
• Depth Behind Surface: 5.50"; Projection: 0.33"
• Connectors: Push Style
• Grille: Paintable White Micro-Perf, Bezel-Free (black chassis)
• Sold By: Each
