Monitor Audio Radius On Wall 4G Speaker

Big-Screen Sound From a Three-Inch Cabinet

Most televisions still sound like televisions. The drivers fire down or backward, dialogue vanishes under the score, and the easy fix is a soundbar. The Monitor Audio Radius On Wall 4G is the other answer: a real two-way loudspeaker, just 78 mm deep, built to hang beside or below your screen and get out of the way.

Monitor Audio launched the Radius Series 4G in June 2026, and the On Wall is its home cinema specialist. Each cabinet carries two 4.5-inch C-CAM RST III bass-mid drivers flanking a 25 mm C-CAM Gold Dome tweeter. In-room response runs from 69 Hz to 35 kHz at −6 dB, installed sensitivity is 90 dB, and maximum peak SPL is 114 dB — the highest output figures in the range.

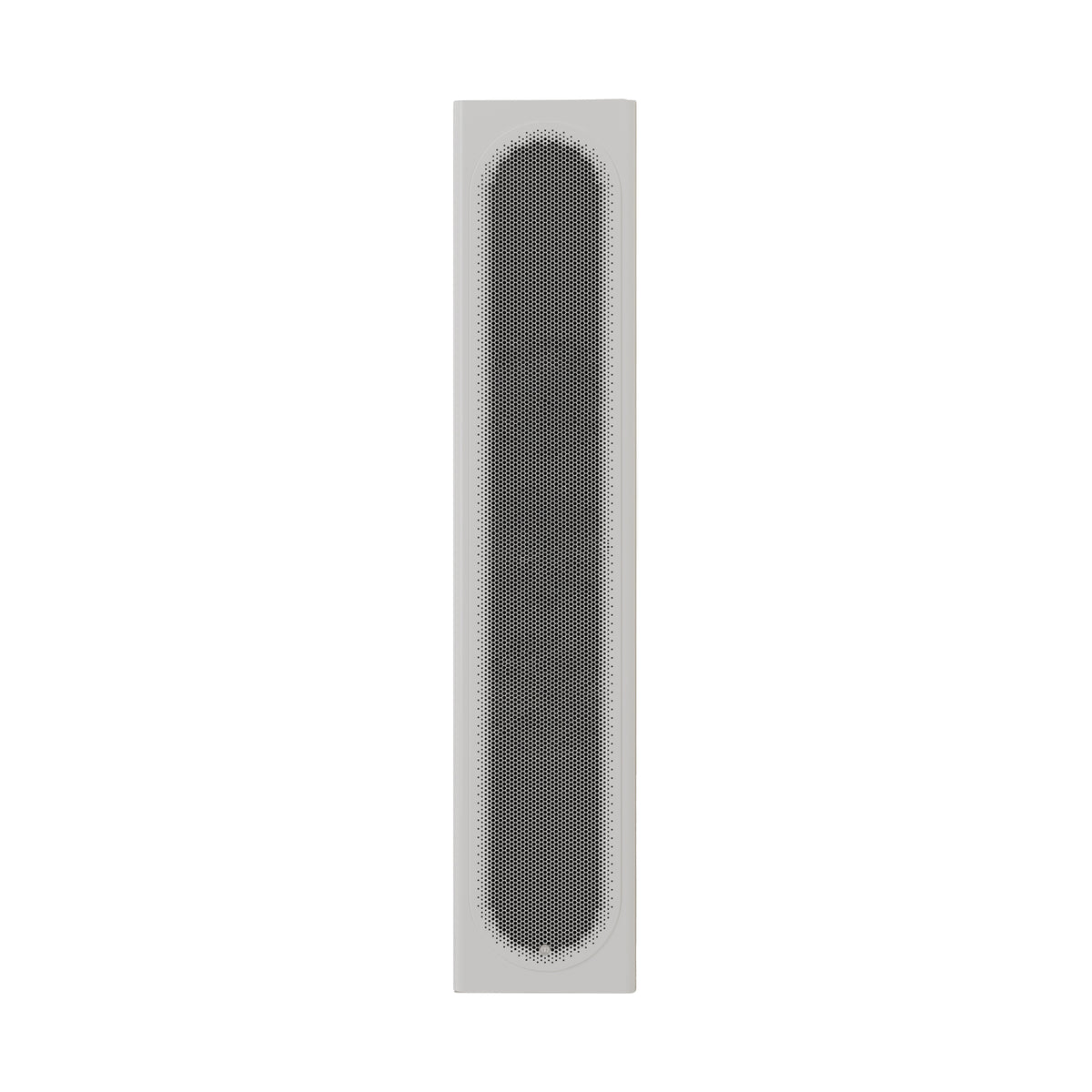

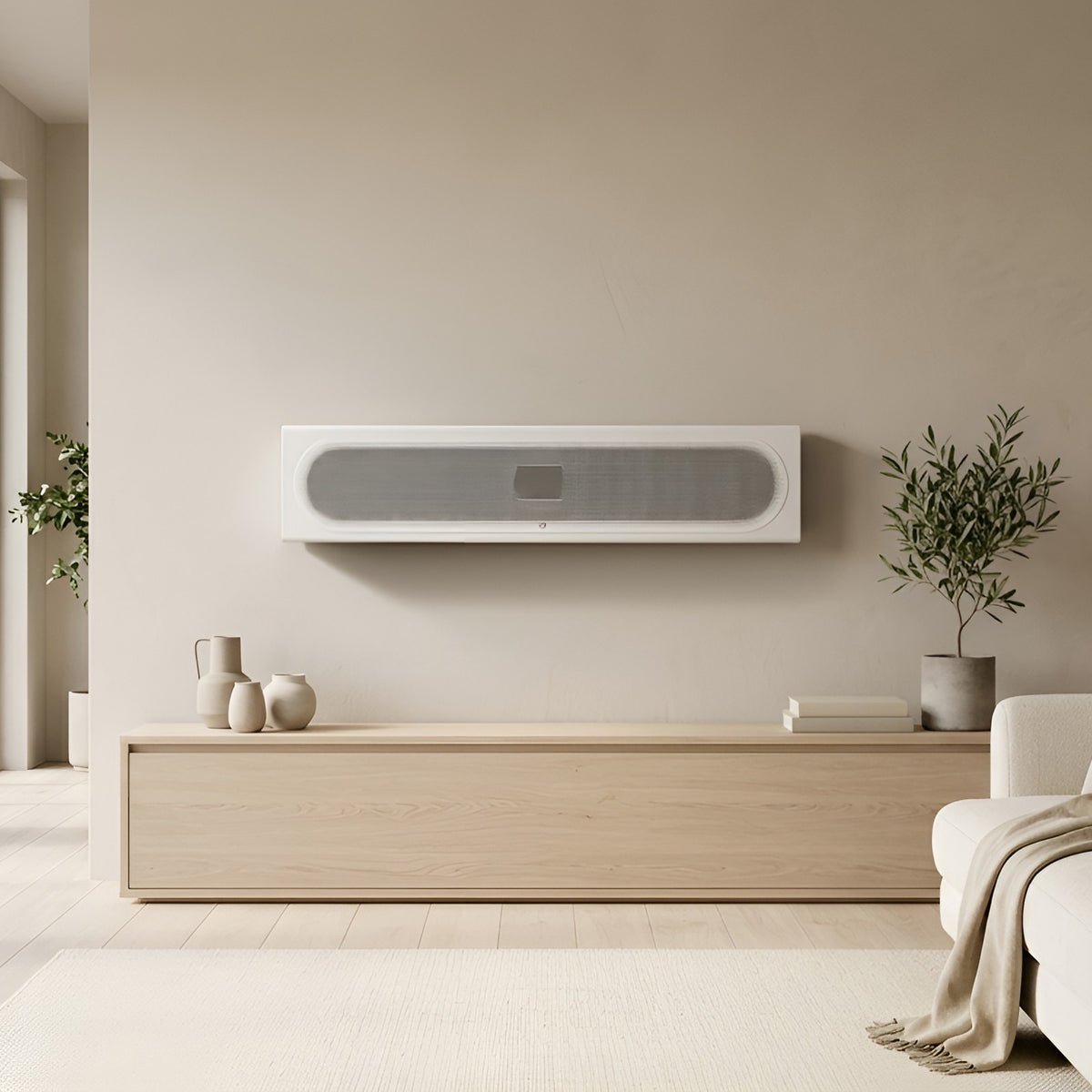

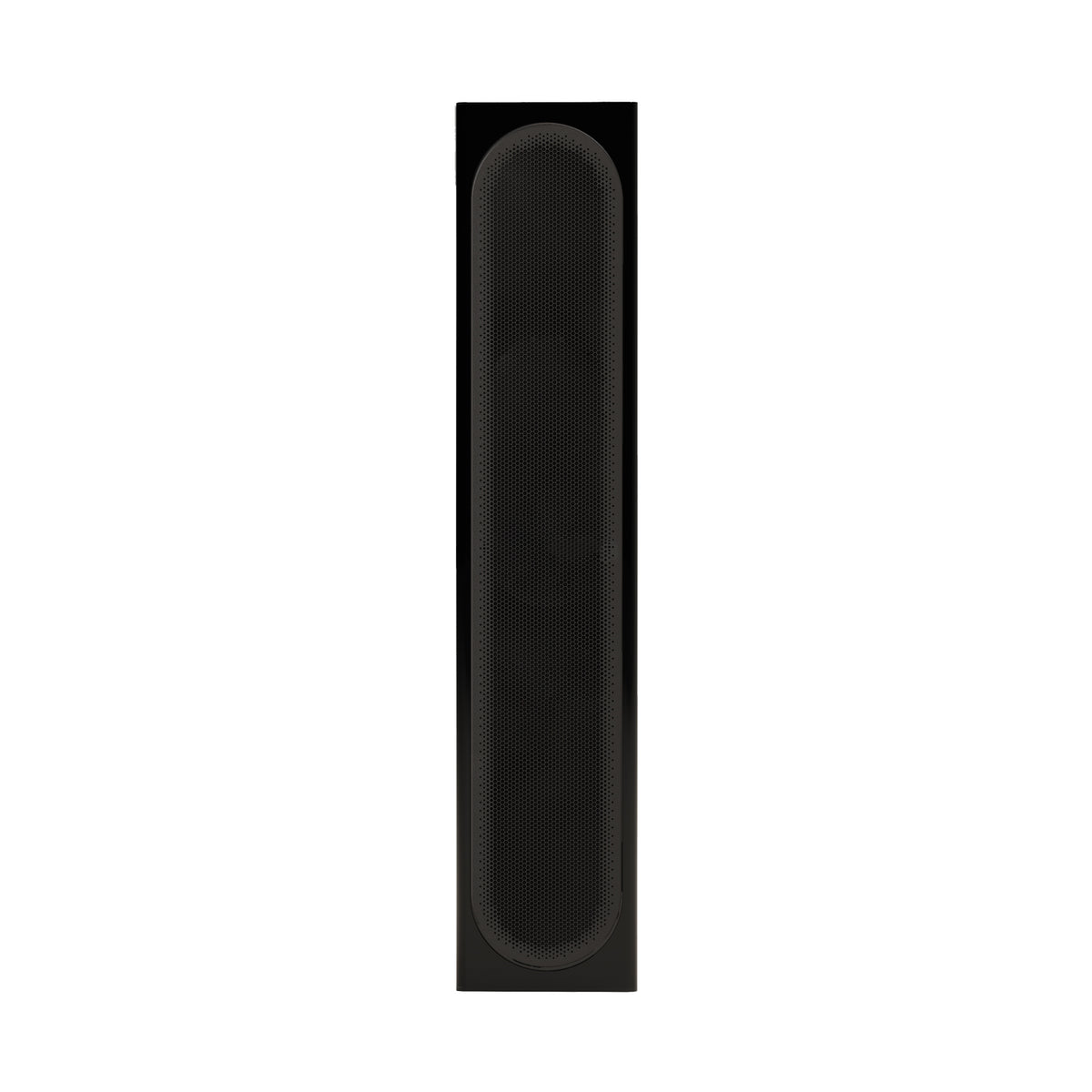

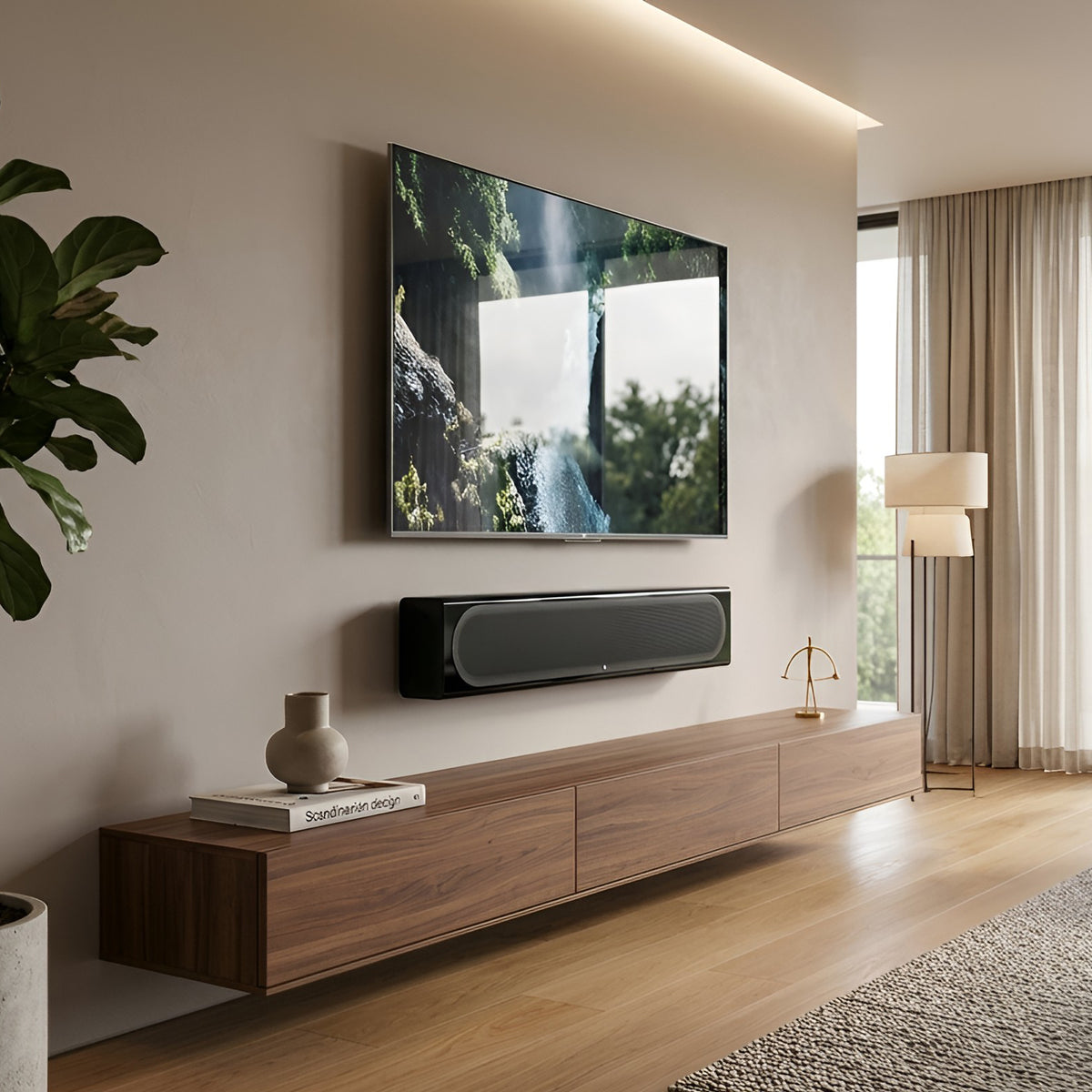

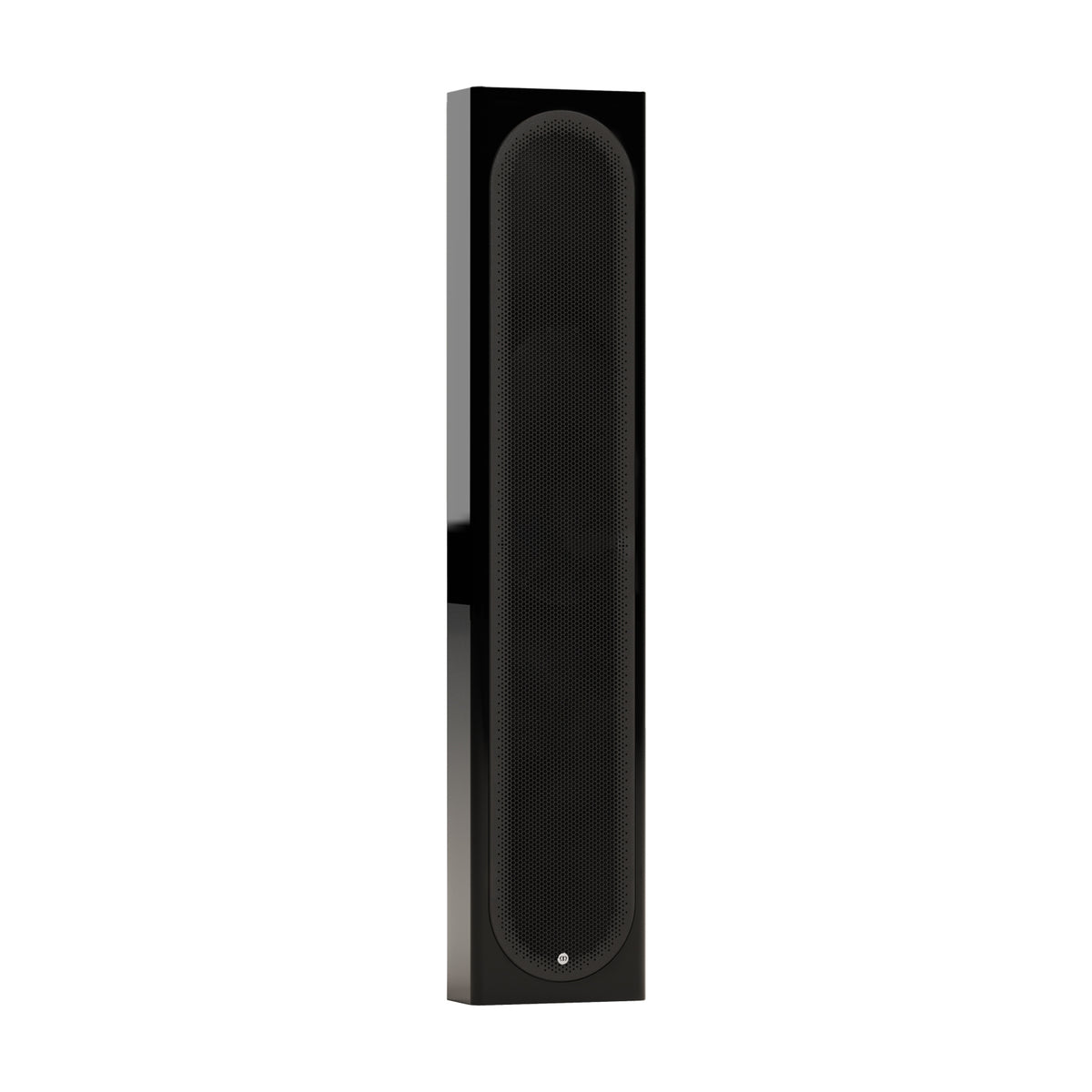

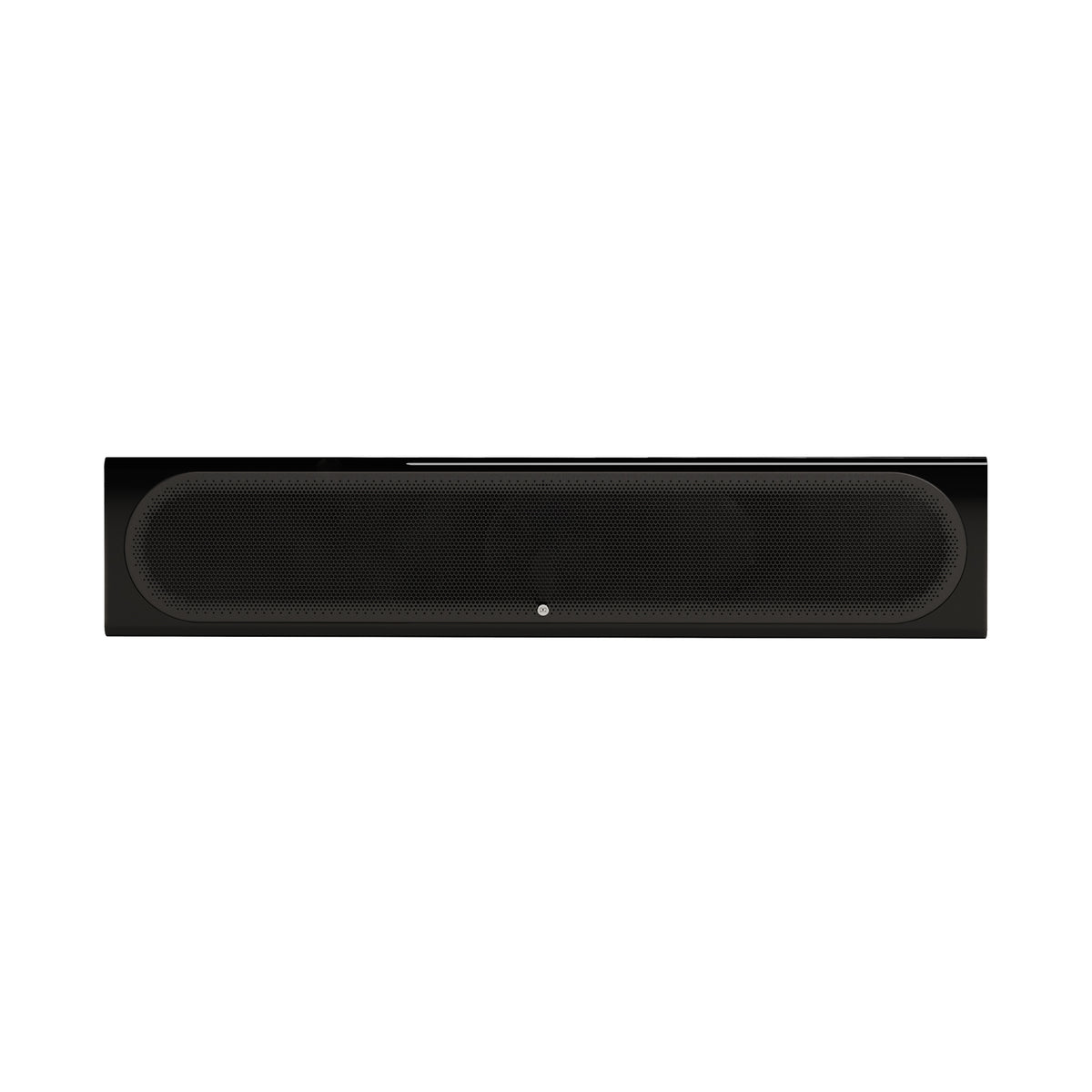

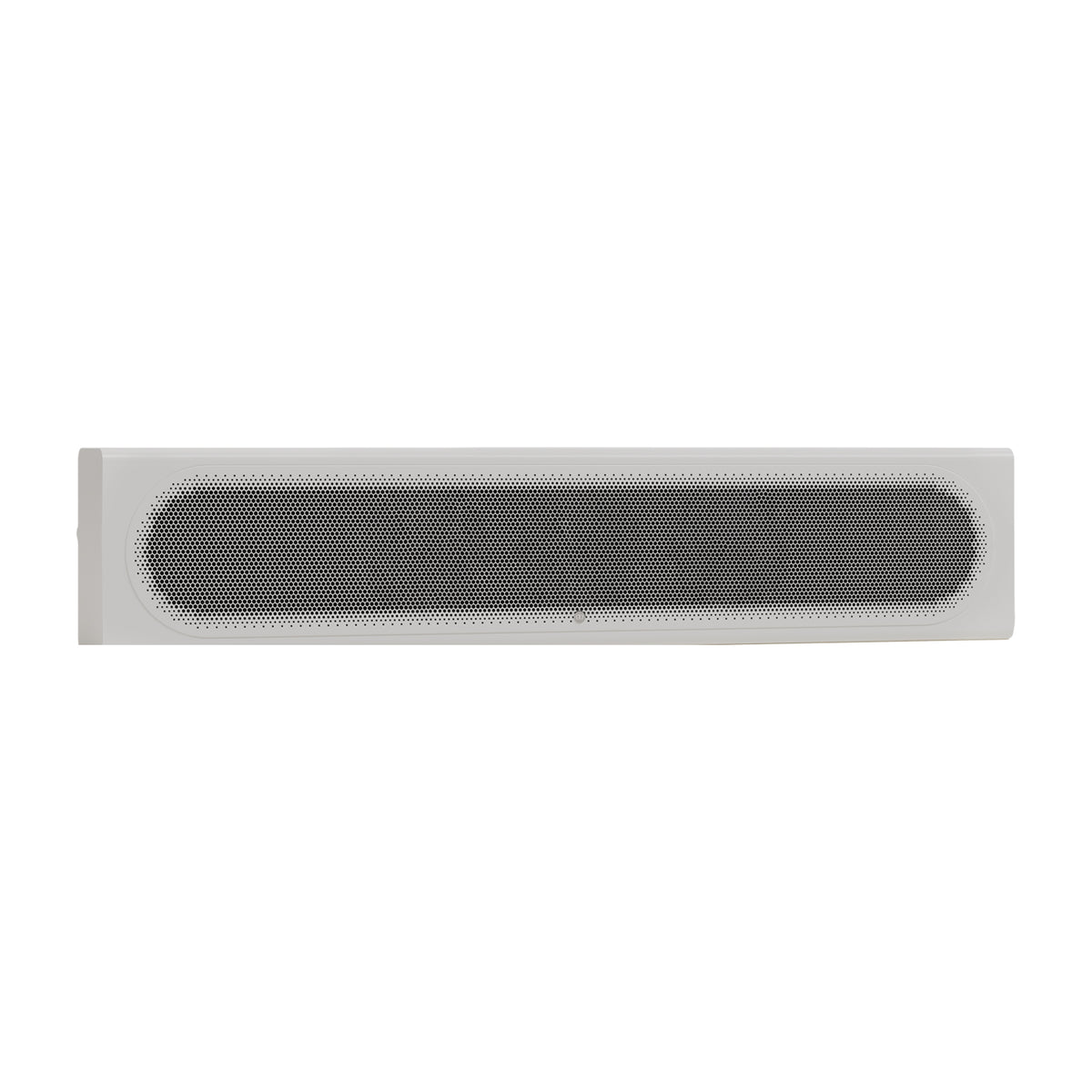

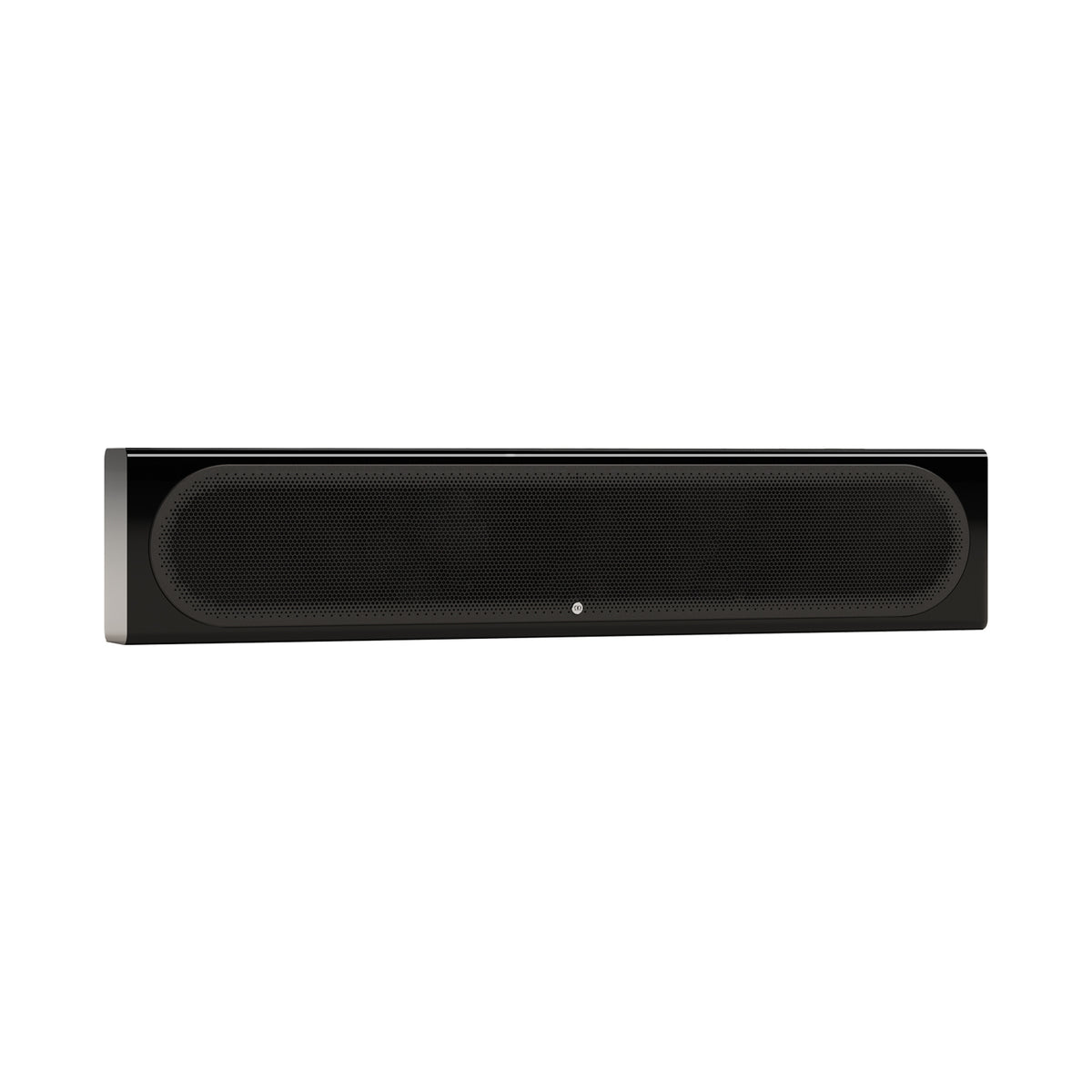

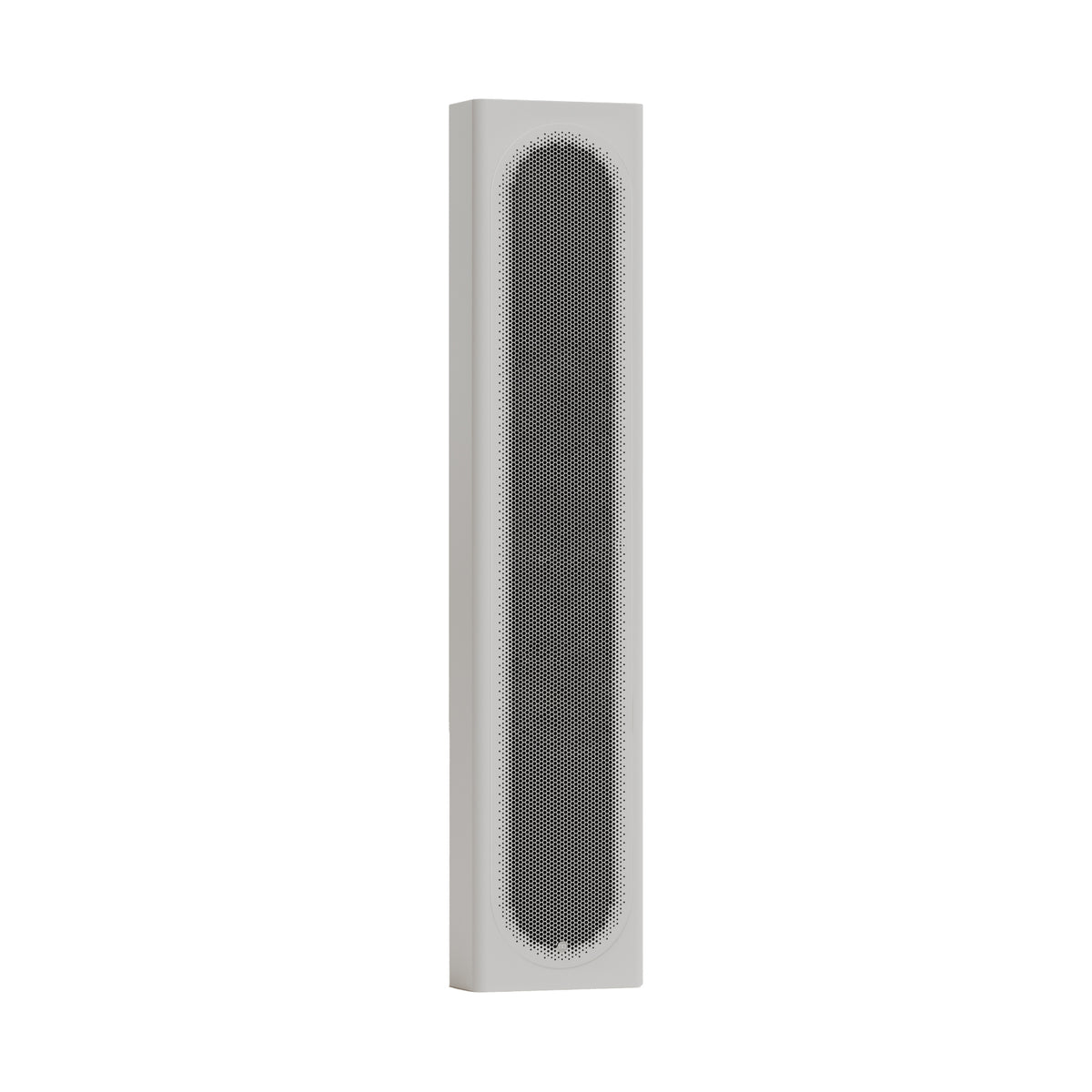

The cabinet measures 750 x 154 x 78 mm, about 29.5 by 6.1 by 3.1 inches, and weighs 6.4 kg. Mount it horizontally under the screen as a center channel or vertically to either side; the MA roundel logo lifts off, so the face stays clean either way. It ships singly in high gloss black or satin white.

RST III Cones, a Vented Gold Dome, and Bolts Through the Cabinet

C-CAM stands for Ceramic-Coated Aluminium/Magnesium, Monitor Audio’s signature cone material. This generation adds RST III cone geometry, a ribbed surface that pushes breakup and resonance out of the range you actually hear, plus redesigned surrounds and bigger magnets. The tweeter changed more: an external magnet motor in place of the traditional internal puck magnet, a fully vented dome and former, and a UD waveguide to shape dispersion.

Dispersion matters on a TV speaker, because half your seats are off to one side. Even coverage keeps dialogue clear from the end of the sofa. The cabinet helps too. Through-bolt bracing anchors each driver to the rear panel under controlled torque, a HiVe II port is tuned to 62 Hz, and a new crossover hands off at 2.3 kHz.

Who Is This On-Wall Speaker Best For?

• Anyone ready to retire a soundbar — Two 4.5-inch drivers and a real tweeter beat a slim bar, especially on dialogue.
• Home cinema builders — Sold singly, so you buy exactly as many as your layout needs.
• Rooms with no floor to spare — At 78 mm deep, it lives beside a wall-mounted screen without looking bolted on.
• Wide or off-center seating — The vented Gold Dome tweeter and UD waveguide cover a couch, not one sweet spot.
• Not right if you cannot drill the wall — The bracket in the box is how this speaker sits. If yours must live on a shelf, see our bookshelf speakers instead.

How Does It Connect to Your System?

This is a passive speaker, so it needs an amplifier or AV receiver. Nominal impedance is 8 ohms, dipping to 4.4 ohms at 700 Hz.

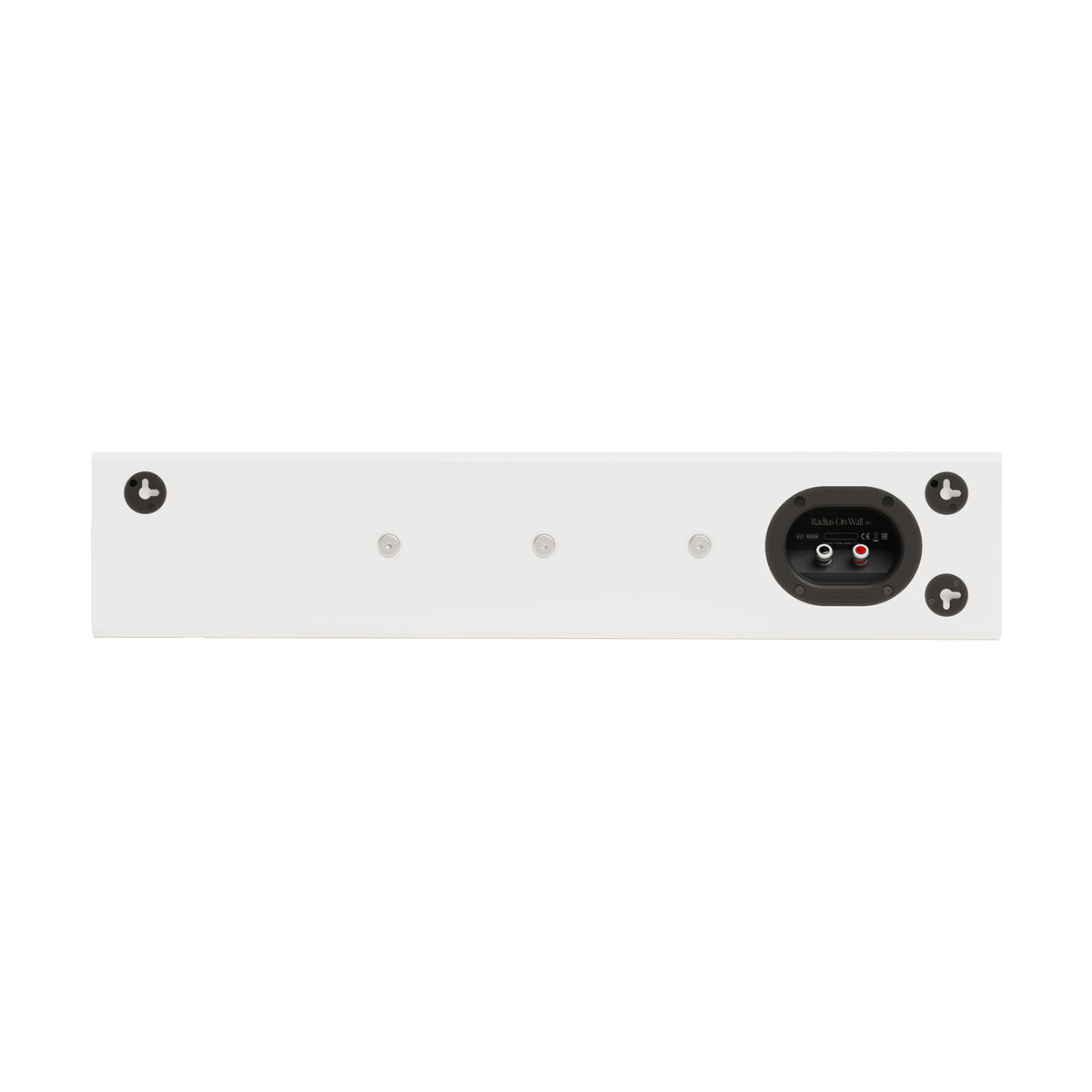

A wall bracket and fixing template ship in the box. Run your speaker cable to the wall position first, because chasing cable afterward is the part everyone regrets. In a home theater, set your receiver crossover near 80 Hz and hand the bottom end to a subwoofer. Mount it, wire it, set the crossover, go watch something.

Pairs Well With

Here is what completes the system.

• Subwoofers — Response stops at 69 Hz, so for movies a sub is not optional. Browse our subwoofers.
• AV receivers — Bass management, room correction and power in one box. See our AV receivers.
• Integrated amplifiers — Building a wall-mounted stereo pair instead? Shop our integrated amplifiers.
• Speaker cables — Wall runs are longer than shelf runs. Shop speaker cables.

Frequently Asked Questions

Is the Radius On Wall 4G sold as a pair or a single?

Singly. Order one for center-channel duty, two for a wall-mounted stereo pair, or three for a matched front stage.

Can it be mounted horizontally as a center channel?

Yes. It is designed for either orientation, and the removable MA roundel logo keeps the front looking right.

Do I need a subwoofer with it?

For movies, plan on one. In-room response is rated to 69 Hz, and Monitor Audio recommends a subwoofer for full-range performance.

What amplifier power does it need?

Monitor Audio recommends 50 to 100 W into 8 ohms, or 100 to 200 W into 4 ohms. Continuous handling is 100 W.

Is a wall bracket included?

Yes, a bracket and fixing template ship in the box. The MASM and FIX-M brackets are for the Radius 1 4G and Radius 3 4G, not this one.

See It in Action

Monitor Audio’s channel introduces the full Radius Series 4G range, On Wall included.

Monitor Audio also unboxes the Radius Series 4G, carton by carton.
