Monitor Audio SB-4 High Performance Passive Soundbar

Stylish, Great-sounding Soundbar Solution for Large TVs

Monitor Audio's SB-4 passive soundbar is designed to provide a visually balanced, audio solution for 70” screens and larger. This stylish, high performance, passive soundbar is ideal for delivering premium performance in media room applications.

The SB-4 incorporates a series of clever technical features and design innovations which demonstrate Monitor Audio’s revered attention to detail and commitment to quality.

"A Great Solution for a Living Room

"The SB-4 offers all speakers at the same height, a nice wide front sound stage and the three front speakers in a tidy solution," observes reviewer Pulse1, avsforums.com, October 9, 2020.

"The SB-4 is pleasant to listen too, easy to drive and blends really well with the Bronze FX surrounds and SVS SB2000 subwoofer. I'm really impressed with the sound of the SB-4 and think it offers a great solution for a living room."

Simple to Use, Easy to Enjoy

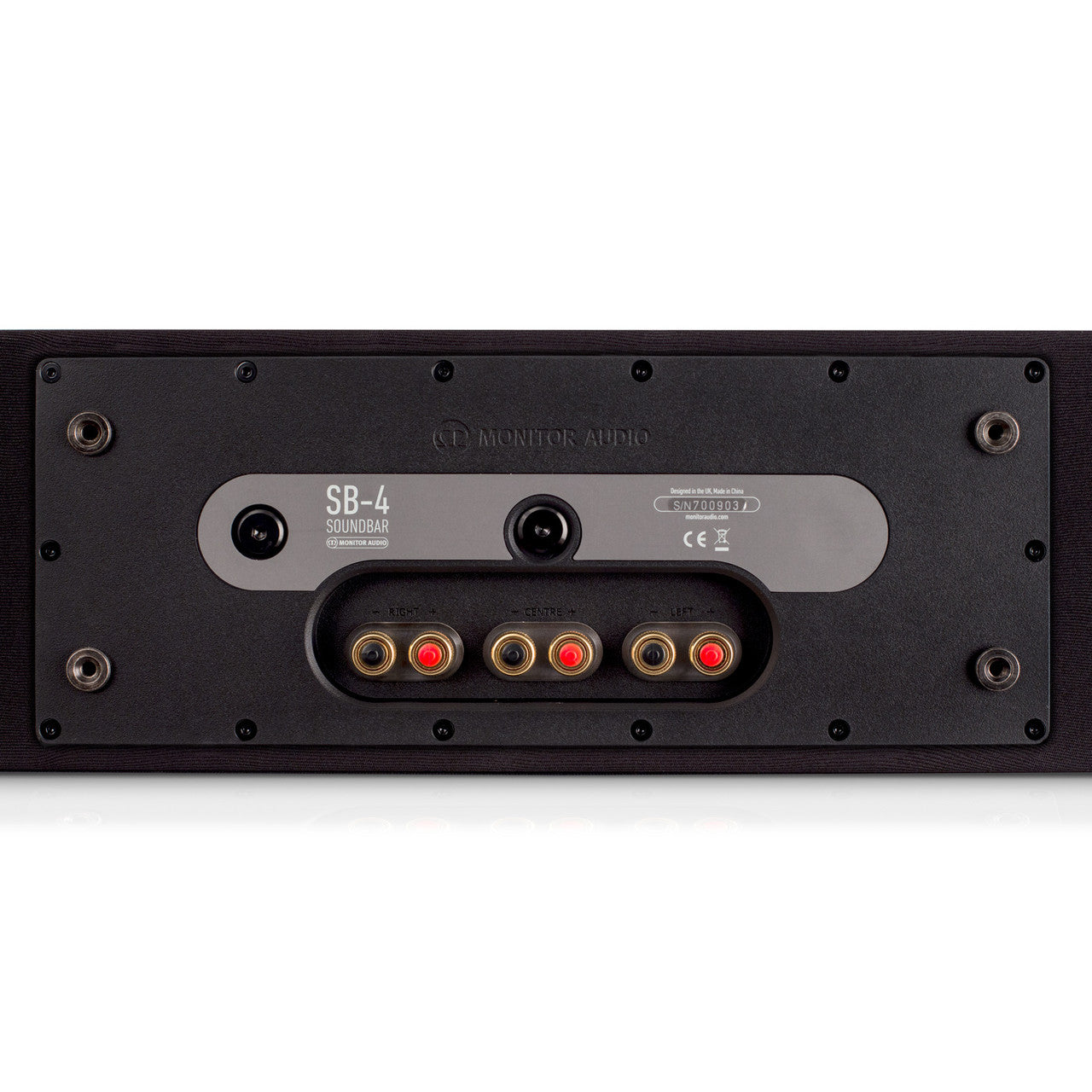

Ease of installation is another key advantage of the SB-4. High quality, low profile binding posts provide an easy and trouble free connection, with the terminals recessed neatly to enable a flush to wall installation. The terminal panel also houses standard fixing points compatible with most TV mounts, with many options for TV and wall installation. Wall mounting is also possible using Monitor Audio’s low-profile wall mount bracket with cable access, easy pre-alignment, and fixing template.

The SB-4 is designed to be used with a partnering subwoofer and crossed over to provide the best possible experience and increased system power handling. Alternatively, the soundbar can be used independently to deliver an impressive uplift in TV audio performance with only a slightly reduced power handling.

The drive unit complement consists of (all channels) two 4” C-CAM cone bass/mid drivers and two 1” C-CAM gold dome tweeters. Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet. High quality crossovers utilizing polypropylene capacitors and low loss laminated steel core inductors.

C-CAM Drivers

All channels use 2 x 4” (100mm) Monitor Audio's C-CAM cone bass/mid driver. Ceramic-Coated Aluminium/Magnesium is a material originally developed by the aerospace industry for jet engine components. Its properties are ideal for loudspeaker cones being extremely rigid, yet light enough to yield high overall efficiency. In manufacture, aluminium/magnesium alloy undergoes a three-stage stress-relieving process to remove surface deformation and molecular weakness. Once formed, the alloy cone is subjected to a high temperature anodic coating process in which a layer of pure ceramic aluminum is depleted onto its surfaces to a depth of 50 microns, producing a completely rigid sandwich of alloy and heat-dissipating ceramic material.

Conventional cones are liable to flex or twist in operation, producing a significant level of audible distortion. C-CAM cones have a much higher resistance to bending stress and therefore exhibit much greater fidelity over their entire operating range. C-CAM tweeters and woofers share an audible consistency producing a smooth transition of frequencies and a sense of realism and cohesion in the soundstage.

C-CAM Gold Dome Tweeter

The 1" gold dome tweeter is formed from a ceramic-coated aluminum/magnesium alloy, gold anodized to a specific thickness for ideal stiffness and damping characteristics. Its new profile and surround geometry have been developed using advanced modelling tools, to provide the optimum qualities for accurate sound reproduction. The new design moves the first order of breakup to beyond 35kHz, producing a linear response way beyond audibility, which matches the wide frequency bandwidth available from HD music and cinema sound formats. < /p>

The gold dome is thinner, lighter, more rigid and therefore more efficient than domes made from other materials which are prone to distortion in the audio band.
