Monitor Audio Silver ASM 8G Speakers

Dolby Atmos Height Without Cutting Into Your Ceiling

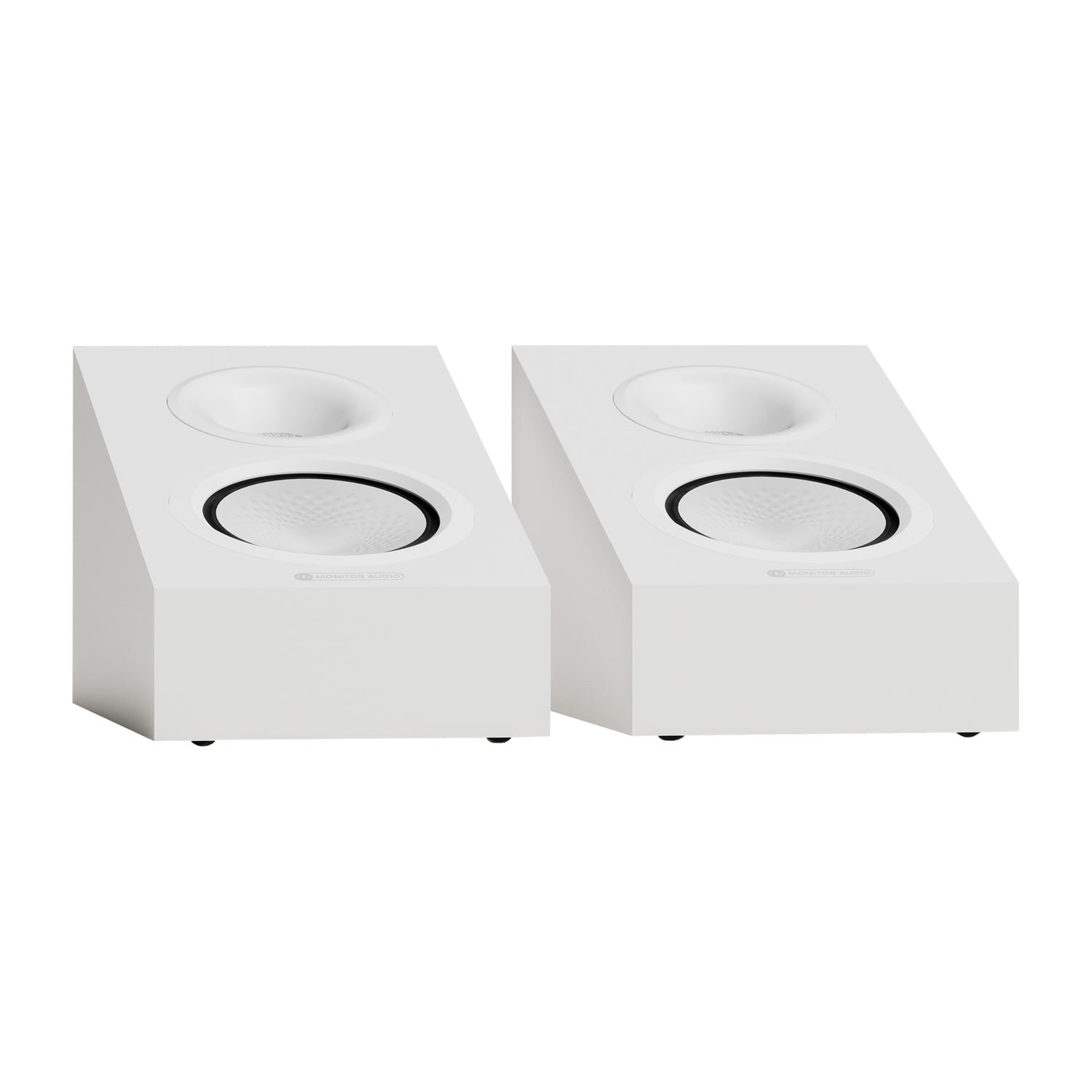

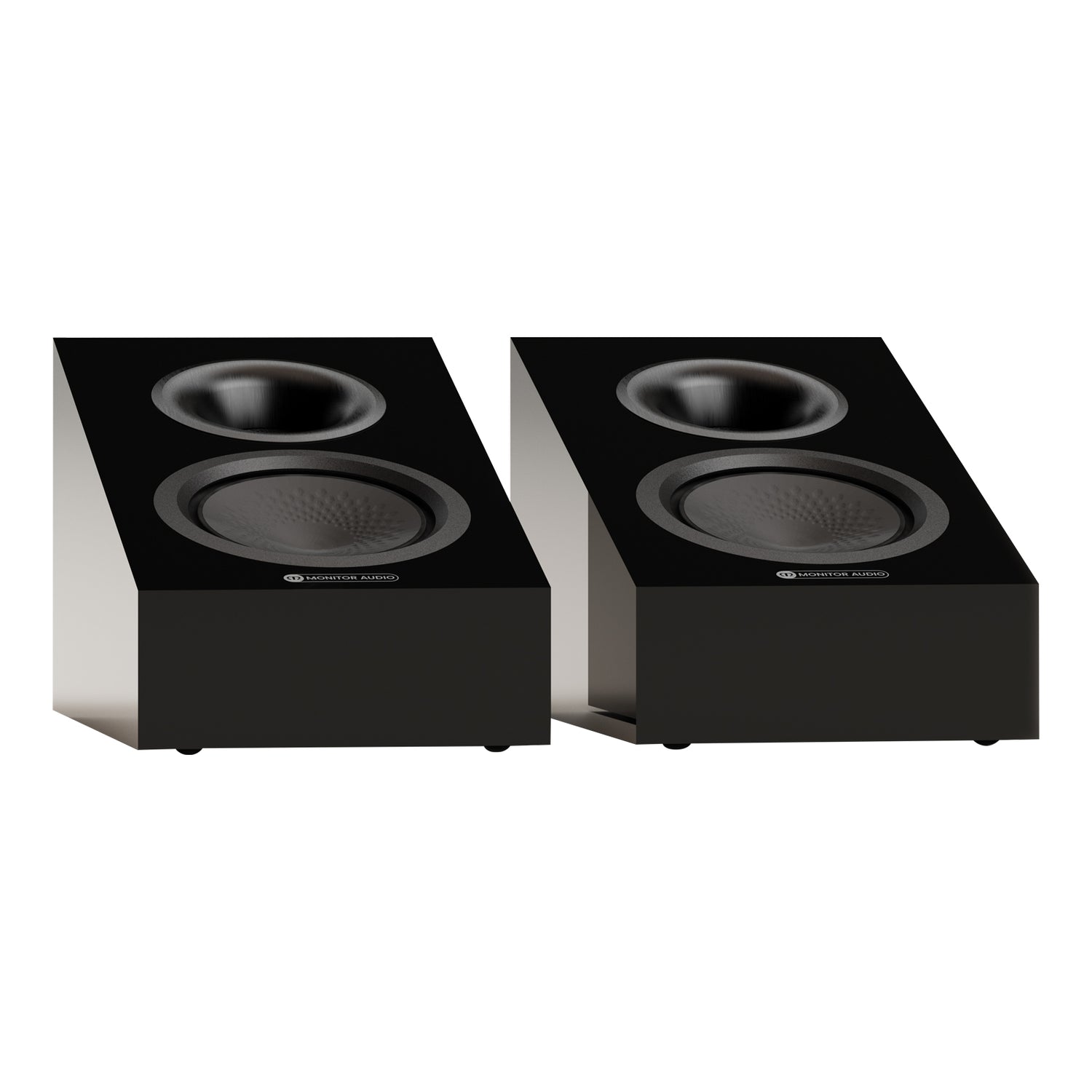

Overhead effects are the hardest part of a Dolby Atmos system, and most people solve it by cutting holes in the ceiling and running wire through the joists. The Monitor Audio Silver AMS 8G takes a different route: each module sits on top of a speaker you already own, fires upward, and bounces sound off your ceiling so it arrives at your seat from above.

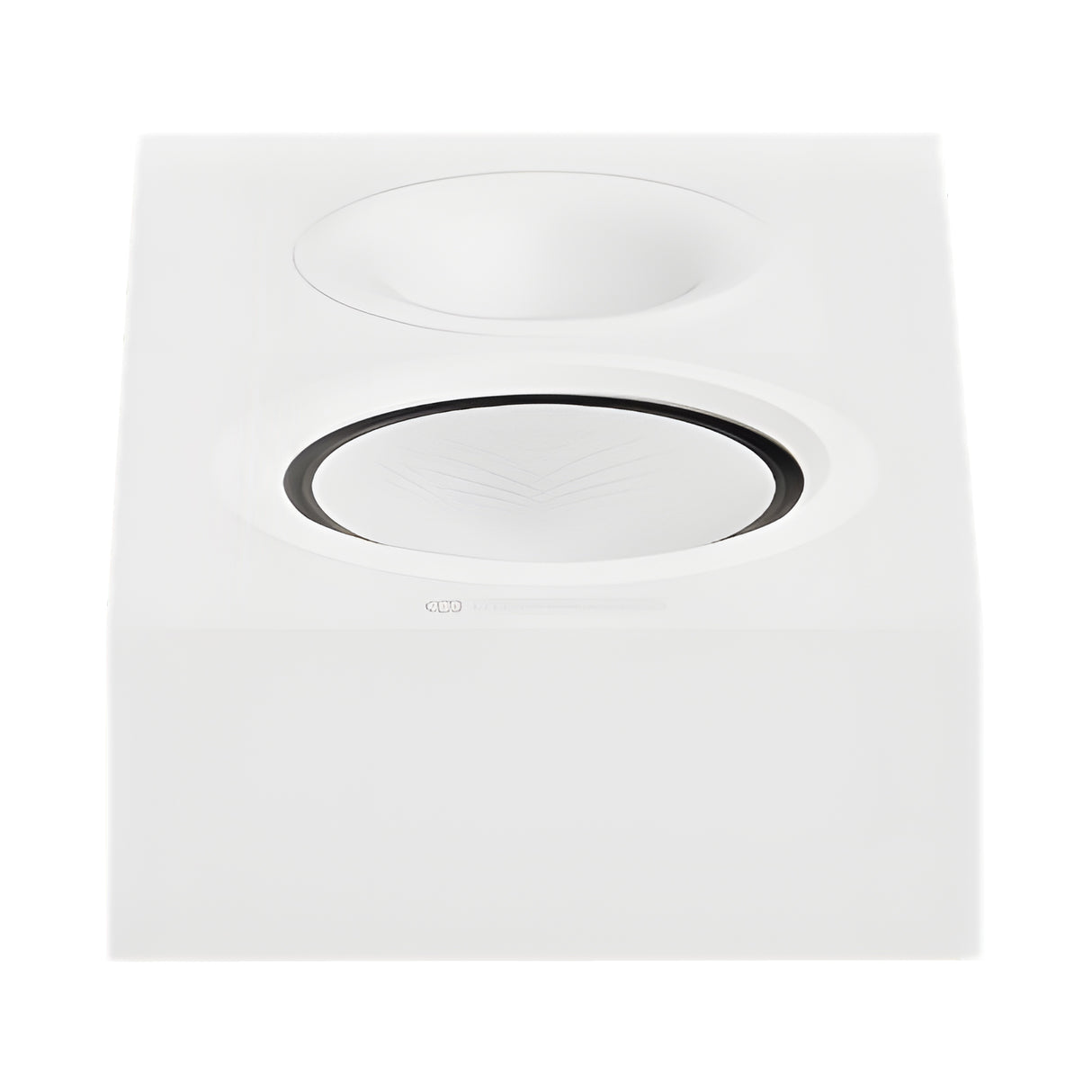

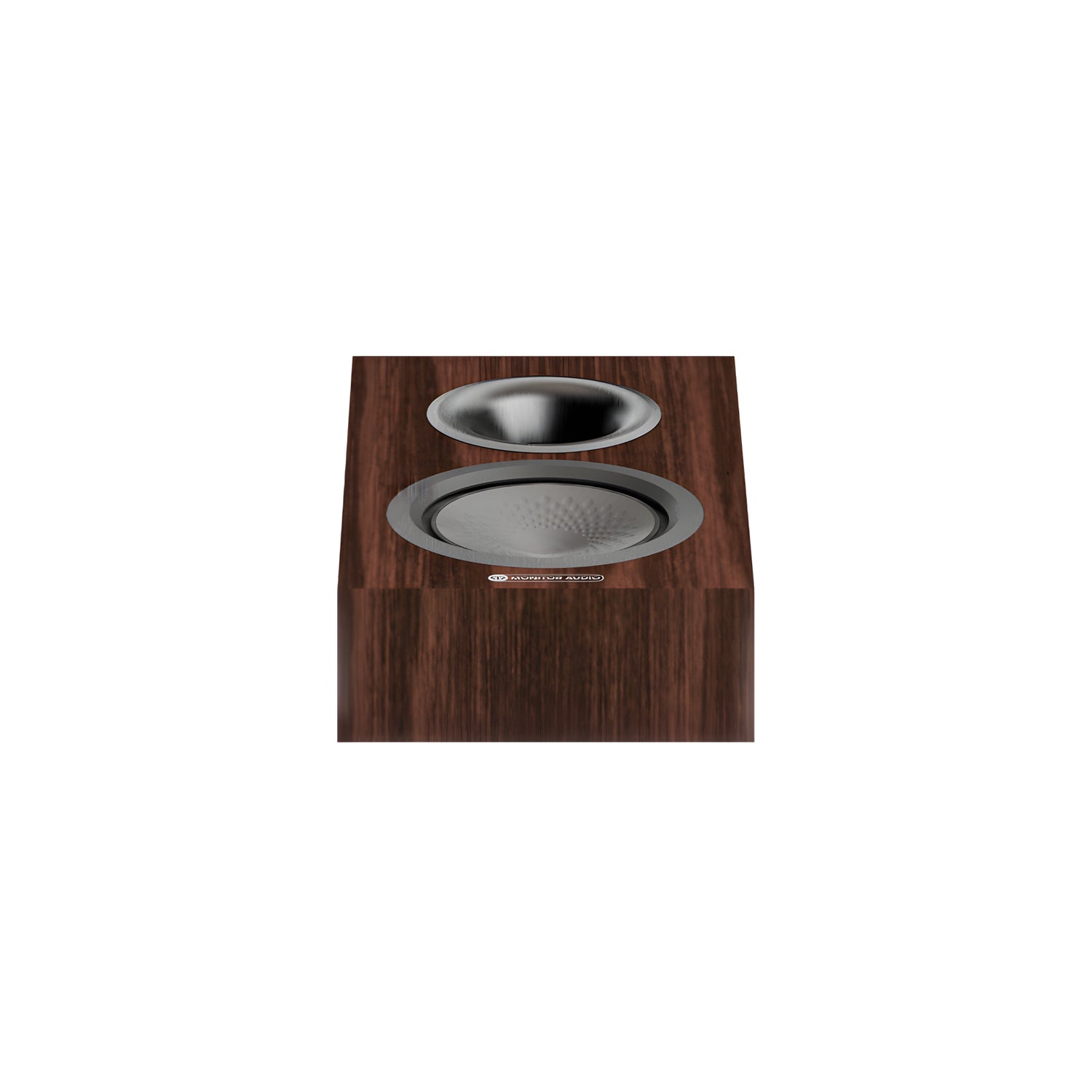

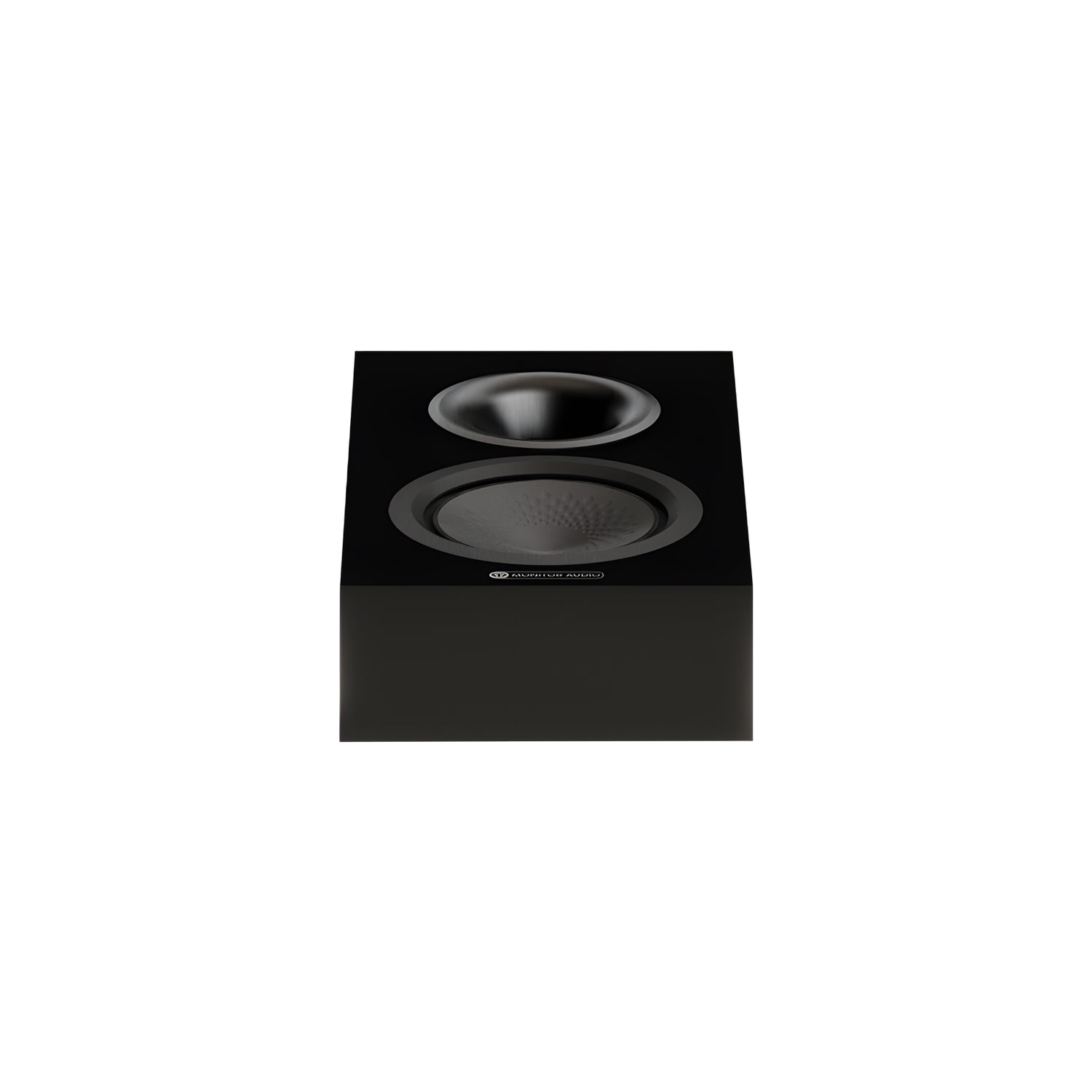

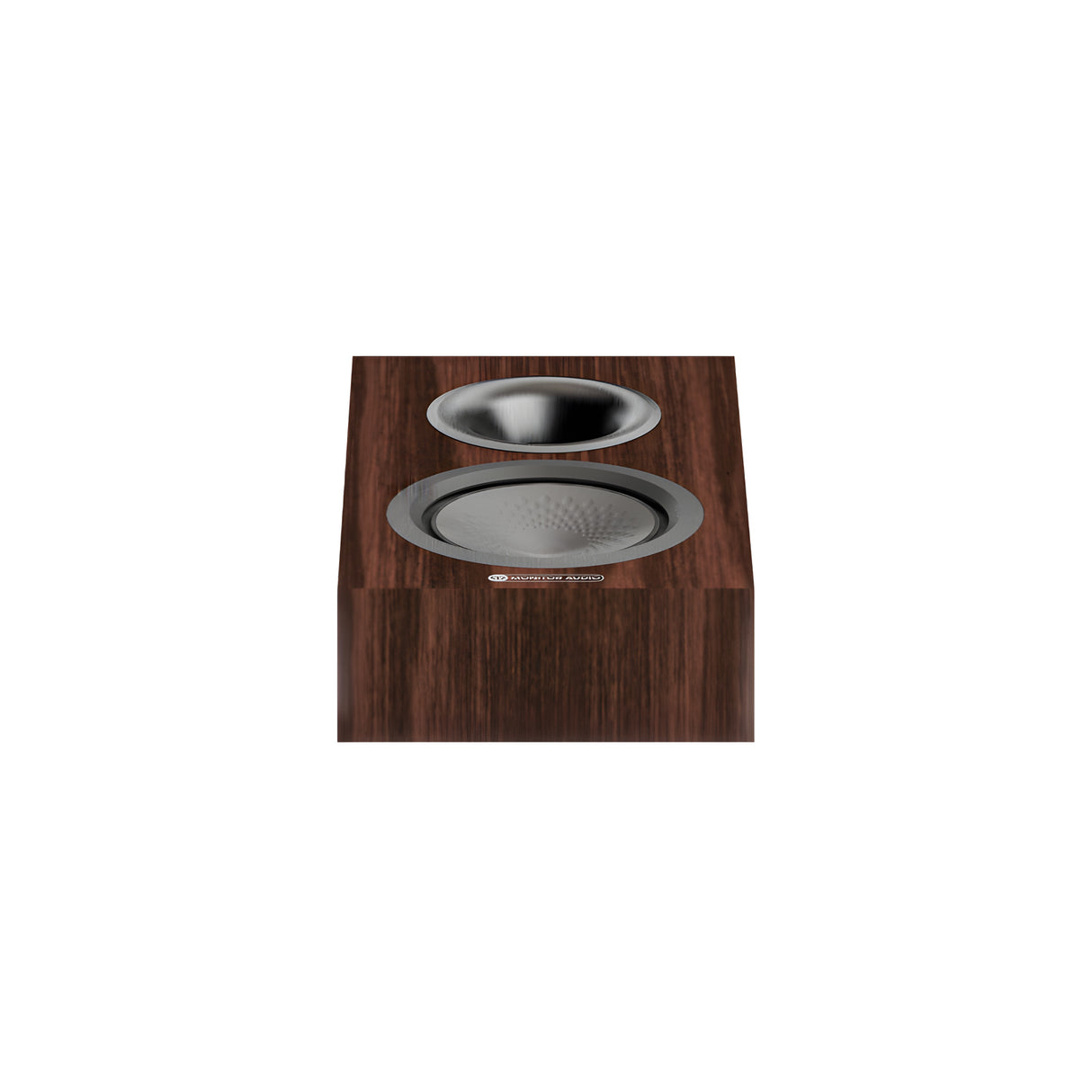

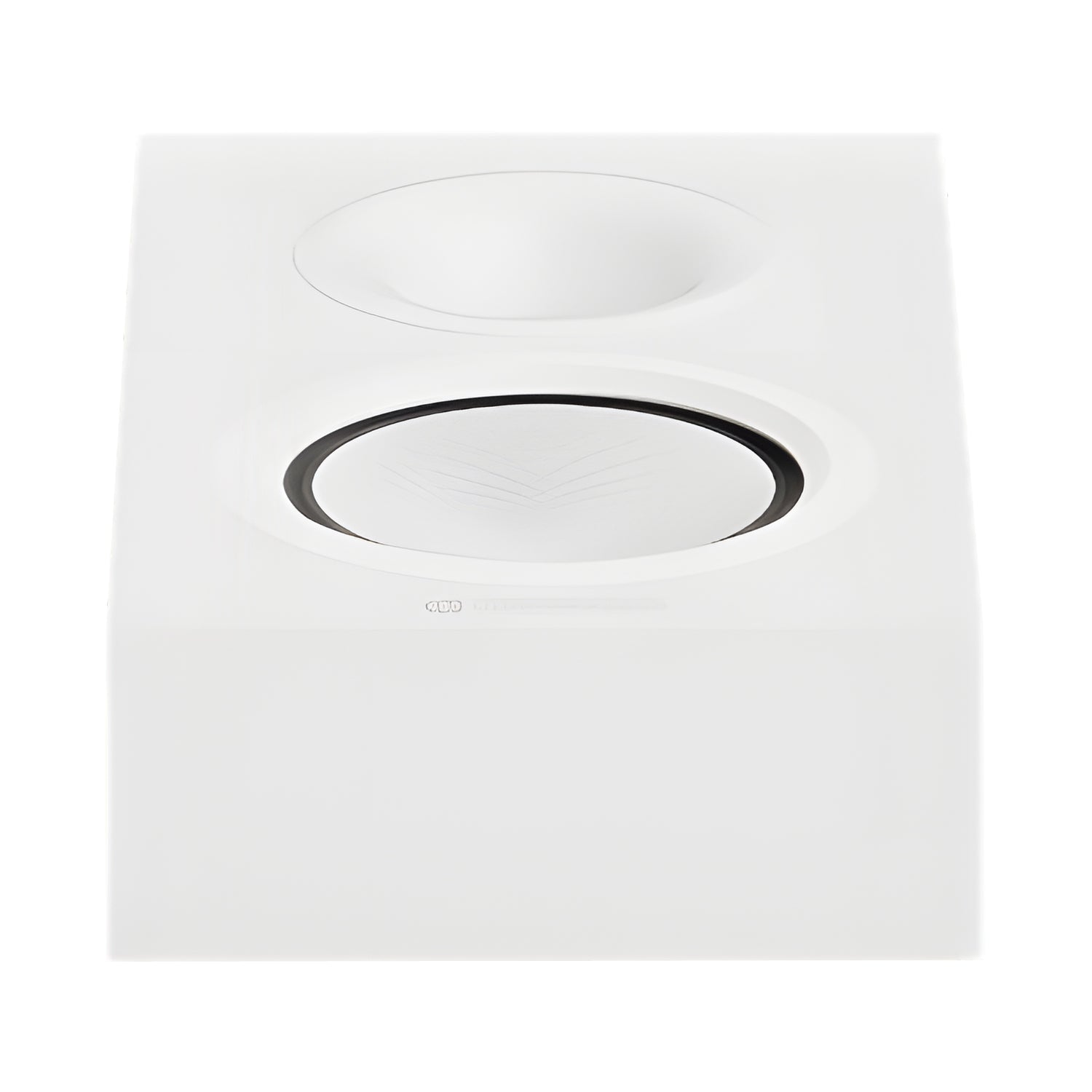

Inside each cabinet is a 5.25-inch C-CAM mid-bass driver with RST III cone geometry and a 25mm C-CAM Gold Dome tweeter in an optimised waveguide, crossing over at 2.8 kHz. Monitor Audio rates them from 82 Hz to 35 kHz in-room at minus 6 dB, which is exactly the range height effects live in.

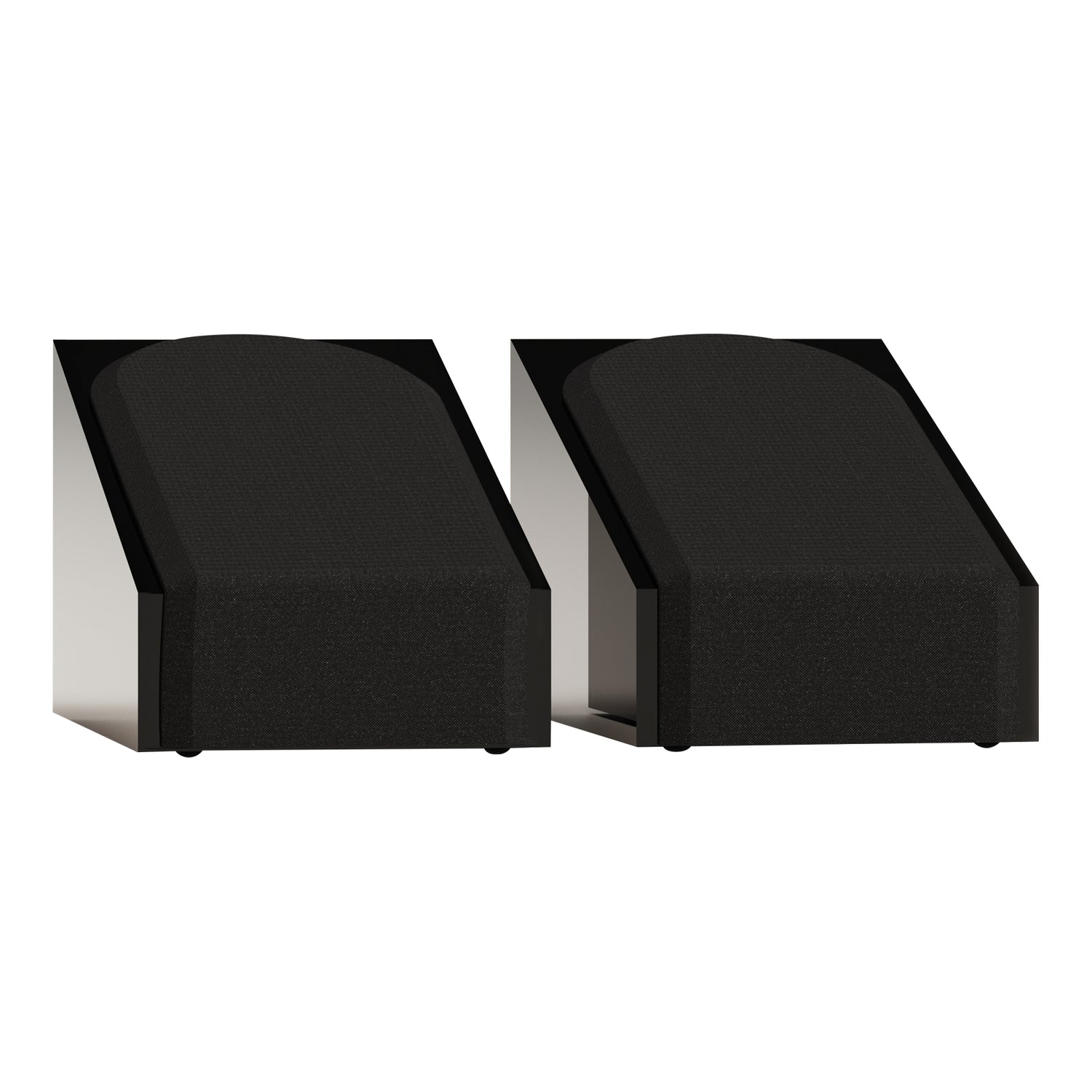

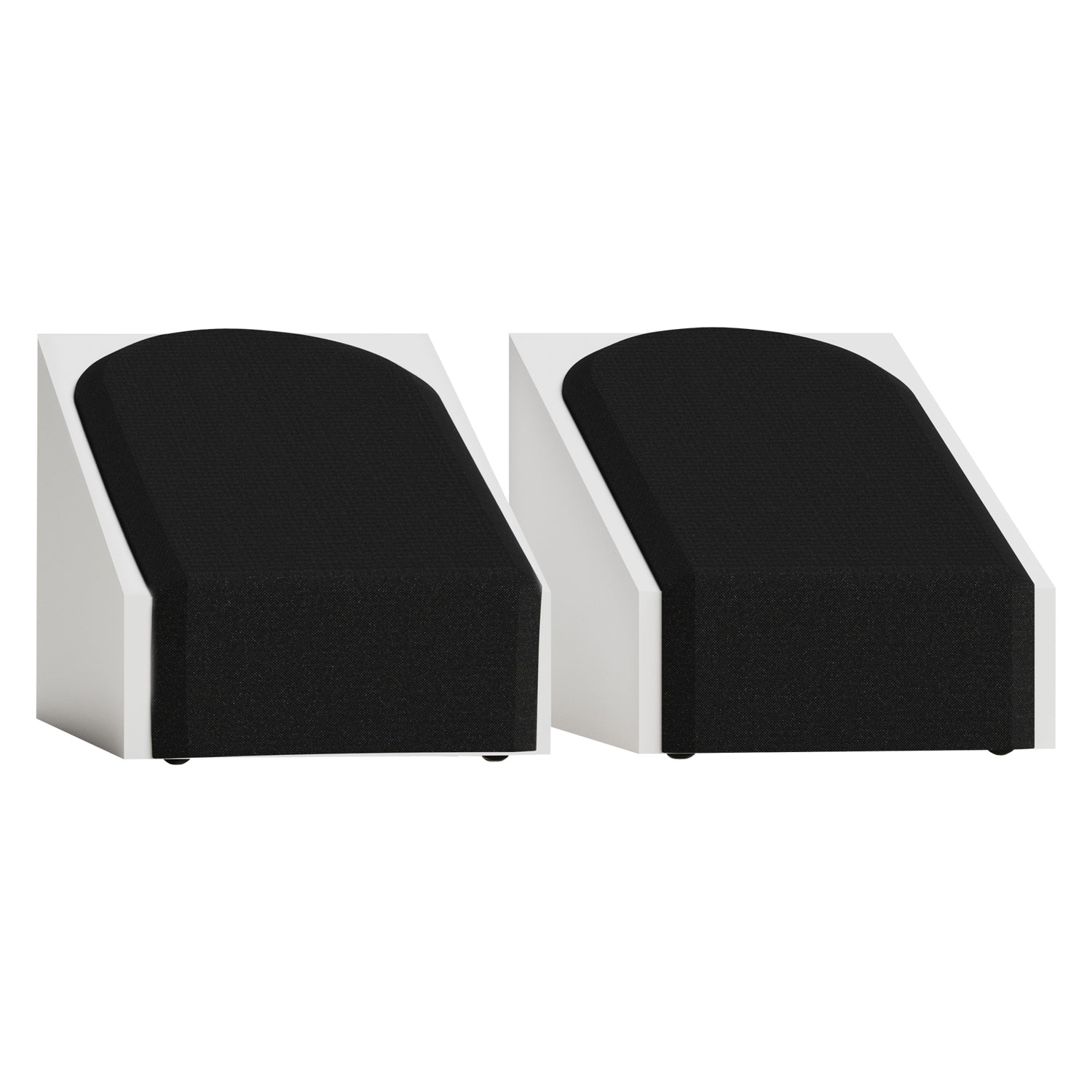

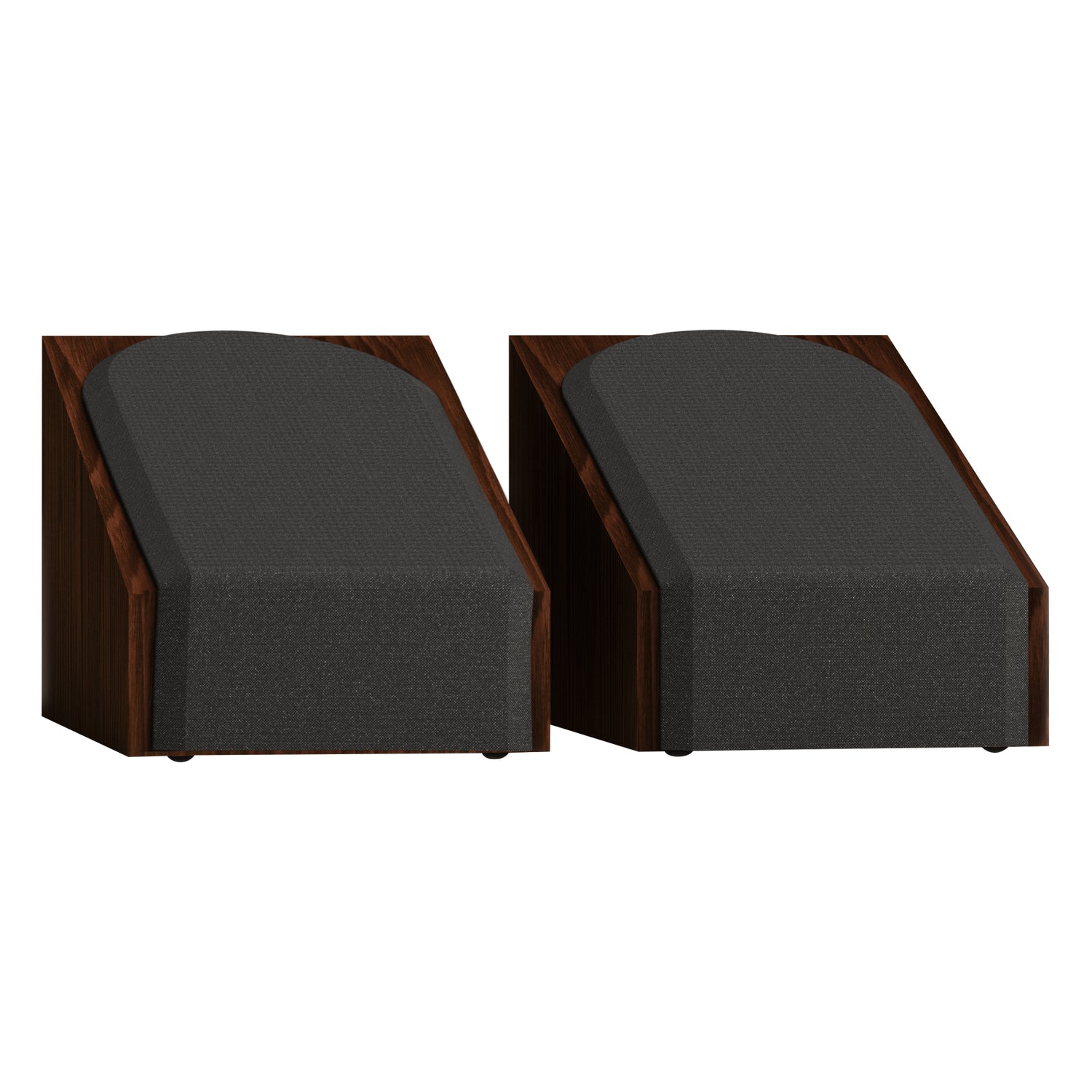

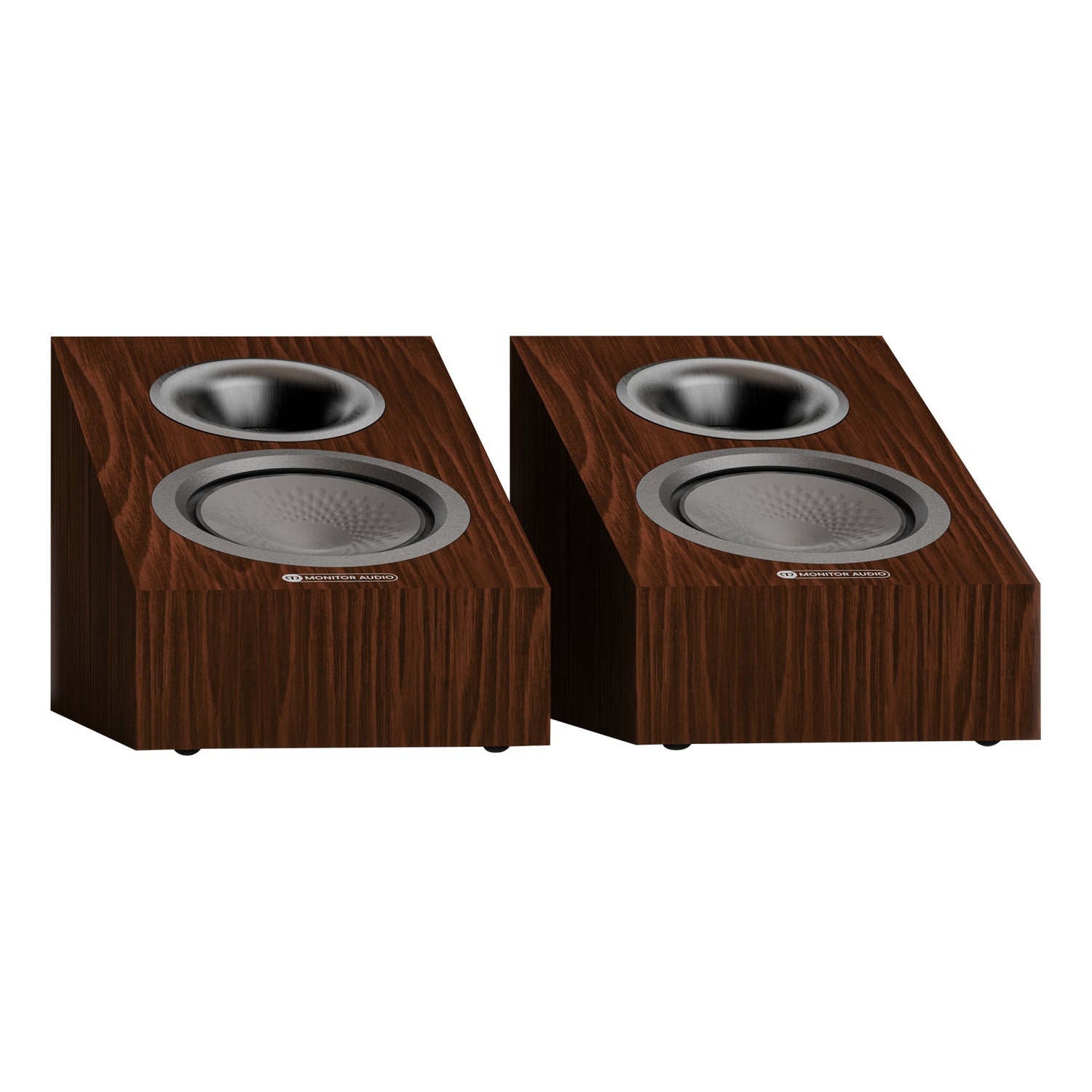

The cabinets measure 185 by 185 by 312 millimetres and weigh 4.5 kg each, and Monitor Audio built them to sit on the Silver 50 8G and Silver 300 8G. They ship as a pair, in the same three finishes as the rest of the range, with magnetic grilles included.

A Sealed Box Aimed at the Ceiling

The AMS 8G is one of only two sealed designs in the Silver 8G lineup, alongside the Centre, and the missing port is deliberate. A height module fires upward into a reflective ceiling, and a port would add turbulence noise to a signal that has to survive a bounce before it reaches you. Sealed also means tighter control, which matters when effects are short and sharp.

The tweeter waveguide is the other piece of the puzzle. Monitor Audio pairs the eighth-generation Gold Dome tweeter, with its vented rear chamber and ring neodymium magnet, with a waveguide tuned for this job. Controlling how sound leaves the cabinet is what makes a reflected effect land in place rather than smearing across the ceiling.

The load is easy at 8 ohms nominal, though it dips to 3.5 ohms at 6.8 kHz, and Monitor Audio asks for only 15 to 60 watts into 8 ohms. That is well within what any Atmos receiver delivers on its height channels.

Through-Bolt Technology anchors the driver to the rear of the cabinet at a set torque, and internal bracing and damping keep the small enclosure quiet.

Who Are These Atmos Modules Best For?

• Renters and anyone who cannot cut ceilings — No holes, no wire in the joists, no landlord conversation.
• Owners of Silver 50 8G or Silver 300 8G speakers — The modules are sized to sit on those two cabinets.
• People who want height channels today — Set them on top, run two cables, and you are done.
• Anyone building toward 7.1.4 — Two pairs give you four height channels in a full Atmos layout.
• Owners of vaulted, sloped, or beamed ceilings — Reflected height needs a flat, hard ceiling, and an angled or absorbent one scatters the effect. The Silver On-Wall 8G mounted high is the more reliable answer, or call us and we will talk it through.

How Does It Connect to Your System?

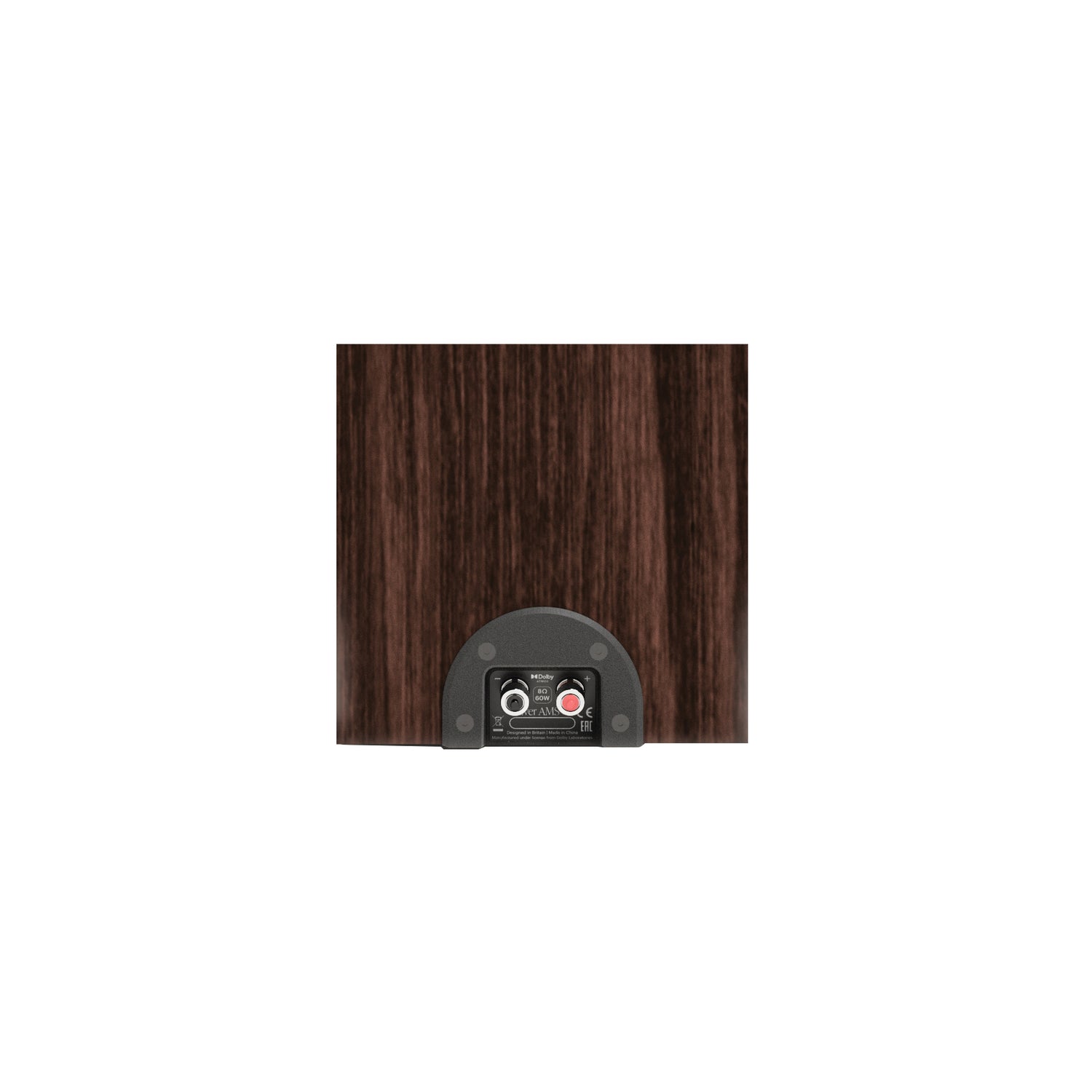

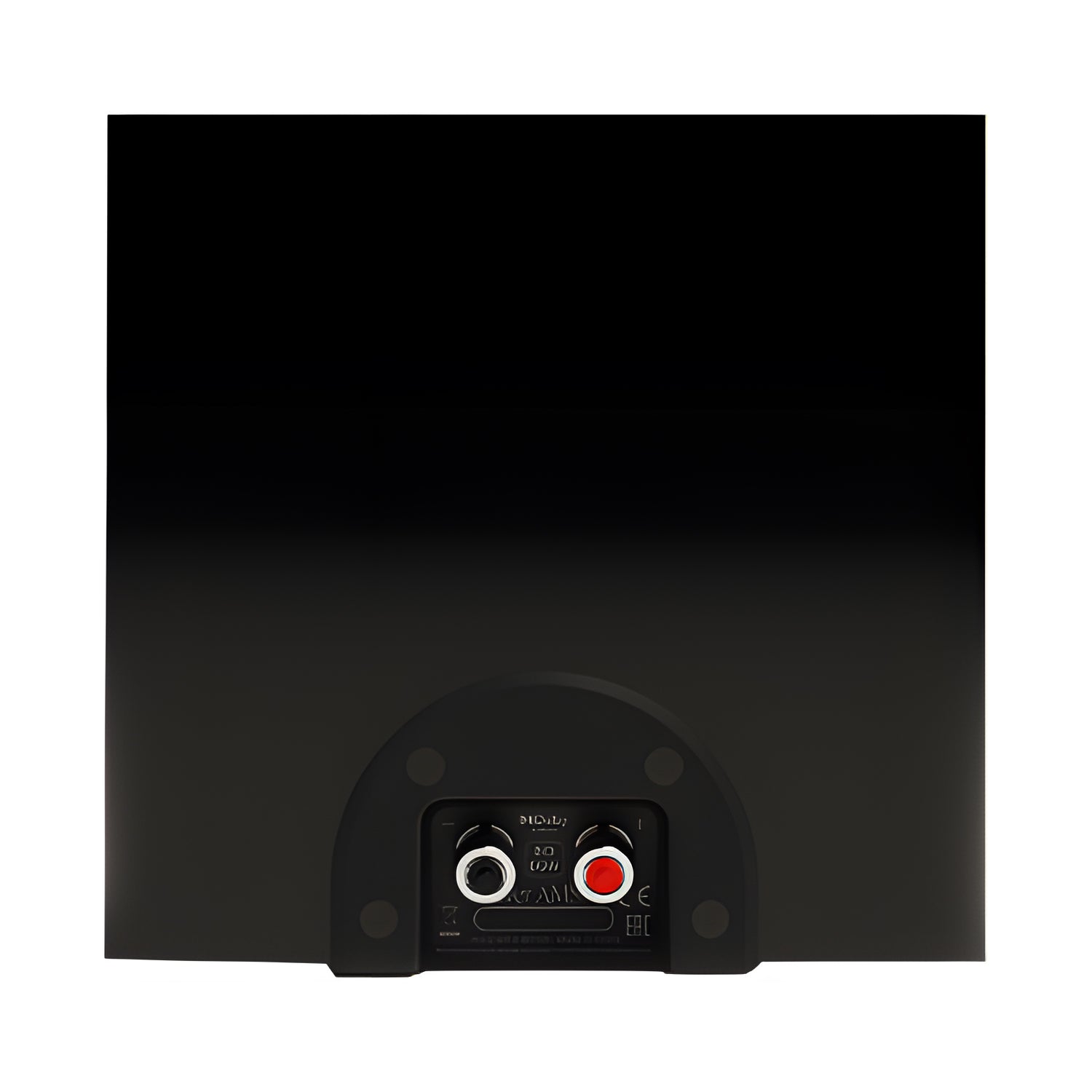

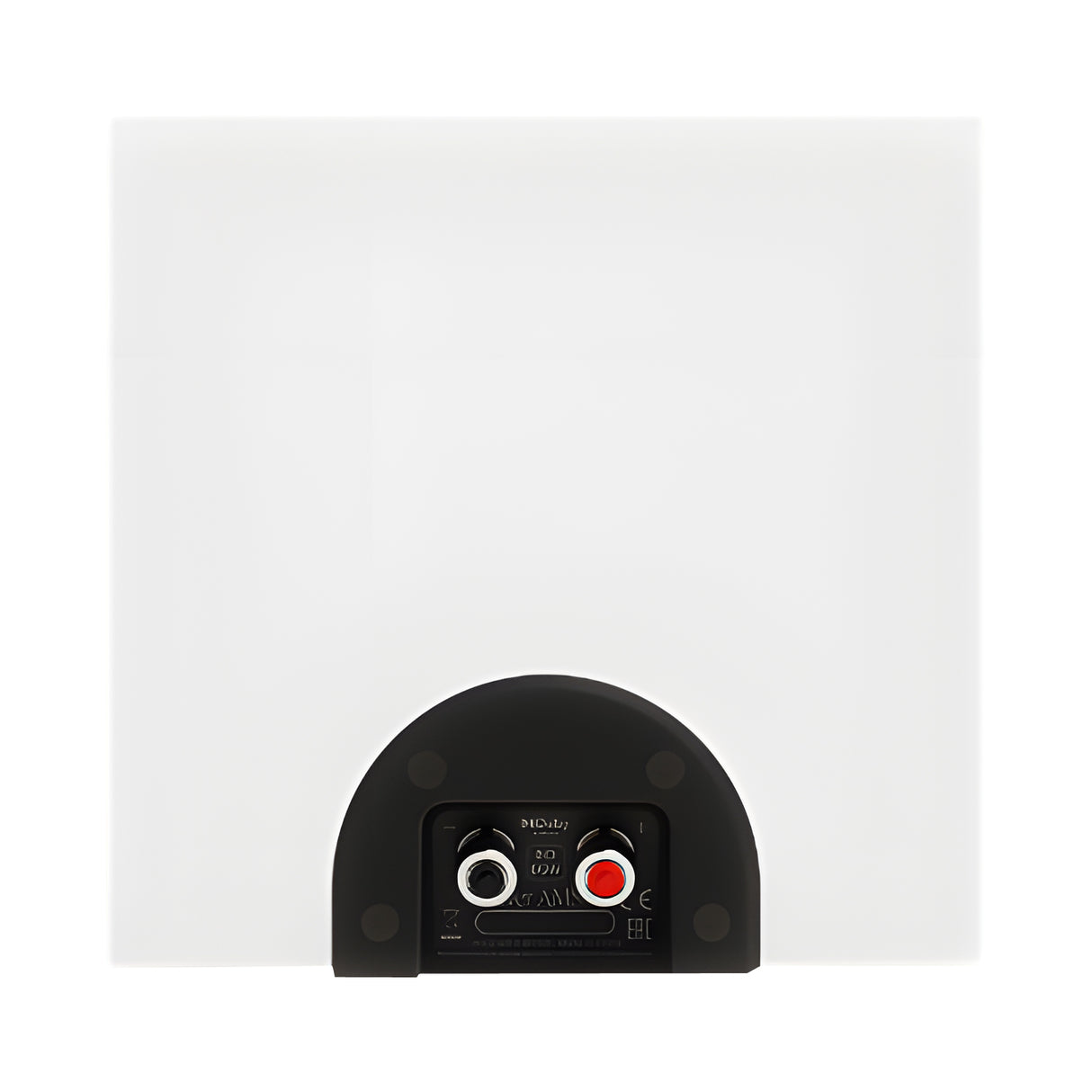

Set each module on top of its host speaker, line up the front edges, and run speaker cable from the height channel outputs on your Atmos receiver, red to red and black to black. Then run your receiver’s room correction, because the software needs to measure that reflected path to time it correctly.

Give the modules a clear shot at the ceiling, with nothing hanging above them. Height effects are subtle by design, so resist the urge to crank the level after setup.

Pairs Well With

A few good places to look next:

• AV Receivers — You need Atmos processing and height channel outputs.
• Floorstanding Speakers — Silver 300 8G towers make the natural host cabinet.
• Bookshelf Speakers — Silver 50 8G is the other cabinet these were sized for.
• Speaker Cables — Two more runs to plan into your layout.

Frequently Asked Questions

What kind of ceiling do these need?

A flat, hard, reflective ceiling around eight to fourteen feet high works best, while vaulted, sloped, beamed, or treated ceilings scatter the effect.

Which speakers can they sit on?

Monitor Audio designed the Silver AMS 8G for the Silver 50 8G and Silver 300 8G, though any flat, stable top surface of the right size will work.

Do I need one pair or two?

One pair covers a 5.1.2 or 7.1.2 layout, while a full 7.1.4 system needs two pairs for four height channels.

How much amplifier power do they need?

Monitor Audio recommends 15 to 60 watts into 8 ohms, or 30 to 120 watts into 4 ohms, with 60 watts of continuous handling.

Do they need a subwoofer?

No, because height channels handle effects rather than bass, and your receiver crosses them over well above the 82 Hz roll-off.

What warranty does Monitor Audio offer?

Monitor Audio lists a five-year warranty across the Silver Series 8G range.
