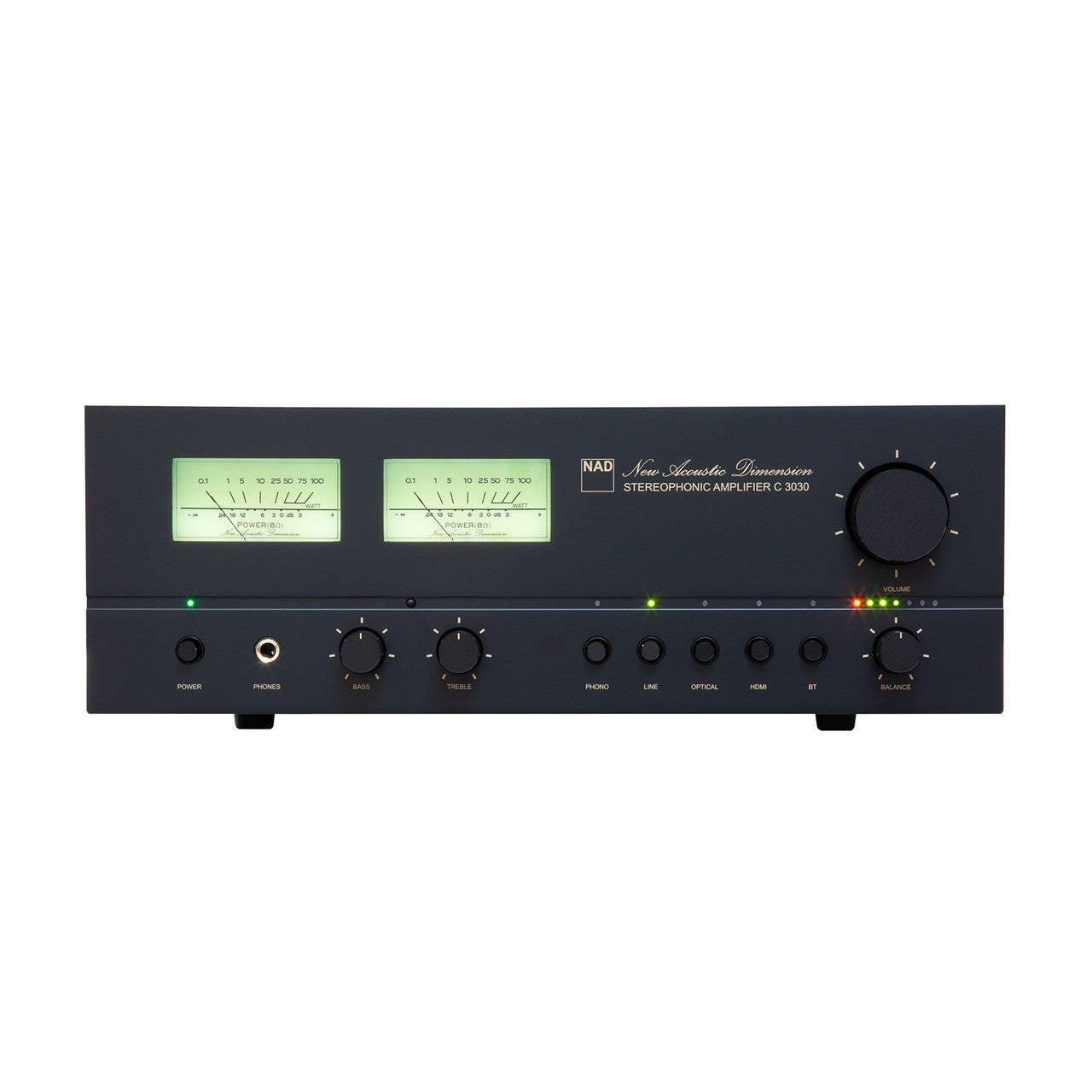

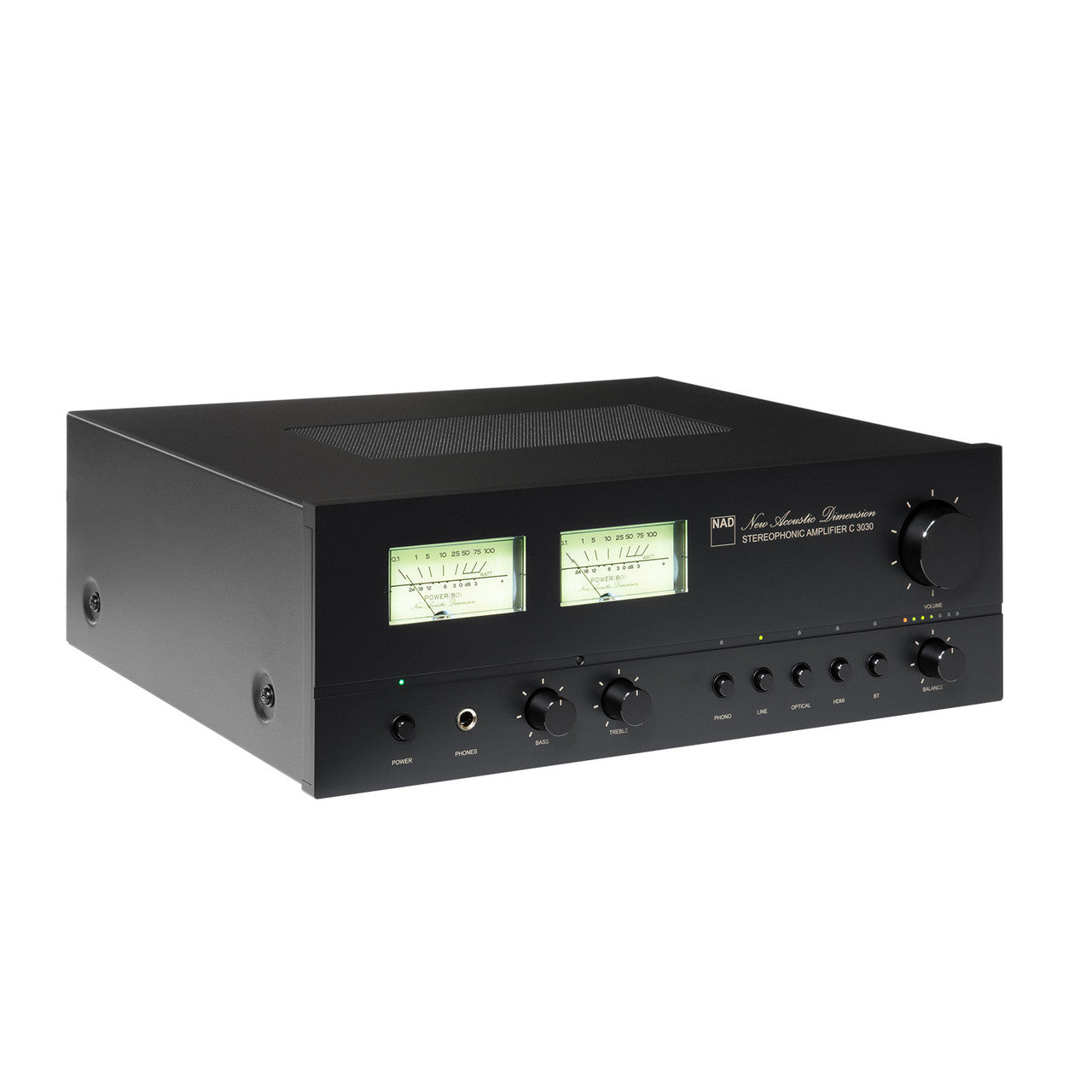

NAD C 3030 Integrated Amplifier

• 50 watts per channel of NAD amplification

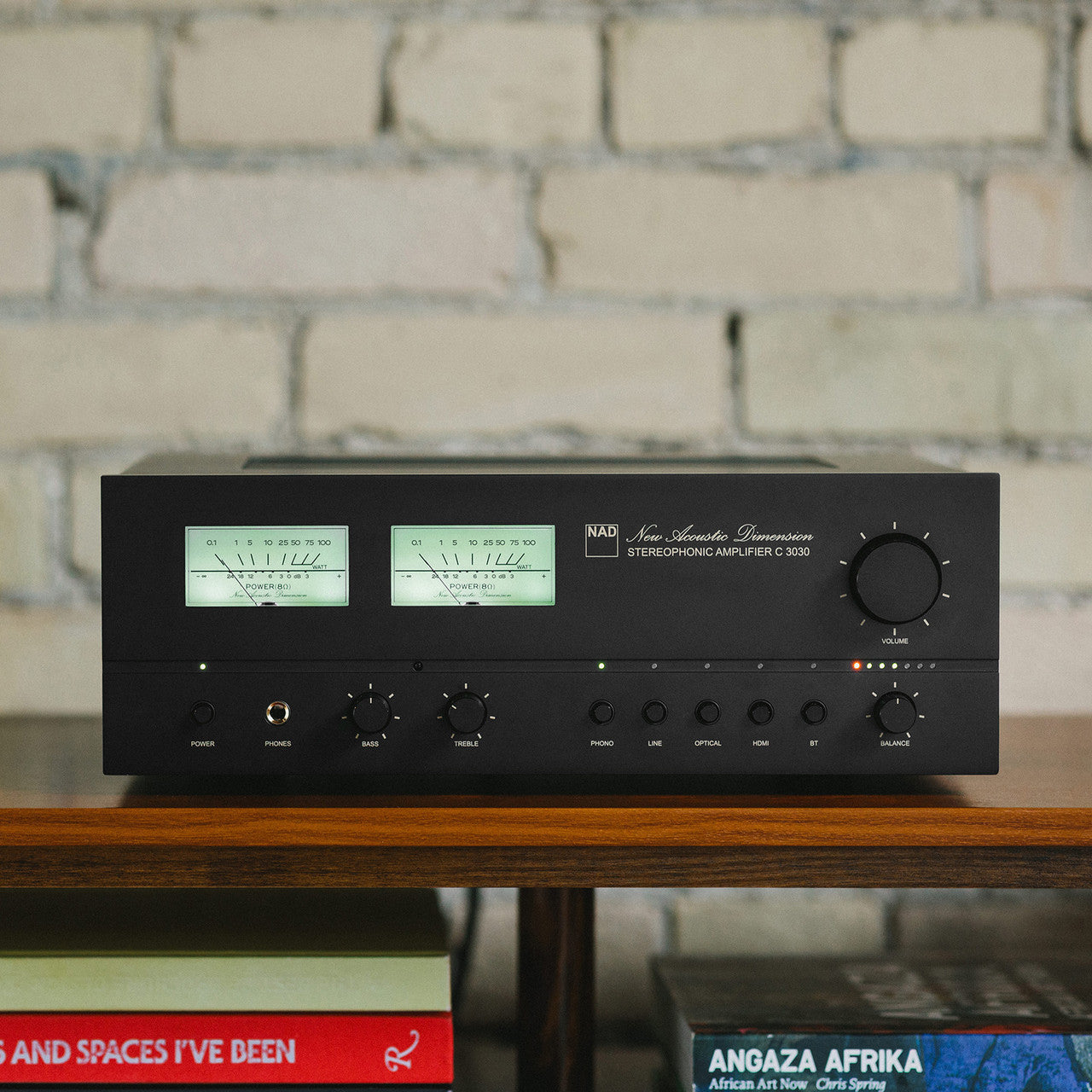

• Retro design details including VU meters and cursive NAD logo
• HDMI eARC for direct TV connection
• Built-in phono stage for turntables
• Bluetooth for wireless music streaming
• Bass-managed subwoofer output with optional 80Hz fixed high-pass filter
• Compact form factor for flexible placement

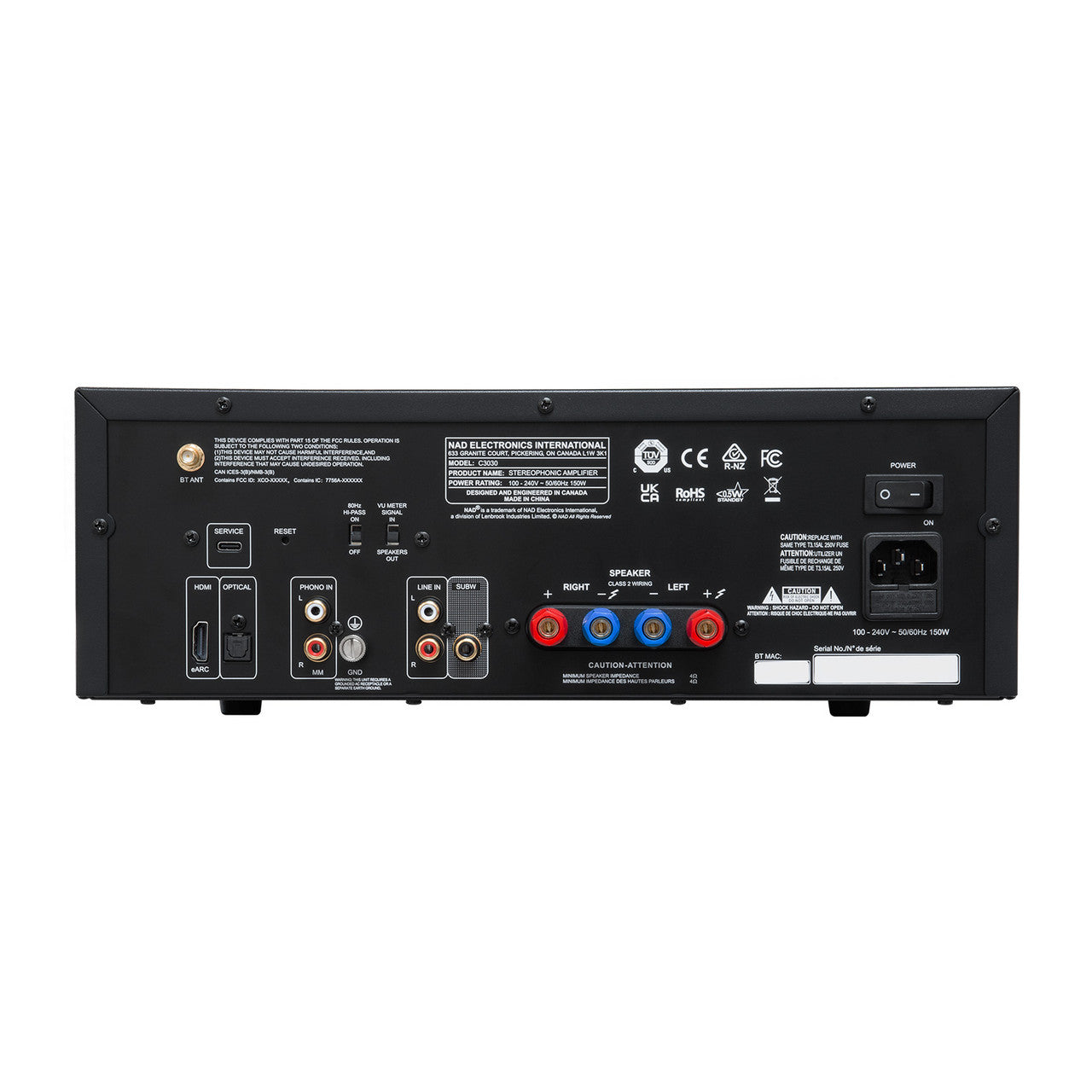

• 1x Phono input, 1x Line input, 1x Optical input, 1x HDMI, Bluetooth
• Headphone output
• Remote control included

Preamp Section: Line Input, Pre-Out (Analog Bypass On)

• THD (20 Hz – 20 kHz): <0.005 % at 4V out
• Signal-to-Noise Ratio: >90 dB (IHF; A-weighted, 500 mV out, unity gain)
• Input impedance (R and C): 28 kohms + 360 pF
• Maximum input signal: >5.7 Vrms (0.1 % THD)
• Output impedance: 345 ohms
• Input sensitivity: 100 mV (500 mV out, Volume maximum)
• Frequency response: 20 Hz - 20 kHz (±0.3 dB)
• Maximum voltage output: >5 V (0.1 % THD)

Preamp Section: Line Input, Pre-Out (Analog Bypass On)

• THD (20 Hz – 20 kHz): <0.005 % at 1V out
• Signal-to-Noise Ratio: >90 dB (32 ohms load; A-weighted, 1V out, unity gain)
• Frequency response: 20 Hz - 20 kHz (±0.3 dB)
• Channel Separation: >60 dB at 1kHz
• Output impedance: 2.2 ohms

Line In, Speaker Out

• Continuous output power into 8 ohms and 4 ohms: 50W (20 Hz-20 kHz at rated THD, both channels driven)
• THD (20 Hz – 20 kHz): <0.03 % (250 mW to 50 W, 8 ohms and 4 ohms)
• Signal-to-Noise Ratio: >90 dB (A-weighted, 500 mV input, 1 W out in 8 ohms)
• Clipping power: >70W (1 kHz 0.1 % THD, 4 ohms); >55W (1 kHz 0.1 % THD, 8 ohms)
• IHF dynamic power: 8 ohms: 120 W 4 ohms: 250W 2 ohms: 390 W
• Peak output current: >16A (1 ohm, 1 ms)
• Damping factor: >52 (20Hz to 6.5kHz, 50W 8 ohms)
• Frequency response: 20 Hz - 20 kHz (±0.3 dB)
• Channel separation: >75 dB (1 kHz); >70 dB (10 kHz)
• Input sensitivity (50 W in 8 ohms): 750 mV
• Frequency band: 2.402 G- 2.480 G
• Maximum transmit power: 7 dBm ± 2 dBm
• Power consumption, standby mode: 0.5 W

Line In, Speaker Out

• THD (20 Hz – 20 kHz): <0.05 % at 50W out
• Signal-to-Noise Ratio: >82 dB (10 mV in; A-weighted, 1W out)
• Input impedance (R and C): 46 kohms/100 pF
• Input sensitivity: 1.6 mV (20 Hz 50W out, Volume maximum)
• Frequency response: 20 Hz - 20 kHz (±0.3 dB); >16A (1 ohm, 1 ms) (Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50 kHz by a second order filter, such as used in Neumann cutting lathes.)
• Maximum input signal at 1 kHz: >15 mVrms (0.1 % THD)

Dimensions and Weight

• Dimensions (W x H x D): 14-1/8" x 5-1/8" x 13"
• Weight: 12.8 lb.
