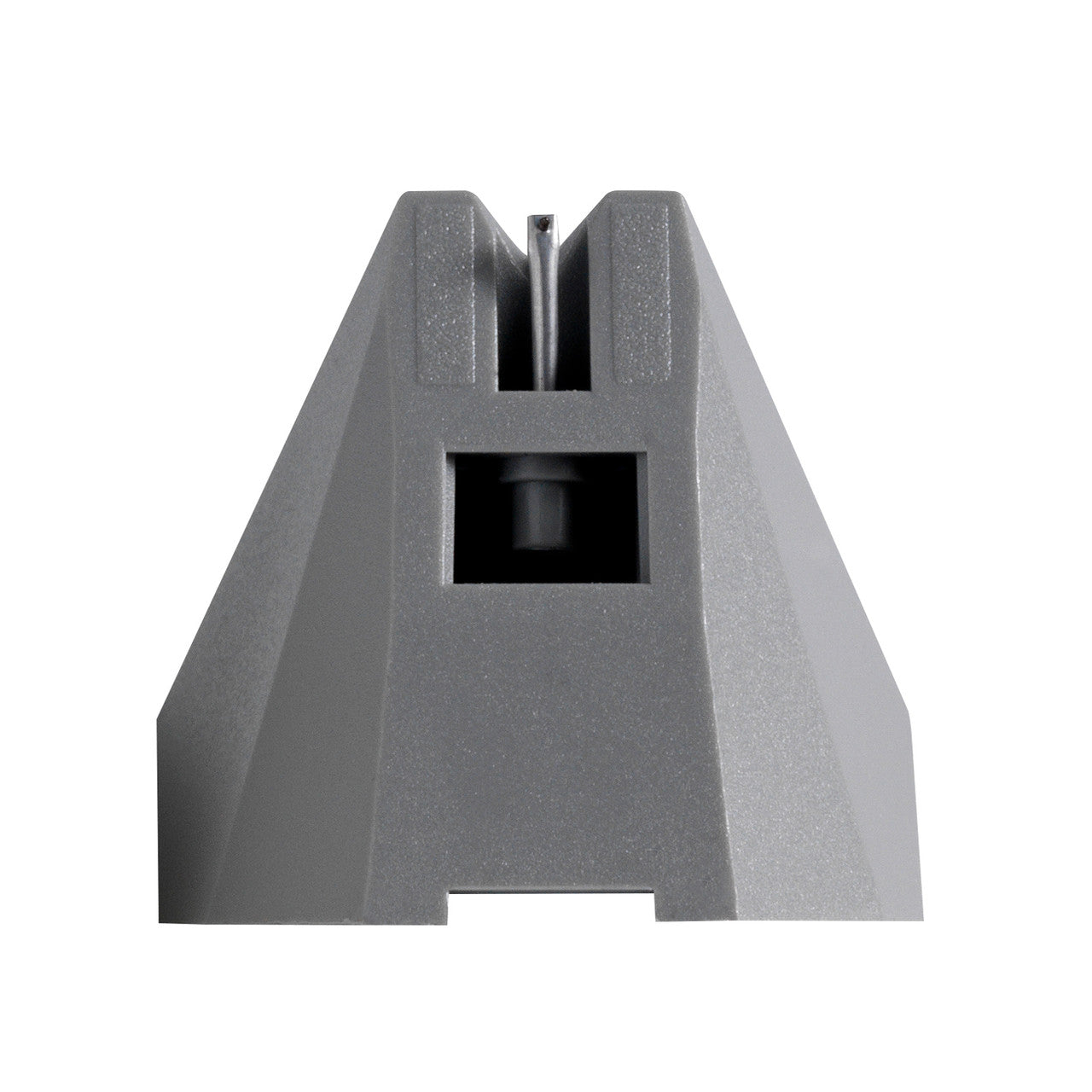

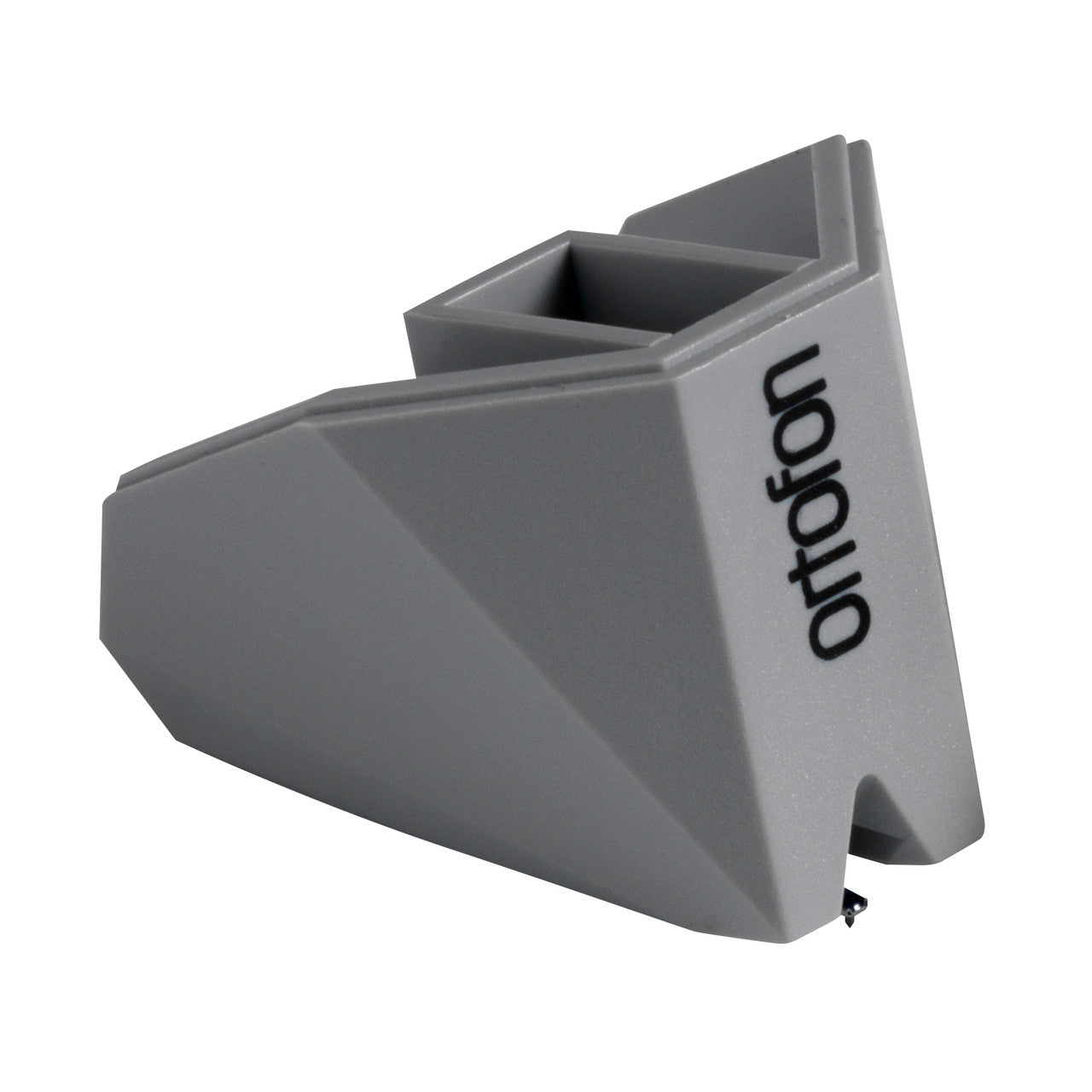

Ortofon 2M 78 Replacement Stylus

The 2M 78 Stylus — A Tip Cut for Shellac, Not for Microgroove

This is Ortofon's replacement stylus for playing 78 rpm records on a 2M cartridge. The diamond is spherical with a 65 µm radius, and Ortofon states plainly that it is “a replacement stylus for Ortofon 2M Mono and 2M 78.”

Sixty-five microns is roughly eight times the radius of a microgroove tip, and that is the point rather than a compromise. A 78's groove is far wider. A modern stylus drops to the bottom of it and reads damage and noise instead of music.

Fit, Profile and Compatibility

Which Bodies It Belongs On

Ortofon lists the Stylus 2M 78 for the 2M 78 and the 2M Mono. Those two share a group, so the same stylus fits either body — which is what lets one cartridge cover both a mono LP collection and a shellac one.

Ortofon states that the 2M series styli are interchangeable within three groups: Red, Blue and Silver; Bronze, Black and Black LVB 250; and the two mono variants, 2M Mono and 2M 78. The mono pair stands apart from the stereo groups, so a Red, Blue, Bronze or Black body is not where this belongs.

The Numbers That Matter at Setup

Ortofon specifies the spherical diamond at R 65 µm, dynamic lateral compliance of 18 µm/mN, tracking ability of 70 µm at 315 Hz, and 20 Hz – 20 kHz, +3/–1 dB. The stylus body is gray, which makes it easy to tell from a stereo assembly at a glance.

Tracking force runs 1.6 to 2.0 g, recommended 1.8 g. You will also need a turntable that actually turns at 78, and a phono stage or preamp that can be set away from the RIAA curve if you want the equalisation right.

Who Is the 2M 78 Stylus Best For?

• You play shellac — a 65 µm tip sits where the music is in a 78 groove, not in the wear at the bottom
• You own a 2M 78 — this is its matched replacement
• You own a 2M Mono — Ortofon lists the same stylus for both, so one body covers mono LPs and 78s
• You switch formats often — swapping the assembly takes seconds and needs no alignment
• Your body is a Red, Blue, Silver, Bronze or Black — this will seat but it is not the intended pairing; the stereo styli are in replacement styli

How Do You Fit It?

Pull the fitted assembly straight off the front of the body — it unclips by hand — and press this one on until it seats. Reset tracking force, then change the platter speed. On a 2M Mono body the swap back to a microgroove assembly is the same few seconds, and the body stays aligned throughout, which is why one cartridge can serve both libraries.

Pairs Well With

What most 78 players shop alongside.

• Stylus force gauges — how you set the 1.8 g this one asks for
• Speed controllers — for getting a deck to a true 78
• Stylus cleaning — what decides how long the new tip lasts
• Record cleaning solutions — a clean record is the cheapest stylus insurance there is

Frequently Asked Questions

Will it fit my cartridge?

Ortofon lists it for the 2M 78 and the 2M Mono. It will seat on a Red, Blue, Silver, Bronze or Black body, but those are stereo cartridges and take their own microgroove styli.

Why is the tip so much larger?

A 78's groove is far wider than a microgroove. A 65 µm sphere rides on the walls where the signal was cut, while a modern tip falls to the bottom of the groove and picks up debris and wear instead.

Can I play ordinary LPs with it?

It is cut for shellac, so keep it for 78s. Swapping back to a microgroove assembly takes a few seconds, which is the practical way to run both.

How long does a stylus last?

Around 1,000 hours is the usual figure, though it turns on how clean your records are and how accurately the cartridge is set up. A worn tip damages records, so replace it on schedule rather than by ear. Shellac is more abrasive than vinyl, so a 78 tip generally works harder for its hours.
