Ortofon 2M Red MM Replacement Stylus

The 2M Red Stylus — Replace Like for Like, or Take the Step Up

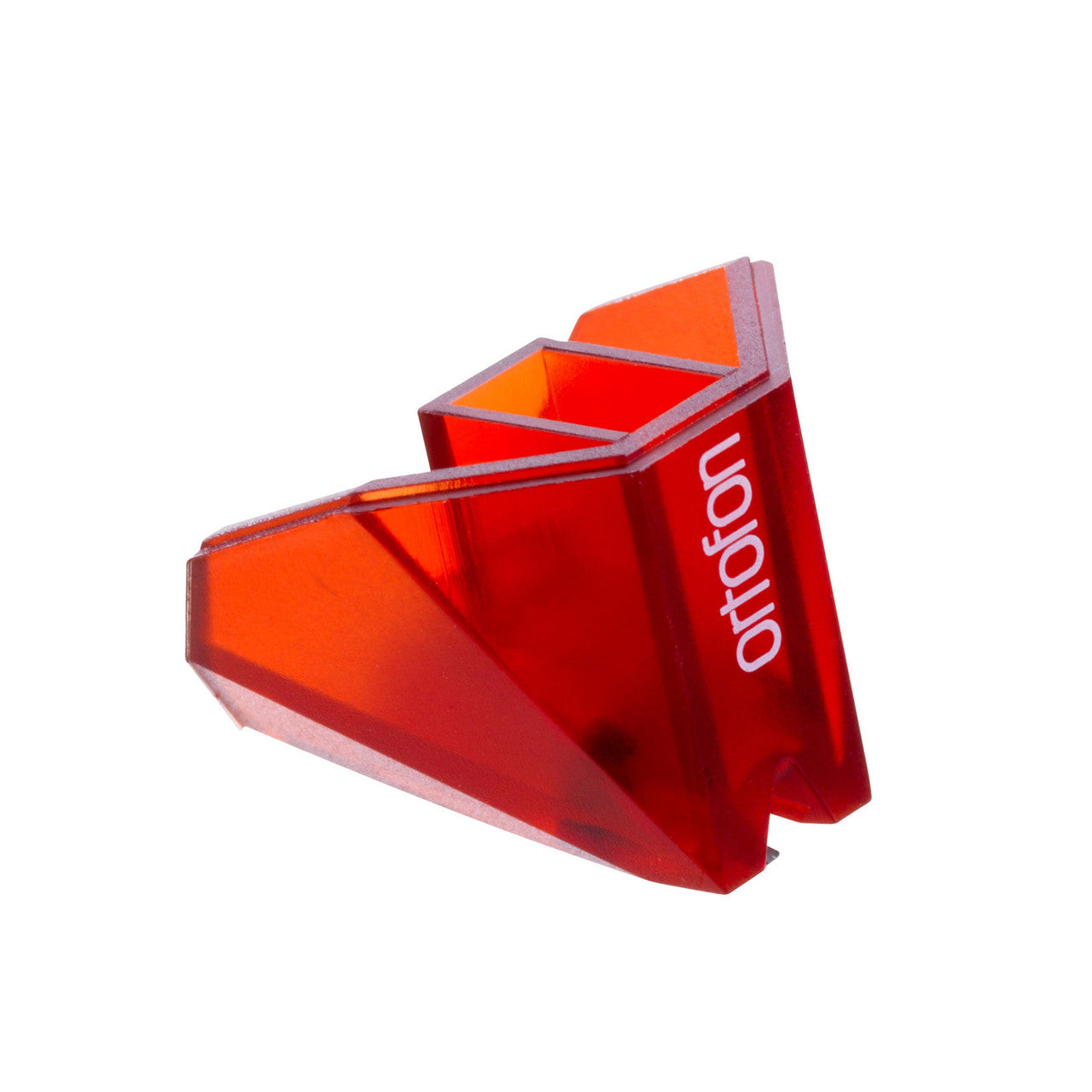

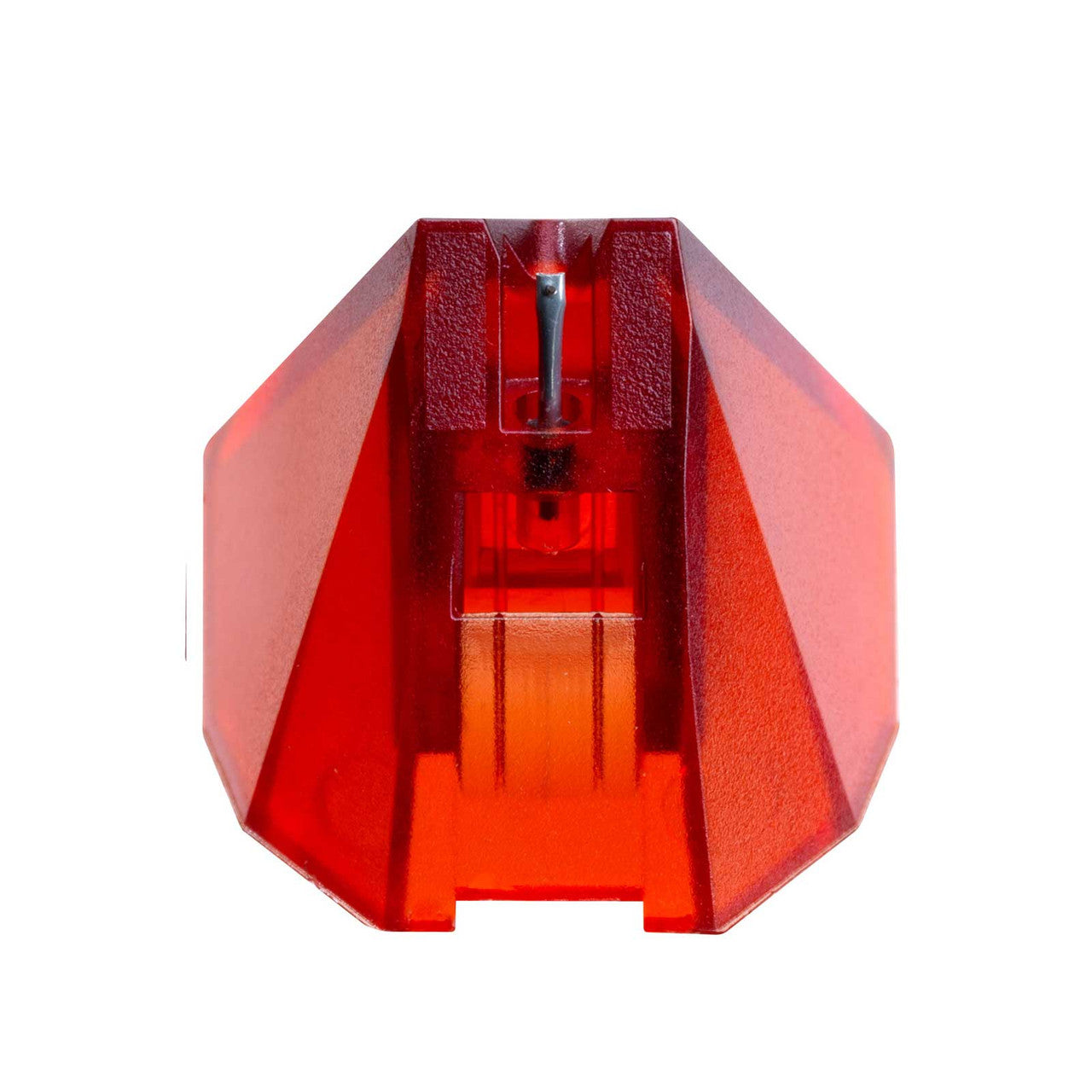

Ortofon's replacement stylus for the 2M Red moving magnet cartridge, sold singly. An elliptical diamond on Ortofon's own assembly, it clips onto the front of a 2M Red body and puts the cartridge back where it started.

It is worth knowing what else fits before you order. Ortofon groups the 2M range by which styli interchange, and the Red sits in a group with the Blue and the Silver. So a Red body will take a dearer stylus, and you have a genuine choice: restore, or upgrade.

Fit, Profile and Compatibility

Which Bodies It Belongs On

Ortofon recommends the Stylus 2M Red for three cartridges: the 2M Red, the 2MR Red and the 2M Red Premounted. Those are the bodies it was voiced against, and fitting it to one of them returns the cartridge to its published specification.

Ortofon states that the 2M series styli are interchangeable within three groups: Red, Blue and Silver; Bronze, Black and Black LVB 250; and the two mono variants, 2M Mono and 2M 78. Within a group any of them will fit and work as designed.

The Numbers That Matter at Setup

The diamond is elliptical with an 8/18 µm tip radius. Ortofon quotes dynamic lateral compliance of 20 µm/mN, tracking ability of 70 µm at 315 Hz, an equivalent stylus tip mass of 0.5 mg, and a frequency response of 20 Hz – 20 kHz, held to +3/–1 dB across the band.

Tracking force runs 1.6 to 2.0 g, with 1.8 g recommended. That is the single setting to revisit after fitting, because a fresh assembly need not weigh exactly what a worn one did, and the arm cannot know you changed anything.

Who Is the 2M Red Stylus Best For?

• Your 2M Red is worn — a stylus is a consumable, and this costs a fraction of a new cartridge
• You run a 2MR Red or 2M Red Premounted — both are on Ortofon's recommended list
• You want the original voicing back — this is the tip the cartridge was measured with
• You would rather not realign anything — the stylus clips on and off the front, so the body never leaves the headshell
• You have a Bronze, Black, 78 or Mono body — this one will physically seat but it is not the matched pairing; each takes its own stylus, all of them in replacement styli

How Do You Fit It?

The cartridge stays on the headshell. Pull the old assembly straight off the front of the body — it unclips by hand, with no tool — and press the new one on until it seats. Overhang and offset never move, so tracking force is the only setting to revisit. Worth noting while you have the arm in your hands: because the Red shares its group with the Blue, Ortofon lists the Blue stylus as the upgrade for this body, and a worn Red is the cheapest moment to decide.

Pairs Well With

What most owners replacing a stylus shop next.

• Stylus force gauges — how you set the 1.8 g this one asks for
• Stylus cleaning — what decides how long the new tip lasts
• Record cleaning solutions — a clean record is the cheapest stylus insurance there is
• Phono cartridges — if the body is damaged rather than the tip

Frequently Asked Questions

Will it fit my cartridge?

Ortofon recommends it for the 2M Red, the 2MR Red and the 2M Red Premounted. A Bronze, Black, 78 or Mono body will accept it physically, but each of those takes its own stylus.

Can I fit a Blue stylus to my Red body instead?

Yes — Ortofon groups Red, Blue and Silver as interchangeable and names the Blue stylus as the upgrade for a Red. You keep the body and the alignment, and change only the diamond.

What tracking force should I set?

Ortofon specifies 1.6 to 2.0 g and recommends 1.8 g. Set it after fitting rather than assuming the old figure still applies.

How long does a stylus last?

Around 1,000 hours is the usual figure, though it turns on how clean your records are and how accurately the cartridge is set up. A worn tip damages records, so replace it on schedule rather than by ear.
