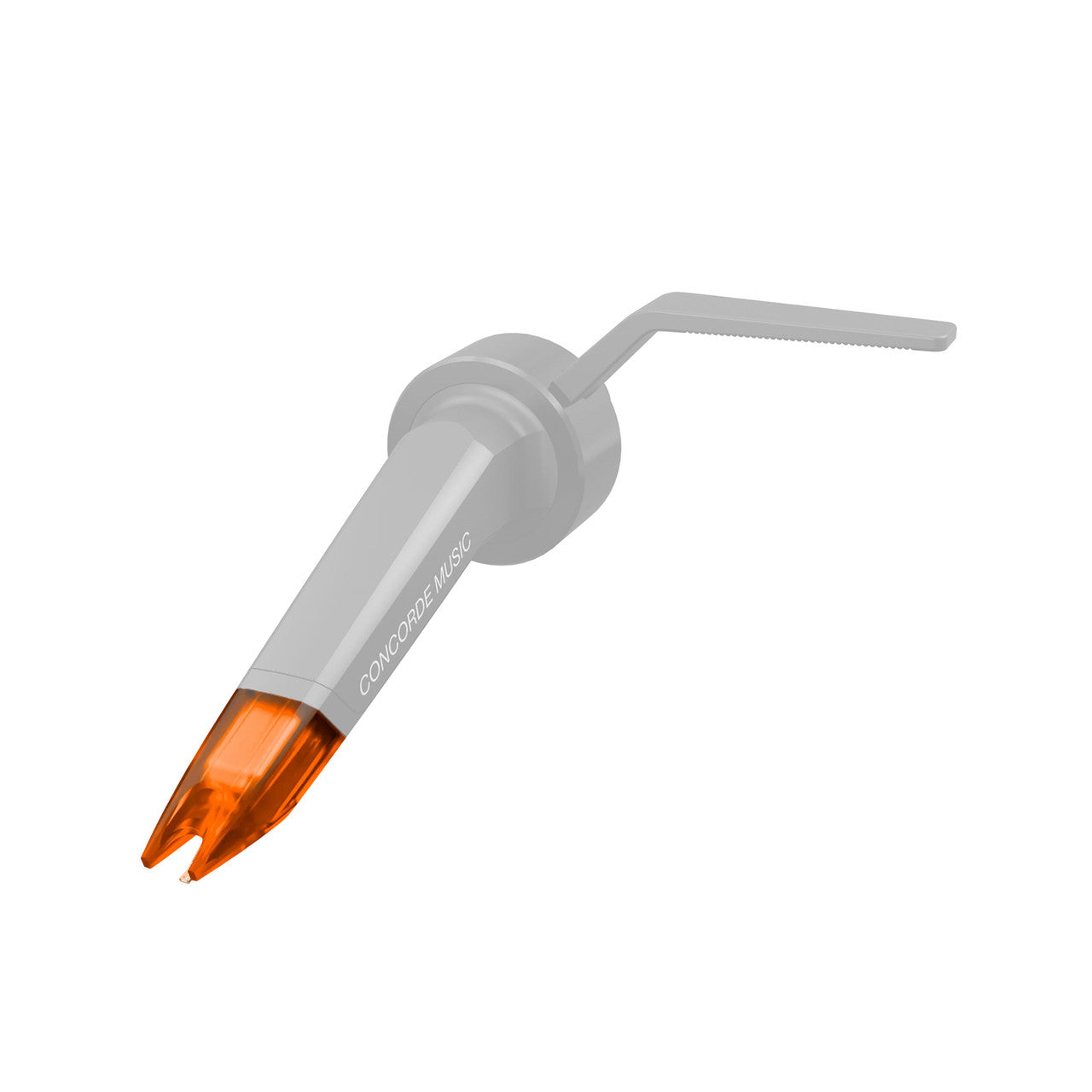

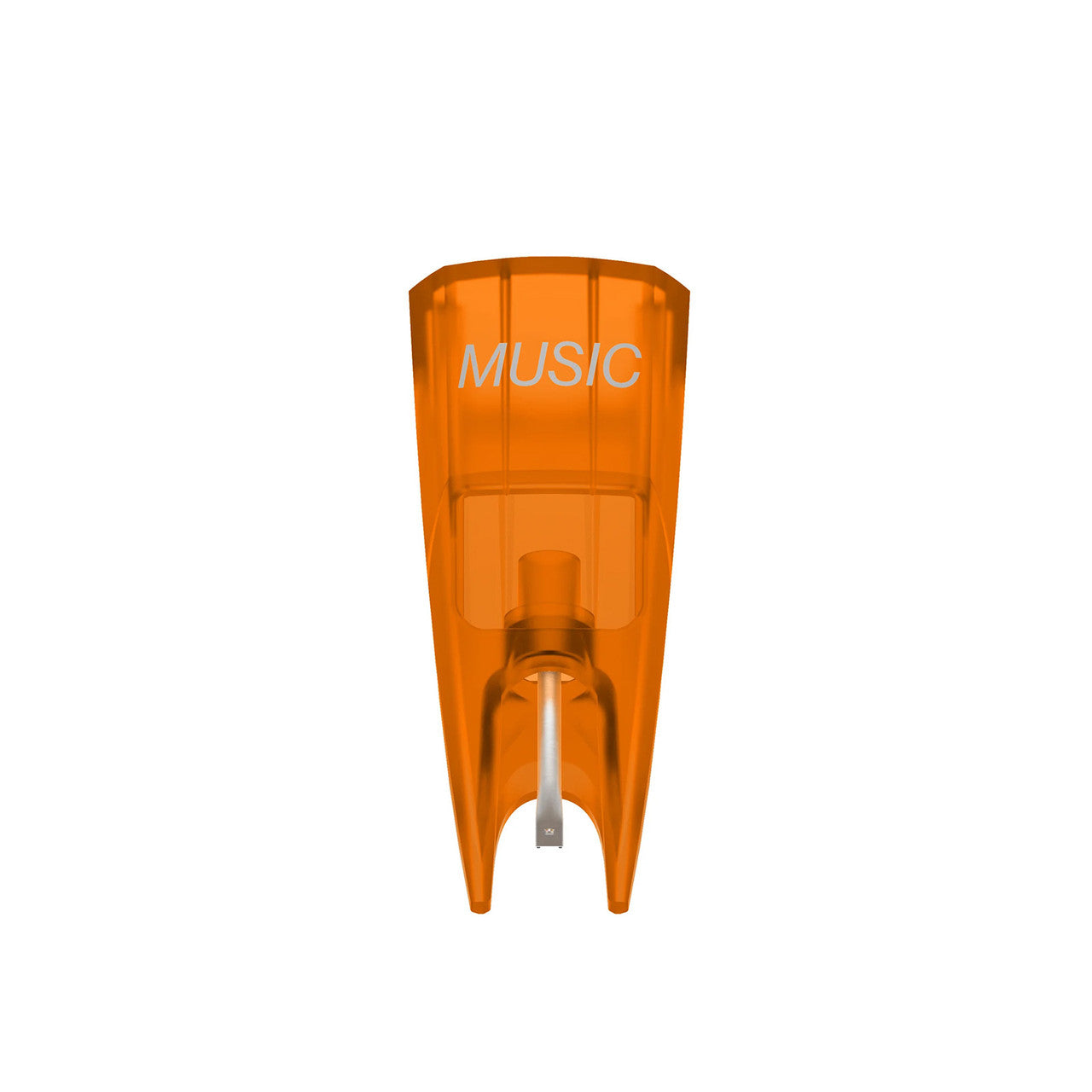

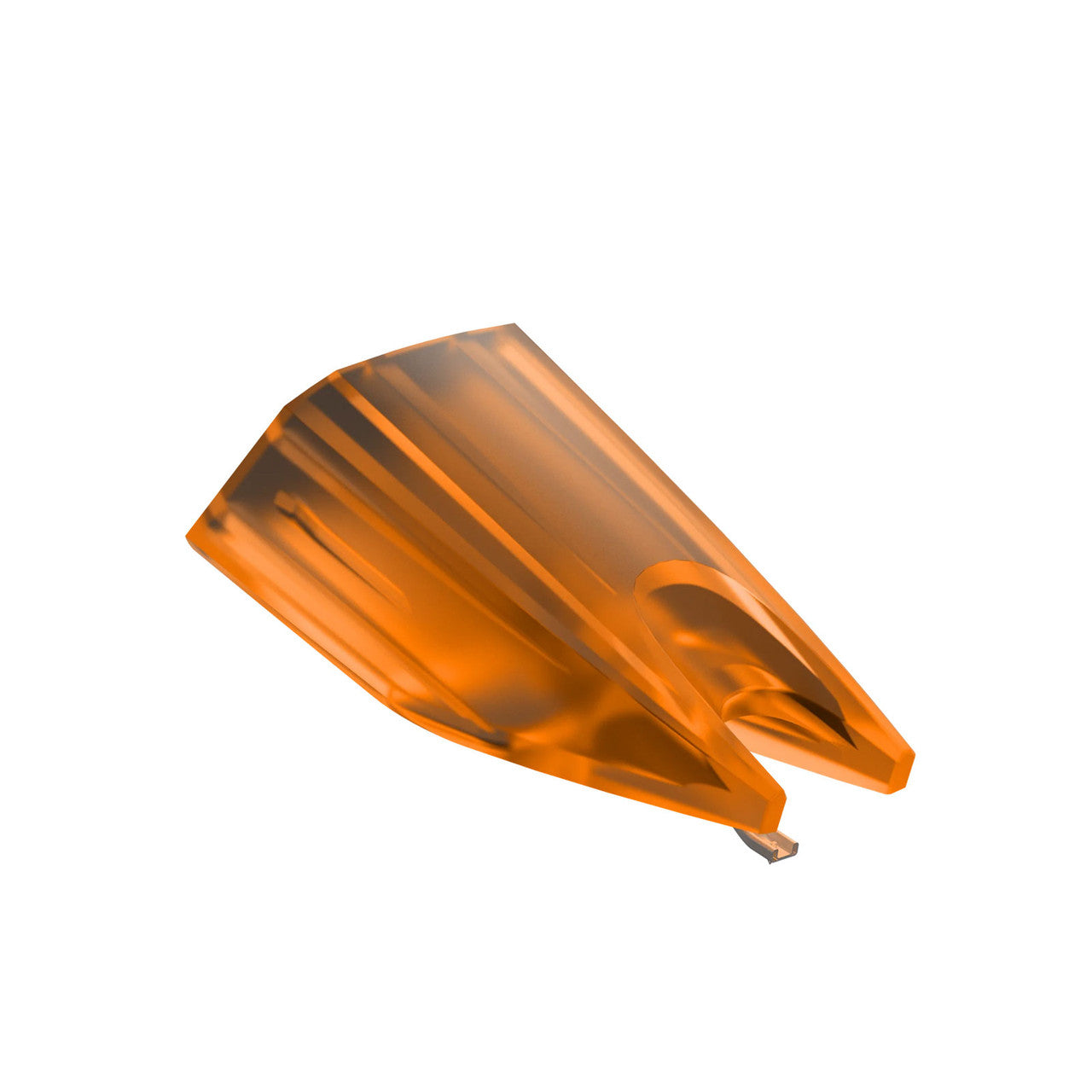

Ortofon Concorde Music Bronze Replacement Phono Stylus

The Concorde Music Bronze Stylus — Fine Line, and a Wider Contact Line

Ortofon's replacement stylus for the Concorde Music range, sold singly. This is where the range leaves elliptical geometry: the diamond is a nude Fine Line specified at 8/40 µm rather than 8/18 µm.

Ortofon describes it as “offering an upgrade from the Concorde Music Blue, and serving as a replacement for all Concorde Music cartridge models.” The mount has not changed, so any body in the range accepts it.

Fit, Profile and Compatibility

Which Bodies It Belongs On

Ortofon lists it as a replacement for all Concorde Music cartridge models. A single mount runs through the range, so the rung you fit is a decision about budget rather than about compatibility.

The second figure in the radius is the one that moved, from 18 µm to 40 µm. That turns a short contact patch on the groove wall into a long, narrow one — reaching modulation an elliptical rides over, and spreading wear across more of the surface.

The Numbers That Matter at Setup

On a Concorde Music Bronze body Ortofon publishes 26 dB of channel separation, channel balance within 1 dB rather than 1.5 dB, and a frequency response of 20 Hz – 20 kHz held to +2/0 dB. The cantilever is aluminum.

Tracking force is 1.8 g and the complete cartridge weighs 18 g. A Fine Line profile reads a narrower band of the groove wall than an elliptical, so it is worth setting that weight with a gauge rather than by the dial.

Who Is the Concorde Music Bronze Stylus Best For?

• Your Concorde Music Bronze is worn — restoring the Fine Line tip costs a fraction of the cartridge
• You own a Concorde Music Blue — Ortofon names this the upgrade from it, on the body you already have
• You care about groove wear — a 40 µm side radius spreads contact along the wall instead of concentrating it
• You want tighter channel balance — 1 dB published here against 1.5 dB lower in the range
• Your cartridge is a Concorde MkII or MkI — distinct ranges on their own mounts, and each takes its own styli; theirs are in replacement styli

How Do You Fit It?

Because the Concorde body is its own headshell, no alignment is involved at any point — not when you bought it, and not now. Take the old assembly off the front, press this one on until it seats, and set tracking force to 1.8 g with a gauge.

Pairs Well With

What most Concorde Music owners shop alongside.

• Stylus force gauges — how you set the 1.8 g this one asks for
• Stylus cleaning — what decides how long the new tip lasts
• Record cleaning solutions — a clean record is the cheapest stylus insurance there is
• Record brushes — a pass before each side keeps grit out of the groove

Frequently Asked Questions

Will it fit my cartridge?

Ortofon lists it as a replacement for all Concorde Music models. The Concorde MkII and Concorde MkI ranges are separate families and take their own styli.

What does Fine Line change against an elliptical?

The leading radius stays at 8 µm while the side radius widens to 40 µm. The tip then holds a long, narrow line up the groove wall rather than a short patch.

Is this an upgrade from a Concorde Music Blue?

Ortofon says so. Channel separation goes from 25 dB to 26 dB, channel balance tightens to 1 dB, and the response holds to +2/0 dB — all on the body you already own.

How long does a stylus last?

Around 1,000 hours is the usual figure, though it turns on how clean your records are and how accurately the cartridge is set up. A worn tip damages records, so replace it on schedule rather than by ear.
