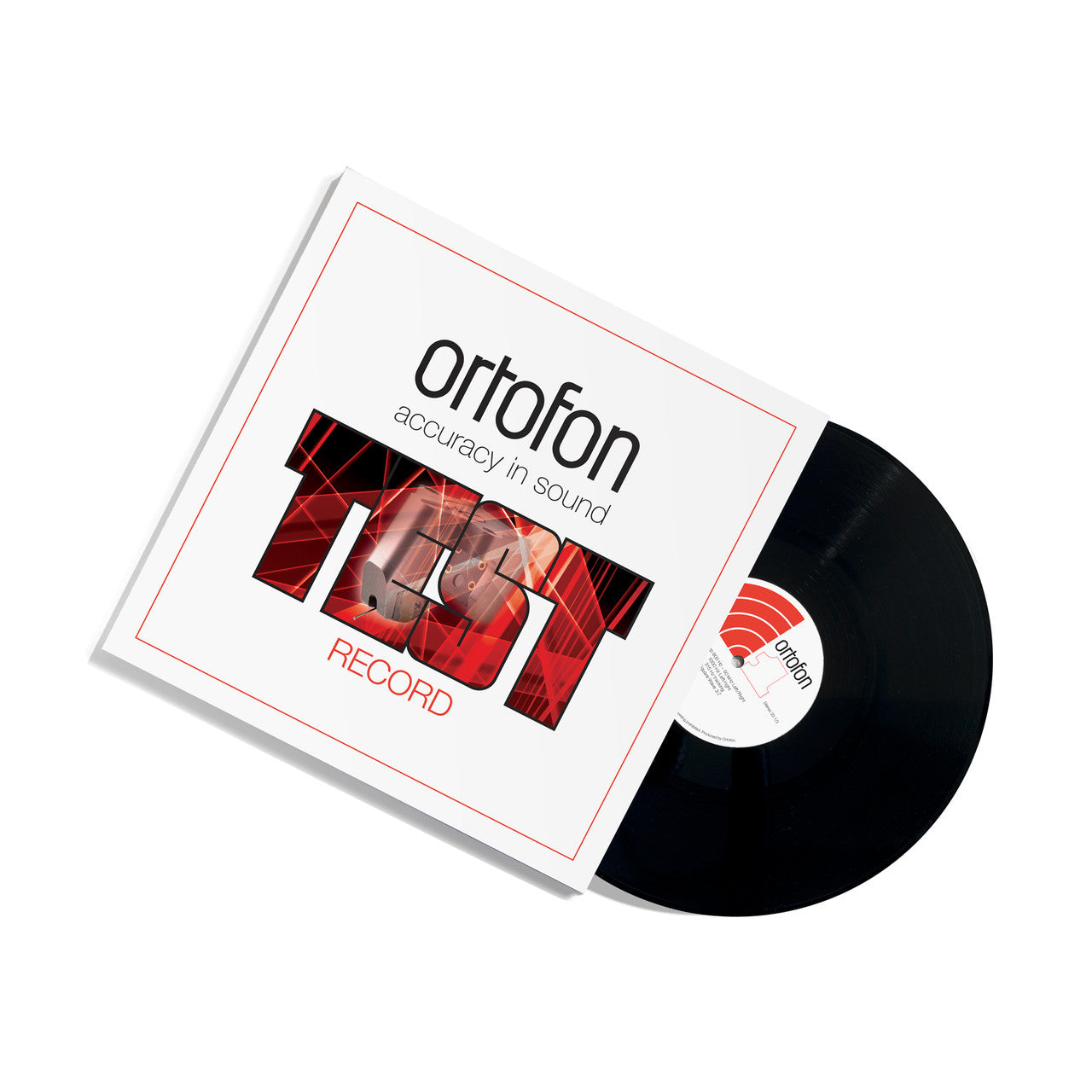

Ortofon Test Record
Ortofon’s Test Record is designed to allow you to verify your stereo hi-fi system in the most natural audio surroundings at home.
Each side of the 33-1/3 rpm stereo test record consists of 15 tracks which have been cut from 1-4 and 5-15:
- Frequency Sweep Left Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
- Frequency Sweep Right Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
- Frequency Sweep Left Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
- Frequency Sweep Right Channel 800 Hz – 50 kHz. Log. 28 sec. Linear cut* (800 – 20000 Hz ±1,5 dB)
- Reference tone 1000 Hz 5 cm/sec rms Left
- Reference tone 1000 Hz 5 cm/sec rms Right
- Reference tone 1000 Hz 5 cm/sec rms Left
- Reference tone 1000 Hz 5 cm/sec rms Right
- Tracking ability, lateral 50 μm peak
- Tracking ability, lateral 60 μm peak
- Tracking ability, lateral 70 μm peak
- Tracking ability, lateral 80 μm peak
- Tracking ability, lateral 90 μm peak
- Tracking ability, lateral 100 μm peak
- Square Wave Form 2.7 msec duty cycle 3:7
* The record has a constant velocity amplitude throughout the sweep.
