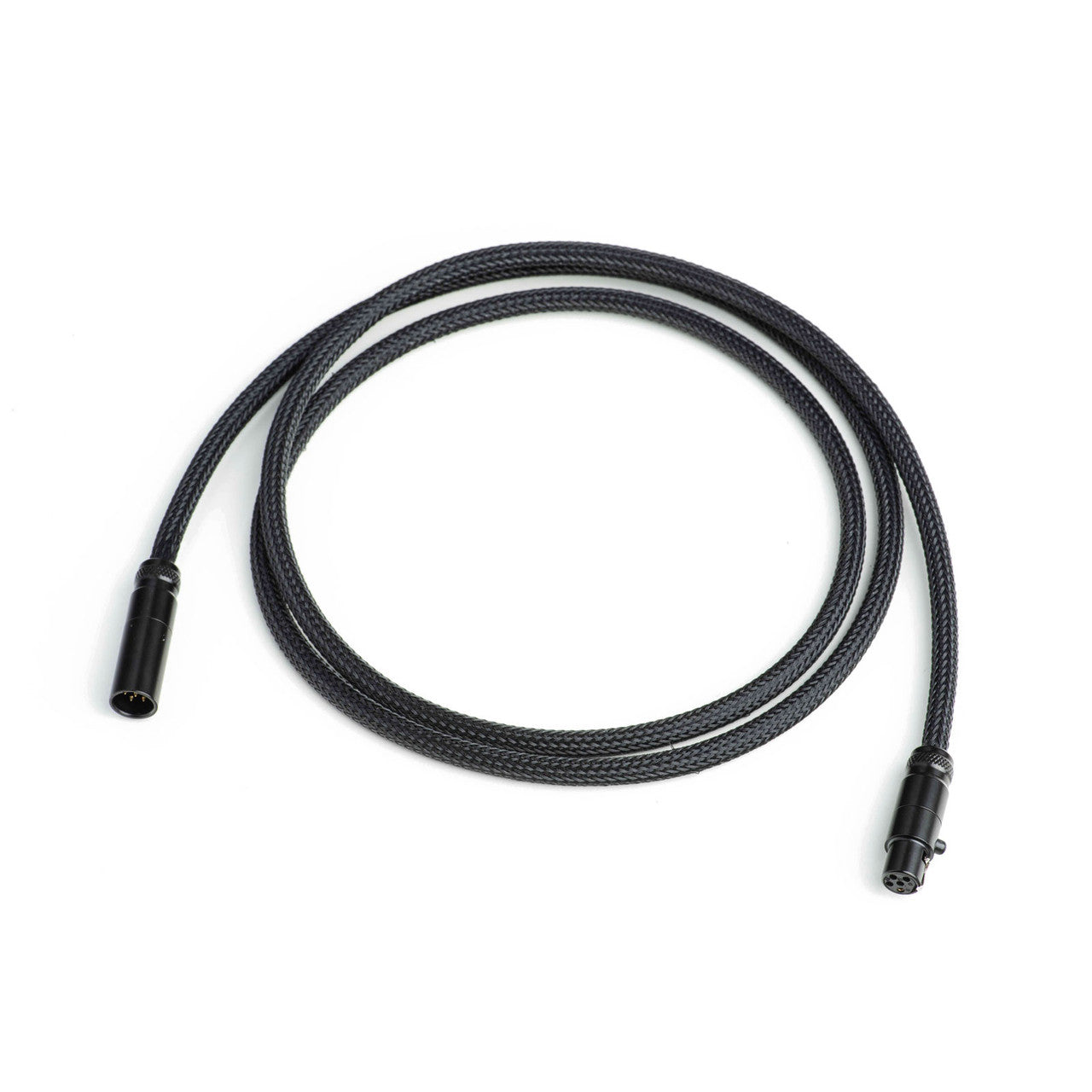

Pro-Ject Connect It Phono S Turntable Cable - 1.23 Meter - Mini XLR to Mini XLR

Pro-Ject Connect It Phono E, S, and DS Cables

A tonearm cable carries the phono signal from a turntable to a phono preamplifier, one of the most noise-sensitive links in the whole vinyl chain, since the signal here is far weaker than a line-level source. A premium cable differs from the plain lead a turntable ships with in conductor quality and shielding.

Pro-Ject's Connect It phono cables use a True Balanced mini-XLR plug on the tonearm end of decks built with a detachable lead, in a choice of conductor and shielding builds across the E, S, and DS lines. The DS line is also sold with a full-size XLR plug at the phono-stage end for gear that doesn't use mini-XLR.

Three Conductor Builds: E, S, and DS

Pro-Ject says Connect It E uses 99.99% OFC copper conductors (130 pF cable capacitance at 1.23m) with gold-plated brass connectors; Connect It S uses oxygen-free copper for lower capacitance (100 pF) with gold-plated phosphor-bronze connectors; Connect It DS uses high-purity OFC copper for the lowest capacitance of the three (90 pF) with silver-plated signal pins.

Shielding Differs by Line

Connect It E uses a tin-plated copper shield in a transparent PVC jacket, Pro-Ject says; Connect It S uses a flexible polyethylene dielectric in a thermoplastic elastomer jacket; Connect It DS uses a helical OFC copper shield with a carbon-saturated conductive sub-jacket, for both protection and flexibility over the run.

The Connectors, Explained

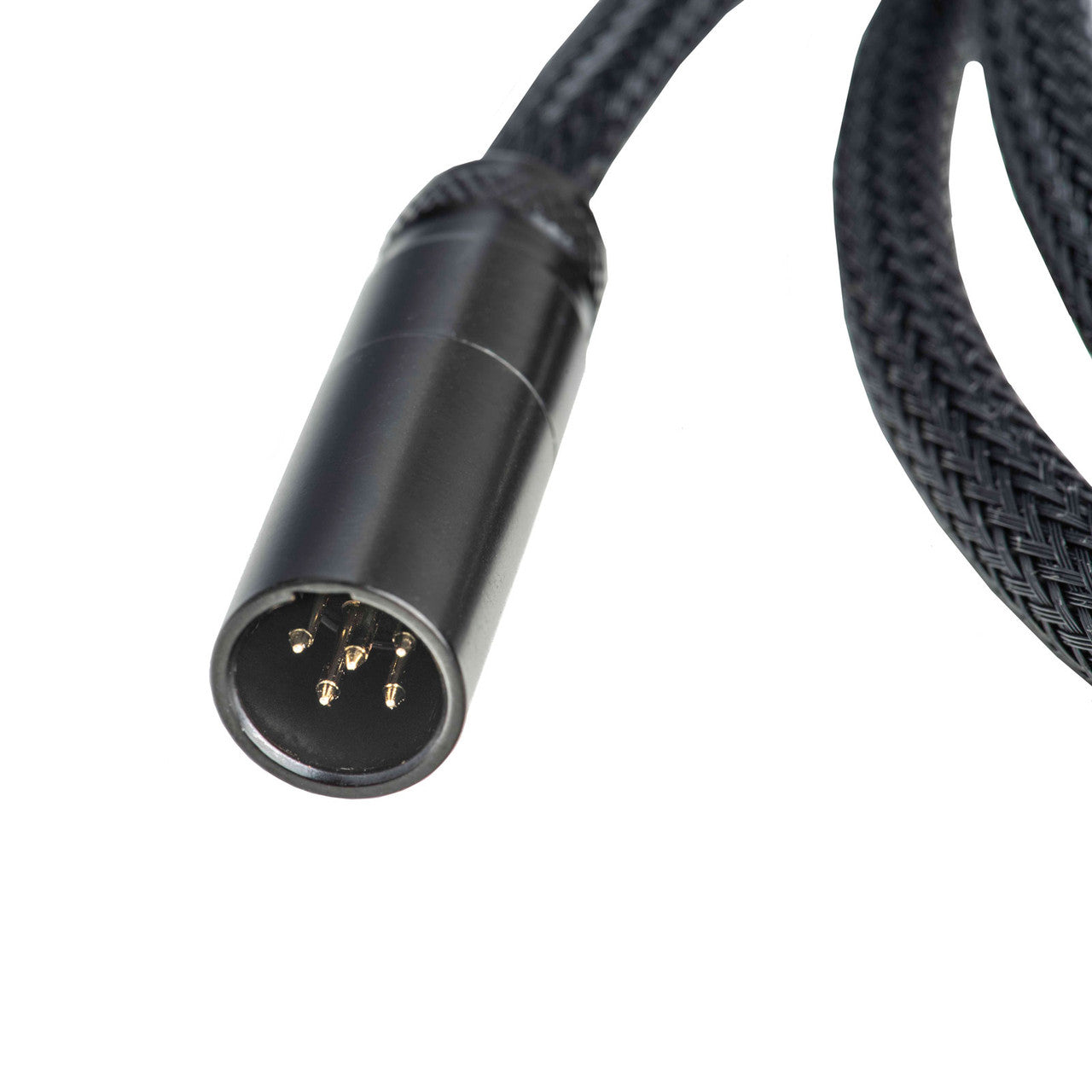

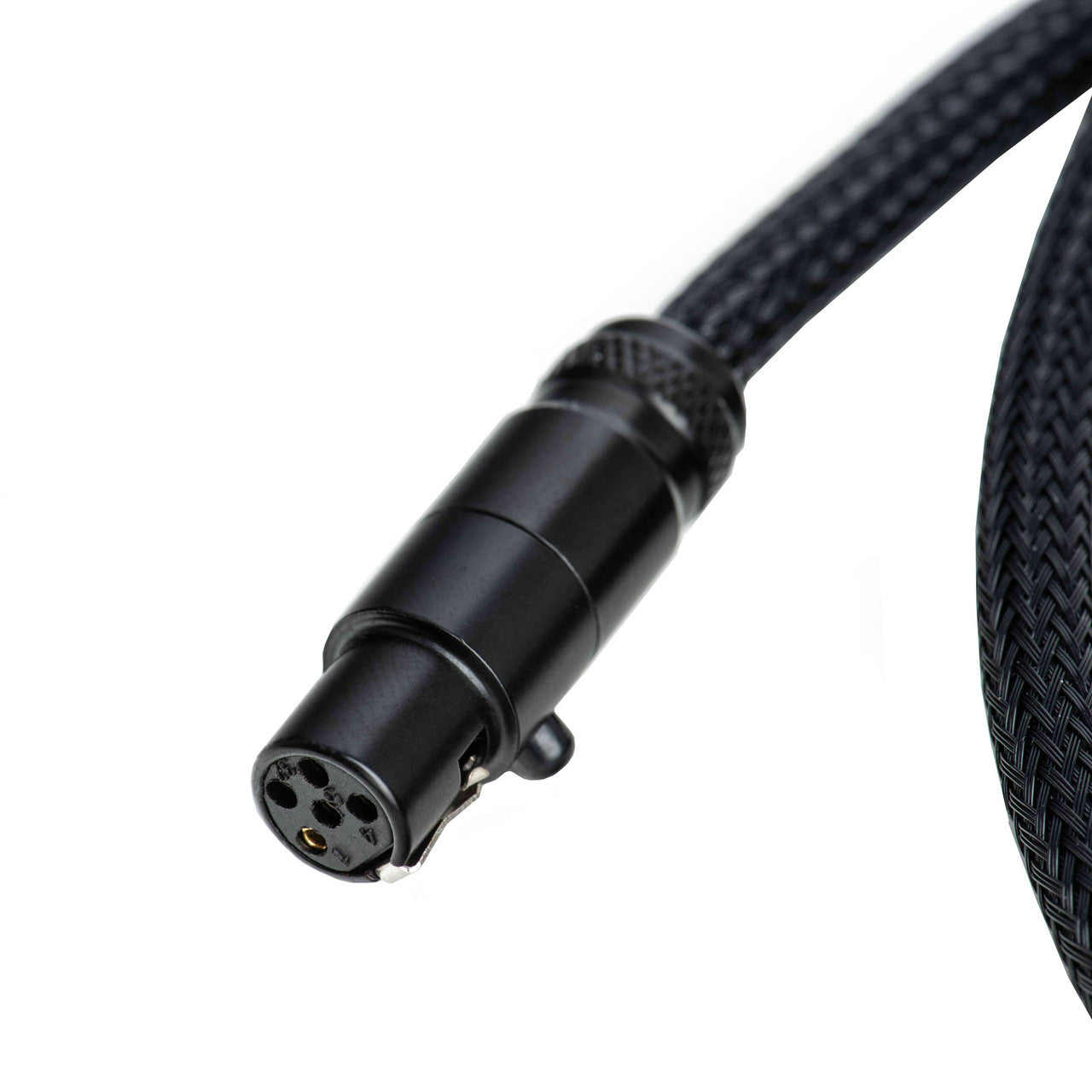

The E, S, and DS mini-XLR-to-mini-XLR versions terminate in Pro-Ject's True Balanced mini-XLR plugs on both ends. The DS line is also available with a full-size XLR plug at the phono-stage end, paired with either a mini-XLR or a conventional 5-pin DIN plug at the tonearm end.

Who Is This Cable Best For?

• Your Pro-Ject turntable has a detachable mini-XLR tonearm lead and your phono stage takes mini-XLR too — the E, S, or DS mini-XLR-to-mini-XLR version connects that lead straight to your phono stage
• Your phono stage takes a balanced XLR input instead of mini-XLR — Connect It DS is available with a full-size XLR plug at the phono-stage end, paired with a mini-XLR or 5-pin DIN plug at the tonearm end
• You want the lowest cable capacitance available in this line — Connect It DS's 90 pF is the lowest of the three, with silver-plated signal pins
• You want a straightforward, accessible upgrade over a stock lead — Connect It E is Pro-Ject's entry point, built around 99.99% OFC copper
• Your turntable uses RCA tonearm connectors instead — check your turntable's actual tonearm socket before ordering; Connect It only fits decks with a mini-XLR or 5-pin DIN tonearm socket

How Does It Connect to Your System?

For the mini-XLR-to-mini-XLR version, connect both ends to your turntable's detachable tonearm socket and your phono preamplifier's mini-XLR input. For the XLR-terminated DS versions, connect the tonearm end (mini-XLR or 5-pin DIN) to your turntable, and the full-size XLR end to your phono preamplifier's balanced input.

Then power up the system as usual. Other and longer lengths available. Call for prices.

Pairs Well With

A tonearm cable is one link in the vinyl playback chain. It usually joins these categories.

• Turntables — the source of the signal or ground point this cable connects to
• Phono Preamplifiers — the usual destination at the other end of this cable
• Phono Cartridges — the cartridge is what actually generates the signal this cable carries
• Stereo Amplifiers — many integrated amps include a built-in phono stage of their own

Frequently Asked Questions

Does direction matter when I connect this cable?

Where a maker marks a direction on a tonearm cable's conductors, connect it running from the turntable end toward the phono stage as marked, so induced noise drains away from the circuits it would otherwise disturb.

Is Connect It balanced or unbalanced?

Balanced. Pro-Ject describes its mini-XLR plugs as True Balanced connectors, carrying a fully balanced signal rather than the single-ended connection a standard RCA or DIN plug provides.

What does cable capacitance affect?

Lower capacitance keeps a phono cartridge's frequency response more accurate over the cable run; Pro-Ject engineers each Connect It line for a specific capacitance figure, from 130 pF on E down to 90 pF on DS.

What's the difference between the three lines' connectors?

E uses gold-plated brass, S uses gold-plated phosphor-bronze, and DS uses silver-plated signal pins, which Pro-Ject says offers higher conductivity and the lowest contact resistance of the three.
