A Balanced Headphone Amp With Real Adjustment
Headphones vary more than speakers. An in-ear monitor and a 600-ohm studio headphone need very different things from an amplifier. The Pro-Ject Head Box DS2 B gives you the controls to match either. Four gain settings and three current settings let you tune the output stage to the load.
It is a dual-mono design. Each channel has its own TPA6120A2 output stage. A phase inverter at the input converts an RCA source to balanced, so every headphone benefits from the balanced circuit. Output is 550 milliwatts per channel into 33 ohms. Signal-to-noise is 98 dB.

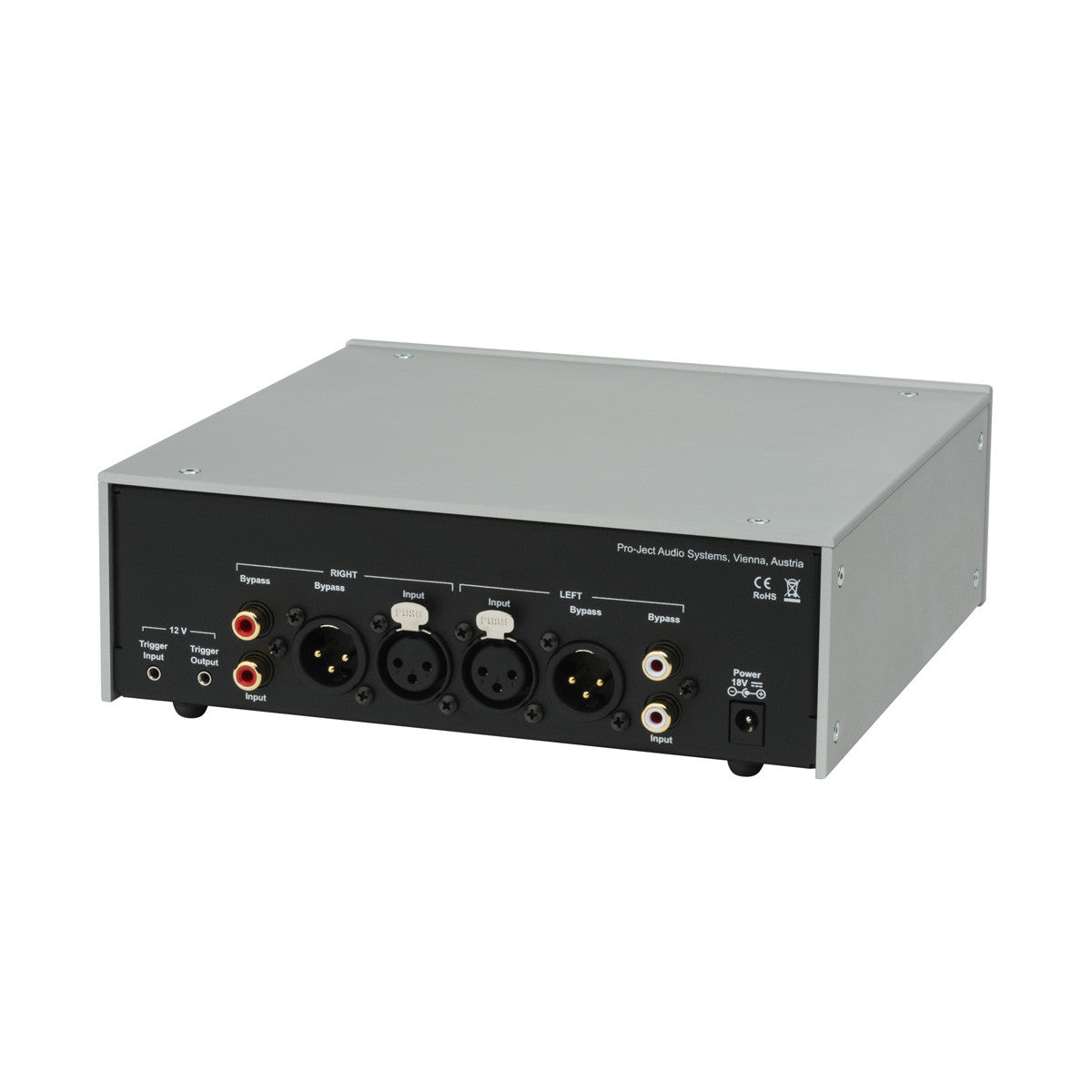

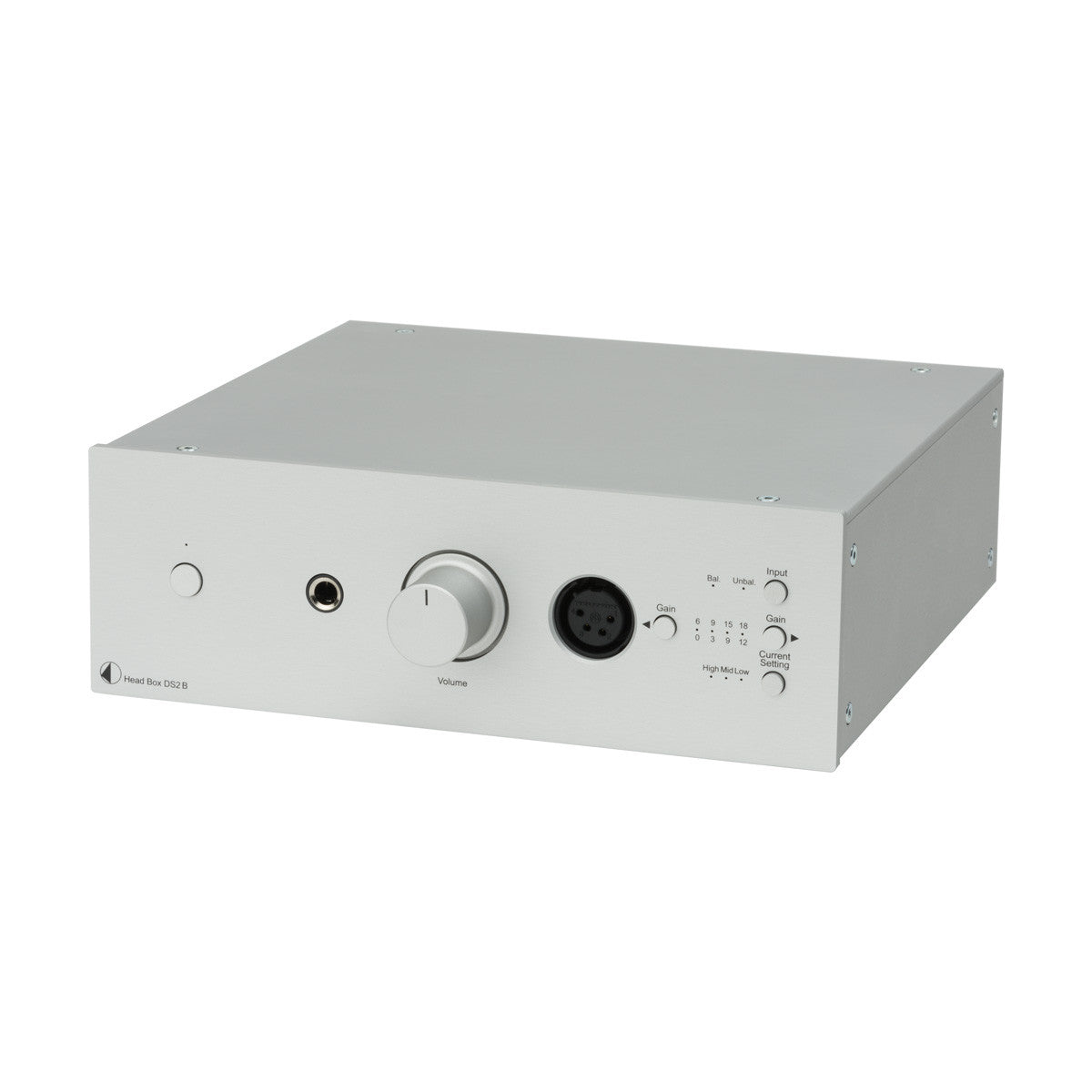

A 4-pin XLR balanced output and a 6.3mm jack sit on the front, and both can be used at once. Balanced XLR and RCA inputs take your source. XLR and RCA loop outputs pass the signal on to a power amp or recorder, and 12-volt trigger jacks tie it into a system.
Pro-Ject Build, Compact Size
Volume runs through a blue ALPS potentiometer. The chassis is aluminum, 8.1 inches wide, 2.8 tall and 8.6 deep, weighing 3.2 pounds. It is available in silver or black, with optional wooden side panels. An 18-volt external supply powers it, and standby draw is under half a watt.
What Reviewers Are Saying
Ashley of Audio Appraisal reviewed the Head Box DS2 B on October 27, 2017 and gave it a "thoroughly deserved recommendation." He found that "perhaps the Head Box's biggest trait is musicality."
In the same review, Ashley's criticisms were that the bundled power supply is basic and that he would have liked a remote.
Who Is This Amplifier Best For?
- You own headphones with a 4-pin XLR cable — a true balanced output from a dual-mono circuit
- You own several very different headphones — four gain and three current settings match in-ears and 600-ohm models alike
- You want it to fit into a system — loop outputs and 12-volt triggers let it sit between a DAC and a power amp
- You listen with a partner — both headphone outputs work at the same time
- You want more than 550 milliwatts for planars — the DS2 B is modest in raw power, so a higher-output design from our headphone amplifiers is the better fit
How Does It Connect to Your System?
Connect a DAC or preamp to the XLR or RCA inputs. Plug headphones into the 4-pin XLR or the 6.3mm jack. Set gain and current to match them: low for in-ears, higher for demanding full-size headphones.
To pass the signal on, connect the XLR or RCA loop outputs to a power amplifier. The 12-volt trigger turns it on with the rest of the system.
Pairs Well With
Building your system? Here are some great companions for the Head Box DS2 B:
- Headphones: Dynamic headphones from 8 to 600 ohms — see our Headphones
- Headphone Cables: A 4-pin XLR cable for the balanced output — see our Headphone Cables
- DAC: Balanced XLR out to the DS2 B's XLR in — see our Digital-to-Analog Converters
- Interconnects: XLR or RCA, in and out — see our Interconnect Cables
Frequently Asked Questions
How much power does it have?
550 milliwatts per channel into 33 ohms with both channels driven. Pro-Ject recommends headphones from 8 to 600 ohms.
What do the current settings do?
They change how much current the output stage can deliver, so you can match it to the headphone's load for the cleanest sound.
Can I use both headphone outputs at once?
Yes. The 4-pin XLR and 6.3mm outputs work together.
What are the loop outputs for?
They pass the input signal through to a power amplifier or recorder, so the DS2 B can sit inside a larger system.
Does it have a DAC?
It is an analog headphone amplifier.
What's the warranty?
Pro-Ject covers the Head Box DS2 B with a two-year parts and labor warranty.
Why Audio Advisor?
- 40+ Years of Expertise — Since 1981, we've helped over a million music lovers find the right gear.
- 60-Day Money-Back Guarantee — Take your time. Listen, enjoy, and make sure it's right for you.
- Real Experts, Real Help — Our team is here to answer your questions at 800-942-0220, weekdays 9am–6pm EST.
- Free Shipping — On orders over $49, delivered to your door.
- Flexible Payment Options — Financing available so you can start listening now.
Learn More
Want to learn more about balanced headphone amps, gain and current settings, or building a desktop system? Visit our Learning Center for guides, tips, and expert advice.
- Enough power to drive demanding headphones
- Dual mono design
- Four gain settings to match any headphone
- Three current settings to deliver best sonics
- Single ended (1/4") and balanced (4 Pin XLR) headphone output
- Both outputs usable simultaneously
- Phase inverter built in at input stage to convert unbalanced signal to a balanced one for superior sound
- Output stage realized by two TPA6120A2 chips
- BLUE ALPS potentiometer for best volume control
- Available with wooden side panels
- Available in silver or black
- Power output: 2x 550mW (into 33ohms, both channels driven)
- Signal-to-noise ratio: 98dB (A weighted, full output)
- THD +N: < 0.02%
- Gain (unbalanced): 0, 3, 9, 12dB (without load)
- Gain (balanced: 6, 9, 15, 18dB (without load)
- Frequency response: 20Hz - 20kHz (+-0.2dB)
- Analog inputs: 1 pair RCA/Cinch sockets line, 1 pair XLR input
- Headphone output: 1x 6.3mm (single ended), 1x 4 Pin XLR (balanced)
- Analog loop outputs: 1 pair RCA/Cinch, 1 pair XLR
- Headphone impedance: 8 - 600ohms recommended
- Trigger in/out: 12V
- Power supply: 18V/1A DC
- Standby Power consumption: < 0.5W
- Dimensions W x H x D: 8.1" x 2.8" x 8.6"
- Weight: 3.2 lbs. (alu) without power supply; 4.3 lbs. (wood) without power supply
