Pro-Ject Phono Box DC - Phono Preamplifier MM/MC

What You Need to Know

Get Back in the Warm Glow of Analog

Most of today's receivers, integrated amps, and preamps have no phono input—leaving vinyl lovers out in the cold. The Phono Box DC fixes that at an extremely affordable price. Connect your turntable to it, plug it into any AUX or line-level input, and you're ready to spin records.

Special low-noise ICs keep the background quiet so you hear more of your music, while precise RIAA equalization—accurate within 0.5dB from 20Hz to 20kHz—ensures true-to-the-recording sound quality.

Works with MM or MC Cartridges

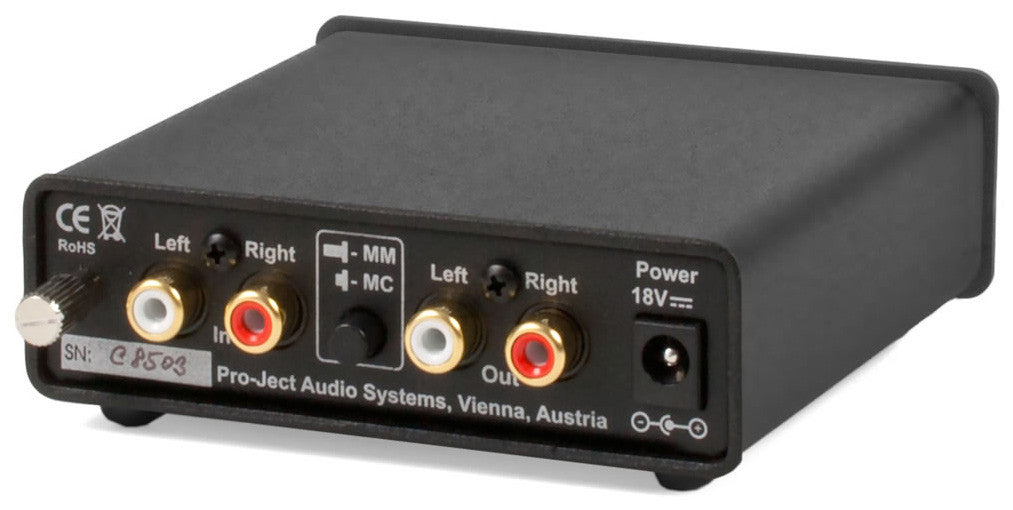

A rear-panel switch selects between moving magnet (40dB gain) and moving coil (60dB gain) operation, so the Phono Box DC works with virtually any cartridge—and keeps working when you upgrade. Gold-plated RCA inputs and outputs and an ultra-low impedance output stage complete the signal path.

Small, Shielded, and Efficient

The metal case shields the electronics from vibration and electromagnetic interference, and at just 4 inches square it stashes easily right next to your turntable. A 'green' outboard DC power supply draws less than one watt in standby. Available in black or silver.

Features & Specifications

MM/MC Compatible

Rear-panel switch adjusts gain for moving magnet or moving coil cartridges.

Special Low-Noise ICs

Quiet backgrounds that let the music through.

Precise RIAA Equalization

Accurate within 0.5dB from 20Hz to 20kHz.

Audiophile Signal Path

Gold-plated RCA connections; ultra-low impedance output stage.

Shielded Metal Case

Blocks vibration and interference; compact enough to sit beside your turntable.

Specifications

•       Type: MM/MC Phono Preamplifier

•       Gain: 40dB (MM), 60dB (MC)

•       Input Impedance: 47k Ohms / 120pF (MM); 100 Ohms / 120pF (MC)

•       Output Voltage: Typically 300mV / 1kHz; Max. 9.5V (1kHz)

•       Noise Floor: 86dB (MM); 68dB (MC)

•       THD: 0.01% (MM); 0.05% (MC)

•       RIAA Accuracy: 20Hz - 20kHz / Max. 0.5dB

•       Power: 18V DC Outboard Supply (included); Standby Consumption Under 1 Watt

•       Dimensions: 4"W x 1.4"H x 4"D (4.3"D with connectors)

•       Weight: 19 oz.

•       Finish: Black or Silver

Frequently Asked Questions

Do I need a phono preamp?

Yes, if your amp or receiver has no dedicated phono input and your turntable has no built-in preamp. A cartridge's tiny signal needs both amplification and RIAA equalization before a line-level input can use it—the Phono Box DC provides both.

Which cartridges does it work with?

Virtually all of them. The rear-panel switch sets the correct gain and loading for standard moving magnet cartridges (including those on most Pro-Ject, Music Hall, and Dual turntables) as well as low-output moving coil designs. Ask us about your specific cartridge.

Can I upgrade the power supply?

Yes. The Phono Box DC runs on 18V DC, so you can replace the included wall adapter with a cleaner supply—like Pro-Ject's Accu Box S2 battery power supply—for an even lower noise floor. Ask us about compatible options.
