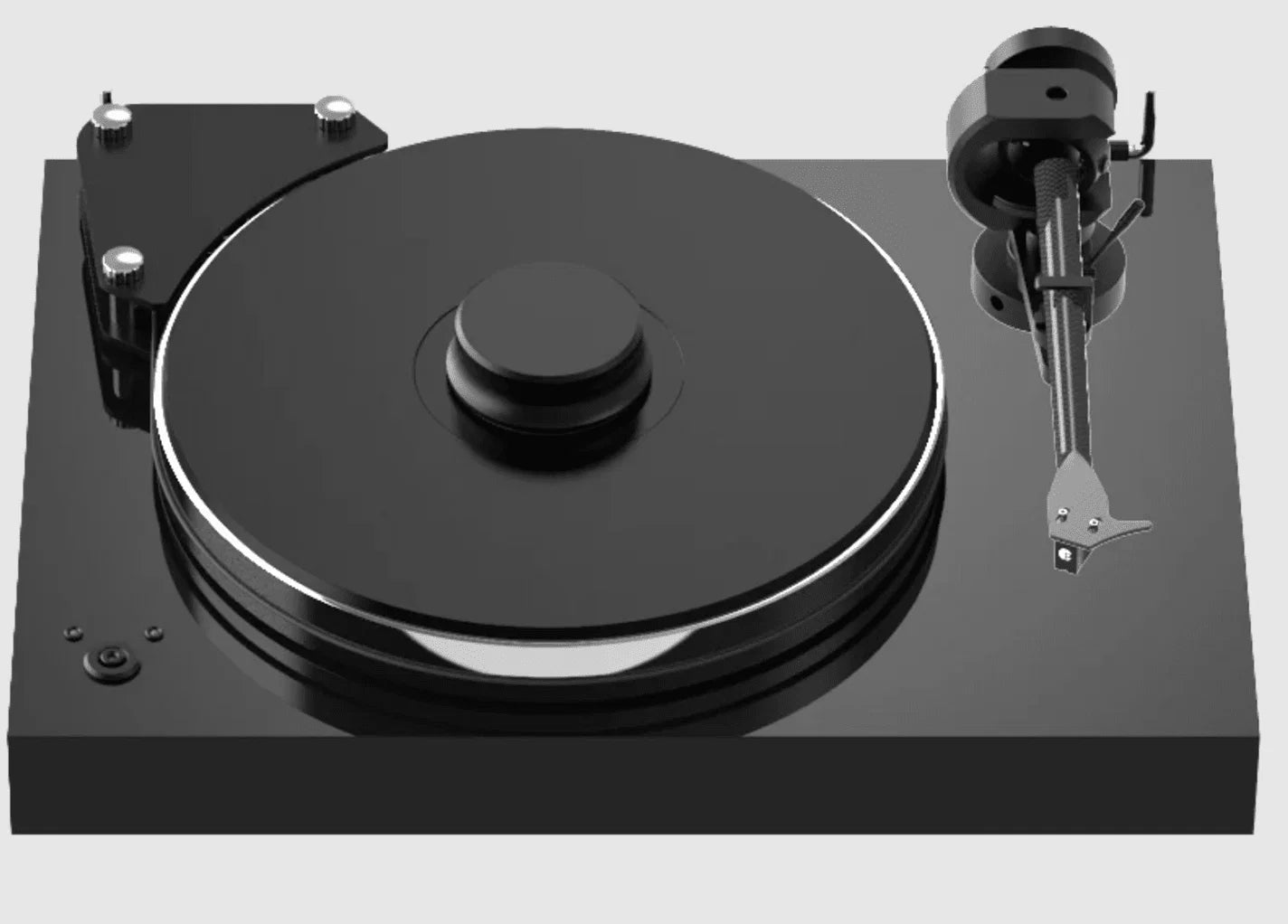

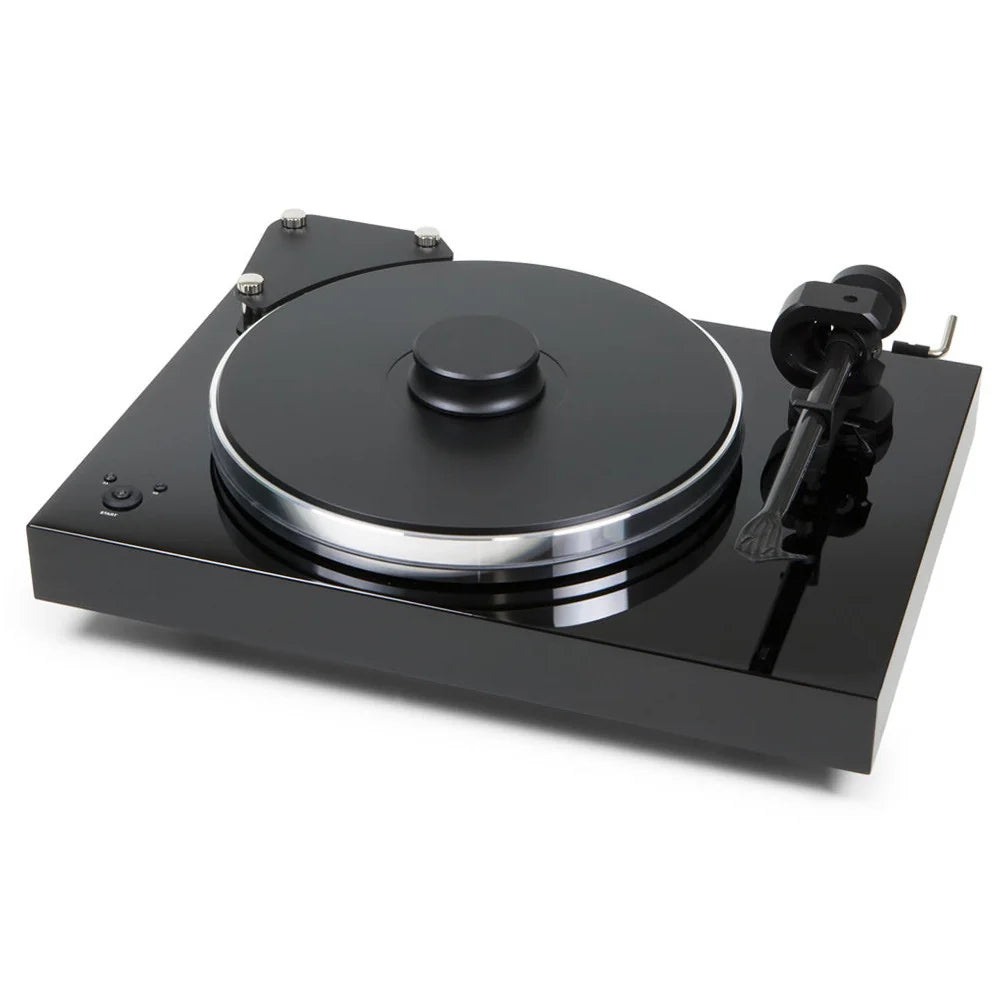

Pro-Ject Xtension 9 Turntable - Gloss Black - No Cartridge

The Pro-Ject Xtension 9 Evolution brings high-mass turntable design, magnetic isolation, and a precision carbon-fiber tonearm together in a size that fits most standard audio racks. Its 5.4kg damped aluminum platter, magnetic suspension feet, and inverted ceramic bearing help provide stable, quiet record playback.

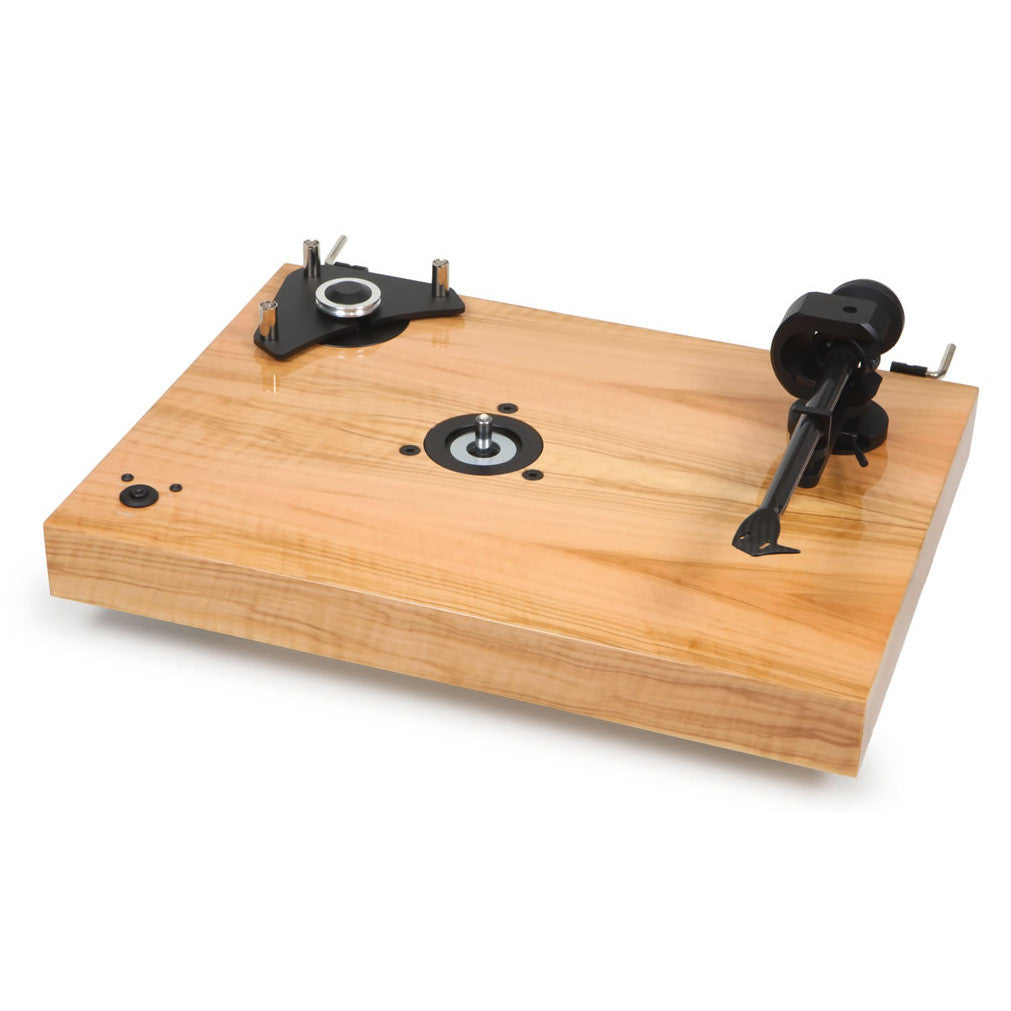

This version comes without a phono cartridge, allowing you to choose the moving magnet or moving coil cartridge that best fits your system. The Xtension 9 Evolution is available in Gloss Black, Satin Walnut, Olive Wood, and Walnut Burl Satin finishes.

High Mass with Magnetic Isolation

The Xtension 9 Evolution weighs more than 35 pounds. Its heavy CNC-machined MDF chassis provides a firm base for the platter, motor, and tonearm. The added mass helps control vibration while keeping the turntable stable during playback.

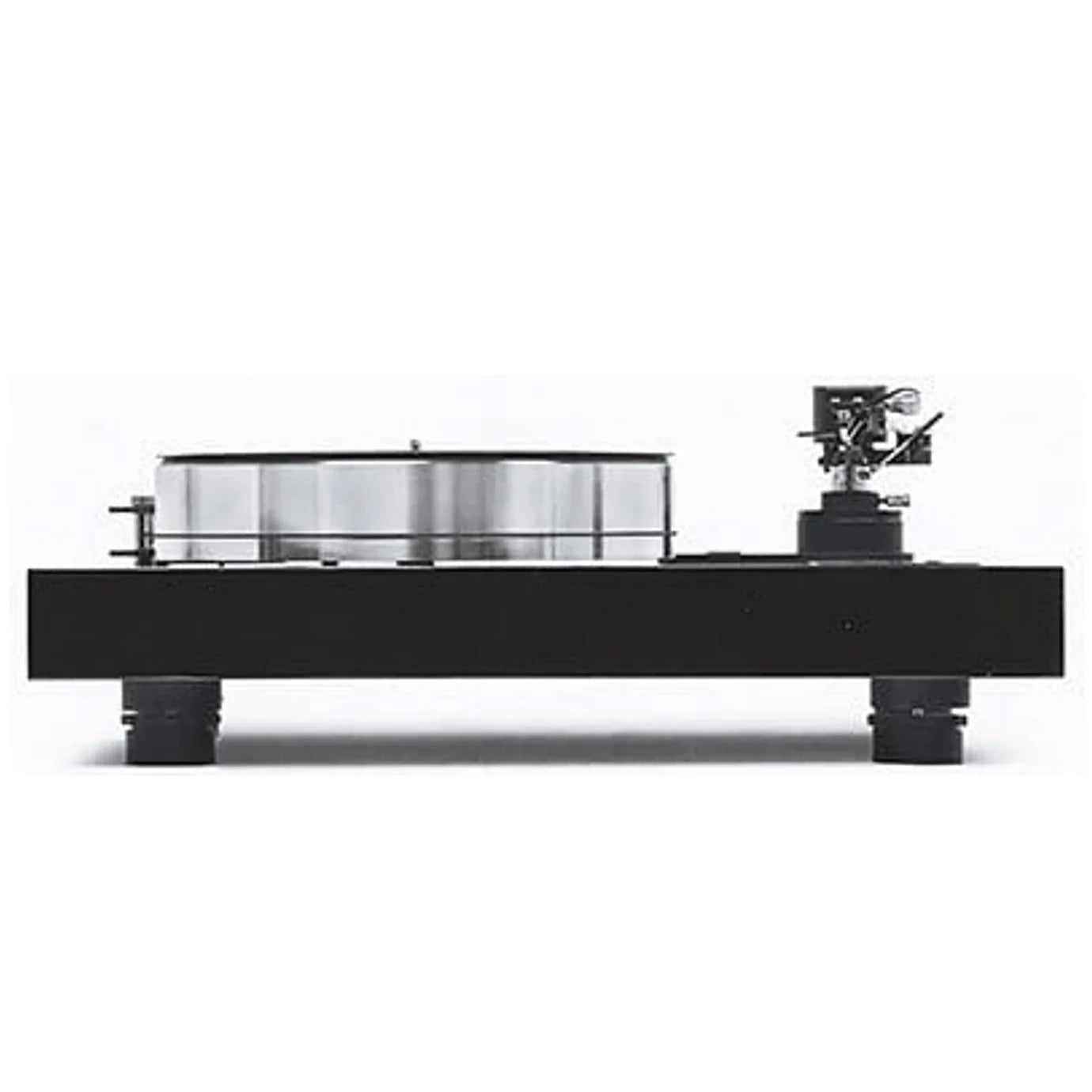

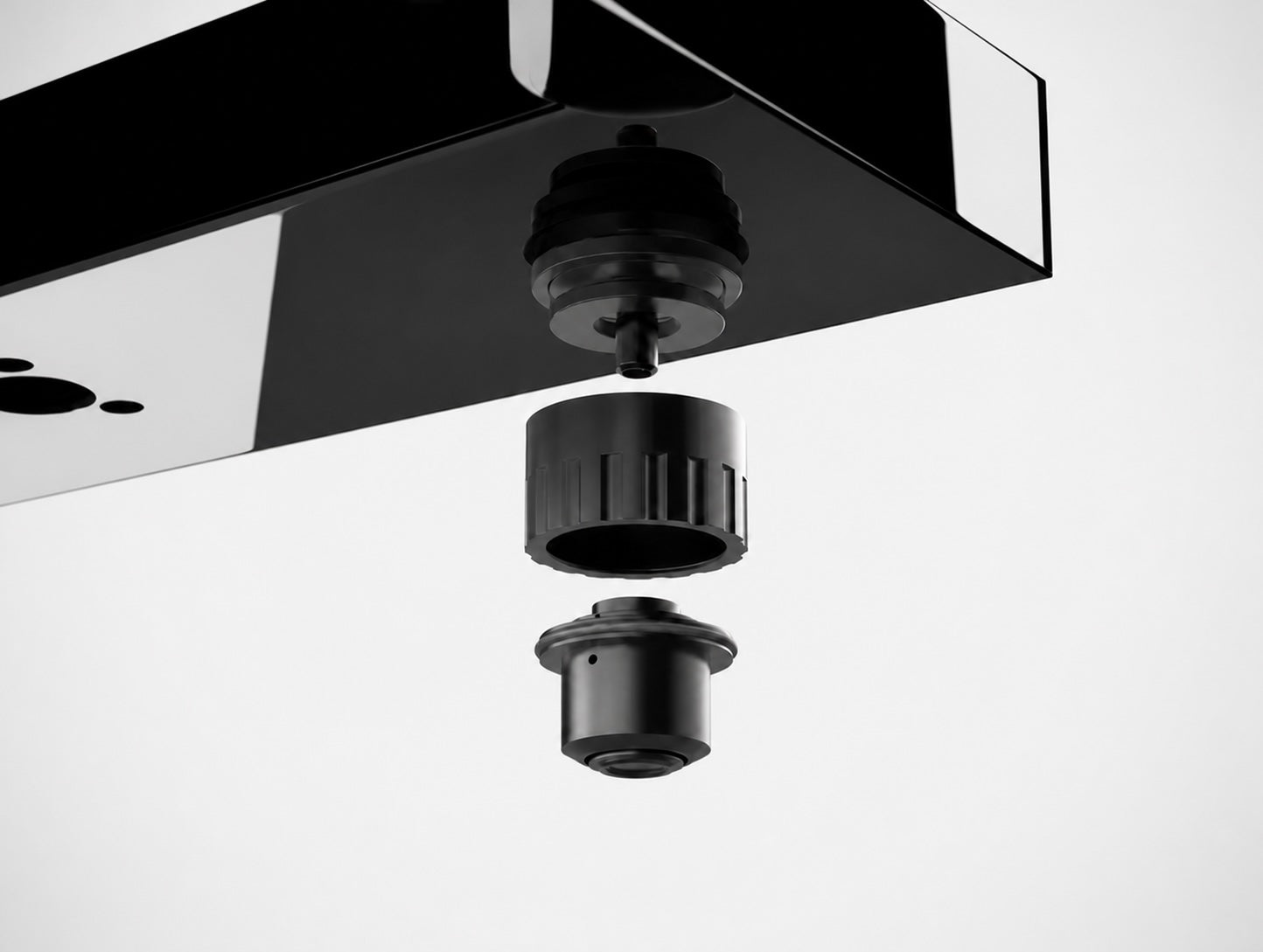

Three powerful magnetic feet isolate the chassis from the surface below. The turntable appears to float above its support, helping reduce vibration from speakers, footsteps, and the listening room.

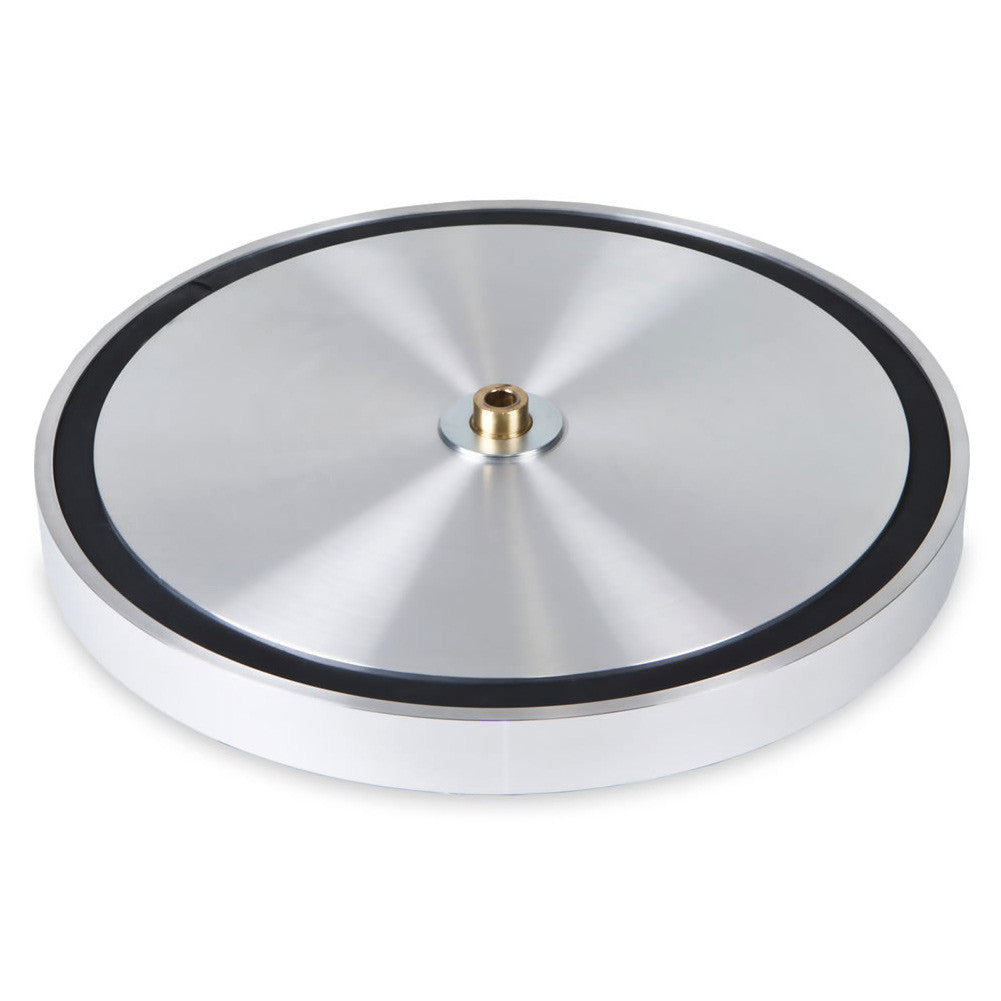

Heavy Damped Aluminum Platter

The precision-balanced aluminum platter weighs 5.4kg, or nearly 12 pounds. A thermoplastic elastomer damping ring inside the platter controls ringing and unwanted resonance.

A vinyl layer forms the top playing surface. This gives the record a stable surface while reducing the need for a separate record mat. The heavy platter also creates a flywheel effect for smooth rotation and stable speed.

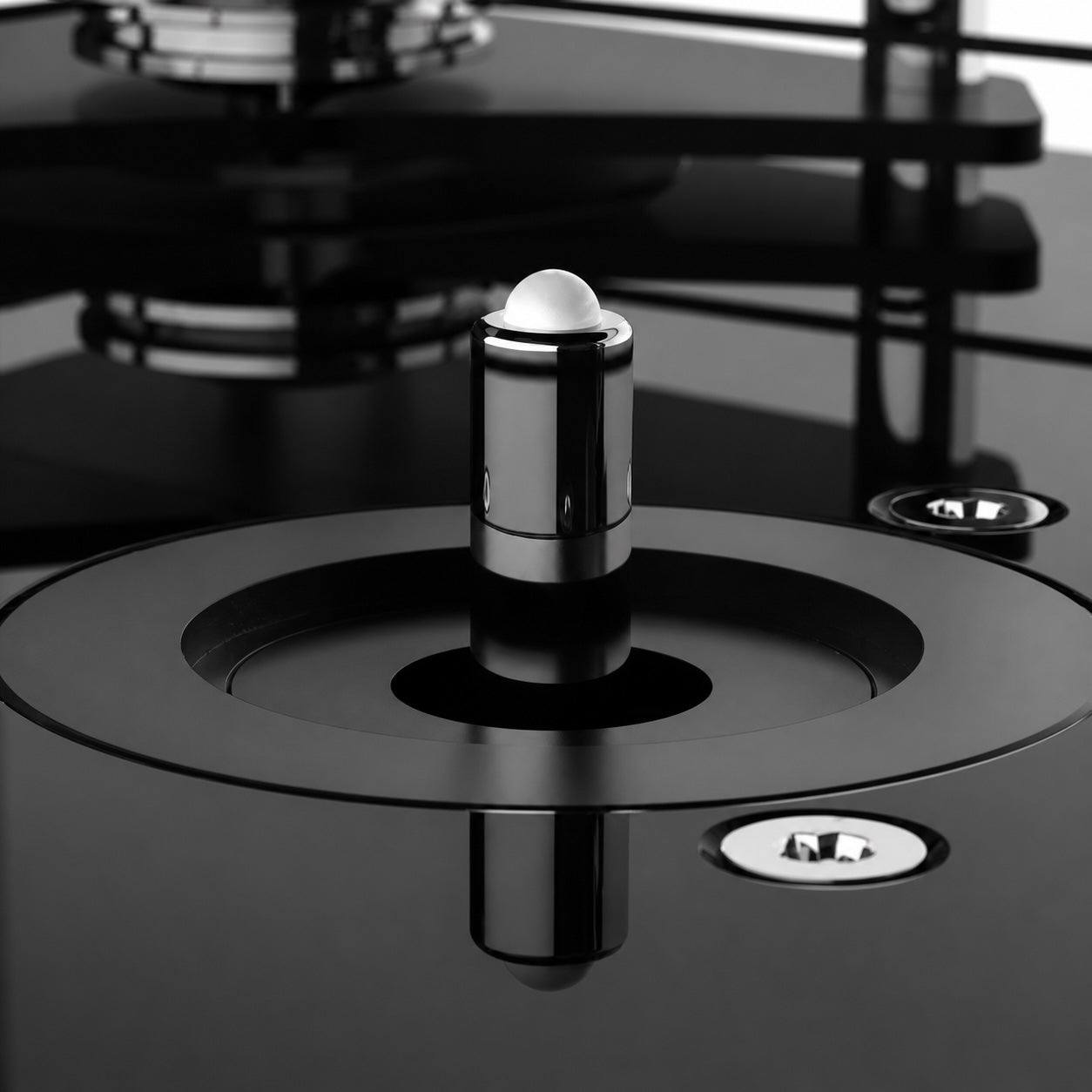

Magnetically Supported Ceramic Bearing

The platter rotates on an inverted ceramic-ball bearing with magnetic support. The magnetic system reduces pressure on the main bearing, which helps lower friction, mechanical noise, and vibration.

A heavy metal block adds support and damping around the main bearing. This combination allows the platter to rotate smoothly while keeping bearing noise away from the cartridge.

9-Inch Carbon-Fiber EVO Tonearm

The Xtension 9 Evolution includes Pro-Ject’s 9-inch EVO carbon-fiber tonearm. Its one-piece arm tube is light, stiff, and designed to control unwanted resonance.

The tonearm uses inverted precision bearings made to ABEC 7 standards. A silicone-damped cueing lift lowers the stylus gently, while the damped counterweight helps control tonearm and cartridge resonance.

You can adjust vertical tracking angle, cartridge azimuth, tracking force, and anti-skating. Four counterweights support cartridges weighing from 4 to 14 grams, giving you a wide range of moving magnet and moving coil cartridge choices.

Choose Your Own Cartridge

No cartridge is included with this version of the Xtension 9 Evolution. The medium-to-low-mass carbon-fiber tonearm works with many high-quality moving magnet and moving coil cartridges.

Your cartridge must be installed, aligned, and adjusted before the turntable can play records. Cartridge choice also determines which type of phono preamp you need. A moving magnet cartridge requires an MM phono input, while a low-output moving coil cartridge requires a compatible MC phono preamp.

The turntable includes a five-pin-to-RCA phono cable for connection to your phono preamp. It does not have a built-in phono preamp.

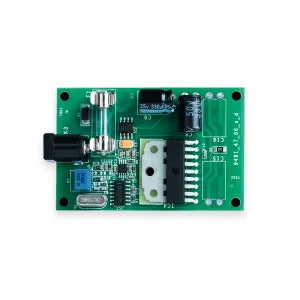

Electronic Speed Control

A precision DC-driven AC generator provides clean power to the motor. Push-button controls let you switch electronically between 33⅓ and 45 rpm without moving the drive belt.

The belt-drive system keeps the motor separate from the platter and cartridge. This helps prevent motor vibration from reaching the stylus while the electronic control system maintains stable speed.

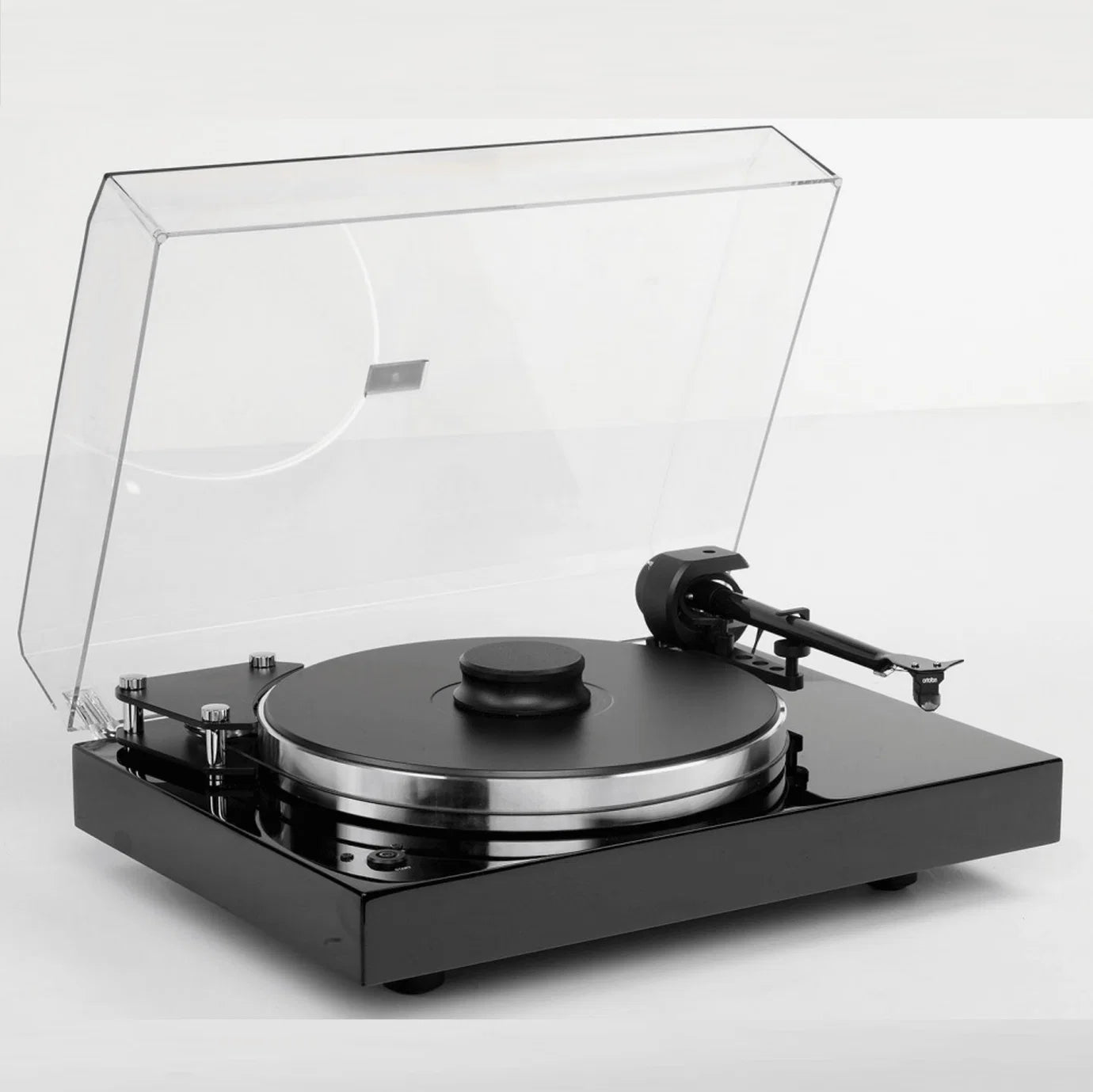

Record Puck and Dustcover Included

The included record puck holds the record firmly against the vinyl-covered platter. This improves contact between the record and platter and can help flatten small record warps.

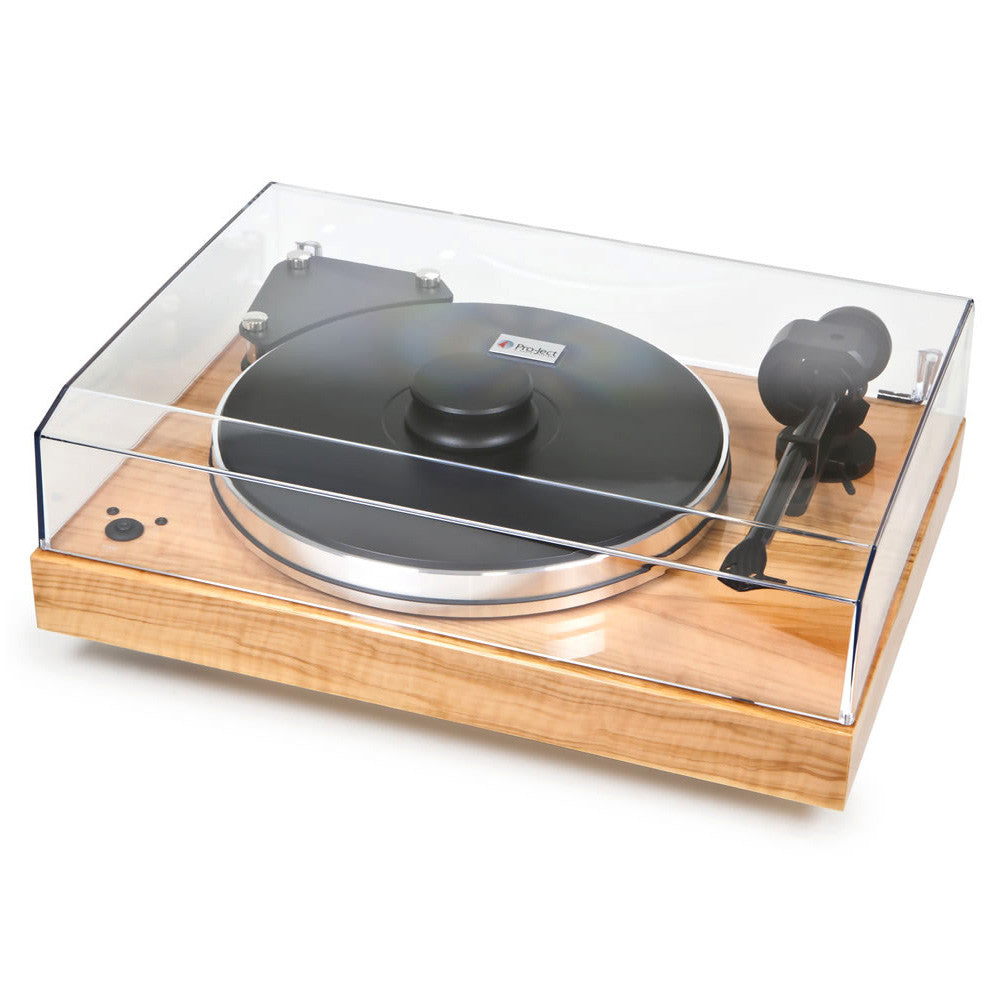

A hinged dustcover protects the platter and tonearm when the turntable is not in use. A detachable phono cable, external power supply, and the required cartridge counterweights are also included.

Setup and Placement

Place the Xtension 9 Evolution on a strong, level audio stand away from the speakers. Its magnetic feet provide excellent isolation, but a rigid support will help the turntable deliver its best performance.

After installing your cartridge, set the alignment, tracking force, anti-skating, vertical tracking angle, and azimuth according to the cartridge maker’s instructions. Audio Advisor can help you choose a compatible cartridge and phono preamp.

Is It Right for You?

Choose the cartridge-free Xtension 9 Evolution if you want high-mass construction and magnetic isolation in a more manageable size than the Xtension 12. It is a strong choice for experienced vinyl listeners who want to select and adjust their own moving magnet or moving coil cartridge.

Frequently Asked Questions

Does the Xtension 9 Evolution include a cartridge?

No. A compatible moving magnet or moving coil cartridge must be purchased and installed separately.

What cartridge weights will the tonearm accept?

The included counterweights support cartridges weighing between 4 and 14 grams.

Does it have a built-in phono preamp?

No. You need an external phono preamp or an amplifier with a phono input that matches your cartridge.

Can it play 78 rpm records?

No. The current Xtension 9 Evolution provides electronic speed selection for 33⅓ and 45 rpm.

Is a record puck included?

Yes. A heavy record puck is included to hold records firmly against the platter.

Does it include a dustcover?

Yes. A hinged dustcover is included.

Will it fit on a standard audio rack?

Its 18.3-inch width fits many standard audio racks. The supporting shelf must be strong enough to hold its 35.3-pound weight.
