Rega Carbon Pro Stylus

The Carbon Pro — An Elliptical Diamond for the Cartridge on Your Planar

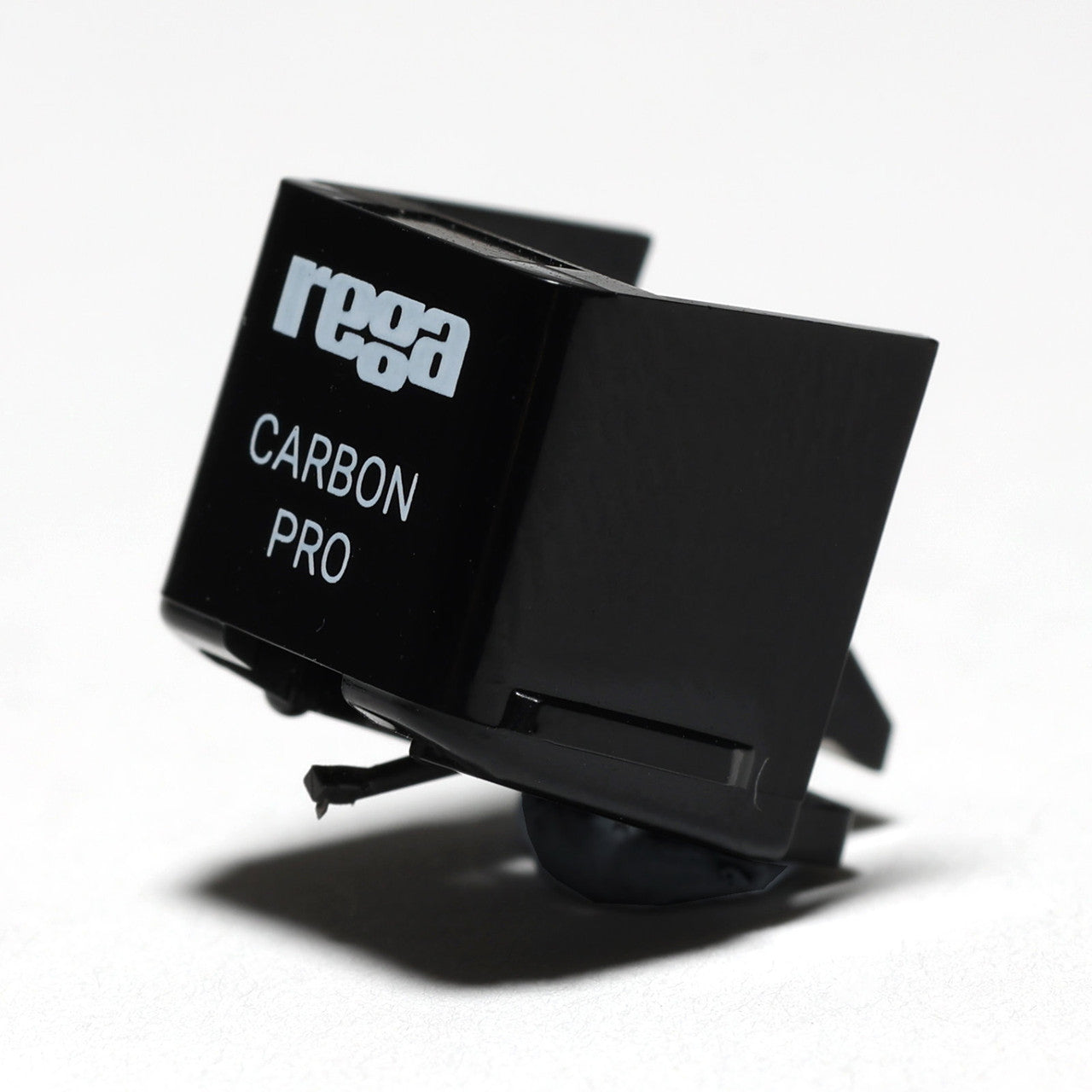

Rega's upgrade stylus for the Carbon moving magnet cartridge, sold singly. It replaces the conical diamond the standard Carbon uses with a bonded elliptical one, and Rega calls it “a direct replacement and notable upgrade to the standard Rega Carbon cartridge.”

This is the cheapest real change most Planar owners can make. The cartridge stays, the alignment stays and the arm stays: Rega's own note is that it is fitted in seconds, with no need for the cartridge to come off the tonearm at all.

Fit, Profile and Compatibility

Which Bodies It Belongs On

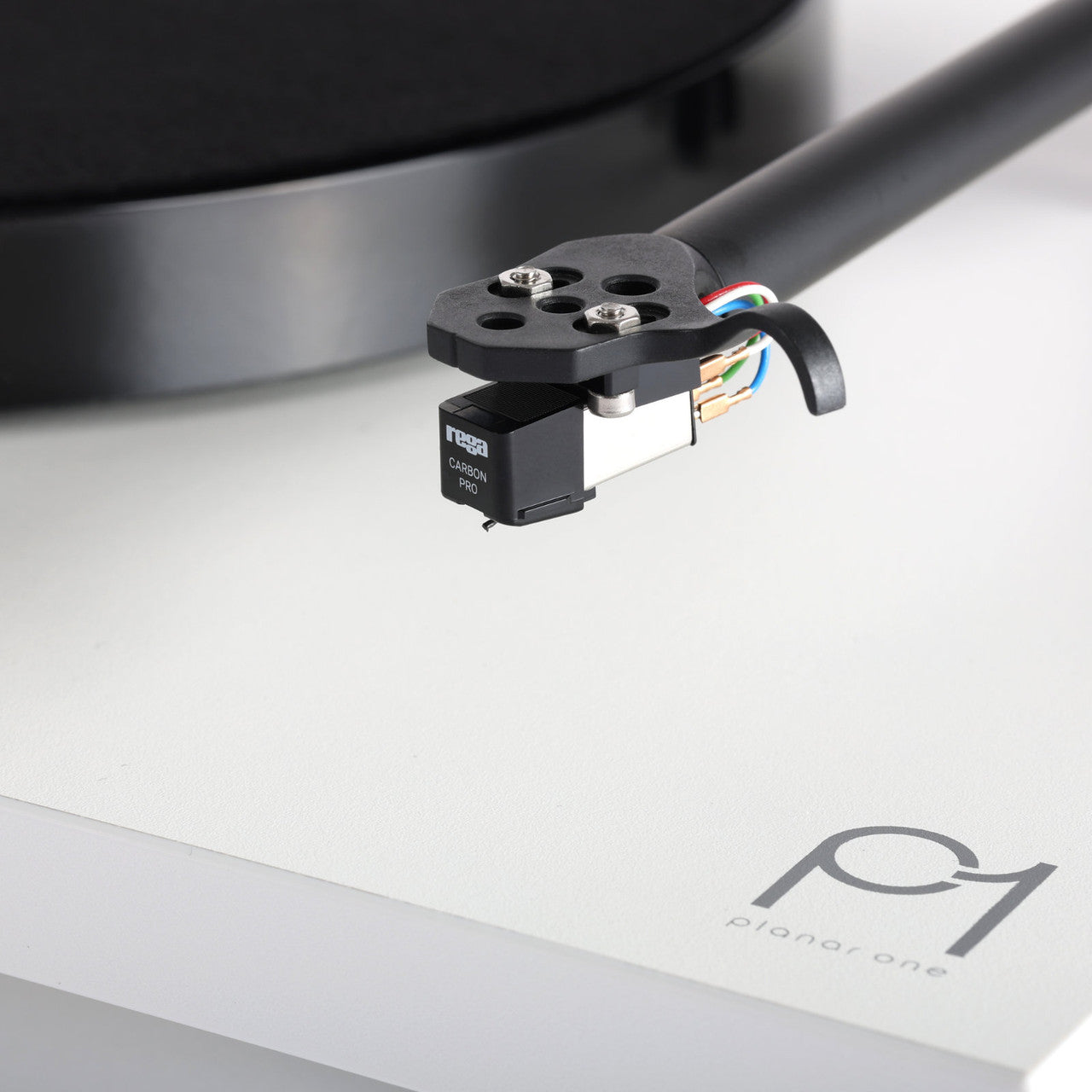

Rega is specific about who this is for: “all Planar 1, Planar 1 Plus and Planar 2 owners using the standard Rega Carbon,” and equally “owners of the Carbon cartridge used on other turntables.” It is the cartridge that matters here, not the deck it sits on.

So the question is simply whether the cartridge on your arm is a Rega Carbon. If it is, this fits. Rega's other cartridges — the Nd series, Ania, Apheta, Aphelion — are separate designs and are not what this was made for.

What the Elliptical Profile Changes

A conical tip meets the groove wall at a point. An elliptical one meets it along a short line, which reaches modulation the rounder tip rides over. Rega's own claim for the swap is “an immediate lift in dynamics and detail.”

Tracking pressure stays at 2 to 3 g, the same window the standard Carbon uses, so the counterweight does not need moving far — though it is still worth checking rather than assuming, since the new assembly need not weigh what the old one did.

Who Is the Carbon Pro Best For?

• You own a Planar 1, Planar 1 Plus or Planar 2 — Rega names all three, on the cartridge they shipped with
• Your Carbon is worn anyway — you are buying a stylus regardless, which makes this the cheapest moment to decide
• You have a Carbon on another turntable — Rega includes those owners explicitly
• You do not want to realign a cartridge — nothing comes off the arm and no protractor is involved
• Your cartridge is an Nd3, Nd5, Nd7, Nd9, Ania, Apheta or Aphelion — this is not the matched part for those whatever fits physically; the rest are in replacement styli

How Do You Fit It?

Rega's instructions are worth following exactly. Hold the plastic housing between thumb and forefinger and pull down and towards you to release the old stylus. Insert the Carbon Pro at a slight angle so the hook at the end engages the cartridge, then push up until you hear a click. Reset tracking pressure and you are finished.

Pairs Well With

What most Planar owners shop alongside the Carbon Pro.

• Stylus force gauges — how you set the 2 to 3 g this one asks for
• Stylus cleaning — what decides how long the new tip lasts
• Record cleaning solutions — a clean record is the cheapest stylus insurance there is
• Record brushes — a pass before each side keeps grit out of the groove

Frequently Asked Questions

Will it fit my cartridge?

It fits the Rega Carbon. Rega names Planar 1, Planar 1 Plus and Planar 2 owners running the standard cartridge, and Carbon owners on other decks. Rega's other cartridges take their own parts.

Is it worth it over a like-for-like replacement?

Rega's position is that it is: an elliptical diamond in place of a conical one, for a “notable upgrade” with no other change to the turntable. Since a worn Carbon needs a stylus either way, the difference in outlay is what buys the better profile.

What tracking pressure should I set?

Rega specifies 2 to 3 g, unchanged from the standard Carbon. Check it after fitting rather than leaving the counterweight untouched.

How long does a stylus last?

Around 1,000 hours is the usual figure, though it turns on how clean your records are and how accurately the cartridge is set up. A worn tip damages records, so replace it on schedule rather than by ear.
