Rotel CD14 MkII CD Player - Silver

Keeping the Motor Away from the Music

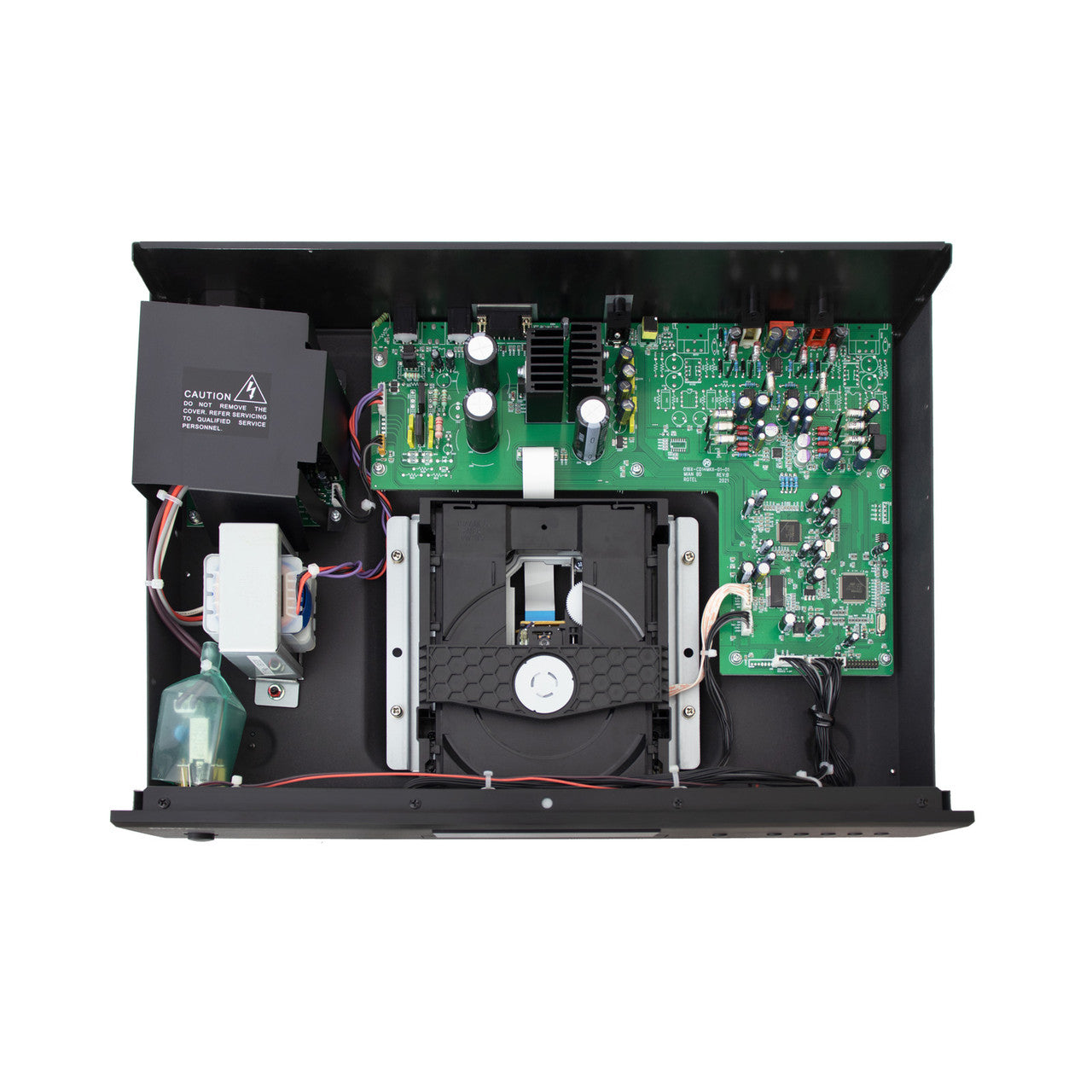

A CD player has a problem built into it. The motor that spins the disc and the circuits that handle the audio share one box. Motors are electrically noisy. The CD14MKII answers that with separate power supplies.

The motor controls run from their own supply. They are kept away from the audio circuits. The converter's digital and analog sections are split the same way, so noise made in one place has no easy route into another.

Conversion is handled by a premium Texas Instruments 32-bit converter, rated to 384kHz. After it sit custom-tuned analog output filters. Those filters are Rotel's own work rather than a reference design taken off the shelf.

What the Isolation Buys

Signal-to-noise measures better than 118dB A-weighted. That is the noise floor. Channel separation is better than 118dB at 10kHz. Dynamic range beats 99dB, and intermodulation distortion sits at 0.0035% at 1kHz.

Frequency response holds within half a decibel from 20Hz to 20kHz. Channel balance is inside half a decibel, and phase linearity inside half a degree. Those last two are what keep a stereo image where it should be.

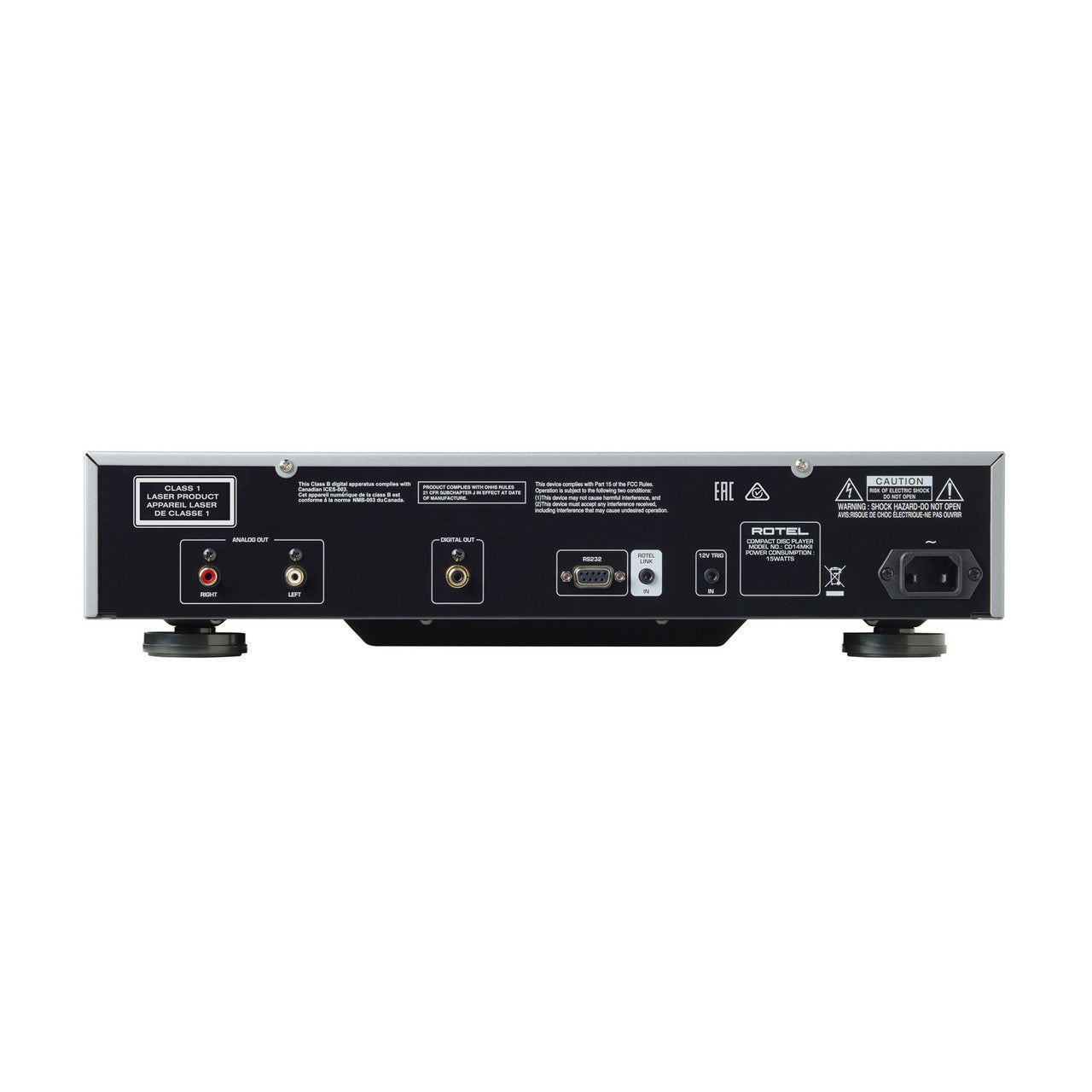

Outputs are analog RCA at 100 ohms. There is a coaxial digital output as well, so the CD14MKII can also serve as a transport for a DAC. A 12-volt trigger input lets it switch on with the rest of a Rotel system.

Who Is This CD Player Best For?

• You listen to quiet, detailed recordings — better than 118dB signal-to-noise and separate supplies for the motor and the audio circuits keep the noise floor where you stop noticing it.
• You care about the stereo image — channel balance within half a decibel and phase linearity within half a degree are what hold instruments in the right place across the soundstage.
• You want the option of your own converter — the coaxial digital output turns the CD14MKII into a transport whenever you add a DAC, so the player keeps earning its place.
• You run a Rotel system — a 12-volt trigger input means it powers up with your amplifier rather than needing its own trip to the rack.
• You want a tray, not a slot — a smooth tray-loading mechanism handles discs gently and makes it obvious what is loaded. Pair it with one of our integrated amplifiers.

How Does It Connect to Your System?

Run the analog RCA outputs to a line input on your amplifier. The Texas Instruments converter and Rotel's own output filters handle everything from there.

If you own a separate converter, take the coaxial digital output to it. The trigger input can be wired to a Rotel amplifier so the two switch on together.

Pairs Well With

Building around the CD14MKII? Here are some great companions:

• Integrated Amplifier: The A12MKII is its matching partner — see our Integrated Amplifiers.
• Bookshelf Speakers: Finish the system — see our Bookshelf Speakers.
• DAC: For the coaxial digital output — see our Digital to Analog Converters.
• Interconnects: A clean run from the analog outputs — see our Interconnect Cables.

Frequently Asked Questions

Which converter does it use?

A premium Texas Instruments 32-bit converter rated to 384kHz, followed by custom-tuned external analog output filters designed by Rotel.

Why does it use separate power supplies?

To keep the disc motor's electrical noise away from the audio circuits, and to separate the converter's digital and analog sections from each other.

What does it measure?

Better than 118dB signal-to-noise and channel separation, better than 99dB dynamic range, and 0.0035% intermodulation distortion at 1kHz.

What outputs does it have?

Analog RCA at 100 ohms output impedance, plus a coaxial digital output for use with an external converter.

Which finishes are available?

Black and silver, matched to Rotel's amplifiers in the same range.

What is the warranty?

Two years on parts and labor for the original owner, from an authorized North American dealer. You must register online within 30 days of purchase to qualify, and it does not transfer.
