Rotel DX-3 Headphone Amplifier - Silver

Sixty Years of Hi-Fi, Aimed at Your Headphones

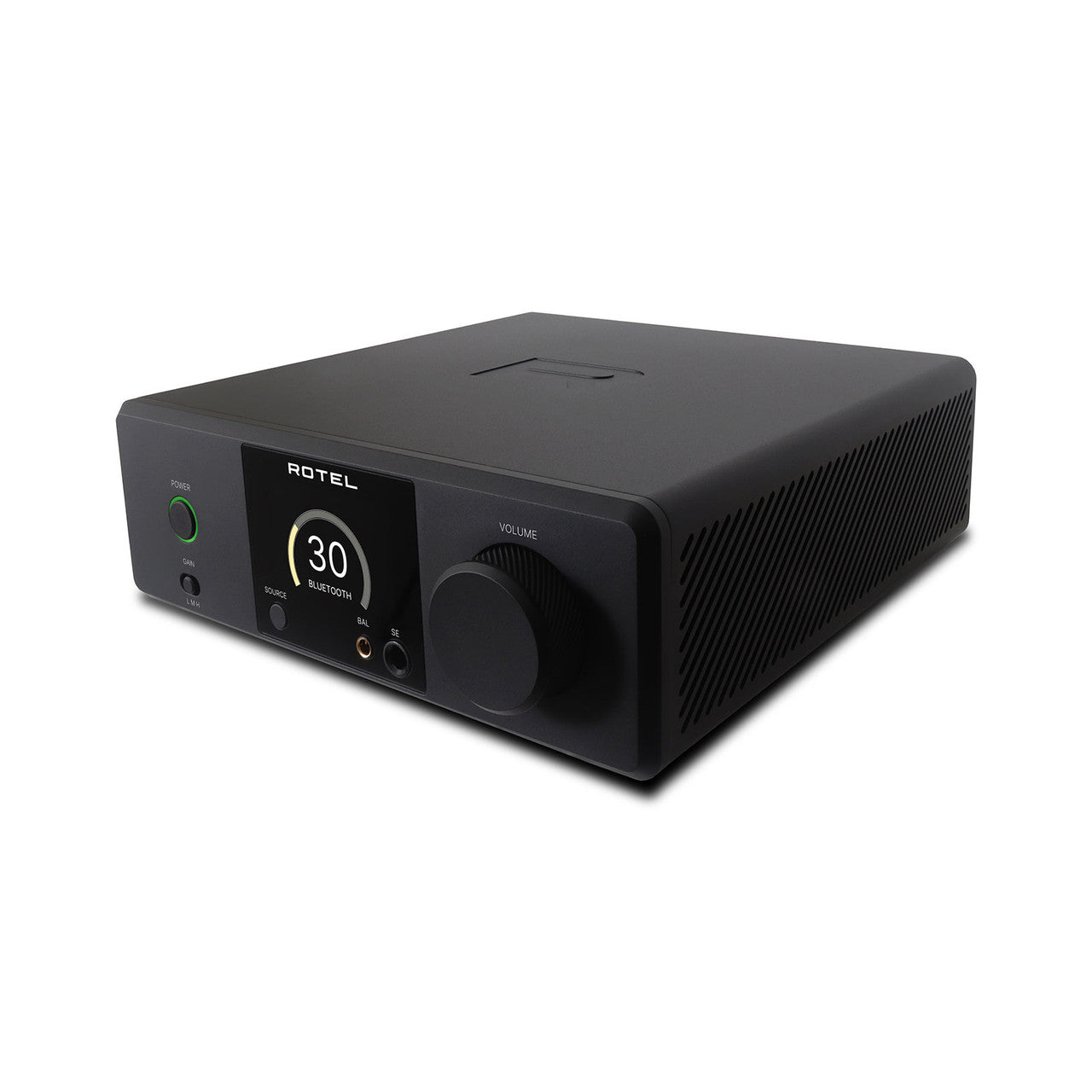

Rotel has built serious hi-fi since 1961, and the DX-3 brings that engineering to a single compact box: a Class-A headphone amplifier, an ESS-based DAC, a Bluetooth receiver, and a full remote-controlled preamplifier, all behind a clean front panel with a color display.

The DAC section is built on the 32-bit ESS ES9028PRO chip, handling PCM up to 32-bit/384kHz over USB and DSD up to 11.2MHz. The fully balanced headphone stage delivers 1.4 watts into 32 ohms from the 4.4mm balanced output (2.8 watts into 16 ohms) and 383mW from the 6.35mm jack, with vanishingly low distortion and output impedance under 0.6 ohms. Rotel recommends headphones from 16 to 300 ohms, which covers the vast majority of models sold today.

Bluetooth with aptX HD and AAC handles wireless streaming from a phone, and the whole unit is Roon Tested for easy integration into a Roon library.

More Than a Headphone Amp

The DX-3's RCA preamp outputs and included remote turn it into the control center of a compact system: connect powered speakers or a power amplifier, and one volume knob runs both your headphone and speaker listening. Inputs cover USB, coaxial, optical, and analog RCA, so a computer, TV, CD transport, and phone can all stay connected.

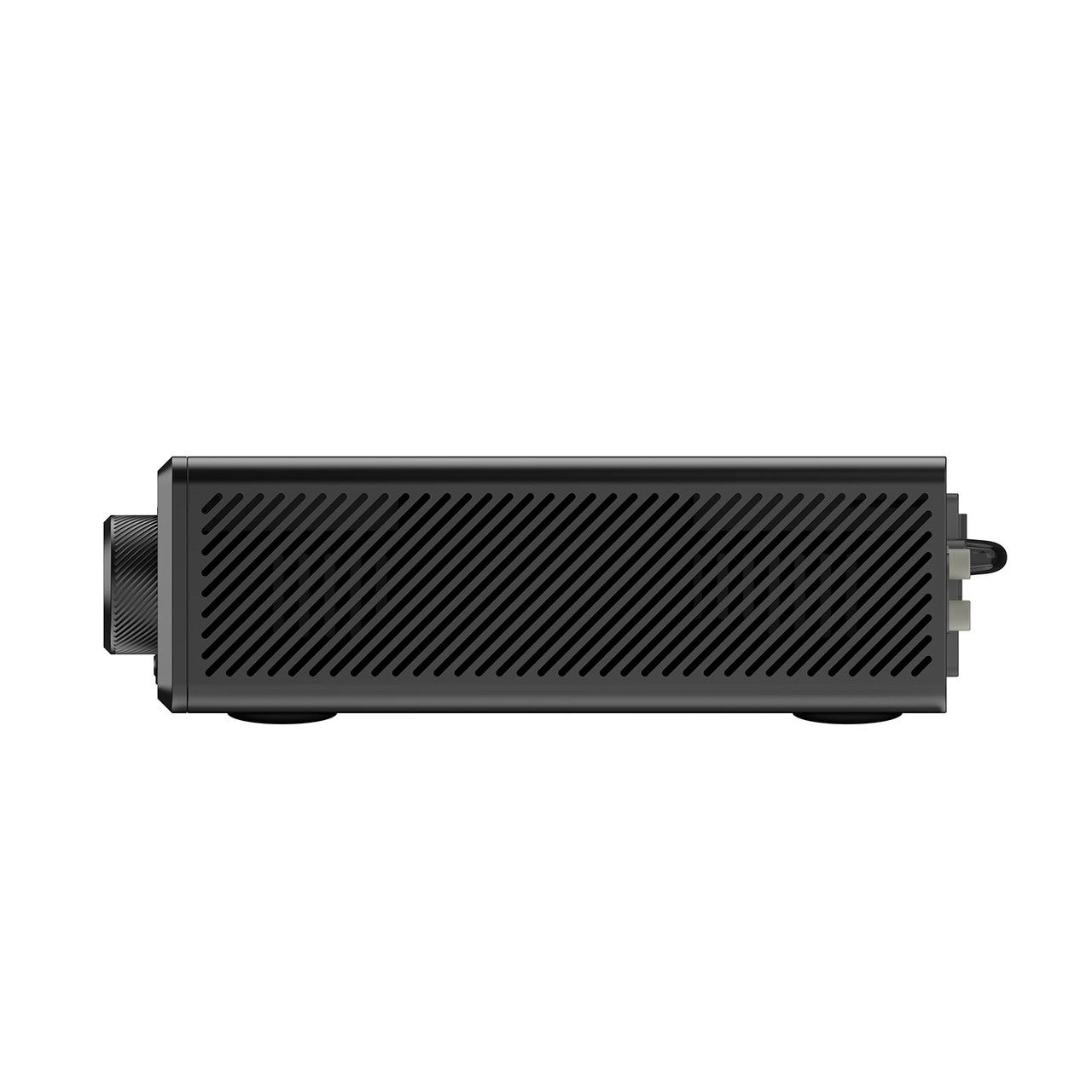

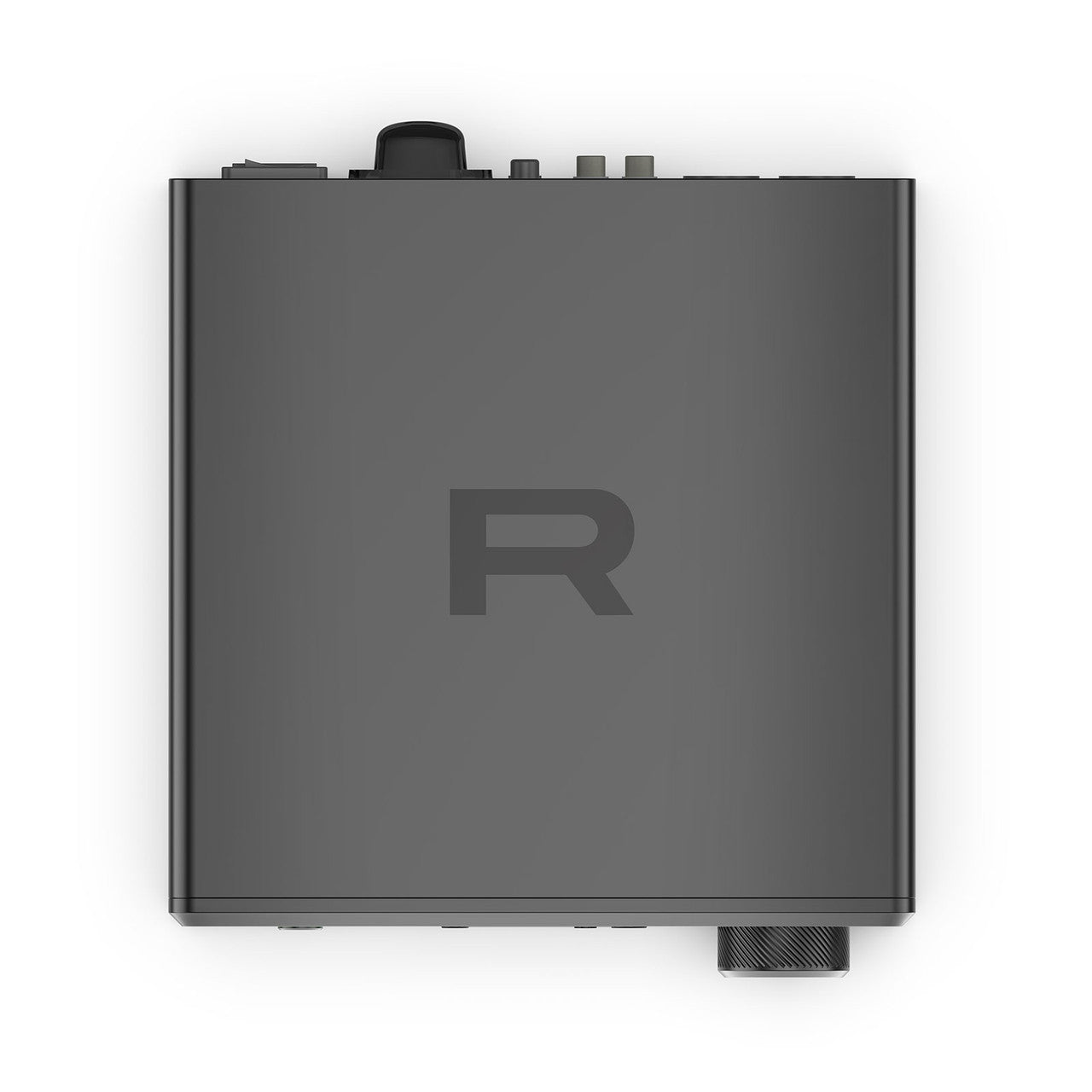

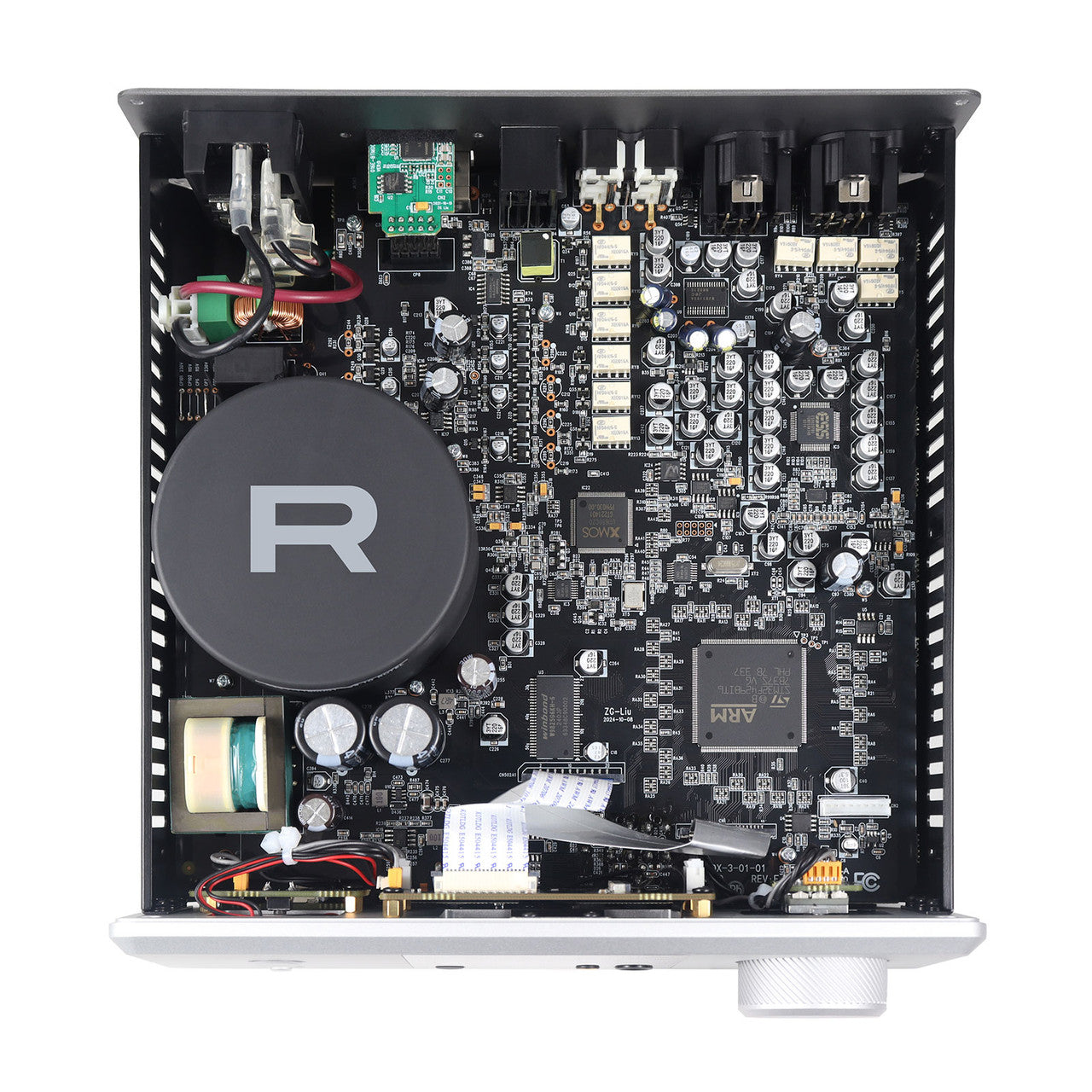

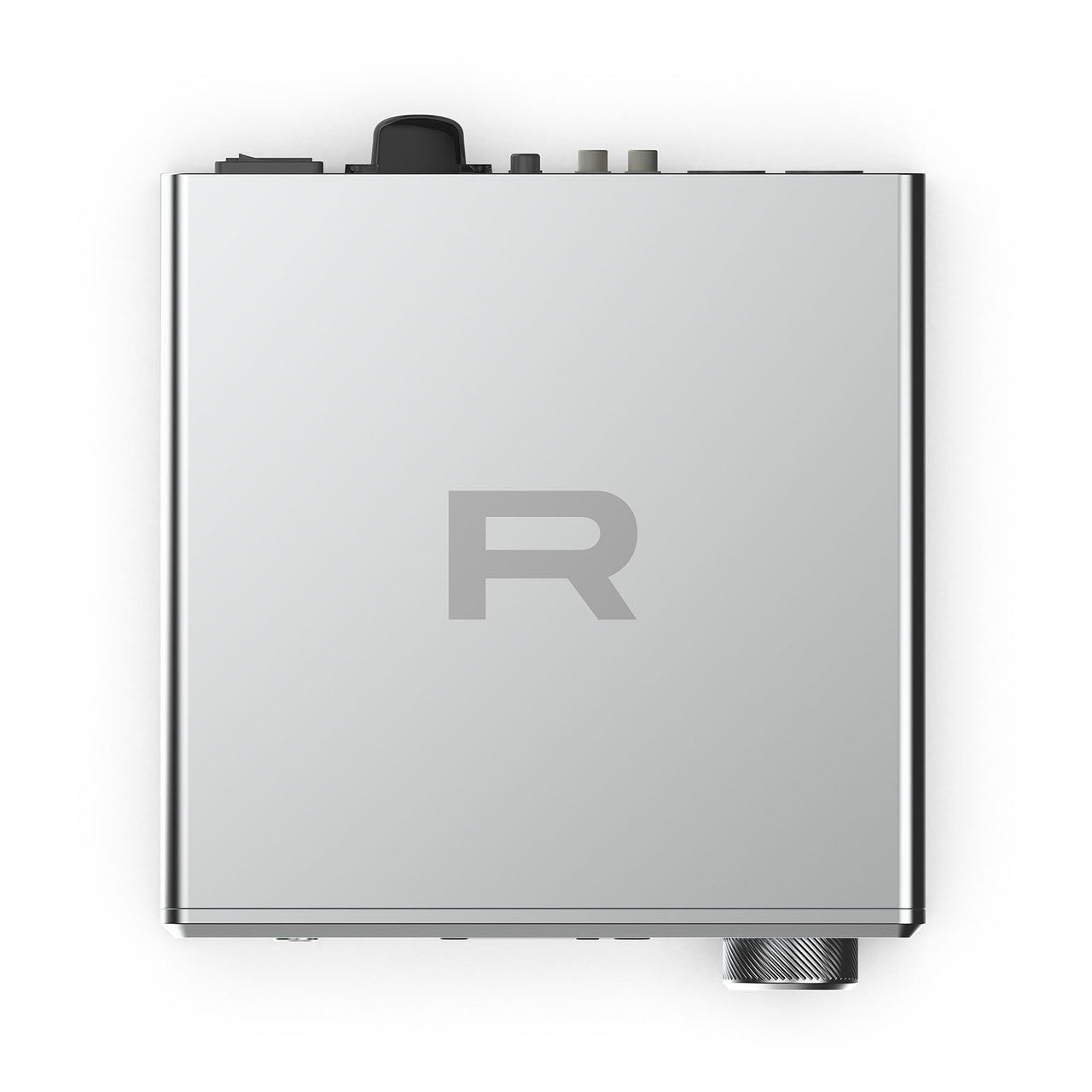

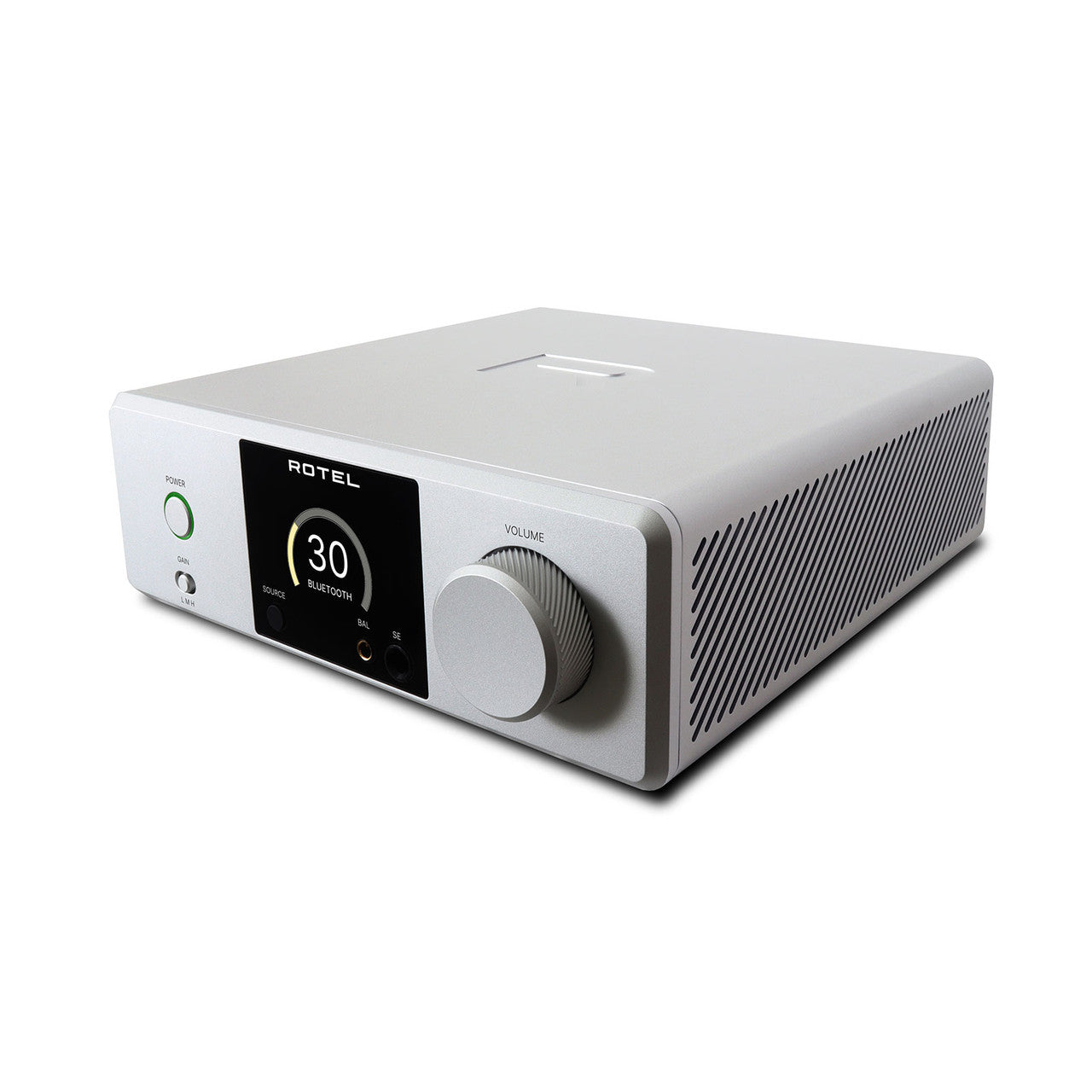

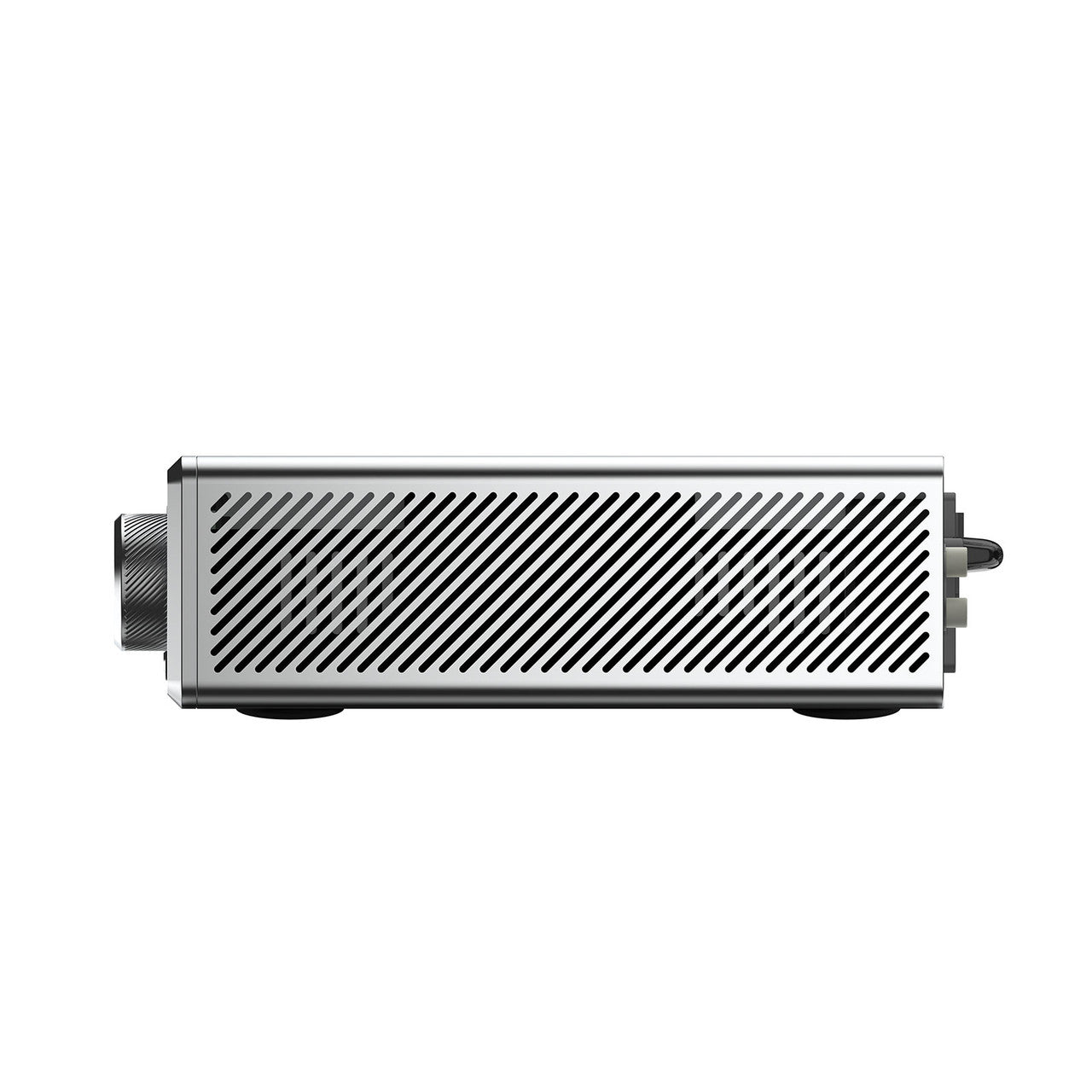

Build follows Rotel tradition: a low-noise linear power supply feeding a true Class-A headphone stage, in an aluminum chassis that measures just 8.5" wide and weighs a solid 7.1 pounds. It comes in silver or black.

What Reviewers Are Saying

What Hi-Fi's Ketan Bharadia awarded the DX-3 five stars in a February 13, 2026 review, calling it "a versatile and talented performer that ticks an awful lot of boxes," with sound that's "clean, crisp and impressively detailed," "impressive bass grip," and "a spacious and focused soundfield." Rudolfs of Headfonia scored it 4.3 out of 5 in an August 6, 2025 review, praising its build quality and its breadth of features for the price.

Who Is This Amplifier Best For?

• You want DAC, headphone amp, preamp, and Bluetooth in one box — the DX-3 replaces a stack of separates on a desk or in a rack.
• You own headphones with balanced 4.4mm cables — the fully balanced output delivers nearly four times the single-ended power.
• You want it to run powered speakers too — RCA preamp outputs and a remote make it a complete compact system hub.
• You trust proven hi-fi engineering — Rotel has built amplifiers since 1961, and it shows in the measurements.
• If your headphones are 600-ohm models or very insensitive planars, the DX-3's power is aimed at 16-300 ohm loads — a bigger dedicated amp serves extreme headphones better.

How Does It Connect to Your System?

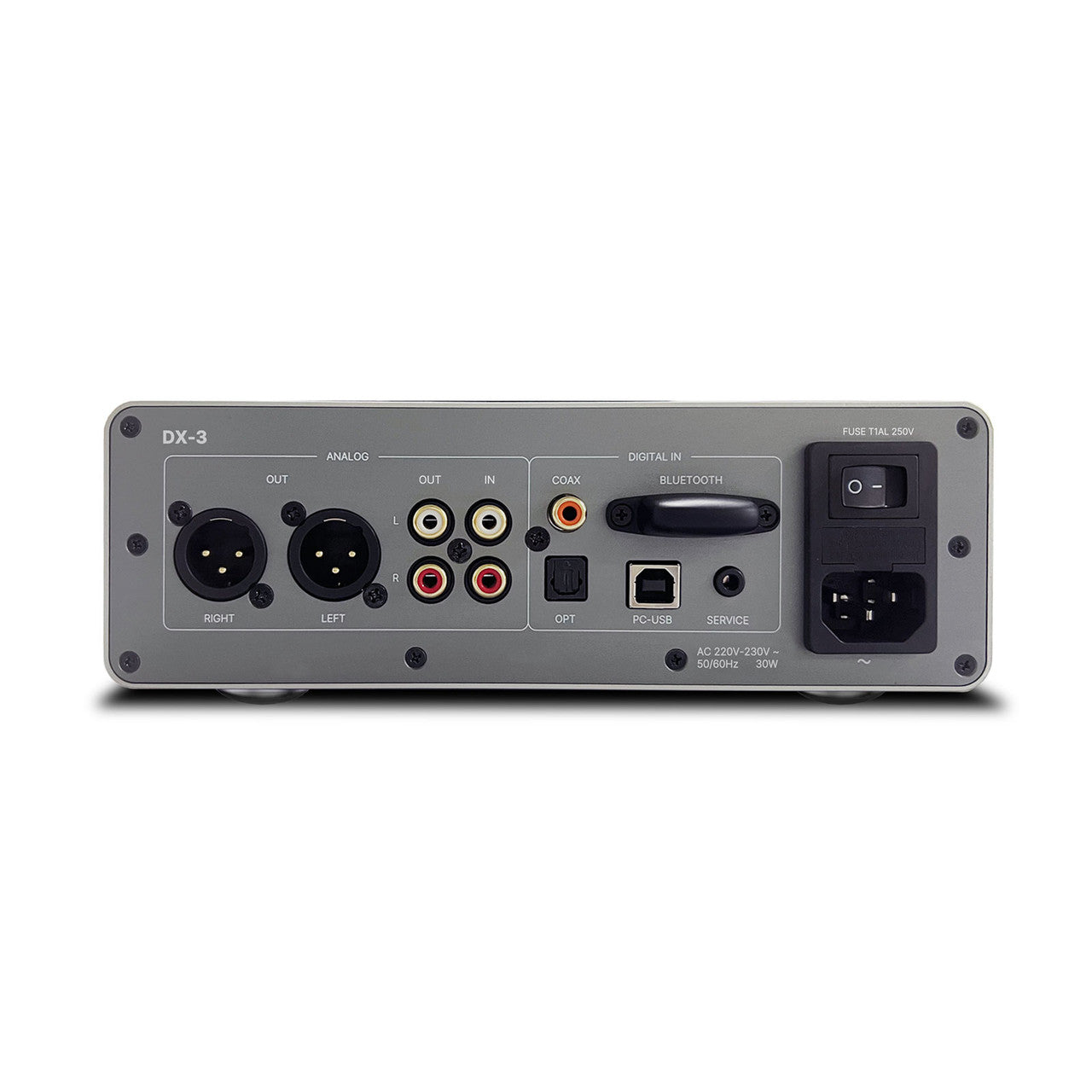

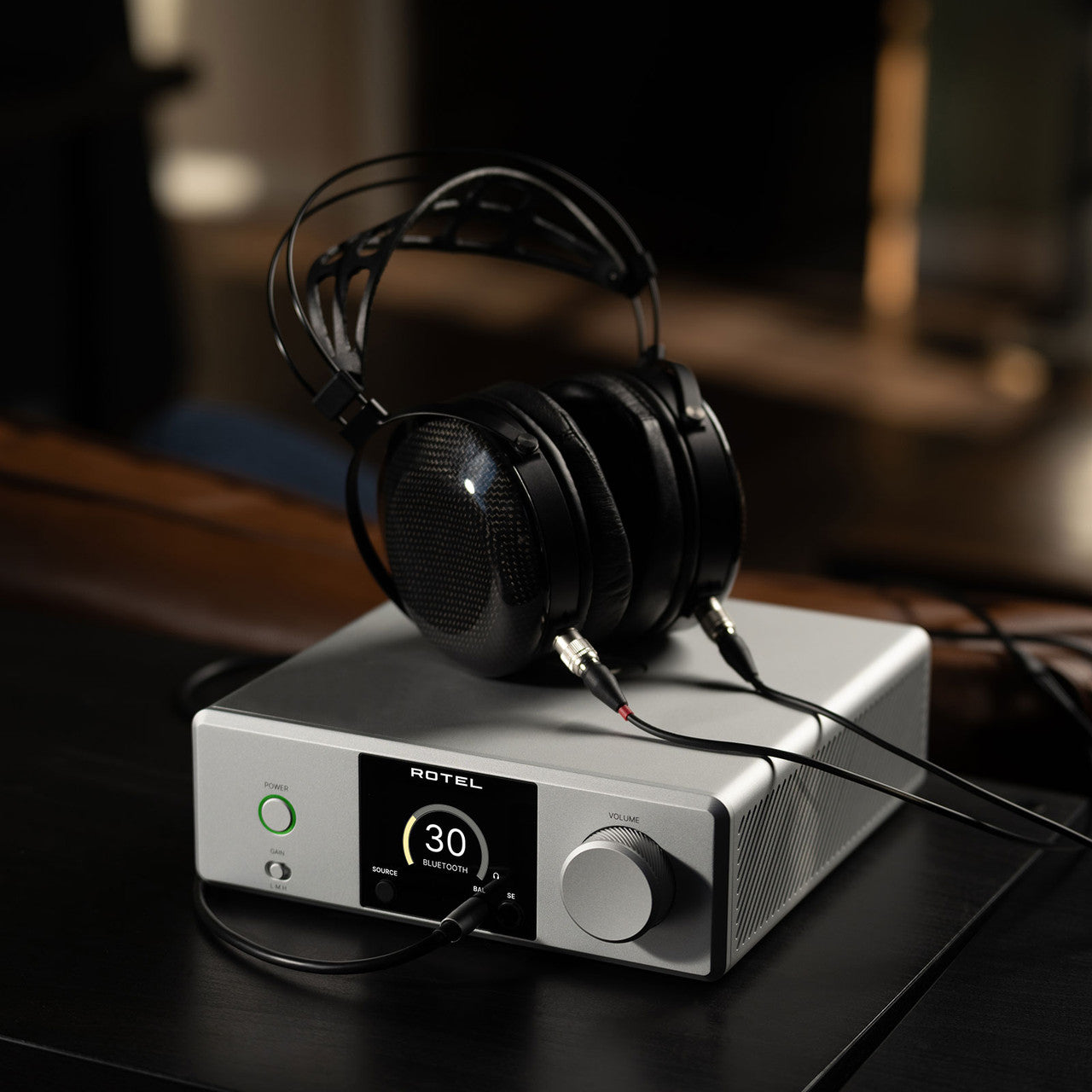

Connect a computer over USB, digital sources over coaxial or optical, an analog source to the RCA input, or stream from your phone over Bluetooth. Headphones plug into the balanced 4.4mm or 6.35mm front jacks, and the RCA preamp outputs feed powered speakers or an amplifier.

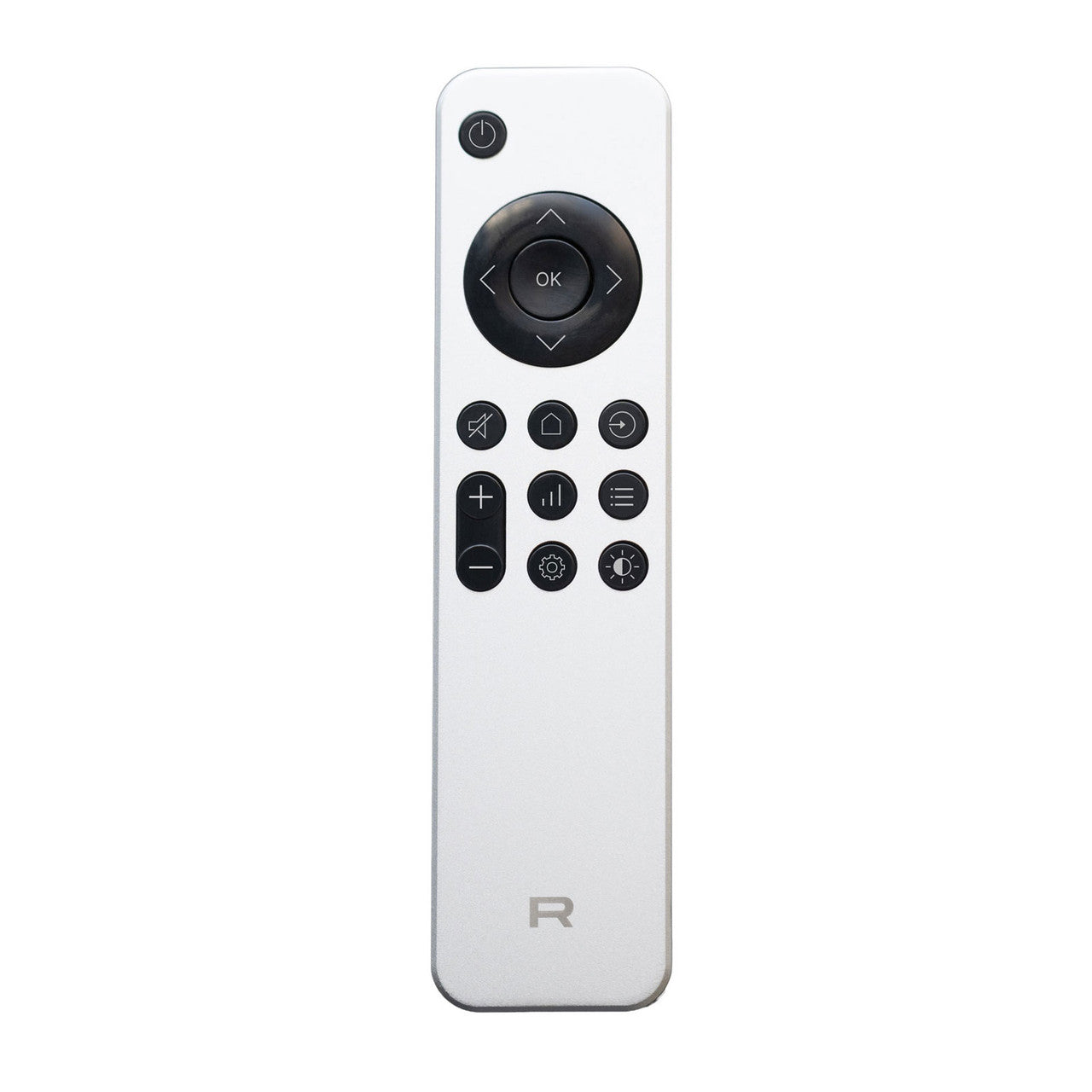

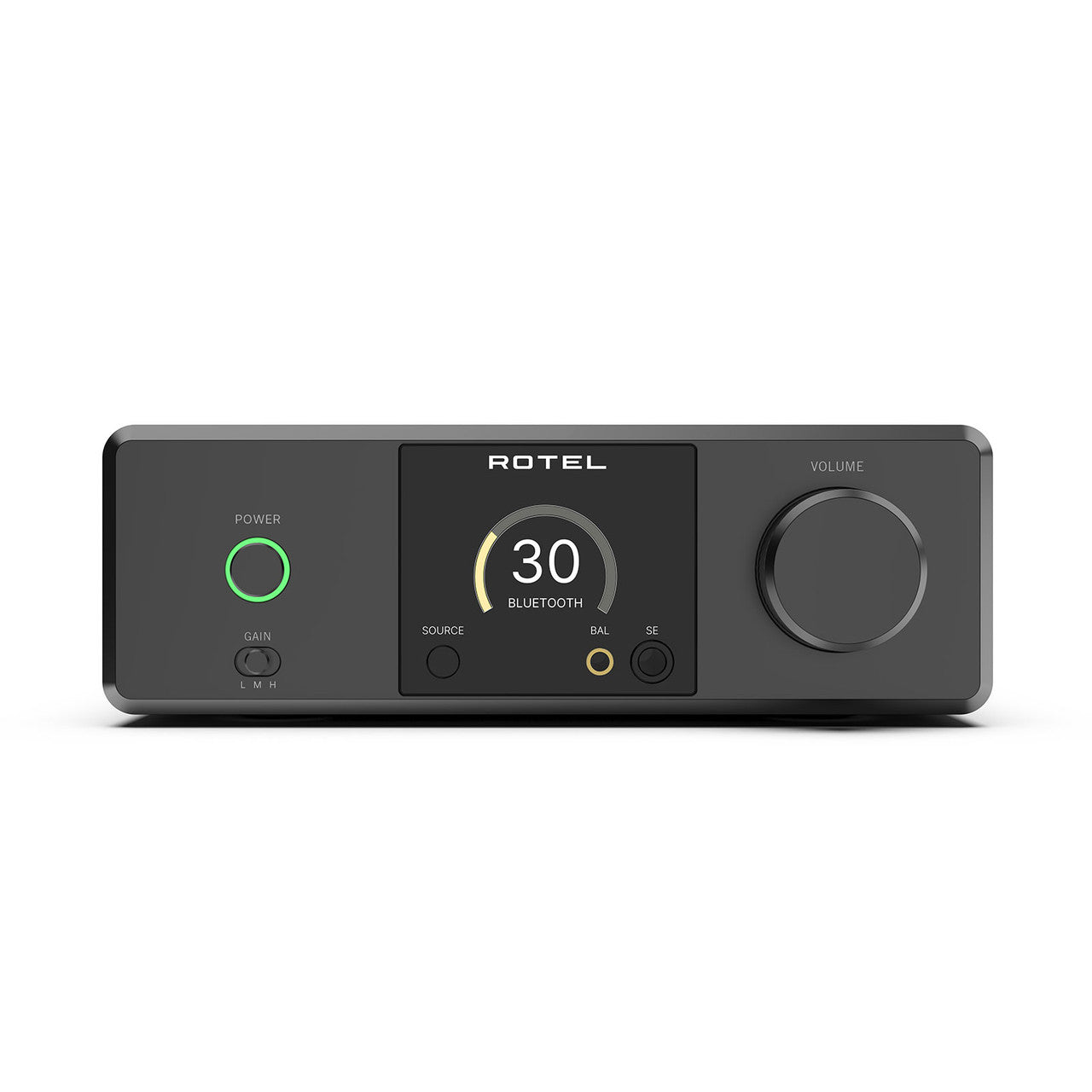

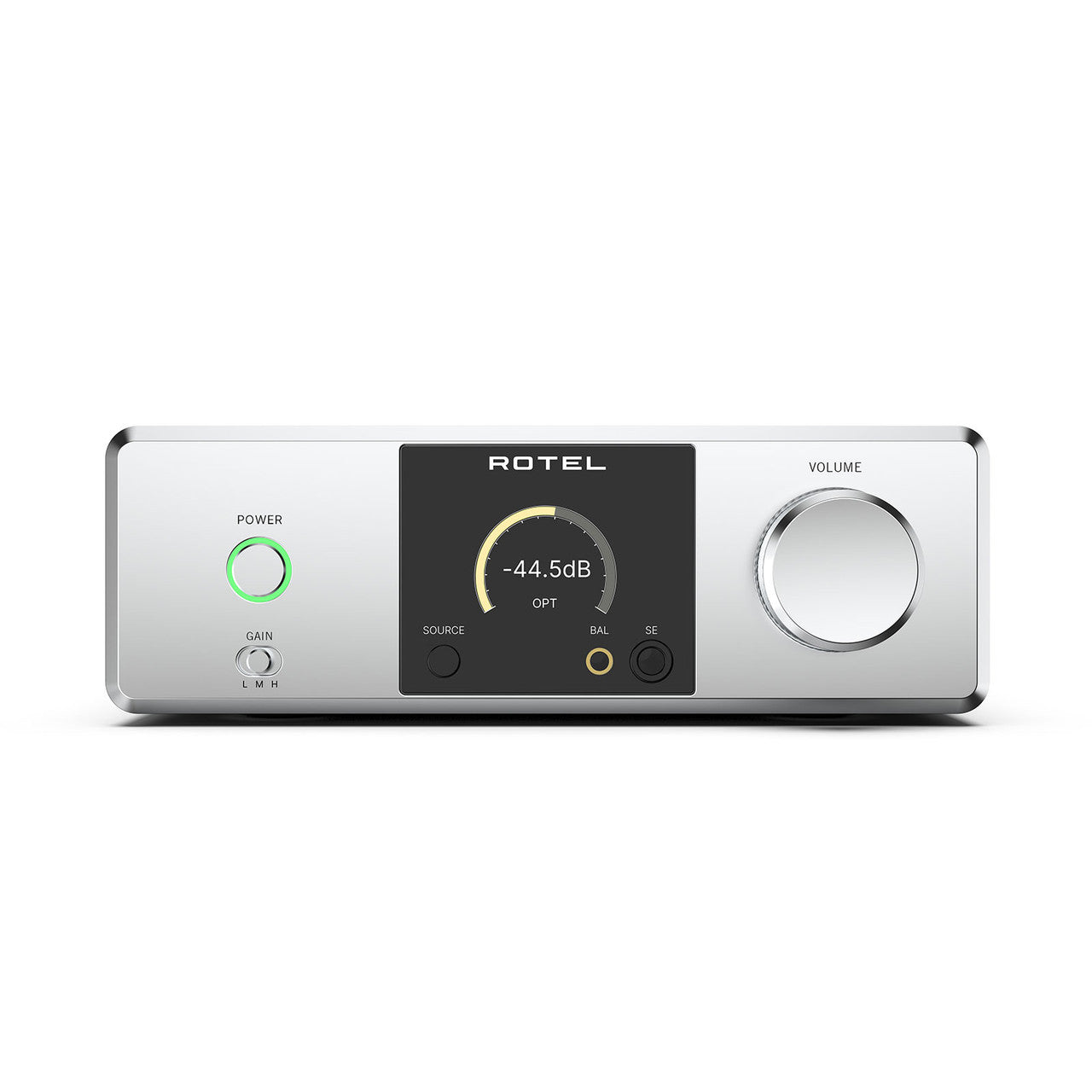

The color display shows source and volume at a glance, and the included remote controls everything from across the room.

Pairs Well With

Building your system? Here are some great companions for the DX-3:

• Headphones: Its 16-300 ohm sweet spot covers most serious headphones — see our Headphones.
• Powered Speakers: Use the preamp outputs for a complete compact system — see our Bookshelf Speakers.
• Cables: Quality USB and RCA cables complete the chain — see our Interconnect Cables.
• Audio Rack: Give it a proper home alongside your other components — see our Audio Racks.

Frequently Asked Questions

How powerful is it?

1.4 watts into 32 ohms from the balanced 4.4mm output and 383mW from the 6.35mm jack, with Rotel recommending headphones from 16 to 300 ohms.

What formats does the DAC support?

PCM up to 32-bit/384kHz over USB (24-bit/192kHz over coax/optical) and DSD up to 11.2MHz, using the ESS ES9028PRO chip.

Does it have Bluetooth?

Yes, with aptX HD and AAC for streaming from a phone or tablet.

Can it work as a preamp?

Yes. RCA preamp outputs plus the included remote let it control powered speakers or a power amplifier.

Does it work with Roon?

Yes, the DX-3 is Roon Tested.

What finishes are available?

Silver or black.
