Rotel DX-5 Integrated Amplifier - Black

Rotel Shrank a Real Amplifier to Fit Your Desk

Rotel calls the DX-5 a personal audio integrated amplifier, which is a careful way of saying desktop amp. It measures 8 1/2 inches wide, 3 inches tall, and 10 inches deep, and takes up less space than a sheet of paper. Inside is a proper Class AB amplifier, not a compromise. It comes in black or silver.

Power is 25 watts per channel into 8 ohms, rising to 33 watts into 4 ohms. Those are modest numbers, and Rotel does not pretend otherwise. On a desk, or with reasonably sensitive speakers in a small room, they go further than the spec sheet suggests.

One Cable to the TV, and You're Done

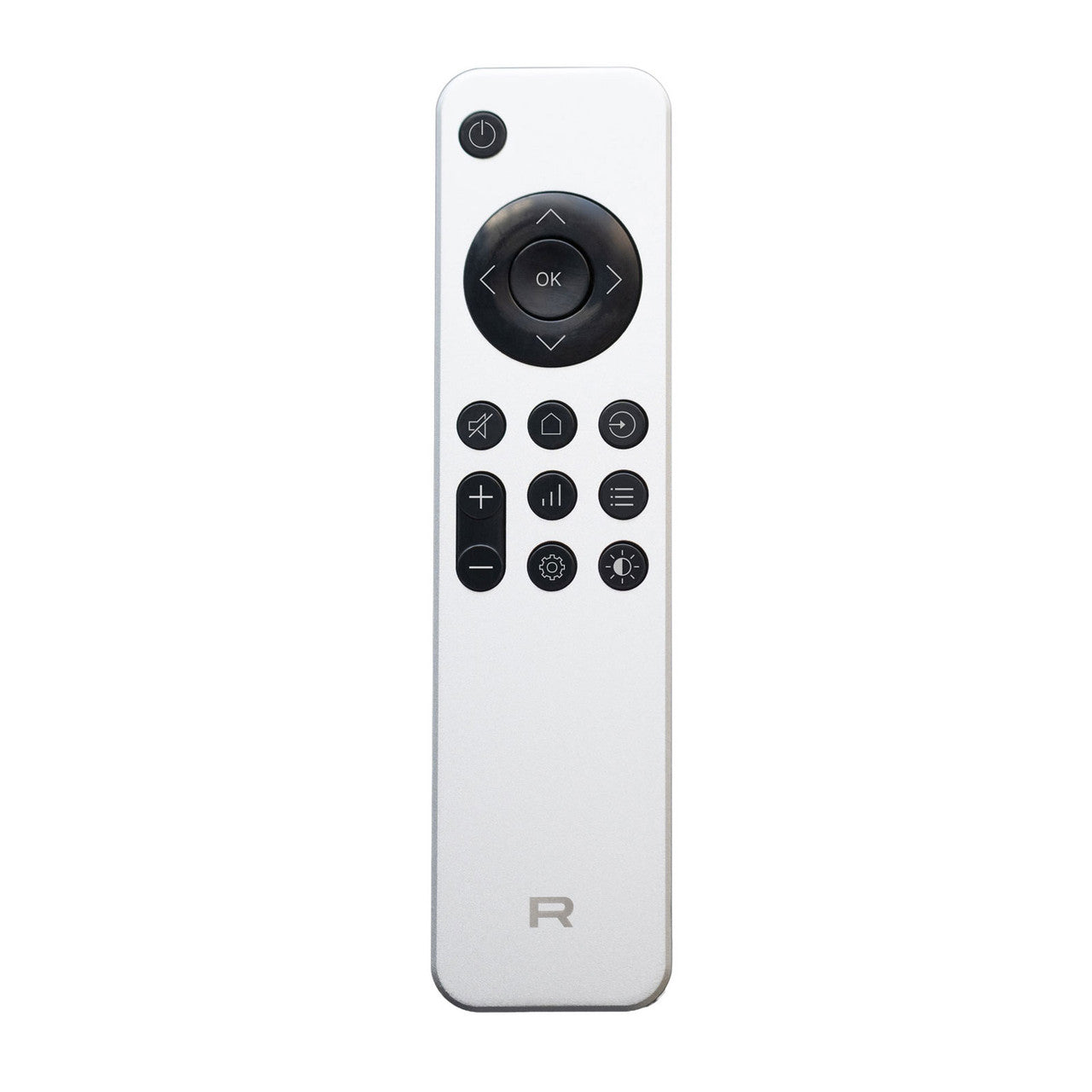

The HDMI ARC input is the feature that changes what this amp is for. Connect it to your TV and the DX-5 becomes its sound system. HDMI CEC comes along too, so the TV remote controls volume and the amp follows the TV on and off. Add the subwoofer output and you have a 2.1 setup.

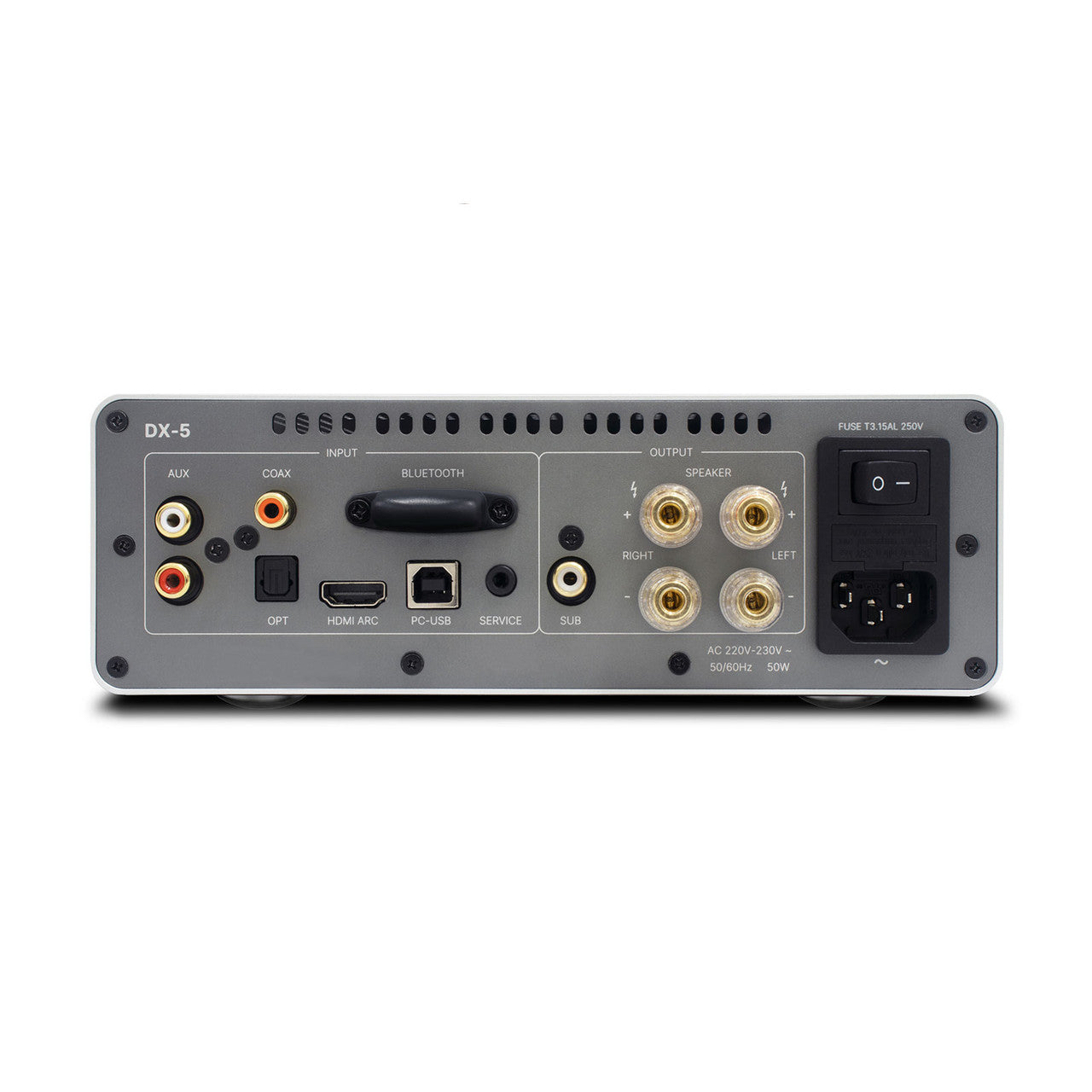

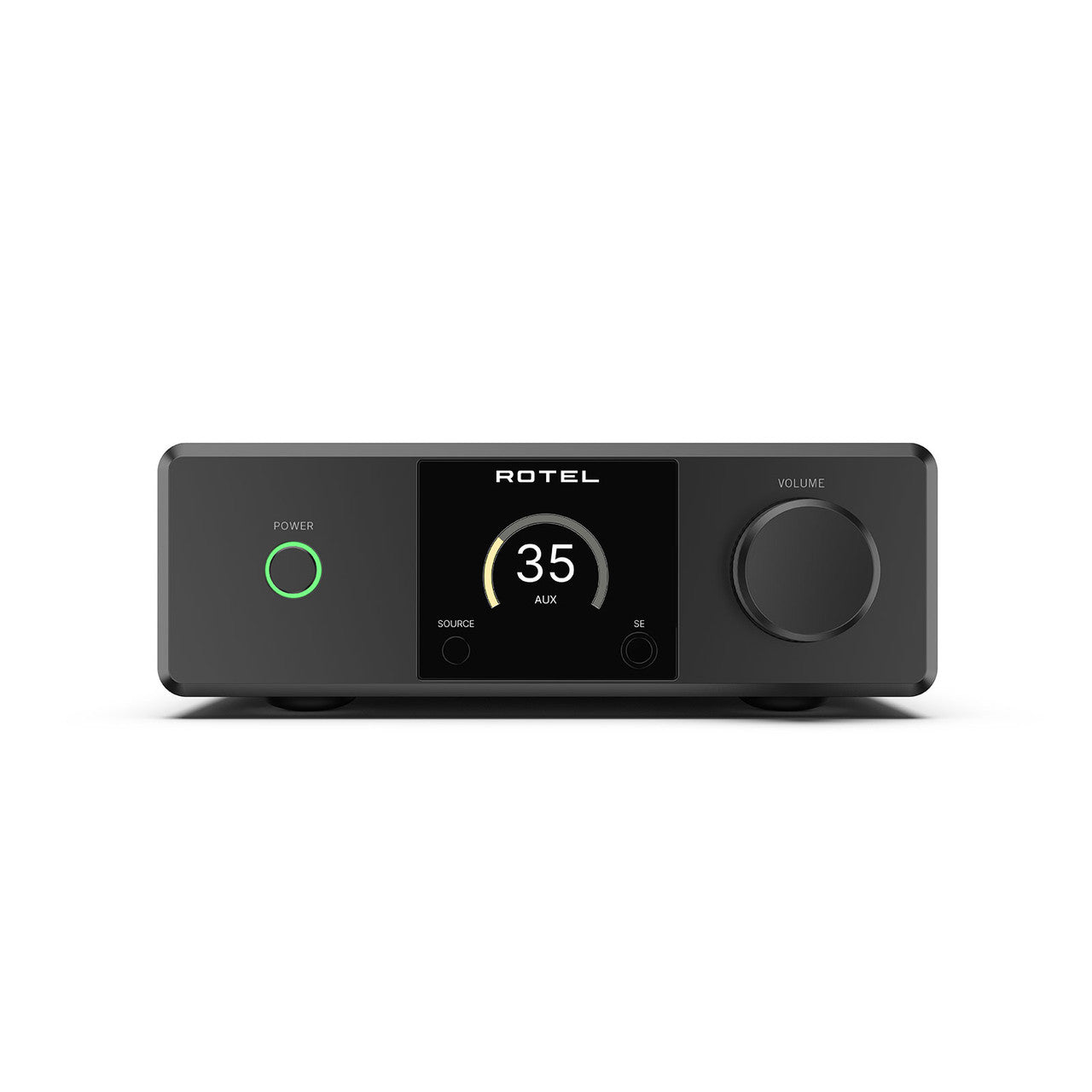

The rest of the connections are digital-first. You get one coaxial and one optical input, a PC-USB port, and Bluetooth with aptX HD and AAC. There is one analog RCA input. A 1/4-inch headphone jack sits on the front, next to a full-color display and a machined volume knob.

Small Box, Full-Size Engineering

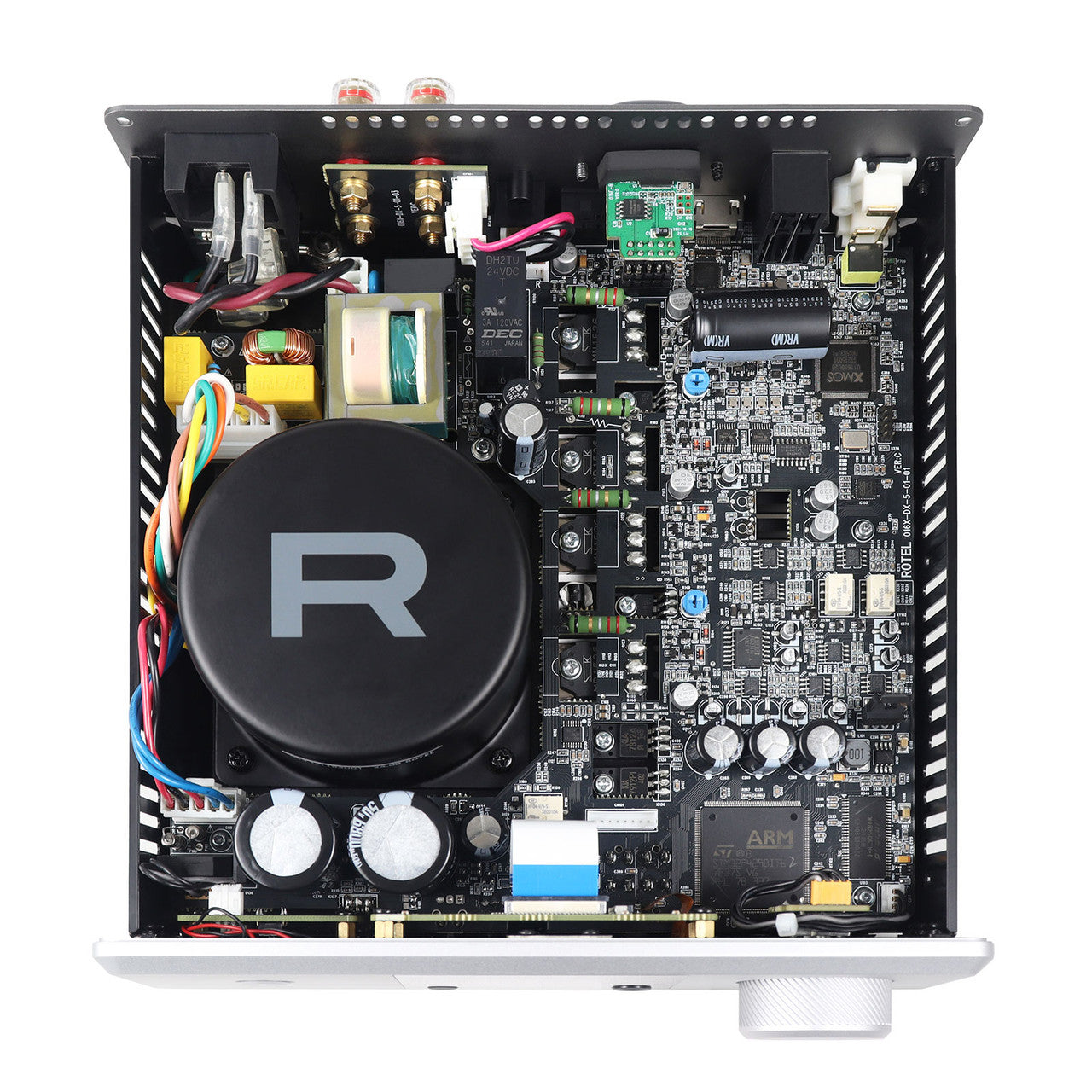

Rotel winds its own toroidal transformer for this amp and drives push-pull high-current output transistors from it. The casework is aluminum throughout. Nothing about the interior reads as a lifestyle product that happens to make sound, which is where most amplifiers this size give themselves away.

The Numbers Behind the Small Chassis

Total harmonic distortion measures under 0.03 percent, and so does intermodulation distortion. Frequency response runs from 10Hz to 100kHz within a fifth of a decibel, which is unusually tight. Signal-to-noise ratio is better than 100dB. Input sensitivity is 680mV into 100k ohms, and the damping factor is 140.

Where the DAC Does the Heavy Lifting

Conversion runs through an ESS ES9039Q2M Sabre chip. Over PC-USB it handles PCM to 384kHz and 32-bit, plus DSD to four times rate and DoP to double rate. The coaxial and optical inputs take PCM to 24-bit/192kHz. Windows users install the supplied driver to unlock Class 2.0. The DX-5 is Roon Tested.

What Reviewers Are Saying

Ketan Bharadia reviewed the DX-5 for What Hi-Fi? on March 23, 2026, scoring five for sound and five for build. His pros list reads "Clean, crisp and composed presentation" and "Fluid dynamics with plenty of detail".

David Price gave it 7.5 out of 10 and an Applause Award at StereoNET on December 15, 2025. He called it "An open, even-handed and musically engaging performer" whose "build quality for an amp of this price is superlative".

Bharadia is specific about the limits. His cons are "No phono stage", "Another line level input would be handy", and "Needs careful speaker matching". He also flags "a single set of decent-quality though tightly packed speaker terminals", worth knowing if your cables end in spade lugs.

Who Is This Compact Amplifier Best For?

• Desktop listeners — nearfield is where 25 watts stops being a limitation, and the 1/4-inch headphone output is built for arm's-reach use.
• Anyone building a TV system without a receiver — HDMI ARC with CEC means one cable, TV remote volume control, and a sub output for the low end.
• Computer audio owners with large hi-res libraries — PC-USB reaches 384kHz and 32-bit and handles DSD, so files play without conversion.
• Small rooms and second systems — a bedroom, office, or den where a full-width chassis would dominate the furniture.
• Not ideal for large rooms or power-hungry speakers — 25 watts needs sensitive partners. For towers or a big space, the Rotel A14MKII offers 80 watts per channel and a moving magnet phono stage.

How Does It Connect to Your System?

Speakers first. The terminals are close together, so bare wire or banana plugs are the easy choice. Then pick your source. One HDMI cable to the TV's ARC port covers television. A USB cable to your computer covers your library, and Bluetooth covers your phone.

A CD player or a turntable with its own phono stage takes the analog RCA input. If you want more bass than a small pair of speakers can give, run the sub output to a powered subwoofer and set the low-pass filter there. It fits on a desk. It sounds like it does not belong on one.

Pairs Well With

The DX-5 is the electronics. These are the parts that decide how far 25 watts goes:

• Bookshelf speakers — the right partner for this amp, and the more sensitive the pair, the louder it will play.
• Headphones — the front 1/4-inch output is a core part of the design, not an afterthought.
• Subwoofers — the sub output is full range, so choose one with its own low-pass filter.
• Speaker cables — the terminals are tightly spaced, so bare wire or banana plugs beat bulky spades here.

Frequently Asked Questions

How much power does the Rotel DX-5 have?

25 watts per channel into 8 ohms, and 33 watts into 4 ohms, from a Class AB output stage. It suits nearfield desktop use and small-to-medium rooms with reasonably sensitive speakers.

Does the DX-5 have a phono input for a turntable?

A turntable connects through an outboard phono preamplifier. A turntable with a built-in phono preamp, or a separate phono stage, connects to the single analog RCA input.

Can I connect my TV to the Rotel DX-5?

Yes, through HDMI ARC, and CEC lets the TV remote control volume. The DX-5 takes two-channel stereo only, so set the TV to output stereo rather than Dolby Digital.

What file formats does the DX-5 play over USB?

PC-USB handles PCM to 384kHz and 32-bit, DSD to four times rate, and DoP to double rate. Windows machines need the supplied driver for USB Audio Class 2.0. It is also Roon Tested.

Does the DX-5 stream from Spotify or Tidal on its own?

There is no Wi-Fi, Ethernet, or built-in streaming platform. Music reaches it over Bluetooth with aptX HD and AAC, or from a computer or streamer through PC-USB and the digital inputs.

What is the warranty on the Rotel DX-5?

Five years, parts and labor. Coverage requires purchase from an authorized Rotel North American dealer, and the online registration must be completed within 30 days of purchase.

See It in Action

Rotel's own channel walks through the DX-5 and its connections:

Mad Audio gives the DX-5 an independent review, with listening impressions and setup notes:
