Rotel DX-5 Integrated Amplifier - Silver
✔ 60-Day Money-Back Guarantee — Try it risk-free for 60 days
✔ Free Shipping on orders over $49
✔ Financing Available — Pay over time | Learn more
✔ Price Guarantee — We match authorized dealer pricing | Details
✔ Expert Help — Call us at 800-942-0220 weekdays 9am–6pm EST
Delivery and Shipping
Delivery and Shipping
- Audio Advisor will ship products anywhere in the United States, including Alaska, Hawaii, and U.S. Territories.
- For more information, visit our Delivery & Shipping Policies.

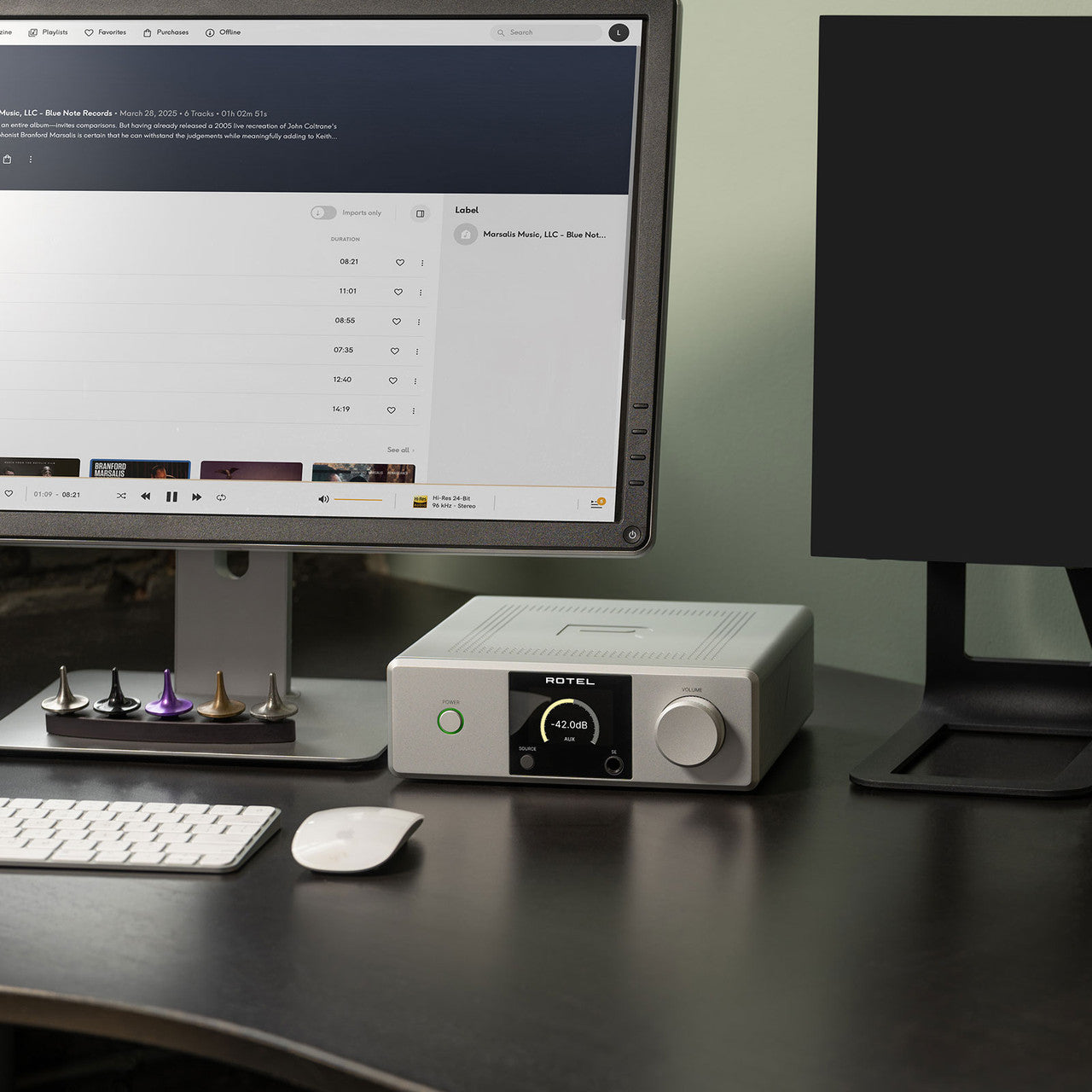

Rotel Shrank a Real Amplifier to Fit Your Desk

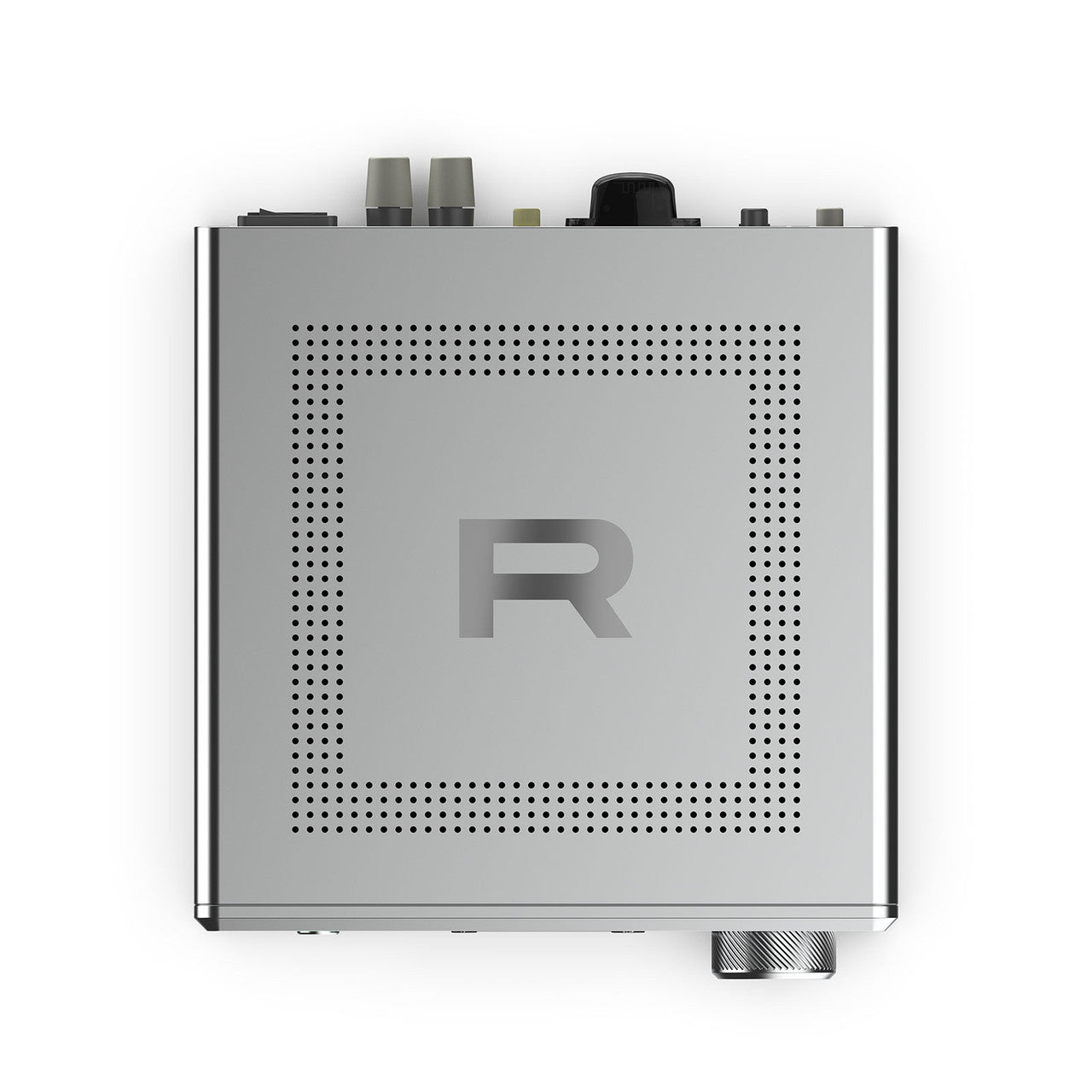

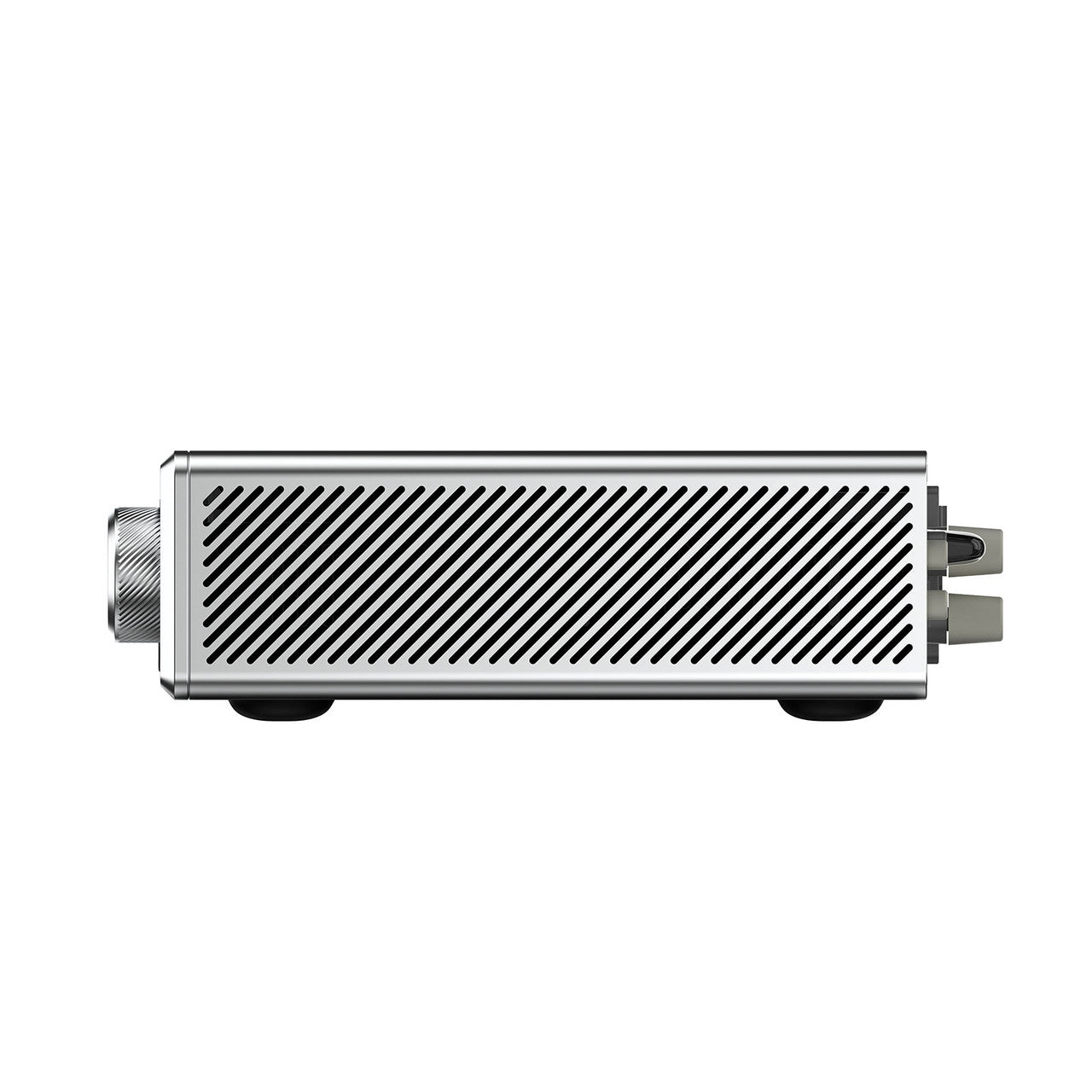

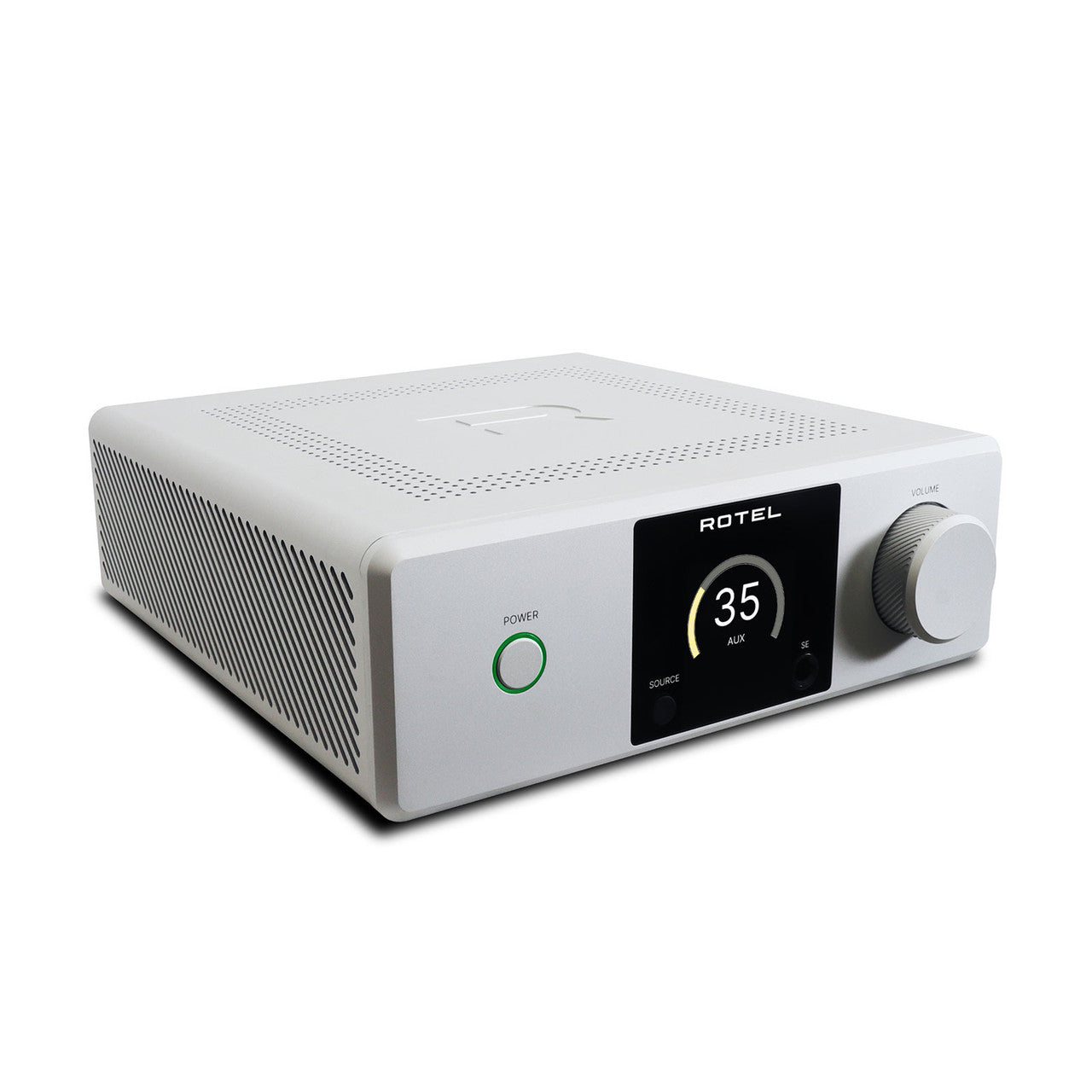

Rotel calls the DX-5 a personal audio integrated amplifier, which is a careful way of saying desktop amp. It measures 8 1/2 inches wide, 3 inches tall, and 10 inches deep, and comes in black or silver. Power is 25 watts per channel into 8 ohms, rising to 33 watts into 4 ohms.
One Cable to the TV, and You’re Done
The HDMI ARC input changes what this amp is for. Connect it to your TV and the DX-5 becomes its sound system. HDMI CEC lets the TV remote control volume, and the amp follows the TV on and off.

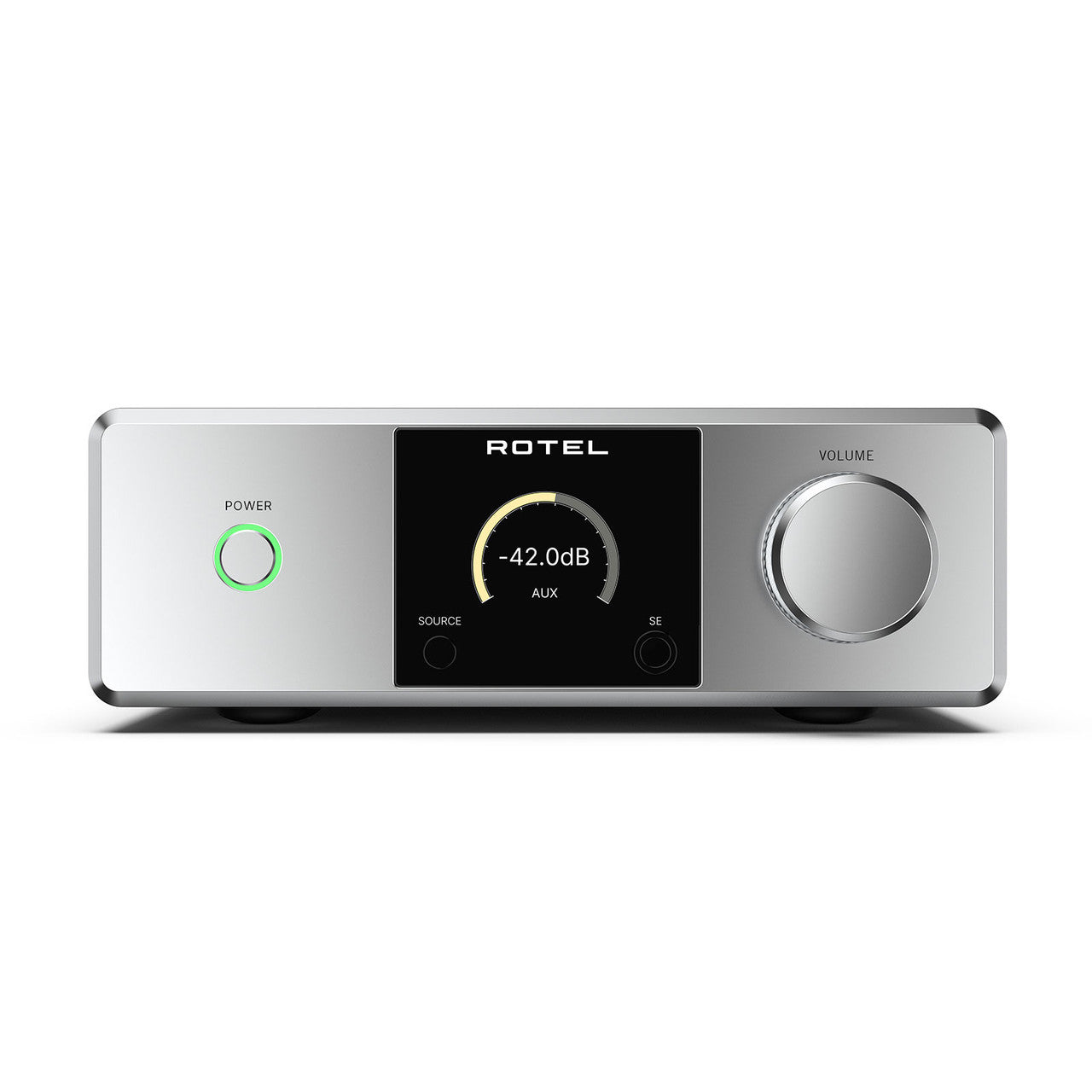

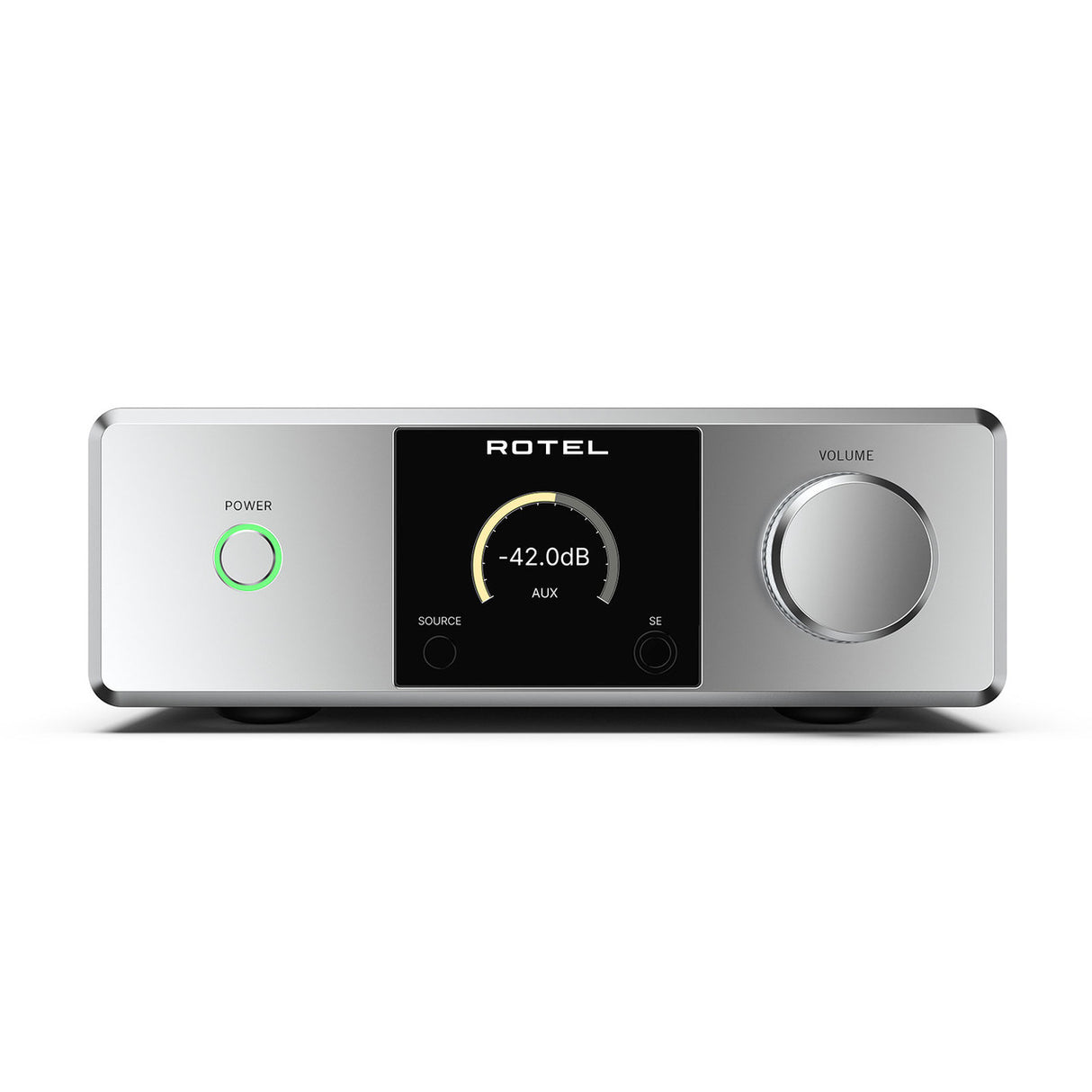

The rest is digital-first: one coaxial and one optical input, a PC-USB port, and Bluetooth with aptX HD and AAC. There is one analog RCA input. A 1/4-inch headphone jack sits on the front, next to a full-color display and a machined volume knob.
Small Box, Full-Size Engineering

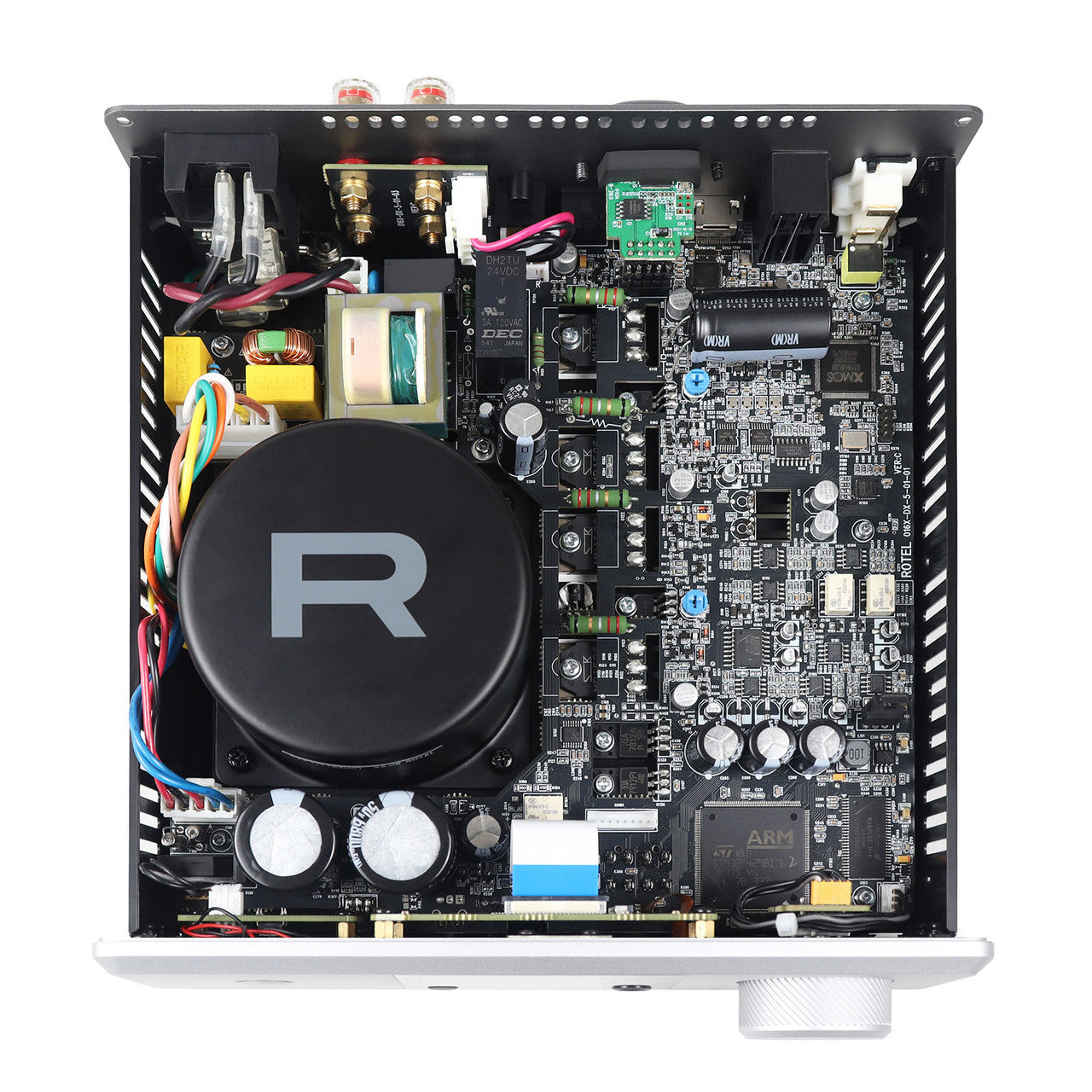

Rotel winds its own toroidal transformer for this amp and uses push-pull high-current output transistors. The casework is aluminum throughout. Distortion measures under 0.03 percent and the damping factor is 140.
Where the DAC Does the Heavy Lifting
Conversion runs through an ESS ES9039Q2M Sabre chip. Over PC-USB it handles PCM to 384kHz and 32-bit, plus DSD to four times rate and DoP to double rate. Coaxial and optical take PCM to 24-bit/192kHz. The DX-5 is Roon Tested.
What Reviewers Are Saying
Ketan Bharadia reviewed the DX-5 for What Hi-Fi? on March 23, 2026, scoring five for sound and five for build. His pros list reads “Clean, crisp and composed presentation”, and his cons include “No phono stage”.
David Price gave it 7.5 out of 10 and an Applause Award at StereoNET on December 15, 2025. He called it “An open, even-handed and musically engaging performer” whose “build quality for an amp of this price is superlative”.
Who Is This Compact Amplifier Best For?
- Desktop listeners — nearfield is where 25 watts stops being a limitation
- Anyone building a TV system without a receiver — HDMI ARC with CEC means one cable and TV remote volume control
- Computer audio owners with large hi-res libraries — PC-USB reaches 384kHz and 32-bit and handles DSD
- Small rooms and second systems — a bedroom, office, or den
- Not ideal for large rooms or power-hungry speakers — 25 watts needs sensitive partners. For towers or a big space, the Rotel A14MKII offers 80 watts per channel and a moving magnet phono stage
How Does It Connect to Your System?

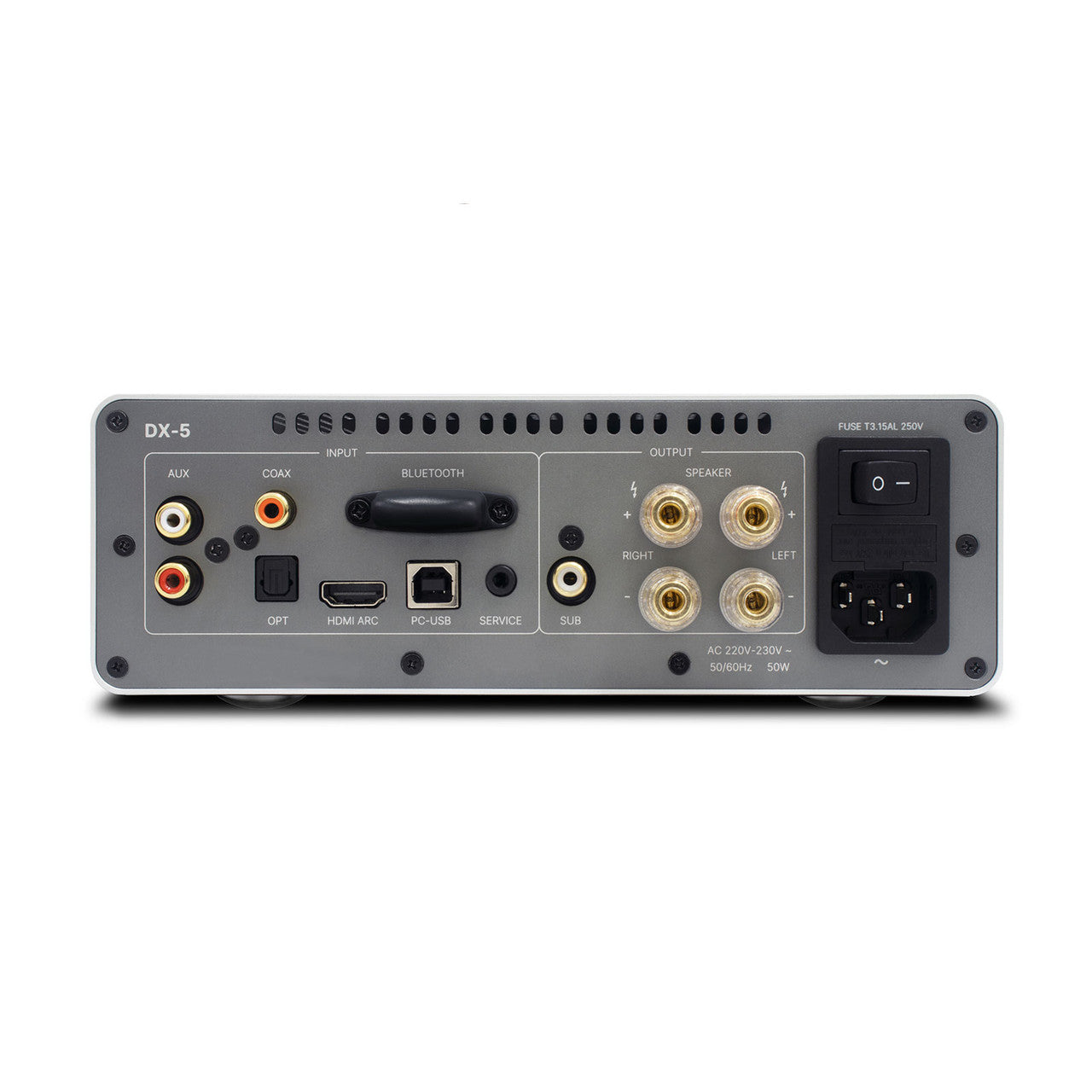

Speakers first. The terminals are close together, so bare wire or banana plugs are the easy choice. One HDMI cable to the TV’s ARC port covers television, USB covers your computer, and Bluetooth covers your phone. A CD player or a turntable with its own phono stage takes the analog RCA input.
Pairs Well With
The DX-5 is the electronics. These parts decide how far 25 watts goes:
- Bookshelf speakers the right partner for this amp, and the more sensitive the pair, the louder it plays
- Headphones the front 1/4-inch output is a core part of the design
- Subwoofers the sub output is full range, so choose one with its own low-pass filter
- Speaker cables the terminals are tightly spaced, so bare wire or banana plugs suit best
Frequently Asked Questions
How much power does the Rotel DX-5 have?
25 watts per channel into 8 ohms, and 33 watts into 4 ohms, from a Class AB output stage.
Does the DX-5 have a phono input for a turntable?
Not directly. A turntable with a built-in phono preamp, or a separate phono stage, connects to the single analog RCA input.
Can I connect my TV to the Rotel DX-5?
Yes, through HDMI ARC, and CEC lets the TV remote control volume. Set the TV to output stereo rather than Dolby Digital.
What file formats does the DX-5 play over USB?
PC-USB handles PCM to 384kHz and 32-bit, DSD to four times rate, and DoP to double rate. Windows machines need the supplied driver for USB Audio Class 2.0.
Does the DX-5 stream from Spotify or Tidal on its own?
There is no Wi-Fi or Ethernet. Music reaches it over Bluetooth, or from a computer or streamer through PC-USB and the digital inputs.
What is the warranty on the Rotel DX-5?
Five years, parts and labor. Coverage requires purchase from an authorized Rotel North American dealer, and the online registration must be completed within 30 days of purchase.
See It in Action
Rotel’s own channel walks through the DX-5 and its connections:
Mad Audio gives the DX-5 an independent review, with listening impressions and setup notes:
Why Audio Advisor?
- 40+ Years of Expertise — Since 1981, we’ve helped over a million music lovers find the right gear.
- 60-Day Money-Back Guarantee — Take your time. Listen, enjoy, and make sure it’s right for you.
- Real Experts, Real Help — Our team is here to answer your questions at 800-942-0220, weekdays 9am–6pm EST.
- Free Shipping — On orders over $49, delivered to your door.
- Flexible Payment Options — Financing available so you can start listening now.
Learn More
Want to learn more about desktop audio systems, HDMI ARC for TV sound, or matching speakers to a low-power amplifier? Visit our Learning Center for guides, tips, and expert advice.
Overview
- Integrated amplifier
- 2 x 33 Watts of Robust Class AB power, 4 Ohms
- Certified Roon Tested
- ESS premium 32-bit Digital to Analog Converter
- Bluetooth with apt™ HD and AAC
- In-house manufactured toroidal transformer with ultra-low noise isolation and filter capacitors
- Push-pull high-current output transistors
- High-resolution full-color graphic display for intuitive setup and operation
- Precision volume control
- 1⁄4" headphone jack for private listening

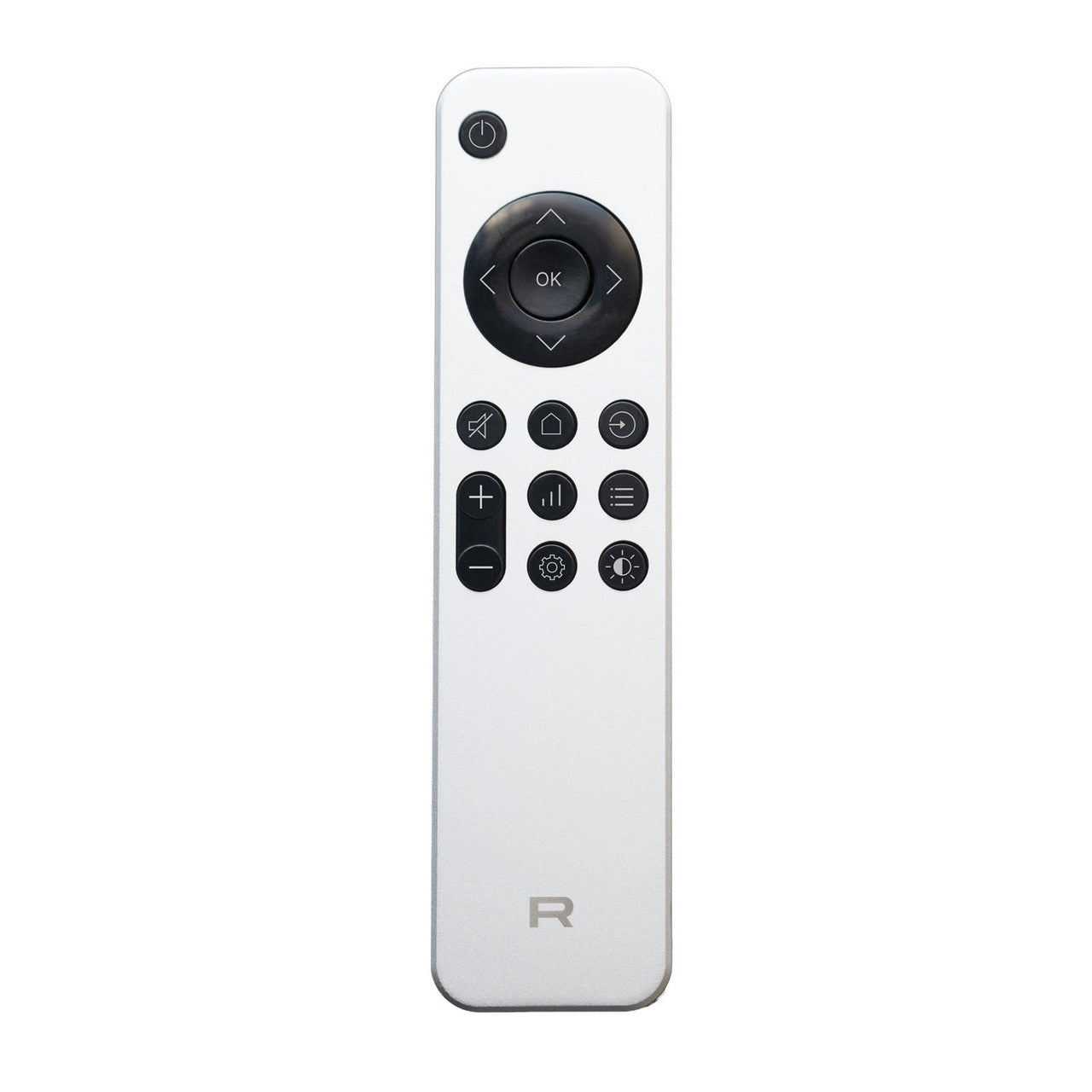

- Extruded aluminum remote control
- Finish: Choose Black or Silver
Connectivity
- aptX™ HD Wireless Bluetooth
- Coaxial digital input
- Optical digital input
- PC-USB input
- RCA analog input
- HDMI ARC with CEC
- RCA single-ended outputs
- Subwoofer out
- 1/4" headphone jack
Analog Section
- Power Output (FTC): 25 WPC
- Maximum Power Output (Non FTC): 33 WPC (1k Hz, 4 Ω)
- Continuous Power Output (Non FTC): 25 WPC (1k Hz, 8 Ω)
- Total Harmonic Distortion: <0.03%
- Intermodulation Distortion (60 Hz, 7k Hz, 4:1): <0.03%
- Frequency Response: 10 Hz – 100k Hz (0 ± 0.19 dB)
- Damping Factor (20 Hz – 20k Hz, 8 Ω): 140
- Input Sensitivity / Impedance: 680 mV / 100k Ω
- Input Overload: 4.2 V
- Signal to Noise Ratio (IHF "A" weighted): >100 dB
Digital Section
- Frequency Response: 10 Hz – 80 kHz
- Input Sensitivity / Impedance: -10.3 dBFS / 75 Ω
- Signal to Noise Ratio (IHF "A" weighted): >100 dB
- SPDIF LPCM (up to 24-bit / 192k Hz)
PC USB
- USB Audio Class 2.0 (up to 32-bit / 384 kHz), Driver installation required
- Supports DSD (up to 4X, 11.2M Hz)
- Supports DoP (up to 2X, 5.6M Hz)
General
- Power Requirements: 120 V, 60 Hz
- Power Consumption: 80 W
- Standby Power Consumption: <0.5 W
- Front Panel Height: 2-3/4"
- Dimensions (WxHxD): 5-1/2 x 3" x 10"
- Weight: 9.1 lb.
