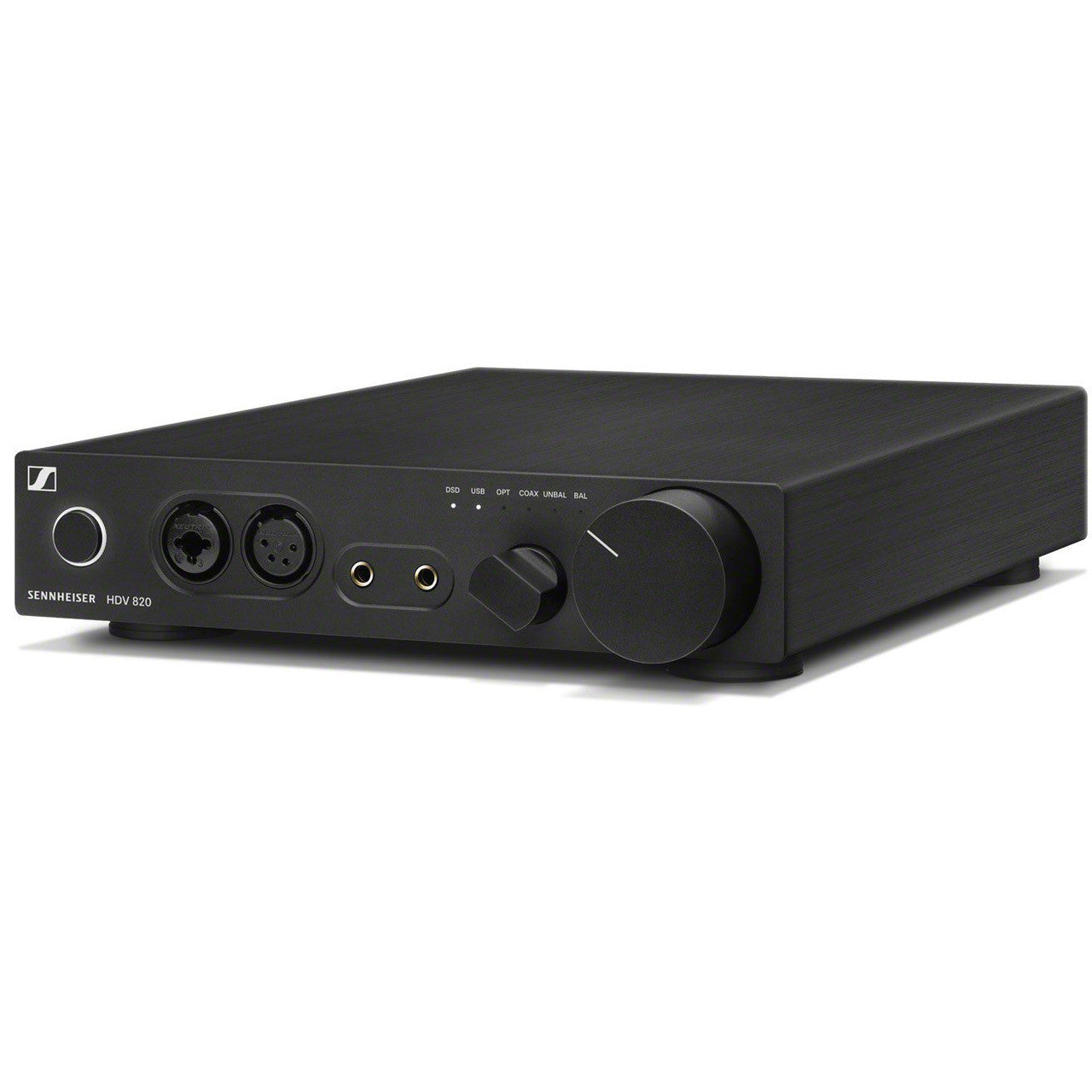

Sennheiser's Own Amplifier for Sennheiser's Own Headphones
Sennheiser designed the HDV 820 as the matching source for its flagship HD 800 S and HD 820 headphones. It is a DAC, a fully balanced headphone amplifier and a preamp in one slim black chassis. It replaces the HDVD 800 with a better converter and more output options.
The converter is an ESS SABRE32. Over USB it plays PCM up to 32-bit/384kHz and DSD up to DSD256. Optical and coaxial inputs take other digital sources. Balanced XLR and unbalanced RCA analog inputs take an external DAC or a phono stage.

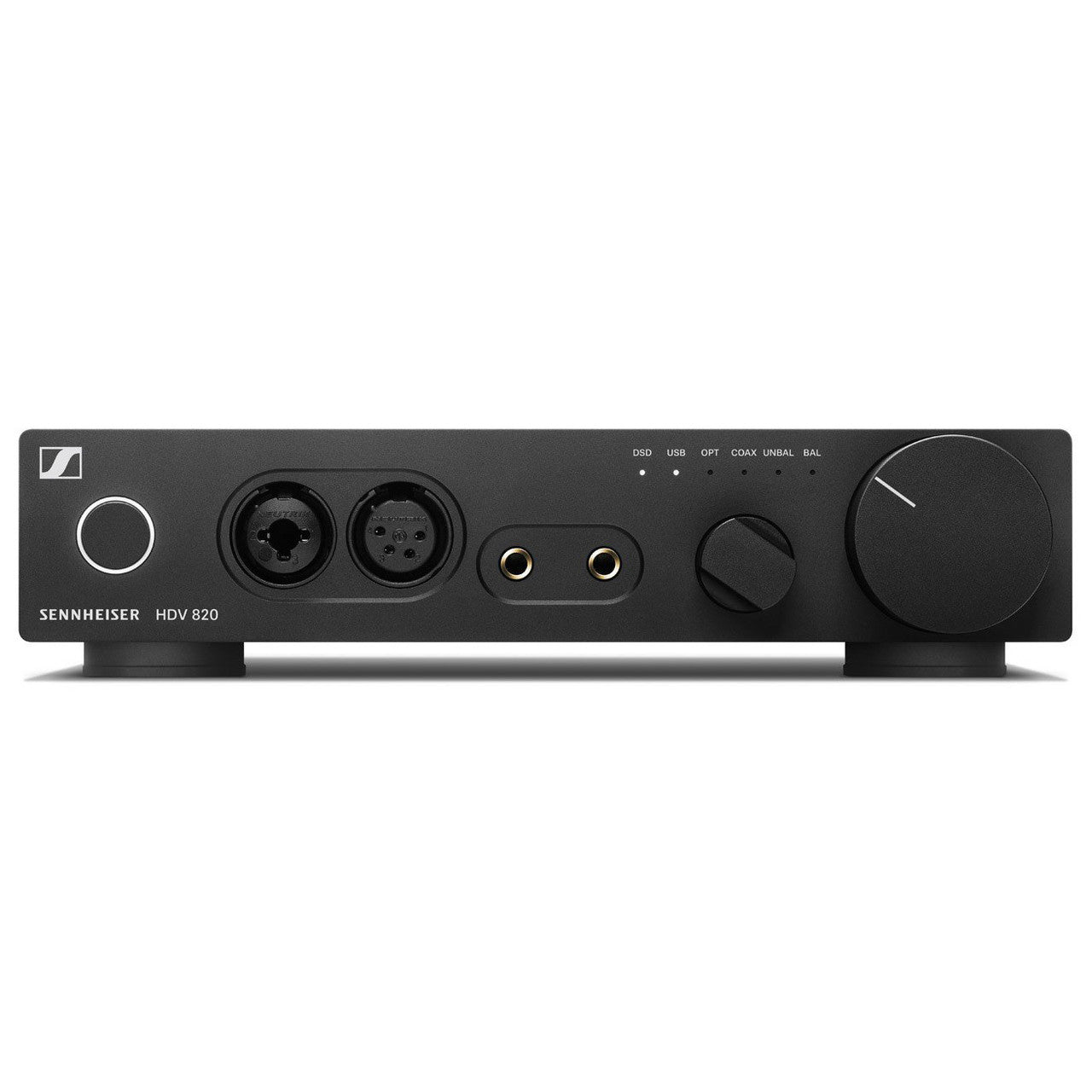

The front panel offers four ways to connect headphones: a 4-pin XLR, a 3-pin XLR combined with a 6.3mm jack, and two 4.4mm Pentaconn sockets. All run from the balanced amplifier stage, and two pairs can play together.
Quiet, Precise and Built to Match
Distortion is rated under 0.001 percent. Dynamic range exceeds 115 dB into 600 ohms. Frequency response runs from below 10 Hz to above 100 kHz. Gain on the unbalanced input is adjustable in five steps from 14 to 46 dB, so sensitive in-ears and 600-ohm studio headphones both sit in the right range.
Balanced and unbalanced analog outputs let the HDV 820 serve as a preamp for a power amplifier or powered speakers. White LEDs show the selected input and whether the signal is DSD. The anodized housing matches the HD 800 S and HD 820 in look and width.
It measures 8.8 inches wide, 1.73 tall and 12 deep, and weighs just under 5 pounds. It runs on 100 to 240 volts. A USB stick with the manual and Windows driver is in the box.
What Reviewers Are Saying
What Hi-Fi? reviewed the HDV 820 on January 5, 2018 and called it "a smooth, sophisticated performer and a pleasure to use," while noting that its polished approach can soften very aggressive recordings.
Dave Hanson of Enjoy the Music wrote in November 2017 that "Sennheiser has introduced a real gem here." Paul Rigby of The Audiophile Man, on October 7, 2017, found "a detailed and focused output," quieter still on the balanced outputs.
Who Is This DAC/Amp Best For?
- You own the HD 800 S or HD 820 — it was designed alongside them, down to the 4.4mm Pentaconn and XLR balanced outputs
- You want every balanced connector in one place — 4-pin XLR, 3-pin XLR, 6.3mm and two 4.4mm outputs cover any cable you own
- You want a DAC, amp and preamp in one slim box — digital and analog inputs plus balanced line outputs run headphones and speakers alike
- You value a smooth, refined presentation — reviewers consistently praised its polish over raw attack
- You want tube warmth or a visible sample-rate readout — the HDV 820 is solid-state and shows only input and DSD status, so compare the tube and display-equipped models in our headphone amplifiers

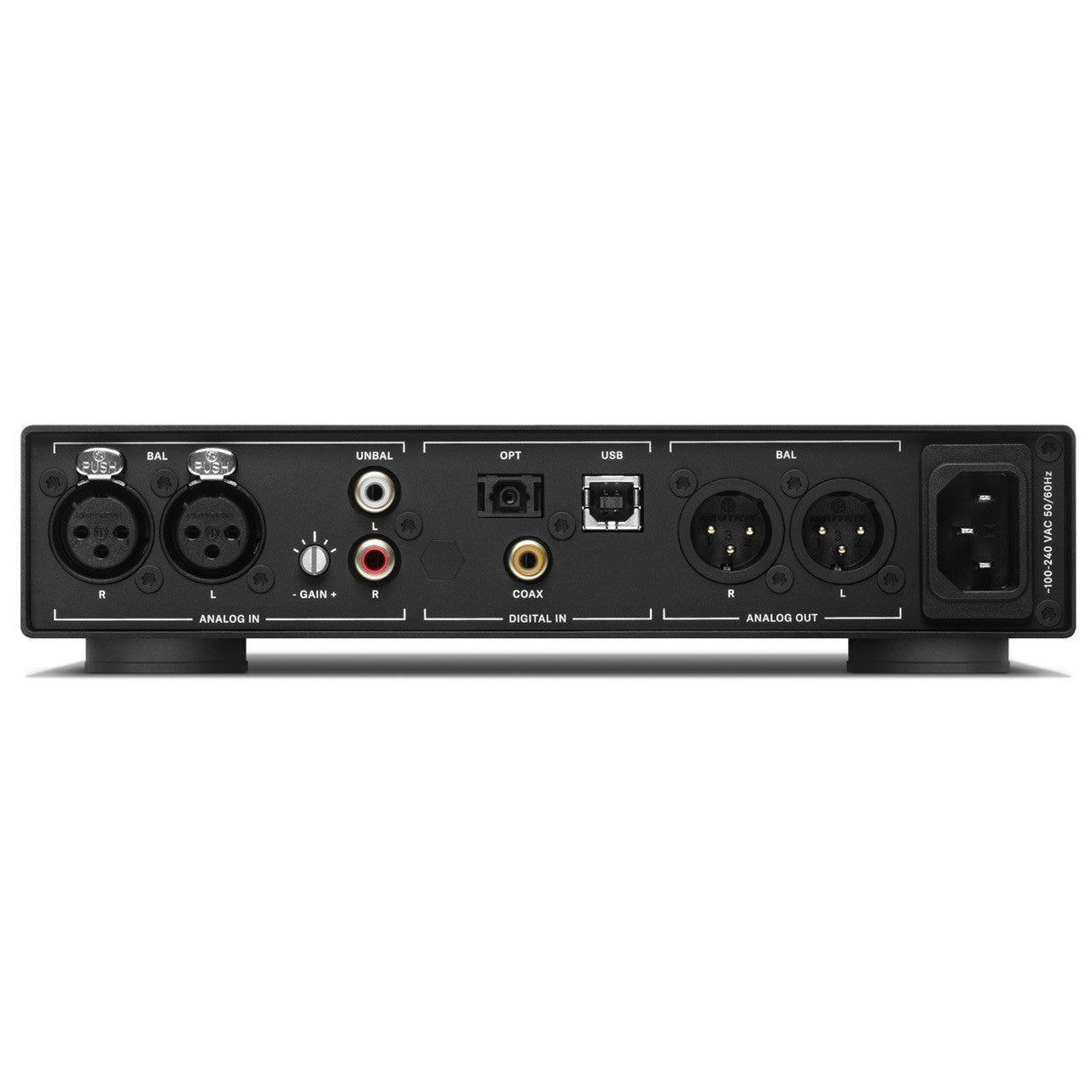

How Does It Connect to Your System?
Connect a computer to the USB input, or a transport or streamer to the optical or coaxial input. An external DAC or phono stage connects to the balanced XLR or RCA analog inputs. Plug headphones into whichever front output matches their cable.
To run speakers, connect the balanced or unbalanced analog outputs to a power amplifier or powered speakers. Windows users install the driver from the included USB stick; Mac and Linux need no driver.
Pairs Well With
Building your system? Here are some great companions for the Sennheiser HDV 820:
- Headphones: Sennheiser's HD 800 S and HD 820 are its natural partners — see our Headphones
- Headphone Cables: A balanced 4.4mm or XLR cable unlocks the balanced stage — see our Headphone Cables
- USB Cable: From computer to DAC — see our USB Cables
- Interconnects: Balanced XLR out to an amplifier — see our Interconnect Cables
Frequently Asked Questions
Which headphone outputs does it have?
A 4-pin XLR, a 3-pin XLR combined with a 6.3mm jack, and two 4.4mm Pentaconn sockets, all on the front panel.
Which formats does it play?
PCM up to 32-bit/384kHz and DSD up to DSD256 over USB. Optical and coaxial inputs handle standard PCM rates.
Can I use it as a preamp?
Yes. Balanced XLR and unbalanced RCA analog outputs let it drive a power amplifier or powered speakers.
Does it show the sample rate?
White LEDs show the selected input and whether the signal is DSD, but not the sample rate.
Do I need a driver?
Windows needs the driver supplied on the included USB stick. macOS and Linux work without one.
How is it different from the HDVD 800?
The HDV 820 adds an ESS SABRE32 DAC, DSD256 support, two 4.4mm Pentaconn outputs and balanced analog inputs.
See It in Action
Sennheiser explains DSD playback on the HDV 820:
Why Audio Advisor?
- 40+ Years of Expertise — Since 1981, we've helped over a million music lovers find the right gear.
- 60-Day Money-Back Guarantee — Take your time. Listen, enjoy, and make sure it's right for you.
- Real Experts, Real Help — Our team is here to answer your questions at 800-942-0220, weekdays 9am–6pm EST.
- Free Shipping — On orders over $49, delivered to your door.
- Flexible Payment Options — Financing available so you can start listening now.
Learn More
Want to learn more about balanced headphone amps, DACs, or getting the most from reference headphones? Visit our Learning Center for guides, tips, and expert advice.
Overview
- ESS SABRE32 DAC (digital-to-analog converter)
- Plays DSD256 files of up to 12.3 MHz
- XLR3, XLR4, 6.3 mm- and a 4.4 mm Pentaconn outputs
- USB, optical, and coax digital inputs
- Balanced (XLR) and unbalanced (RCA) analog inputs
- White LED status lights
What's in the Box
- HDV 820 Headphone Amplifier
- Power supply cable
- Quick guide
- Safety guide
- Microfiber cloth
- USB flash drive (SD-U16L version) with instruction manual (as PDF file) and driver software for Microsoft Windows operating systems
- Product Type: Balanced DAC, headphone amplifier and preamplifier
- DAC: ESS SABRE32
- PCM Support: Up to 32-bit/384kHz
- DSD Support: Up to DSD256 (12.3MHz)
- Digital Inputs: USB, optical, coaxial
- Analog Inputs: Balanced XLR; unbalanced RCA
- Analog Outputs: Balanced XLR; unbalanced RCA
- Headphone Outputs: One 4-pin XLR; one 3-pin XLR combined with 6.3mm; two 4.4mm Pentaconn
- Gain (unbalanced input to XLR-4 output): Adjustable 14, 22, 30, 38 or 46dB
- Gain (balanced input to XLR-4 output): 16dB
- Frequency Response: Below 10Hz to above 100kHz
- THD: Less than 0.001%
- Dynamic Range: Greater than 115dB into 600 ohms, A-weighted
- Power Consumption: 12W nominal
- Operating Voltage: 100–240V, 50–60Hz
- Dimensions: Approx. 8.8" W x 1.73" H x 12" D
- Weight: Approx. 4.96 lbs.
- Included: Power cable, quick guide, safety guide, microfiber cloth, USB stick with manual and Windows driver
