Solidsteel S5-5 Five-Shelf Audio Rack with Isolation Platforms - Black

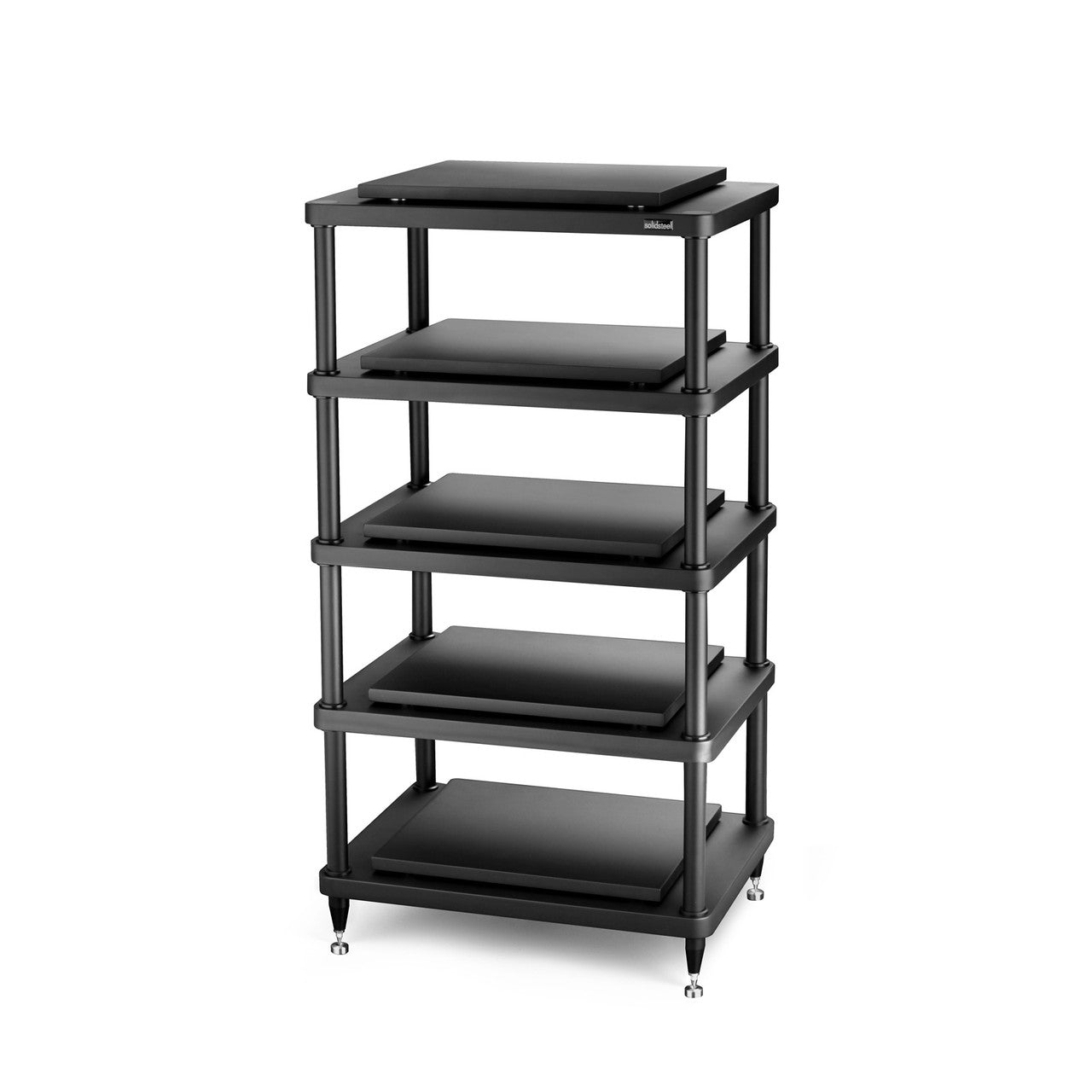

The Solidsteel S5 — A Second Shelf Floating Above the First

Every level of this rack is two shelves, not one. A structural shelf carries the frame, and a second platform sits above it on four adjustable steel cones seated in cup recesses. Your component never touches the rack itself.

That is what the isolation platforms in the name actually are, and it is the whole argument for the S5 over Solidsteel’s other racks. It also roughly doubles the mass under each component, which is the other half of the effect.

Will It Take What You Want to Put on It?

A Hundred and Twenty-One Pounds a Level

Each shelf carries up to 55 kilograms, or 121 pounds, and that figure is the same whichever level you use. Nothing in a normal system comes close to it, which is the point — the shelf is not working hard, so it stays flat and still.

The Bottom Bay Gets Twelve Inches

On the smaller racks the lowest gap is a full 12 inches of clear height, with 8 inches between the levels above it. That bottom bay is where a tall amplifier goes. Taller racks trade some of that height for more levels, so check the size you are buying.

Measure Against 19.7 Inches

The usable platform is 19.7 inches wide and 16.9 deep, on a rack 23 inches across overall. Width is what catches people out, so measure your widest chassis against the 19.7-inch figure rather than against the outside of the frame.

Move the Shelves Where You Want Them

Solidsteel builds the S5 so shelf spacing can be changed at any time rather than being fixed at the factory. A rack bought for one system can be reset for the next one, which is not something most racks at any price will let you do.

Two Levels of Decoupling, Not One

A floor carries vibration upward, and the components on a rack add their own. Most racks answer that once, at the feet. The S5 answers it twice, and the second answer is the one underneath your equipment.

Cones Into Cups, Under Every Component

The upper platform rests on four adjustable Solidsteel cones dropped into cup recesses inset in the shelf below. Contact happens at four points rather than across a flat face, and the platform can be leveled independently of the rack it sits on.

Filled Aluminum Below That

The support tubes are aluminum filled with StratoCell sound-absorbing foam, the same construction Solidsteel uses right across the S range. A hollow tube rings when something excites it, where a filled one has very little left to give back.

Spikes and Pads at the Floor

Adjustable stainless steel spikes carry the whole rack, reaching through carpet to the floor beneath and leveling it on boards that are never quite true. S Series steel floor pads are included for hardwood and tile.

Nothing Encloses the Electronics

No back, no sides, no doors. Warm air leaves a component upward and sideways into open air, which no closed cabinet can offer whatever is cut into its panels, and cables reach the back of everything without a struggle.

The floating platforms help here in a way that is easy to miss. Each one stands clear of the shelf below it on its four cones, so there is a layer of air underneath every component as well as all around it.

Set the Cones, Then the Spikes

Solidsteel publishes a step-by-step installation guide for the series, embedded below, and it is worth watching once before the carton is opened. The rack bolts together and the platforms go on last.

Level the rack on its floor spikes first, with the shelves empty. Then set each upper platform on its four cones and check it sits without rocking. Doing it in that order means adjusting one thing at a time.

Plain Enough to Live With

Ennobled MDF under a polymer laminate, in black, on aluminum supports. The lines are quiet and the rack is 23 inches across, so it sits beside furniture rather than dominating a room the way a wide rack does.

See It in Action

Solidsteel’s official installation guide for the S5 series, including how the upper platforms seat on their cones:

Who Is the Solidsteel S5 Best For?

• You want isolation built into the rack — a second platform on four cones under every component, not just spikes at the floor.
• You own something heavy — 121 pounds a level, the same on every shelf, so placement is your choice rather than the rack’s.
• Your system will change — shelf spacing can be reset at any time, so the rack adapts instead of being replaced.
• You have a turntable — the top platform has nothing above it and floats on its own cones, which is the best position this rack offers.
• You want to go further still — the platforms are a clean starting point for isolation feet under a particular source.

Pairs Well With

• A turntable — the top platform is the one with nothing above it and its own decoupled shelf underneath the deck.
• Isolation feet and platforms — for the one component you want to treat separately, on top of a shelf that is already decoupled.
• Interconnects — plan runs around the tall bottom bay, since that is where the amplifier usually ends up.
• A phono stage — small enough to share a level, and it benefits as much as the deck from a platform that is not touching the frame.

Frequently Asked Questions

What are the isolation platforms?

Each level is two shelves. The lower one is structural; the upper one rests on four adjustable steel cones seated in cup recesses, so your component sits on a platform that is not in direct contact with the rack.

How much weight will each shelf hold?

Up to 55 kilograms, which is 121 pounds, and it applies to every level including the top. That is the figure for the shelf as a whole, platform included.

Will my amplifier fit?

On the smaller racks the bottom bay gives 12 inches of clear height, with 8 inches between the levels above. Check your chassis width against the 19.7 inches of usable platform, which is narrower than the frame.

Can I change the shelf spacing later?

Yes. Solidsteel builds the S5 so spacing can be adjusted at any time, so a rack set up for one system can be reset when the components change rather than replaced.

How hard is it to assemble?

It bolts together, and Solidsteel publishes a step-by-step guide which is embedded above. Level the rack on its spikes while it is empty, then set each upper platform on its cones.

Will it mark my floor?

S Series steel floor pads are included to sit under the adjustable spikes, which is what you want on hardwood or tile. On carpet the spikes can reach through to the floor beneath.
