Solidsteel VL-4 Four-Shelf Vinyl Library and Audio Rack - Walnut

The Solidsteel VL — Fifty Inches Wide, With the Records Built In

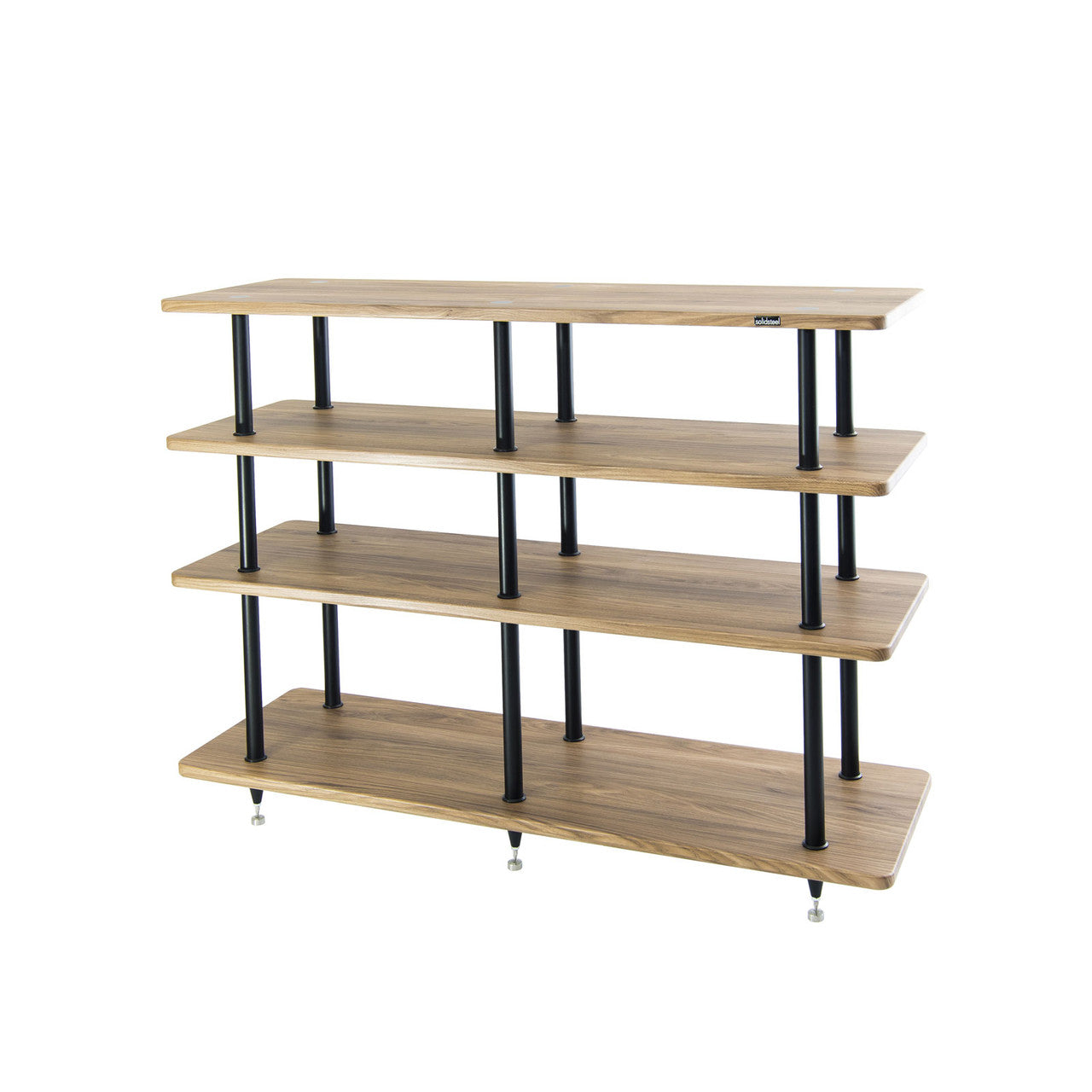

Almost every audio rack is a tower. The VL is not. It runs 50.4 inches across and 16.1 deep, with every shelf divided into two bays side by side, and the bottom pair given over to records rather than electronics.

That shape changes what the rack can do. Gear spreads out instead of stacking up, the collection sits at the same height as the turntable that plays it, and the whole thing stays low enough to see over.

How Much Will a Fifty-Inch Shelf Hold?

Two Hundred and Sixty Pounds on Every Level

Each shelf is rated at 264.5 pounds, which is 120 kilograms, and Solidsteel tests to that figure. It applies to the top platform and to every shelf below it, so nothing about what you own has to determine where it sits.

Two Bays Side by Side, Not One Long Shelf

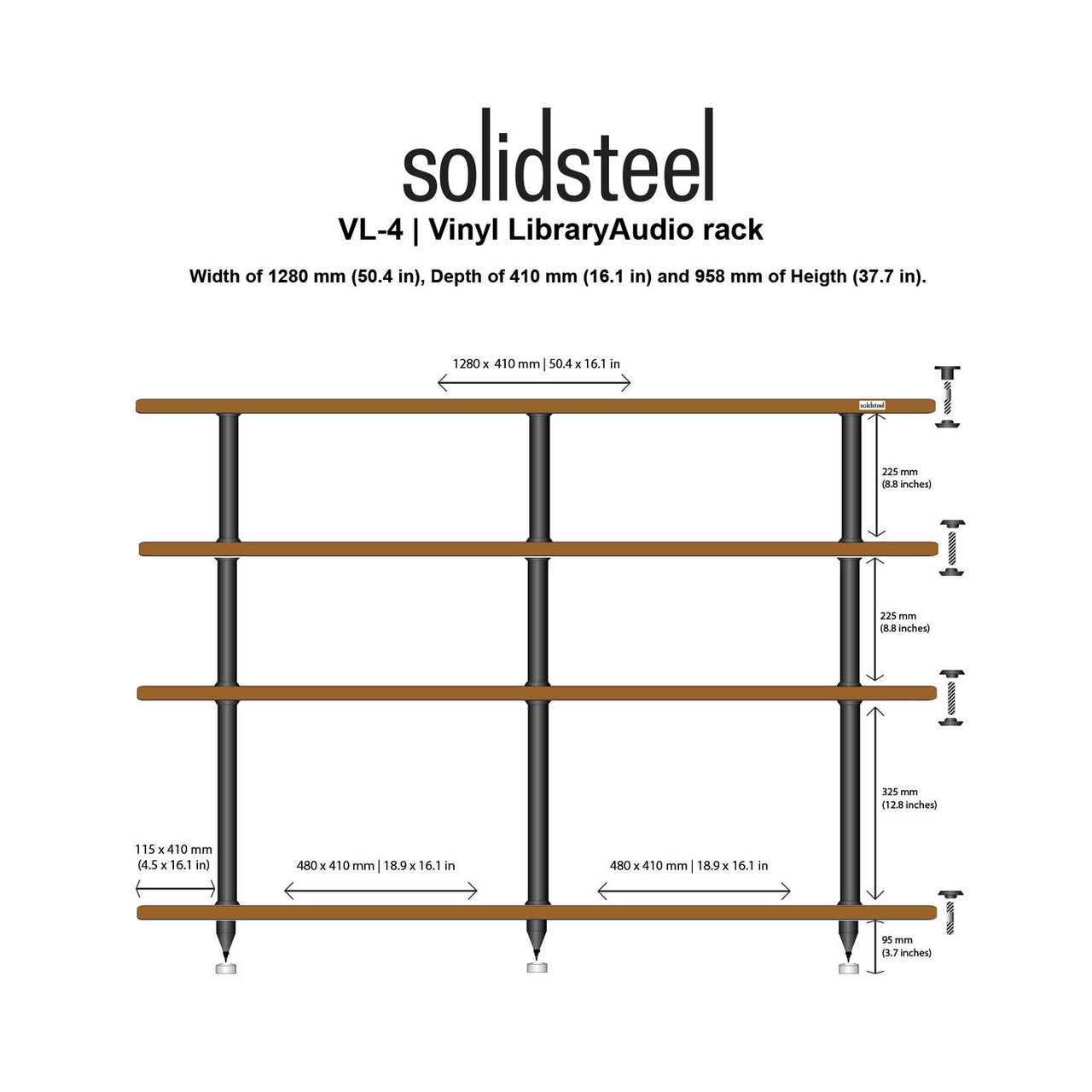

Each level is split into two usable spaces of 18.9 inches wide. That is the figure to measure your components against, not the 50.4 inches of overall width — a single very wide chassis will not span the divide, but two normal ones sit happily beside each other.

The Bottom Bay Is Always the Record Bay

Whichever size you choose, the lowest level is the vinyl shelf and it has 12.8 inches of clear height, which takes a twelve-inch sleeve standing upright with room above it. The gaps between the shelves above are 8.8 inches, sized for components.

The Top Shelf Takes the Deck and One More Box

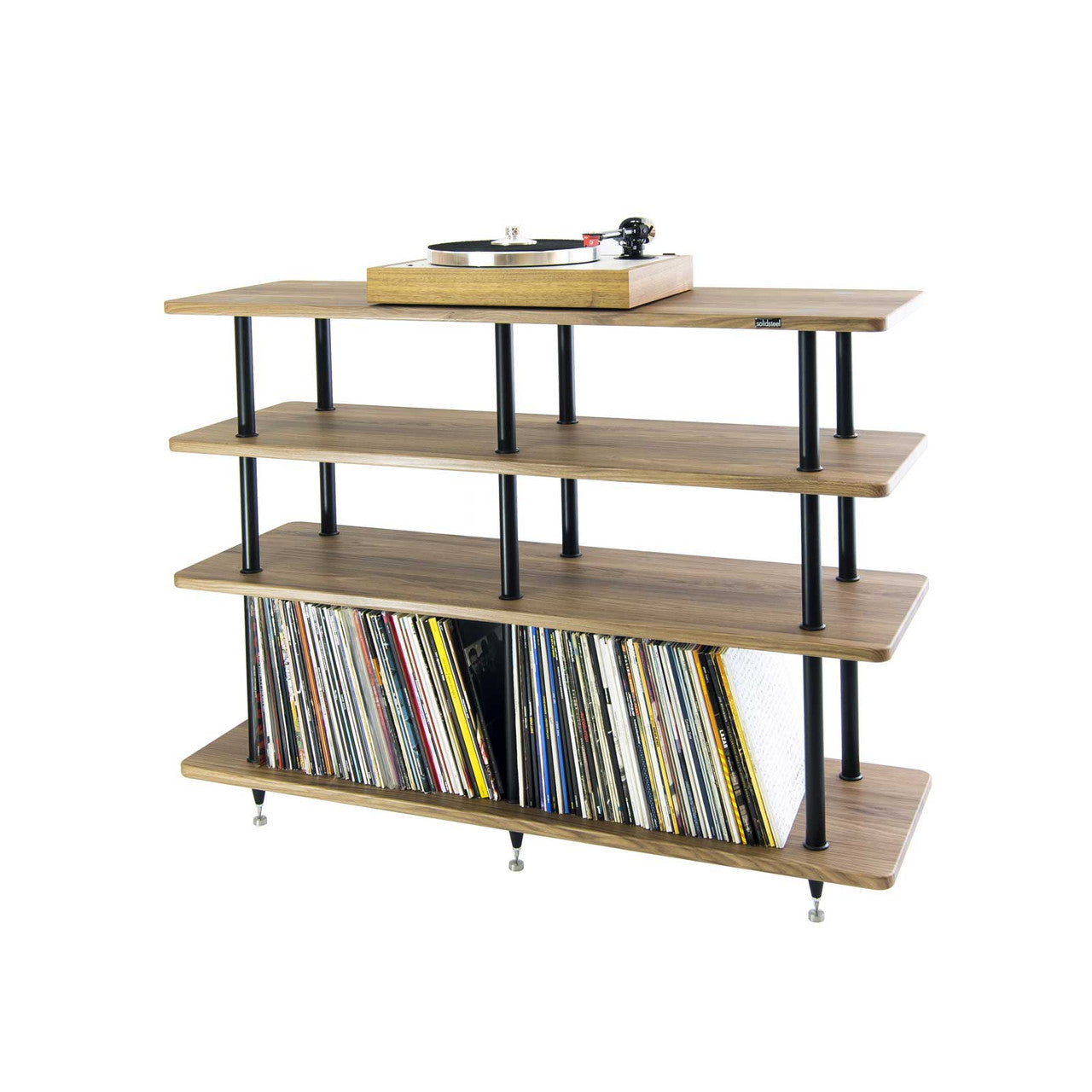

At 50.4 inches across, the top platform has room for a turntable and something else beside it — a phono stage, an integrated amplifier, a streamer. On a tower rack that second box would have to go on a different level entirely.

Spikes Inside the Frame, Not Just Underneath It

A floor carries vibration upward and speakers put more of it into the room. What a rack does with that depends on its materials and on how the parts meet each other, and Solidsteel works on both.

Filled Aluminum, Borrowed From the S Series

The support posts are anodized aluminum filled with a sound-absorbing material, which is the same construction as Solidsteel’s S Series component racks. A hollow tube rings when something excites it; a filled one has far less to give back.

Inner Spikes Where the Parts Meet

The frame hardware uses spikes internally, so the joints between post and shelf meet at points rather than across flat faces. Outside, adjustable stainless steel spike feet couple the rack to the floor and level it, with protective discs included for hard floors.

A Full Record Bay Makes It Steadier

Two hundred records weigh close to a hundred pounds, and on this rack all of that sits in the lowest bay. Reviewing the three-shelf VL, StereoNET’s Jay Garrett found that the loaded bottom shelf improved how firmly the rack coupled to the floor through its spikes.

Open Front and Back, So Cables Reach

There is no back panel, no side panel and no door anywhere on the VL. Warm air leaves a component through its top and its flanks without meeting anything, which is the one thing a closed cabinet cannot offer whatever is cut into it.

The open back matters just as much for what plugs in. Tonearm leads, a ground wire and power cords all have to get somewhere, and a rack this wide would be very awkward to live with if you had to reach around it.

Build It Upside Down

That is the trick, and it comes from someone who has built one. Start with the top shelf face down and work up from there, and the rack assembles far more easily than trying to hold shelves level while you thread posts underneath them.

Lay the parts out first and check them against the sheet before you start. Some of the bolts have different thread depths at each end, so a methodical five minutes at the beginning saves backtracking later.

One practical note: the shelves are 50 inches long and the carton is heavy. Getting the box to the room where the rack will live is a two-person job, and it is worth clearing the floor around it before you open anything.

Where the Record Collection Actually Lives

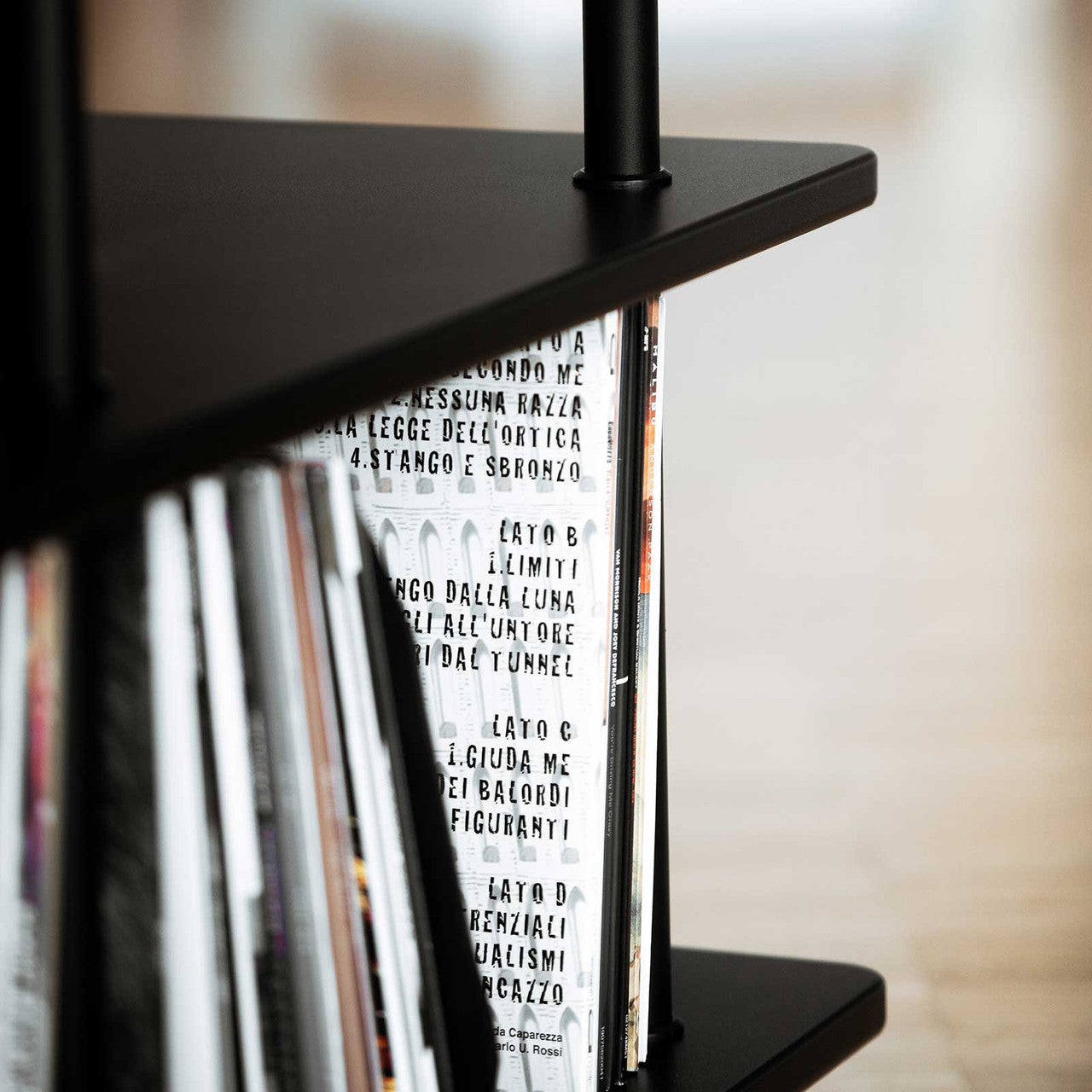

Around two hundred LPs fit in the bottom bay, split between its two sections and standing upright with their spines facing out. That is a collection you read across rather than one you dig through, sitting directly below the deck that plays it.

Solidsteel builds the VL to be added to. A rack can gain levels as a system grows, so a smaller one becomes a larger one rather than being replaced when the collection outgrows it. Call us on 800-942-0220 about expansion parts before you place an order.

Low and Wide, Not Tall and Narrow

At 16.1 inches deep and wider than most sideboards, the VL reads as furniture rather than as equipment. Black or walnut shelves in polymeric laminate over 0.9-inch MDF, on a black frame, and the spines of the records become part of how it looks.

It is built in Italy, and the metal parts that are not aluminum are galvanized and then powder-coated against rust. This is a rack meant for a room people actually sit in, which is exactly where a record collection belongs.

What Reviewers Are Saying

Jay Garrett reviewed the three-shelf VL for StereoNET and gave it an Applause Award. It is “a definite contender for those looking to house their hi-fi and records together, as few purpose-designed hi-fi racks offer this,” he wrote.

On build, he found it “a sure improvement over standard flatpack furniture, as it’s been designed with audio in mind,” and reckoned the shelf takes more records than the published figure suggests.

See It in Action

Solidsteel’s official installation guide for the VL series, worth watching before you open the carton:

And an unboxing and build of a VL, walked through by Solidsteel’s own team:

Who Is the Solidsteel VL Best For?

• You want the records beside the deck, not across the room — the bottom bay holds around 200 LPs directly under the turntable that plays them.
• You have wall space rather than height — 50.4 inches wide and 16.1 deep, low enough to sit under a window or a wall-mounted screen.
• You own heavy components — 264.5 pounds per shelf, tested, and the same figure on every level from top to bottom.
• You want two boxes on the top platform — the deck and a phono stage or amplifier fit side by side rather than on separate levels.
• You want the deck steadier still — the posts are filled and spiked already, and isolation feet under the turntable take it further.

Pairs Well With

• A turntable — the top platform carries the deck and a second component beside it, with the records one level down.
• Isolation feet and platforms — between a source and its shelf, for the one component that deserves more than the rack alone.
• Interconnects — a rack 50 inches wide spreads components further apart, so work your runs out from the layout you intend.
• A phono stage — there is room for one next to the deck on the top shelf, which is the shortest cartridge lead you can give it.

Frequently Asked Questions

How many records will it hold?

Around two hundred twelve-inch LPs in the bottom bay, divided between its two sections. The bay has 12.8 inches of clear height, so sleeves stand upright with room to get a hand in above them.

How much weight will each shelf hold?

264.5 pounds, which is 120 kilograms, and Solidsteel tests each shelf to that figure. It is per shelf rather than shared, and it is the same on the top platform as on the bottom.

Will two components fit side by side?

That is what the rack is for. Each level is divided into two usable bays of 18.9 inches wide, so measure your chassis against that figure rather than against the 50.4 inches of overall width.

How hard is it to assemble?

It is a bolt-together job with a single-sheet guide and an official video. Build it upside down starting from the top shelf, lay the hardware out first, and allow for two people to move the carton into the room.

Can I add a shelf later?

Solidsteel designs the VL series to be expanded, so a rack can gain levels as a system grows. Call us on 800-942-0220 before you order and we will confirm what is available for the size you are buying.

What is the difference between the black and walnut versions?

The shelf laminate. Both run on the same black aluminum frame with the same hardware, the same capacity and the same dimensions, so the choice is about the room rather than about the rack.
