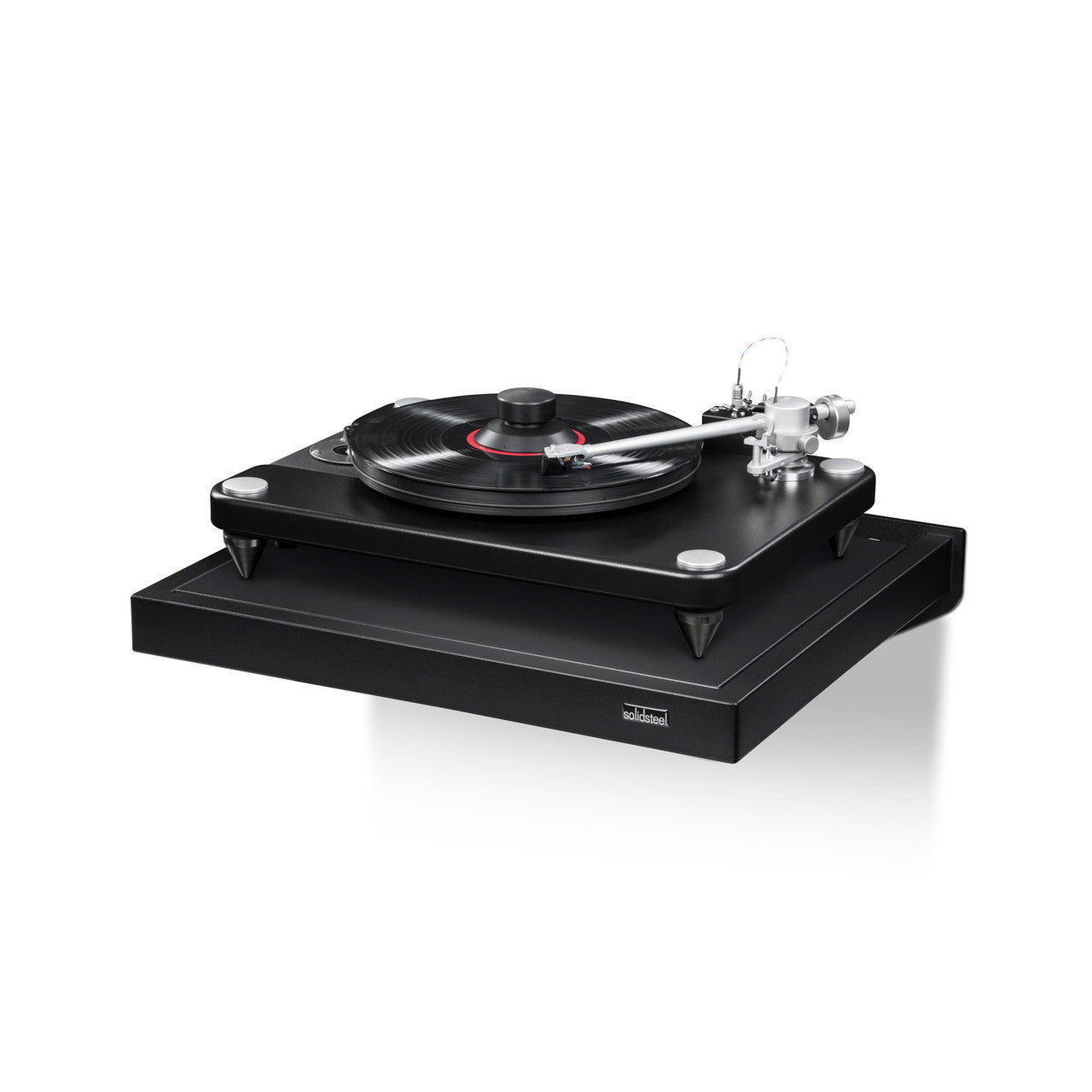

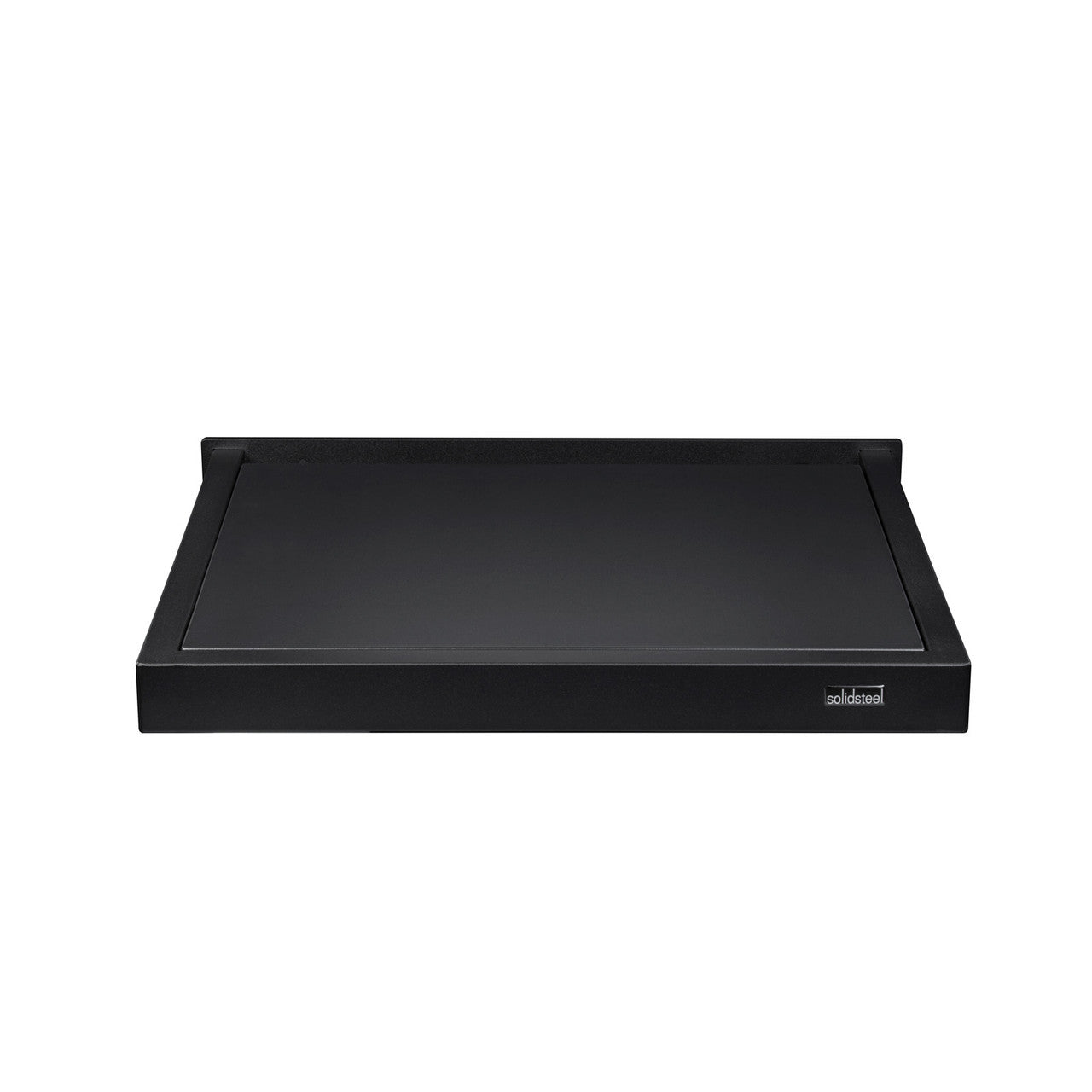

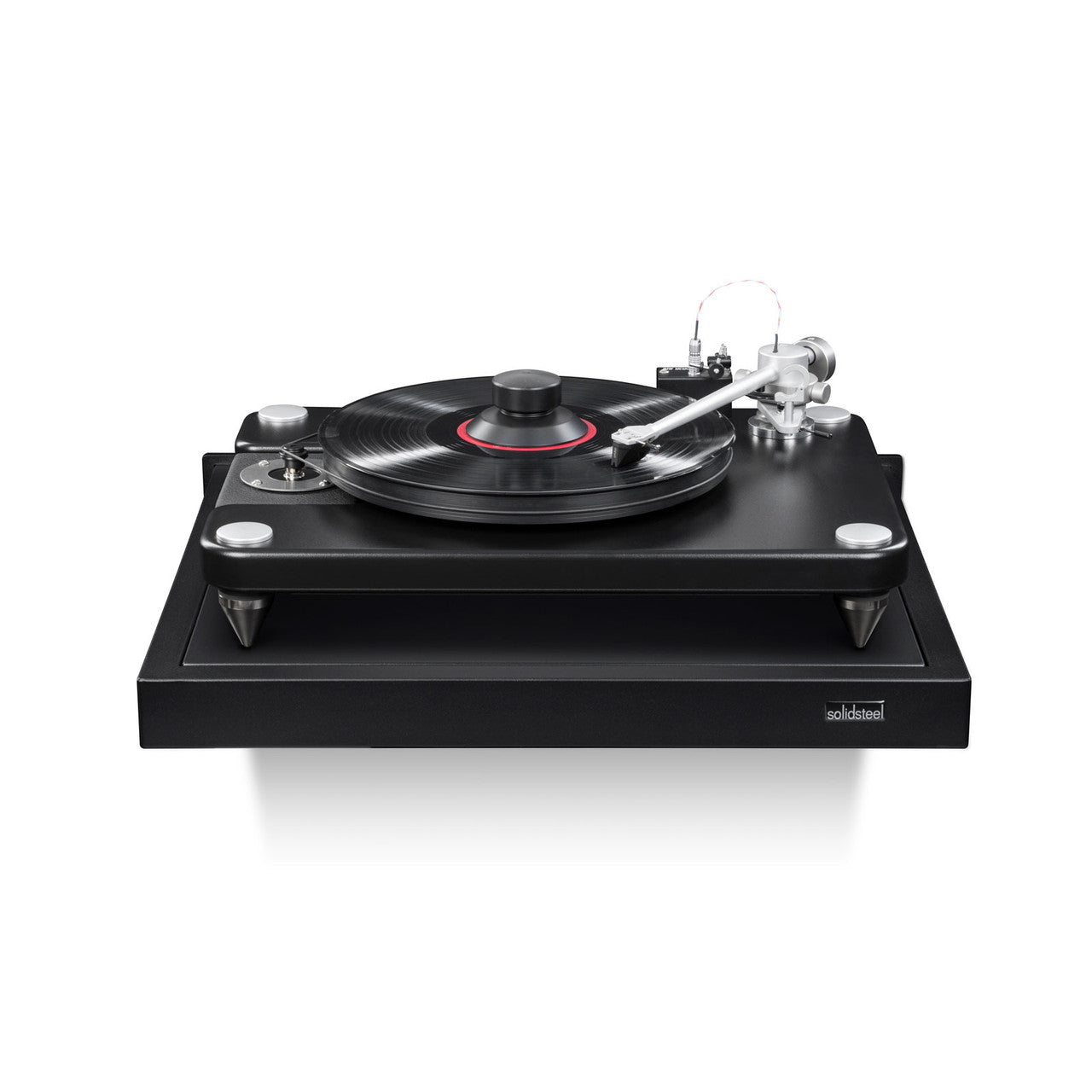

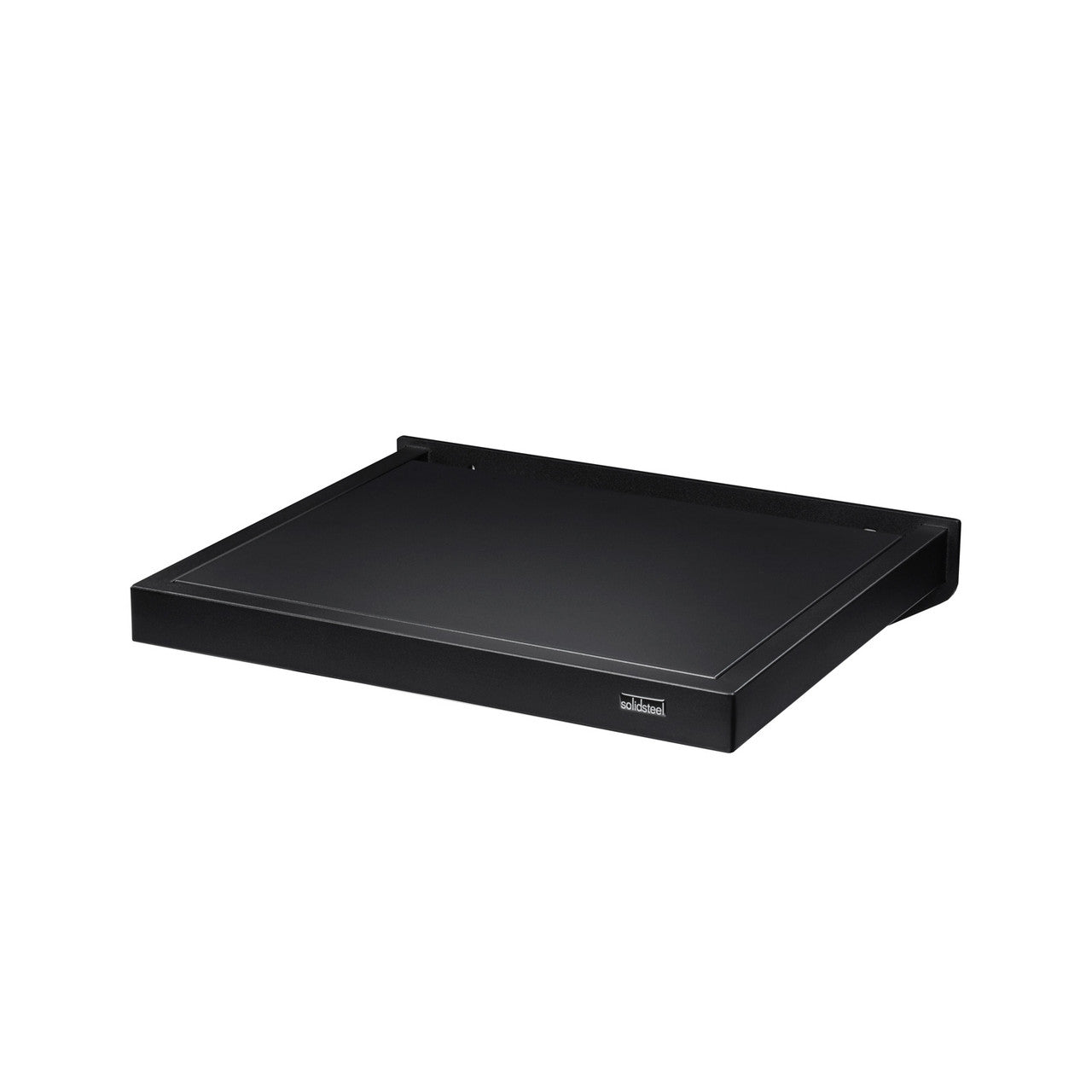

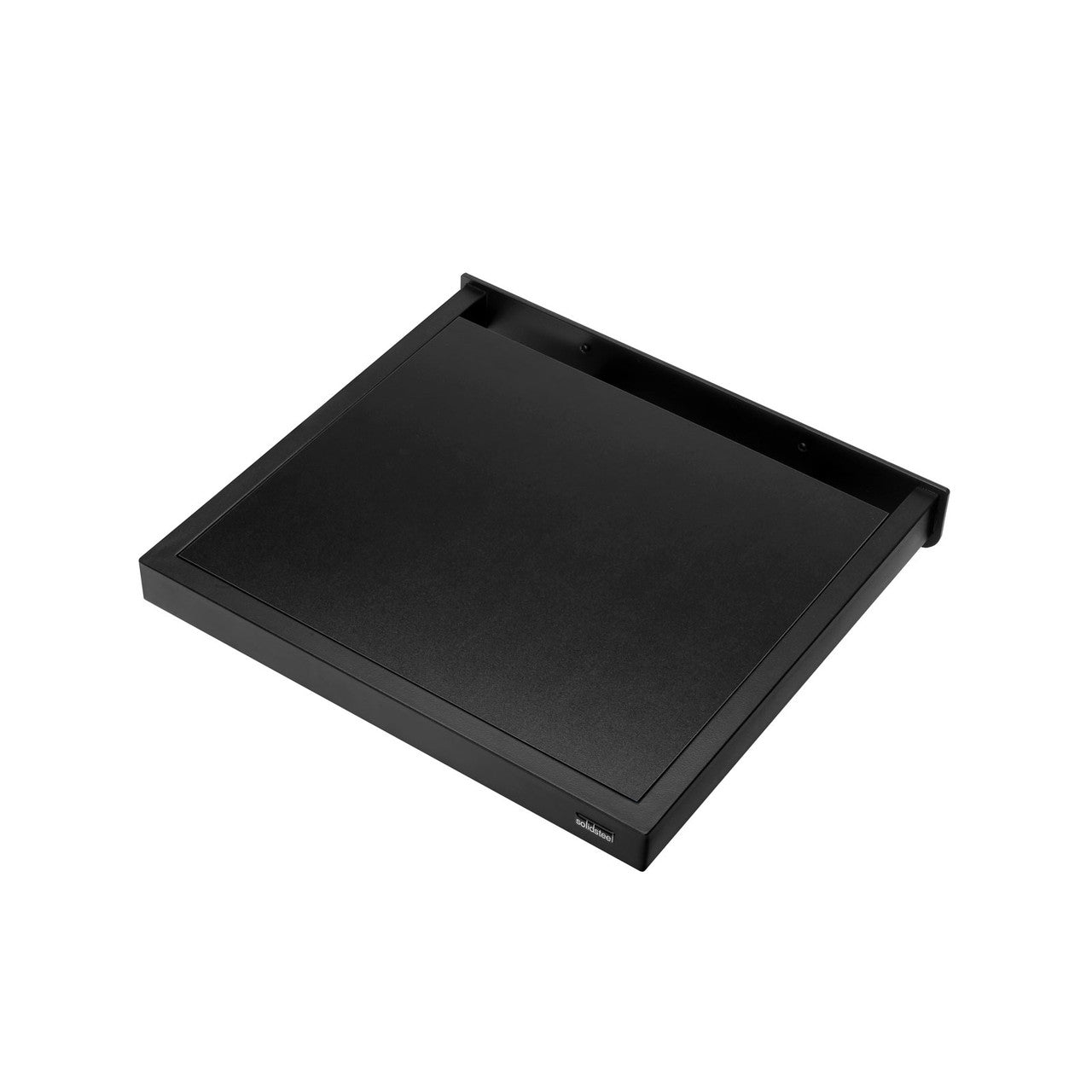

Solidsteel WS5 Turntable Wall Shelf - Black

The Solidsteel WS-5 — Rated at 60 kg, Because Some Turntables Need It

A wall shelf built specifically for turntables, rated to a maximum load of 60 kg. That is double what the mainstream wall mounts carry, and it is the reason this shelf exists: a genuinely heavy deck rules most wall shelves out before any other consideration.

The shelf is not light either. Solidsteel describes the WS-5 as "a rock-solid platform delivering reference-level isolation at an attainable price, weighing in at a massive 13 Kg (28 lbs)."

Construction

Mass Where It Counts

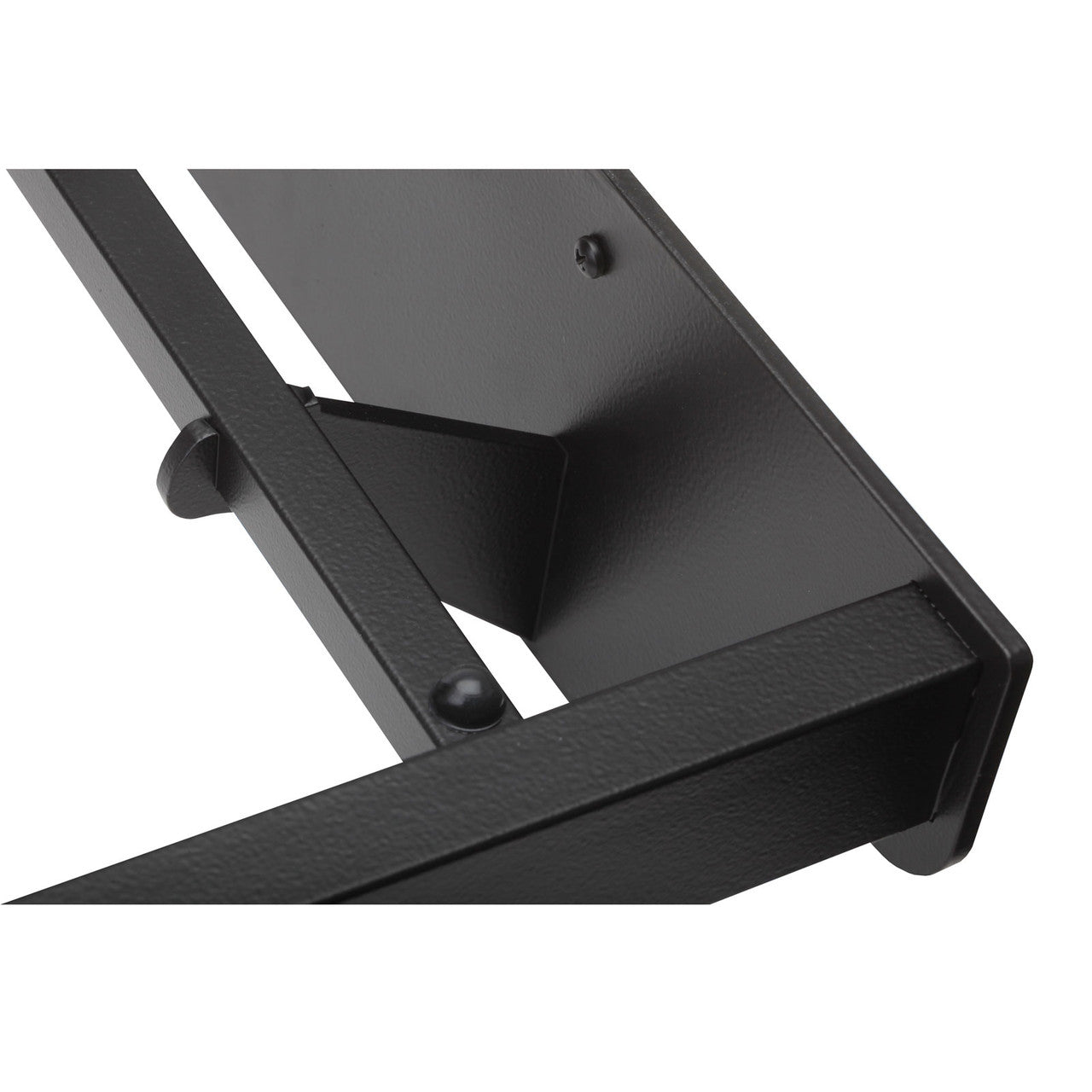

Heavy gauge steel forms the perimeter and the wall plate, and Solidsteel makes a point of the plate being massive — on a cantilever, the fixing to the wall is where the load is ultimately resolved, so that is where the metal belongs.

The shelf itself is ennobled MDF with a polymer laminate finish. Wood composite behaves differently from metal under vibration, which is why the two are used together rather than building the whole thing from one material.

Leveling

Adjustable aluminum cones set the shelf true. On a wall shelf that is not a nicety: the plate goes onto whatever the wall gives you, and the cones are how you recover a level surface from a plate that went on slightly out.

Fit and Capacity

The Number That Decides It

60 kg — around 132 pounds — of maximum load. For comparison, the mainstream wall mounts in this category are rated at 30 kg. If your turntable is a large plinth-and-outboard-motor design with a substantial platter, that difference is the whole conversation.

The shelf's own 13 kg matters too, because the wall has to carry that before it carries anything else. Fixings and wall construction need to suit the combined figure, not just the turntable.

Who Is the Solidsteel WS-5 Best For?

• Your turntable is too heavy for a normal wall shelf — 60 kg against the 30 kg most are rated at
• Your floor is suspended timber — the heavier the deck, the more it is worth taking off a springy floor
• You want the shelf itself to have mass — 13 kg of shelf resists what a lighter one transmits
• You want to level it precisely — adjustable aluminum cones rather than fixed feet
• Your wall is plasterboard on studs — a 13 kg shelf plus a heavy turntable is a serious load; get the fixings assessed first, and see wall mounts and platforms for lighter options

How Do You Install It?

This is a two-person job — the shelf alone is 28 pounds before the turntable goes near it. Fix the wall plate into solid structure with fasteners rated for the combined load, check it for level, then mount the shelf and set the cones. Level the platter, not the shelf, and re-check tracking force afterward.

Pairs Well With

What most owners fit alongside a wall shelf.

• Isolation components — for what goes between the shelf and the turntable
• Cartridge alignment tools — for releveling and checking the arm afterward
• Stylus force gauges — re-check tracking force after the turntable moves
• Record mats — worth revisiting once the deck is genuinely steady

Frequently Asked Questions

How much will it hold?

Solidsteel rates the WS series at 60 kg maximum load, roughly 132 pounds. That is double the usual rating in this category and is the main reason to choose it.

How heavy is the shelf itself?

13 kg, or 28 lbs. Factor that into the load your wall and fixings have to take, and plan on a second pair of hands for the install.

What is the shelf made of?

Ennobled MDF with a polymer laminate finish, on a stainless steel frame with heavy gauge steel at the perimeter and the wall plate.

Can I mount it on a stud wall?

The combined weight of shelf and turntable is substantial, so the fixings and the structure behind them need to be assessed for that load rather than assumed. Solid masonry is the straightforward case.

How do I level it?

Adjustable aluminum cones. Set them with a spirit level on the platter itself rather than on the shelf surface, since the platter is what has to be true.
