Woo Audio WA5 LE Headphone Amplifier - Silver

Woo Audio WA5-LE Headphone Amplifier

What You Need to Know

A Reference Tube Amplifier for Headphones

The Woo Audio WA5-LE is a two-piece, all-tube headphone amplifier built around the famous 300B power tube. It is made for listeners who want a rich, open, and lifelike headphone experience.

The WA5-LE is a dedicated headphone amplifier. Unlike the full WA5, it does not power speakers. Its aluminum chassis is available in Black or Silver.

The Special Sound of 300B Tubes

The single-ended Class A design keeps the signal path simple. Two 300B power tubes help voices sound natural, give instruments room to breathe, and bring a smooth sense of flow to music.

An All-Tube Signal Path

The WA5-LE uses two 6SN7 driver tubes, two 300B power tubes, and two 5U4G rectifier tubes. Point-to-point wiring and transformer-coupled outputs follow a classic, carefully built approach.

Match the Amp to Your Headphones

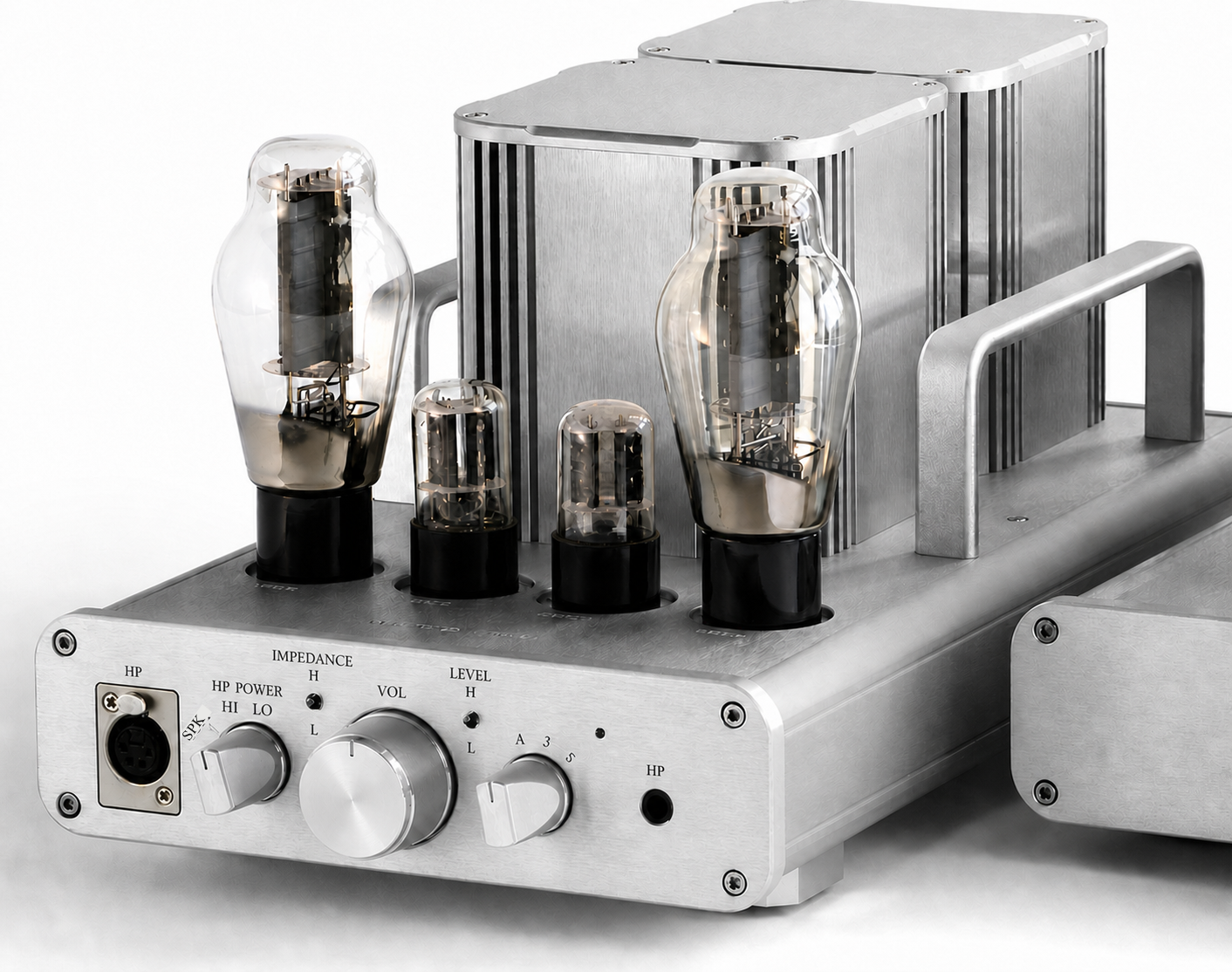

Front-panel switches let you choose high or low power, impedance, and output level. These settings help the WA5-LE work well with many sensitive, standard, and harder-to-drive headphones.

Balanced and Standard Headphone Outputs

Use the front 4-pin XLR output with a compatible balanced headphone cable. A 1/4-inch output is also included for standard headphone plugs. Both outputs can supply up to 8 watts in high-power mode.

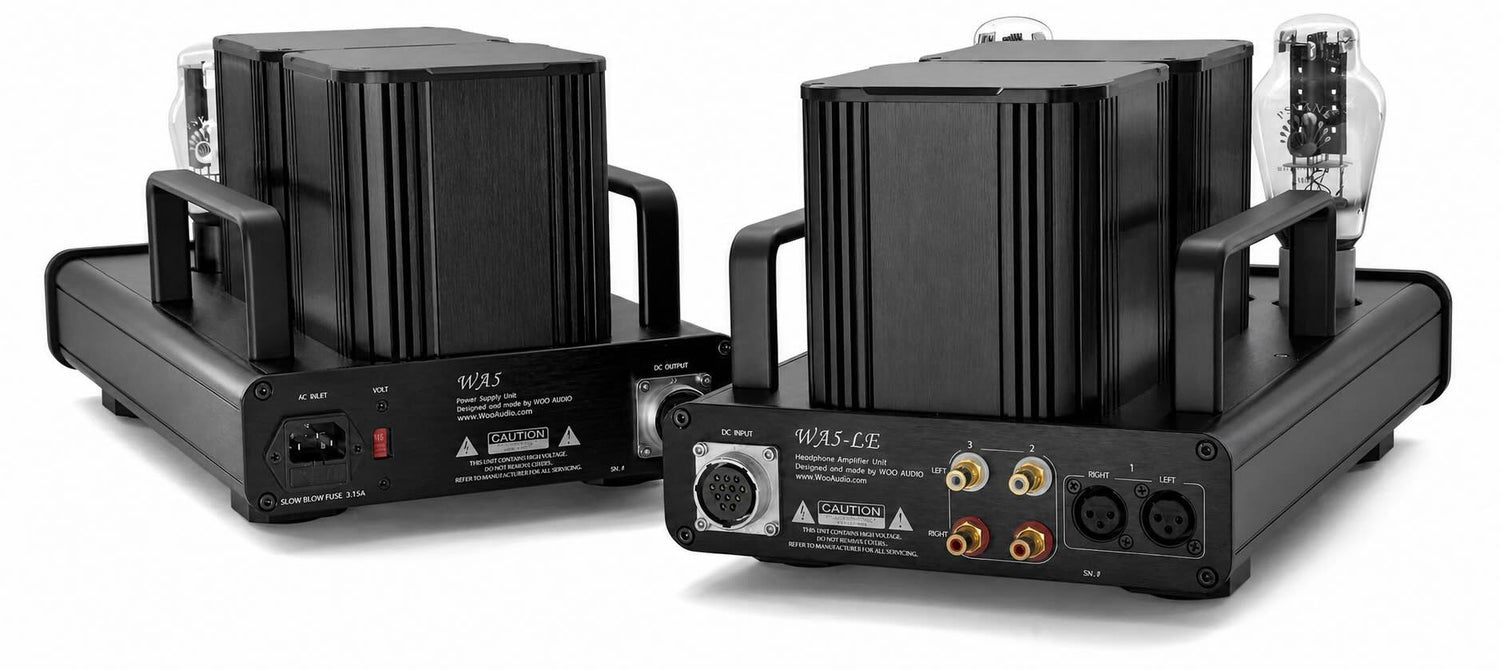

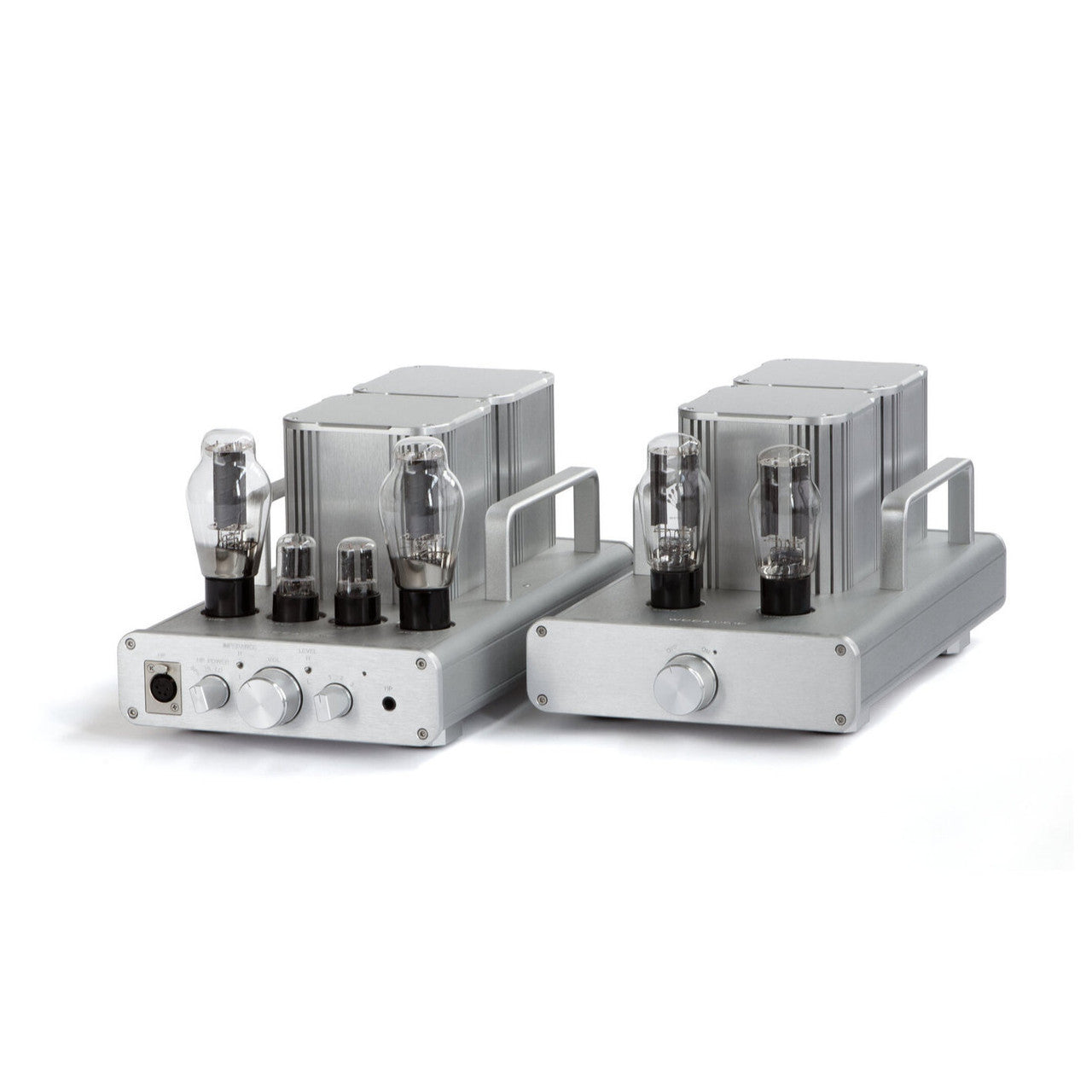

Two Chassis Keep Power Noise Away

The amplifier and power supply sit in separate full-size chassis. This keeps much of the power hardware away from the audio circuit and gives each section room to work.

Building Your System

Connect a DAC, phono preamp, or other source to the WA5-LE with RCA or XLR cables. The amplifier has no built-in DAC or streamer, so digital music needs an outside source component.

Place both chassis on strong, open shelves. The tubes become hot and need space above and around them. Woo Audio includes the six operating tubes and the cable that joins the two chassis.

Features & Specifications

300B Single-Ended Class A Design
Delivers the open, smooth, and natural sound loved by many tube listeners.

All-Tube Signal Path
Uses 6SN7 driver, 300B power, and 5U4G rectifier tubes with point-to-point wiring.

Up to 8 Watts of Headphone Power
Provides strong output for a wide range of demanding headphones.

Three Headphone-Matching Controls
Choose high or low power, impedance, and output level for a better match.

Two Headphone Connections
Includes both 4-pin XLR and 1/4-inch stereo outputs.

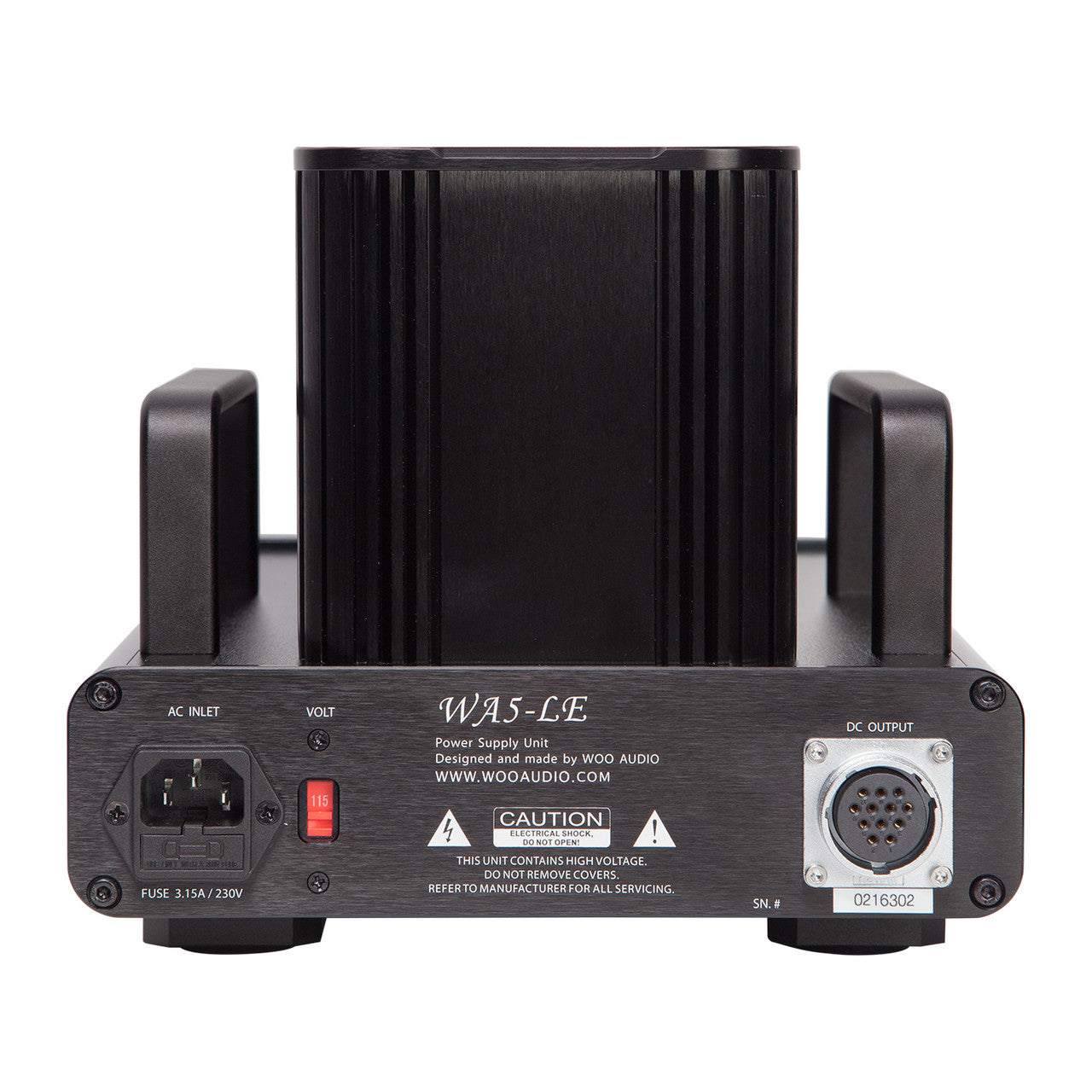

Separate Power Supply
A second chassis keeps the power section away from the main audio circuit.

Specifications

·       Type: Dual-chassis, single-ended Class A tube headphone amplifier

·       Tube Set: 2 x 6SN7, 2 x 300B, and 2 x 5U4G

·       Headphone Outputs: 4-pin XLR and 1/4-inch stereo

·       Power and Matching: Up to 8 watts; high/low power, impedance, and level settings

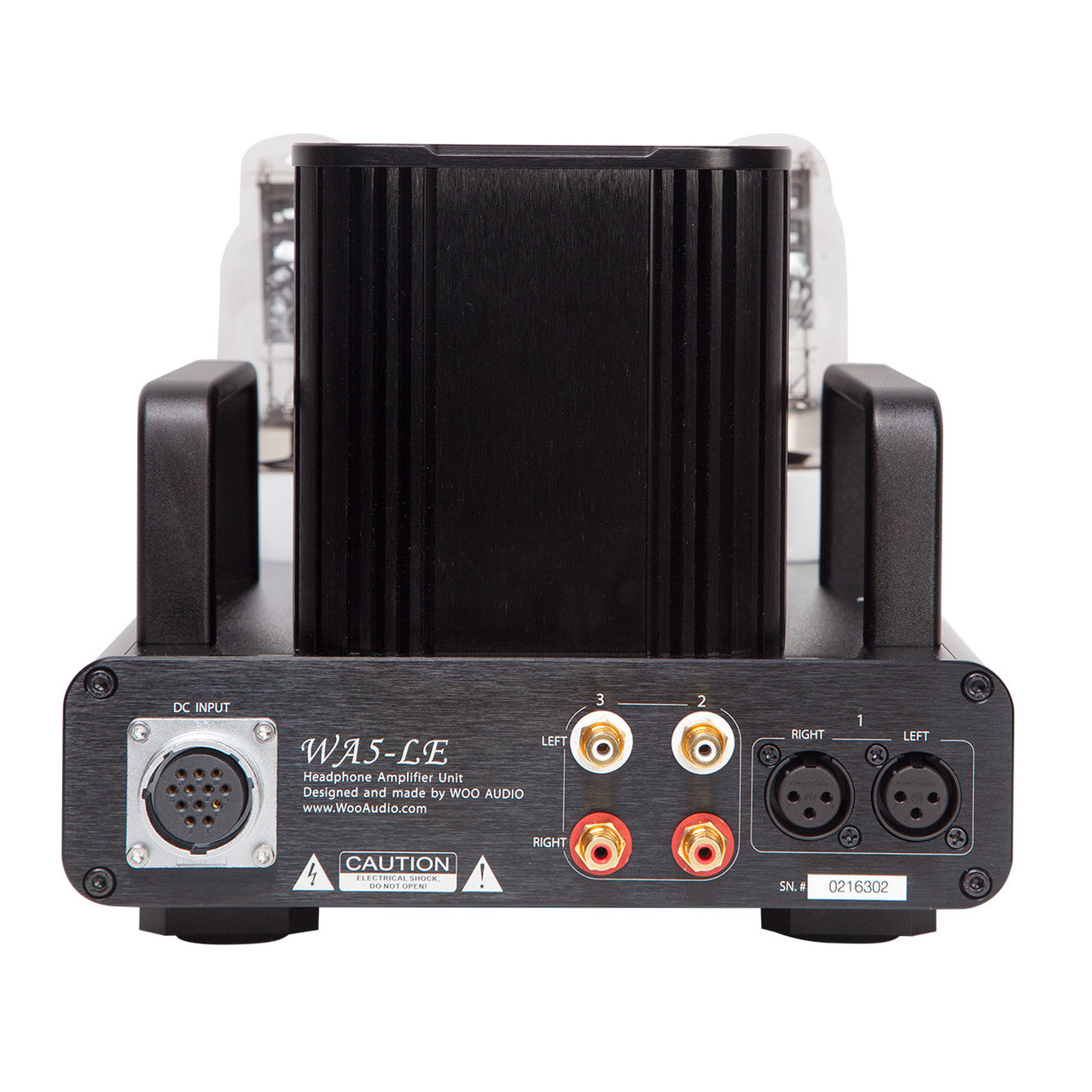

·       Inputs: 1 x XLR pair and 2 x RCA pairs

·       Size and Finish: Two 12 x 9 x 17 in. chassis; about 35 lb. each; black or silver

Frequently Asked Questions

Can the WA5-LE power speakers?
No. The WA5-LE is made only for headphones. Choose the full Woo Audio WA5 if you also need speaker outputs.

Does it have a built-in DAC or streamer?
No. Connect a separate DAC, streamer, phono preamp, or other analog source through the RCA or XLR inputs.

Will it work with all headphones?
It works with many dynamic and planar-magnetic headphones. Electrostatic headphones need a matching electrostatic amplifier or energizer.

Are the tubes included?
Yes. Woo Audio includes two 6SN7, two 300B, and two 5U4G tubes. Optional tube upgrades may be purchased separately.
