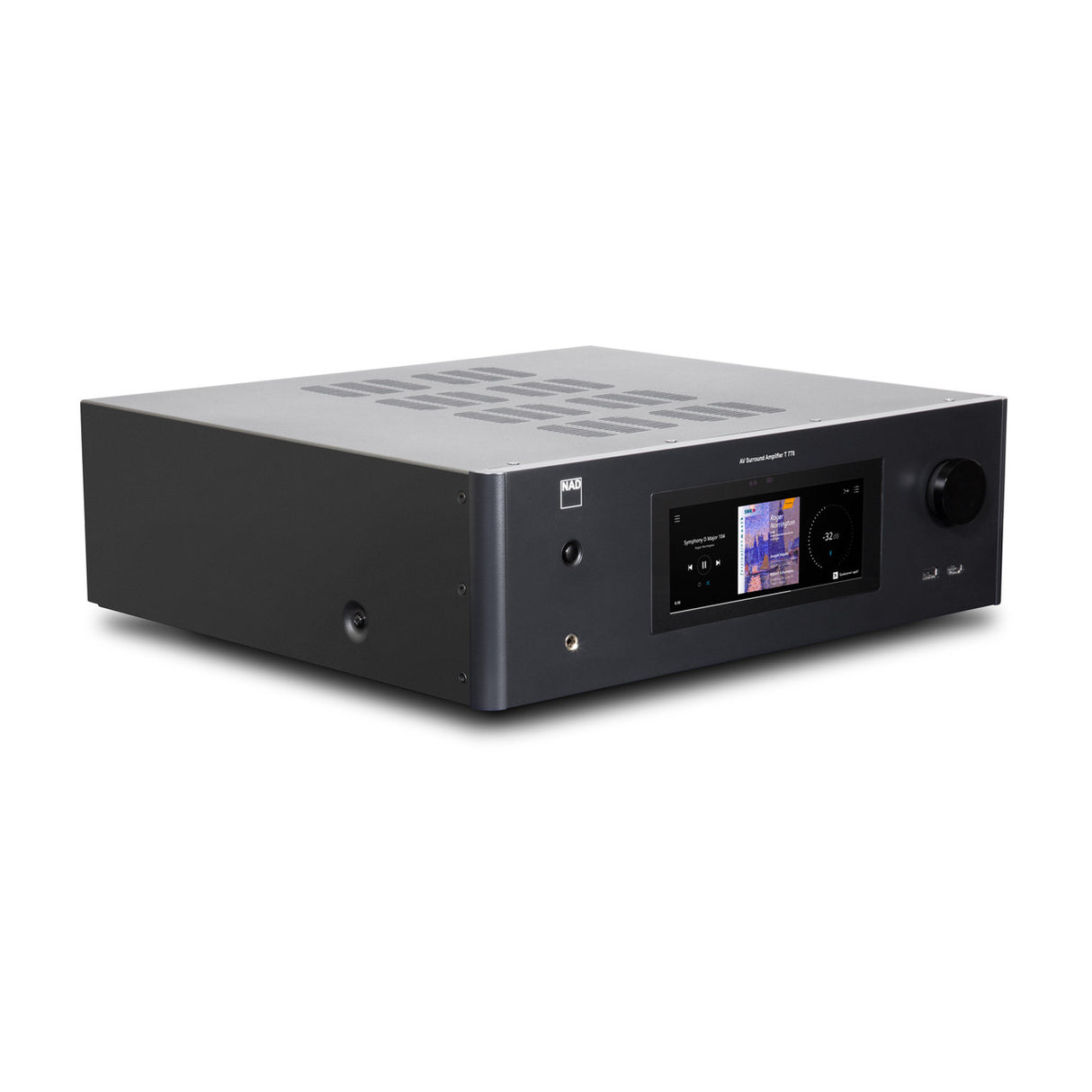

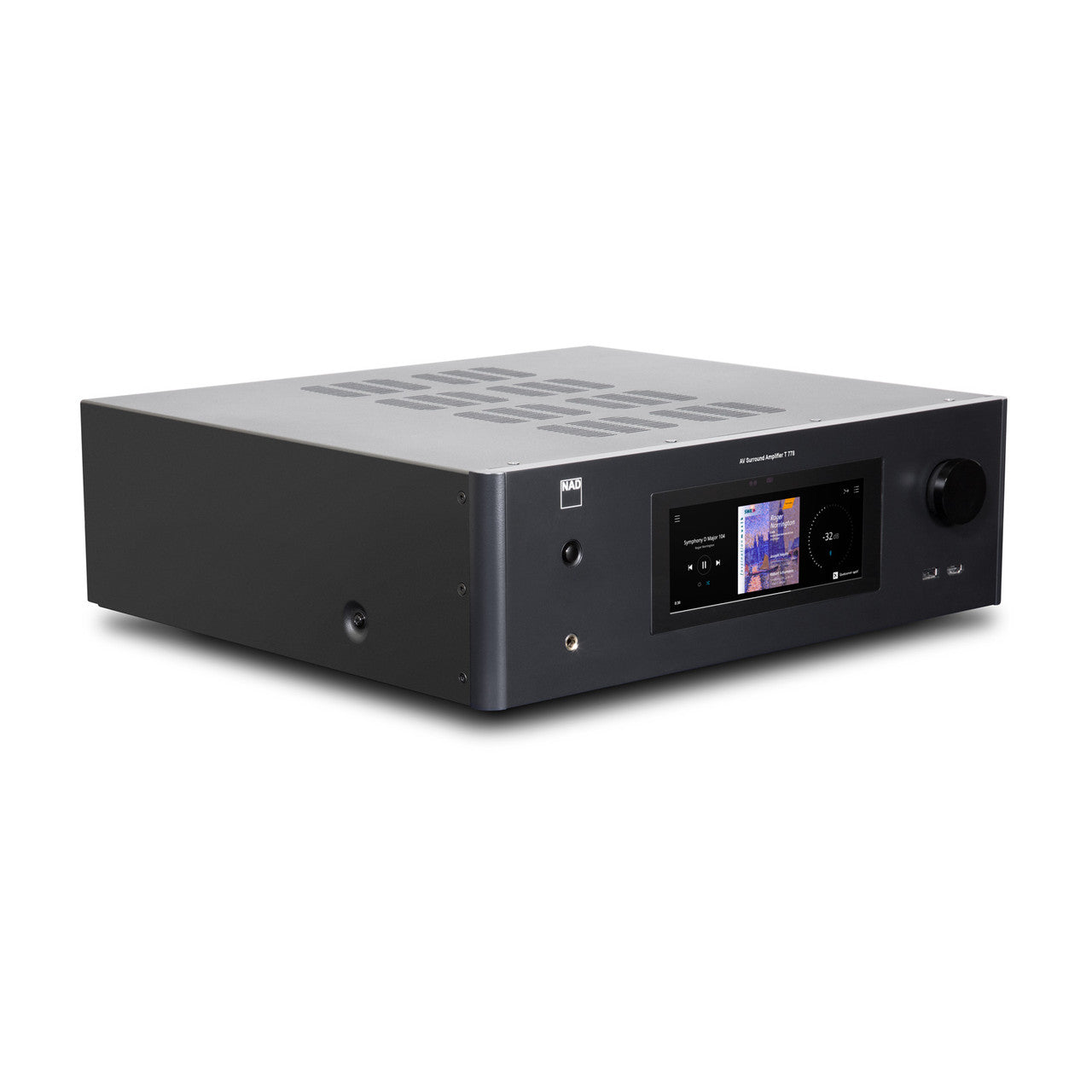

NAD T 778 Reference A/V Receiver
✔ 60-Day Money-Back Guarantee — Try it risk-free for 60 days
✔ Free Shipping on orders over $49
✔ Financing Available — Pay over time | Learn more
✔ Price Guarantee — We match authorized dealer pricing | Details
✔ Expert Help — Call us at 800-942-0220 weekdays 9am–6pm EST
Delivery and Shipping
Delivery and Shipping
- Audio Advisor will ship products anywhere in the United States, including Alaska, Hawaii, and U.S. Territories.
- For more information, visit our Delivery & Shipping Policies.
The T 778 multi-channel surround receiver exemplifies NAD’s unwavering philosophy of real-world performance, simplicity of operation, and future upgradability.
- 9 channels of NAD’s latest Hybrid Digital Amplifier Technology
- 140 Watts FTC power at 8 Ohms and 170 Watts at 4 Ohms
- 9 x 85 Watts FDP (Full Disclosure Power), all channels driven simultaneously at full bandwidth at rated distortion
- 165 Watts IHF Dynamic Power at 8 Ohms and 280 Watts at 4 Ohms
- Hybrid Digital Amplifier Technology
- TFT touch screen and improved ergonomics for user-friendly operation
- UHD 4K video pass-through
- High-Res BluOS enabled Network Streaming
- Simplified Streaming directly from Quboz app – Hi-Res playback up to 24-bit/192 kHz on BluOS Devices (with update)
- Dirac Live Room Correction
- MQA decoding available on all digital inputs
- AirPlay2
- MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
- CI friendly- RS232 Serial Control Port. 12V Trigger In/Out
- IR In with learning function
- 3U Low profile rack-mount chassis
Amplifier FTC
- 8 Ohms: 140W (21.5dBW)
- 4 Ohms: 170W (22.3dBW)
- Full Disclosure Power (all channels driven simultaneously at full bandwidth at rated distortion): 9 x 85W
Amplifier IHF Dynamic Power
- 8 Ohms4 Ohms: 280W (24.5dBW)
- Total harmonic distortion at rated power: <0.08%
- IM distortion at 1/3 rated power: <0.03%
- Damping factor: >300 (20Hz-1kHz, 8 ohms)Input sensitivity and impedance 1.12Vrms (ref. 8 Ohms, VOL at 0dB)
- Frequency response: +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
- Signal/noise ratio: >100dB (ref. rated power at 8 Ohms, A-Weighted)
- Signal/noise ratio: >85dB (ref. 1W at 8 Ohms, A-Weighted)
Line Input
- Frequency response: ±0.3dB (ref. 20Hz – 20kHz)
- Signal-to-noise ratio: >100dB (ref. 2V, A-Weighted)
- Total harmonic distortion: <0.01%
- Input sensitivity: 245mVrms (ref. 2V)
- Maximum output level: >4.5Vrms
Phono Input
- Input Sensitivity: 6.2 mVrms (2V output)
- Signal/noise ratio: >80 dB (2Vrms, A-WTD)
- Maximum input level: >90 mVrms (1 kHz)
General
- Standby power: <0.5W (full standby); <8W (network standby)
- Gross Dimensions: 17-1/8 x 6-13/16 x 16-3/4" (W x H x D)
- Net Weight: 26.7 lbs.
